Husqvarna ST 327T Owner's manual

English
586 83 48-26 Rev. 1
Repair Parts Manual
ST 327T
Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.
The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.
Please read the owner's manual carefully and make sure you
understand the instructions before using the machine.

HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her snow
thrower when ordering repair parts. The illustrations may or may not represent the actual assemblies;
therefore, it is not recommended to use this manual as a guide to assemble or disassemble the snow
thrower. Some hardware and parts are drawn larger in order to more readily identify them.
Each snow thrower has its own model number.
The model and serial numbers will be found on a decal attached to the rear of the snow thrower housing.
When ordering parts, always give the following information:
• Product - “SNOW THROWER”
• MODEL NUMBER - “ST 327T" (96193009301)”
• Part Number
• Part Description
TABLE OF CONTENTS
AUGER HOUSING / IMPELLER ASSEMBLY ..........................................................3-6
CONTROL PANEL / DISCHARGE CHUTE............................................................7-12
HANDLES .................................................................................................................. 13
DRIVE....................................................................................................................14-16
CHASSIS / ENGINE / PULLEYS ..........................................................................17-18
TRACKS................................................................................................................19-21
BAG OF PARTS....................................................................................................22-23
DECALS................................................................................................................24-25
ENGINE BREAKDOWN........................................................................................26-27
WARRANTY..........................................................................................................28-31

3
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
05.09.016-B
1
2
3
4
5X
5X

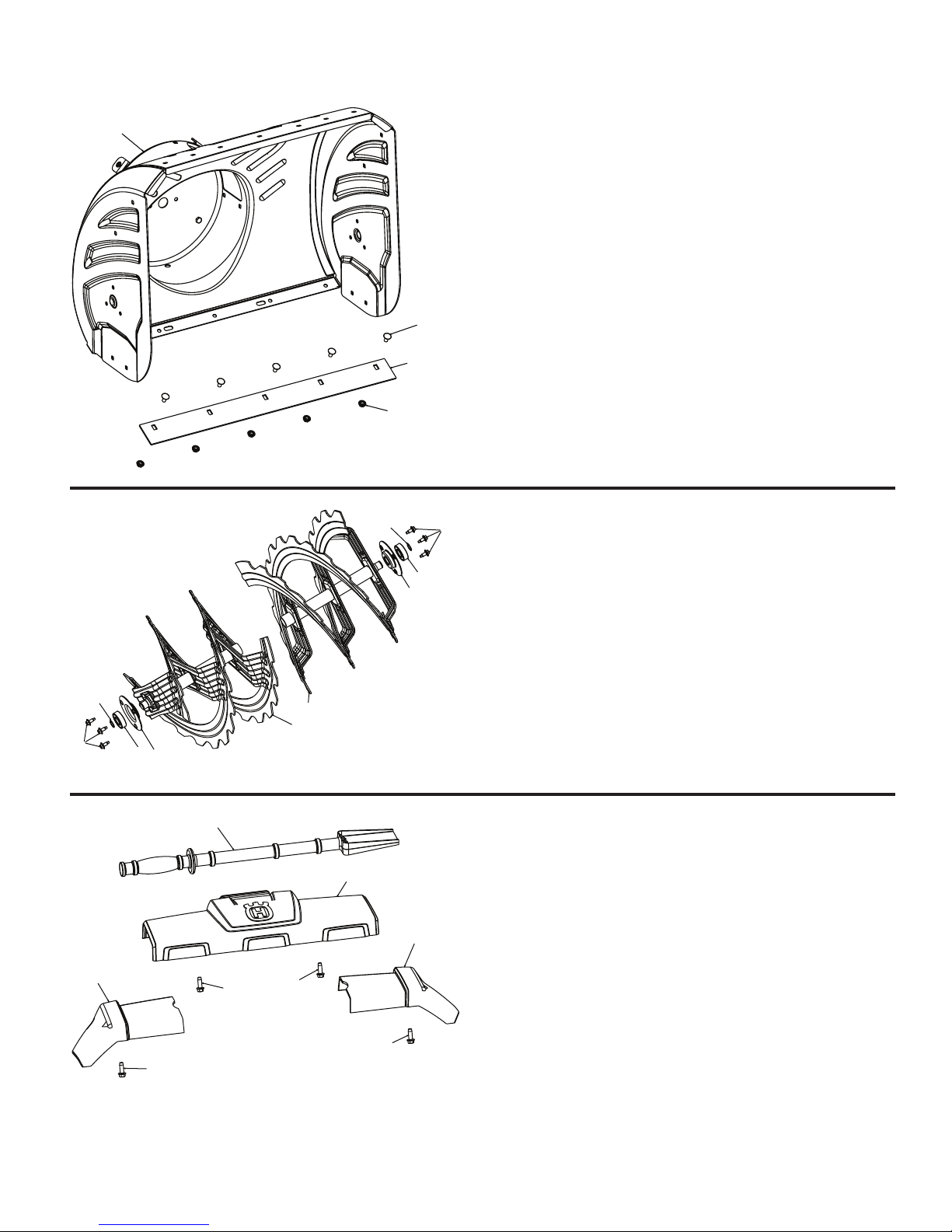

1 581 97 68-02 AUGER HOUSING 27 LS
2 585 04 84-02 SHAVE PLATE 27 LS MS428
3 872 27 05-05 BOLT CARRIAGE 5/16-18 X .625
4 532 15 53-77 NUT 5/16-18 HEX TOP LOCK
05.09.019-D
1
3
4
56
3
4
5
6
2
1 581 97 03-03 AUGER RIBBON 27 RH LS
2 581 97 04-03 AUGER RIBBON 27 LH LS
3 580 85 55-01 SUPPORT AUGER BEARING
4 532 43 76-22 BEARING IDLER 6203
5 812 00 00-28 RING RETAINING #5100-52
6 585 51 78-01 SCREW 1/4-20 X .65 W/DOG
POINT
05.09.040-A
1
2
3
4
5
55
5
1 532 19 21-99 TOOL CLEANOUT
2 586 41 48-01 TRIM AUGER HOUSING
FRONT ASM
3 586 33 03-02 TRIM AUGER HOUSING
WING RH
4 586 33 04-02 TRIM AUGER HOUSING
WING LH
5 817 67 04-12 SCREW HEX WASHER
TRI-LOBE 1/4-20 X 3/4

4
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
10
11
1
2
3
4
5
6
7
7
7
9
8
8
8
12
13
13
14 14
15
15
15
16
05.09.021-D

5
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 586 71 50-01 GEARBOX AUGER CAST IRON 5/8 THREAD
2 585 19 83-03 IMPELLER CAST IRON
3 586 71 54-01 PULLEY IMPELLER 7.9 SCREW ON
4 585 10 90-04 SUPPORT GEARBOX – GREY
5 585 05 69-01 CHUTE DISCHARGE BASE
6 532 18 40-95 BRACKET CORNER DISCHARGE BASE
7 585 51 18-01 BOLT SHEAR 1/4-20
8 873 80 04-00 NUT NYLOCK 1/4-20
9 872 11 05-10 BOLT CARRIAGE 5/16-18 X 1-1/4
10 585 69 13-01 NUT FLANGE NYLOCK 5/16-18 – BLK
11 532 75 11-53 NUT FLANGE TOP LOCK 5/16-18
12 585 83 20-01 BOLT CARRIAGE 5/16-18 X 5/8 – BLK
13 532 16 31-83 SCREW HEX HEAD 5/16-18 X 5/8
14 585 69 12-01 BOLT CARRIAGE WAFER HEAD 5/16-18 X 5/8 – BLK
15 532 42 79-42 NUT FLANGE NYLOCK 5/16-18
16 532 18 89-09 BEARING FLANGE

6
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
05.12.003-A
1
2
3
1
3
05.13.001-A
1
1
2
2
2
2
3
3
3
3
5
5
55
4
4
4
4

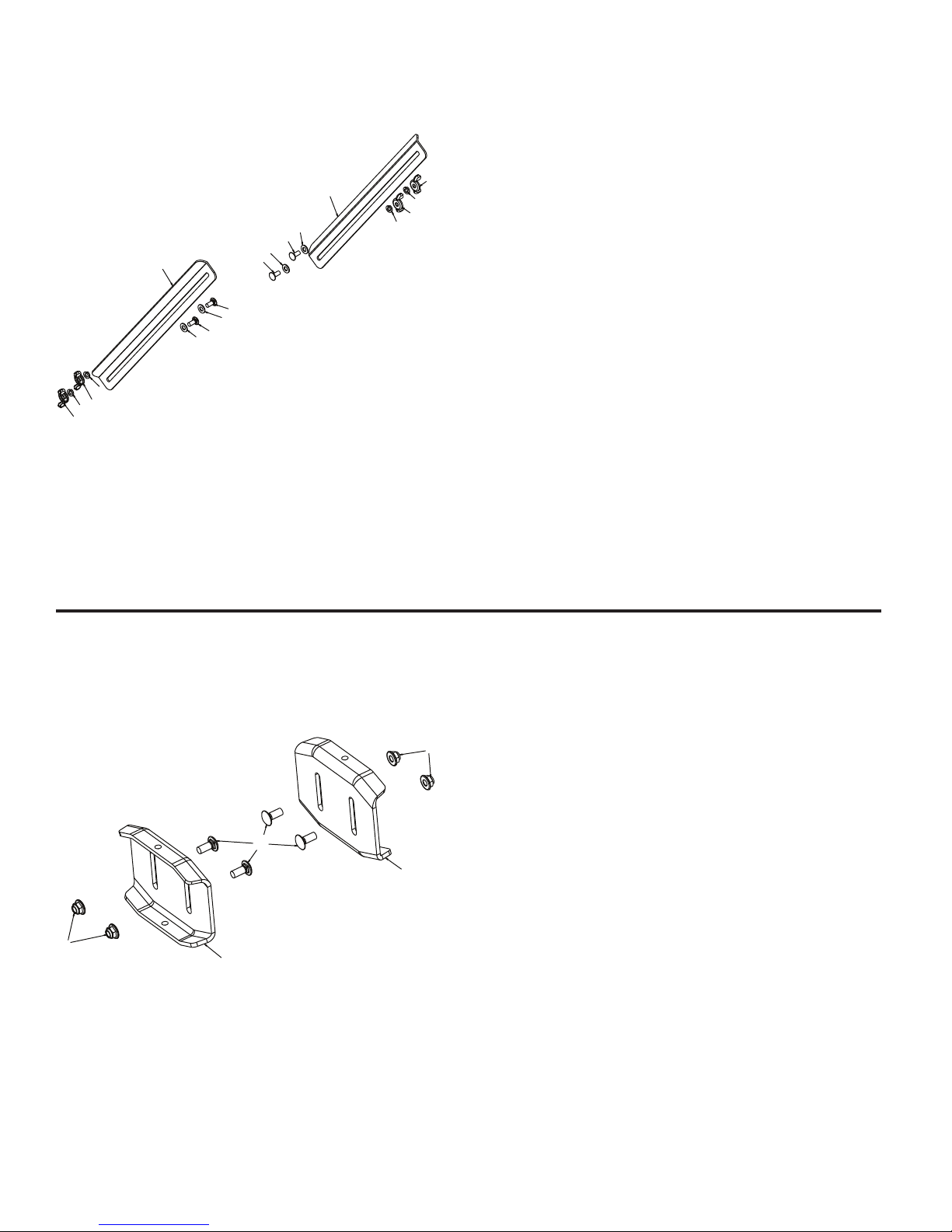

1 532 18 47-47 DRIFT BAR CUTTER
2 532 17 92-46 WASHER FRICTION NYLON
3 872 27 05-06 CARRIAGE BOLT 5/16-18 X
.75 GR5
4 810 04 05-00 LOCKWASHER 5/16 SPLIT
5 532 12 86-38 WING NUT 5/16-18 ZINC
1 532 40 78-34 SKID PLATE
2 585 69 17-01 BOLT CARRIAGE
5/16-18 X .750 – BLK
3 585 69 13-01 NUT FLANGE NYLOCK
5/16-18 – BLK

7
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
12
3
4
4
5
6
01.10.057-A

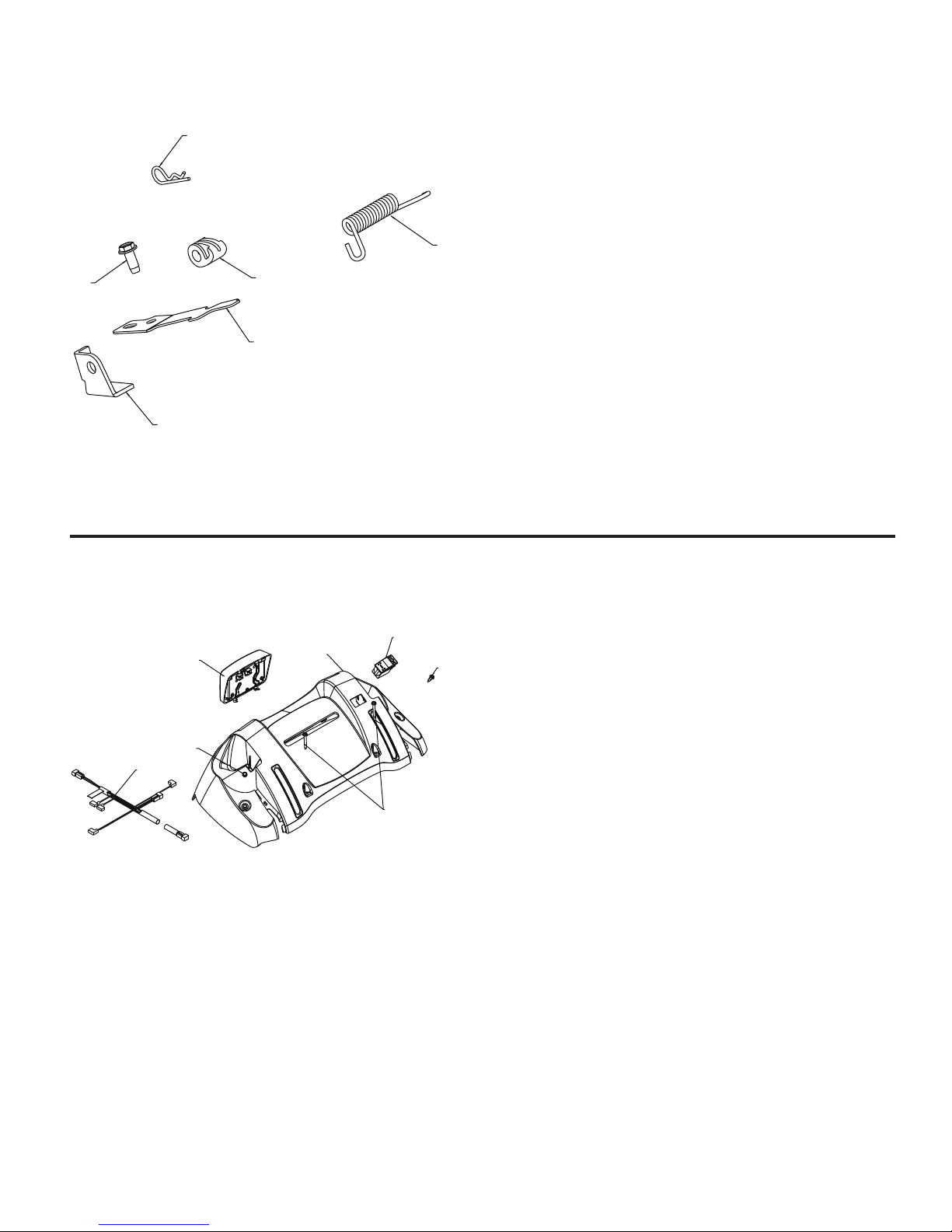

1 532 42 13-51 CONSOLE PANEL
2 532 41 77-60 SWITCH GRIP
3 532 17 52-62 SCREW HX WHSR HEAD
10-24 X 1.25
4 532 18 44-71 SCREW SHOULDER
10-24 X .62
5 581 68 42-01 LED LIGHT DUAL STAGE GRAY
6 580 62 56-01 WIRE HARNESS FLOOD / LED
HEATED
1
2
3
4
5
601.08.007-D
1 532 41 62-88 INTERLOCK SPRING
2 532 44 52-91 INTERLOCK CAM
3 532 44 32-15 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 42 18-14 INTERLOCK STOP

8
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
*3
*4 *5
*6
*7
01.09.010-D
1
2
01.15.020-A
1 580 84 31-03 STEER CABLE
2 874 04 10-24 SCREW 10−24 X 1.50
1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY
2 817 54 10-08 THREAD ROLLING SCREW 10-24 X .500
*3 532 42 06-78 ROTATOR HEAD
*4 585 19 92-01 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE
*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

9
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
01.09.029-D
*10
*11
1
2
3
4
5
6
6
6
7
9
8
*12
*13
*14
15
16

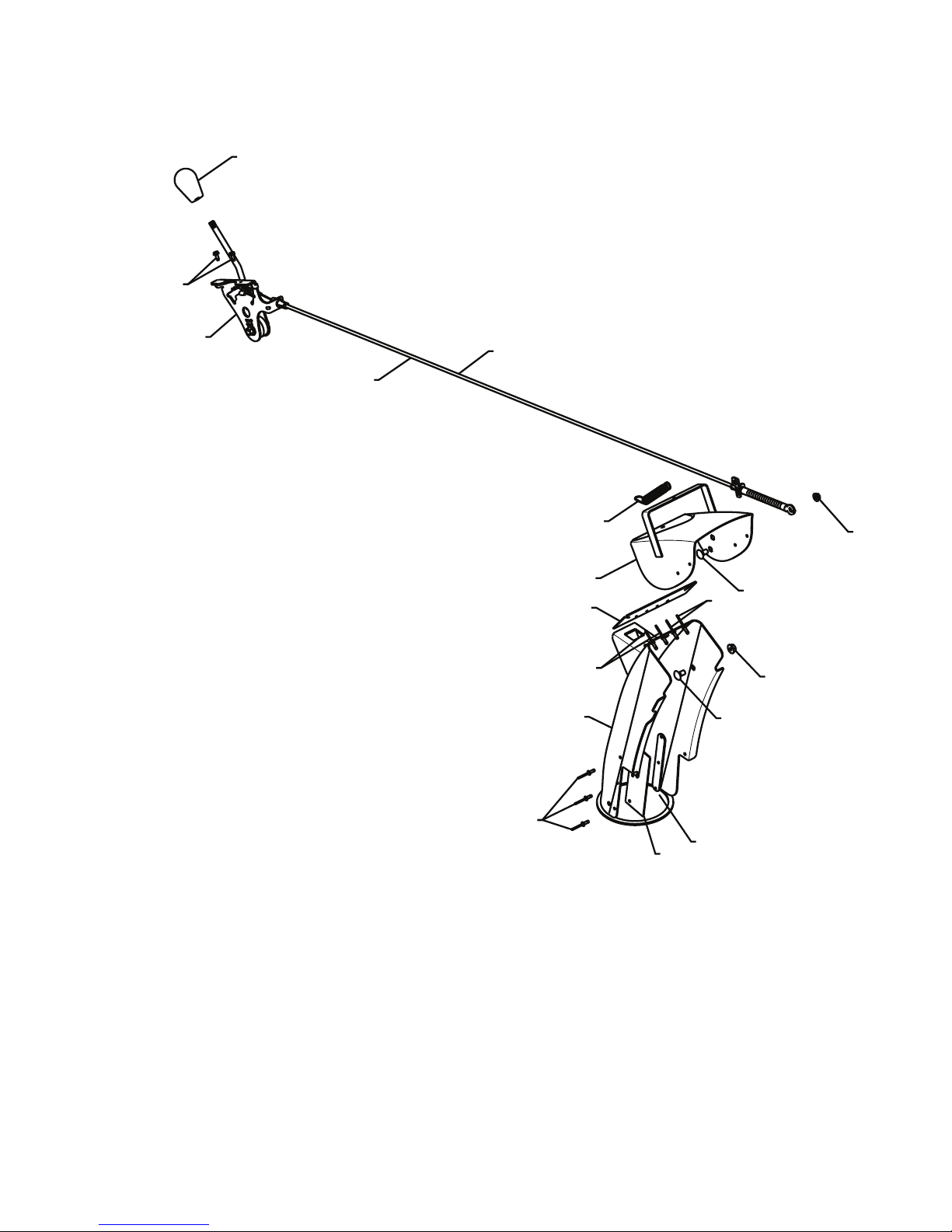

1 532 44 40-41 CHUTE WELDMENT
2 532 18 41-13 DEFLECTOR WELDMENT
3 587 03 08-01 DEFLECTOR CONTROL ASSEMBLY
4 532 42 03-25 DEFLECTOR SEAL
5 580 67 32-01 KNOB OVERMOLD BLACK
6 532 12 84-15 POP RIVET
7 817 54 10-08 THREAD ROLLING SCREW 10-24 X .500
8 532 43 03-24 CHUTE SNOW SHIELD
9 532 42 17-28 SHIELD RETAINER STRAP
*10 532 17 98-29 SHOULDER BOLT 1/4-20 X .375
*11 532 19 17-30 NUT 1/4-20
*12 585 83 20-01 CARRIAGE BOLT BLACK 5/16-18 X 5/8
*13 532 75 11-53 NUT 5/16-18
*14 532 18 45-05 DEFLECTOR SPRING
15 532 42 06-79 (SERVICE PART) DEFLECTOR CONTROL
16 587 03 09-01 (SERVICE PART) DEFLECTOR CABLE BLACK
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 15 AND 16 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

10
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
23
4
2
3
4
05.11.009-B

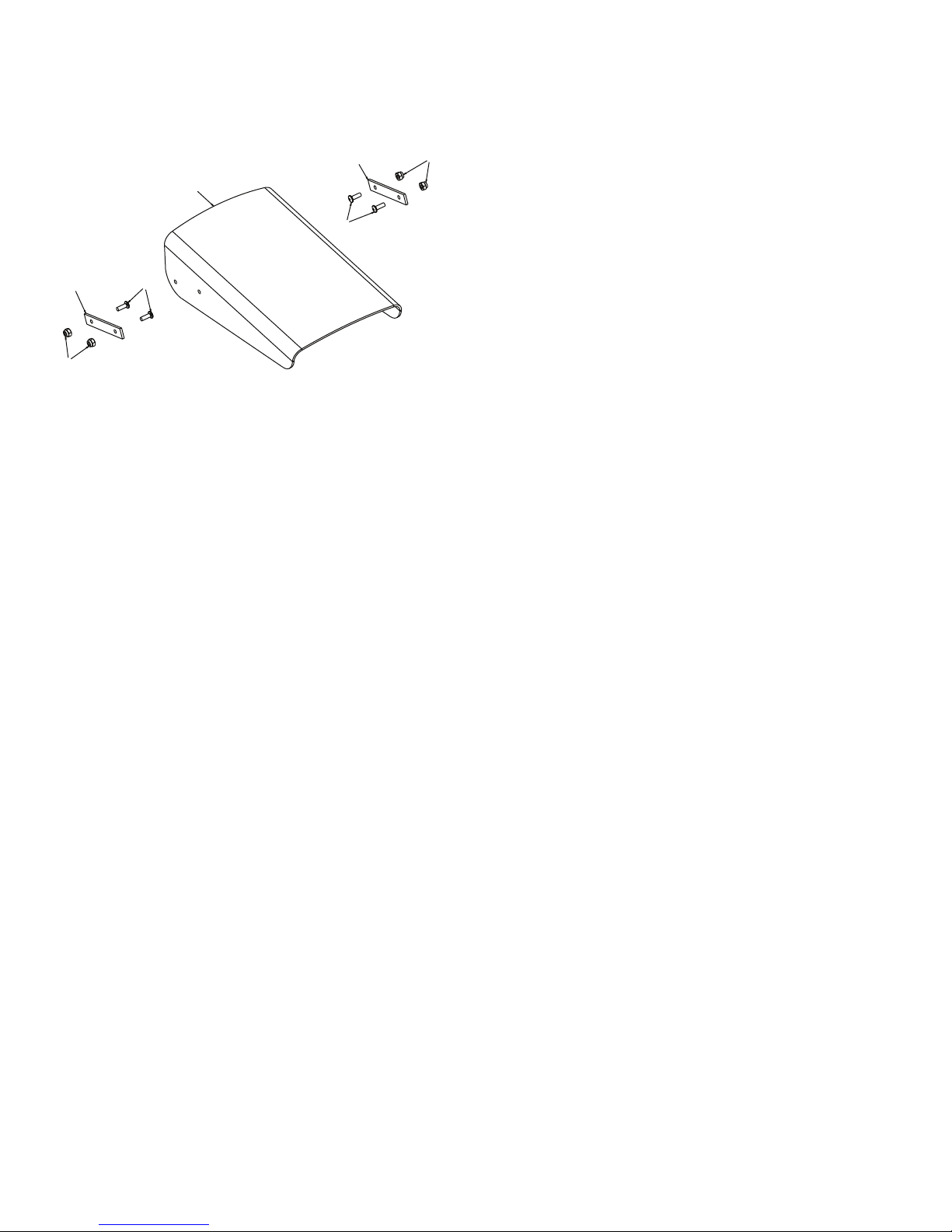

1 532 42 11-38 SHIELD DEFLECTOR
2 532 42 32-47 STRAP
3 586 11 80-01 SCREW MACHINE 8-32 X .50
- BLK
4 586 11 81-01 NUT HEX NYLOCK 8-32 - BLK

11
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
10
10
10
11
11
11
11
1
2
3
4
56
7
9
9
8
12
12
12
12
13
01.08.022-B

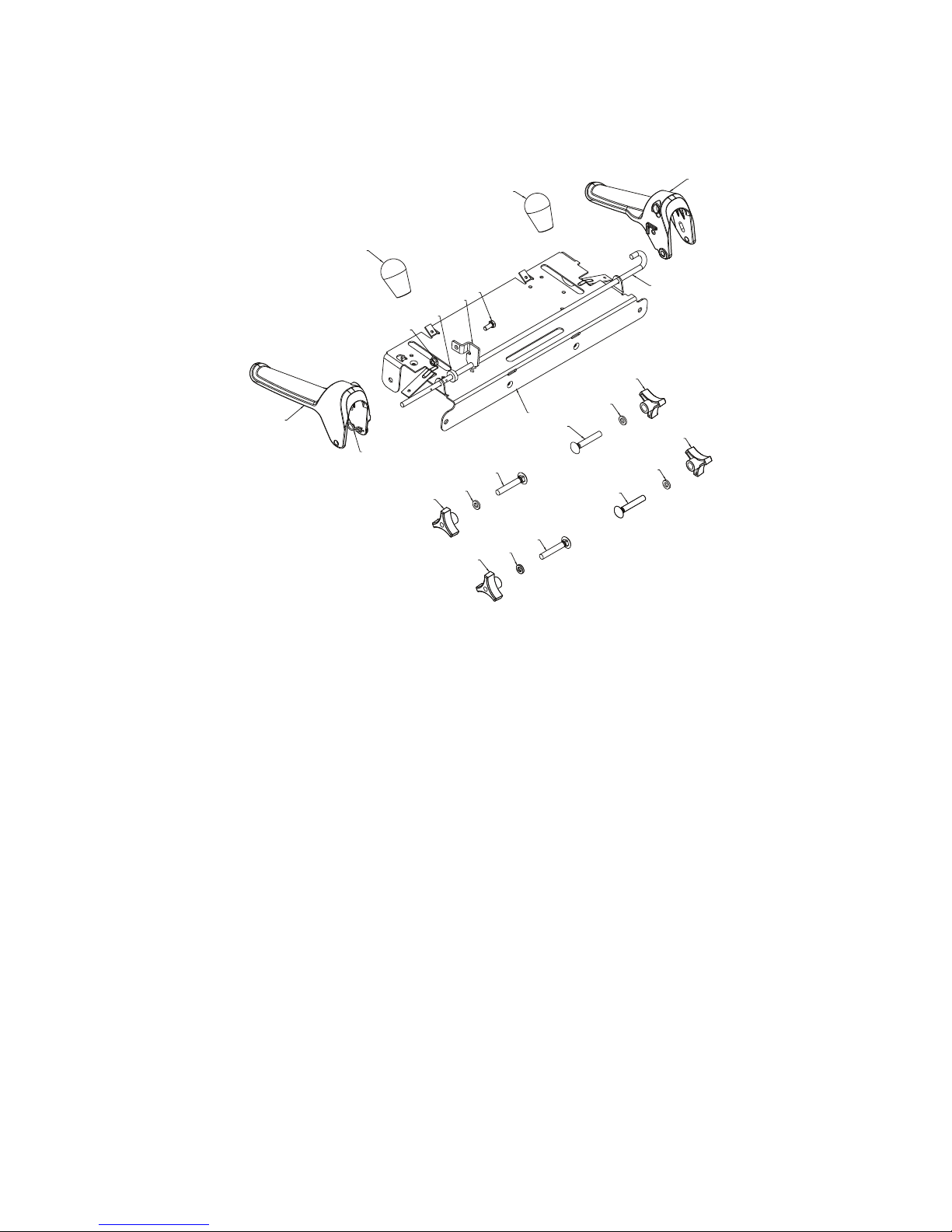

1 585 19 88-02 CONTROL PANEL
2 581 77 98-01 LH CONTROL LEVER
3 581 77 97-01 RH CONTROL LEVER
4 584 80 90-01 INTERLOCK CONTROL ROD
5 585 00 47-03 INTERLOCK BRACKET
6 874 78 04-10 1/4-20 X .625 HEX HEAD SCREW
7 532 42 16-13 SPACER
8 532 08 83-49 1/4-20 FLANGE NUT (TOP LOCK)
9 580 67 32-01 KNOB SOFT TOUCH
10 532 17 88-99 HANDLE KNOB
11 819 13 13-16 3/8 WASHER
12 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25
13 532 16 96-75 RETAINER

12
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
1
2
3
4
5
5
6
7
9
8
01.12.015-C
1 584 80 89-01 ROD IMPELLER CONTROL
2 584 80 88-01 ROD TRACTION CONTROL
3 532 18 77-82 SHIFTER ROD TOP
4 532 18 77-84 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 580 79 62-01 SPRING CONTROL ROD
7 580 80 21-01 SPRING TRACTION ROD
8 872 27 05-05 CARRIAGE BOLT 5/16-18 X .75
9 532 15 53-77 NUT 5/16-28
10 532 16 96-75 RETAINER
NOTE: HOOK TRACTION ROD SPRING IN HOLE 9
HOOK IMPELLER ROD SPRING IN HOLE 4
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93

13

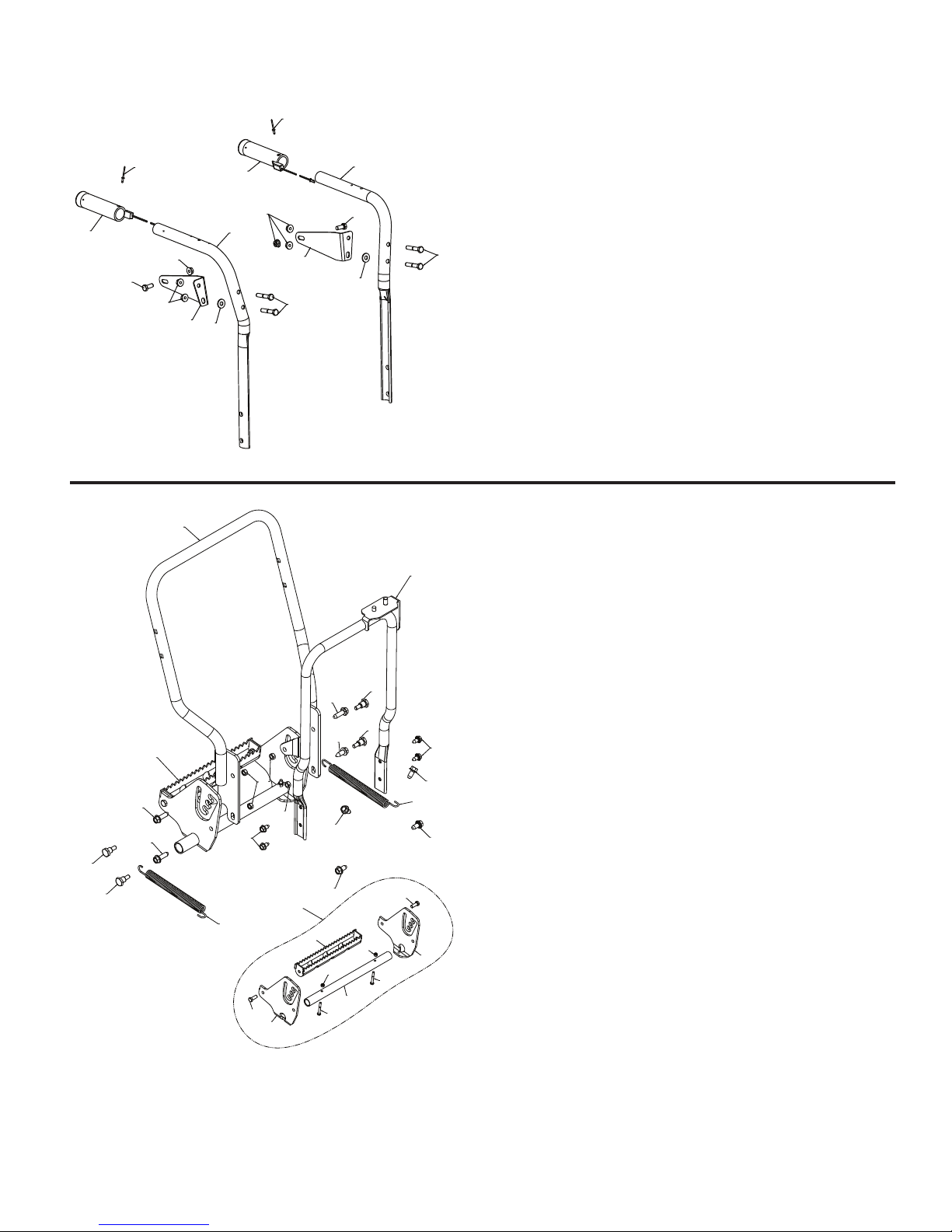

REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
11
1
2
3
4
4
5
5
5
5
6
6
7
7
7
9
9
8
8
8
8
12
13
14
14
15
15
16
16
17
01.05.016-J
ITEM 3
EXPLODED
1 580 75 04-02 LOWER TUBE WELDMENT
GRAY
2 532 44 36-17 PIVOT SUPPORT
3 580 79 03-01 FOOT ADJUST ASSEMBLY
4 532 44 32-48 EXTENSION SPRING
5 532 44 36-60 SHOULDER BOLT 5/16-18
6 873 93 05-00 LOCKNUT 5/16-18
7 817 06 06-20 SCREW 3/8-16 X 1.25
8 817 00 06-12 SCREW 3/8-16 X .750
9 817 00 05-10 SCREW 5/16-18 HEX WHS HD
LK SERR
10 580 94 99-01 RIGHT GUIDE PLATE
11 580 94 99-02 LEFT GUIDE PLATE
12 580 95 00-01 FOOT ADJUST PEDAL
13 580 95 01-01 ANTI-ROTATE TUBE
14 874 78 06-16 CAPSCREW 3/8-16 X 1.00
15 874 76 04-32 CAPSCREW 1/4-20 X 2.00
16 873 80 04-00 NUT NYLOCK 1/4-20
17 817 06 06-16 SCREW 3/8-16 x 1.00
10
10 1
2
3
4
5
56
6
7
7
9
8
8
8
01.08.024-B
9
1 532 42 17-08 PLOW HANDLE LH
2 532 42 17-09 PLOW HANDLE RH
3 532 42 91-48 PANEL BRACKET LH
4 532 42 91-49 PANEL BRACKET RH
5 532 41 45-15 HEATED HANDLE GRIP
6 874 78 05-12 SCREW 5/16-18 X .750
7 874 78 05-28 SCREW 5/16-18 X 1.75
8 532 75 11-53 NUT 5/16-18
9 532 15 54-15 WASHER
10 532 17 87-75 POP RIVET 1/8

14
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10 11
1
1
2
22
3
4
4
5
67
9
8
8
12
23
13
14
15
16
17
18
19
20
20
20
20
20
21
22
23
24
24
25
26
27
27
28
29
30
31
31
32
33 34
35
36
37
37
38
38
39
01.02.017-J

15
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 532 43 73-83 SHIFT BRACKET
2 817 54 10-08 SCREW 10-24 X .625
3 874 76 05-52 SCREW 5/16-18 X 3.25
4 532 17 92-46 PLASTIC WASHER
5 532 19 20-01 SHIFT ASSEMBLY
6 532 15 54-15 WASHER
7 532 19 21-95 FRICTION SPRING
8 873 80 05-00 NUT 5/16-18
9 532 42 98-03 FRONT CLUTCH BRACKET
10 532 44 31-91 CONTROL ARM
11 532 42 75-42 CONTROL SHAFT
12 532 18 89-06 WASHER
13 532 19 85-80 CLEVIS PIN
14 580 75 06-02 REAR PLATE
15 532 44 50-58 TRANSMISSION
16 532 19 32-56 ROD
17 532 42 98-05 REAR CLUTCH BRACKET
18 532 18 77-87 CONTROL ARM
19 532 19 82-51 CLUTCH SHAFT
20 532 42 88-67 SCREW 5/16-18 X .750
21 532 18 03-55 CARRIAGE BOLT 5/16-18 X .625
22 532 17 88-28 BRAKE SPRING
23 873 80 04-00 NUT 1/4-20
24 532 19 19-95 POP RIVET 1/4 X .475
25 532 19 82-49 CLUTCH ARM
26 532 19 28-73 TRACTION SPRING
27 532 70 02-79 RETAINER CLIP
28 532 40 78-58 ANTI-ROTATE BRACKET
29 532 41 47-71 TORQUE STRAP BRACKET
30 585 16 68-02 BOTTOM PAN
31 532 44 33-84 SCREW 10-32 X .500
32 532 44 62-93 CLUTCH ROD
33 532 42 82-88 E-RING .375
34 817 06 05-16 SCREW 5/16-18 X 1.00
35 574 81 13-01 REMOTE EXPANSION TANK
36 580 75 08-01 HOSE EXPANSION TANK
37 532 44 52-98 SPRING HOSE CLAMP .759
38 532 18 92-41 SCREW 10-24 X ½ HEX WASHER HEAD
39 580 75 09-02 BRACKET MTG EXPANSION TANK

16
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
1
2
2
3
3
3
4
4
5
6
7
7
9
8
01.03.003-C
10
36

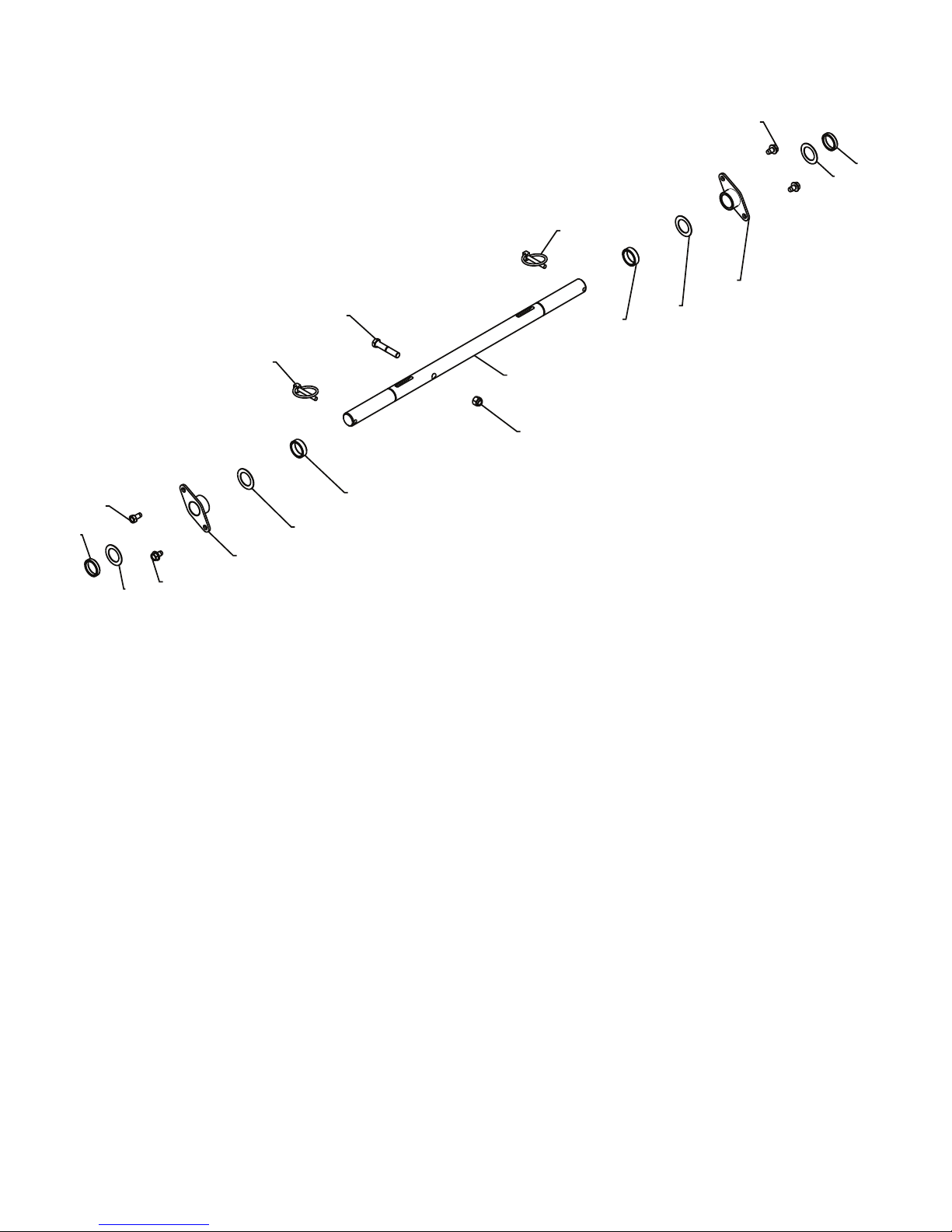

1 532 40 43-08 AXLE SHAFT
2 532 18 77-94 SPACER
3 532 44 49-49 THRUST WASHER
4 532 17 98-30 BEARING
5 532 14 63-15 SCREW 5/16−18 X .625
6 817 49 05-08 BOLT 5/16−18 X .500
7 532 15 54-43 CLIK PIN
8 874 78 06-32 SCREW 3/8−16 X 2.00
9 873 80 06-00 NUT 3/8−16
10 585 05 71-01 .235 SPACER

17
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
01.01.004-A
1 532 42 92-69 ENGINE MOUNTING PLATE
1
2
2
3
3
01.00.033-A
- - 585 74 27-01 COMPLETE LCT ENGINE
PW2HK181000781D
1 532 42 92-03 FRAME
2 532 15 04-06 BOLT 3/8-16
3 532 42 88-67 SCREW 5/16-18 X .750
01.21.014-C
1
1 532 42 86-85 COVER ASSEMBLY

18
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
10
11
1
2
34
5
6
7
9
8
12
13
14
15
16
17
18
18
19
20
20
21
22
23
01.21.027-A
1 532 41 98-88 IMPELLER BELT
2 532 42 84-54 TRACTION BELT
3 584 23 24-02 IDLER ARM BRACKET
4 532 18 05-23 IDLER PULLEY
5 532 42 39-90 IDLER BRACKET
6 532 42 65-89 NUT 5/16-18
7 874 78 05-24 SCREW 5/16-18 X 1.50 GR5
8 532 42 42-97 SHOULDER BOLT 5/16-18 X
.50 GR2
9 532 75 11-53 NUT 5/16-18 LOCK
10 817 00 05-10 SCREW 5/16-18 X .625
11 585 23 84-01 TRACTION IDLER BRACKET
ASM
12 532 85 10-84 SCREW 3/8-24 X 1.375 GR8
13 532 05 92-89 WASHER
14 819 13 20-05 WASHER
15 586 05 08-01 PULLEY ENGINE IMPELLER
16 586 05 11-01 PULLEY ENGINE TRACTION
17 874 61 05-16 SCREW 5/16-24 X 1.00 GR5
18 810 04 05-00 LOCKWASHER 5/16
19 585 54 05-01 BELT GUIDE
20 532 15 54-15 WASHER FLAT .335 X .787 X .079
21 532 17 53-31 IDLER BUSHING
22 874 61 05-20 SCREW 5/16-24 X 1.25 GR5
23 874 76 06-08 SCREW 3/8-16 X .500 GR2

19

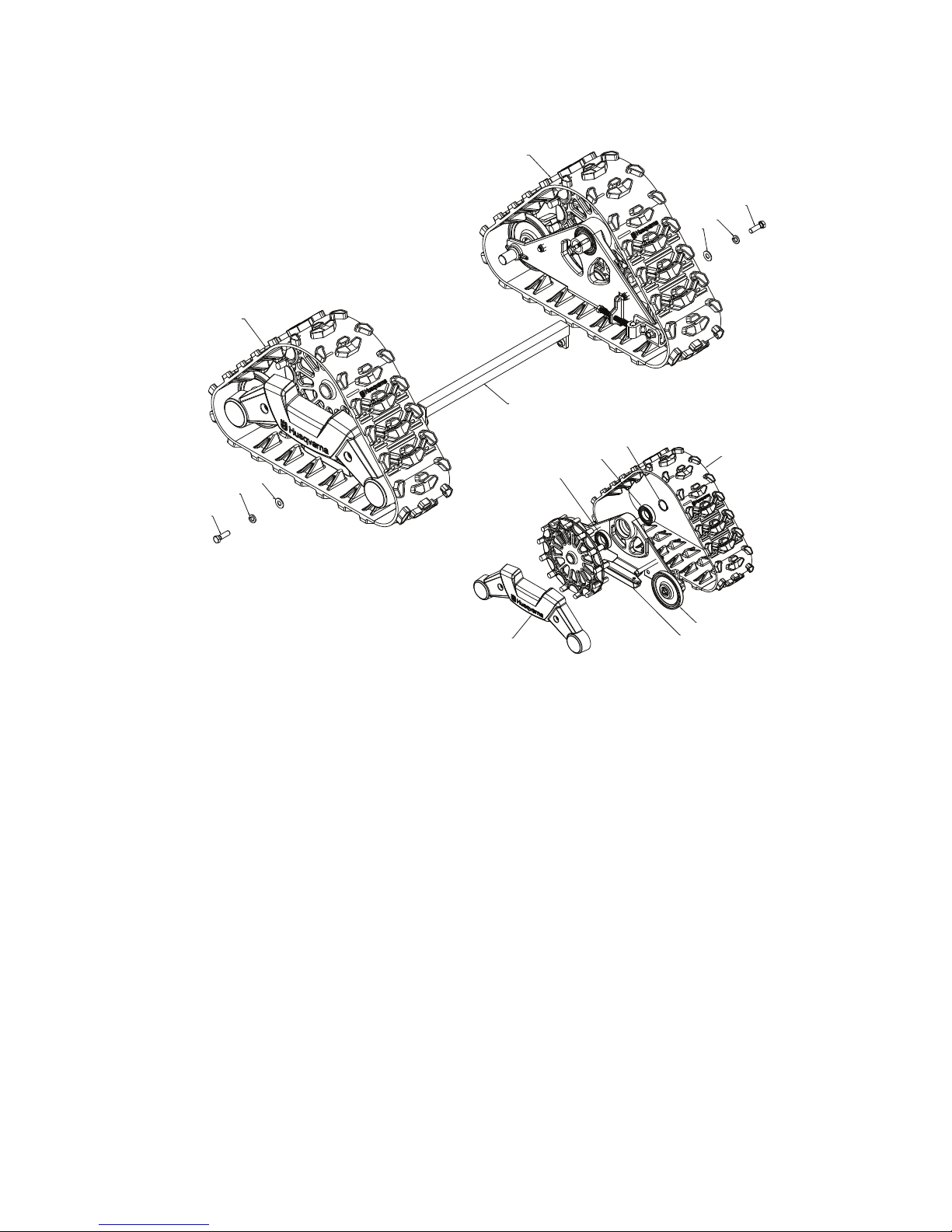

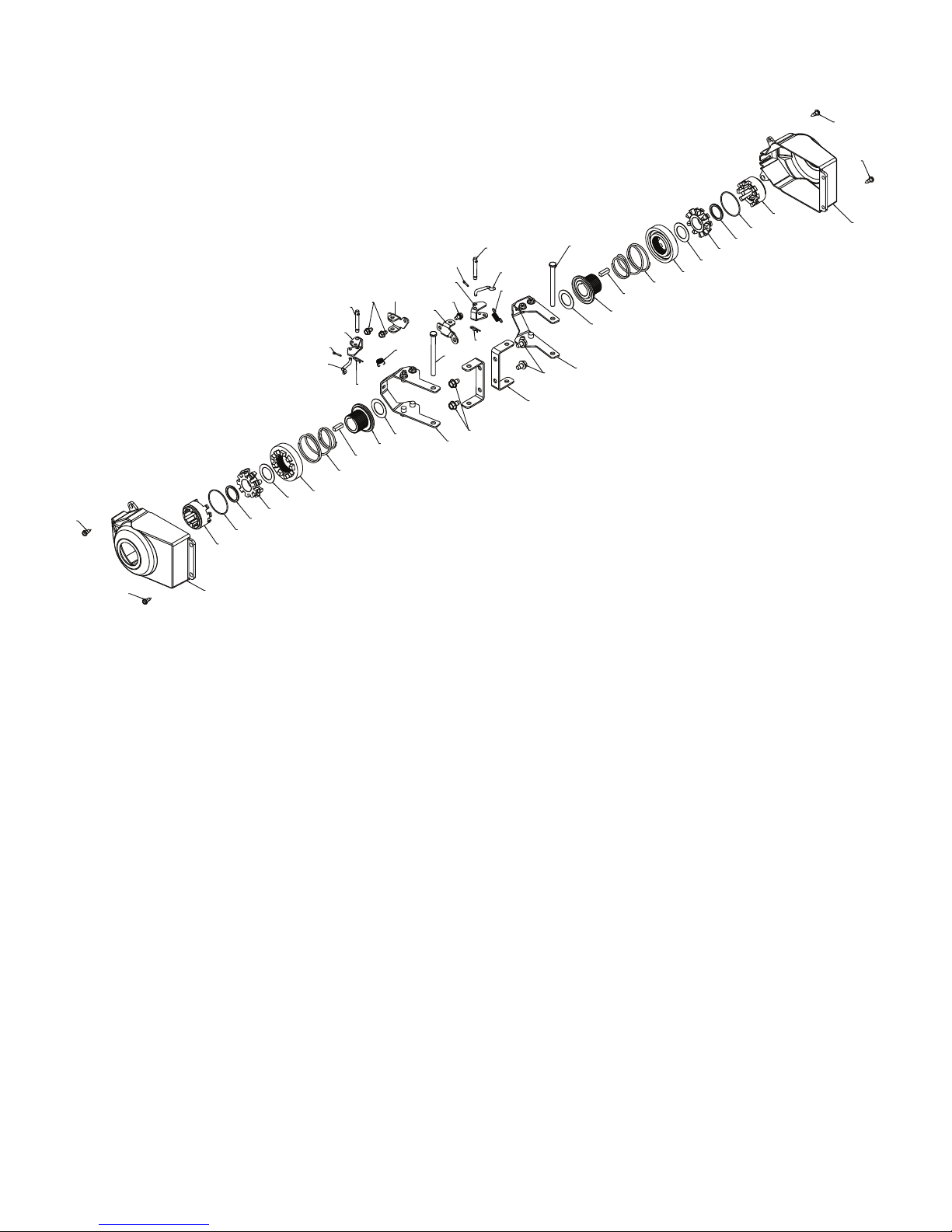

REPAIR PARTS TRACKS
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
10
11
1
2
3
4
4
5
5
6
6
7
98
12
12
01.06.033-E
1 586 99 02-01 TRACK ASSEMBLY LH
2 586 99 02-02 TRACK ASSEMBLY RH
3 580 78 99-01 SUPPORT BRACE ASSEMBLY
4 874 78 06-20 CAPSCREW 5/16-18 X 1.25
5 532 85 02-63 LOCKWASHER 3/8
6 819 13 14-16 FLAT WASHER
7 586 99 64-01 TRACK BELT
8 580 81 20-01 IDLER WHEEL
9 586 99 68-01 TRACK GUIDE
10 586 99 69-01 COVER
11 581 47 92-01 SNAP RING
12 581 47 91-01 BALL BEARING

20
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS TRACKS
SNOW THROWER - MODEL NO.
ST 327T
ST 327T (96193009301), PRODUCT NO. 961 93 00-93
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
10
11
11
11
11
1
2
2
3
4
5
6
7
7
9
9
8
8
12
12
13
14
14
15
16
16
17
17 18 18
19
19
20
20
21
21
22
22
23
23
24
01.15.022-B
1
2
23
45
6
1 532 40 51-61 COVER
2 532 18 44-71 SHOULDER SCREW
3 585 05 70-01 SPACER
4 585 05 68-01 WHEEL DRIVER
5 532 18 24-66 RETAINER RING
6 532 18 76-22 WHEEL LOBE
7 581 64 49-01 CLUTCH SLIDE
8 585 35 16-01 SPRING
9 532 18 92-82 SQUARE KEY
10 581 64 51-01 AXLE LOBE
11 532 44 49-49 THRUST WASHER
12 584 92 79-02 STEERING YOKE
13 532 18 41-97 STEERING BRACKET
14 817 49 05-08 SCREW 5/16-18 X .50
15 532 19 95-11 PIVOT BRACKET
16 532 19 95-18 BELLCRANK
17 532 18 18-47 BELLCRANK PIN
18 817 60 04-06 SCREW 1/4-20 X .375
19 532 40 50-77 STEERING LINK
20 532 08 51-79 RETAINER
21 532 08 15-79 RETAINER
22 532 19 38-85 SPRING
23 532 18 20-15 LEVER PIN
24 532 19 95-12 PIVOT BRACKET
