Husqvarna 128LD Guide

S E R V I C E
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
Replaces
Ersetzt
Remplace
Vervangt
Reemplaza
Ersätter xxx xx xx-xx
545192138
IPL,128LD, 2008-11, 545 19 21-38
128 LD
545 19 21-38

NEW
NOTE : Illustration may differ from actual model due to design changes.
545192138
11/25/08 Page:
PARTS LIST
R
128LD (US/CAN)
1
Parts List No.
Date
MODEL
21. 530015814 Screw
22. 530016014 Screw
23. 545003902 Screw
24. 530015771 Screw
25. 530057554 Bracket-Shield
26. 530096295 Assy-Gearbox
27. 537234901 Driver Disc
28. 537338306 Assy-T25 Cutting Head
530031159 Wrench-Hex (5/32”)
1. 545125301 Assy-Cable/Wire Harness
2. 545066001 Trigger
3. 545062001 Housing-Throttle (RH)
4. 530016448 Screw
5. 530016449 Screw
6. 530016454 Spring-Trigger
7. 530059804 Lockout-Throttle
8. 545045601 Spring-Lockout
9. 545067001 Housing-Throttle (LH)
10. 545030601 Kit-Switch
11. 545042201 Handle - Assist
12. 530015820 Bolt
13. 545003370 Kit-Driveshaft Upper (Incl. 16, & flex)
14. 530059185 Clamp - Handle Assist
15. 530016152 Wingnut
16. 530016344 Screw
17. 545132002 Flexshaft
18. 545180848 Kit-Lower Shaft (Incl. 17)
19. 545030901 Kit-Shield (Incl. 20,21,24)
20. 530052286 Limiter - Line
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
Not Shown
4
1
10
3
2
5
6
13
14
15
16
24
25
26
27
28
17
18
11
12
78 9
19 21
20
22
23

545192138
11/25/08
NEW
Page:
PARTS LIST
R
128LD (US/CAN)
2
Parts List No.
Date
MODEL
NOTE : Illustration may differ from actual model due to design changes.
WARNING
All repairs, adjustments and
maintenance not described in
the Operator’s Manual must be
performed by Qualified Service
Personnel.
Ref. Part No. Description Ref. Part No. Description

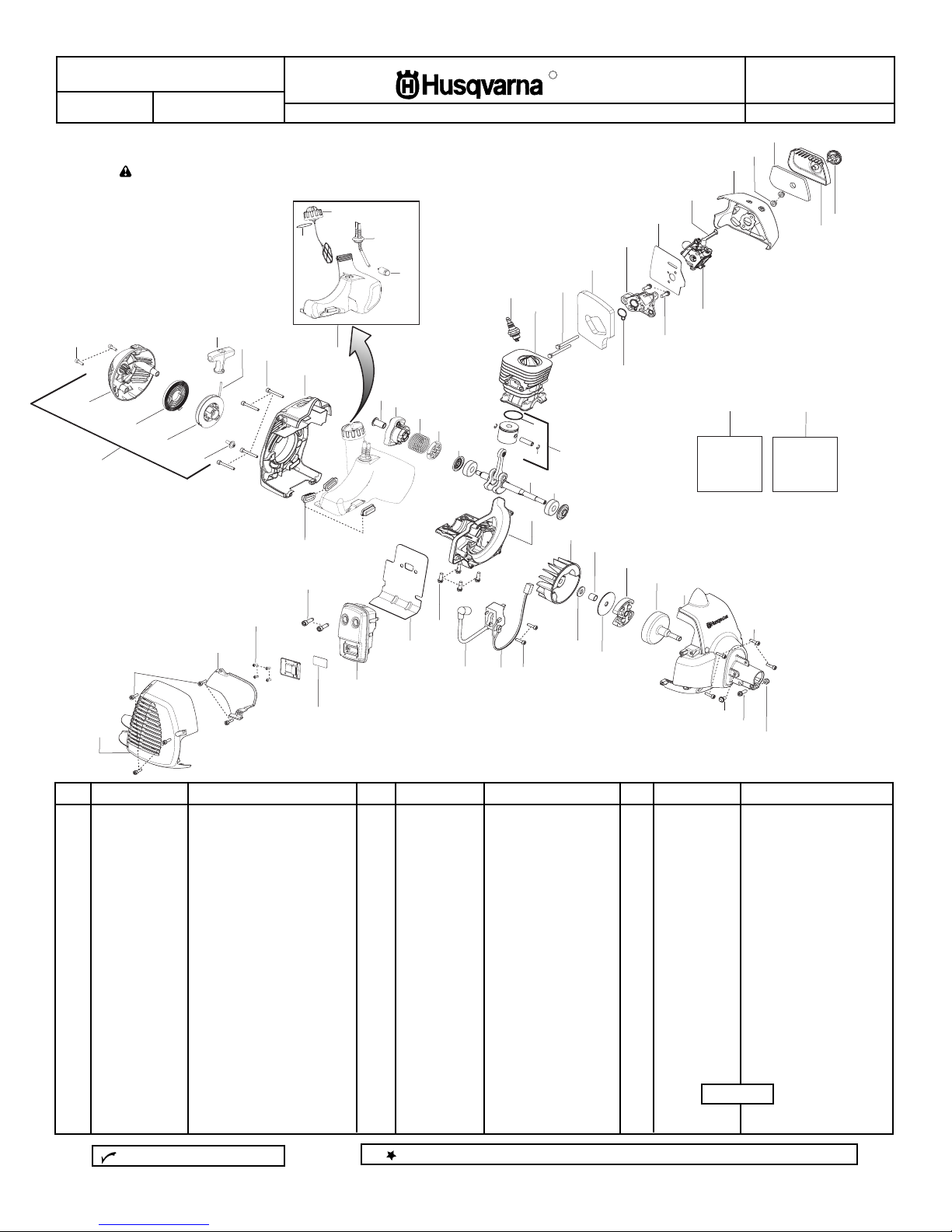

Ref. Part No. Description
1. 530150253 Filter
2. 530016101 Nut - Carb. Screw
3. 545084601 Air Box
4. 530057844 Lever - Choke
5. 545050402 Kit-Carb. Gasket (Incl 7,61)
6. 530035596 Adaptor - Carb.
7. 545081898 Kit - Gasket (foam)
8. 530016400 Bolt
9. 545001001 Cylinder
10. 952030201 Plug - Spark (RCJ-8Y)
11. 545050403 Kit - Crankshaft seal
12. 530016475 Washer - Starter
13. 545160301 Spring - Starter Cup
14. 545102303 Assy - Starter Cup
15. 530059800 Coupling - Starter
16. 530095646 Assy - Fuel Filter
17. 545081897 Kit - Fuel Line
18. 530150350 Assy - Cap w/ret.(Incl. 19)
19. 545081898 Kit Gasket O-ring - Fuel Cap
20. 545105105 Assy - Fuel Tank
(Incl. 16,17,18,19)
21. 530057851 Shroud - Rear
22. 530016448 Screw
23. 545029901 Kit - Rope
24. 530150318 Handle - Starter
48. 530015768 Locknut
49. 530016456 Screw
50. 545017501 Assy - Fan Housing
51. 530150039 Assy - Clutch Drum
52. 545050405 Kit - Clutch Assy.
53. 530057852 Spacer
54. 530039242 Flywheel
55. 545054601 Crankcase
56. 545013401 Bearing
57. 545030001 Kit - Crankshaft
58. 530015162 Retainer - Piston Pin
59. 530019283 Ring - Piston
60. 545030301 Kit - Piston (Incl. 58,59)
61. 545081898 Kit - Gasket (adaptor seal)
62. 530015897 Screw
63. 545081850 Kit - Carb. (Incl. 4,5)
64. 530057846 Cover - Air Box
65. 530059796 Assy - Knob
66. 545081898 Kit - Gasket
(Incl. 5,7,11,19,39,61)
67. 545003321 Kit - Decal
530058709 Bulb-Purge
= New Part Number For This IPL
= Refer to the Service Reference Indicated for more information.(Located at the END of the IPL)
25. 530016426 Screw
26. 545029603 Starter Hsg. w/eyelet
27. 545029801 Kit - Starter Spring
28. 545029701 Kit - Starter Pulley
29. 530016468 Screw
30. 545106301 Assy - Starter Hsg(Incl.
23,24,26,27,28,29)
31. 530059780 Isolator - Tank
32. 530058982 Bolt - Muffler
33. 530015241 Screw
34. 530150440 Shield - Heat
35. 530016449 Screw
36. 545104901 Guard - Muffler
37. 545030501 Kit - Spark Arrestor
(Incl. 33)
38. 545057501 Assy - Muffler
39. 545081898 Kit - Gasket-paper met
40. 530015897 Screw
41. 545046701 Module - Ignition
42. 530039227 Assy - Leadwire
43. 530016456 Screw
44. 530016463 Washer
45. 530094189 Washer - Clutch
46. 530016469 Screw
47. 530016470 Screw
Not Shown
1
2
3
18
17
16
1514
13
11
57 56
60
61
62
63
6465
58
59
10
9
8
7
6
5
4
20
19
21
22
24
23
25
26
27
28
29
31
32
33
37
38
39
41
44 45
46 47
49
50
51
66
Gasket
Kit
52
53
54
55
48
42 43
40
34
35
36
12
30
67
Decal
Kit
