WARNING: The engine exhaust from
this product contains chemicals
known to the State of California to
cause cancer birth defects or other
reproductive harm.
Note the following before starting:
Please read the operator's manual carefully.
WARNING: Under no circumstances
may the design of the machine be
modified without the permission of the
manufacturer. Always use genuine
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
WARNING: A clearing saw brushcutter
or trimmer can be dangerous if used
incorrectly or carelessly and can
cause serious or fatal injury to the
operator or others. It is extremely
important that you read and
understand the contents of this
operator's manual.
WARNING: Long-term exposure to
noise can result in permanent hearing
impairment. So always use approved
hearing protection.
We have a policy of continuous product
development and therefore reserve the right to
modify the design and appearance of products
without prior notice.


SYMBOL EXPLANATION
Symbols
WARNING: Clearing saws,
brushcutters and trimmers
can be dangerous.
Careless or incorrect use
can result in serious or
fatal injury to the o erator
or others.
Please read the operator's manual
carefully and make sure you
understand the
instructions before
using the machine.
Always use steel-toed safety
footwear with non-slip soles; snug-
fitting clothing; heavy, long pants,
and long sleeves; heavy-duty,
non-slip gloves; eye protection
such as non-fogging, vented
goggles or face screen; an
approved safety helmet; and
sound barriers (ear plugs or
mufflers to protect your hearing.
Persons with long hair should (for
personal safety put their hair up.
The operator of the machine shall
ensure, while working, that no
persons or animals come closer
than 15 meters (50 feet .
Beware of thrown objects and
ricochets.
Max speed of output axle, rpm
Machines fitted with grass blades
can be thrown violently to the side
when the blade comes into
contact with a fixed object. The
blade is capable of amputating an
arm or leg. Always keep people
and animals at least 15 meters (50
feet from the machine.
Arrows which show limits for
handle mounting.
Sound pressure level at 7,5
meters (25 feet per Australian
regulation.
Noise
emission to the environment
according to the European
Community's Directive. The
machine's emission is specified in
the Technical data section and on
label.
This product is in accordance with
applicable EC directives.
This product is in accordance with
applicable EAC directives.
This product is in accordance with
the Australian electromagnetic
compatibility (EMC regulations.
Use unleaded gasoline and two-
stroke oil mixed at a ratio of 2%
(50:1 .
Other symbols/decals on the machine refer to
s ecial certification requirements for certain
markets.


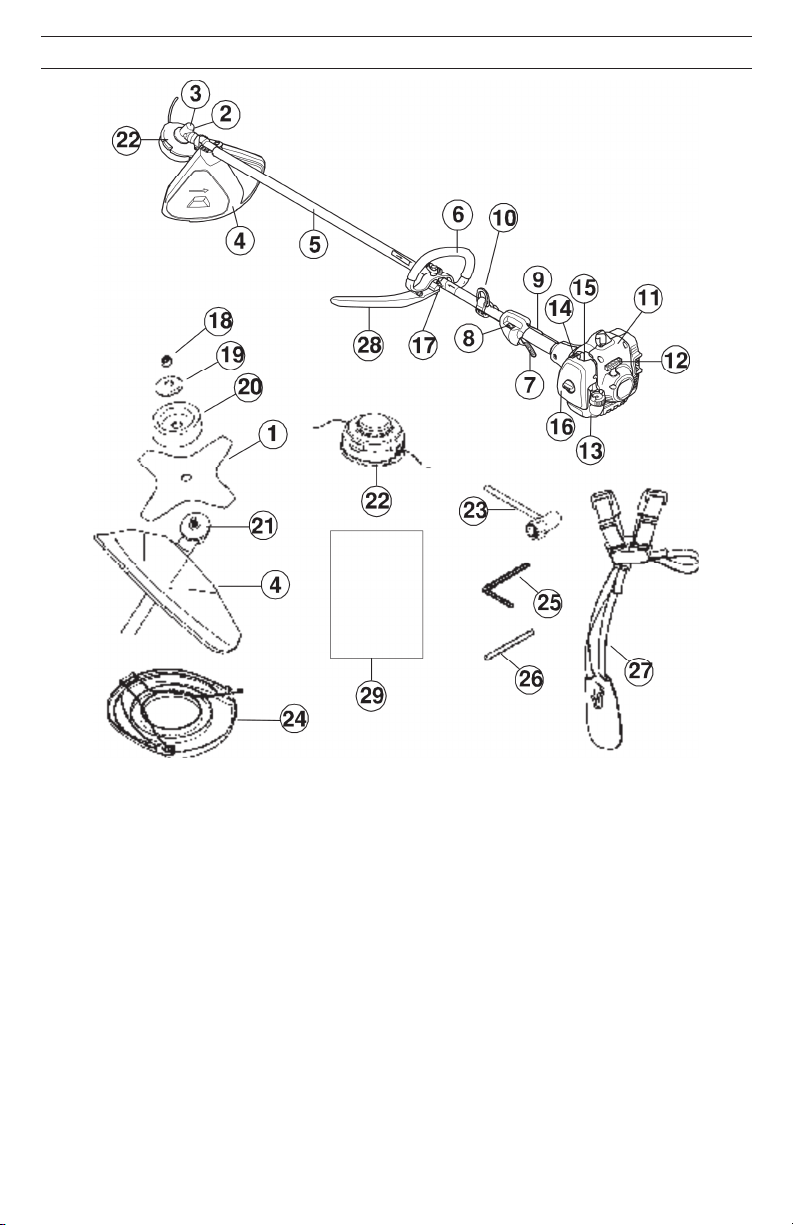

WHAT IS WHAT?
What is what?
1. Blade
2. Grease filler cap
3. Bevel gear
4. Cutting attachment guard
5. Shaft
6. Handle
7. hrottle control
8. Stop switch
9. hrottle lock-out
10. Harness clamp
11. Cylinder cover
12. Starter handle
13. Fuel tank
14. Choke control
15. Primer bulb
16. Air filter cover
17. Handle adjustment
18. Locking nut
19. Support flange
20. Support cup
21. Drive disc
22. rimmer head
23. Socket wrench
24. ransport guard
25. Hex wrench
26. Locking pin
27. Harness
28. J-Bar
29. Operator's manual


GENERAL SAFETY PRECAUTIONS
Important
• A clearing saw, brushcutter or trimmer can be
dangerous if used incorrectly or carelessly,
and can cause serious or fatal injury to the
operator or others. It is extremely important
that you read and understand the contents of
this operator's manual.
• The machine is only designed for trimming
grass, grass clearing and/or forestry clearing.
• The only accessories you can operate with
this engine unit are the cutting attachments we
recommend in the “T CHNICAL DATA”
section.
• Never use the machine if you are tired, if you
have consumed alcohol, or if you are taking
medication that could affect your vision, your
judgment or your coordination.
• Never use the machine in extreme weather
conditions such as severe cold, very hot
and/or humid climates.
• Wear personal protective equipment. See
instructions under the heading “Personal
protective equipment”.
• Never use a machine that has been modified
in any way from its original specification.
• Never use a machine that is faulty. Carry out
the checks, maintenance and service
instructions described in this manual. Some
maintenance and service measures must be
carried out by trained and qualified specialists.
See instructions under the “MAINT NANC ”
section.
• All covers and guards must be fitted before
starting. Make sure the spark plug cap and
lead are not damaged. Otherwise you could
get an electric shock.
• The machine operator must ensure that no
people or animals come closer than 15 meters
(50 feet) while working. When several
operators are working in the same area, the
safety distance should be at least 15 meters
(50 feet).
WARNING: This machine produces an
electromagnetic field during operation.
Under some circumstances, this field may
interfere with acti e or passi e medical
implants. To reduce the risk of serious or
fatal injury, we recommend persons with
medical implants to consult their
physician and the medical implant
manufacturer before operating this
machine.
WARNING: Using an incorrect cutting
attachment or an incorrectly filed blade
can increase the risk of accidents.
WARNING: Ne er allow children to use or
be in the icinity of the machine. As the
machine is equipped with a spring-loaded
stop switch and can be started by low
speed and force on the starter handle,
e en small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remo e the spark plug cap
when the machine is not under close
super ision.
Personal protective equipment
WARNING: You must use appro ed
personal protecti e equipment whene er
you use the machine. Personal protecti e
equipment cannot eliminate the risk of
injury but it will reduce the degree of
injury if an accident does happen. Ask
your dealer for help in choosing the right
equipment.
WARNING: Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remo e your hearing
protection as soon as the engine stops.

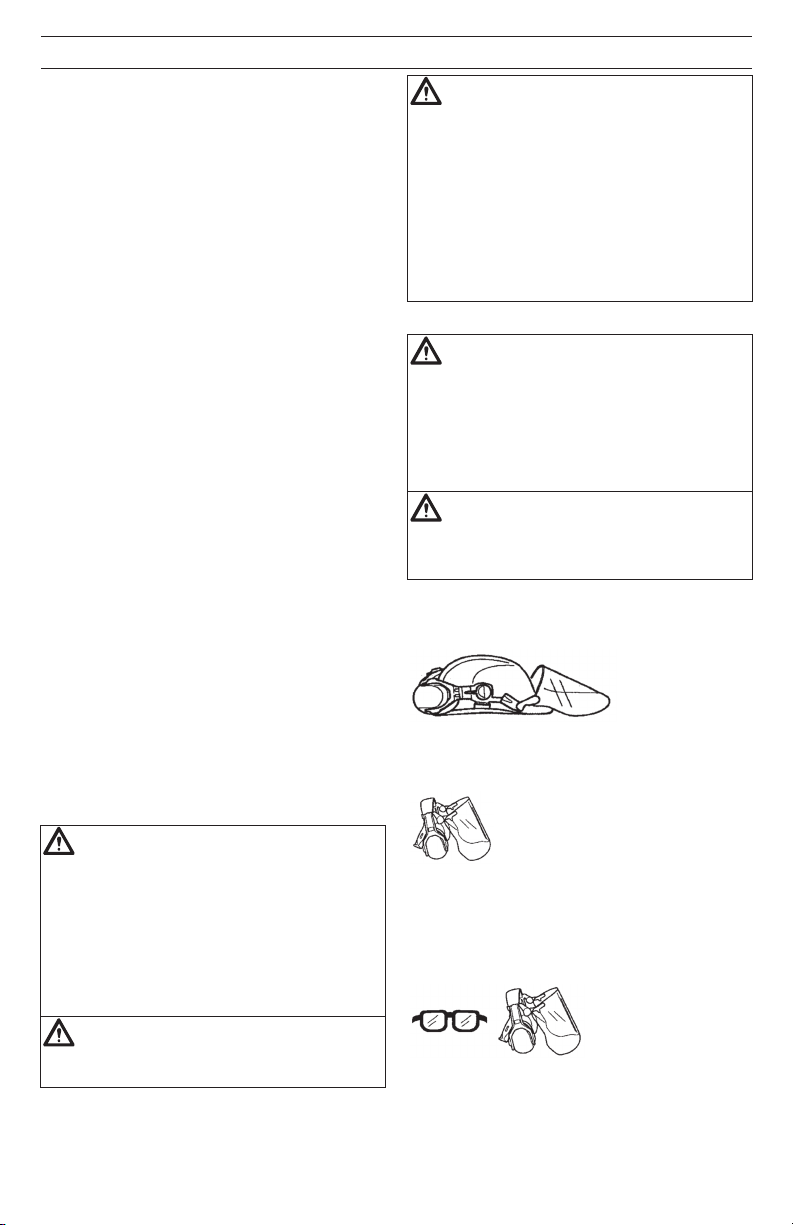

 Helmet
A helmet should be worn if the brush being cleared
is taller than 2 meters (6 feet).
 Hearing Protection
Wear hearing protection that provides adequate
noise reduction.
 Eye Protection
Always wear approved eye protection. If you use a
visor then you must also wear approved protective
goggles. Approved protective goggles must
comply with N 166 in urope, ANSI Z87 in the
United States, and CSA Z94 in Canada.
 Glo es
Gloves should be worn when necessary, e.g.,
when fitting cutting attachments.


GENERAL SAFETY PRECAUTIONS
 Boots
Wear anti-slip and stable boots.
 Clothing
Wear clothes made of a strong fabric and avoid
loose clothing that can catch on shrubs and
branches. Always wear heavy, long pants. Do not
wear jewelry, shorts sandals or go barefoot.
Secure hair so it is above shoulder level.
 First Aid Kit
A first aid kit should be carried by operators of
clearing saws, brushcutters or trimmers.
Machine's safety equipment
This section describes the machine's safety
equipment, its purpose, and how checks and
maintenance should be carried out to ensure that it
operates correctly. See the "WHAT IS WHAT"
section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and
the risk of accidents can increase if machine
maintenance is not carried out correctly and if
service and/or repairs are not carried out
professionally. If you need further information
please contact your nearest service workshop.
IMPORTANT! All ser icing and repair work on
the machine requires special training. This is
especially true of the machine's safety
equipment. If your machine fails any of the
checks described below you must contact your
ser ice agent. When you buy any of our
products we guarantee the a ailability of
professional repairs and ser ice. If the retailer
who sells your machine is not a ser icing
dealer, ask him for the address of your nearest
ser ice agent.
WARNING: Ne er use a machine that has
faulty safety equipment.
Follow the control, maintenance and service
instructions described in this section. If your
machine fails any of these checks contact your
service agent to get it repaired.

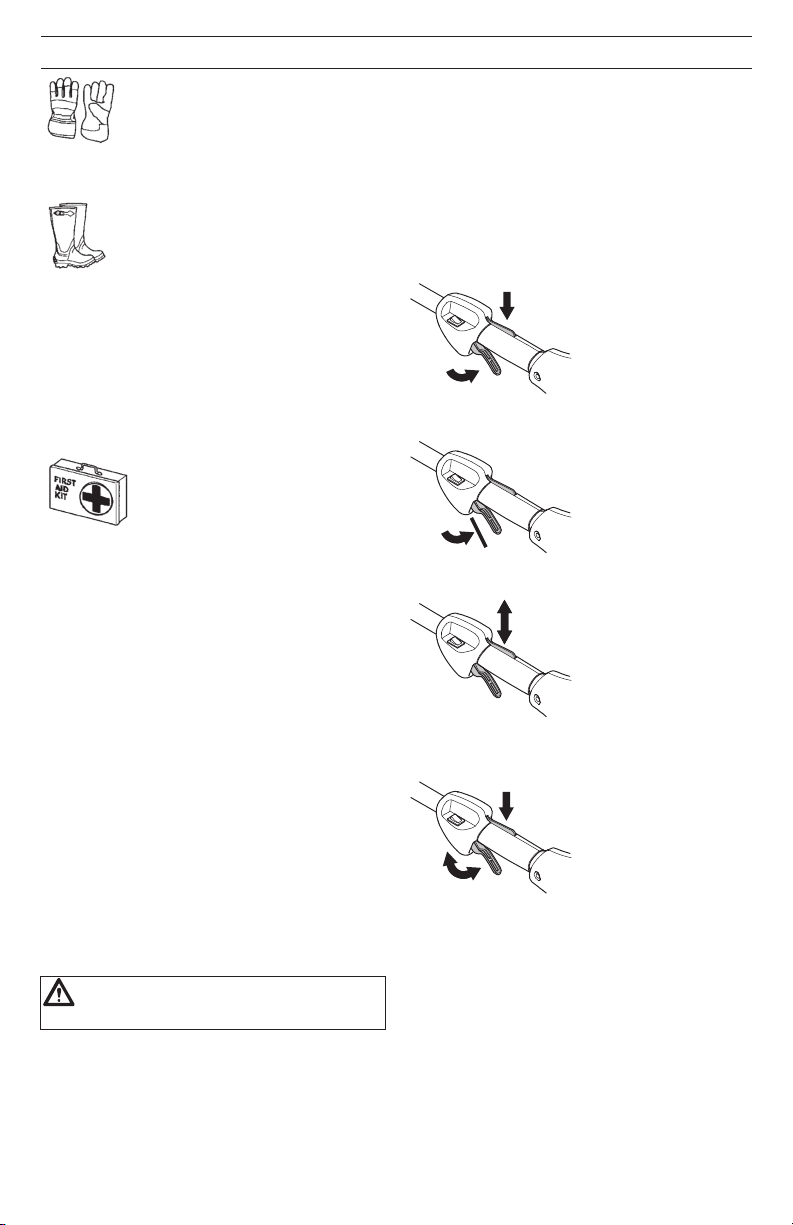

 Throttle lock-out
The throttle lock-out is designed to prevent
accidental operation of the throttle control. When
you press the lock-out (A) (i.e. when you grasp the
handle) it releases the throttle control (B). When
you release the handle, the throttle control and the
throttle lock-out both move back to their original
positions. This movement is controlled by two
independent return springs. This arrangement
means that the throttle control is automatically
locked at the idle setting.
Make sure the throttle control is locked at the idle
setting when the throttle lock-out is released.
Press the throttle lock-out and make sure it returns
to its original position when you release it.
Check that the throttle control and throttle lock-out
move freely and that the return springs work
properly.
See instructions under the heading “Start”. Start
the machine and apply full throttle. Release the
throttle and check that the cutting attachment
stops and remains at a standstill. If the cutting
attachment rotates with the throttle in the idle
position then the carburetor idle setting must be
checked. See instructions under the
“MAINT NANC ” section.
 Stop switch
Make sure the engine stops when you push and
release the stop switch.
A
B


GENERAL SAFETY PRECAUTIONS
 Cutting attachment guard
This guard is intended to prevent loose objects
from being thrown towards the operator. The
guard also protects the operator from accidental
contact with the cutting attachment.
Check that the guard is undamaged and not
cracked. Replace the guard if it has been exposed
to impact or is cracked.
Always use the recommended guard for the
cutting attachment you are using. See the
"T CHNICAL DATA" section.
WARNING: Ne er use a cutting
attachment without an appro ed guard.
See the “TECHNICAL DATA” section. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
Use of incorrectly wound trimmer line or an
incorrect cutting attachment increases the level of
vibration.
WARNING: O erexposure to ibration
can lead to circulatory damage or ner e
damage in people who ha e impaired
circulation. Contact your doctor if you
experience symptoms of o erexposure to
ibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin color or condition. These
symptoms normally appear in the fingers,
hands or wrists. The risk increases at low
temperatures.
 Harness quick release
There is an easily accessible, harness quick
release fitted at the front in case of an emergency
that requires you to free yourself from the machine
and harness.
See instructions under the heading “Adjusting the
harness”.
Check that the harness straps are correctly
positioned. Once the harness and machine have
been adjusted, check that the harness quick
release works correctly.
 Muffler
The muffler is designed to reduce the noise level
and to direct the exhaust gases away from the
operator.
CAUTION! Muffler is fitted with a catalytic
con erter designed to reduce harmful exhaust
gases.
In countries that have a warm and dry climate
there is a significant risk of fire. We therefore fit
certain mufflers with a spark arrestor mesh. Check
whether the muffler on your machine is fitted with
this kind of mesh.
For mufflers, it is very important that you follow the
instructions on checking, maintaining, and
servicing your machine. Never use a machine that
has a faulty muffler.
Regularly check that the muffler is securely
attached to the machine.
WARNING: Mufflers fitted with catalytic
con erters get ery hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin. Remember
the risk of fire.
WARNING: The inside of the muffler
contain chemicals that may be
carcinogenic. A oid contact with these
elements in the e ent of a damaged
muffler.


GENERAL SAFETY PRECAUTIONS
WARNING: Engine exhaust fumes
contain carbon monoxide, which can
cause carbon monoxide poisoning. Do
not start or run the machine indoors, or
anywhere that is poorly entilated.
WARNING: The exhaust fumes from the
engine are hot and may contain sparks
which can start a fire. Ne er start the
machine indoors or near combustible
material.
 Locking nut
A locking nut is used to secure some types of
cutting attachment.
When fitting, tighten the nut in the opposite
direction to the direction of rotation of the cutting
attachment. To remove it, undo the nut in the
same direction as the cutting attachment rotates.
(The nut has a left-hand thread.) Tighten the nut
using the socket wrench.
The nylon lining inside the locking nut must not be
so worn that you can turn it by hand. The lining
should offer a resistance of at least 1.5 Nm (1,1 ft
lb). The nut should be replaced after it has been
put on approximately 10 times.
Cutting equipment
This section describes how to choose and
maintain your cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• xtend the life of cutting equipment.
IMPORTANT:
• Only use cutting attachments with the guards
we recommend. See the “T CHNICAL DATA”
section.
• Refer to the instructions for the cutting
attachment to check the correct way to load
the trimmer line and the correct line diameter.
• Keep the teeth of the blade correctly
sharpened. Follow our recommendations. Also
refer to the instructions on the blade
packaging.
• Maintain the correct blade setting. Follow our
instructions and use the recommended file
gauge.
WARNING: Stop the engine before doing
any work on the cutting attachment.
Ensure the cutting attachment has
stopped rotating completely. Disconnect
the lead from the spark plug.
WARNING: Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of kickback.
 Cutting equipment
Grass blades and grass cutters are intended for
cutting coarse grass.
A trimmer head is intended for trimming grass.
 General rules
Only use cutting attachments with the guards we
recommend. See the “T CHNICAL DATA”
section.
Keep the teeth of the blade correctly sharpened.
Follow our instructions and use the recommended
file gauge. An incorrectly sharpened or damaged
blade increases the risk of accidents.
Check the cutting attachment for damage or
cracks. A damaged cutting attachment should
always be replaced.


GENERAL SAFETY PRECAUTIONS
 Sharpening grass cutters and grass blades
• See the cutting attachment packaging for
correct sharpening instructions. Sharpen
blades and cutters using a single-cut flat file.
• Sharpen all edges equally to maintain the
balance of the blade.
WARNING: Always discard a blade that
is bent, twisted, cracked, broken or
damaged in any other way. Ne er attempt
to straighten a twisted blade so that it can
be reused. Only use original blades of the
specified type.
 Trimmer head
IMPORTANT: Always ensure the trimmer line is
wound tightly and e enly around the drum;
otherwise the machine may generate ibration
which could be harmful.
• Only use the recommended cutting
attachments. See the “T CHNICAL DATA”
section.
• Smaller machines generally require small
trimmer heads and vice versa. This is because
when clearing using trimmer line the engine
must throw out the trimmer line radially from
the trimmer head and overcome the
resistance of the grass being cleared.
• The length of the trimmer line is also
important. A longer trimmer line requires
greater engine power than a shorter trimmer
line of the same diameter.
• Make sure that the cutter on the trimmer guard
is intact. This is used to cut the trimmer line to
the correct length.
• To increase the life of the trimmer line it can
be soaked in water for a couple of days. This
will make the line tougher so that it lasts
longer.


ASSEMBLY
NOTE: Make sure unit is assembled correctly
as shown in this manual.
Fitting the loop handle
1. Clip the loop handle onto the shaft. Note that
the loop handle must be fitted between the
arrows on the shaft.
2. Slide the spacer into the slot in the loop handle.
Fit the nut, knob and screw. Do not overtighten.
. Now adjust the trimmer to give a comfortable
working position. Tighten the bolt.
Fitting the J-handle
WARNING: Only rass blades/ rass
cutters or trimmer heads/plastic blades
may be used when the J-handle is fitted.
Saw blades must never be used with the
J-handle.
WARNING: The handle mountin parts
must be fitted between the arrows on the
shaft to maintain a safe operatin
position.
1. Attach the J-handle to the loop handle using
the three screws, as shown.
2. Now carry out fine adjustment to give yourself a
comfortable working position. Tighten the
screws.
Fitting the harness
WARNING: When usin a brushcutter, it
must always be hooked securely to the
harness. Otherwise, you will be unable to
control the brushcutter safely. This can
result in injury to yourself or others.
Never use a harness with a defective
quick release.
Proper harness and handlebar adjustments must
be made with the engine completely stopped
before using unit.
 Fittin the harness clamp
1. Place the upper harness clamp over the shaft
and position the lower harness clamp under the
shaft. Align the upper and lower clamp screw
holes. Clamp must be fitted above the arrow on
the shaft (see illustration).
NOTE: Fit throttle wire in roove of lower
harness clamp before ti htenin screws.
2. Insert two screws into the screw holes.
. Secure harness clamp by tightening screws
with a hex wrench.
 Adjustin the harness
At the front of the harness is an easily accessible
quick release. Use the quick release in any
emergency situation that requires you to free
yourself from the machine and harness.
 Spreadin the load on your shoulders
A well-adjusted harness and machine makes work
much easier.
Put on the harness. Adjust the harness for the best
working position. Tension the side straps so that
the weight is evenly distributed across both
shoulders.
NOTE: It may be necessary to relocate the
harness clamp on the shaft for proper
balancin of unit.


ASSEMBLY
 Correct hei ht

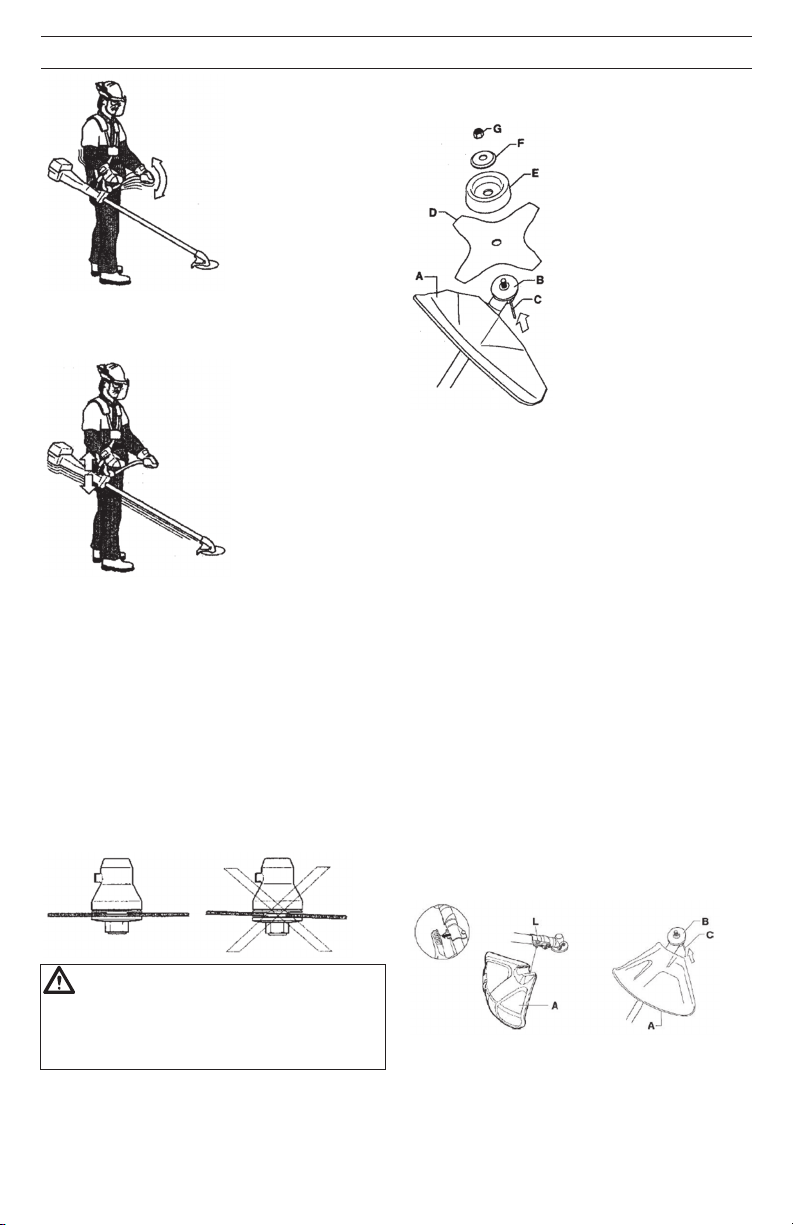

Adjust the harness so that the cutting attachment
is parallel to the ground.
 Correct balance
Let the cutting attachment rest lightly on the
ground. If you use a grass blade, it should balance
about 10 centimeters (4 inches) above the ground
to prevent contact with stones and the like. Adjust
the position of the harness clamp to balance the
unit correctly.
Fitting blades and trimmer heads
• When fitting the cutting attachment it is
extremely important that the raised section on
the drive disc/support flange engages correctly
in the center hole of the cutting attachment. If
the cutting attachment is fitted incorrectly it can
result in serious and/or fatal personal injury.
WARNING: Never use a cuttin
attachment without an approved uard.
See the “TECHNICAL DATA” section. If an
incorrect or faulty uard is fitted this can
cause serious personal injury.
IMPORTANT: If a rass blade is to be used, the
machine must be equipped with the correct
handlebar, blade uard and harness.
Fitting a blade guard, grass blade and
grass cutter
1. Hook the blade guard/combination guard (A)
onto the fitting on the shaft and secure with the
bolt.
CAUTION! Use the recommended blade uard.
See the Technical data section.
2. Fit the drive disc (B) on the output shaft.
. Turn the blade shaft until one of the holes in
the drive disc aligns with the corresponding
hole in the gear housing.

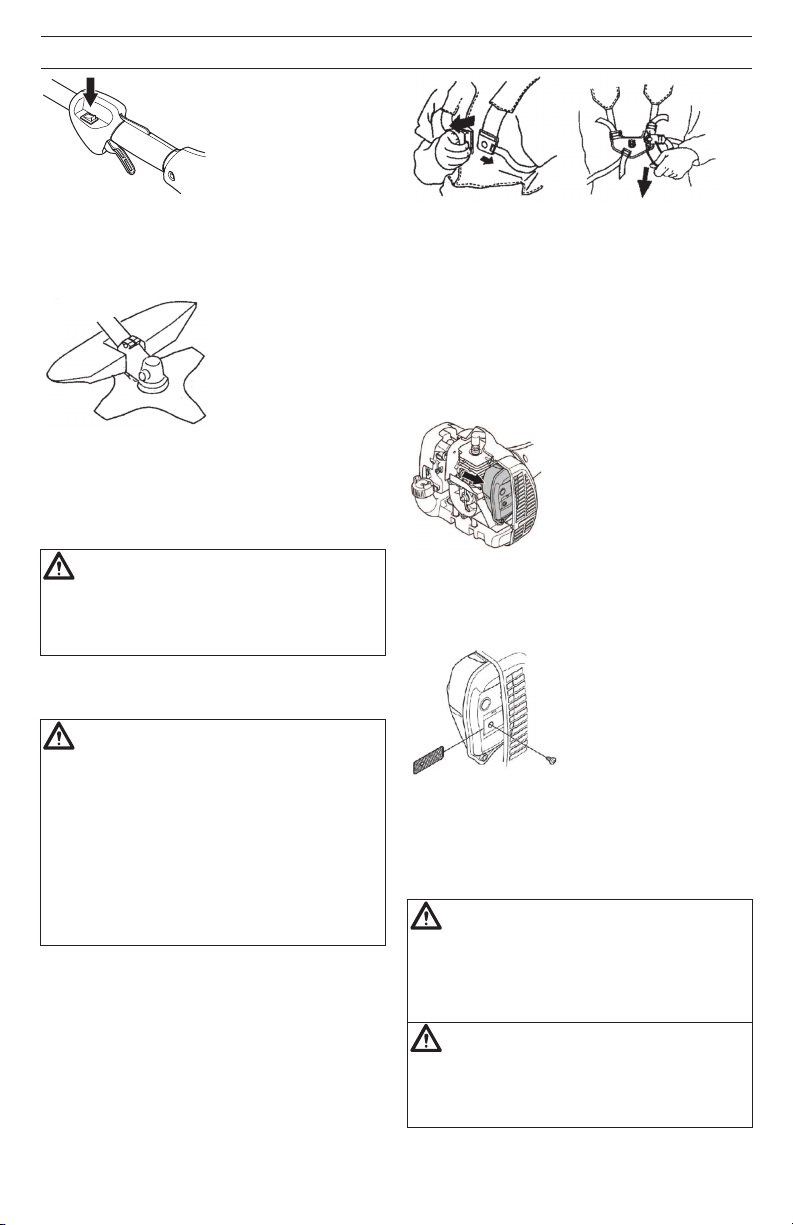

4. Insert the locking pin (C) in the hole to lock the
shaft.
5. Place the blade (D), support cup (E) and
support flange (F) on the output shaft.
6. Fit the nut (G). The nut must be tightened to a
torque of 5-50 Nm ( .5-5 kpm). Use the
socket wrench in the tool kit. Hold the shaft of
the wrench as close to the blade guard as
possible. To tighten the nut, turn the wrench in
the opposite direction to the direction of rotation
(NOTE: left-hand thread).
Fitting the trimmer guard and trimmer
head
1. Fit the correct trimmer guard (A) for use with
the trimmer head. Hook the trimmer
guard/combination guard onto the fitting on the
shaft and secure with the bolt (L).
2. Fit the drive disc (B) on the output shaft.
. Turn the shaft until one of the holes in the drive
disc aligns with the corresponding hole in the
gear housing.


ASSEMBLY
4. Insert the locking pin (C) in the hole to lock the
shaft.

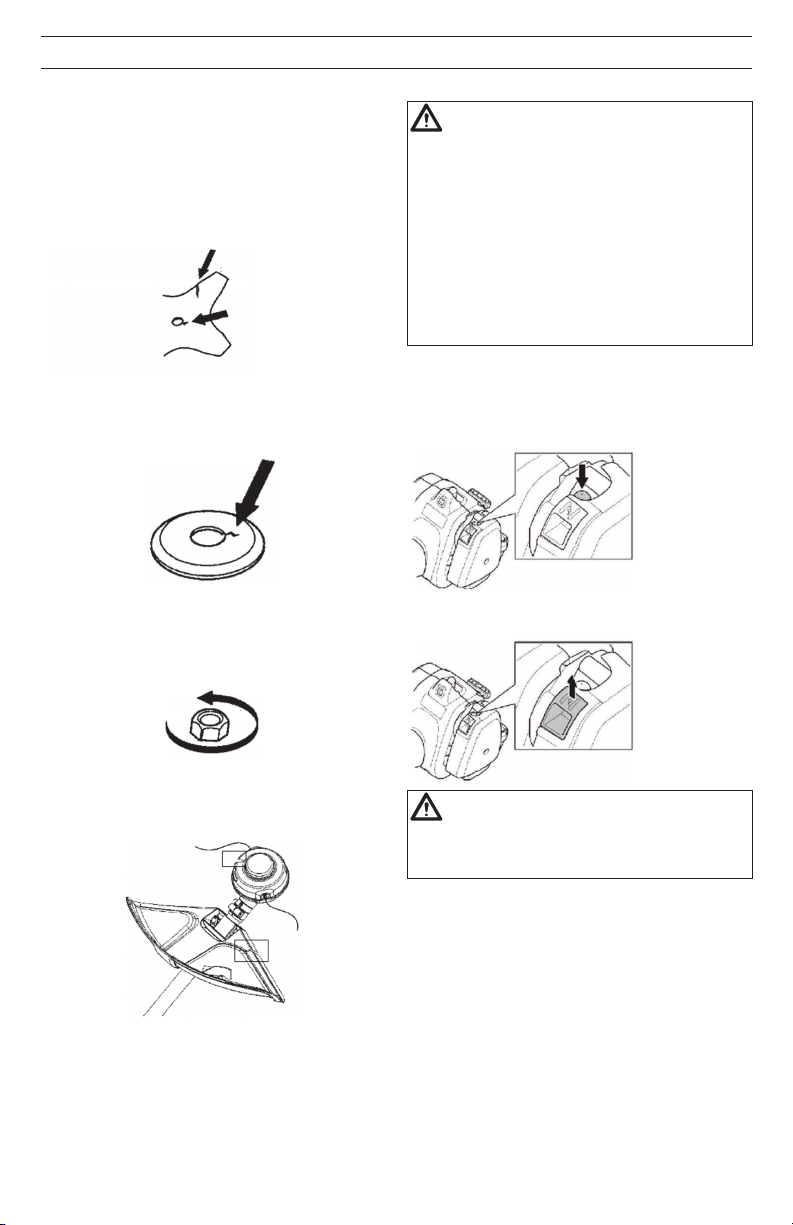

5. Screw on the trimmer head (H) in the opposite
direction to the direction of rotation.
6. To dismantle, follow the instructions in the
reverse order.


FUEL HANDLING
Fuel safety
Never start the machine:
• If you have spilled fuel on it. Wipe off the
spillage and allow remaining fuel to evaporate.
• If you have spilled fuel on yourself or your
clothes, change your clothes. Wash any part of
your body that has come in contact with fuel.
Use soap and water.
• If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
 Transport and storage
• tore and transport the machine and fuel so that
there is no risk of any leakage or fumes coming
into contact with sparks or naked flames, for
example, from electrical machinery, electric
motors, electrical relays/switches or boilers.
• When storing and transporting fuel always use
approved containers intended for this purpose.
• When storing the machine for long periods the
fuel tank must be emptied. Contact your local
gasoline station to find out where to dispose of
excess fuel.
• Ensure the machine is cleaned and that a
complete service is carried out before long-term
storage.
• The transport guard must always be fitted to the
cutting attachment when the machine is being
transported or in storage.
• In order to prevent unintentional starting of the
engine, the spark plug cap must always be
removed during long-term storage, if the
machine is not under close supervision and
when performing all service measures.
• ecure the machine during transport.
WARNING: Take care when handling fuel.
Bear in mind the risk of fire, e plosion
and inhaling fumes.
Fuel
CAUTION: The machine is equipped with a two-
stroke engine and must always be run using a
mi ture of gasoline and two-stroke engine oil.
It is important to accurately measure the
amount of oil to be mi ed to ensure that the
correct mi ture is obtained. When mi ing small
amounts of fuel, even small inaccuracies can
drastically affect the ratio of the mi ture.
WARNING: Fuel and fuel fumes are
highly inflammable and can cause serious
injury when inhaled or allowed to come in
contact with the skin. For this reason
observe caution when handling fuel and
make sure there is adequate ventilation.
 Gasoline
CAUTION: Always use a good quality
gasoline/oil mi ture (at least 90 octane). Use
low-emission gasoline, also known as alkylate
gasoline, if it is available.
• The lowest octane recommended is 90. If you
run the engine on a lower octane than 90, it can
result in knocking. This gives rise to a high
engine temperature, which can result in serious
engine damage.
• When working at continuous high revs, a higher
octane rating is recommended.
 Two-stroke oil
• To ensure best performance and engine
durability, Husqvarna XP oil is preferred as it is
specially formulated for our air-cooled two
stroke-engines. Only use high quality full
synthetic two-stroke oil when mixing fuel.
• Never use two-stroke oil intended for water-
cooled engines, sometimes referred to as
outboard oil or marine oil (rated TCW).
• Never use oil intended for four-stroke engines.

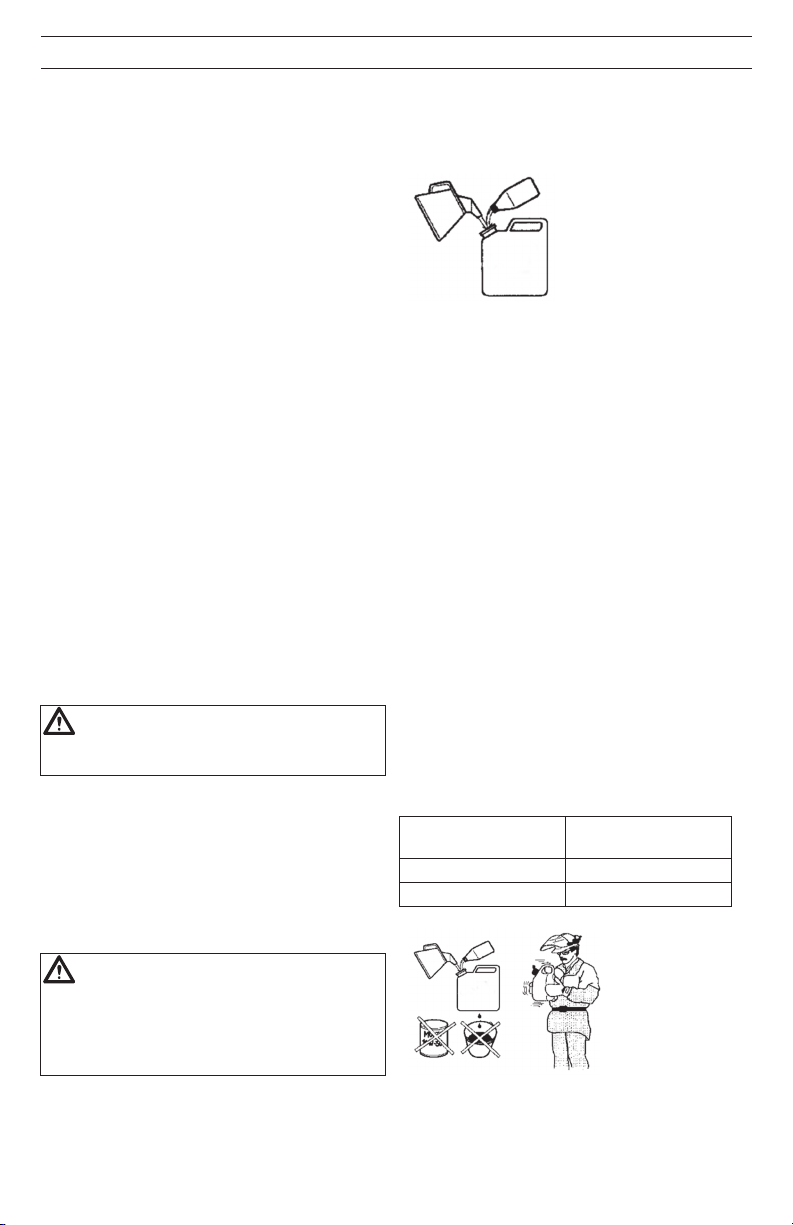

Mixing
• Mixture is 50:1.
• Always mix the gasoline and oil in a clean
container intended for fuel.
• Always start by filling half the amount of the
gasoline to be used. Then add the entire amount
of oil. Mix (shake) the fuel mixture. Add the
remaining amount of gasoline.
• Mix (shake) the fuel mixture thoroughly before
filling the machine's fuel tank.
Gasoline, liter (gal) Two-stroke oil, ml
(oz)
4 (1) 77 (2,6)
8 (2) 154 (5,2)
• Do not mix more than one month's supply of fuel
at a time.


FUEL HANDLING
• If the machine is not used for some time, the fuel
tank should be emptied and cleaned.
WARNING: The catalytic converter
muffler gets very hot during and after use.
This also applies during idling. Be aware
of the fire hazard, especially when
working near flammable substances
and/or vapors.
Fueling
WARNING: Taking the following
precautions will lessen the risk of fire:
• Do not smoke or place hot objects near fuel.
• Always shut off the engine before refueling.
• Always stop the engine and let it cool for a
few minutes before refueling.
• When refueling, open the fuel cap slowly so
that any e cess pressure is released gently.
• Tighten the fuel cap carefully after refueling.
• Always move the machine away from the
refueling area before starting.
• Clean the area around the fuel cap.
Contamination in the tank can cause operating
problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.


STARTING AND STOPPING
Check before starting

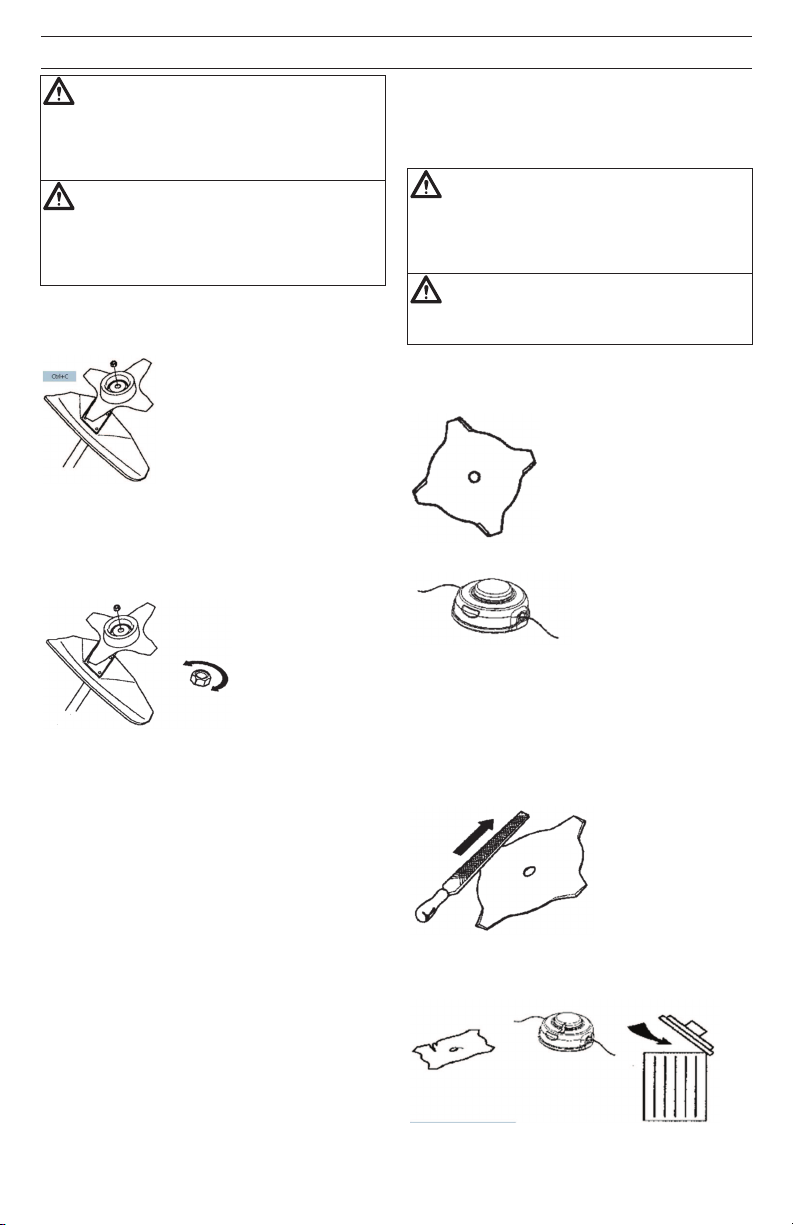

• Check the blade to ensure that no cracks have
formed at the bottom of the teeth or by the
center hole. The most common reason why
cracks are formed is that sharp corners have
been formed at the bottom of the teeth while
sharpening or that the blade has been used
with dull teeth. Discard a blade if cracks are
found.
• Check that the support flange is not cracked
due to fatigue or due to being tightened too
much. Discard the support flange if it is
cracked.
• Ensure the locking nut has not lost its captive
force. The nut lock should have a locking force
of at least 1.5 Nm 1,1 ft lb). The tightening
torque of the locking nut should be 35-50 Nm
26-36 ft lb).
• Check that the trimmer head and trimmer guard
are not damaged or cracked. Replace the
trimmer head or trimmer guard if they have
been exposed to impact or are cracked.
• Never use the machine without a guard nor
with a defective guard.
• All covers must be correctly fitted and
undamaged before you start the machine.
Starting and stopping
WARNING: The complete clutch, clutch
cover, and shaft must be fitted before the
machine is started, otherwise parts could
come loose and cause personal injury
Always move the machine away from the
refueling area before starting Place the
machine on a flat surface Ensure the
cutting attachment cannot come into
contact with any object
Make sure no unauthorized persons are in
the working area, otherwise there is a risk
of serious personal injury The safety
distance is 15 meters (50 feet)
 Cold engine

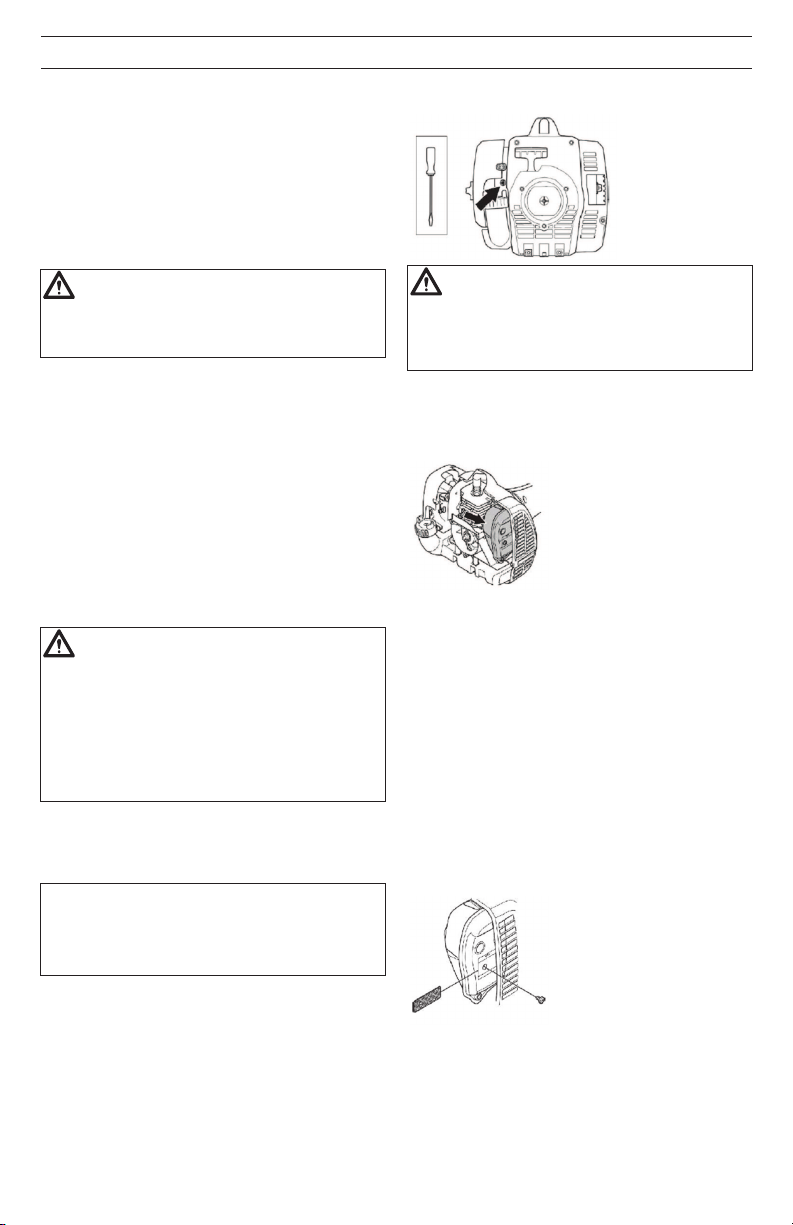

1. Primer bulb: Press the air purge diaphragm
repeatedly until fuel begins to fill the diaphragm
about 10 times). The diaphragm need not be
completely filled.
2. Choke: Set the choke control in the choke
position.
WARNING: When the engine is started
with the choke in choke position the
cutting attachment will start to rotate
immediately
3. Hold the body of the machine on the ground
using your left hand CAUTION! Not with your
foot.). Grip the starter handle, slowly pull out
the cord with your right hand until you feel
some resistance the starter pawls grip), then
quickly and powerfully pull the cord. Never twist
the starter cord around your hand.
NOTE! Do not squeeze the throttle control
while attempting to start the engine
NOTE! Do not pull the starter cord all the way
out and do not let go of the starter handle
when the cord is fully extended This can
damage the machine Repeat pulling the cord


STARTING AND STOPPING
until engine attempts to start (or maximum 3
pulls)
4. If the engine starts or attempts to start, push
the choke lever down to the run position.
5. Keep on pulling the cord powerfully until the
engine starts.
6. Once the engine starts, allow the engine to
warm up for 30 seconds before applying full
throttle.
 Warm engine
1. Primer bulb: Press the air purge diaphragm
repeatedly until fuel begins to fill the diaphragm
about 10 times). The diaphragm need not be
completely filled.
2. Repeat pulling the cord until engine attempts to
start or maximum 3 pulls).
 Stopping
Stop the engine by pushing and releasing the stop
switch.
CAUTION! The stop switch automatically
returns to the start position In order to prevent
unintentional starting, the spark plug cap must
be removed from the spark plug when
assembling, checking and/or performing
maintenance
WARNING: When the engine is started
with the choke in the closed position the
cutting attachment will start to rotate
immediately


WORKING TECHNIQUES
IMPORTANT!
This section describes the basic safety
precautions for working with trimmers. If you
encounter a situation where you are uncertain
how to proceed you shou d ask an expert.
Contact your servicing dea er.
Avoid a usage which you consider to be
beyond your capabi ity.
You must understand the difference between
forestry c earing, grass c earing and grass
trimming before use.
Basic safety rules

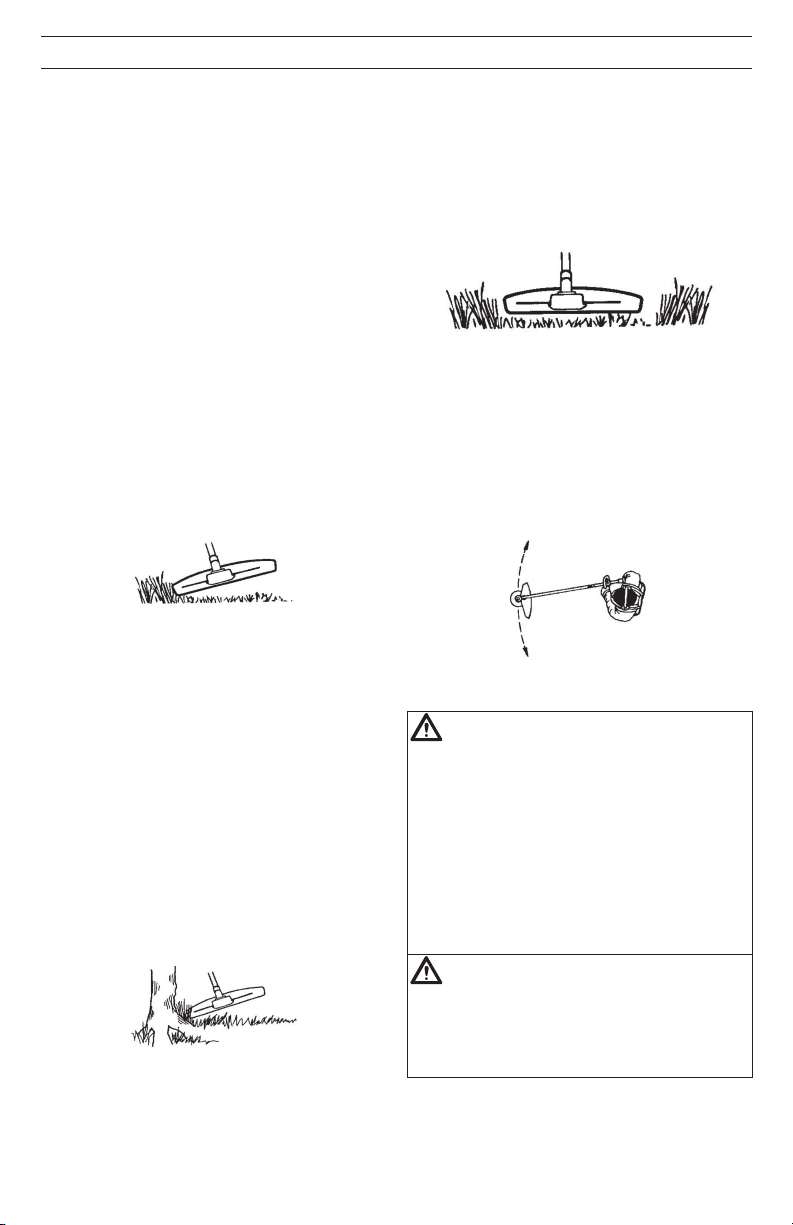

• Look around you:
• To ensure that people, animals or other
things cannot affect your control of the
machine.
• To ensure that people, animals, etc., do not
come into contact with the cutting
attachment or loose objects that are thrown
out by the cutting attachment.
CAUTION! Do not use the machine un ess you
are ab e to ca for he p in the event of an
accident.
• Do not use the machine in bad weather, such
as dense fog, heavy rain, strong wind, intense
cold, etc. Working in bad weather is tiring and
often brings added risks, such as icy ground,
unpredictable felling direction, etc.
• ake sure you can move and stand safely.
Check the area around you for possible
obstacles (roots, rocks, branches, ditches, etc.)
in case you have to move suddenly. Take great
care when working on sloping ground.
• Switch off the engine before moving to another
area. Fit the transport guard before carrying or
transporting the equipment any distance.
• Never put the machine down with the engine
running or while the cutting attachment is
rotating.
The basics of clearing
• Always use the correct equipment.
• ake sure the equipment is well adjusted.
• Follow the safety precautions.
• Organize your work carefully.
• Always use full throttle when starting to cut with
the blade.
• Always use sharp blades.
• Avoid stones.
• Always slow the engine to idle speed after each
working operation. Long periods at full throttle
without any load on the engine can lead to
serious engine damage.
WARNING: Neither the operator of the
machine nor anyone e se may attempt to
remove the cut materia whi e the engine
is running or the cutting equipment is
rotating, as this can resu t in serious
injury. Stop the engine and cutting
equipment and disconnect the ead from
the spark p ug before you remove
materia that has wound around the b ade
shaft as otherwise there is a risk of injury.
The beve gear can get hot during use and
may remain so for a whi e afterwards.
A ow time to coo . You cou d get burned
if you touch it.
WARNING: Watch out for thrown objects.
A ways wear approved eye protection.
Never ean over the cutting attachment
guard. Stones, rubbish, etc. can be
thrown up into the eyes causing
b indness or serious injury. Keep
unauthorized persons at a distance.
Chi dren, anima s, on ookers and he pers
shou d be kept outside the safety zone of
15 meters (50 feet). Stop the machine
immediate y if anyone approaches. Never
swing the machine around without first
checking behind you to make sure no one
is within the safety zone.
WARNING: Sometimes branches or grass
get caught between the guard and cutting
attachment. A ways stop the engine
before c eaning.
Grass clearing using a grass blade
• Grass blades and grass cutters must not be
used on woody stems.
• A grass blade is used for all types of tall or
coarse grass.
• The grass is cut down with a sideways,
swinging movement, where the movement from
right-to-left is the clearing stroke and the
movement from left-to-right is the return stroke.
Let the left-hand side of the blade (between 8
and 12 o'clock) do the cutting.


WORKING TECHNIQUES
• If the blade is angled to the left when clearing
grass, the grass will collect in a line, which
makes it easier to collect, e.g. by raking.
• Try to work rhythmically. Stand firmly with your
feet apart. ove forward after the return stroke
and stand firmly again.
• Let the support cup rest lightly against the
ground. It is used to protect the blade from
hitting the ground.
• Reduce the risk of material wrapping around
the blade by following these instructions:
• Always work at full throttle.
• Avoid the previously cut material during the
return stroke.
• Stop the engine, unclip the harness and place
the machine on the ground before you start to
collect the cut material.
Grass trimming with a trimmer head
 Trimming
• Hold the trimmer head just above the ground at
an angle. It is the end of the trimmer line that
does the work. Let the trimmer line work at its
own pace. Never press the trimmer line into the
area to be cut.
• The trimmer line can easily remove grass and
weeds up against walls, fences, trees and
borders; however it can also damage sensitive
bark on trees and bushes, and damage fence
posts.
• Reduce the risk of damaging plants by
shortening the trimmer line to 10-12 cm (4-4,75
in) and reducing the engine speed.
• When trimming you should use less than full
throttle so that the trimmer line lasts longer and
to reduce the wear on the trimmer head.
 C earing
• The clearing technique removes all unwanted
vegetation. Keep the trimmer head just above
the ground and tilt it. Let the end of the trimmer
line strike the ground around trees, posts,
statues and the like. I PORTANT! This
technique increases the wear on the trimmer
line.
• The trimmer line wears quicker and must be fed
forward more often when working against
stones, brick, concrete, metal fences, etc., than
when coming into contact with trees and
wooden fences.
 Cutting
• The trimmer is ideal for cutting grass that is
difficult to reach using a normal lawn mower.
Keep the trimmer line parallel to the ground
when cutting. Avoid pressing the trimmer head
against the ground as this can ruin the lawn
and damage the tool.
• Do not allow the trimmer head to constantly
come into contact with the ground during
normal cutting. Constant contact of this type
can cause damage and wear to the trimmer
head.
 Sweeping
• The fan effect of the rotating line can be used
for quick and easy clearing up. Hold the
trimmer line parallel to and above the area to
be swept and move the tool back and forth.
• When cutting and sweeping you should use full
throttle to obtain the best results.
WARNING: Neither the operator of the
machine nor anyone e se may attempt to
remove the cut materia whi e the engine
is running or the trimmer ine is rotating,
as this can resu t in serious injury. Stop
the engine and trimmer head and
disconnect ead from spark p ug before
you remove materia that has wound
around the drive shaft as otherwise there
is a risk of injury. The beve gear can get
hot during use and may remain so for a
whi e afterwards. A ow time to coo . You
cou d get burned if you touch it.
WARNING: Watch out for thrown objects.
A ways wear eye protection. Never ean
over the cutting attachment guard.
Stones, rubbish, etc. can be thrown up
into the eyes causing b indness or
serious injury.


WORKING TECHNIQUES
Keep unauthorized persons at a distance.
Children, animals, onlookers and helpers
should be kept outside the safety zone of
15 meters (50 feet). Stop the machine
immediately if anyone approaches.


MAINTENANCE
The life span of the machine can be reduced and
the risk of accidents can increase if machine
maintenance is not carried out correctly and if
service and/or repairs are not carried out
professionally. If you need further information,
please contact your nearest authorized service
dealer.
Unit/Maintenance Safety
Disconnect the spark plug before performing
maintenance, except carburetor adjustments.
WARNING: The complete clutch, clutch
cover, and shaft must be fitted before the
machine is started, otherwise parts could
come loose and cause personal injury
Carburetor
 Function
The carburetor governs the engine s speed via the
throttle control. Air and fuel are mixed in the
carburetor.
The T-screw regulates the throttle setting at idle
speed. If the T-screw is turned clockwise this gives
a higher idle speed; turning it counterclockwise
gives a lower idle speed.
 Basic setting
The basic carburetor settings are adjusted during
testing at the factory. Fine adjustment should be
carried out by a trained technician.
WARNING: The cutting attachment may
be spinning during carburetor
adjustments Wear your protective
equipment and observe all safety
instructions Be sure the cutting
attachment stops turning when the engine
idles When the unit is turned off, make
sure the cutting attachment has stopped
before the unit is set down
CAUTION! If the cutting attachment rotates
when the engine is idling the idle adjustment
screw T should be turned counterclockwise
until the cutting attachment stops
Recommended idle speed:
See "Technical data" section.
Recommended max speed:
See "Technical data" section.
 Fine adjustment of the idle speed-T
Adjust the idle speed using the idle adjustment
screw-T if it is necessary to readjust. First, turn the
idle adjustment screw-T clockwise until the cutting
attachment starts to rotate. Then, turn the screw
counterclockwise until the cutting attachment
stops. The idle speed is correctly adjusted when
the engine will run smoothly in every position. The
idle speed should also be well below the speed at
which the cutting attachment starts to rotate.
WARNING: If the idle speed cannot be
adjusted so that the cutting attachment
stops, contact your servicing dealer Do
not use the machine until it has been
correctly adjusted or repaired
Muffler
CAUTION! Muffler is fitted with a catalytic
converter designed to reduce harmful exhaust
gases
(Starter housing removed for clarity)
The muffler is designed to reduce the noise level
and to direct the exhaust gases away from the
operator. The exhaust gases are hot and can
contain sparks, which may cause fire if directed
against dry and combustible material.
Mufflers are equipped with a special spark arrestor
mesh. The mesh should be checked and, if
necessary, cleaned by a servicing dealer. If the
mesh is damaged, it should be replaced.
If the mesh is frequently blocked, this can be a
sign that the performance of the catalytic converter
is impaired. Contact your servicing dealer to
inspect the muffler. A blocked mesh will cause the
machine to overheat and result in damage to the
cylinder and piston.
CAUTION: Never use a machine that has a
faulty or loose muffler Ensure the muffler bolts
are tight

