Oper ator’s manual
Please r ead the operator’s manual carefully and make sure you understand the instructions
before using the machine.
H1158943-26,143RII,GB.fm Page 1 Monday, May 22, 2017 11:20 AM

KEY T O SYMBOLS
2 – English
Symbols
W ARNING! A clearing saw,
brushcutter or trimmer can be
dangerous if used incorrectly or
carelessly, and can cause serious or
fatal injury to the operator or others. It
is extremely important that you read
and understand the contents of this operator’s manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• Wear a protective helmet where
there is a risk of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable EC directives.
Watch out for thrown objects and
ricochets.
The operator of the machine must
ensure, while working, that no
persons or animals come closer than
15 meters.
Machines fitted with saw blades or
grass blades can be thrown violently
to the side when the blade comes into
contact with a fixed object. This is
called blade thrust. The blade is
capable of amputating an arm or leg.
Always keep people and animals at least 15 meters from
the machine.
Ignition; choke: Set the choke
control in the choke position. This
should automatically set the stop
switch to the start position.
Air purge
Always wear approved protective
gloves.
Wear sturdy, non-slip boots.
Noise emission to the environment
according to the European
Community’s Directive. The machine’s
emission is specified in the Technical
data chapter and on the label.
Keep all parts of your body away from
hot surfaces.
Other symbols/decals on the machine refer to
special certification requirements for certain
markets.
The r ating plate showing
serial number.
yyyy is the
production year,
ww is the
productionweek.
Switch off the engine by moving the
stop switch to the STOP position before
carrying out any checks or
maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always
be used.
10000
50FT
15 m
50FT
15 m
yyyywwxxxxx
H1158943-26,143RII,GB.fm Page 2 Monday, May 22, 2017 11:20 AM

CONTENTS
English – 3
Contents Note the f ollowing before starting:
Please read the oper ator's manual carefully.
KEY TO SYMBOLS
Symbols ................................................................ 2
CONTENTS
Contents ............................................................... 3
Note the following before starting: ........................ 3
INTR ODUCTION
Dear Customer , .................................................... 4
WHA T IS WHAT?
What is what on the br ush cutter? ........................ 5
GENERAL SAFETY PRECA UTIONS
Impor tant .............................................................. 6
Personal protective equipment ............................. 6
Machine ′ s safety equipment ................................. 7
Cutting equipment ................................................ 10
ASSEMBL Y
Fitting the main body ............................................ 13
Assembling the handlebar and throttle ................. 13
Connecting throttle cable and stop switch wires ... 13
Fitting blades and trimmer heads ......................... 14
Fitting the transport guard .................................... 16
Adjusting the harness and brush cutter ................ 17
FUEL HANDLING
Fuel saf ety ............................................................ 18
Fuel ...................................................................... 18
Fueling .................................................................. 19
ST ARTING AND STOPPING
Chec k before starting ........................................... 20
Starting and stopping ........................................... 20
W ORKING TECHNIQUES
Gener al working instructions ................................ 22
MAINTENANCE
Carb urettor ........................................................... 26
Air filter ................................................................. 26
Fuel filter ............................................................... 27
Bevel gear ............................................................ 27
Spark plug ............................................................ 27
Maintenance schedule ......................................... 27
TECHNICAL D ATA
T echnical data ...................................................... 29
EC Declaration of Conformity ............................... 30
!
W ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
W ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use original
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
W ARNING! A clearing saw, brushcutter
or trimmer can be dangerous if used
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.
H1158943-26,143RII,GB.fm Page 3 Monday, May 22, 2017 11:20 AM

4 – English
INTR ODUCTION
Dear Customer ,
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During the more than 300 years in existence, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chainsaws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. The business concept is to develop, manufacture and market motor-driven products for forestry and
gardening, as well as for the building and construction industry. Husqvarna
′ s aim is also to be at the front edge for
ergonomics, usability, security and environmental protection. That is the reason why we have developed many different
features to add to our products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorized dealers, ask for the
address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′ s manual as a valuable document. By following its content (usage, service, maintenance, etc), the life span and
the second-hand value of the machine can be extended. If you sell this machine, make sure that the operator
′ s manual
is passed on to the buyer.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
H1158943-26,143RII,GB.fm Page 4 Monday, May 22, 2017 11:20 AM

English – 5
WHA T IS WHA T?
What is what on the brush cutter?
1
11
3
2
4
10
12
13
14
15
16
18
19
20
21
23
24
25
29
31
32
27
26
9
8
76
1
33
22
5
17
28
30
1 Blade (Not all markets)
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Start throttle button
7 Stop switch
8 Throttle trigger
9 Throttle trigger lockout
10 Suspension ring
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air filter cover
16 Handlebar
17 Clutch cover
18 Locking nut
19 Support flange
20 Support cup
21 Drive disc
22 Handlebar clamp
23 Operator’s manual
24 Transport guard (Not all markets)
25 Socket spanner
26 Spanner
27 Locking pin
28 Harness
29 Air purge
30 Guard extension
31 Trimmer head (Not all markets)
32 Allen key
33 2-teeth blade (Not all markets)
H1158943-26,143RII,GB.fm Page 5 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECA UTIONS
6 – English

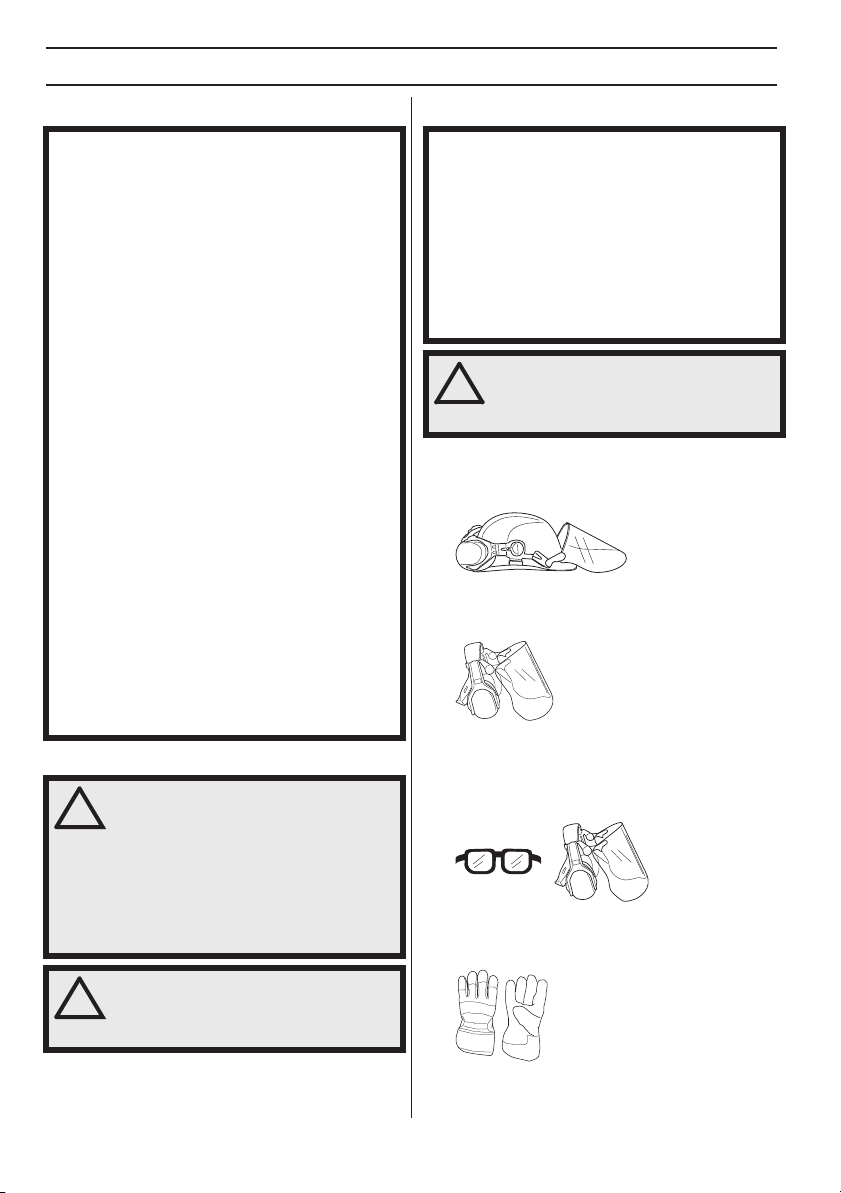

Impor tant Personal protective equipment
HELMET
A helmet should be w orn if the trees being cleared are
taller than 2 m.
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with the ANSI
Z87.1 standard in the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g. when fitting
cutting attachments.
IMPORTANT!
The clearing saw or grass trimmer is only designed for
trimming grass, grass clearing and/or forestry clearing.
National or local regulations may regulate the use.
Comply to given regulations.
The only accessories you can operate with this engine
unit are the cutting attachments we recommend in the
chapter on Technical data.
Never use the machine if you are tired, if you are ill, if
you have consumed alcohol, or if you are taking other
drugs or medication that can affect your vision,
judgement or co-ordination.
Wear personal protective equipment. See instructions
under the ”Personal protective equipment” heading.
Never use a machine that has been modified in any way
from its original specification.
Never use a machine that is faulty. Carry out the safety
checks, maintenance and service instructions
described in this manual. Some maintenance and
service measures must be carried out by trained and
qualified specialists. See instructions under the
Maintenance heading.
All covers, guards and handles must be fitted before
starting. Ensure that the spark plug cap and ignition
lead are undamaged to avoid the risk of electric shock.
The machine operator must ensure that no people or
animals come closer than 15 meters while working.
When several operators are working in the same area
the safety distance should be at least twice the tree
height and no less than 15 meters.
Carry out an overall inspection of the machine before
use. See the maintenance schedule.
!
W ARNING! This machine produces an
electromagnetic field during operation.
This field may under some
circumstances interfere with active or
passive medical implants. To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
!
W ARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
IMPOR TANT!
A clearing saw, brushcutter or trimmer can be
dangerous if used incorrectly or carelessly, and can
cause serious or fatal injury to the operator or others. It
is extremely important that you read and understand the
contents of this operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
W ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
H1158943-26,143RII,GB.fm Page 6 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECA UTIONS
English – 7
BOO TS
Wear boots with steel toe-caps and non-slip sole.
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot.Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.
Thr ottle trigger lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e. when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independent return springs.This arrangement means that
the throttle control is automatically locked at the idle
setting.
Make sure that the throttle trigger is locked at idle setting
when the throttle trigger lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Check that the throttle trigger and throttle lockout move
freely and that the return springs work properly.
IMPORTANT! All servicing and repair work on the
machine requires special training.This is especially true
of the machine
′ s safety equipment. If your machine fails
any of the checks described below you must contact
your service agent. When you buy any of our products
we guarantee the availability of professional repairs and
service. If the retailer who sells your machine is not a
servicing dealer, ask him for the address of your nearest
service agent.
!
W ARNING! Never use a machine with
faulty safety equipment. The machine's
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
A
B
H1158943-26,143RII,GB.fm Page 7 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECA UTIONS
8 – English
See instr uctions under the heading Start. Start the
machine and apply full throttle. Release the throttle and
check that the cutting attachment stops and remains at a
standstill. If the cutting attachment rotates with the throttle
in the idle position then the carburettor idle setting must
be checked. See instructions under the heading
Maintenance.
Stop s witch
Use the stop s witch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
Cutting attac hment guard
This guard is intended to pre vent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting
attachment.
Check that the guard is undamaged and not cracked.
Replace the guard if it has been exposed to impact or is
cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
Vibration damping system
Y our machine is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier.
Using incorrectly wound cord or a blunt or incorrect
cutting attachment (wrong type or incorrectly filed, see
instructions under the heading Filing the blade) increases
the level of vibration.
The machine ′ s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine
′ s handle unit.
!
W ARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
H1158943-26,143RII,GB.fm Page 8 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECA UTIONS
English – 9
Regular ly check the vibration damping units for cracks or
deformation.
Check that the vibration damping element is undamaged
and securely attached.
Quic k release
There is an easily accessib le, quick release fitted at the
front as a safety precaution in case the engine catches
fire, or in any other situation that requires you to free
yourself from the machine and harness. See instructions
under the heading Adjusting the harness and brush
cutter.
Check that the harness straps are correctly positioned.
Once the harness and machine have been adjusted,
check that the harness quick release works correctly.
Muffl er
The m uffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
!
W ARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists. The risk
increases at low temperatures.
!
W ARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
!
WARNING! Bear in mind that: The
exhaust fumes from the engine are hot
and may contain sparks which can start
a fire. Never start the machine indoors or
near combustible material!
H1158943-26,143RII,GB.fm Page 9 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECAUTIONS
10 – English
Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove
it, undo the nut in the same direction as the cutting
attachment rotates. (CAUTION! The nut has a left-hand
thread.) Tighten the nut using the socket spanner.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
Cutting equipment
Saw blades are intended for cutting fibrous types of wood.
Grass blades and grass knifes are intended for cutting
coarse grass.
A trimmer head is intended for trimming grass.
General rules
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Keep the teeth of the blade correctly sharpened! Follow
our instructions and use the recommended file gauge. An
incorrectly sharpened or damaged blade increases the
risk of accidents.
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to
check the correct way to load the cord and the correct
cord diameter.
Keep the teeth of the blade correctly sharpened! Follow
our recommendations. Also refer to the instructions on
the blade packaging.
Maintain the correct blade setting! Follow our
instructions and use the recommended file gauge.
!
WARNING! Always stop the engine
before doing any work on the cutting
attachment.This continues to rotate even
after the throttle has been released.
Ensure that the cutting attachment has
stopped completely and disconnect the
spark plug cap before you start to work
on it.
!
WARNING! Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of blade thrust.
H1158943-26,143RII,GB.fm Page 10 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECAUTIONS
English – 11
Keep the correct setting on the saw blade! Follow our
instructions and use the recommended setting tool. An
incorrectly set saw blade increases the risk of jamming
and blade thrust, and damage to the saw blade.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.
Sharpening grass knifes and grass
blades
•See the cutting attachment packaging for correct
sharpening instructions. Sharpen blades and knifes
using a single-cut flat file.
• Sharpen all edges equally to maintain the balance of
the blade.
Sharpening the saw blade
•See the cutting attachment packaging for correct
sharpening instructions.
A correctly sharpened blade is essential for working
efficiently and to avoid unnecessary wear to the blade and
brush cutter.
• Make sure that the blade is well supported when you
file it. Use a 5.5 mm round file with a file holder.
• The filing angle is 15°. File alternate teeth to the right
and those in between to the left. If the blade has been
heavily pitted by stones it may be necessary to dress
the top edges of the teeth with a flat file, in exceptional
cases. If so, this should be done before filing with a
round file. The top edges must be filed down by the
same amount for all the teeth.
Adjust the blade setting. This should be 1 mm.
!
WARNING! Always discard a blade that is
bent, twisted, cracked, broken or
damaged in any other way. Never attempt
to straighten a twisted blade so that it
can be reused. Only use original blades
of the specified type.
H1158943-26,143RII,GB.fm Page 11 Monday, May 22, 2017 11:20 AM

GENERAL SAFETY PRECAUTIONS
12 – English
Trimmer head
•Only use the recommended trimmer heads and
trimmer cords. These have been tested by the
manufacturer to suit a particular engine size. This is
especially important when a fully automatic trimmer
head is used. Only use the recommended cutting
attachment. See the chapter on Technical data.
• Smaller machines generally require small trimmer
heads and vice versa. This is because when clearing
using a cord the engine must throw out the cord
radially from the trimmer head and overcome the
resistance of the grass being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of
the same diameter.
• Make sure that the cutter on the trimmer guard is
intact.This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in
water for a couple of days before use. This will make
the cord tougher so that it lasts longer.
IMPORTANT!
Always ensure the trimmer cord is wound tightly and
evenly around the drum, otherwise the machine will
generate harmful vibration.
H1158943-26,143RII,GB.fm Page 12 Monday, May 22, 2017 11:20 AM

ASSEMBLY
English – 13
Fitting the main body
Connect the engine (A) to the tube (B) with four screws
(C).
Assembling the handlebar and
throttle
•Fit the handlebar in the handlebar clamp on the shaft
using four screws.
• Fit the protective sleeve as shown in the diagram.
Connecting throttle cable and
stop switch wires
1Remove the air filter cover.
2 Insert the throttle cable (A) through the carburettor
bracket (B), then screw the cable adjuster sleeve (C)
into the carburettor bracket fully.
3 Position the slotted fitting (D) on the carburettor so the
recessed hole (E) for the cable lug (F) is away from the
cable adjuster sleeve.
4 Rotate the carburettor throttle cam and slip the throttle
cable through the slot in the slotted fitting, making
sure the cable lug drops into the recessed hole.
5 Operate the throttle trigger a few times to make sure
that it works correctly.
6 Adjust the cable adjuster sleeve so the stop on the
carburettor throttle cam just contacts the throttle stop
and the cable position keep 1-2 mm play between the
cable lug and the slotted fitting when the throttle
trigger is fully depressed.
7 When the throttle cable is adjusted correctly, tighten
the locking nut (G).
1-2mm
H1158943-26,143RII,GB.fm Page 13 Monday, May 22, 2017 11:20 AM

ASSEMBLY
14 – English
8Plug the stop switch wires (H) into the matching
connectors from the engine. Note that wire polarity is
not important.
9 Lap and fix the stop switch wires and connectors with
clamp (I).
10 Fit the dust cover (J).
11 Refit the air filter cover.
Fitting blades and trimmer heads
Fitting the guard extension
CAUTION! The guard extension shall always be fitted
when using the trimmer head/plastic blades and
combination guard. The guard extension shall always be
removed when using the grass blade and combination
guard.
Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt.
Enter the guard extension guide in the slot of the
combination guard. Then click the guard extension into
position on the guard with the four quick-fasteners.
The guard extension is removed easily using a
screwdriver, see illustration.
!
WARNING!
When fitting the cutting attachment it is
extremely important that the raised
section on the drive disc/support flange
engages correctly in the centre hole of
the cutting attachment. If the cutting
attachment is fitted incorrectly it can
result in serious and/or fatal personal
injury.
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
IMPORTANT! If a saw blade or grass blade are to be
used the machine must be equipped with the correct
handlebar, blade guard and harness.
H
J
I
H1158943-26,143RII,GB.fm Page 14 Monday, May 22, 2017 11:20 AM

ASSEMBLY
English – 15
Fitting the blade guard and saw blade
•Remove the mounting plate (H). Fit the adapter (I) and
bracket (J) with the two screws (K) as shown. Fit the
blade guard (A) to the adapter using the 4 screws (L)
as shown.
CAUTION! Always use the recommended guard for the
cutting attachment you are using. See chapter on
Technical data.
• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D) and support flange (F) on the
output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm. Use the spanner in the tool kit. Hold the
shaft of the spanner as close to the blade guard as
possible. To tighten the nut, turn the spanner in the
opposite direction to the direction of rotation (Caution!
left-hand thread).
• When loosening and tightening the saw blade nut,
there is a risk of injury from the teeth of the saw blade.
You should therefore always ensure that your hand is
shielded by the blade guard when doing this. Always
use a socket spanner with a shaft that is long enough
to allow this.The arrow in the diagram shows the area
where you should operate the socket spanner when
loosening or tightening the nut.
Fitting a blade guard, grass blade and
grass cutter
•Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt (L). Use the
recommended blade guard. See the Technical data
section. CAUTION! Ensure that the guard extension is
removed.
• Fit the drive disc (B) on the output shaft.
A
LI
J
K
H
F
D
B
C
G
A
L
H1158943-26,143RII,GB.fm Page 15 Monday, May 22, 2017 11:20 AM

ASSEMBLY
16 – English
•Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support
flange (F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm. Use the spanner in the tool kit. Hold the
shaft of the spanner as close to the blade guard as
possible. To tighten the nut, turn the spanner in the
opposite direction to the direction of rotation (Caution!
left-hand thread).
Fitting the trimmer guard and trimmer
head
•Fit the correct trimmer guard (A) for use with the
trimmer head. CAUTION! Ensure that the guard
extension is fitted.
• Hook the trimmer guard/combination guard onto the
fitting on the shaft and secure with the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the output shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) counter
clockwise.
• To dismantle, follow the instructions in the reverse
order.
Fitting the transport guard
•Insert the blade in the transport guard (A).
• Snap the two fasteners (B) into the slots (C) to secure
the transport guard.
2-teeth blade
•Insert the blade in the transport guard.
G
E
D
F
B
C
BA
ML
H
A
L
C
M
H
H
H1158943-26,143RII,GB.fm Page 16 Monday, May 22, 2017 11:20 AM

ASSEMBLY
English – 17
Adjusting the harness and brush
cutter
Quick release
At the front is an easily accessible, quick release. Use this
if the engine catches fire or in any other emergency
situation that requires you to free yourself from the
machine and harness.
Spreading the load on your shoulders
A well-adjusted harness and machine makes work much
easier. Adjust the harness for the best working position.
Tension the side straps so that the weight is evenly
distributed across both shoulders.
Correct height
Adjust the shoulder strap so that the cutting attachment is
parallel to the ground.
Correct balance
Let the cutting attachment rest lightly on the ground.
Adjust the position of the suspension ring to balance the
brush cutter correctly.
!
WARNING! When using a brush cutter it
must always be hooked securely to the
harness. Otherwise you will be unable to
control the brush cutter safely and this
can result in injury to yourself or others.
Never use a harness with a defective
quick release.
H1158943-26,143RII,GB.fm Page 17 Monday, May 22, 2017 11:20 AM

FUEL HANDLING
18 – English
Fuel safety
Never start the machine:
1 If you have spilled fuel on it. Wipe off the spillage and
allow remaining fuel to evaporate.
2 If you have spilled fuel on yourself or your clothes,
change your clothes.Wash any part of your body that
has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
Transport and storage
•Store and transport the machine and fuel so that there
is no risk of any leakage or fumes coming into contact
with sparks or open flames, for example, from
electrical machinery, electric motors, electrical relays/
switches or boilers.
• When storing and transporting fuel always use
approved containers intended for this purpose.
• When storing the machine for long periods the fuel
tank must be emptied. Contact your local petrol
station to find out where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the
cutting attachment when the machine is being
transported or in storage.
• Secure the machine during transport.
• In order to prevent unintentional starting of the engine,
the spark plug cap must always be removed during
long-term storage, if the machine is not under close
supervision and when performing all service
measures.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always be run using a mixture of petrol
and two-stroke oil. It is important to accurately measure
the amount of oil to be mixed to ensure that the correct
mixture is obtained. When mixing small amounts of fuel,
even small inaccuracies can drastically affect the ratio of
the mixture.
Petrol
CAUTION! Always use a quality petrol/oil mixture at least
90 octane (RON). If your machine is equipped with a
catalytic converter (see chapter on Technical data) always
use a good quality unleaded petrol/oil mixture. Leaded
petrol will destroy the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if
it is available.
• The lowest octane recommended is 90 (RON). If you
run the engine on a lower octane grade than 90 so-
called knocking can occur. This gives rise to a high
engine temperature, which can result in serious
engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion
and inhaling fumes.
!
WARNING! Fuel and fuel fumes are
highly flammable and can cause serious
injury when inhaled or allowed to come
in contact with the skin. For this reason
observe caution when handling fuel and
make sure there is adequate ventilation.
H1158943-26,143RII,GB.fm Page 18 Monday, May 22, 2017 11:20 AM

FUEL HANDLING
English – 19
Two-stroke oil
•For best results and performance use HUSQVARNA
two-stroke engine oil, which is specially formulated for
our air-cooled two-stroke engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of
catalytic converters.
• Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil.
1:33 (3%) with oils class JASO FB or ISO EGB
formulated for air-cooled, two-stroke engines.
Mixing
•Always mix the petrol and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the petrol to
be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture. Add the remaining amount of
petrol.
• Mix (shake) the fuel mixture thoroughly before filling
the machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fueling
•Always use a fuel container with an anti-spill valve.
• Clean the area around the fuel cap. Contamination in
the tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.
Petrol, litre Two-stroke oil, litre
2% (1:50) 3% (1:33)
50,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60
!
WARNING! Taking the following
precautions, will lessen the risk of fire:
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area and source before
starting.
H1158943-26,143RII,GB.fm Page 19 Monday, May 22, 2017 11:20 AM

STARTING AND STOPPING
20 – English
Check before starting
•Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged
before you start the machine.
• Check the blade to ensure that no cracks have formed
at the bottom of the teeth or by the centre hole. The
most common reason why cracks are formed is that
sharp corners have been formed at the bottom of the
teeth while sharpening or that the blade has been
used with dull teeth. Discard a blade if cracks are
found.
• Check that the support flange is not cracked due to
fatigue or due to being tightened too much. Discard
the support flange if it is cracked.
• Ensure the locking nut has not lost its captive force.
The nut lock should have a locking force of at least 1.5
Nm.The tightening torque of the locking nut should be
35-50 Nm.
• Check that the blade guard is not damaged or
cracked. Replace the blade guard if it is exposed to
impact or is cracked.
• Check that the trimmer head and trimmer guard are
not damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or
are cracked.
Starting and stopping
!
WARNING! The complete clutch cover
and shaft must be fitted before the
machine is started, otherwise the clutch
can come loose and cause personal
injury.
Always move the machine away from the
refuelling area and source before
starting. Place the machine on a flat
surface. Ensure the cutting attachment
cannot come into contact with any
object.
Make sure no unauthorised persons are
in the working area. Otherwise there is a
risk of serious personal injury.The safety
distance is 15 meters.
H1158943-26,143RII,GB.fm Page 20 Monday, May 22, 2017 11:20 AM
