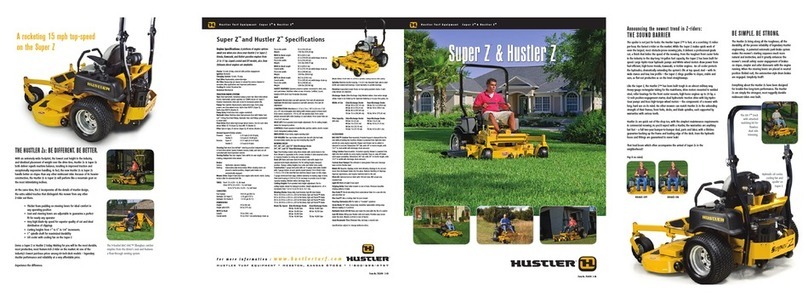

Hustler Turf Equipment Super Z™XR-7™ & Hustler Z™XR-7™
Starter 12-volt (.8 kw), solenoid shift positive engagement
Ignition Electronic
Charging System 12-volt, 15-amp
Fuel Filter Replaceable, automotive-type
Air Filter Heavy-duty air cleaner to extend the service interval for
excessive, dirty applications and improved performance
Cooling Air cooled. Fly-wheel fan
Governor Mechanical
TracTion Drive SySTem
Type Dual hydrostatic.Individual pumps power two direct-drive wheel
motors. Hydrostatic system operates on 10W40 motor oil.Super Z
features transmission drive (oil) cooler for increased system life.
Pumps Two variable displacement,axial-piston type. Each pump
powers one drive-wheel motor.Hydro-Gear BDP21 (Super Z),
Hydro-Gear BDP10 (Hustler Z)
Pump Drive V-belt drive from engine crankshaft
Hydraulic Lines Stainless-steel, high-pressure lines with ParkerSeal-
Lok™ O-Ring Face-Seal fittings,Hydraulic lines and fittings guaranteed
to never leak!
Final Drive Direct-drive high-torque wheel motors. One for each drive
wheel. White CE 18 (Super Z),Ross MB 15 (Hustler Z)
Filter Spin-on type; 25 micron (Super Z), 40 micron (Hustler Z),
Ground Speed Infinitely variable:
Forward: Super Z: 0-15 mph (0-22.53 kph),
Hustler Z: 0-9 mph (0-14.48 kph)
Reverse: Super Z: 0-7.5 mph (0-12.07 kph)
Hustler Z: 0-5 mph (0-8 kph)
Steering Twin-lever SmoothTrak™steeringprovides independent control
of each drive wheel. Speed, forward,reverse, brake, and turns are all
controlled with hand-operated controls
Turning Radius True zero degree.Turns within its own length. Counter-
rotating, independent drive wheels
Brakes
Service: Hydrostatic dynamic braking
Parking: Automotive-style drum brakes.When steering levers are
placed in neutral position, integral park brakesare
automatically engaged
Mower Drive Single V-belt drive from engine with electric clutch.Spring
tension idler for extended belt life.
TIRES: Front: 13 x 6.50 – 6,rib tread
Drive: 54”in 23 x 9.50 – 12, turf tread
60 & 72”in 24 x 12.00 – 12, turf tread
CAPACITIES:
Fuel System: 14.4 US gal (54.5 l)
Hydraulic Oil: Super Z 2US gal (7.57 l)
Hydraulic Oil: Hustler Z 1.5US gal (5.7 l)
DIMENSIONS: Height: 39 in (99 cm)
W/54 in Deck
Length: 78, 80,81.5 in (198.12, 203.2, 207 cm)
Overall width: 55 in (139.7 cm) w/discharge chute up
Tire-to-tire width: 52 in (132.08 cm)
Weight: 1180lbs (535.24 kg)
W/60 in Deck Length: 78, 80,81.5 in (198.12, 203.2, 207 cm)
Overall width: 61 in (154.94 cm) w/discharge chute up
Tire-to-tire width: 52 in (132.08 cm)
Weight: 1212lbs (549.75 kg)
W/66 in Deck Length: 80, 82, 83.5 in (203.2, 208.28, 212 cm)
Overall width: 67 in (170.18 cm) w/discharge chute up
Tire-to-tire width: 59 in (149.86 cm)
Weight: 1254lbs: (568.8 kg)
W/72 in Deck Length: 81, 83, 84.5 in (205.7, 210.8, 214.6 cm)
Overall width: 73 in (185.42 cm) w/discharge chute up
Tire-to-tire width: 59 in (149.86 cm)
Weight: 1296lbs (587.86 kg)
SAFETY FEATURES Operator presence system connected to deck and
drive clutches. Stabilizer rollers at rear of tractor
SEAT
Standard: Molded-vinyl seat with armrests. Foreand aft adjustment
Optional: Molded-vinyl suspension seat with armrests. Foreand aft
adjustment
CONSTRUCTION: Mainframe is 1.5 in x 3 in x .187 in (3.8 cm x 7.62
cm x .47 cm) rectangular steel tubing with internal gusset in frame bend
Drive motors mounted to .179 in (.45 cm) welded steel. Front caster
wheels mounted with roller bearings on each wheel. Front caster forks are
.5 in (1.27 cm) steel
DECK LIFT: Foot-operated deck height adjustment.Pin for setting height,
detent for transport position
CONTROLS: Hand-operated choke/throttle, ignition switch, electric
mower clutch. Integrated parking brakes
INDICATORS:Hour meter, engine warning light
CUP HOLDER: Two cup holders molded into the left side fuel tank.
Accommodates nearly any cup size including Big Gulp™
MOWING DECKS
54”, 60”, 66”, and 72” Side-Discharge Decks
Type Free-floatingmower using three blades with center blade to the
front. Mower is suspended at the corners.Includes 6 deck-mounted rollers
to improve flotation in rolling and uneven terrain.
Deck Lift Raise and lower deck from driver’s seat with simple foot-
operated deck height adjustment. Pin for setting height, transport
position. Change cutting heights,hop curbs and trailer more easily.
Construction 7 gauge deck plate with an 11-gauge deck plate doubler
with 7-gauge triplers at each spindle mount (nearly 1/2-in thick!) Solid
1-1/2 in x 1/2 in flat steel flat bars reinforce impact areas on trim edges.
7-gauge reinforced front edge. Lifetime warrantyon leading edge of deck.
Steel deck housing is 5.80 in (10.16 cm) deep to provide room for high-
capacity mowing. Molded rubber discharge chute.
Cutting Heights Foot-operated deck height adjustment. Pin for
setting height, detent for transport position. Height adjustment in .25 in
increments from 1 in to 5 in (2.55 cm to 12.7 cm).
Mowing Blades Heavy-duty, heat-treated, high-lift steel blades
54 in: 18.50 in x 2.50 in x .203 in flat blade,high sail Fusion™ blade
60 in: 20.50 in x 2.50 in x .203 in flat blade,high sail Fusion™ blade
66 in: 22.50 in x 2.50 in x .203 in flat blade,high sail Fusion™ blade
72 in: 24.50 in x 2.50 in x .230 in flat blade,high sail Fusion™ blade
Blade Tip Speed 54 in: 18,400 fpm
60 in: 18,400 fpm
66 in: 18,900 fpm
72 in: 18,900 fpm
Blade Drive V-belt drive to all three spindles. Spring tension idler pulley.
Spindles Machine ductile housing, 1 in (2.5 cm) diameter high carbon
steel shafts and sealed ball bearings. 3-year warrantyon spindle bearings.
Flotation Suspended mower floats on four spring-assisted chains. 6 anti-
scalp wheels are standard.
Discharge Chute Molded rubber.Over-center design allows chute to be
folded up for improved trailering or to pass thru gates, etc.
Width of Cut 54 in: 54 in (137.16 cm)
60 in: 60 in (152.4 cm)
66 in: 66 in (167.64 cm)
72 in: 72 in (182.88 cm)
Trim Capacity (left side) 54 in: 0 in (0 cm)
60 in: 3 in (7.62 cm)
66 in: 4 in (10.16 cm)
72 in: 7 in (17.78 cm)
ACCESSORIES
BAC-VAC™Catcher Rear-mounted, 9-bushel hopper is dumped from
the seat without leaving the machine. Blower is powered from right-side
deck spindle (no pony engine required). Hopper and blower can be added
or removed in seconds.
Mulch Kit Easiest-to-install mulch kit on the market! Recycles clippings
under deck allowing clippings to be cut and recut, then discharged down
into the grass. Reduces handling of clippings,improves appearance, and
recycles nutrients back to the soil.
Air-Containment Kit Can be used when catching or mulching
Striping Kit Steel roller mounts to rear of deck. Produces beautiful
striping patterns in lawn.
Flex Forks™ Shock-absorbing front caster wheel forks for a smooth ride
and a smoother cut.
Flex Seat™ a rocking chair for your mower.
Hydraulic Deck Lift Kit Raise and lower the deck with the flip of a
switch.
Hitch Kit Optional bolt-on hitch with 7/8-inch hole.Will accept any
standard ball.
ROPS Roll Over Protective Structure.
Specifications subject to change without notice.
Engine Specifications
Hustler Z™and Super Z™Specifications
Honda Kawasaki Kawasaki Kawasaki LC Kohler Kohler Kohler EFI
Horsepower 24 23 25 26 27 30 28
No. of Cylinders 2 2 2 2 2 2 2
Displacement 40.9 cu in (670 cc) 41.2 cu in (675 cc) 41.2 cu in (675 cc) 45.5 cu in (745 cc) 44.0 cu in (725 cc) 44.0 cu in (725 cc) 44.0 cu in (725 cc)
Compression Ratio 8.3:1 8.1:1 8.1:1 8.6:1 9.0:1 9.0:1 9.0:1
Max. Torque 37.5 ft lbs @ 2500 rpm 37.0 ft lbs @ 2400 rpm 41.0 ft lbs @ 2400 rpm 43 ft lbs @ 2400 rpm 42.7 ft lbs @ 3000 rpm 47.1 ft lbs @ 2200 rpm 44.8 ft lbs @ 2200 rpm
Form No. 7826 98 4-0 7
The 9-bushel BAC-VAC™ fiberglass catcher
empties from the driver’s seat and features
a flow-through venting system
THE HUSTLER Zs: BE DIFFERENT. BE BETTER.
With an extremely wide footprint, the lowest seat height in the industry,
and idealized placement of weight over the drive tires, Hustler Zs & Super Zs
both deliver superb machine balance, resulting in improved traction and
exceptionally responsive handling. In fact, the new Hustler Zs & Super Zs
handle better on slopes than any other midmount rider. Because of its heavier
construction the Hustler Zs & Super Zs will perform like a mountain goat on the
most intimidating inclines.
At the same time, the Z incorporates all the details of Hustler design,
the extra added touches that distinguish this mower from any other
Z-rider out there.
• Thicker foam padding on steering levers for ideal comfort in
any operating position
• Seat and steering levers are adjustable to guarantee a perfect
fit for nearly any operator
• Very high blade-tip speed for superior quality of cut and ideal
distribution of clippings
• Cutting heights from 1” to 5” in 1/4” increments.
• 1” spindle shaft for maximized durability
• Oil cooler with cooling fan on the Super Z
Demo a Super Z or Hustler Z today.Waiting for you will be the most durable,
most productive, most feature-rich Z-rider on the market.At one of the
industry’s lowest purchase prices among 60-inch-deck models – legendary
Hustler performance and reliability at a very affordable price.
Experience the difference.
A rocketing 15 mph top-speed
on the Super Z
Announcing the newest trend in Z-riders:
TH E SOUN D BARRI E R
The spoiler is not just for looks: the Hustler Super Z™ is fast, at a scorching 15 miles-
per-hour, the fastest z-rider on the market. While the Super Z makes quick work of
even the largest, most obstacle-prone mowing jobs, it delivers a professional-grade
cut, a finish that belies the speed of the mowing. From the toughest front caster forks
in the industry to the day-long 14-gallon fuel capacity, the Super Z has been built for
speed. Large Hydro-Gear hydraulic pumps and White wheel motors draw power from
fuel-efficient, high-horse Honda, Kawasaki, or Kohler engines. An oil cooler protects
the hydraulics, dramatically extending the system’s life at top speed.And – with its
wide stance and low, low profile – the Super Z clings goatlike to slopes, stable and
sure, as flat-out productive as on the level straightaways.
Like the Super Z, the Hustler Z™ has been built tough in an almost military way.
Heavy-gauge rectangular tubing for the mainframe, drive motors mounted to welded
steel, roller bearings for the front caster mounts, high-horse engines up to 725 CC,a
12-volt positive-engagement starter, dual hydrostatic traction drive with big Hydro-
Gear pumps and Ross high-torque wheel motors – the components of a mower with
long, hard use on its mind. No other mowers can match Hustler Zs in the unbending
strength of their frames, front forks,decks, and blade spindles, each supported by
warranties with serious teeth.
Hustler Zs are quick out of the shop too, with the simplest maintenance requirements
in commercial mowing. As you’d expect with a Hustler, the warranties are anything
but fast – a full two-year bumper-to-bumper deal, parts and labor, with a lifetime
guarantee backing up the frame and leading edge of the deck. Even the hydraulic
hoses and fittings are guaranteed to never leak!
That loud boom which often accompanies the arrival of Super Zs in the
neighborhood?
Pay it no mind.
BE SIM PLE. BE STRONG.
The Hustler Zs bring along all the toughness, all the
durability, all the proven reliability of legendary Hustler
engineering. A patented automatic park-brake system
makes the mower’s starting sequence much more
natural and instinctive, and it greatly enhances the
mower’s overall safety: easier engagement of brakes
on slopes, simpler and safer dismounts with the engine
running. When the steering levers are placed in neutral
position (folded out), the automotive-style drum brakes
are engaged. Simplicity itself!
Everything about the Hustler Zs have been designed
for trouble-free long-term performance. The Hustler
Zs are simply the strongest, most ruggedly durable
midmount riders ever built.
BRAKE OFF BRAKE ON
Hydraulic oil cooler,
cooling fan and
spoiler on Super Z
Form No.782698 4-07
Hustler Turf Equipment Super Z™XR-7™ & Hustler Z™XR-7™
Hustler Turf Equipment • Hesston, Kansas 67062 • 1-800-395-4757
For more information : www.hustlerturf.com
The XR-7 Deck with
attached mulching
kit for flawless
dual side
trimming.

Stainless-steel high-pressure lines
with Parker Seal-Lok™ O-Ring Face
Seal Fittings — hydraulic hoses &
fittings are guaranteed for a lifetime
to never leak!
Spring-assisted, foot-
operated deck lift
for easy adjustment
of cutting height or
for quick adaptation
to curb hopping and
trailering
BEAUTY, MORE THAN SKIN DEEP... BE STRONG. BE SIMPLE. BE SERVICEABLE.
Hustler Zs and Super Zs have already built a reputation for the easiest maintenance in the
industry: fast, clean, and simple. With no daily lube points and fast, easy accessibility to all
maintenance areas, the Hustler Z keeps you on the job, out of the shop, in the money.
•Maintenance-free sealed bearings on the front-caster-wheel forks and
the biggest ball joints in the industry, bar none
•Hinged foot and seat pans for easy service access
•Single-belt drive for reduced maintenance (compare with dual-belt drive
on most competitive models.)
•Engine service points located at the rear of the machine - oil filter and
drain can be serviced with a single pan, with no danger of fluids spilling on belts
•Sealed bearings on the spindle shaft – lubrication required only once a year
•Simplicity rules! Raise the seat pan and deck pan and marvel at the lack of “stuff”!
Customizable rear bumper
Optional 9-bushel BAC-VAC™ catcher
Heavy-duty, remote air cleaner – standard equipment
More engine options including liquid-cooled and EFI
Fuel tanks with site gauge
Wider,angled fuel neck for easier filling
Increased fuel capacity to 14.4 gallons
Digital hour meter
Separate choke lever with stainless steel cables for smoother operation
Rear-discharge decks with patent-applied-for counter-rotating blade design
Higher-torque electric clutch
Faster reverse speed
Improved, more reliable electrical system
More durable wheel motors – as much as 3 times the life
State-of-the-art powder-coat paint for the best finish in the industry
Larger-diameter deck-height pin for increased durability
Improved pump belt life
Easier-to-service spindle bearings – three year warranty
Improved design of deck-lift foot pedal for easier access to deck
Stainless-steel throttle and choke cables for smoother operation
Spend less time servicing, fewer grease points
Mulch-kit design (patent applied for) that is the easiest to install in the industry
Longer-life idler springs
Optional rear anti-scalp wheels
Easier blade servicing
Serviceless deck idler
Improved bearings in deck and pump idlers
Molded-rubber discharge chute – tough, yet gentle on objects
More durable deck cover knobs
XR-7™ mowing decks! – mow anywhere, everytime! – for superior quality of cut,
unmatched versatility, awesome distribution — all this and the option of a striping roller
Optional FlexFork™ – shock-absorbing front caster forks (not shown)
Fusion™ blades for less sharpening
Light-colored seat to keep your seat cooler
Height-adjustable steering levers for increased comfort
Optional suspension system for standard seat
New! Optional FlexSeat™, like a rocking chair for your Hustler!
Seat pan has been raised for improved operator comfort
More comfortable, bigger grips on steering levers
Optional hydraulic deck lift
60”, 72” and 54” and 66” decks
Air containment kit
SmoothTrak™ steering – the smoothest,
most responsive steering on the market!
Patented, built-in automatic park brake system
Improved caster fork – dampened to
reduce wobble
Improved caster bearings –
three year warranty
Internal gusset for incedible strength
Blade design for better cut and
“Wavy” mulching blades for
improved performance
Increased leg room
Up top, the Super Z looks sharp and is a p icture of ingenuit y. It’s
incredible simplicity,durability, and patent-applied-for innovations
make this the finest m ower eve r put into the grass.
Compare the Hustler’s construction to the competitor’s.Hustler has
put mo re steel in all the right places. And we st and beh ind it wi th a
lifetime warranty on the tractor frame and the leading edge of the
deck – the part of the deck that takes the most abuse.Spindle-mount
areas are nearly 1/2-inches thick!
Versat ilit y? The XR-7 deck will mow in any condi tion, any time of day
and provide the finest finished appearance every time! These decks
are configurable for different mowing conditions – fine cut, rough cut,
mulch, catch, even Bahaiagrass is no match for the XR-7 deck.
When the Hustler Z was introduced and then the Super Z shortly
thereafter,they started a mini revolution in the lawn care industry.
Now,the Hustler Zs have been re-engineered to be even better with
many refinements and improvements.
All the Hustler hallmarks are still here,though.
• Best warranty in the business including:
• Lifetim e warranty on th e tractor fram e
• Lifetime warranty on the leading edge of the deck
• A full 2-year, bumper-to-bumper warranty – parts and labor!
• Hydraulic hoses and fittings are guaranteed to never leak
• 3-years on blade-spindle bearings and front-caster-fork bearings
• SmoothTrak™ steering for the most nimble yet smooth steering
on a z-rider
• Patented automatic park-brake system built into the steering levers
• Foo t-ope rated deck-lift sys tem is mu ch easi er to use t han
hand-operated systems
The Hustler frame is one piece from
front casters to rear bumper, not bolted
together like competitors’.
Internal g ussets at f rame
bends for incredible strength.
Lifetime warranty!
Optional adjustable striping
roller mounts to rear of deck.
Flex Forks™ deliver greater operator comfort
because bumps are smoothed out. They smooth
out the ride producing a more even cut especially
over uneven terrain. This allows for greater
operator comfort at higher speeds. Mow faster,
get done sooner.
Flex Seats™ “like a rocking chair
for your mower”deliver greater
operator comfort preventing “back-slap”
caused by a rigid seat over uneven
terrain. This allows for greater
operator comfort at higher speeds.
Mow faster, get done sooner.
A certified 2-post, foldable
ROPS (Roll Over Protective
Structure) is available for the
Hustler Z and Super Z.
