MANUAL 440-1008
SERVICE MANUAL FOR
HYDRASTAR
HYDRAULIC TRAILER BRAKE ACTUATORS
THIS DOCUMENT TO BE USED FOR
HBA-10, HBA-12, HBA-16, MHBA-10, MHBA-12, MHBA-16
ACTUATORS

ECN 04007 Manual 440-1008 Rev D Page 2 of 10
TABLE OF CONTENTS
SECTION
PAGE
A. WARNINGS
2
B. ACTUATOR INSTALLATION INSTRUCTIONS
3
C. ELECTRICAL INSTALLATION REQUIREMENTS
4
D. TEST ELECTRICAL OPERATION
5
E. BLEEDING AND ADJUSTING THE BRAKES
6
F. TESTING & ADJUSTMENT OF ELECTRONIC CONTROLLER UNIT
7

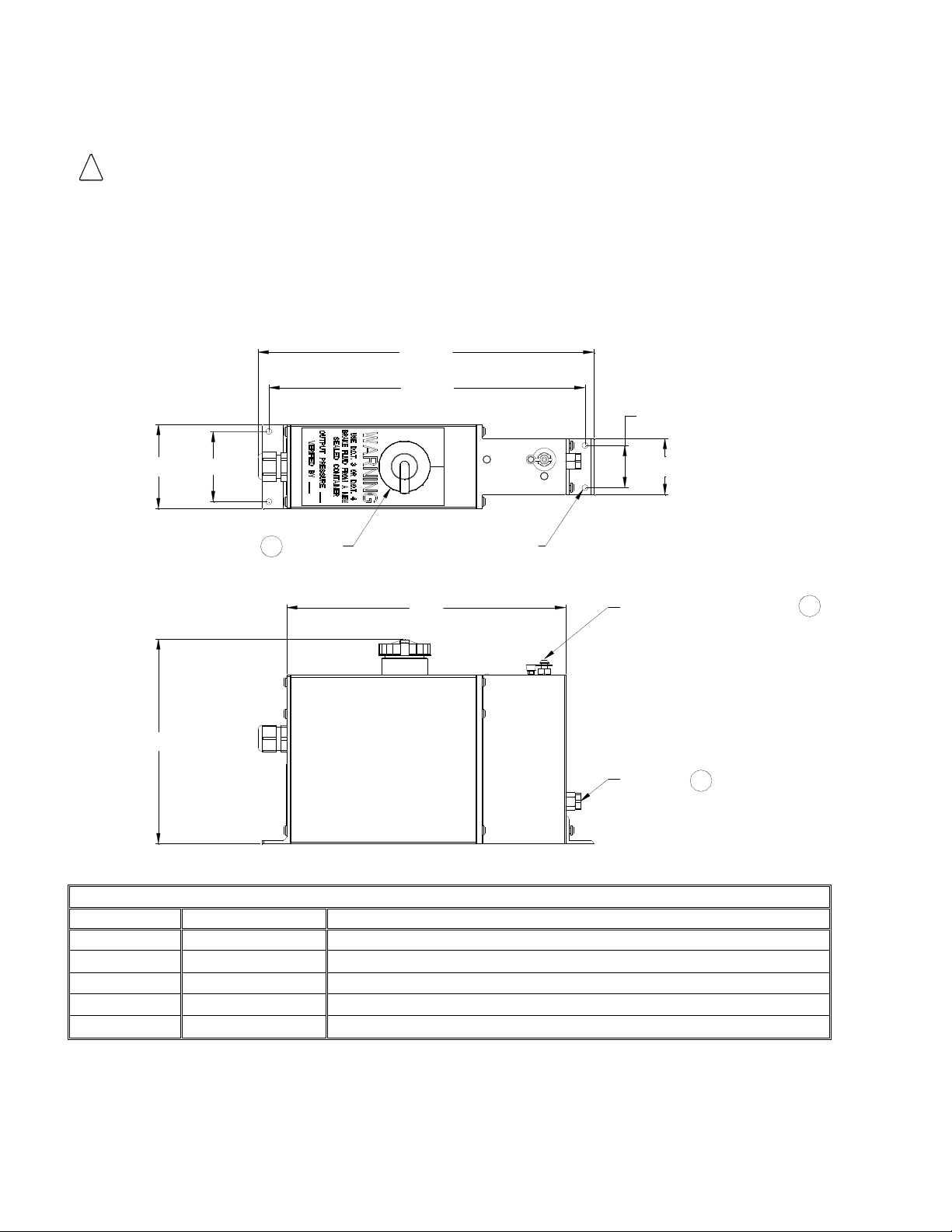

G. REPLACEMENT PARTS LIST / MOUNTING DIMENSIONS
7
H. TROUBLE SHOOTING GUIDE
8
I. WARRANTY
10
A. WARNINGS
PROPER INSTALLATION REQUIRED - The Hydrastar™ actuator must be installed by a qualified individual.
Failure to properly install, protect, operate, and maintain the system can cause malfunction resulting in possible serious or
fatal injuries and or property damage.
MUST BE PROPERLY SIZED TO THE TOWED VEHICLE - The Hydrastar™ actuator is intended to provide
flow and pressure to the brake system on the towed vehicle in accordance with applicable state and federal laws. It is the sole
responsibility of the installer to see that the actuator is properly sized with the brake system on the towed vehicle so that the time
required to build pressure in the towed vehicle brake system is not excessive.
SELECT THE CORRECT OUTPUT PRESSURE - Over pressurizing the brakes on the trailer can cause
permanent damage to the trailer brake system. It is the sole responsibility of the installer to determine the appropriate model
of Hydrastar™ to insure that over pressurization of the trailer brake system does not occur.
NOT INTENDED TO BE USED AS A PARKING BRAKE - The Hydrastar™ actuator and trailer brakes
are intended only to supplement the service brake system on the towing vehicle. The Hydrastar™ actuator and trailer brakes
are not designed to function as a park brake. At no time should the towed vehicle brake system be used as the primary
source of braking for the towing vehicle.
REQUIRES AN IN-CAB ELECTRONIC BRAKE CONTROL – The Hydrastar™ actuator is intended to
be used with an in-cab electronic brake controller. The unit will operate with a wide variety of controllers but provides
optimum performance when used with a CTS electronic brake controller.
Contact your dealer for a list of approved brake controllers. The list is also available online at
www.cargotowingsolutions.com The in-cab controller must have an output capacity of at least 5 amps for proper operation
of the Hydrastar™ actuator.
EXTENDED STOPS CAN GENERATE EXCESSIVE HEAT - When stopped for extended periods (i.e.
such as at railroad crossings and traffic jams), apply the park brake on the towing vehicle and release the service brake pedal
so that the Hydrastar™ actuator does not run continuously. Failure to follow this guideline will cause the Hydrastar™ unit
to overheat and will damage the Hydrastar™ unit.
EMERGENCY BREAKAWAY BATTERY MUST BE CHARGED - Do not attempt to tow the towed
vehicle unless the emergency breakaway battery is fully charged.
DO NOT POWER WASH THE HYDRASTAR™ UNIT - Although the Hydrastar™ unit is weather tight, it
is not designed to withstand the direct high pressure spray from a power / car wash. Care should be taken to protect the
Hydrastar™ unit from direct spray when washing the trailer.

ECN 04007 Manual 440-1008 Rev D Page 3 of 10
B. ACTUATOR INSTALLATION INSTRUCTIONS
!
CAUTION – Wheels must be properly blocked to prevent the trailer and
tow vehicle from rolling.
GETTING STARTED:
1. The following materials are required to properly install the Hydrastar™ unit:
•If your trailer is not already equipped with brake lines, you will need enough 3/16”
diameter automotive brake line to connect the trailer brakes to the Hydrastar™ unit.
(Note that ¼“ diameter brake line will improve response time.) Where possible, steel
tubing is preferred.
•4 pieces of #10 mounting hardware to mount the Hydrastar™ unit to the trailer
•( 1 ) quart of DOT 3 or DOT 4 brake fluid (from a new, sealed container)
•( 1 ) emergency breakaway kit - must include a 12 volt, 5 amp hour (minimum) battery
•Wire (see Section C. ELECTRICAL INSTALLATION REQUIREMENTS for
proper wire size)
LOCATION of the Hydrastar™ actuator is at the discretion of the vehicle owner. When
determining location, consideration should be given to the following:
1. The shorter the brake lines are between the Hydrastar™ unit and the trailer brakes, the
faster the brakes on the trailer will respond.
2. The unit should be located so that the electrical wiring and brake lines can be neatly
routed directly to the towing vehicle and trailer brakes. Special care should be taken to
minimize the number of bends and fittings in the brake line circuits.
3. An emergency breakaway kit must be located on the trailer so that the trailer breakaway
cable can be easily attached to the towing vehicle.
4. The Hydrastar™ actuator is powered from the electrical system on the tow vehicle.
In order for the Hydrastar™ unit to function properly, it must have adequate
electrical power. (See Section C. ELECTRICAL INSTALLATION REQUIREMENTS)
5. The Hydrastar™ unit should not be placed in an area where it is susceptible to damage
from trailer loads, road debris, or from being stepped on. Failure to protect the
Hydrastar™ unit from damage can cause the unit to malfunction and void the
Hydrastar™ warranty.
!
CAUTION – In stop and go traffic, the unit can get quite warm to the touch. This is normal and
should not be of concern. Care should be taken to locate the unit in an area where your skin will not come
in direct contact with the unit.
MOUNTING: Consideration should be given to the following:
1. The Hydrastar™ unit must be level, with the filler neck up.
2. It is the responsibility of the customer to provide necessary fasteners for attachment
of the Hydrastar™ actuator to the trailer. 4 pieces of #10 mounting hardware required.
!
CAUTION – The Hydrastar™ unit contains sensitive electronics that must be protected.
Drilling additional holes in the housing or electrostatically painting the Hydrastar™, or welding anywhere
on the Hydrastar™ unit will damage the unit making it inoperable and will void the manufacturer’s
warranty. Always remove the Hydrastar™ from the trailer before doing any welding repair or
modifications to the trailer structure.
CONNECT the brake line on the towed vehicle to the Hydrastar™ actuator.
1. Remove the red plastic plug from the brake port on the Hydrastar™ unit. This will
expose a 3/16” inverted flare fitting.
2. Brake line must be compatible with DOT 3 & DOT 4 brake fluid.
3. Flush existing brake system and lines with mineral spirits (not mineral oil), DOT 3 or
DOT 4 brake fluid prior to connecting the Hydrastar™ unit.
4. Connect the brake line from the trailer brakes to the 3/16” inverted flare fitting on the
Hydrastar™ actuator.

ECN 04007 Manual 440-1008 Rev D Page 4 of 10
FILL the unit with DOT 3 or DOT 4 brake fluid to the bottom of the reservoir filler neck.
When putting filler cap back on it should be turned clockwise until snug.
!
CAUTION - Always use new, DOT 3 or DOT 4 brake fluid, from a sealed container.
Never attempt to reuse old or dirty fluid. Do not overfill the unit. Take care to protect painted surfaces
from contact with the brake fluid. Wash off any spilled brake fluid.
MOUNT the emergency breakaway switch and emergency breakaway battery on the trailer as detailed in the
instruction sheets provided with the emergency breakaway kit.
!
CAUTION – Do not attempt to tow the towed vehicle unit until the emergency
breakaway battery is fully charged.
C. ELECTRICAL INSTALLATION REQUIREMENTS
WIRE SIZE IS CRITICAL / LOW VOLTAGE CONDITION – Failure to follow these
guidelines will damage theHydrastar™unit and void your warranty.
It is critical that the BLACK power lead and WHITE ground lead from the tow vehicle to the input of the
Hydrastar™actuator are sized and terminated, (i.e. dedicated 25-40* amp circuit on the tow vehicle –
12 gauge wire minimum). 10 gauge wire is recommended to optimize performance. Consult the SAE
wiring guidelines for proper trailer electrical harness design.
It is critical that the solid blue wire from the in-cab electronic brake control is connected to the solid blue wire on
the Hydrastar™actuator. It is also critical that the yellow or blue w/ white striped wire from the Hydrastar™
actuator is connected to the cold side of the trailer emergency breakaway switch. Under no circumstances should
the solid blue wire and the yellow or blue w/ white stripe wire be connected together.
* = Cold temperature (below 0°F) applications require 40 amp.
REQUIRES AN IN-CAB ELECTRONIC CONTROL – The Hydrastar™ actuator is intended to be
used with an in-cab electronic brake controller. The unit will operate with a wide variety of controllers but provides
optimum performance when used with a CTS electronic brake controller. Contact your dealer for a list of approved
brake controllers. The list is also available online at www.Cargobrake.com The in-cab controller must have an
output capacity of at least 5 amps for proper operation of the Hydrastar™ actuator.
ELECTRICAL CONNECTIONS – Make sure all electrical connections are clean, dry, weather
tight, and secure to prevent damage to the wiring from dragging or becoming entangled with
foreign objects. CTS highly recommends soldering all electrical connections. A dedicated
ground connection between the tow vehicle and trailer is also required.
BREAKAWAY BATTERY REQUIREMENT - To comply with federal requirements, the
trailer must be equipped with a breakaway switch and battery. The breakaway battery needs to have a
minimum capacity of 5 amp hours and needs to be maintained in a fully charged condition at all times.
The breakaway battery should be checked for proper charge level before every use. CTS offers a
17 amp hour battery as a means to provide additional insurance in the event that a trailer breakaway
condition were to occur.
CHARGING THE BREAKAWAY BATTERY – A separate battery charger is included in
the Cargo breakaway battery kit that draws power from the keyed accessory terminal on the tow vehicle.
Attempting to charge the breakaway battery directly from the keyed accessory terminal without the appropriate
charger will over heat and damage the trailer breakaway battery.

ECN 04007 Manual 440-1008 Rev D Page 5 of 10
Note – The Hydrastar™ actuator does not draw power from the tow vehicle accessory lead unless
the brakes on the tow vehicle are actuated.
IMPORTANT – CONSULT YOUR VEHICLE OWNER’S MANUAL
Be sure to read your vehicle owner’s manual to see what it says about vehicle to trailer wiring.
More and more vehicle manufacturers are recommending special precautions be
taken to protect the more sophisticated electronics on the newer vehicles.
D. TEST ELECTRICAL OPERATION
1. Attach trailer to towing vehicle.
2. Pull the breakaway switch. The Hydrastar™ unit should run. If the unit does not run, check battery condition
and system wiring. Reset the breakaway switch, which will turn the unit off.
Note: When the unit is running the motor will generate a “hum” that changes pitch as the unit
builds pressure.
3. Turn the ignition switch on and turn the in cab electronic brake controller on. The Hydrastar™ unit should run
whenever the brake pedal is depressed. If the unit does not run, check system wiring.
!
CAUTION – Testing the Hydrastar™ unit confirms that it is operating. It does not confirm that
the brakes are operating properly. Regular inspection, adjustment, and maintenance of the
brakes, lines, hoses, drums, discs, fluid, and other associated components is necessary to ensure
proper brake operation.
E. BLEEDING AND ADJUSTING THE BRAKES
1. It typically is much easier to bleed the brakes with two people working together or use of a power

ECN 04007 Manual 440-1008 Rev D Page 6 of 10
bleeding device.
2. Special care must be taken to insure that the Hydrastar™ unit does not run out of brake fluid. Check
the fluid level frequently during the bleeding process.
3. Block the wheels on the trailer and towing vehicle.
4. If the trailer is equipped with drum brakes, check that the brake running clearances are properly
adjusted consistent with the trailer manufacturer’s recommendations. Even the slightest amount of
brake drag will generate heat and will damage the trailer brake system voiding the manufacturer’s
warranty.
!
CAUTION – Failure to properly adjust the brakes on trailers equipped with drum brakes
can result in sluggish operation of the Hydrastar™ unit. Eye protection should be worn at all
times while bleeding the Hydrastar™ unit and trailer brake system.
5. Remove the dust cap from the bleed screw on the Hydrastar™ unit and install plastic tubing onto the
bleeder
6. Immerse the free end of the plastic tubing in a clean container partially filled with brake fluid.
7. With eye protection on, open the bleeder screw one half turn on the Hydrastar™ unit. Take care to
protect yourself and the trailer from brake fluid expelled from the bleeder.
8. Activate the Hydrastar™ unit by turning on the ignition switch and pressing on the brake pedal or the
manual control on the in-cab controller.
9. Watch the free end of the bleeder hose for air bubbles escaping into the container.
10. Continue to bleed until the fluid becomes clear and free of bubbles.
11. Tighten the bleeder screw, turn off the Hydrastar™ unit, and remove the plastic tubing from the
bleeder screw. Bleeding of the Hydrastar™ unit is now complete.
12. Install plastic tubing onto the bleeder screw of the wheel cylinder/caliper.
13. Immerse the free end of the plastic tube in a clean container partially filled with brake fluid.
14. With eye protection on, open the bleeder screw one half turn on the wheel cylinder/caliper farthest
from the Hydrastar™unit. (If towed vehicle has multiple axles, always start with the rear axle
first.)
15. Activate the Hydrastar™ unit. (Turn the ignition switch on and press on the brake pedal.)
16. Watch the free end of the bleeder hose for air bubbles escaping into the clear container. Continue to
bleed the wheel cylinder / caliper until the fluid becomes clear and free of bubbles.
!
CAUTION – Do not run the Hydrastar™ unit without adequate brake fluid in the reservoir as it
will damage the unit and void the manufacturer’s warranty. Check all bleeder screws to ensure that they
are securely closed and do not leak.
17. Tighten the bleeder screw, turn off the Hydrastar™ unit, and remove plastic tubing from the bleeder
screw. Bleeding of the wheel cylinder/caliper is now complete.
18. Refill the Hydrastar™ unit with brake fluid.
19. Continue the above process (steps 12 through 18) on the next farthest brake away from the
Hydrastar™ unit. Repeat these steps until all the brakes have been bled.
!
WARNING – Failure to properly adjust the trailer brakes and to properly fill and bleed the
Hydrastar™ unit and brakes may result in sluggish brake performance. This may result in serious or fatal
injuries and / or property damage. As a precautionary measure, CTS recommends bleeding the brakes a
second time after the trailer has been in service for 7 – 10 days. CTS also recommends checking the
temperature of the hubs on a regular basis to insure that the trailer brakes are not dragging.
F. TESTING AND ADJUSTMENT OF ELECTRONIC CONTROLLER UNIT
1. Adjust the gain setting on the in-cab controller to a mid range setting and the sync setting to the maximum
(most aggressive) setting.

ECN 04007 Manual 440-1008 Rev D Page 7 of 10
2. Drive vehicle at 10 to 15 mph.
3. Apply the brakes. If braking is too severe, adjust the gain setting down to decrease pressure, and retest. If
braking is inadequate, increase the gain setting on the in-cab electronic controller and retest.
4. Repeat this process until the brakes respond appropriately.
!
WARNING – The appropriate pressure setting will vary depending on the weight of the load
being transported on the trailer, weather conditions, road conditions, brake lining wear, and brake displacement.
The “TESTING AND ADJUSTMENT OF ELECTRONIC CONTROLLER UNIT”
procedure should be repeated each time the trailer is used. Failure to properly adjust the Hydrastar™ unit may
result in poor brake performance which could result in serious or fatal injuries and / or property damage.
G. REPLACEMENT PARTS LIST / MOUNTING DIMENSIONS
(2.00)
4X Ø .213
MOUNTING
HOLES
1.50
(11.85)
(11.15)
2.50
(3.00)
9.84
(7.29)
FILLER
CAP
OUTPUT
PORT
3
BLEEDER / DUST CAP 2
1
REPLACEMENT PARTS LIST
ITEM
PART NUMBER
DESCRIPTION
1
192-7089
OUTPUT PORT ADAPTER ASSEMBLY 3/16” INVERTED FLARE
1
304-7107
OUTPUT PORT ADAPTER ASSEMBLY ¼” INVERTED FLARE KIT
2
381-7037
BLEEDER VALVE / TETHERED DUST CAP KIT
3
32-7640
FILLER CAP
NOT SHOWN
496-82
BREAKAWAY BATTERY KIT

ECN 04007 Manual 440-1008 Rev D Page 8 of 10
H. TROUBLESHOOTING GUIDE
Brakes are slow to respond
•Re-bleed the trailer brakes and actuator.
•If the trailer is equipped with drum brakes, re-adjust the drum brakes to the trailer manufacture's
recommended running clearance.
•Slow response can be caused by trailer wiring that is too small. See Section C. ELECTRICAL
INSTALLATION REQUIREMENTS – WIRE SIZE IS CRITICAL / LOW VOLTAGE CONDITION.
•Slow response can be caused by brake lines that are too restrictive on the trailer (i.e. small diameter / long
length restrictive fittings / routings).
The trailer brake lines must be at least 3/16 inches in diameter / steel tubing is preferred over flexible hoses.
If it is not practical to locate the Hydrastar™ unit closer to the brakes, consider increasing the size of the
trailer brake lines.
Unit will not run or the unit will not shut off
•Verify that the trailer and tow vehicle are wired according to the electrical schematic shown on page 5.
•Perform the following checks to determine if the unit is functioning properly:
Step 1
•With the unit running and brake pressure applied, determine that a minimum of 8.5 volts DC are reaching the
Hydrastar’s™ black wire.
•Check to see if the white ground wire runs directly to the tow vehicle ground. IT MUST NOT BE GROUNDED TO
THE TRAILER ONLY. IT IS IMPORTANT THAT THIS GROUND WIRE RUNS DIRECTLY TO THE TOW
VEHICLE’S BATTERY GROUND. NO EXCEPTIONS.
Step 2
•Detach all wires from the Hydrastar™ leaving only the blue, black, white, and yellow or blue w/ white striped wires. It
is important that the unit is disconnected from any other wires going to the towing vehicle or breakaway switch and
breakaway battery. Failure to do so may result in a faulty test.
Step 3
•Using a 12 volt battery, connect the white wire to the negative (-) terminal of the battery.
•Connect the black wire to the positive (+) terminal of the battery.
•The motor should not run.
•If the motor runs, the unit needs repaired.
Step 4
•Leave the white wire connected to the negative (-) terminal of the battery.
•Connect the blue and black wires together to the positive (+) terminal of the battery.
•The motor should run and the unit should pressurize.
•If this does not occur, the unit needs repaired.
Step 5
•Leave the white wire connected to the negative (-) terminal of the battery.
•Connect only the yellow or blue w/ white striped wire to the positive (+) terminal of the battery.
•The motor should run and the unit should pressurize.
•If this does not occur, the unit needs repaired.
Step 6
•If the unit checks OK, reconnect the wires leading to the trailer plug and repeat steps 2 through 4. If you do not get the
same results as before, the problem is in the trailer wiring or the electronic brake controller.
Breakaway test procedure
•Pull the breakaway switch on the trailer.
If the unit runs and builds pressure, the problem most likely is a defective in-cab controller or defective
wiring between the tow vehicle and Hydrastar™ unit.
If the unit runs but will not build pressure, the problem most likely is a defective proportional valve in the
Hydrastar™ unit and the actuator should be returned for repair.

ECN 04007 Manual 440-1008 Rev D Page 9 of 10
If the unit still does not run after the breakaway battery is fully charged, verify that the voltage between the white
wire and the yellow or blue w/ white stripe wire is at least 12 volts.
♦If the voltage is less than 12 volts, either the breakaway switch or the breakaway wiring is defective.
♦If the voltage is greater than 12 volts, the Hydrastar™ actuator should be returned for repair.
♦After completing the above steps, reset the breakaway switch.
Trailer brakes too aggressive
•Reduce the gain setting on the in-cab electronic brake controller.
•Check brake adjustment.
Trailer brakes not aggressive enough
•Increase the gain setting on the in-cab electronic brake controller.
Clicking sound comes from unit on a repetitive basis
•Make sure the brake controller in on Cargo’s approved list. See Section C. ELECTRICAL INSTALLATION
REQUIREMENTS – REQUIRES AN ELECTRONIC IN-CAB CONTROL.

ECN 04007 Manual 440-1008 Rev D Page 10 of 10
CARGO TOWING SOLUTIONS
I. LIMITED WARRANTY AND LIMITATION OF LIABILITY
Brake Actuators manufactured and sold by Cargo Towing Solutions are warranted to be free
from defects in material and workmanship under normal and proper use for a period of: (2)
two years from vehicle in-service date subsequent to installation of Cargo Towing Solutions’
brake actuator products, or (2) two years from purchase date of a free standing unit. No
claim for breach of warranty will be allowed unless the material or workmanship defect is
found within the warranty period, properly documented by buyer and CARGO TOWING
SOLUTIONS is notified in writing within 30 days from failure. This warranty shall not apply to
products altered or utilized in a manner not approved by Cargo Towing Solutions or subjected
to abuse, misuse, improper maintenance, negligence or accident.
THE FOREGOING WARRANTIES ARE EXCLUSIVE, AND ARE ACCEPTED BY BUYER IN
LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR PARTICULAR PURPOSE. Buyer’s sole remedy in the event of a breach of the foregoing
warranties is the repair or replacement of the affected product by Cargo Towing Solutions. NO
merchandise will be accepted for warranty credit consideration without a Returned Goods
Authorization Number issued by the Customer Service Representative (812-655-4544). If,
upon inspection by the Returned Goods Technician, the merchandise is found to be free from
defects in material and workmanship, then the warranty claim shall be deemed invalid, and the
merchandise shall be held for a period of (15) days pending disposition by the buyer and an
inspection charge may be applied by Cargo Towing Solutions. BUYER AGREES THAT IN NO
EVENT WILL CARGO TOWING SOLUTIONS’ LIABILITY FOR ALL LOSSES FROM ANY
CAUSE, WHETHER BASED ON CONTRACT, NEGLIGENCE, STRICT LIABILITY, OTHER
TORT OR OTHERWISE, EXCEED BUYER'S NET PURCHASE PRICE, NOR WILL CARGO
BE LIABLE FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY
DAMAGES.
The foregoing warranties will continue in effect so long as the product is serviced and maintained in
accordance with Cargo Towing Solutions’ instructions and with genuine Cargo Towing Solutions’
manufactured replacement parts. These warranties may not be altered or amended except by a written
instrument signed by buyer and a duly authorized officer of Cargo Towing Solutions.
