Hyperion HP-FPMON7V1 User manual

www.Hyperion-world.com
1
User Manual
Hyperion 7” (178 mm) LCD HD Monitor
with 5.8 GHz Diversity receiver

www.Hyperion-world.com
2
Index
Introduction ........................................................................... 3
Intended use ......................................................................... 3
Package content ................................................................... 4
Symbols explication ............................................................... 4
Safety notes.......................................................................... 4
Interfaces .............................................................................. 5
Charge and discharge the Li Ion battery................................... 7
Screen shroud and tripod thread ........................................... 7
Commissioning ...................................................................... 7
Button description................................................................. 7
Screen symbols / Setting menu ........................................... 8
Declaration of conformity..................................................... 9
Technical Data ..................................................................... 9
Notes on environmental protection...................................... 10
Care and maintenance........................................................ 10
Warranty certificate.............................................................. 10

www.Hyperion-world.com
3
Introduction
Thank you very much for purchasing the Hyperion 7” High Resolution
Monitor. This Hyperion 7” High Resolution Monitor is extremely versatile.
Read this manual carefully to achieve the best results with your Hyperion
7” High Resolution Monitor and first of all too safely control your models.
If you experience any trouble during operation, take the instructions to
help or ask your dealer or Hyperion Technical Centre.
Due to technical changes, the information may be changed in this manual
without prior notice. Be always updated by checking periodically on our
website, www.Hyperion-world.com.
This product complies with national and European legal requirements.
To maintain this condition and to ensure safe operation, you must read
and follow this user manual and the safety notes before using the
product!
NOTIC
This manual is part of that product. It contains important information
concerning operation and handling. Keep these instructions for future
reference and give it to third person in case you sell the product.
Battery warranty
The warranty on batteries is limited to 6 months
For this time we will only ensure that the battery fulfils its function, only
batteries which cannot be more charged and discharged any more can be
replaced on warranty. This does not apply to batteries in which the charge
and discharge notes were not observed.
Intended use
The Hyperion 7” High Resolution Monitor is suitable to reproduce
images from FPV camera’s signal or to playback videos or images from
external sources. The integrated 5.8 GHz receiver receives the video
signal sent by the FPV transmitters installed in the model. For any
improper use no warranty or liability is accepted.
Read through this entire manual before you attempt to install or use the
Hyperion 7” High Resolution Monitor.
Hyperion constantly works on the development of all products; we reserve
the right to change the item, its technology and equipment.
Target group
The product is not a toy. It is not suitable for children under 14 years. The
operation of the Hyperion 7” High Resolution Monitor must be
performed by experienced users. If you do not have sufficient knowledge

www.Hyperion-world.com
4
about dealing with radio-controlled models, please contact an experienced
users or a dealer.
Package content
Hyperion 7“ Diversity * Monitor incl. Li Ion battery
Screen shroud
2x 5.8GHz receiver antennas
12V DC cable with BEC connector
12V DC cable with BEC plug
2x AV out cable
Symbols explication
Always follow the information marked with the CAUTION or WARNING
symbol. The signal word WARNING indicates the potential for serious
injury.
The signal word CAUTION indicates potential
minor injuries.
Safety notes
General
These safety instructions are intended not only to protect the product, but
also for your own and other people’s safety. Therefore please read this
section very carefully before using the product!
Do not carelessly leave the packaging material lying around, since it
might become a dangerous toy for children.
Persons, including children, with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, or not capable must not
use the Hyperion 7” High Resolution Monitor without
supervision or instruction by a responsible person.
The
NOT
E
Indicates important information that should alert you
To potential property damage.
!
!

www.Hyperion-world.com
5
Changes and modification on the module are not allowed because of
safety and conformity (CE) reasons.
Make sure that the monitor is not exposed to rough mechanical
stress and avoid the influence of extreme temperatures, direct
sunlight and intense vibration (e.g. in vehicles).
Treat the monitor at all times carefully. It can even be damaged by
vibration, pressure, blows or falls from a low height.
The monitor must not come into contact with moisture, (e.g. use
when it rains). This can damage the monitor and it may lead to risk
of short circuit, fire, injury (electric shock, burns). • Keep the
monitor out of the reach of children. It is not a toy.
Never leave the packing materials around! Plastic wrap or bags,
polystyrene parts, etc. can be a dangerous toy for children! Risk of
suffocation!
Repair work may only be carried out by Hyperion Service Centre or
a specialized workshop.

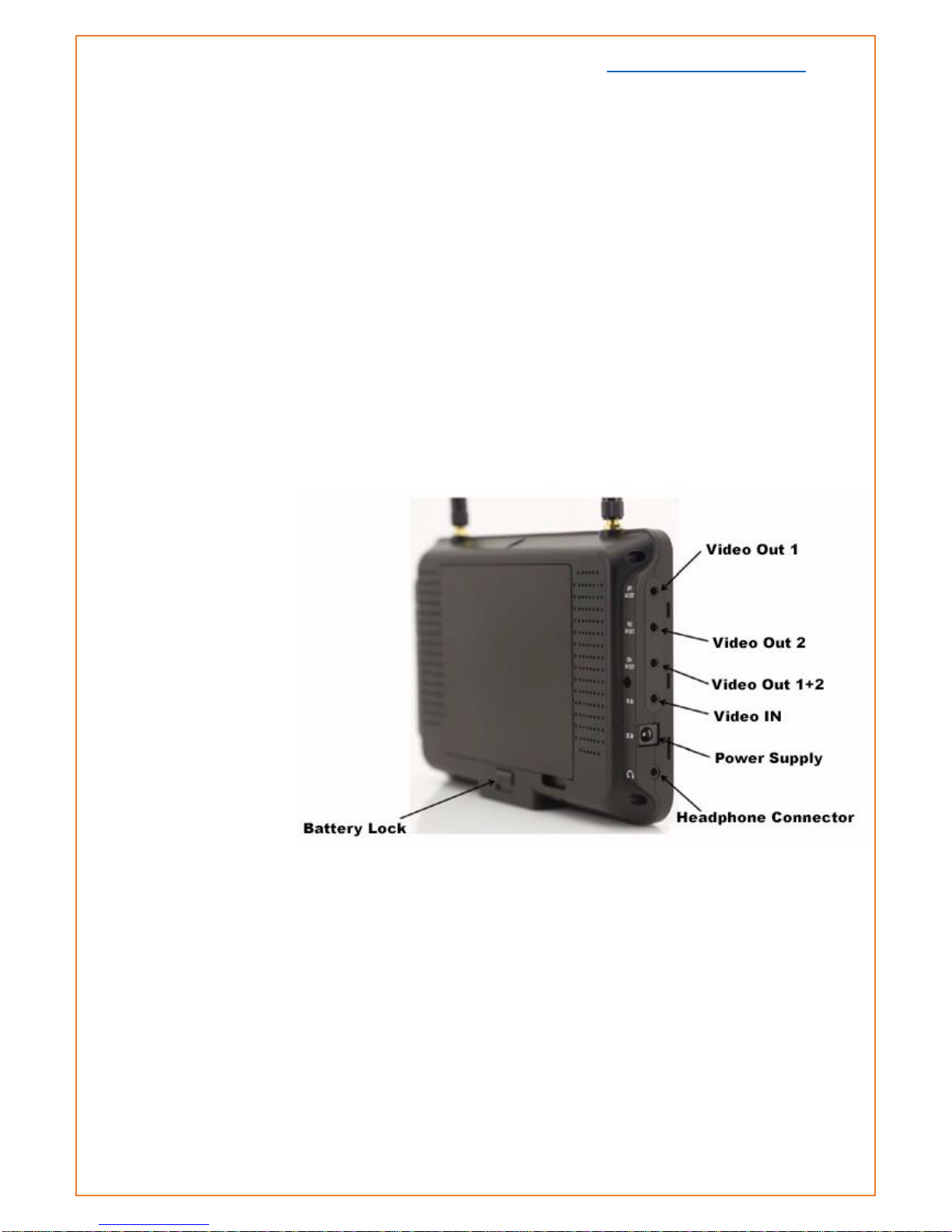

Interfaces
1 Video Out
2 Video Out
3Video Out
4Video In
5 Current
source port
6Ear phones
port
7Battery
lock

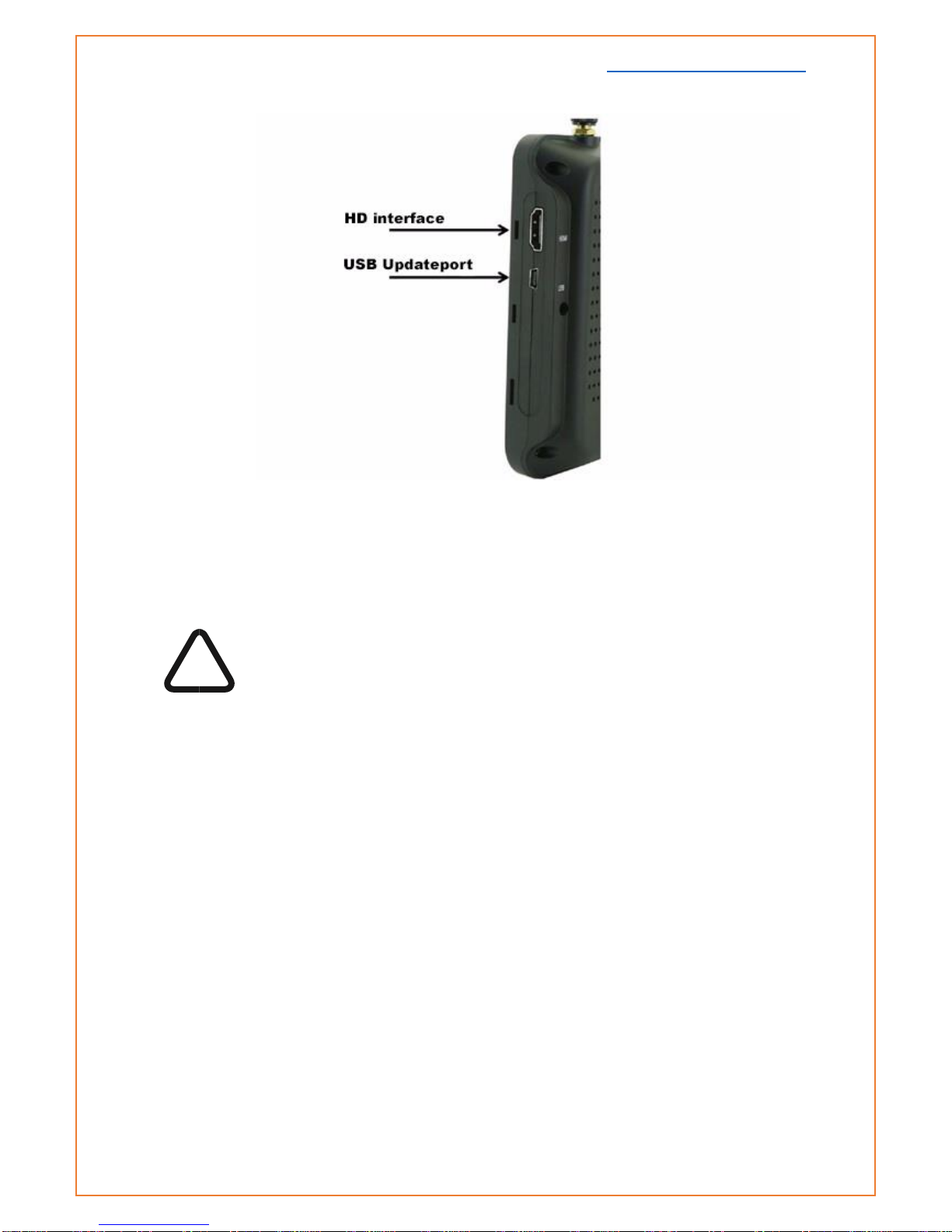

HD interface / playback
The monitor has an HD 1.3 IN interface to playback videos from other HD
sources.
USB port
The monitor has an USB port to update the firmware. In case new
firmware were released, it will be available in our homepage.

www.Hyperion-world.com
6
Note:
*NOTE: The USB port is not conceived as a power source to charge and
discharge the Li Ion battery
CAUTION
General notes on safety and handling Li Ion batteries
NEVER leave a Li Ion battery unattended when in charge. Charge the
batteries only in rooms where a smoke detector is installed.
•
ALWAYS control the battery and the charger during the entire charge
process.
ALWAYS charge the batteries on a non-flammable surface.
ALWAYS keep an extinguisher suitable for Lithium “Class type D” when
charging Li Ion batteries.
NEVER charge Li Ion batteries at a higher rate than 1C (“Means the
indicated capacity of the battery)
NEVER charge the Li Ion battery with a charger which does not detect the
full charge state of the battery.
ALWAYS interrupt the charge or discharge process of a Li Ion battery if
you detect smoke or if the battery slowly inflates. Let the battery stay for
at least 30 minutes in a fire-safe place. Do not use the battery anymore
and dispose it as indicated.
!

www.Hyperion-world.com
7
Charge
To charge the internal 1800 mAh Li Ion battery, you need a suitable 7 -
22 V DC net adapter (not included in the package content).
Plug the net adapter in a suitable net socket, then connect the plug
in the “DC IN” port of the monitor.
During charge the red LED (near the buttons) lights on. When the
charge process has finished, the red LED shuts down.
The Li Ion battery is replaceable. To remove it, pull the lock button
to the bottom and pull gently the battery from its place.
To plug, slide the battery diagonally into the slot so that the
contacts can take place first.
Screen shroud and tripod thread
To be able to optimally use the monitor even when sun shines, use the
screen shroud. It can be easily fixed on the monitor.
The thread for tripod or other monitor holders is on the bottom of the
monitor. So it is easier to use.
Commissioning
Screw the included 5,8GHz antennas on the two connectors placed on the
top back of the monitor.
The power is supplied by the integrated Li Ion battery, pay attention to
charge the battery before use.
To use the monitor, push the On/Off button (power) right for 3 seconds.
The LED lights on blue. The monitor scans now automatically the channels
looking for a video signal and shows the image.
Buttons
Description
Receiver select
Manual select one of the two receivers
Band select
Manual select one of the three signal band A/B/F
Channel select
Manual select one of the eight channels 1-8
SCAN function
The monitor searches (Auto Scan Function)
automatically
all bands and channels

www.Hyperion-world.com
8
Minus button
Reduces the screen brightness and other options
MENU
Push once to hide the symbols on the screen
Push twice to open the menu
Plus button
Increases the screen brightness and other options
Power (On/Off)
To turn on, push the On/Off button until the
monitor lights up, to switch off push the button
again
Screen symbols / Setting menu
Changes of the frequency band or of the channel will be shown in the
upper part of the screen. Charge the battery when the indicator shows
empty battery.
1. Signal power
2. Frequency
band
3. Channel
4. Source IN
5. Battery status
Setting Menu
Push twice the “MENU” button to access the selection menu.
Pushing the “MENU” button you can scroll through the menu setting
points. To change the value of one of the menu item, push the
“plus/minus” buttons. The menu automatically disappears after about 5
seconds if you do not push any button.
1
2
3
4
5

www.Hyperion-world.com
9
Brightness, contrast, color, volume: (the brightness can be changed
even by the main screen, pushing the “plus/minus” buttons)
RF Sel.: Manual selection of the frequency
Screen Mode: 16:9 or 4:3
Rotation: Image rotation in four steps
Languages: English, French, German, Spanish, Portuguese, Japan,
Russian, Italian, Dutch and Chinese
Reset: Sets all settings to factory value
Exit: Aborts the menu
Declaration of conformity
48350, 7”HD Monitor
Hyperion declares that the product is conform to EU norms. EMV
1999/5/EC; EN 301 489-1 V1.9.2 (2011-09); EN 301 489-17 V2.1.1
(2009-05); EN 300 440-2 V1.4.1 (2010-08)
Technical Data
Screen dimensions: 7“ (inches) / 178 mm
Dimensions: 184 x 126 x 28 mm
Resolution: 1024 x 600 Pixel
Screen type: TFT LCD Monitor, LED backlight
Luminosity: 500 cd/m2
Contrast: 700:1
Holder: tripod thread / sliding insert
Frequency: ISM 5.8 GHz
Operating voltage: DC-IN 7- 22,2 V
Battery: 1800mAH Li Ion battery
Weight: 500g
Operating temperature: 0° C ~ +50° C

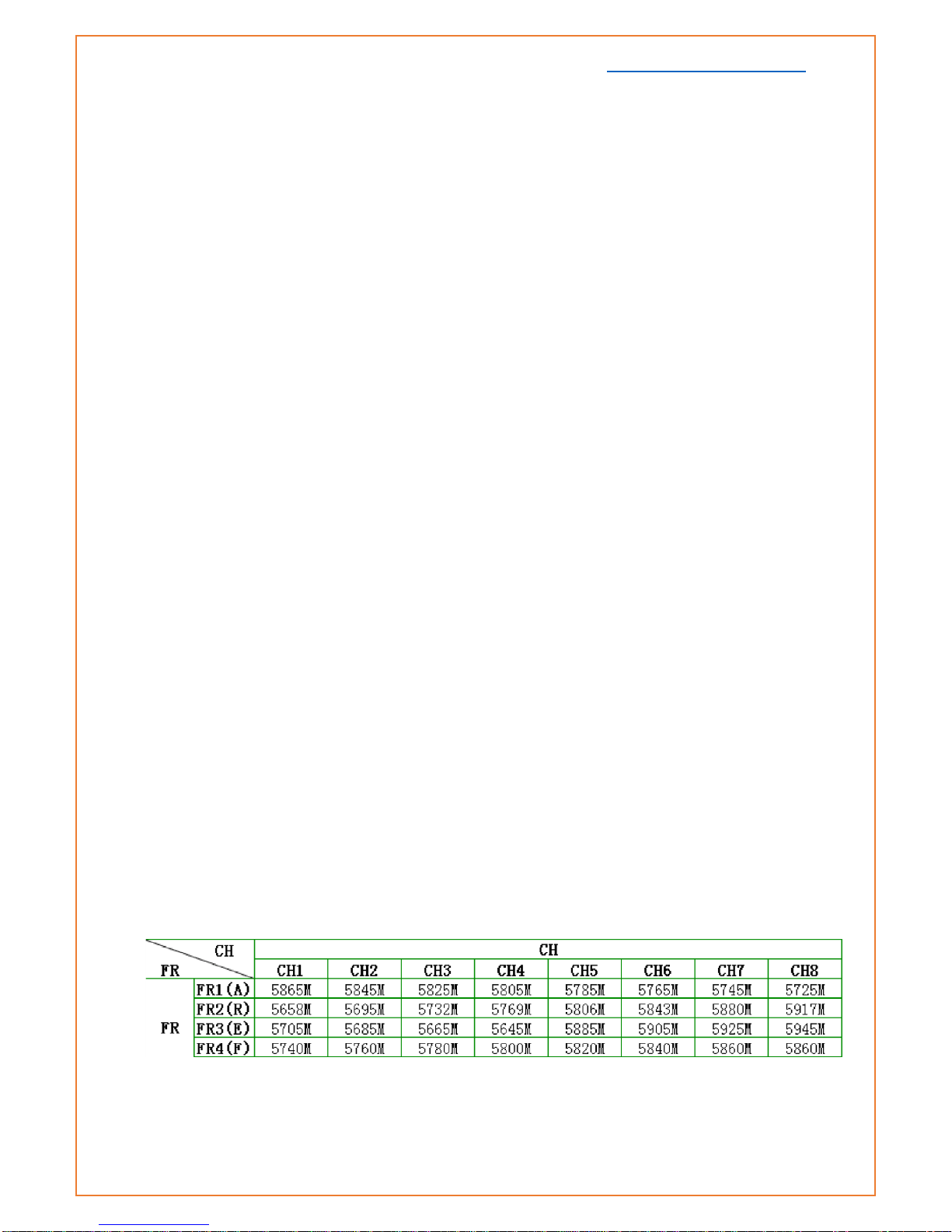

Frequency Chart

www.Hyperion-world.com
10
Notes on environmental protection
Disposal notes
This symbol on the product, user manual or packaging
indicates that this product must not be disposed of with
other household waste at the end of its life. It must be
handed over to the applicable collection point for the
recycling of electrical and electronic equipment.
The materials are recyclable as marked. By recycling, material reusing or
other forms of scrap usage you are making an important contribution to
environmental protection.
Batteries and accumulators must be removed from the device and
disposed of at an appropriate collection point. Please inquire if necessary
from the local authority for the appropriate disposal site.
Care and maintenance.
The product does not need any maintenance, it works so as it is without
any special care. In your own interests protect it from dust, dirt and
moisture. Clean the product only with a dry cloth (do not use detergent!)
lightly rub.
Warranty
The Hyperion grants from the date of purchase of this product for a period
of 12 months. The warranty applies only to the material or operational
defects already existing when you purchased the item. Damage due to
wear, overloading, incorrect accessories or improper handling are
excluded from the guarantee. The legal rights and claims are not affected
by this guarantee. Please check exactly defects before a claim or send the
product, because we have to ask you to pay shipping costs if the item is
free from defects.
The user manual is for informational purposes only and may be changed
without prior notice. The current version can be found on the Internet at
www.Hyperion-world.com on the relevant product page. In addition, the
company Hyperion has no responsibility or liability for any errors or
inaccuracies that may appear in construction or operation manuals. No
liability can be accepted for printing errors.
