Hytera MT680 User manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read this
manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information Booklet
carefully before use.
This manual is applicable to the following model:
MT680 Plus F5

Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications Co., Ltd. (the Company) in
PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product
names. All other trademarks and/or product names that may be used in this manual are properties of
their respective owners.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications and designs are subject to change without notice
due to continuous technology development. No part of this manual may be copied, modified, translated,
or distributed in any manner without the express written permission of us.
We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or
completeness of the Third Party products and contents involved in this manual.
If you have any suggestions or would like to learn more details, please visit our website at:
http://www.hytera.com.

respecter les
adhere to the following procedures:
The device complies with RF field strength limits of RSS-102 requirement
only. In terms of measuring
and is authorized by the FCC for occupational use
or controlled RF exposure environment
th the FCC RF exposure limits for occupational
FCC & IC Statement
Antenna Installation: Install the mobile antenna at least 50 cm away from your body, in
RFEnergyExposureCompliance
ƽ Your radio is designed and tested to comply with a number of national and international
standards and guidelines (listed below) regarding human exposure to radio frequency
electromagnetic energy. This radio complies wi
RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable
RF energy only while it is transmitting (during talking), not when it is receiving (listening) or
in standby mode.
ƽ

Your radio complies with the following of RF energy exposure
standards and guidelines
ƽ United States Federal Communications Commission, Code of Federal Regulations; 47CFR
part 2 sub-part J
ƽ American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers
(IEEE) C95. 1-1992
ƽ Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition
ƽ International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
ƽ To ensure optimal performance and compliance with the occupational/controlled environment
RF energy exposure limits in the above standards and guidelines, users should transmit no
ƽ Gain of antenna must not exceed 7.0dBi.
ƽ
accordance with the requirements of the antenna manufacturer/supplier.
Pour assurer une performance optimale et le respect du travail / contrôlée
limites d'exposition à l'environnement de l'énergie RF dans les normes et les
lignes directrices ci-dessus, les utilisateurs
procédures suivantes:
Gain de l'antenne ne doit pas dépasser 7,0 dBi.
Installation de l'antenne: Installez l'antenne portable au moins 50 cm de votre
corps, conformément
avec les prescriptions du fabricant de l'antenne / fournisseur.
ƽ
ƽ
ƽ
ƽ

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct.
The interference by one or more of the following measures:
ƽ Reorient or relocate the receiving antenna. Increase the separation between the
equipment and receiver.
ƽ Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
ƽ Consult the dealer or an experienced radio/TV technician for help
Operation is subject to the following two conditions: 1. This device may not cause harmful
interference, and 2. This device must accept any interference received, including
interference that may cause undesired operation.
Note:” Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.”
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device complies with Industry Canada licence-exempt RSS standard (s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference,including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.

Contents
1. Document Conventions .....................................................................................................................1
1.1 Instructional Conventions................................................................................................................1
1.2 Notational Conventions...................................................................................................................1
1.3 Key Operation.................................................................................................................................1
1.4 Term Explanation............................................................................................................................1
2. Items in the Package..........................................................................................................................3
3. Product Overview ...............................................................................................................................4

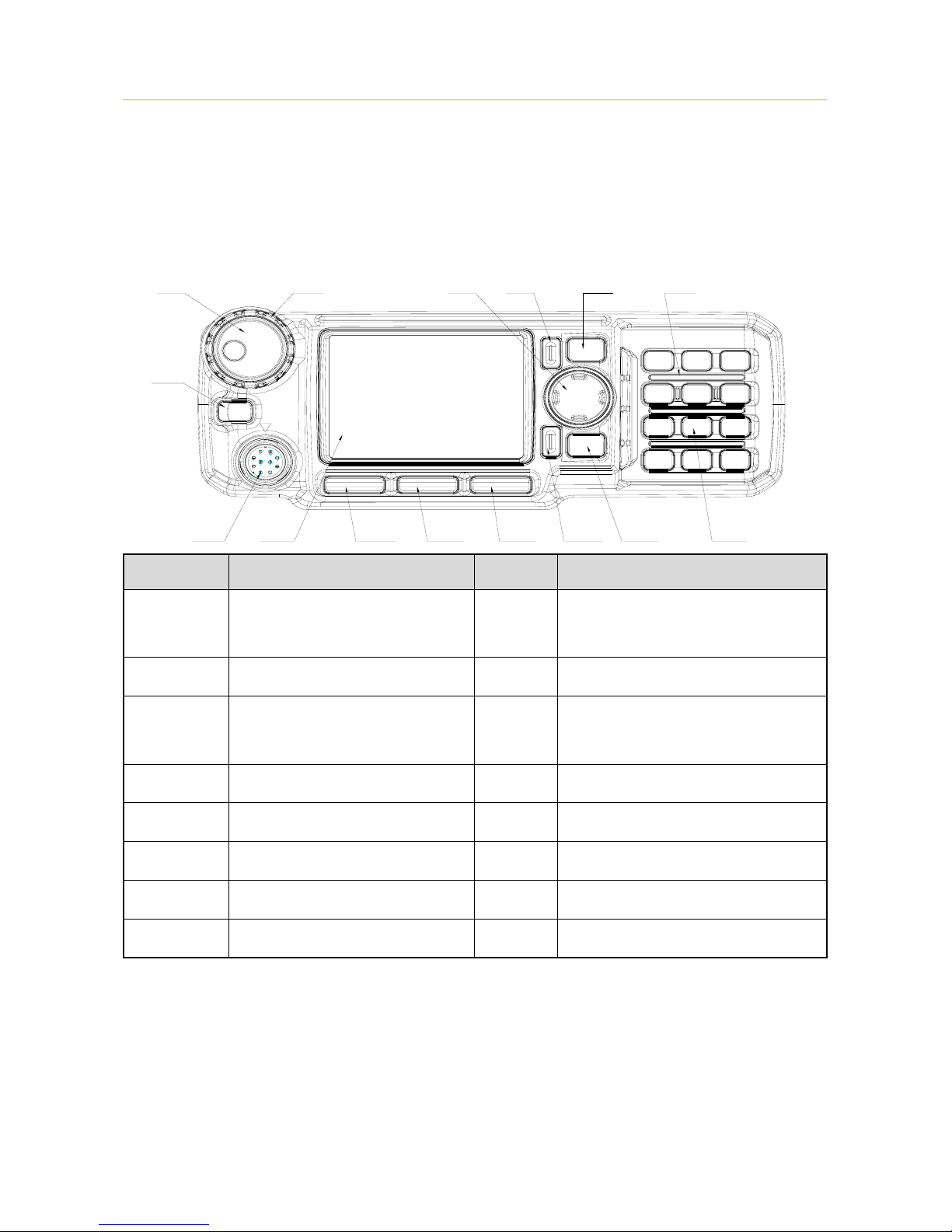

3.1 Front Panel .....................................................................................................................................5
3.2 Rear Panel......................................................................................................................................6
3.3 Programmable Keys .......................................................................................................................6
4. Before Use ..........................................................................................................................................7
4.1 Installation.......................................................................................................................................7
4.1.1 Installation Instructions .........................................................................................................7
4.1.2 Installation Tools ...................................................................................................................7
4.1.3 Installation Steps...................................................................................................................8
5. Status Indication ..............................................................................................................................12
5.1 Status Icon....................................................................................................................................12
5.2 Operation Icon ..............................................................................................................................13
5.3 LED Indicator ................................................................................................................................
13
6. Menu Navigation...............................................................................................................................14
6.1 TMO Menu....................................................................................................................................15
6.2 DMO Menu ...................................................................................................................................15
7. Basic Operations..............................................................................................................................16
7.1 Turning On/Off ..............................................................................................................................16
7.2 Switching Operation Mode............................................................................................................16
7.3 Adjusting the Call Volume.............................................................................................................16
7.4 Inputting through Keypad..............................................................................................................16
7.5 Locking/Unlocking the Keypad......................................................................................................16
7.6 PIN Code Security and Changing .................................................................................................17
7.7 Managing the Contacts .................................................................................................................17
7.7.1 Contact List.........................................................................................................................17
7.7.2 New Contact .......................................................................................................................17
7.7.3 Viewing the Memory Capacity ............................................................................................17
8. Call Services .....................................................................................................................................18
8.1 TMO..............................................................................................................................................18
8.1.1 Individual Call .....................................................................................................................18
8.1.2 Group Call...........................................................................................................................19

8.1.3 Telephone Call ....................................................................................................................20
8.1.4 Emergency Call ..................................................................................................................20
8.2 DMO .............................................................................................................................................21
8.2.1 Individual Call .....................................................................................................................21
8.2.2 Group Call...........................................................................................................................21
8.2.3 Emergency Call ..................................................................................................................21
9. Message ............................................................................................................................................22
9.1 Status Message ............................................................................................................................22
9.2 User Message...............................................................................................................................22
9.2.1 TMO....................................................................................................................................22
9.2.2 DMO ...................................................................................................................................23
10. Troubleshooting .............................................................................................................................24
11. Care and Cleaning..........................................................................................................................27
12. Optional Accessories.....................................................................................................................27
13. Appendix .........................................................................................................................................28
13.1 SSI&TSI Dialing Rules ................................................................................................................28
13.2 Illustration for Fixing the Mounting Bracket .................................................................................28

Owner’s Manual Document Conventions
1
1. Document Conventions
For your better understanding of this manual, please read the following conventions first.
1.1 Instructional Conventions
Icon Description
Note Indicates references that can further describe the related topics.
Caution Indicates situations that could cause data loss or equipment damage.
1.2 Notational Conventions
Convention Description
“”
The quotation marks enclose the name of a software interface element. For
example, click “OK”.
Bold
The text in boldface denotes the name of a hardware button. For example, press
the PTT key.
->
The symbol directs you to access a multi-level menu. For example, to select
“New” from the “File” menu, we will describe it as follows: “File -> New”.
1.3 Key Operation
Operation Definition
Press To press a key and release it quickly.
Long press To press a key for the preset time (2s by default) and release it.
Hold down To press a key and do not release it.
1.4 Term Explanation
Term Description
Individual Call
A half-duplex or full-duplex call initiated by an individual user to another individual
user.
Group Call A half-duplex call initiated by an individual user to a group.

Document Conventions Owner’s Manual
2
Term Description
Half-duplex
Half-duplex communication is also called “two-way alternate communication”. It
indicates the communication is provided in both directions, but only one direction at
a time, that is, only one party is allowed to transmit or receive at a time.
Full-duplex
Full-duplex communication is also called “full-duplex synchronous communication”.
It indicates the communication is allowed in both directions simultaneously, that is,
both parties can transmit and receive at the same time.
Direct Mode
Operation
(DMO)
DMO supports half-duplex operation and allows the terminals to communicate
directly with each other, without using a TETRA network infrastructure. Thus
functions that require network access, such as telephone call, will be unavailable.
Trunked Mode
Operation
(TMO)
TMO supports either half-duplex or full-duplex operation and allows the terminals to
communicate with each other via the TETRA network. Thus functions that require
network access are available. To operate in TMO mode, the terminal must be
granted authorization by your service provider, and must stay within the network
coverage.

Owner’s Manual Items in the Package
3

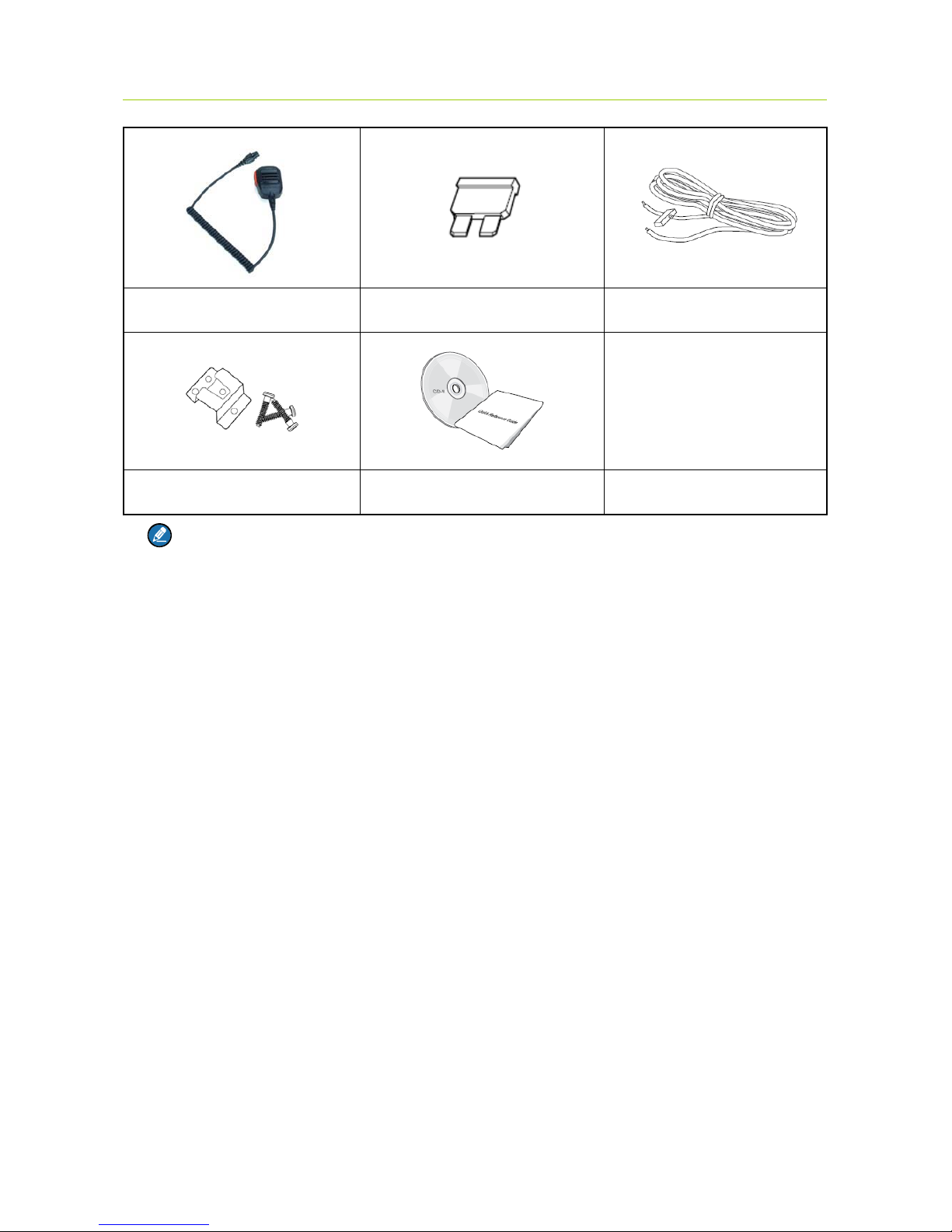

2. Items in the Package
Please unpack carefully and check that all items listed below are received. If any item is missing or
damaged, please contact your dealer.
For Mobile Terminal
Mobile Terminal Mounting Bracket Kit (1set) Palm Microphone
Fuse Power Cord
Microphone Hanger and
Screws
Documentation Kit
For Mobile Terminal (Remote Mounted)
Mobile Terminal (Remote
Mounted)
Remote Mounting Cable Mounting Bracket Kit (2 sets)

Items in the Package Owner’s Manual
4
Palm Microphone Fuse Power Cord
Palm Hanger and Screws Documentation Kit
Note: The antenna frequency band is marked on the label of antenna; if not, refer to the label on
the product for frequency band information.
