Hytera PT580H Plus User manual

Preface
Thanks for your favor in our product. To derive optimum performance from the product, please read
this manual, the corresponding TETRA Terminal Series Feature Book and the Safety Information
Booklet carefully before use.
This manual is applicable to the following product:
PT580H Plus TETRA Portable Terminal

Copyright Information
Hytera is the trademark or registered trademark of
Hytera Communications Corporation Limited (the
Company) in PRC and/or other countries or areas. The
Company retains the ownership of its trademarks and
product names. All other trademarks and/or product
names that may be used in this manual are properties
of their respective owners.
Disclaimer
The Company endeavors to achieve the accuracy
and completeness of this manual, but no warranty of
accuracy or reliability is given. All the specifications
and designs are subject to change without notice due
to continuous technology development. No part of
this manual may be copied, modified, translated, or
distributed in any manner without the express written
permission of the Company.
We do not guarantee, for any particular purpose, the
accuracy, validity, timeliness, legitimacy or completeness
of the Third Party products and contents involved in this
manual.
If you have any suggestions or would like to learn more
details, please visit our website at: http://www.hytera.
com.
FCC Regulations
Federal Communication Commission (FCC) requires
that all radio communication products should meet the
requirements set forth in the above standards before
they can be marketed in the U.S, and the manufacturer
shall post a RF label on the product to inform users
of operational instructions, so as to enhance their
occupational health against exposure to RF energy.
Operational Instructions and Training
Guidelines
To ensure optimal performance and compliance with
the occupational/controlled environment RF energy
exposure limits in the above standards and guidelines,
users should transmit no more than 50% of the time and
always adhere to the following procedures:
Your terminal radiates measurable RF energy only when
it is transmitting, not when it is receiving or in standby
mode.
EU Regulatory Conformance
As certied by the qualied laboratory, the product is in
compliance with the essential requirements and other
relevant provisions of the Directive 1999/5/EC. Please
note that the above information is applicable to EU
countries only.

1
Contents
Items in the Package------------------------------------------------------------------ 2
Product Overview ---------------------------------------------------------------------- 2
Product Controls ----------------------------------------------------------------------- 2
LCD Icon----------------------------------------------------------------------------- 2
LED Indicator----------------------------------------------------------------------- 3
Before Use -------------------------------------------------------------------------------- 3
Attaching the Antenna----------------------------------------------------------- 3
Attaching the Battery ------------------------------------------------------------ 4
Installing the SIM Card ---------------------------------------------------------- 4
Attaching the Belt Clip ----------------------------------------------------------- 4
Attaching the Accessories ----------------------------------------------------- 4
Charging the Battery------------------------------------------------------------- 4
Basic Operations----------------------------------------------------------------------- 5
Turning On/Off the Terminal -------------------------------------------------- 5
Switching Operation Mode----------------------------------------------------- 5
Adjusting the Call Volume ------------------------------------------------------ 5
Selecting a Group----------------------------------------------------------------- 5
Inputting via Keypad ------------------------------------------------------------- 5
Locking/Unlocking the Keypad ----------------------------------------------- 5
PIN Enable ------------------------------------------------------------------------- 5
Managing the PhoneBook------------------------------------------------------ 5
TMO Service------------------------------------------------------------------------------ 5
Individual Call --------------------------------------------------------------------- 5
Group Call--------------------------------------------------------------------------- 6
PABX/PSTN Call ----------------------------------------------------------------- 6
Emergency Call-------------------------------------------------------------------- 6
Message Service ----------------------------------------------------------------- 6
DMO Service ----------------------------------------------------------------------------- 7
Individual Call --------------------------------------------------------------------- 7
Group Call--------------------------------------------------------------------------- 7
Emergency Call-------------------------------------------------------------------- 7
Message Service ----------------------------------------------------------------- 7
Troubleshooting ------------------------------------------------------------------------ 8
Care and Cleaning --------------------------------------------------------------------- 9
Optional Accessories ---------------------------------------------------------------- 9

2
Antenna Charger Power Adapter
Terminal Battery Belt Clip
Strap Documentation Kit
Items in the Package
Please unpack carefully and check if all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Note：The frequency band is marked on
the label of antenna; if not, please refer to
the label on the terminal for frequency band
information.
Product Overview
Product Controls
No. Part Name No. Part Name
1SK1 (Side
Key 1) 15 Antenna Connector
2 PTT (Push-
to-Talk) Key 16
Power On-Off/
Volume Control
Knob
3SK2 (Side
Key 2) 17 Half-duplex Microphone
4Emergency
Key 18
Accessory
Connector
Cover
5 LED Indicator 19 Options/Back
Key
6 Antenna 20 End Key
7
Group
Selector
Knob
21 Navigation Key
8Full-duplex
Receiver 22 Battery Latch
9 LCD Display 23 Accessory
Connector
No. Part Name No. Part Name
10 Func/OK Key 24 Strap Hole
11 Answer/Call
Key 25 Belt Clip
12 Half-duplex
Speaker 26 Battery
13 Numeric
Keypad 27 Charging Piece
14 Full-duplex
Microphone / /
Note： For enhanced convenience, you may
request your dealer to program the numeric keys
0–9, *key, #key, navigation keys, Call key, OK
key, Back key, SK1 and SK2 key as shortcuts
to certain features. For the detailed introduction,
please refer to the corresponding TETRA Terminal
Series Feature Book.

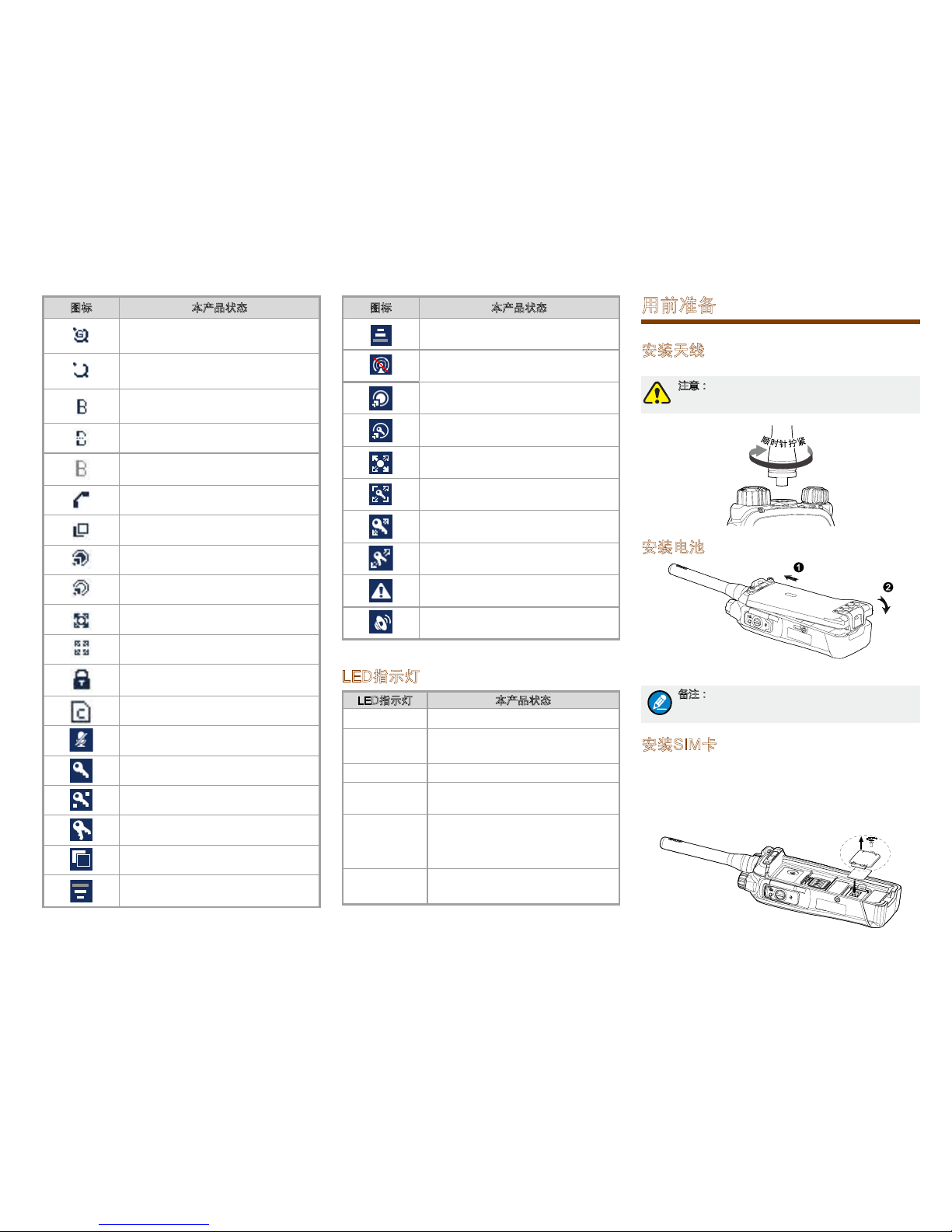

LCD Icon
Icon Terminal Status
The terminal is not registered with the
system (applicable for TMO only).
The terminal is registered with the system,
and more bars indicate stronger signal
strength.
The terminal is not registered with the
system while the WAP browser is running.
The terminal is registered with the system
while the WAP browser is running,
and more bars indicate stronger signal
strength.
There is(are) unread message(s).
The Inbox is full.
The terminal is operating in TMO.

3
Icon Terminal Status
The terminal is operating in DMO.
The terminal is operating in fallback mode.
The scan feature is enabled in TMO.
The scan feature is enabled in fallback
mode.
The terminal is operating in silent mode.
The terminal is operating in normal (ring
and vibration) mode.
The terminal is operating in vibration
mode.
An audio accessory is connected.
An audio accessory is connected but not
available for use.
A palm microphone with keypad is
connected.
The GPS feature is active, and valid GPS
or GLONASS data is received.
The GPS feature is active, but no valid
GPS or GLONASS data is received.
A wireless accessory is connected and
available for use.
The BT feature is enabled but no wireless
accessory is connected.
A wireless accessory is connected but not
available for use.
A call is in progress.
The terminal is selecting a group.
A gateway device is available and
connected in DMO.
A gateway device is available but not
connected in DMO.
A repeater is available and connected in
DMO.
Icon Terminal Status
A repeater is available but not connected
in DMO.
The keypad is locked.
The SIM card E2EE is in use.
The microphone is disabled.
AIE (Air Interface Encryption) is in use.
E2EE (End-to-End Encryption) is in use.
Both AIE and E2EE are in use.
The ongoing call enjoys a pre-emptive
priority.
The ongoing call enjoys a higher priority.
The ongoing call enjoys a lower priority.
The terminal is prohibited from
transmitting.
A call via gateway is in progress.
An E2EE call via gateway is in progress.
A call via repeater is in progress.
An E2EE call via repeater is in progress.
An AIE call via repeater is in progress.
The AIE and E2EE call via repeater is in
progress.
An Emergency call is in progress.
A broadcast call is in progress.
LED Indicator
LED Indication Terminal Status
Glows red Transmitting
Flashes red
slowly
Low battery voltage
Please replace or recharge the
battery
Glows green Receiving
Flashes green
slowly Channel idle in DMO
Glows orange
Channel busy in DMO
The terminal is prohibited from
transmitting.
Flashes orange
slowly
The BS with which the terminal
is registered is out of service in
TMO.
Before Use
Attaching the Antenna
Caution: Do not hold the terminal by its
antenna, otherwise the performance and
lifespan of the antenna will be reduced.
Rotate Clockwise

4

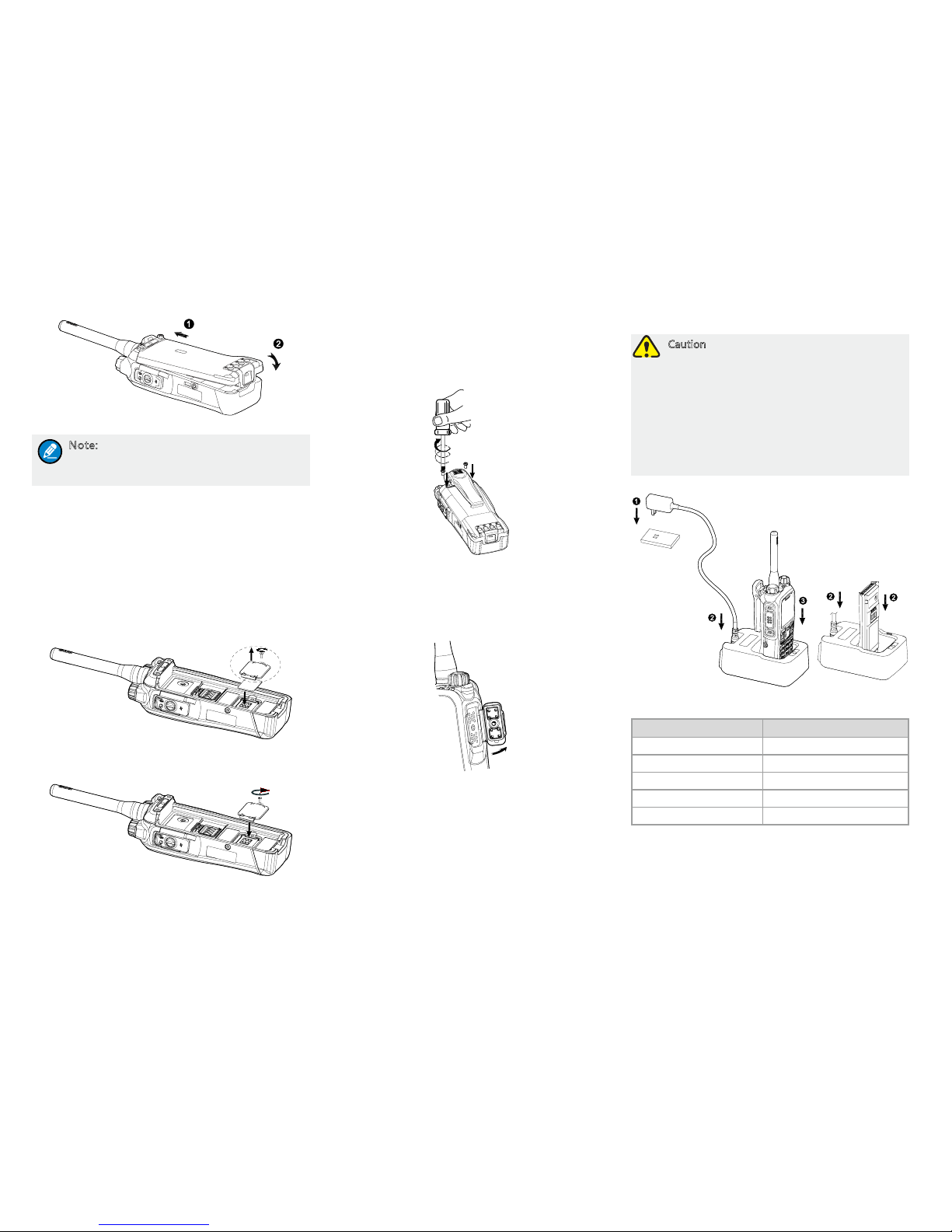

Attaching the Battery
Note: To remove the battery, turn off the
terminal first. Then lift the battery latch and
remove the battery.
Installing the SIM Card
If you have purchased the End-to-End Encryption
(E2EE) feature which is realized via a SIM card, please
buy a SIM card and install it rst.
1. Remove the battery.
2. Loosen the screw xing the SIM card cover, open the
cover, and then place the card into the slot properly,
as shown in the gure below.
3. Replace the cover and tighten the screw as shown in
the gure below.
Attaching the Belt Clip
1. Remove the two screws on the back of the terminal.
2. Align the screw holes on the belt clip with those on
the terminal, and then tighten the screws, as shown
in the gure below.
Attaching the Accessories
1. Loosen the screw on the accessory connector cover,
and open the cover as the arrow shows in the gure
below.
2. Align the accessory (such as audio accessory
and programming cable) plug with the accessory
connector.
3. Secure the screw of the accessory.
Charging the Battery
Caution
●Use the charger specified by the Company
to charge the battery.
●Make sure the terminal is powered
off before charging. Read the Safety
Information Booklet in advance to get
necessary safety information.
●Charge a new battery for at least 5 hours
before initial use for best performance.
Charging status indication on charger:
LED Indication Charging Status
Flashes red slowly Standby (no load)
Glows red Charging
Glows orange 90% charged
Glows green Fully charged
Flashes red rapidly Charging failed

5
Basic Operations
Turning On/Off the Terminal
ON “咔嗒” OFF
“咔嗒”
Switching Operation Mode
This terminal can operate in either TMO or DMO.
Press the Func/OK key on the home screen to enter
the “Mode” menu, and then select “TMO” or “DMO” to
switch the operation mode.
Adjusting the Call Volume
- +
Selecting a Group
Inputting via Keypad
You can input alias, call numbers and messages via the
keypad. In the editing mode, you may do as follows.
●Press to switch the text input methods
between alphabetic mode and numeric mode
●In the alphabetic mode, press to input the
special characters. In the numeric mode, long press
to input the special characters.
●Press to input the character “*”.
●Long press to enter a space.
Locking/Unlocking the Keypad
When you do not use the keypad, you can lock it to
avoid misoperations.
●Enable the Auto Lock feature
On the home screen, press the Func/OK key and go
to “Settings -> Radio -> Keypad -> Auto Lock -> On”.
●Lock/unlock the keypad.
Press the Func/OK key and then press to
lock or unlock the keypad.
PIN Enable
PIN code can protect your terminal against unauthorized
use.
●Enable or disable the PIN Enable feature
To enable the feature, press the Func/OK key on the
home screen and go to “Settings -> Function -> Security
-> PIN Enable -> On”, and then input the PIN code
(default PIN code: 1234).
To disable the feature, press the Func/OK key on the
home screen and go to “Settings -> Function -> Security
-> PIN Enable -> Off”, and then input the PIN code.
With this feature enabled, each time you turn on the
terminal, PIN code is required. If you input wrong code
for continuous three times, the terminal will be locked.
In this case, you will need to enter the correct PUK code
(default PUK code: 12345678) to reset the PIN code.
●Change the PIN code
Press the Func/OK key on the home screen and go to
“Settings -> Function -> Security -> PIN Edit”, input the
correct current PIN code and input the new PIN code
twice.
Managing the PhoneBook
PhoneBook is used to save the individual call number
and PABX/PSTN number.
You can press the Func/OK key and go to “PhoneBook”
menu to add, view, search, modify or delete a contact.
TMO Service
The trunked mode operation (TMO) supports either half-
duplex or full-duplex operation and allows the terminals
to communicate with each other via the TETRA network
infrastructure. Thus features that require network access
are available. To operate in TMO mode, the terminal
must be authorized by your service provider, and must
register with the network and stay within the network
coverage.
Individual Call
An individual call is a half-duplex or full-duplex call
initiated by an individual user to another individual user.
You can initiate and receive an individual call to/from an
individual contact.
Initiating an Individual Call
●Half-duplex Individual Call
1. Press the Func/OK key and go to “PhoneBook”
menu to select an individual contact.
2. Hold down the PTT key to initiate a half-duplex
individual call.
"Click" "Click"

6
3. Hold down the PTT key to talk after the call is
established.
●Full-duplex Individual Call
1. Press the Func/OK key and go to “PhoneBook”
menu to select an individual contact.
2. Press to initiate a full-duplex individual call.
3. Both parties can talk at any time without any
operation after the call is established.
Answering an Individual Call
●Half-duplex Individual Call
»In case of an incoming call with Direct Signaling,
the terminal will emit an alert tone to indicate that
the call is established successfully. At this time,
no operation is required to answer the call.
»In case of an incoming call with Hook Signaling,
the terminal will ring and vibrate to indicate this
incoming call. At this time, press PTT to answer
the call.
Hold down the PTT key to talk after the call is
established.
●Full-duplex Individual Call
»In case of an incoming call with Direct Signaling,
the terminal will emit an alert tone to indicate that
the call is established successfully. At this time,
no operation is required to answer the call.
»In case of an incoming call with Hook Signaling,
the terminal will ring and vibrate to indicate this
incoming call. At this time, press PTT to answer
the call.
Both parties can talk at any time without any
operation after the call is established.
Ending an Individual Call
Press to end the call.
Group Call
A group call is a half-duplex call initiated by an individual
user to other members in a predetermined group. You
can initiate a group call to the default group, and receive
group calls from the members of the group.
Initiating a Group Call
On the home screen, rotate the Group Selector knob to
select a group and hold down the PTT key to initiate a
group call to this group, whose number is displayed on
the home screen.
Answering a Group Call
You can answer a group call without any operation.
Ending/Exiting a Group Call
●The calling party can press to end the group
call.
●The called party can press to exit the group call.
PABX/PSTN Call
A PABX/PSTN call is a full-duplex individual call with
Hook Signaling established between an individual user
and a PABX or PSTN user outside the TETRA network.
The operations for initiating a PABX/PSTN call are as
follows. For operations of answering or ending a PABX/
PSTN call, refer to Individual Call.
Initiating a PABX/PSTN Call
1 On the home screen, press the Func/OK key to go
to “Settings -> Network” and select “PSTN GW” or
“PABX GW”.
2 Return to the home screen and input a PABX or
PSTN number.
3 Press the Func/OK key to select “PABX” or “PSTN”
if appears on the screen.
Skip this step if does not appear on the screen.
4 Press to initiate the call.
Emergency Call
An Emergency call is a call initiated by an individual user
to the predened contact for summoning help in urgent
situations. With the highest priority, it can interrupt any
other ongoing calls with lower priority if no resource is
available.
Initiating an Emergency Call
Hold down the Emergency key for the preset time to
initiate an emergency call to the predefined contact
which can be the individual, group, PABX or PSTN user.
Answering an Emergency Call
You can answer an emergency individual call or
emergency group call without any operation.
As for an emergency PABX/PSTN call, you need to
press the PTT key to answer the call.
Ending/Exiting an Emergency Call
For ending operation, refer to Individual Call, Group Call
or PABX/PSTN Call according to the predened contact.
Message Service
Message Service allows you to send and receive a
message, which includes Status Message and User
Message. Status Message is programmed by your
dealer only while User Message allows you to create,
edit and send a text message.
Sending a Message
1. Press the Func/OK key to go to “Message -> New
Msg” and select “Status Msg” or “User Msg”.
2. For status message, select “View -> Options” and
then select “Individual” or “Group”; for user message,
press Func/OK key to select “Individual” or “Group”
after editing the message.
3. Enter the individual number or select a group
contact, and press the Func/OK key to send the
message.

7
Viewing a Message
1. On the home screen, press the Func/OK key to go
to “Message -> Inbox”, and select the appropriate
message.
2. Press the Func/OK key to view the content.
DMO Service
The direct mode operation (DMO) supports half-duplex
operation and allows the terminals to communicate
directly with each other, without using a TETRA network
infrastructure. Thus features that require network access
will be unavailable.
Individual Call
An individual call is a half-duplex call initiated by an
individual user to another individual user. You can initiate
and receive an individual call to/from an individual
contact.
Initiating an Individual Call
1 Press the Func/OK key and go to “PhoneBook”
menu to select an individual contact.
2 Hold down the PTT key to initiate the call.
3 Hold down the PTT key to talk after the call is
established.
Answering an Individual Call
You can answer the call without any operation.
Ending an Individual Call
Press to end the call.
Group Call
The group call operations in DMO are similar to those in
TMO. Refer to Group Call for details.
Emergency Call
An Emergency call is a call initiated by an individual
user to the default group for summoning help in urgent
situations. With the highest priority, it can interrupt any
other ongoing calls with lower priority if no resource is
available.
Initiating an Emergency Call
Hold down the Emergency key for the preset time to
initiate an emergency call to the default group.
Answering an Emergency Call
You can answer an emergency individual call or group
call without any operation.
Ending/Exiting an Emergency Call
●The calling party can press to end the
Emergency call.
●The called party can press to exit the
Emergency call.
Message Service
The message operations in DMO are similar to those in
TMO. Refer to Message Service for details.

8
Troubleshooting
Phenomenon Analysis Solution
Terminals cannot be powered on. The battery power may be too low to power on the terminal. Charge the battery.
Network registration fails or network
cannot be found.
The terminal may be operating in DMO. Switch to TMO.
The terminal may be out of the network coverage in TMO. Check the signal strength. Make sure the terminal is within
the network coverage.
The terminal may not be granted network access. Contact the network operator for the terminal authorization.
Calls cannot be established.
The terminal or the called party may be out of the network
coverage.
Check the signal strength. Make sure the terminal is within
the network coverage.
The terminal may operate in an improper mode. Check the operation mode. Make sure the terminal works in
the right mode.
A certain group call cannot be initiated or
received.
The terminal may not be a member of the target group. Check whether the terminal is a member of the group. If
not, contact your dealer to add the terminal to the group.
The terminal may not be authorized to access the target group. Contact the network operator for the terminal authorization.
Calls are always interrupted. The current channel may be assigned to emergency calls or
other calls with higher priority. Wait until the channel becomes available and try again.
A half-duplex call cannot be established.
The predened time period for establishing a call may expire. Make sure the call is established within the predened time
period.
The channel may be occupied by another terminal with higher
call priority. Wait until the channel becomes available and try again.
The channel resources may be allocated to other services due
to overloaded network. Wait until the channel becomes available and try again.
Abnormal disconnection occurs during a
call.
The terminal may be out of the network coverage in TMO. Check the signal strength. Make sure the terminal is within
the network coverage.
The terminal may operate at an unfavorable position where
communication may be blocked by high buildings or frustrated
in the underground areas in DMO.
Move to an open and at area, and restart the terminal.
As for the same status message ID, the
content displayed at the receiving party is
different from that of the sending party.
The parties may have associated the same status message ID
with different contents.
Make sure the status message ID is associated with the
same content.
If the above solutions cannot x your problems, or you may have some other queries, please contact us or your local dealer for more technical support.

9
Care and Cleaning
To guarantee optimal performance as well as a long
service life of the product, please follow the tips below.
Product Care
●Do not pierce or scrape the product.
●Keep the product far away from substances that can
corrode the circuit.
●Do not hold the product by its antenna or earpiece
cable directly.
●Attach the accessory connector cover when the
product is not in use.
Product Cleaning
Caution：Power off the product and
disconnect the power supply before cleaning.
● Clean up the dust and ne particles on the product
surface and charging piece with a clean and dry lint-
free cloth or a brush regularly.
●Use neutral cleanser and a non-woven fabric to clean
the keys, control knobs and front case after long-time
use. Do not use chemical preparations such as stain
removers, alcohol, sprays or oil preparations, so as
to avoid surface case damage.
●Make sure the product is completely dry before use.
Optional Accessories
Please contact your local dealer or us for more details
on the main optional accessories of the product.
Caution：Use the accessories specified by the
Company only. If not, the Company shall not
be liable for any losses or damages arising out
of use of unauthorized accessories.

致用户
非常感谢您对我们产品的青睐！本手册旨在让您快速掌握本产品的使用，如需了解产品详细功能和操
作，请参阅本产品配套的功能手册。
为了避免因不当操作而给您带来身体伤害或财产损失，请于使用本产品前详细阅读《安全信息手
册》。
本手册适用于以下机型：
PT580H Plus手持终端

版权信息
Hytera为海能达通信股份有限公司（以下简称“我
司”）在中华人民共和国和世界其他国家和/或地区的商
标或注册商标。我司仅对自有商标及产品名称享有所有
权，本手册中可能提及的其他商标和产品名称为各自所
有者所有。
免责声明
本手册在编制过程中力求内容的准确性与完整性，但对
于可能出现的错误或疏漏，我司不承担任何责任。由于
技术的不断发展，我司保留不予通知而更改产品设计与
规格的权利。未经我司事先书面授权，不得以任何形式
对本手册进行复制、修改、翻译和散发。
本手册中涉及的第三方产品和内容归第三方所有，我司
对其准确性、有效性、及时性、合法性或完整性均不提
供保证。
如需更多信息或对本手册有任何建议，欢迎访问我们的
网站：http://www.hytera.com，或拨打我司服务热线400-
830-7020。
美国联邦通信委员会监管要求
按照美国联邦通信委员会的监管要求，本产品必须符合
美国联邦通信委员会射频辐射限制规定，否则不能在美
国市场上销售。并要求制造商可通过在产品上张贴标签
的方式，告知用户应注意的事项，提高用户的防辐射意
识。
射频辐射控制及操作说明
为了使产品发挥最佳性能及确保符合上述标准中有关职
业或受控环境中的辐射限制要求，发送时间不得超过额
定因数的50%，且需遵照下列说明：
仅在发射（讲话）时产生射频能量辐射，接收（收听）
和待机时均不会产生。
欧盟指令符合性声明
本产品经独立第三方机构认证，符合欧盟指令“1999/5/
EC”中的相关要求。请注意，本声明仅适合欧盟国家。

1
目录
包装清单------------------------------------------------------------------------------------- 2
熟悉产品 ------------------------------------------------------------------------------------ 2
部件介绍 ----------------------------------------------------------------------------- 2
LCD图标 ----------------------------------------------------------------------------- 2
LED指示灯 -------------------------------------------------------------------------- 3
用前准备------------------------------------------------------------------------------------- 3
安装天线 ----------------------------------------------------------------------------- 3
安装电池------------------------------------------------------------------------------ 3
安装SIM卡--------------------------------------------------------------------------- 3
安装皮带夹 -------------------------------------------------------------------------- 4
安装附件------------------------------------------------------------------------------ 4
充电------------------------------------------------------------------------------------ 4
基本操作 ------------------------------------------------------------------------------------ 4
开关机 -------------------------------------------------------------------------------- 4
切换工作模式 ----------------------------------------------------------------------- 4
调节通话音量 ----------------------------------------------------------------------- 4
选择通话组 -------------------------------------------------------------------------- 4
键盘输入 ----------------------------------------------------------------------------- 5
键盘锁定及解锁 -------------------------------------------------------------------- 5
PIN码保护 --------------------------------------------------------------------------- 5
管理电话簿--------------------------------------------------------------------------- 5
集群模式 ------------------------------------------------------------------------------------ 5
个呼 ----------------------------------------------------------------------------------- 5
组呼 ----------------------------------------------------------------------------------- 5
PABX/PSTN呼叫 ------------------------------------------------------------------ 5
紧急呼叫 ----------------------------------------------------------------------------- 6
短信息--------------------------------------------------------------------------------- 6
直通模式 ------------------------------------------------------------------------------------ 6
个呼 ----------------------------------------------------------------------------------- 6
组呼 ----------------------------------------------------------------------------------- 6
紧急呼叫 ----------------------------------------------------------------------------- 6
短信息--------------------------------------------------------------------------------- 6
故障处理 ------------------------------------------------------------------------------------ 7
保修范围与期限---------------------------------------------------------------------------- 7
保养与清洁---------------------------------------------------------------------------------- 7
选购配件 ------------------------------------------------------------------------------------ 8

2
天线 充电座 电源适配器
主机 电池 皮带夹
吊绳 资料套件
包装清单
包装盒内含有以下物品。如有任何物品丢失或损坏，请
与您所购产品的经销商联系。
备注: 天线频段请参考天线底部色环标签内容。若
标签未注明频段，则参考主机标签上的具体频段。
熟悉产品
部件介绍
序号 部件名称 序号 部件名称
1 SK1（侧键1）15 天线接口
2 PTT键（发射按
键） 16 电源开关/音
量旋钮
3 SK2（侧键2）17 半双工麦克
风
4紧急呼叫键 18 附件接口盖
5 LED指示灯 19 选项/返回键
6天线 20 挂机键
7组呼选择旋钮 21 方向键
8全双工受话器 22 电池推钮
9 LCD 显示屏 23 附件接口
10 功能/确认键 24 吊绳孔
11 接听/呼叫键 25 皮带夹
12 半双工扬声器 26 电池
13 数字键盘 27 电池充电极
片
14 全双工麦克风 / /
备注： 为提升操作便利性，本产品提供的功能快
捷键有数字键盘的0～9键、* 键和#键，以及【方
向】键、【呼叫】键、【确认】键、【返回】键、
【SK1】键、【SK2】键。具体功能请咨询经销
商，功能的详细介绍可参阅本产品配套的功能手
册。
LCD图标
图标 本产品状态
未注册网络（仅适用集群模式）
信号条数越多，信号越强
未注册网络（运行WAP浏览器）
信号条数越多，信号越强（运行
WAP浏览器）
有未读短信
收件箱已满
处于集群模式 （TMO）下
处于直通模式 （DMO）下
处于故障弱化模式下
集群模式下开启扫描
故障弱化模式下开启扫描
处于无声模式
处于正常模式（振铃）
处于振动模式
音频附件已接入
已接入音频附件，但音频附件不可用
已接入带数字按键的手持麦克风

3
图标 本产品状态
GPS数据有效（GPS、北斗或者
GLONASS）
GPS数据无效（GPS、北斗或者
GLONASS）
已成功连接蓝牙配件，且蓝牙配件可
用
已开启蓝牙功能，未连接蓝牙配件
已成功连接蓝牙配件，但蓝牙配件不
可用
当前正在通话
当前可切换通话组
直通模式下有网关设备并已连接
直通模式下有网关设备但未连接
直通模式下有中继设备并已连接
直通模式下有中继设备但未连接
已锁定键盘
已使用SIM卡端到端加密
已禁止麦克风
正在使用空口加密
正在使用端到端加密
正在使用空口加密和端到端加密
正在使用预占优先级
正在使用较高的呼叫优先级
图标 本产品状态
正在使用较低的呼叫优先级
已开启发射限制
正在进行网关呼叫
正在进行端到端加密的网关呼叫
正在进行中继呼叫
正在进行端到端加密的中继呼叫
正在进行空口加密的中继呼叫
正在进行端到端加密和空口加密的中
继呼叫
正在进行紧急呼叫
正在进行广播呼叫
LED指示灯
LED指示灯 本产品状态
红灯长亮 本产品处于发射状态
红灯慢闪 本产品处于低电压保护状态
请更换电池或者对电池进行充电
绿灯长亮 本产品处于接收状态
绿灯慢闪 直通模式下，本产品的信道处于空
闲状态
橙灯长亮
●直通模式下，本产品的信道处
于繁忙状态
●本产品处于发射限制状态
橙灯慢闪 集群模式下，本产品注册登记的基
站处于脱网状态
用前准备
安装天线
注意：请勿手持天线顶端甩动本产品，否则会降低
本产品天线的工作性能和使用寿命。
安装电池
备注：如需卸下电池，请先关机，然后将底部电池
推钮往上提起，并取出电池。
安装SIM卡
若您购买了端到端加密（E2EE）功能，并通过外置SIM
卡进行加密，请参考如下方式安装SIM卡。
1. 卸下电池。
2. 拧开主机SIM卡盖螺钉，将SIM卡放入SIM卡槽内。

4
3. 将SIM卡盖重新安装至主机，用螺钉固定SIM卡盖。
安装皮带夹
1. 拧开主机后壳皮带夹螺钉。
2. 将皮带夹的螺钉孔对准主机背部的螺钉孔，然后用螺
钉锁紧。
安装附件
1. 逆时针旋转附件接口盖螺钉，按箭头所示方向打开附
件接口盖。
2. 将附件（如音频附件或者编程线等）插头对准附件接
口。
3. 拧紧附件插头上的螺钉。
充电
注意
●请使用我司指定的充电座充电。
●为整机充电时，建议先关机并参阅《安全信息
手册》，以获取必要的电池安全信息。
●为获得最佳电池性能，首次充电时，请至少充
电5小时。
观察充电座LED指示灯可了解当前充电状态：
LED指示灯 当前充电状态
红灯慢闪 待机（空载）
红灯长亮 正在充电
橙灯长亮 已充电90%
绿灯长亮 已充满
红灯快闪 充电故障
基本操作
开关机
ON “咔嗒” OFF
“咔嗒”
“咔嗒” “咔嗒”
切换工作模式
本产品可以在集群模式或者直通模式下工作。
按【功能/确认】键选择“模式 -> 直通模式/集群模
式”，切换本产品的工作模式。
调节通话音量
- +
选择通话组

5
键盘输入
本产品支持字母输入法、数字输入法和多国语言输入
法。您可以使用数字键盘输入用户别名、号码以及编辑
短信息等。
●切换输入法：按数字键盘上的
●输入标点符号等特殊字符：字母/数字/中文输入法
下，按数字键盘上的
●输入*：字母/数字输入法下，按数字键盘上的
●输入空格：字母/数字输入法下，长按数字键盘上的
键盘锁定及解锁
当您无需使用键盘时，可锁定键盘以防止误操作。
●开启键盘锁功能
待机界面下，按【功能/确认】选择“设置 -> 对讲机
设置 -> 键盘设置 -> 键盘锁定 -> 开”，开启键盘锁功
能。
●解锁/锁定键盘
先按【功能/确认】键，后按 键，解锁或锁定键
盘。
PIN码保护
PIN码是保护本产品的一种安全措施，防止他人盗用本产
品。
●开启或者关闭PIN码保护
待机界面下，按【功能/确认】键选择“设置 -> 功能设
置-> 保密设置 -> PIN码保护”菜单，输入四位数字的
PIN码后，开启或关闭PIN码保护功能，初始PIN码为
“1234”。
使用本产品时，如果连续三次输入错误的PIN码，本产品
将被锁定。此时，需通过输入PUK码重新设定PIN码，初
始PUK码为“12345678”。
●更改PIN码
待机界面下，按【功能/确认】键选择“设置 -> 功能设置
-> 保密设置 -> PIN码更改”菜单，输入原有的PIN码后
才可以设定新的PIN码。
管理电话簿
电话簿用于保存个人号码、PABX以及电话号码。您可
以通过电话簿进行新增、查看、查找、呼叫、修改、删
除、删除全部以及查看存储容量等操作。
按【功能/确认】键选择“电话簿”菜单进入电话簿，再
进行相关操作。
集群模式
集群模式下，如果想在TETRA网络下进行语音或者数据
通信，必须首先在网络运营商处注册，以获得服务提供
商的许可，且本产品必须一直处于网络覆盖范围内。
个呼
个呼分为半双工个呼和全双工个呼。您可以对单个个呼
联系人发起呼叫，还可以接听单个个呼联系人发起的呼
叫。
发起个呼
●半双工呼叫
1. 按【功能/确认】键选择“电话簿”菜单进入电话簿，
选择个呼联系人。
2. 按住【PTT】键发起半双工呼叫。
3. 半双工呼叫建立后，按住【PTT】键讲话。
●全双工呼叫
1. 按【功能/确认】键选择“电话簿”菜单进入电话簿，
选择个呼联系人。
2. 按键发起全双工呼叫。
3. 全双工呼叫建立后，双方无需进行任何按键操作即可
实现通话。
接听个呼
●半双工呼叫
»DIRECT呼叫：本产品响一声提示音提示呼叫已建
立。
»HOOK呼叫：本产品振铃提示来电，按【PTT】
键接听该呼叫，此时只能接听，不能讲话。
呼叫建立后，按住【PTT】键讲话。
●全双工呼叫
»DIRECT呼叫：本产品响一声提示音后提示呼叫已
建立。
»HOOK呼叫：本产品振铃提示来电，按【PTT】
键应答呼叫。
呼叫建立后，双方无需进行任何按键操作即可实现通
话。
结束个呼
按键结束呼叫。
组呼
您可以对默认通话组发起呼叫，也可接听来自组内其他
成员发起的组呼。
发起组呼
待机界面下，旋转【组呼选择】旋钮选择通话组，按住
【PTT】键对通话组发起组呼，通话组为待机界面显示的
组呼号码。
接听组呼
您无需进行任何按键操作即可接听组呼。
结束/退出组呼
●如果您是主叫方，按 键结束组呼。
●如果您是被叫方，按 键退出组呼。
PABX/PSTN呼叫
您可以通过PABX网关/PSTN网关向TETRA网络以外的号
码发起呼叫，例如固定电话、移动电话等。
PABX/PSTN呼叫为全双工HOOK个呼，以下操作方法
为发起PABX/PSTN呼叫的方法，接听或者结束PA BX/
PSTN呼叫的方法请参考“个呼”。
发起PABX/PSTN呼叫
1. 按【功能/确认】键选择“设置 -> 网络设置 -> PABX
网关/PSTN网关”。

6
2. 待机界面下，输入呼叫号码。
3. 按【功能/确认】键选择 号码类型为“PAB X”
或者“电话”。
如终端界面无 图标，则请跳过此步骤。
4. 按键发起呼叫。
紧急呼叫
紧急情况下，您可以向特定号码发起紧急呼叫，该呼叫
优先级最高，可切断其他优先级较低的呼叫。
发起紧急呼叫
按【紧急呼叫】键对预设个呼号码、组呼号码、默认
组、PABX或者PSTN号码发起紧急呼叫。
接听紧急呼叫
被叫方无需任何操作即可接听呼叫。
如果预设的紧急呼叫号码为PABX或者PSTN号码，那么
被叫方响铃后接听电话即可。
退出紧急呼叫
请根据预设号码类型，参考“个呼”、“组呼”、
“PABX/PSTN呼叫”相应内容。
短信息
短信息分为状态信息和用户信息，状态信息需通过经销
商进行设置，用户信息可自行编辑。设置好状态信息
后，您才可以发送和查看状态信息。
发送短信息
1. 按【功能/确认】键选择“短信息 -> 编辑信息 -> 状态
信息/用户信息”菜单，选择状态信息或者编辑用户信
息。
2. 按【功能/确认】键，选择“发送到个人”或者“发送
到组”。
3. 输入个号或者选择通话组，再按【功能/确认】键发
送。
查看短信息
1. 按【功能/确认】键选择“短信息 -> 收件箱”菜单，
再选择待查看的短信息。
2. 按【功能/确认】键查看该短信息详细内容。
直通模式
直通模式下，终端之间可直接进行半双工通信。
个呼
您可对单个个呼联系人发起半双工呼叫，也可接听来自
个呼联系人的呼叫。
发起个呼
1. 待机界面下，通过【功能/确认】键进入“电话簿”选
择个呼联系人。
2. 按住【PTT】键即可发起呼叫。
3. 呼叫建立后，按住【PTT】键讲话。
接听个呼
您无需进行按键操作即可接收。
结束个呼
按键结束呼叫。
组呼
直通模式下的组呼与集群模式下的组呼操作相似，请参
考“组呼”。
紧急呼叫
紧急情况下，您可以向默认组发起紧急呼叫，该呼叫优
先级最高，可切断其他优先级较低的呼叫。
发起紧急呼叫
按【紧急呼叫】键对默认组发起紧急呼叫。
接听紧急呼叫
被叫方无需任何操作即可接听呼叫。
结束/退出紧急呼叫
●如果您是主叫方，按 键结束紧急呼叫。
●如果您是被叫方，按 键退出紧急呼叫。
短信息
直通模式下的短信息与集群模式下的短信息操作相似，
请参考“短信息”。

7
故障处理
故障描述 原因分析 解决方法
无法开机 电池电量过低 为电池充电
网络注册失败或找
不到网络
处于直通模式 切换至集群模式
未在服务区内 检查信号强度，保证位于服务区内
未获得网络授权 联络网络运营商获得网络授权
建立呼叫失败
本产品或目的终端未在服务区内 查看信号强度确保终端在服务区内
未切换至正确通话模式 确认各终端处于正确的通话模式
无法发送/接收组呼
未加入该通话组 确保终端已加入该组
未获得通话组的授权 联系网络运营商获取权限
正常通话被打断 收到优先级更高的呼叫或紧急呼叫 待其他呼叫结束后重新建立通话
半双工呼叫建立过
程中被终止
呼叫建立超时 保证呼叫建立时间不超过预设定时间
优先级更高的终端在请求建立呼叫 待其呼叫结束后重新建立呼叫
网络繁忙，网络资源被分配给其它业务 待网络空闲时重新建立呼叫
通话中意外掉线
未处于服务区内（集群模式） 检查信号强度，保证位于服务区内
所处位置不佳，如受高大建筑物阻挡，或
处于地下室隧道等信号受屏蔽的位置（直
通模式）
转移至开阔平坦地后，关闭并再次打开终
端重试
接收方与发送方终
端的状态信息内容
不一致
状态信息ID定义不一致 重新定义状态信息ID，确保接收方与发送
方终端的状态信息ID保持一致
如上述方法仍未解决您的问题，或您遇到一些其它故障，请联系当地经销商或我司以获取更多的技术支持。
保修范围与期限
我司承诺，凡我司生产的产品，自购买之日起，在正常
使用、操作与维护条件下，出现材料或制造工艺方面的
缺陷，可享受以下规定的保修服务。
主机 24个月
电池、充电座、电源适配器 12个月
保养与清洁
为了保证本产品发挥其良好性能，延长其使用寿命，请
熟悉以下内容，以便更好地对本产品进行日常保养与清
洁。
保养
●请勿用硬物穿刺或刮花本产品。
●请勿将本产品存放于含有腐蚀电子电路物质的环境。
●携带或使用本产品过程中，请勿用手提天线或耳机
线。
●当不使用附件时，请盖好附件接口盖。
清洁
注意：在您进行清洁之前，请关机并断开电源。
●请定期使用洁净干燥的无绒布或毛刷拭去本产品表面
及充电极片附着的粉尘。
●本产品的按键、控制旋钮和机壳极易变脏。可用中性
洗涤剂和无纺布对其进行清洁，请勿用去污剂、酒
精、喷雾剂或石油制剂等化学药剂进行清洁，以避免
产品表面和外壳受损。
●清洁之后，务必保证本产品彻底干燥，否则请勿使
用。
