Hytronik HBEM8200D/F Quick guide

HBEM8200D/F-20230221-A0

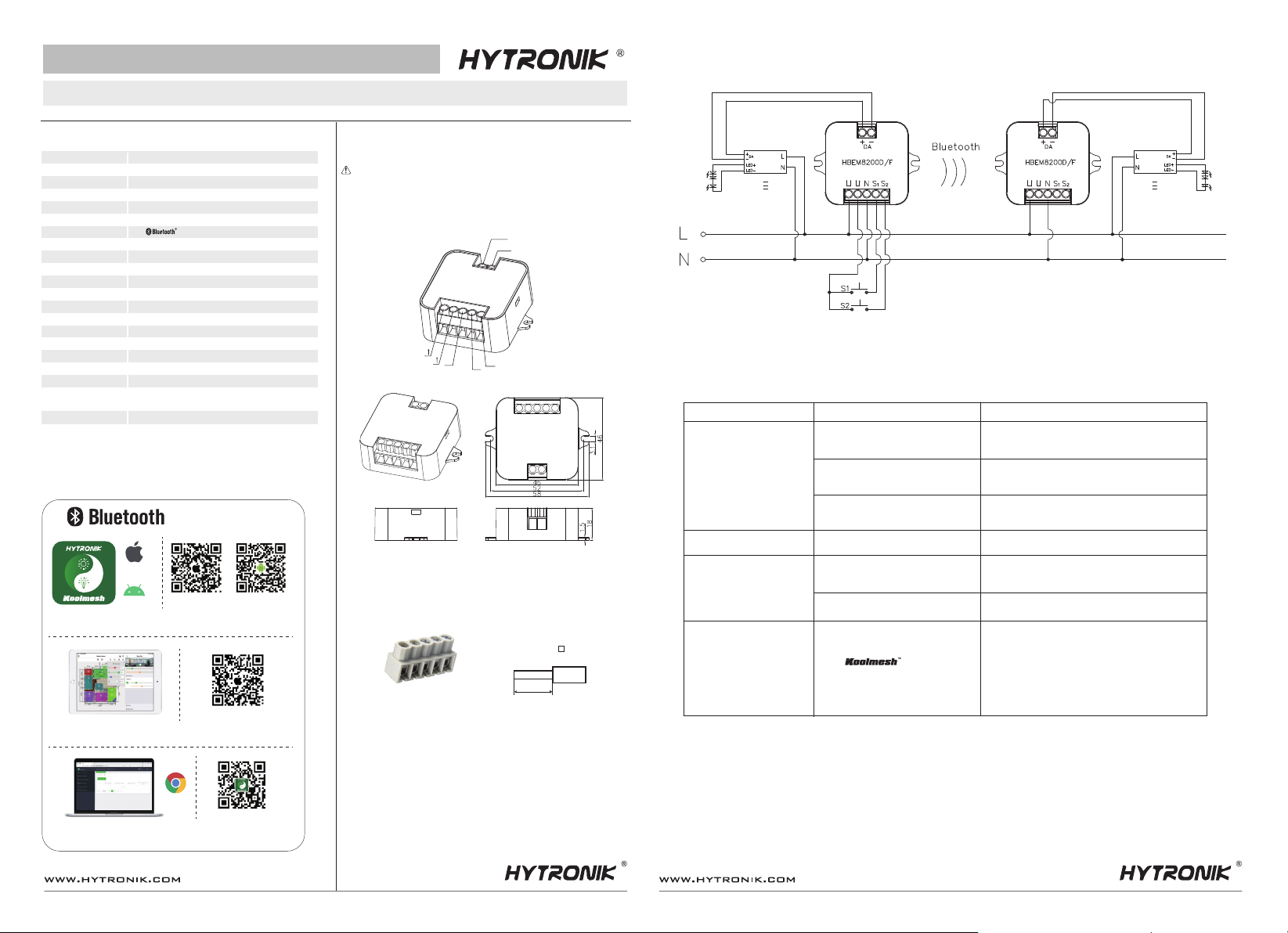

Wiring Diagram
Installation and Instruction Manual
DALI-to-Bluetooth Converter / Translator Module HBEM8200D/F
HBEM8200D/F-20230221-A0
3. Installation
Warnings:
1. Installation must be carried out by a qualified engineer in accordance with local regulations.
2. Disconnect power supply before installing.
3. Ensure environmental conditions are suitable for electronic equipment.
1. Technical Specifications
Range (Typical)
Protocol
10 ~ 30m
20 ~ 90%Max. relative humidity
Tc: +75°CCase temperature (Max.)
Product type
Mains voltage
Max.100mA, 50 devices
Operation frequency
Transmission power
Rated load
220~240VAC 50/60Hz
2.4 GHz - 2.483 GHz
4 dBm
Operation temperature Ta: -20°C ~ +50°C
-20°C ~ +60°CStorage temperature
IP20IP rating
Class IIInsulation
EMC standard (EMC) EN55015, EN61547, EN61000-3-2, EN61000-3-3
level 3, 850°CGlow wire
S1Duty type
PTI material group IIIaInsulation material
2.5KVImpulse withstand voltage
Built-in protection provideProtection
Safety standard (LVD) IEC 61058-1, EN 61058-1, IEC 61058-1-2
EN 61058-1-2, AS/NZS 61058.1
Radio Equipment (RED) EN300 328, EN301489-1, EN301489-17, EN62479
Wire Preparation
0.75 - 4
mm
8mm
Rising clamp terminal.
2. Download the App
Free App for set-up and commissioning
3. Dimming Interface Operation Notes
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches. Detailed Push switch configurations can be set on Koolmesh app.
5.0 SIG mesh
Web app/platform: www.iot.koolmesh.com
Koolmesh Pro app for iPad
Smartphone app for both iOS & Android platform
for iOS for Android
for iPad
for Web
Web
iOS
Android
Built-in DALI-to-Bluetooth Converter / Translator Module
5.0 SIG
Mesh
NS1 S2
DA+
DA-
LL
To make or release the wire from the terminal, use a
screwdriver to push down the button.
1. 200 metres (total) max. for 1mm² CSA (Ta = 50℃)
2. 300 metres (total) max. for 1.5mm² CSA (Ta = 50℃)
Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
- Turn on/off
- Turn on only
- Turn off only
- Recall a scene
- Quit manual mode
- Do nothing
- Start Self test (Monthly)
- Stop Self test
- Start Self test (Annually)
- Invalid
- Start Self test (Monthly)
- Stop Self test
- Start Self test (Annually)
- Invalid
- Dimming
- Colour tuning
- Do nothing
- Upgrade a normal on/off motion sensor
to a Bluetooth controlled motion sensor
- Turn on only
- Turn off only
- Recall a scene
- Quit manual mode
- Do nothing
Double push
Long press (≥1 second)
Long press (≥1 second)
ActionSwitch Function
Push switch
Sensor-link
Emergency Self-Test Function
Fire Alarm (VFC signal only)
/
Descriptions
Refer to App User Manual V2.1
- Able to connect the Fire Alarm system
- Once the re alarm system is triggered, all the luminaries
controlled by the Push Switch will enter the preset scene
(normally it’s full on), after the re alarm system gives the ending
signal, all the luminaries controlled by this Push Switch will revert
back to normal status.
6. Additional Information / Documents
1.To learn more about detailed product features/functions, please refer to www.hytronik.com/download ->knowledge ->Introduction of App Scenes and Product Functions
2. Regarding precautions for Bluetooth product installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Bluetooth Products - Precautions for Product Installation and Operation
3. Data sheet is subject to change without notice. Please always refer to the most recent release on www.hytronik.com/products/bluetooth technology ->Bluetooth Sensor ->Receiver Nodes
4. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy
5. Functions
Point to Point Control: 1pc HBEM8200D/F convertor for 1pc 3rd party DALI/DALI2 emergency driver. This module converts a standard DALI/DALI2 emergency driver output to Bluetooth output, so that user
can view, edit and manage the emergency system through high-end Koolmesh platform. User can then enjoy all the powerful and convenient features such as scheduling a monthly self test or annually self test in
the app, checking the DALI/DALI2 emergency drivers’ status, including automatic email notification upon detecting fault, automatic monthly/yearly (functional/duration test) emergency report generation etc. All the
settings and parameters can be set in both Koolmesh app and Koolmesh IOT platform.
Remote Control and Monitoring: with Bluetooth gateway HBGW01, users can remotely control and monitor emergency system via Koolmesh mobile/tablet app & web app platform.
* HBEM8200D/F & 3rd Party standard DALI / DALI2 emergency driver does not need to connect to central DALI PSU. HBEM8200D/F provides power supply to the 3rd party standard DALI/DALI2 emergency driver.
* Users can use Koolmesh app to control their standard DALI/DALI2 emergency driver and set the parameter configuration in the app such as monthly test, annually test. In Koolmesh app, there are four modes which
allow users to switch the status of the emergency device and carry out self test for all the emergency devices on the network level.
More details, please refer to www.koolmesh.com/app-highlights -> Emergency User Manual
HBEM8200D/F-20230221-A0
