AIRLESS PAINT SPRAYER
HSP10000
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USE.

2
CONTENT
1. SAFTY WARNINGS….…………………………..……………….………..………...……………....…3
2. INTENDED USE…………………………………………………………………………………………6
3. WARNING SYMBOLS…………………………………………………………………………...……...7
4. PRODUCT COMPONENTS……………………………………………………………………...…….8
5. TECHNICAL SPECIFICATIONS………………………………………………………………...……..9
6. CONTROLS AND FUNCTIONS ……………………………………………………………………….9
7. MATERIAL / PAINT SELECTION……………...……………………………………………………….9
8. ASSEMBLY…………………………………………………………………………………..…………10
9. PRE-OPERATION…………………………………………………………………………..…………12
10.SPRAYING………………………………………………...……………………………………………14
11. CLEANING……………………………………………………………………...………………………18
12.TROUBLESHOOTING…………………………………...……………………………………………24
13.MAINTENANCE & STORAGE…………………………...………………………………….……..…25
14.DISPOSAL INSTRUCTIONS…………………………...………………………………….…………27
15.EC DECALARATION………………………………………………………………………….……….28
16.WARRANTY………………………………………………………………………………………….…29
17.PRODUCT FAILURE……………………………………………………………………………..……30
18.WARRANTY EXCLUSIONS……………………………………………………………………..……31

3
1. SAFTY WARNINGS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS
WARNING – When using tools, basic precautions should always be followed, including the
following:
a) SAVE THESE INSTRUCTIONS-To reduce the risks of fire or explosion, electrical shock and
injury to persons, read and understand all instructions included in this manual. Be familiar with
the controls and the proper usage of the equipment.
b) WARNING-To reduce the risk of fire of explosion:
1) Do not spray flammable or combustible materials near an open flame or sources of ignition such
as cigarettes, motors, and electrical equipment.
2) For units intended for use with only water-based materials-Do not spray or clean with flammable
liquids. For use with water-based liquids only.
3) For units intended for use with only water-based or mineral spirit-type materials with a minimum
flash point of 21C°(69.8 F°) Do not spray on clean with liquids having a flash point less than
21C°(69.8 F°)
4) Paint or solvent flowing through the equipment is able to result in static electricity. Static
electricity creates a risk of fire or explosion in the presence of paint or solvent fumes. All parts of
the spray system, including the pump, hose assemble, spray gun, and objects in and around the
spray area shall be properly grounded to protect against static discharge and sparks. Use only
conductive or grounded high-pressure airless paint sprayer hoses specified by the
manufacturer.
5) Verify that all containers and collection systems are grounded to prevent static discharge.
6) Connect to a grounded outlet and use grounded extension cords. Do not use a 3 to 2 adapter.
7) Do not use a paint or a solvent containing halogenated hydrocarbons. See operating
instructions for examples of these types of materials.
8) Keep spray area well ventilated. Keep a good supply of fresh air moving through the area. Keep
pump assembly in a well ventilated area. Do not spray pump assembly.
9) Do not smoke in the spray area.
10)Do not operate light switches, engines, or similar spark producing products in the spray area.
11)Keep area clean and free of paint or solvent containers, rags, and other flammable materials.
12)Know the contents of the paints and solvents being sprayed. Read all Material safety Data
Sheets (MSDS) and container labels provided with the paints and solvents. Follow the paint and
solvent manufacturer’s safety instructions.
13)Fire extinguisher equipment shall be present and working.
c) WARNING-To reduce the risk of skin injection.
1) Do not aim the gun at, or spray any person or animal.
2) Keep hands and other body parts away from the discharge. For example, do not try to stop
leaks with any part of the body.
3) Always use the nozzle tip guard. Do not spray without nozzle tip guard in place.
4) Only use a nozzle tip specified by the manufacturer.
5) Use caution when cleaning and changing nozzle tips. In the case where the nozzle tip clogs
while spraying, follow the manufacturer’s instructions for turning off the unit and relieving the
pressure before removing the nozzle tip to clean.
6) Do not leave the unit energized or under pressure while unattended. When the unit is not in use,
turn off the unit and relieve the pressure in accordance with the manufacturer’s instructions.
7) High-pressure spray is able to inject toxins into the body and cause serious bodily injury. In the
event that injection occurs, seek medical attention immediately.
8) Check hose and parts for signs of damage. Replace and damaged hoses of parts.

4
9) This system is capable or producing 20.7Mpa. Only use replacement parts or accessories that
are specified by the manufacturer and that are rated a minimum of 22.8Mpa.
10)Always engage the trigger lock when not spraying. Verify the trigger lock is functioning properly.
11)Verify that all connections are secure before operating the unit.
12)Know how to stop the unit and bleed pressure quickly. Be thoroughly familiar with the controls.
d) WARNING-To reduce the risk of injury.
1) Always wear appropriate gloves, eye protection, and a respirator or mask when painting.
2) Do not operate or spray near children. Keep children away from equipment at all times.
3) Don not overreach or stand on an unstable support. Keep effective footing and balance at all
times.
4) Stay alert and watch what you are doing.
5) Do not operate the unit when fatigued or under the influence of drugs or alcohol.
6) Do not kink or over-bend the hose.
7) Do not expose the hose to temperatures or to pressures in excess of those specified by the
manufacturer.
8) Do not use the hose as a strength member to pull or lift the equipment.
9) The Max. pressure of the air hose is 22.8Mpa, the normal pressure is 20.7Mpa
10)The paint can be compatible: phenol aldehyde paint series, nitryl paint series, alkyd paint series,
epoxy resin paint series, oxidized rubber paint series, latex paint series, water soluble paint
series. The paint should be put in shade and dry place.
11)Be aware of any hazards presented by the material being sprayed and consult the markings on
the container or information supplied by the manufacturer of the material to be sprayed,
including requirements for the use of personal protective equipment.
12)Do not spray any material there the hazard is not know.
Warning
The following warnings are for the setup, use, grounding, maintenance and repair of this equipment.
The exclamation point symbol alerts you to a general warning and the hazard symbol refers to
procedure-specific risks. Refer back to these warnings. Additional, product-specific warnings may
be found throughout the body of this manual where applicable.
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode. To help
prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and plastic
drop cloths (potential static arc).
• Sprayer generates sparks. When flammable liquid is used in or near the sprayer or for flushing or
cleaning, keep sprayer at least 20 feet (6 m) away from explosive vapors.
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Ground equipment and conductive objects in work area.
• If there is static sparking or you feel a shock, stop operation immediately. Do not use equipment
until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
ELECTRIC SHOCK HAZARD
Improper grounding, setup, or usage of the system can cause electric shock.
• Turn off and disconnect power cord before servicing equipment.

5
• Use only grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on sprayer and extension cords.
• Do not expose to rain. Store indoors.
SKIN INJECTION HAZARD
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look
like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical
treatment.
• Do not point gun at anyone or at any part of the body.
• Do not put your hand over the spray tip.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Engage trigger lock when not spraying.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and before cleaning,
checking, or servicing equipment.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system
component. Read Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. Read Technical Data in
all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information
about your material, request MSDS from distributor or retailer.
• Check equipment daily. Repair or replace worn or damaged parts immediately with manufactory
replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Comply with all applicable safety regulations.
• Keep children and animals away from work area.
• Do not operate the equipment when fatigued or under the influence of drugs or alcohol.
PRESSURIZED ALUMINUM PARTS HAZARD
Do not use 1, 1, 1-trichloroethane, ethylene chloride, other halogenated hydrocarbon solvents or
fluids containing such solvents in pressurized aluminum equipment.
Such use can cause serious chemical. Reaction and equipment rupture, and result in death,
serious injury, and property damage.
BURN HAZARD
Equipment surfaces can become very hot during operation. To avoid severe burns, do not touch
hot equipment. Wait until equipment has cooled completely.
MOVING PARTS HAZARD
Moving parts can pinch or amputate fingers and other body parts.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Pressurized equipment can start without warning. Before checking, moving, or servicing
equipment,

6
follow the Pressure Relief Procedure in this manual. Disconnect power or air supply.
TOXIC FLUID OR FUMES HAZARD
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or
swallowed.
• Read warnings to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the
operating area of the equipment to help protect you from serious injury, including eye injury,
inhalation of toxic fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eye wear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing protection
2. INTENDED USE
This machine can spray a variety of paints, oil base latex, primers, stains, preservatives and other
non-abrasive materials, including non-flammable liquid fertilizers.
This pump should not be used with textured materials, block filler, or asphalt sealer.
A) Forbidden use of machines which are not designed for potentially explosive atmospheres
B) Use of electrostatic atomizing and spraying equipment with machines not specially designed for
this equipment, because it may result in serious hazards for the operators
C) Hazards resulting from contact with and/or breathing of toxic materials, gases, mists and vapors
which may be created by operation of the machine. Such warnings shall also include such
regarding the use of personal protective equipment and reminding the user to be aware of the
recommendations of the coating material manufacturer;
D) Surface temperatures of any part of the machine, reachable during normal operation,
maintenance and servicing but not normally in contact with the human body, which can exceed
48℃or be less than 0℃.
E) DO NOT aim or point gun or spray at any person or animal.;
F) Please read and understand this entire manual before attempting to assemble, operate or install
the product.
G) Please make sure Plug into grounded outlet.;
H) It is recommended to use the below coating section diagram to best select the proper tip size
you intend to use for your particular spraying application. Please consult your local retailer if
you are unsure of the proper tip size which should be used. DO NOT spray acids, corrosive
materials, toxic chemicals, fertilizers or pesticides with this item.

7
I) To reduce your exposure to these chemicals & fire\explosion risk, work in a well-ventilated area
and wear safety equipment, Such as respirator or dust mask specially designed to filter
microscopic particles.;
J) ALWAYS check air hoses for weak or worn connections before each use and make certain that
all connections are secure.
K) ALWAYS be aware of your work area surroundings and the people around the work area to
ensure your safety.
L) The Coating and auxiliary material is harmful for your health & environment So Reduce the
quantity of coating and/or auxiliary materials at workplaces to a minimum
3. Warning symbols
read instruction manual.
Always wear ear protection
Always wear goggles
Always wear a breathing mask
Warning symbol
Class II product

8
4. PRODUCT COMPONENTS
1. Spray Hose
2. Trigger Guard
3. Trigger
4. Nozzle Guard
5. Spray Tip
6. Spray Gun
7. Spray Gun Handle
8. Lance
9. Carry Handle
10. ON/OFF Switch
11. Prime/Spray Switch
12. Return Hose Inlet Port
13. Return Hose
14. Stand
15. Suction Hose Filter
16. Suction Hose
17. Suction Hose Inlet Port
18. Spray Hose Outlet Port
Contents of Box
1 x Airless Spray Station 1010W
1 xSpray Gun
1 x Spray Hose 7.5m
2 x Hex Wrench
1 x Spray Tip
1 x Lance
1 x Instruction Manual

9
5. Technical specifications
Voltage and frequency
230-240 V˜ 50 Hz
Power
1010 W
Flow rate
1.5 L/min
Maximum pressure
22.7MPa
Net Weight
7.2 kg
Temperature
Min.10°C/ Max 40°C
IP(Ingress Protection)
IPX0
Insulation class
II
Guaranteed sound power level
110dB(A)
6. Controls and Functions
ON/OFF Switch (10):
The ON/OFF Switch (10) turns the power to the sprayer ON (“I”) and OFF (0”)
Prime/Spray Switch (11):
The Prime/Spray Switch (11) directs fluid to the Spray Hose (1) when set to SPRAY or to the
Return Hose (13) when set to PRIME. The Prime/Spray Knob is also used to relieve pressure
built up in the Spray Hose (refer to Pressure Relief Procedure ).
Pressure Gauge (8):
Optional accessory that identifies the amount of force the pump uses to push the fluid through
the Spray Gun (6).
Suction Hose (16):
Fluid is drawn through the Suction Hose (16) into the pump.
Return Hose (13):
Fluid is sent back through the Return Hose (13) to the original container when Prime/Spray
Switch (10) is in PRIME position.
Suction Hose Filter (1 5):
Strains the spray material to prevent the system from being clogged.
Spray Gun (6):
Controls the delivery of the fluid being pumped.
Spray Hose (1):
Connects the Spray Gun (6) to the pump.
Lance (1 9):
Optional accessory that can be attached to the end of the Spray Gun (6) to spray hard to reach
areas.
7. Material / Paint Selection
Do not use textured wall paints or coatings as this will block the spray gun tip and
damage internal components of the Airless Spray Station.
Although a large number of paints and materials can be sprayed, some cannot. Please check the
manufacturers’ recommendations before purchasing paint.

10
MATERIALS WHICH CAN BE USED:
Recommended for spraying the following materials:
• Water-based paints
• Wood preservatives
• Oil-based paints
• Primers
• Enamel paint
• Wash primer
• Varnish
• Oil
• Stains
MATERIALS WHICH CANNOTBE USED:
The Airless Spray Station CANNOT be used for the following materials:
• Paints and lacquers containing heavily abrasive components such as:
Exterior textured wall
paints
Glazes,
Lyes
Acids
Dispersion paints
Caustic and Alkaline
substances
Textured coatings
Emulsion paints
• Silicate paints.
• Flammable materials.
• Asphalt sealer.
• Block filler.
• Pesticides
•Flammable liquid fertilizers
The use of these materials will cause premature wear and block the spray tip and will void warranty.
To obtain the best results from your Airless Spray Station, PLEASE READ THE INSTRUCTION
MANUAL CAREFULLY BEFORE USE.
8. ASSEMBLY
WARNING! Ensure the machine is disconnected from the power supply before
performing any of the following operations.
Spray Hose & Spray Gun Connection

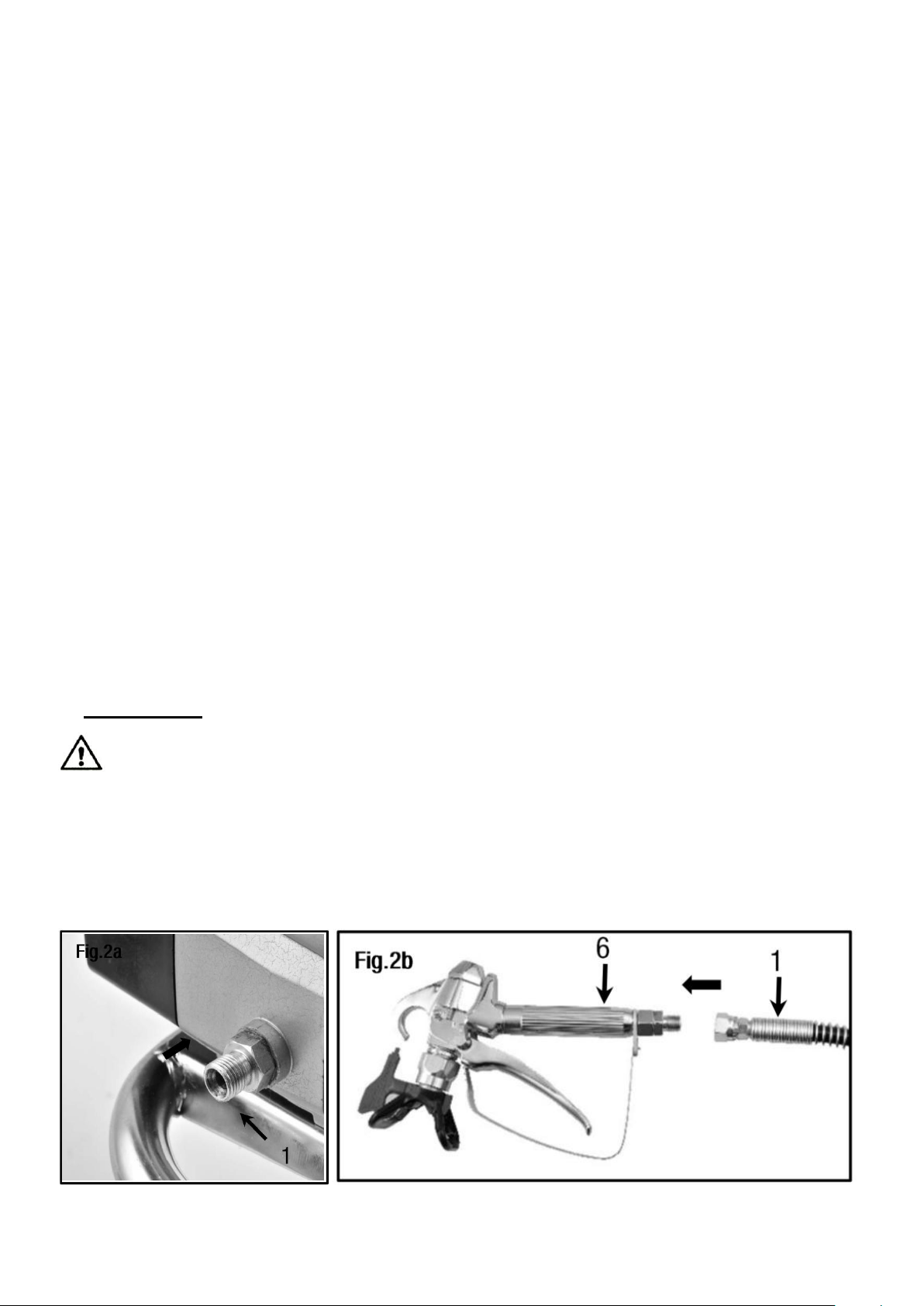

1. Thread the Spray Hose (1) and tighten with supplied wrench (Fig .2 a).Do not overtighten.
2. Thread the other end of the Spray Hose (1) to the Spray Gun (6) and tighten with the supplied
wrench (Fig.2b). Do not overtighten.

11
Connecting Lance to Spray Gun
The Lance (19) is an optional accessory. The Spray Gun (6) can be used with or without the Lance
(19) accessory. The Lance (19) can be used to spray hard to reach areas.
1. Remove the Nozzle Guard (4) and Spray Tip (5) from the Spray Gun (6) (Fig.3a).
2. Thread the Lance (19) onto the end tip of the Spray Gun (6) and tighten with supplied wrench
(Fig.3a).
Do not overtighten (Fig.3b).
3. Thread the Nozzle Guard (4) with the Spray Tip (5) onto the Lance (19) and tighten with the
supplied wrench. Do not overtighten (Fig.3b).
Adding lubricant
Before starting the machine for the first time, add lubricating oil to it. Tilt it at 45 ° and locate the
lubrication hole on its front face. Add lubricating oil to the piston rod (3 to 5 drops). Adding 3 to 5
drops before each start can increase the life of the machine.
19

12
9. Pre-Operation
WARNING! Ensure the machine is disconnected from the power supply before
performing any of the following operations.
This section contains instructions that will be repeated throughout this manual. Read and
understand this section before using the equipment.
Locking the Spray Gun Trigger
The spray gun Trigger (3) should be locked prior to preparing the spray station to
ensure the Trigger (3) is not accidentally pressed.
Lock the spray gun Trigger (3) whenever instructed.

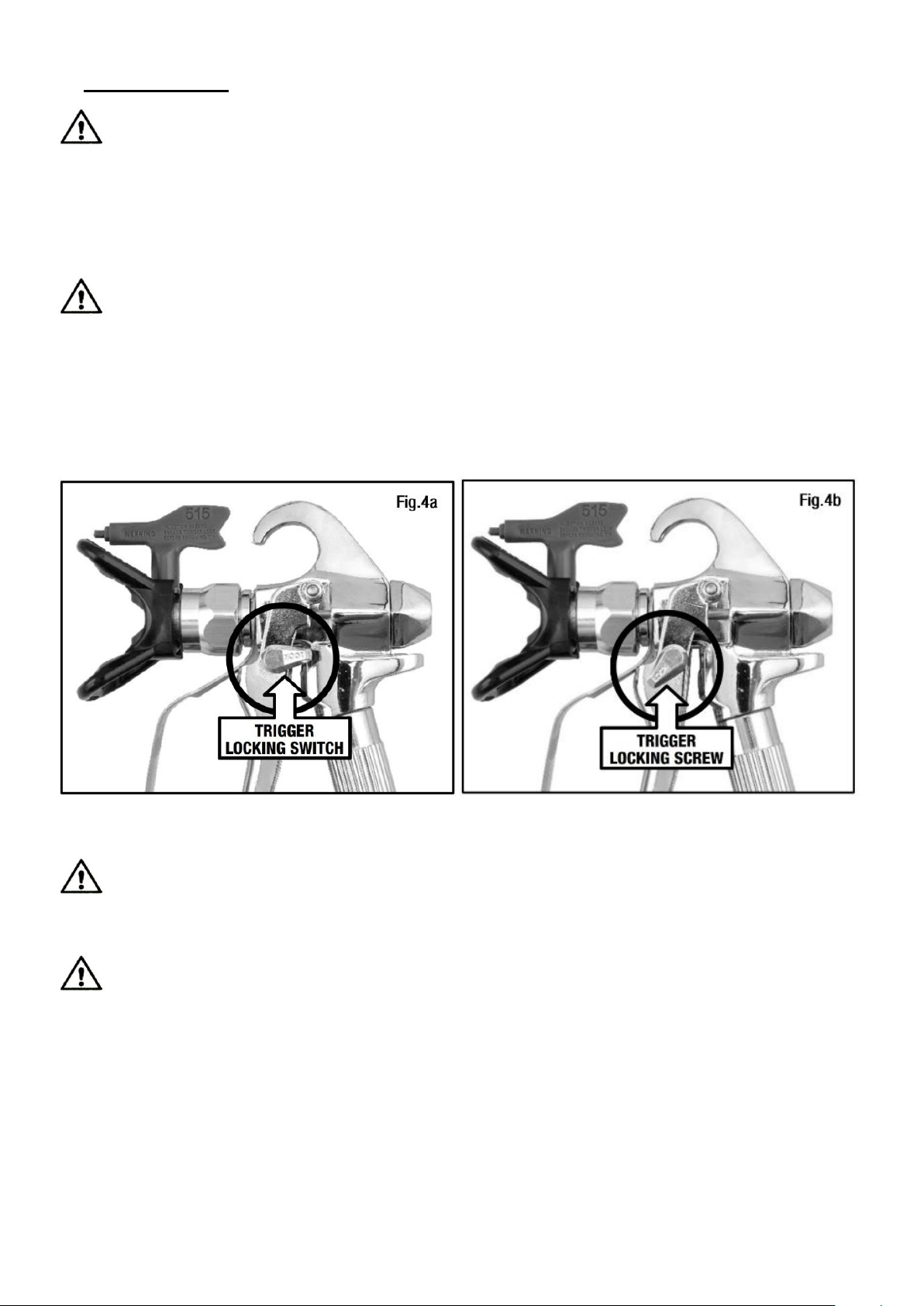

1. To LOCK the Trigger (3), rotate the Trigger Locking Switch backwards towards the rear end of
the spray gun (6) until it stops (Fig.4a).
2. To UNLOCK the Trigger (3), rotate the Trigger Locking Switch forward towards the Trigger
Guard (2) until it stops (Fig.4b).
Pressure Relief Procedure
Always follow the Pressure Relief Procedure when shutting the machine off for any
purpose. This procedure is used to relieve pressure from the Spray Hose (1). Failure to do
so may result in serious injury.
Never aim the Spray Gun (6) towards at any part of your body, other people or animals.
Perform the Pressure Relief Procedure whenever instructed in this manual.
1. Lock the spray gun Trigger (3) by rotating the Trigger Locking Switch towards the rear end of the
Spray Gun (6) (Fig.5a).
2. Turn the Prime/Spray Switch (11) to the “PRIME” position by turning the Prime/Spray Switch (11)
upwards (Fig.5b).
3. Turn OFF the machine by pressing “O” on the On/Off Switch(10) (Fig.5c).
4. Unlock the spray gun Trigger (3) by rotating the Trigger Locking Switch towards the Trigger
Guard (2) until it stops (Fig.5d). Then briefly pull the spray gun Trigger (3) into the side of a waste
bucket to fully relieve pressure from the system.
5. Lock the spray gun Trigger (3) (Fig.5a)

13
Priming the Pump

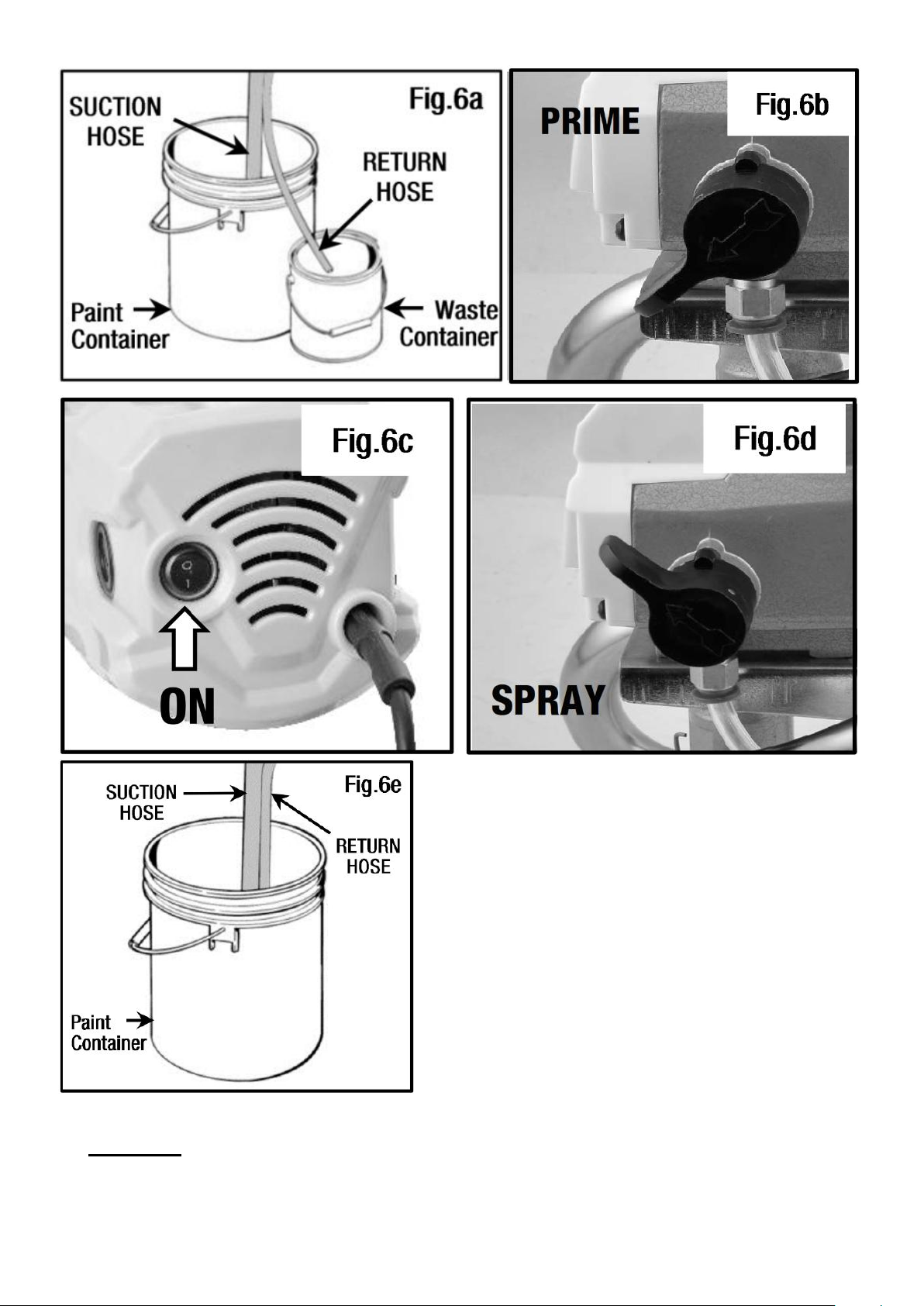

1. Separate the Suction Hose (16) from the Return Hose (13), then:
• Place the Suction Hose (16) inside a full container of paint(Fig . 6a).
• Place the Return Hose (13) into a waste container (Fig.6a).
2. Set the Prime/Spray Switch (11) to “PRIME” position (Fig.6b).
3. Turn ON the machine by pressing “I” on the On/Off Switch (13) (Fig.6c).
Allow pump to run for approx. 60 seconds until you see a steady stream of paint coming out of the
Return Hose and into the waste container.
5. Set the Prime/Spray Switch (11) to “SPRAY” position (Fig.6d),
6. Wait for the Airless Spray Station to cut out after a few moments. If the Airless Spray Station
does not shut off automatically, repeat steps 2 to 5.
7. Place the Return Hose (13) back into the container of paint and clip the Return Hose (13) and
Suction Hose (16) together (Fig.6e).
Recommendation: It is good practice to perform the steps on this page using water to
familiarize yourself with the function of the unit as well as to ensure the unit is set up
properly.

14
10.Spraying
Spraying Procedure
NOTE: Ensure the Airless Spray Station has been properly primed BEFORE commencing spraying
operations. Refer to “Priming the Pump” instructions.

15

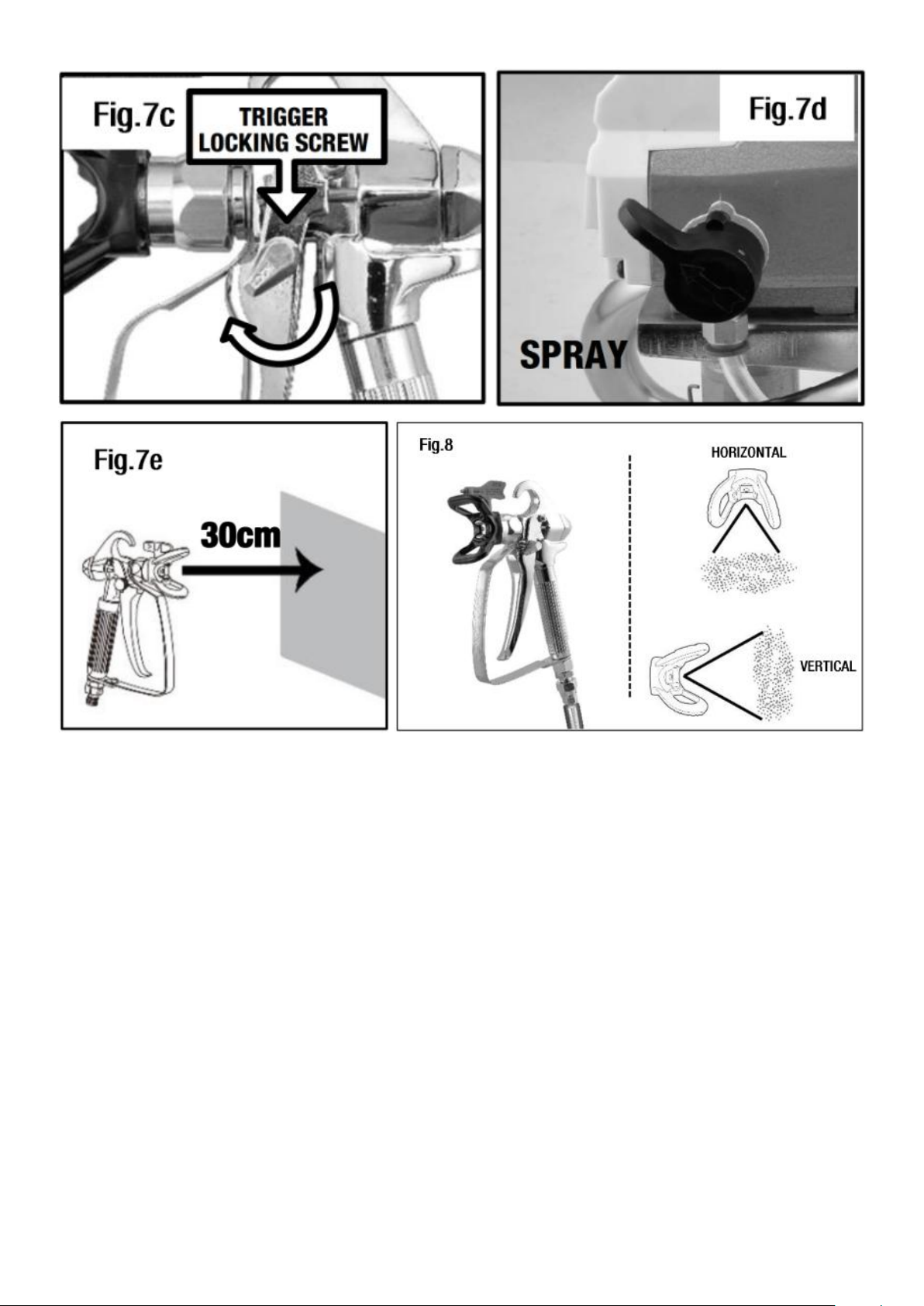

1. Ensure the Spray Tip (5) is rotated forward to the spray position with the arrow on the tip facing
forward (Fig.7a).
2. Perform “Pressure Relief Procedure”.
3. Turn ON the machine by pressing 1” on the On/Off Switch (13) (Fig.7b).
4. Unlock the Spray Gun Trigger (3) (Fig.7c).
5. Set the Prime/Spray Switch (11) to “SPRAY” position (Fig.7d).
6. Stand about 30cm away from area to be sprayed and maintain this distance (Fig.7e). Pull the
spray gun Trigger (3) to start spraying.
NOTE: The motor will cycle ON and OFF while spraying to regulate pressure. This is normal.
IMPORTANT! When finished spraying, perform Pressure Relief Procedure.
IMPORTANT! If you have not finished painting with your airless sprayer and want to take a
short break (30-60 minutes), do not leave paint sitting inside the pump. Follow the cleaning
instructions to prevent paint from drying inside the pump and hose.
Once you’re ready to begin work again, simply follow the Spraying Procedures. Once properly
primed again, aim the spray gun into a waste bucket and allow 30 seconds for any leftover cleaning
solution to be flushed out of the system. Then resume painting as normal.
IMPORTANT! Mineral Turpentine SHOULD NOT be mixed with water at any stage during the
cleaning process.

16
Test Spray Settings
NOTE: Ensure you follow the “Spraying Procedure” instructions before testing the spraying settings
of the Airless Spray Station.
Aligning Spray
1. Follow the “Pressure Relief Procedure” instructions
2. Rotate the Nozzle Guard (4) to match the direction of the preferred spray pattern (Fig.8).
Spraying Technique

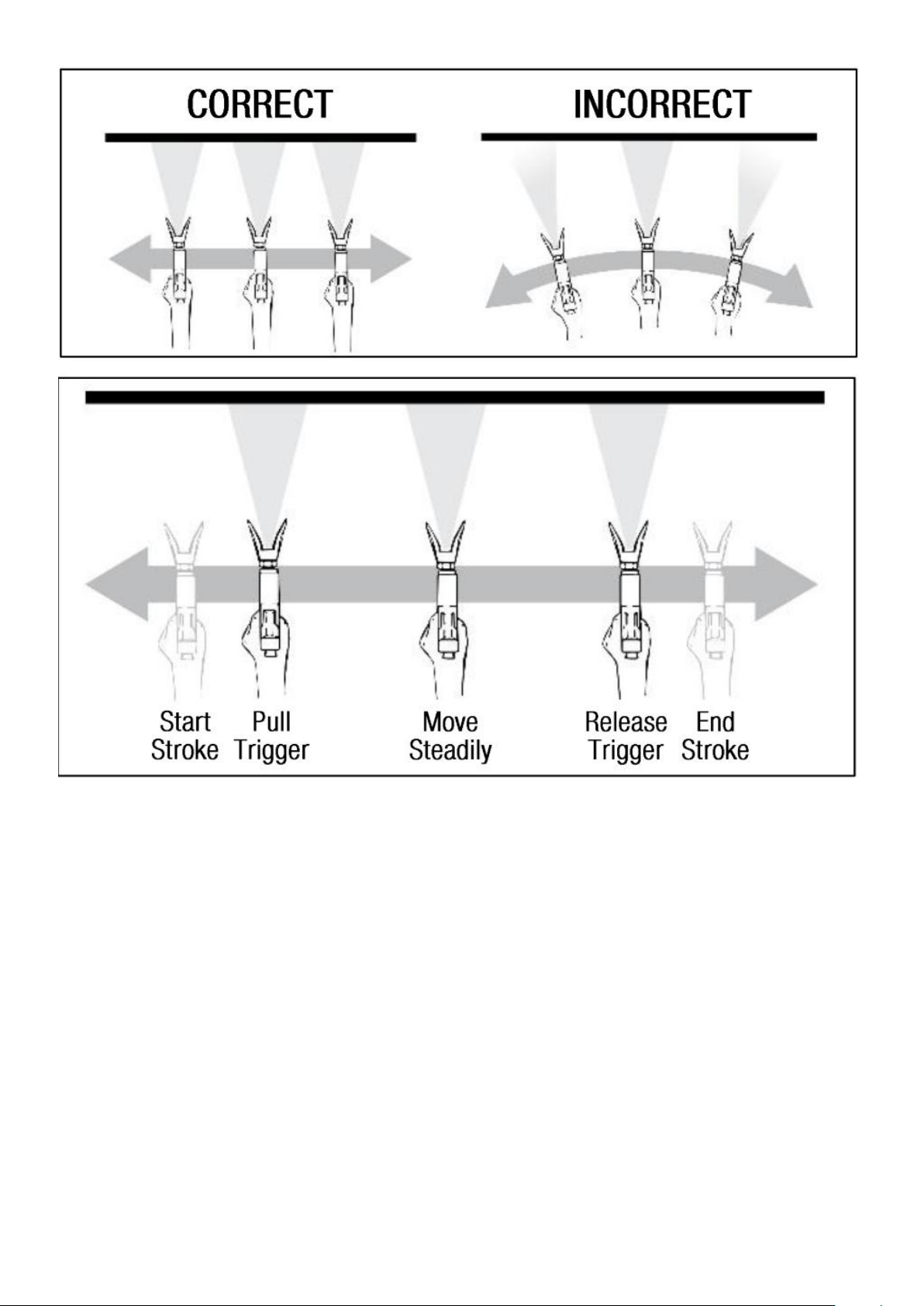

1. Move the Spray Gun (6) with the entire arm, not by flexing the wrist. This will keep the Spray Gun
(6) at right angles to the surface, keeping the pattern even (Fig,9a)
2. Pull the spray gun Trigger (3) after starting the stroke, and release the Trigger (3) before ending
the stroke. The Spray Gun (6) should be moving when the Trigger (3) is pulled and released
(Fig.9b).

17

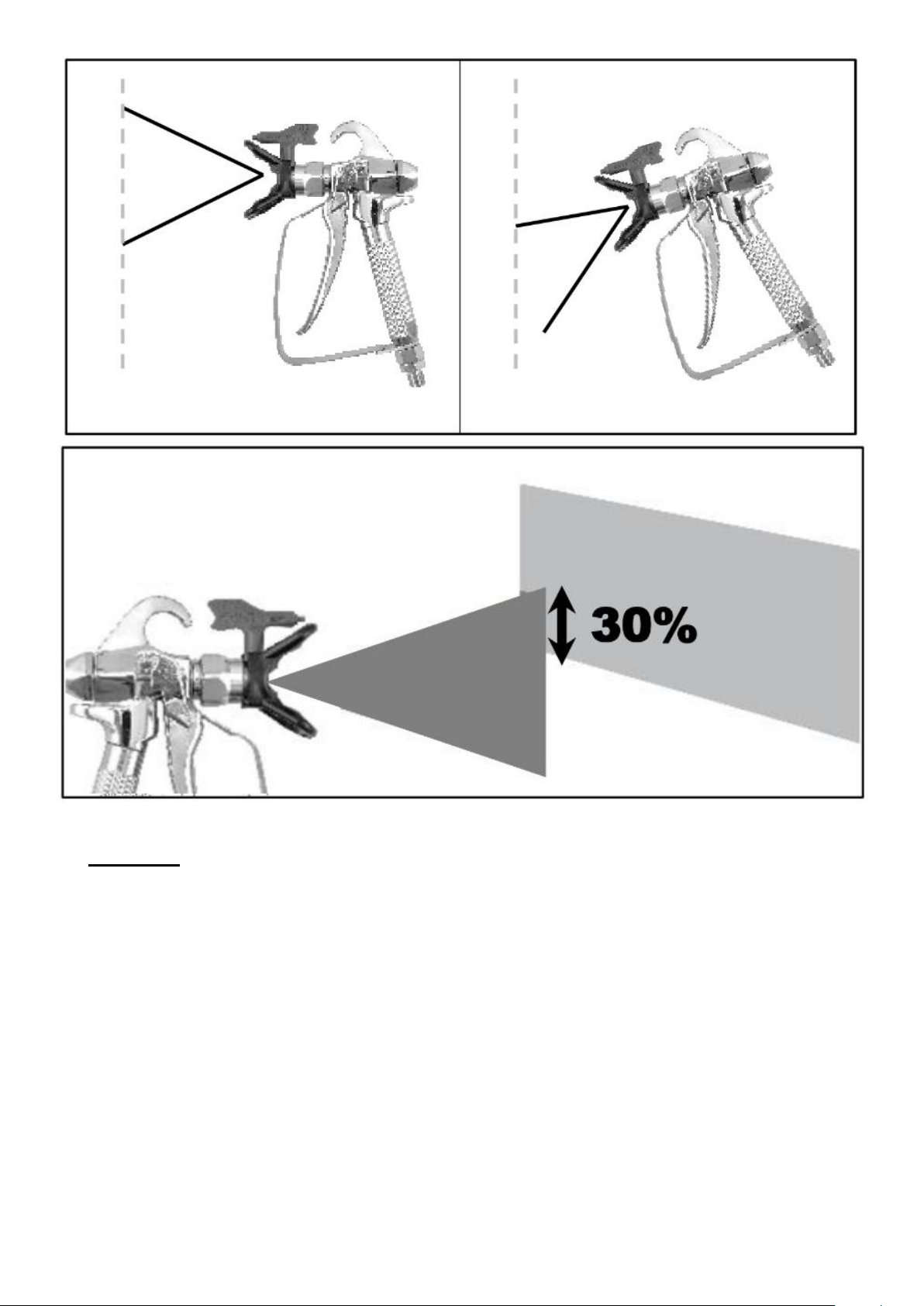

3. Keep the Spray Gun (6) perpendicular to the surface, so spray distance is consistent (Fig.9c).
4. Overlap your strokes by 30% to ensure even coverage (Fig.9d).
HINTS:
• Do not spray outdoors on a windy day as the results may be unsatisfactory.
• Only apply one coat at a time, always allow a coat to completely dry before adding another coat.
• Avoid stopping and starting as this can lead to a patchy finish, It is best to start spraying outside
the surface to be sprayed and avoid stopping in the middle of the surface, continue just past the
opposite edge
Fig. 9a
Fig. 9b

18
.
11. Cleaning
Select Cleaning Solution
For WATER-BASED material (e.g. acrylic paint):
• Use ONLY water when performing the cleaning procedure.
• WARNING! Use of a solvent-based cleaning materials on water-based paints will result in a new
substance that will be extremely difficult to clean.
• We recommend the use of 10-1 5 litres of water when performing the cleaning procedure.
For OIL-BASED material (e.g. enamel paint, lacquer):
• Use ONLY the appropriate cleaning solution. Read the cleaning instructions printed on the coating
material’s label to determine which cleaning material you need.
• The following solvent-based cleaning products are safe to use in the airless spray station:
Mineral Turpentine
Paint Thinner
• NOTE: Mineral Turpentine SHOULD NOT be mixed with water at any stage during the cleaning
process.
Fig. 9c
Fig. 9d

19
• We recommend 1 -2 litres of the appropriate solvent-based cleaner when performing cleaning
procedure
Cleaning the Unit
IMPORTANT! The cleaning process must be followed immediately after use to prevent paint
from drying inside the pump and hose. Failure to follow the cleaning instructions promptly may
permanently seize the paint sprayer and automatically void the warranty.
1. Set the Prime/Spray Switch (11) to the “PRIME” position (Fig.10a).
2. Place the Suction Hose (16) into a bucket of appropriate cleaning solution. Place the Return
Hose (13) into an empty bucket (Fig.10b).
3. Turn ON the machine by pressing “I” on the On/Off Switch (10) (Fig.10c).
Check the Return Hose (13) and wait for a constant stream of cleaning solution to pass out of it.
4. Set the Prime/Spray Switch “SPRAY” position (Fig.10d).
5. Aim the Spray Gun (6) into an empty bucket, then squeeze and hold the Trigger (3) until most of
the paint is removed from the Spray Hose (1).,
6. Lock the spray gun Trigger (3) (Fig.10f).
7. Rotate the Spray Tip (5) 1800towards the Spray Gun Handle(7) (Fig,l0g).
8. Unlock the spray gun Trigger (3) and hold the Trigger (3) to spray the cleaning solution through
the system (Fig.10h). Continue spraying until only cleaning solution is ejected from the Spray Tip
(5). Add more cleaning solution if all the paint has not been removed.
NOTE: If the cleaning solution bucket becomes cloudy with paint during this cleaning process, skip
to section “Cleaning the Suction Hose Filter”. Once the Suction Hose Filter (15) and Spray Hose (1)
are clean, re-assemble them and repeat steps 4 to 8 in this section.
9. Set the Prime/Spray Switch (11) to the “PRIME” position (Fig. 10i).
10. Switch OFF the machine by pressing “O” on the On/Off Switch (10)(Fig.10j).

20
