Scheduled Maintenance Normal Usage Severe Usage*
Engine Oil & Filter Replace 7,500 Replace 3,000
Tire Rotation Perform 7,500 Perform 7,500
Fuel Lines, Fuel Hoses & Connections Inspect 7,500 Inspect Same As Normal
Steering Gear Box, Linkage & Boots/
Lower Arm Ball Joint
Inspect 7,500 Inspect More Frequently
Suspension Mounting Bolts Inspect 7,500 Inspect Same As Normal
Climate Control Air Filter (for Evaporator
& Blower Unit)
Replace every 12
mos. or
10,000
Replace More Frequently
Air Conditioning Refrigerant Inspect 15,000 Inspect Same As Normal
Brake Hoses & Lines Inspect 15,000 Inspect Same As Normal
Brake Pads, Calipers & Rotors Inspect 15,000 Inspect More Frequently
Drive Shaft & Boots Inspect 15,000 Inspect 7,500
Exhaust Pipe & Muffl er Inspect 15,000 Inspect Same As Normal
Propeller Clean & Bolt Retighten Inspect 15,000 Inspect Same As Normal
Air Cleaner Filter (Engine) Replace 30,000 Inspect
Replace
Same As Normal
More Frequently
Fuel Tank Air Filter Inspect
Replace
15,000
30,000
Inspect
Replace
Same As Normal
Same As Normal
Automatic Transaxle Fluid Inspect
Replace
15,000
105,000
Replace 30,000
Coolant Replace Every 60
mos. or
60,000
Replace Same As Normal
Brake Fluid Inspect 30,000 Inspect Same As Normal
Crankcase Ventilation Hose Inspect 30,000 Inspect Same As Normal
Drive Belt (Alt, P/Str’g, A/C) Inspect 30,000 Inspect Same As Normal
Manual Transaxle Fluid Inspect 30,000 Replace 60,000
Parking Brake Inspect 30,000 Inspect More Frequently
Power Steering Pump, Belt & Hoses Inspect 30,000 Inspect Same As Normal
Rear Axle Oil (AWD) Inspect 30,000 Replace 60,000
Vapor Hose & Fuel Filler Cap Inspect 30,000 Inspect Same As Normal
Transfer Case Oil (AWD) Inspect
Replace
30,000
75,000
Inspect
Replace
Same As Normal
30,000
Timing belt Inspect
Replace
37,500
75,000
Inspect
Replace
25,000
50,000
Vacuum Hose Inspect 52,500 Inspect Same As Normal
Fuel Filter Replace 60,000 Replace Same As Normal
Valve Clearance Inspect 60,000 Inspect Same As Normal
Spark Plugs (Iridium Coated) Replace 97,500 Replace More Frequently
*See Owner’s Manual for details.
Maintenance
Looking For More Detailed Information? This Quick Reference Guide does not replace your vehicle’s
Owner’s Manual. If you require additional information or are unsure of a specific issue, you should
always refer to the vehicle’s Owner’s Manual or contact your authorized Hyundai dealer.
The information contained in this Quick Reference Guide was correct at the time of printing, however,
specifications and equipment can change without notice. No warranty or guarantee is being extended
in this Quick Reference Guide, and Hyundai reserves the right to change product specifications and
equipment at any time without incurring obligations. Some vehicles are shown with optional equipment.
Specifications apply to US vehicles only. Please contact your Hyundai dealer for current vehicle
specifications. NP150 - 89000
(Rev 12/03/08) 12/12/08
Roadside Assistance: 1-800-243-7766
Consumer Affairs: 1-800-633-5151
XM Radio: 1-800-967-2346
www.hyundaiusa.com
HYUNDAI ELANTRA
QUICK REFERENCE GUIDE

Power
Mirror
Control
Page 4
Electronic
Stability
Control
(ESC)
Page 15
Headlights
and Fog Lights
Page 7
Steering Wheel
Audio Controls*
Page 10
Trip Computer or
Trip Odometer
Page 11
Wiper/Washer
Page 7
Trunk
Release
Page 12
Heated Seats*
Page 12
Cruise Control
Page 14
Audio System*
Page 9
Clock
Adjustment
Page 11
Climate Control
Page 8
Occupant
Classication
System
Page 12
Transmission
Page 13
AUX, USB,
iPod® Input*
Page 10
Remote Keyless Entry ........... 4
Tilt and Telescopic
Steering Wheel* ..................... 4
Power Mirror Control ............. 4
Basic Safety Precautions....... 5
Height Adjustable
Shoulder Belt......................... 5
Headrest Adjustment ............. 5
Front Seat Adjustment........... 6
Folding the Rear Seat............ 6
Child-Protector Rear
Door Lock.............................. 6
Headlights and Fog Lights..... 7
Wiper/Washer ........................ 7
Climate Control* .................... 8
Audio System* ....................... 9
Steering Wheel Audio
Control*................................. 10
AUX, USB and iPod®Input*. . 10
Sunroof Controls* ................. 10
Driver Control Illumination
Switch................................... 11
Trip Computer or Trip
Odometer.............................. 11
Clock Adjustment ................. 11
Occupant Classification
System.................................. 12
Heated Seats*....................... 12
Trunk Release ....................... 12
Fuel Filler Door Release........ 12
Transmission......................... 13
Cruise Control....................... 14
Electronic Stability Control
(ESC)* ................................... 15
Tire Pressure Monitoring
System (TPMS) ..................... 15
Table of Contents
*if equipped
22009 Hyundai Elantra Quick Reference Guide 3

Remote Keyless Entry
LOCK
Press to lock all doors.
Press again to hear a confirmation
chirp.
UNLOCK
Press to unlock the driver’s door.
Press again within four seconds to
unlock all doors.
TRUNK UNLOCK
Press and hold .
PANIC
Press and hold .
Press again to turn off panic mode.
Tilt and Telescopic Steering Wheel (if equipped)
NOTE: Do not adjust while driving.
1. Push the lever downward.
2. Set the angle and height
(if equipped).
3. Pull the lever upward.
Power Mirror Control
1. Move the selecting switch to the
R(right) or L(left).
middle position : lock the control
2. Depress the appropriate direction
on the switch.
Driver Control Features
Basic Safety Precautions
Whenever operating the vehicle, make sure that you and your occupants are
properly wearing your seat belts. Small children should always ride in the rear
seat in the appropriate child restraint system (see the Owner’s Manual for child
safety details).
Never place children under 13 years old in the front seats to avoid injury that
may result from air bag deployment.
Always refer to the Owner’s Manual for complete safety precaution information.
NOTE: If the driver’s seat belt is not fastened when the ignition key is turned to
the ON or START position, the seat belt reminder light will blink and the
warning chime will sound for approximately six seconds to remind the
driver to fasten the driver’s seat belt.
Height Adjustable Shoulder Belt
Headrest Adjustment
Lock release lever
Left outside
mirror Right outside
mirror
Push
up
Height Adjustment Forward/Backward
Adjustment
To adjust the headrest rearward,
pull the headrest all the way
forward, then release.
Push
down
Lock knob
Tilt
Telescope
42009 Hyundai Elantra Quick Reference Guide 5

Headlights and Fog Lights
Wiper/Washer
Front Seat Adjustment
Folding the Rear Seat
1. Pull out the seatback locking knob
located in the trunk.
2. Fold the seat toward the front of
the vehicle.
Child-Protector Rear Door Lock
(LOCK)
Does not allow opening the
rear door handle from inside
the vehicle.
(UNLOCK)
Allows opening the rear door
handle from inside and outside
the vehicle.
Driver Control Features
Forward and backward Seatback angle
Adjust intermittent wiper time
HEADLIGHT SWITCH
FOG LIGHT SWITCH (if equipped)
Seat cushion height
(driver side only)
High beam ON
High beam flash
Wash with brief wipes
MIST – Single wipe
INT – Intermittent wipe
LO – Low wiper speed
HI – High wiper speed
(1) OFF
(2) Parking light
(3) Headlight
NOTE: Fog lights will only
function on low beam.
62009 Hyundai Elantra Quick Reference Guide 7

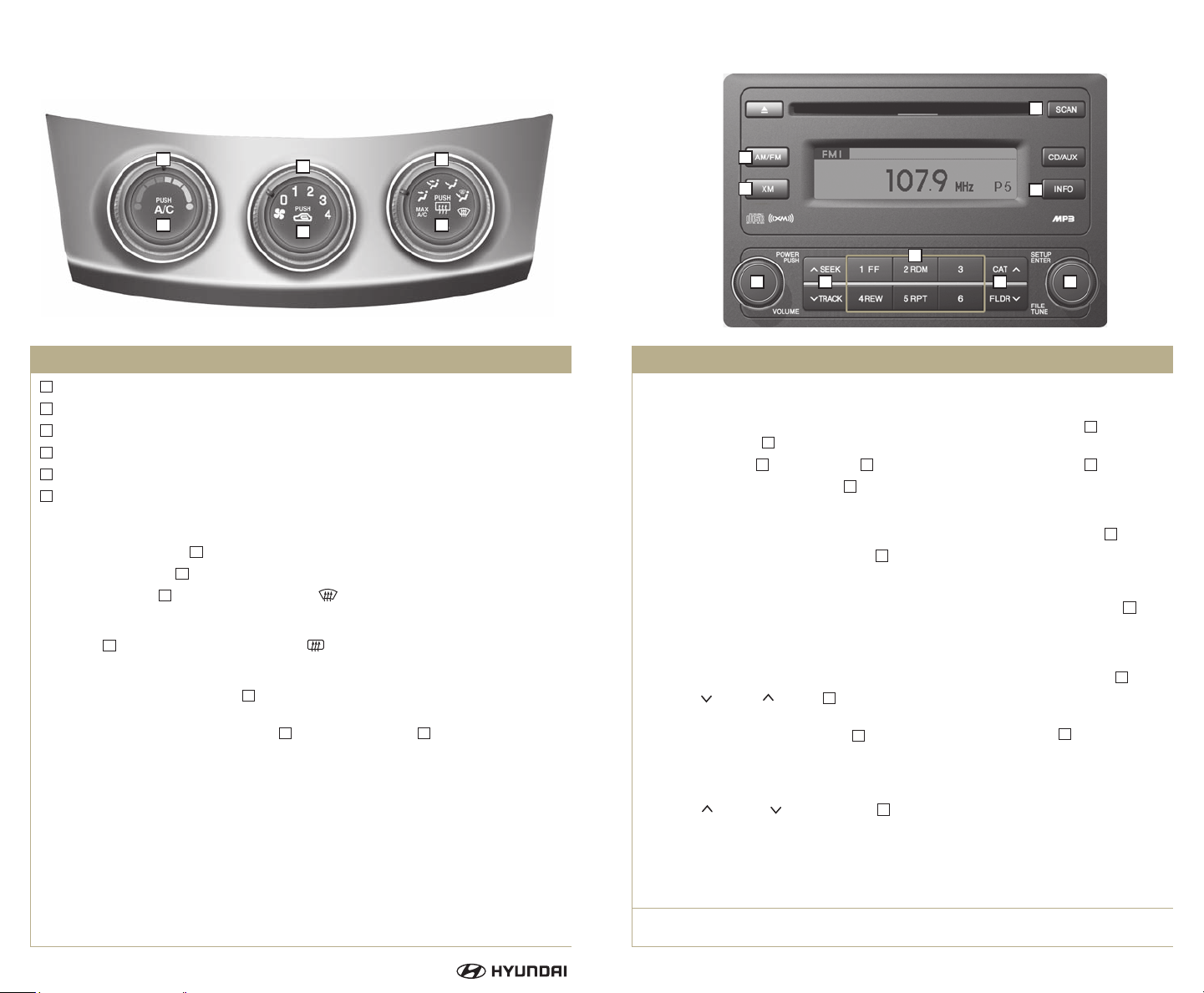

Climate Control (if equipped) Audio System (if equipped)
