Type No. L15B0C060
User’s Guide
ImageQuest LM1510A
TFT LCD Color Monitor
Click
www.hyundaiQ.com

U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT

WE ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / JAN. 19, 2002 HONG KI, KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
BACK
NEXT
Kind of equipment : COLOR MONITOR
Type-Designation : L15B0C060
Safety : EN 60950 : 1992 + A1, A2, A3, A4, A11
EMC : EN 55022 : 1998, EN 55024 : 1998
EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln

LM1510A
15" TFT LCD Color Monitor
BACK
NEXT
Contents 1. Introduction ...................................1/20
2. Safety Information .......................1/20
3. Installing the monitor ..................4/20
3-1. Packing List .........................................4/20
3-2. Selecting a suitable location .............5/20
3-3. Connecting the monitor ....................5/20
USB Hub .............................................7/20
3-4. Setting the refresh rate .....................8/20
Preset Timing Table ...........................8/20
3-5. VESA MOUNT’G ..................................9/20
3-6. PIVOT FUNCTION(Optional) .............10/20
4. Adjusting the picture ..................11/20
4-1. Using the On Screen Display ...........12/20
4-2. Direct access buttons ........................12/20
4-3. OSD Adjustments .............................13/20
5. Audio system ...............................15/20
6. Display power management ......16/20
Reducing power consumption ...............16/20
7. Troubleshooting ..........................17/20
8. Specifications ..............................20/20

LM1510A
15" TFT LCD Color Monitor
1. Introduction
2. Safety Information
1/20
BACK
NEXT
This manual contains instructions for installing and operating ImageQuest LM1510A.
ImageQuest LM1510A is a highly ergonomic color display unit.
• 15" viewable XGA LCD
• Supporting high full scan flicker-free picture quality
• With On Screen Display menus for user control
• With internal active stereo speakers
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• High quality screen re-scaling capability
• Fast and accurate auto adjustment
• Most advanced image scaling
• USB (Universal Serial Bus) hub
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
• Pivot Function (Optional)
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind the
following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or inflammable
materials.

LM1510A
15" TFT LCD Color Monitor
2/20
BACK
NEXT
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the power
cord into the socket. Make sure that the power cord and
the other cords are securely and rightly connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken plugs,
which may cause electric shock or fire. Call your service
technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene,
to clean the monitor, as it will damage the LCD surface.

LM1510A
15" TFT LCD Color Monitor
Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• To clean display unit cabinet, use a cloth lightly dampended with a mild
detergent.
3/20
BACK
NEXT

UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
LM1510A
15" TFT LCD Color Monitor
4/20
BACK
NEXT
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
3. Installing the
monitor
3-1. Packing List
!
Power cord
Signal cable
USB cable
Audio cable
Compact DiscAC/DC Power adapter

LM1510A
15" TFT LCD Color Monitor
5/20
BACK
NEXT
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
•Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
•Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
•To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•Position the monitor so that the top of the screen is no higher than eye level.
•Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)

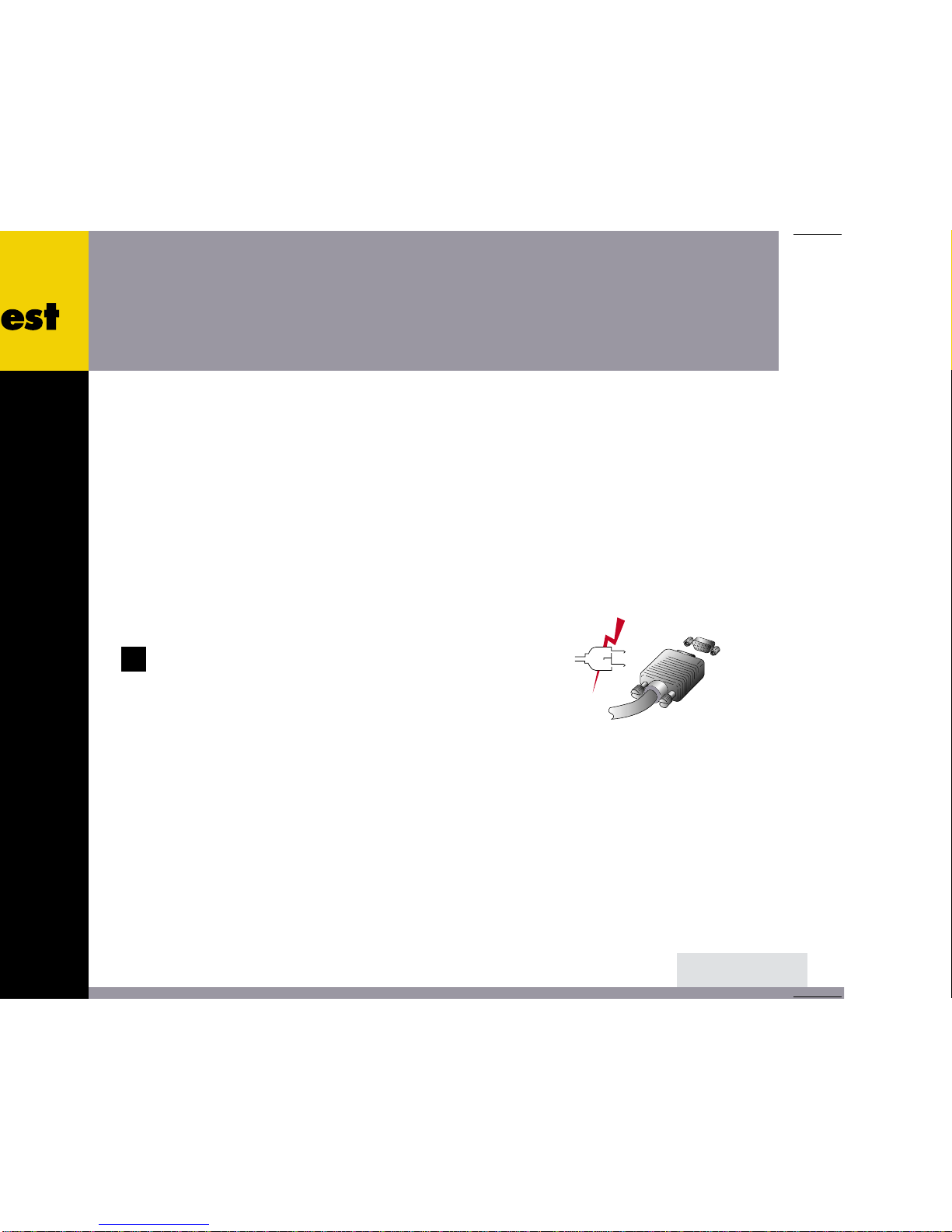

Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection
on your computer and screw it down. Connect the audio cable to the display
unit and the system unit.
2. Plug the power cord connection to connection on the AC-DC Power adapter.
3. Plug the jack of the AC-DC Power adapter connection to connection on monitor.
4. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
5. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!

LM1510A
15" TFT LCD Color Monitor
6/20
BACK
NEXT
6. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.

LM1510A
15" TFT LCD Color Monitor

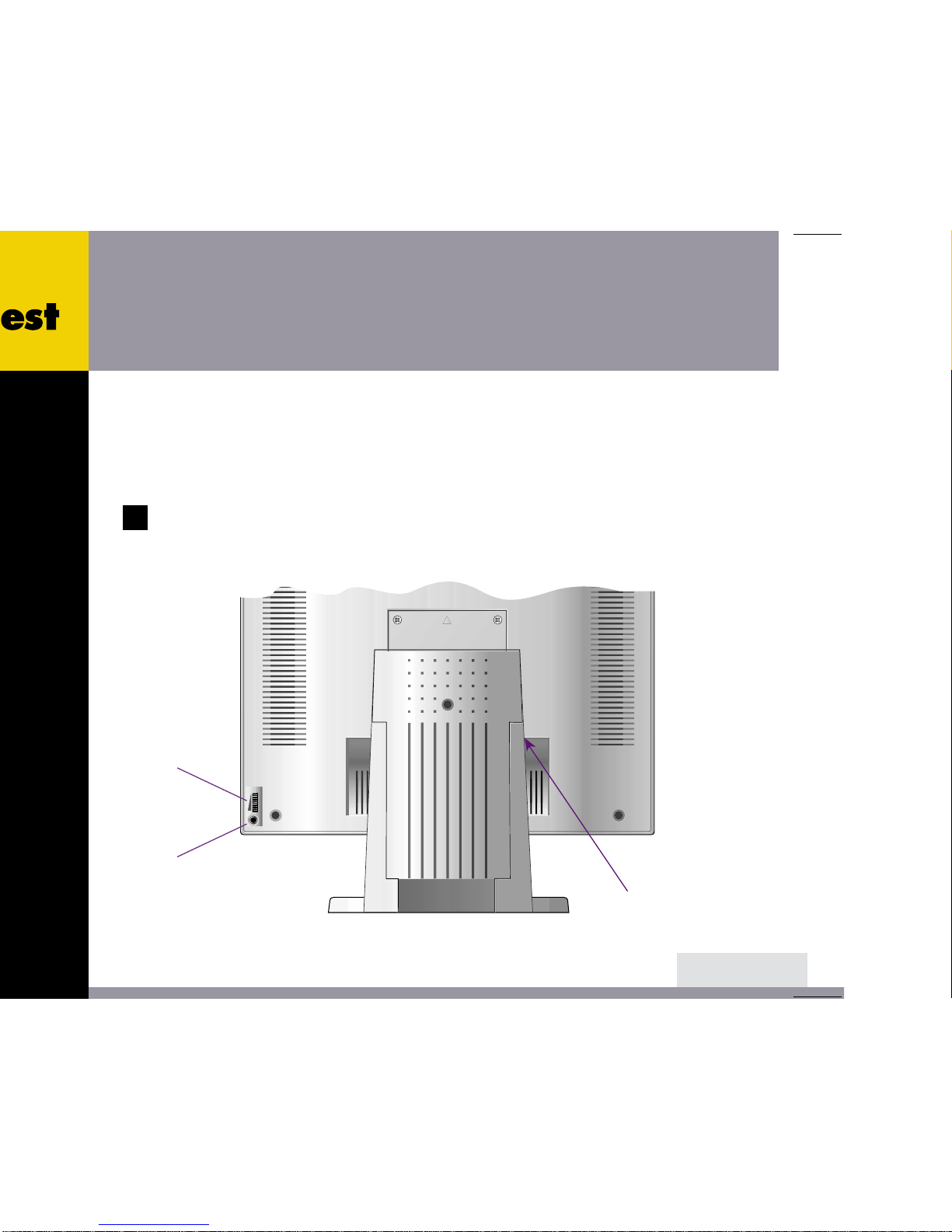

USB hub
The USB hub(Bus-powered mode hub) have 1 upstream port and 2 downstream
ports. The upstream port can be connected to the root hub of host PC or other
downstream port. Two(2) downstream ports allow to connect another USB
device such as USB mouse, joystick, printer etc.
1) The maximum supply current of downstream port is 100mA each when
bus-powered mode hub.
2) To activate the USB hub, your host system should have USB capability.
7/20
BACK
NEXT
USB 2 downstream ports

LM1510A
15" TFT LCD Color Monitor
8/20
BACK
NEXT
3-4. Setting the refresh
rate
Preset Timing Table
No.
1
2
3
4
5
6
7
8
Resolution
720
x 400
640
x 480
640
x
480
800
x 600
800
x 600
*1024 x 768
1024 x 768
1024 x 768
Horizontal Frequency
31.5 KHz
31.5 KHz
37.5 KHz
37.9 KHz
46.9 KHz
48.4 KHz
56.5 KHz
60.0 KHz
Refresh rate
70.1 Hz
59.9 Hz
75.0 Hz
60.3 Hz
75.0 Hz
60.0 Hz
70.1 Hz
75.0 Hz
* Recommended primary mode.
!
Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’icon.
3. Click on the ‘Settings’tab.
4. Click on the ‘Advanced’button.
5. Click on ‘Adapter’and select 60Hz from the list.
6. Click on ‘Apply’to accept the selected value.
If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
The recommended setting is a resolution of 1024x768 and a refresh rate of 60Hz.

LM1510A
15" TFT LCD Color Monitor
9/20
BACK
NEXT
3-5. VESA MOUNT’G •This display unit supports VESA FPMPMI standard for 100mmx100mm screw
mounting by giving 4 screw holes inside the base stand of the unit. The base
stand shall be removed before connecting to Specialty Flat Panel Monitor
Mounting Device.
•To buy VESA Flat Panel Monitor Mounting Devices, please contact following
information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : [phone] · Fax : [phone]· E-mail : [email protected]
Desk Mount
Wall Mount

LM1510A
15" TFT LCD Color Monitor
3-6. PIVOT FUNCTION
(optional)
•Pivot allows the users to display a full page at time in either portrait or landscape
view.
•In multiple monitor environments(like Window 98 or Mac OS), you can have one
monitor in landscape and another in portrait mode, for the best of both
enviroment!
•Pivort software is option. So customers(or you) can purchase monitors together
with pivot s/w, or do not need to purchase the pivot s/w if you do not need it.
•When you want to purchase the software separately, you can contact the below
contact points of Portrait Display, Inc. or Hyundai regional branch offices.
You can also obtain the software for counter value through the below website.
* Portrait Display, Inc.
· Address : 5117 Johnson Driver, Suite 100, Pleasanton, California, 94588 USA
· Tel : [phone] ext. 222 · Fax : [phone]
· E-mail : http://www.portrait.com
10/20
BACK
NEXT

LM1510A
15" TFT LCD Color Monitor
4. Adjusting the picture
11/20
BACK
NEXT

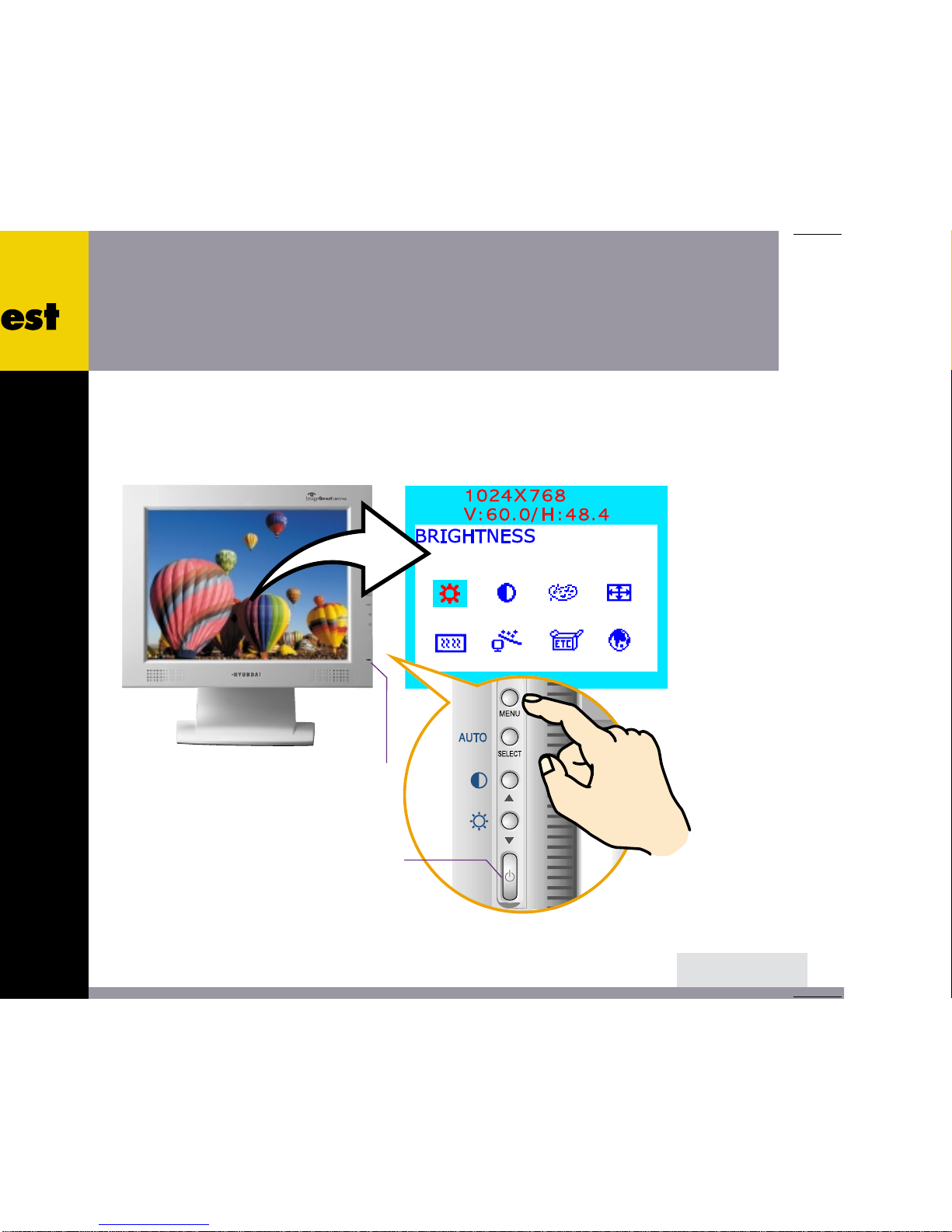

You can adjust the screen display by using the buttons located right side of
the screen.
LED indicator
Soft power switch

LM1510A
15" TFT LCD Color Monitor
12/20
BACK
NEXT
1. Push the MENU button to call the OSD to the screen. The resolution and
frequency are displayed at the top of the menu box for your information.
2. Push the or button to choose the item you want to adjust. The selected
item is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your
last adjustments and the menu disappears. You can also push the MENU button
to make the menu disappear.
AUTO ADJUST
Push the button SELECT (AUTO) to adjust the shape of screen
automatically.
CONTRAST
Use the button to select the contrast adjustment.
Adjust with or button.
BRIGHTNESS
Use the button to select the brightness adjustment.
Adjust with or button.
4-1. Using the On Screen
Display
4-2. Direct access buttons

LM1510A
15" TFT LCD Color Monitor
13/20
BACK
NEXT
4-3. OSD Adjustments
You can play the movie file to
see how to adjust the picture
image by clicking each icon or
title hereunder.
The OSD adjustments available to you are listed below.
BRIGHTNESS
Adjust the brightness of the screen.
CONTRAST
Adjust the contrast of the screen.
COLOR CONTROL
Color temperature affects the tint of the image. With lower color
temperatures the image turns reddish and with higher temperatures
bluish.
There are three color settings available: Mode 1(a warm white), Mode 2(a
cool white) or USER. With the USER setting you can set individual values
for red, green and blue.
H/V POSITION
H-POSITION
Adjusts the horizontal position of the entire screen image.
V-POSITION
Adjusts the vertical position of the entire screen image.

LM1510A
15" TFT LCD Color Monitor
14/20
BACK
NEXT
CLOCK PHASE
PHASE
Adjust the noise of the screen image.
CLOCK
Adjust the horizontal size of the entire screen image.
AUTO ADJUST
You can adjust the shape of screen automatically at the full screen
pattern.
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the displayed time of OSD Menu window on the screen by
using this adjustment.
OSD POSITION
Adjust the OSD menu's horizontal or vertical position on the screen.
LANGUAGE
You can select the language in which adjustment menus are displayed.
The following languages are available : English, French, German, Italian,
Spanish, Swedish, Finnish, Danish, Portuguese and Dutch.

LM1510A
15" TFT LCD Color Monitor
15/20
BACK
NEXT
This monitor has an audio system including two micro loudspeakers. Each of two
micro loudspeakers has an 1Wrms (max.) output power. This system also supports a
headphone output jack.
This system has been tuned to get a best tone quality which an audio input
level is under 600mVp-p. If the input level is more than 600mVp-p, you must
tune down the audio input as the audio output tone may be distorted.
5. Audio system
!
Audio Volume
Headphone
Output Audio INPUT

LM1510A
15" TFT LCD Color Monitor
If the power management function of your computer is enabled, your monitor
turns on and off automatically. You can control power management features from
your computer.
Your computer may have power management features which enable the computer
or monitor to enter a power saving mode when the system is idle.
You can reactivate the system by pressing any key or moving the mouse.
The power button does not disconnect the monitor from the mains. The only
way to isolate the monitor completely from the mains supply is to unplug the
mains cable.
The power modes listed are for the monitor only and do not include any USB
devices connected to the USB ports.
16/20
BACK
NEXT
6. Display power
management
Reducing power
consumption
Power consumption
40 W
5 W
0 W
Mode
Normal
off
Unplugged
LED
Green
Orange
Not illuminated
!
