User’s Guide
Type No. L24COF080
Model. W240D
Dual Function Monitor

U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.

WE HYUNDAI IT CORP.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / May 15, 2006
DAE, HEE KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY
Kind of equipment : LCD MONITOR
Type-Designation : L17C00000 / L19C0D072
Safety : EN60950-1:2002
EMC : EN 55022/1998+A1:2000+A2:2003
EN 55024 :1998+A1:2001+A2:2003
EN 61000-3-2:2000
EN 61000-3-3:1995+A1:2001
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln
L24C0F080

W240D
Multi Function Monitor
Contents 1. Introduction ...................................1/22
2. Safety Information ........................1/22
3. Installing the monitor ...................4/22
3-1. Packing List .........................................4/22
3-2. Selecting a suitable location ..............5/22
3-3. Connecting the pc................................5/22
3-4. watching the DVD/HDTV ...................7/22
3-5. Setting the refresh rate ......................9/22
Preset Timing Table ..........................10/22
3-6. User’s Environment ...........................11/22
4. Adjusting the picture ..................13/22

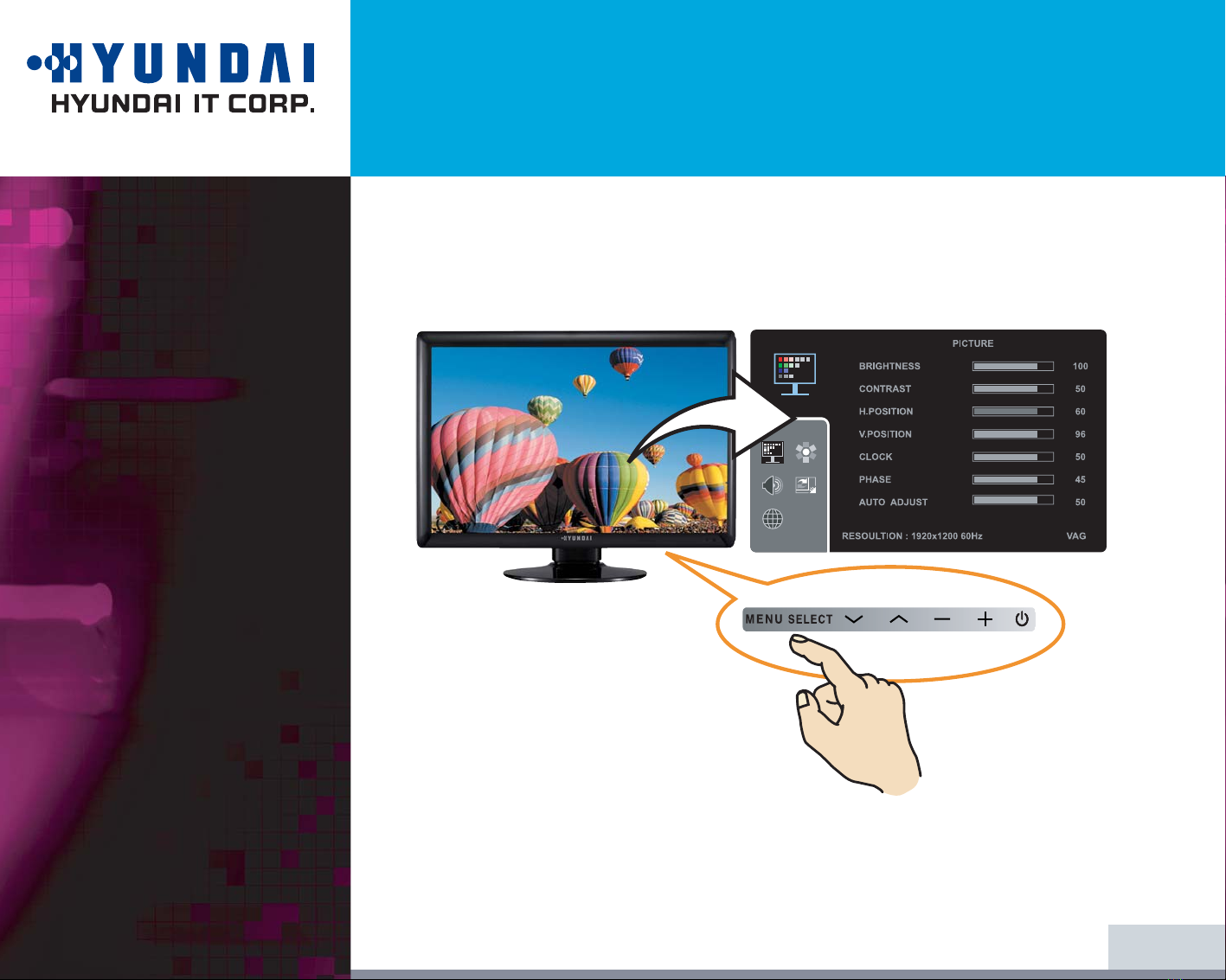

4-1. Using the On Screen Display ...........14/22

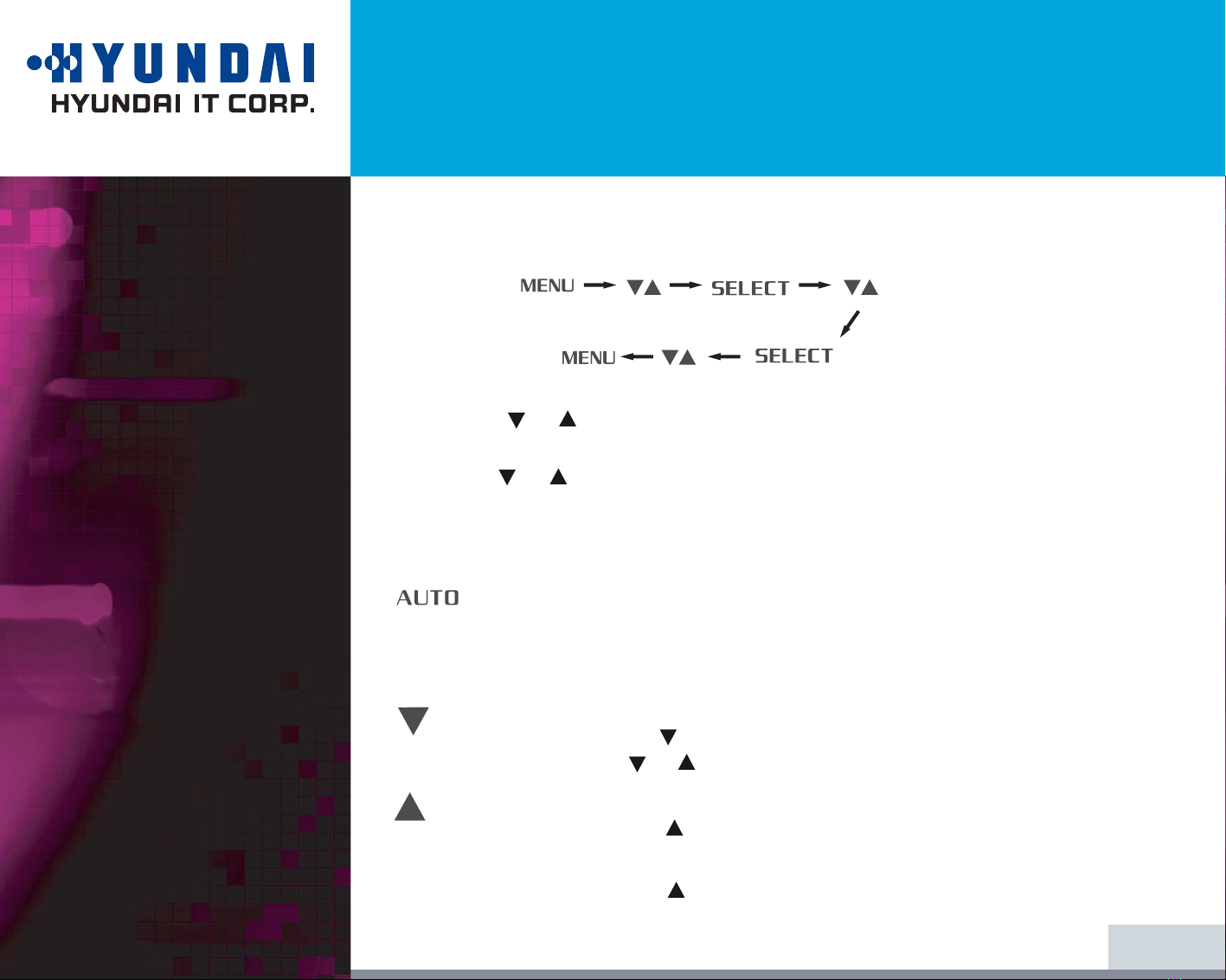

4-2. Direct access buttons .......................14/22
4-3. OSD Adjustments .............................15/22
5. Display power management ......18/22
Reducing power consumption ..............18/22
6. Troubleshooting ..........................19/22
7. Specifications ..............................22/22

W240D
Multi Function Monitor
1. Introduction
2. Safety Information
1/22
This manual contains instructions for installing and operating
HYUNDAI IT CORP. W240D.
HYUNDAI IT CORP. W240D is a highly ergonomic color display unit.
• 24” viewable WUXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Digital Signal Input by DVI-1.0 Compatability
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or
inflammable materials.

W240D
Multi Function Monitor
2/22
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.

W240D
Multi Function Monitor
Cleaning and Maintenance
• To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/22

W240D
Multi Function Monitor
4/22
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m
may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
Power Cord
Signal Cable
Compact Disc
HDMI Cable
Audio Cable

W240D
Multi Function Monitor
5/22
3-2. Selecting a suitable
location

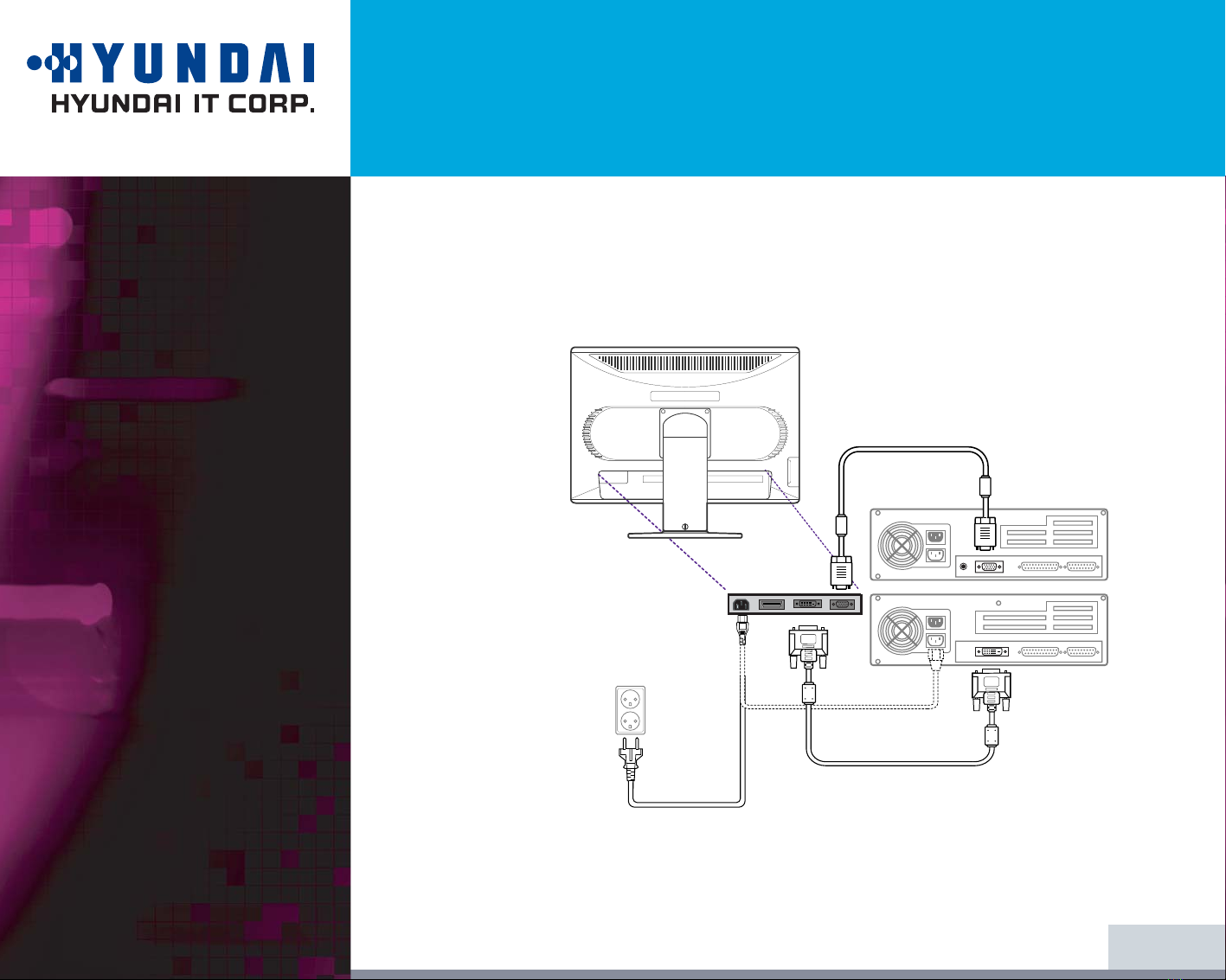

3-3. Connecting to a PC
• 15 pin D-sub / DVI-D /
HDMI

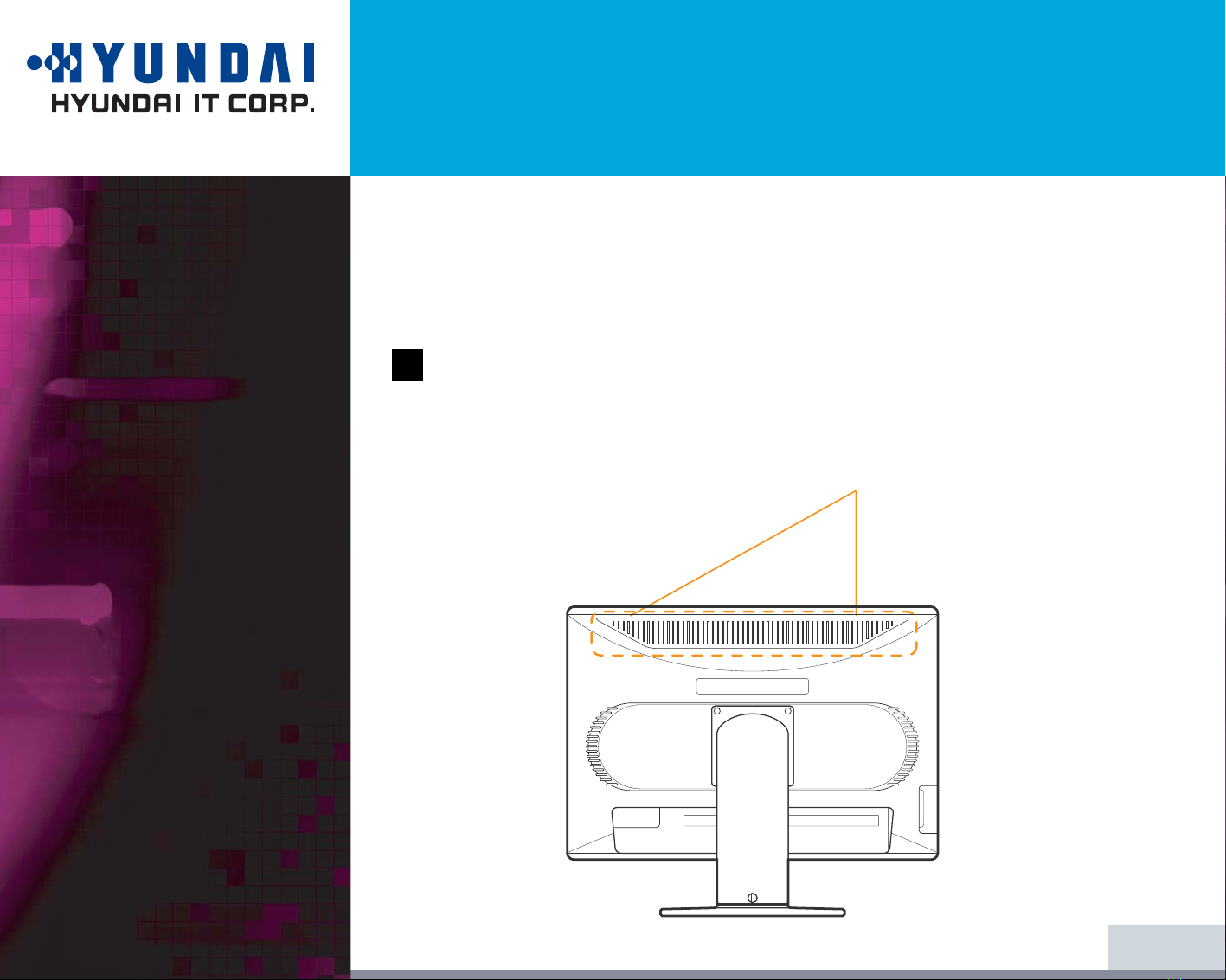

• Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
• Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
• To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
• Position the monitor so that the top of the screen is no higher than eye level.
• Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)
Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin/DVI-D/HDMI signal cable connector into the 15-pin
VGA/DVI-D connection on your computer and screw it down.
2. Plug the power cord connection to connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!!

W240D
Multi Function Monitor
6/22
•
Connecting method
5. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.
HDMI DVI D-SUB

W240D
Multi Function Monitor
3-4. Watching the
DVD/HDTV
• Connecting component
cable
• Connect component cable (Y, Pb, Pr) between output terminal (Y, Pb, Pr) of DVD
player and the input terminal (Y, Pb, Pr) of DVD on the rear of W240D.
(Connect cable and terminal in the sane color)
• Connect Audio cable between Audio output terminal of DVD player and Audio
input terminal for DVD Audio on the rear of W240D.
(Connect cable and terminal in the sane color)
Output terminal mark (Y, Pb, and Pr) of DVD player may be written as Y, B-Y, R-
Y/Y-Cb-Cr / Y-Pb-Pr.( it depends on DVD player)
7/22

8/22
W240D
Multi Function Monitor
• Audio system
This monitor has an audio system including two micro loudspeakers. Each of two
micro loudspeakers has an 3W(max.) output power. This system also supports a
headphone output jack.
This system has been tuned to get a best tone quality which an audio input
level is under 500mv rms. If the input level is more than 500mv rms, you must
tune down the audio input as the audio output tone may be distorted.
8/23
!!
Speaker

W240D
Multi Function Monitor
9/22
3-5. Setting the refresh
rate Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’ icon.
3. Click on the ‘Settings’ tab.
4. Click on the ‘Advanced’ button.
5. Click on ‘Adapter’ and select 60Hz from the list.
6. Click on ‘Apply’ to accept the selected value.

W240D
Multi Function Monitor
10/22
Preset Timing Table
If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
!
Resolution
640 X 350
720 X 400
640 X 480
640 X 480
800 X 600
800 X 600
800 X 600
832 X 624
1024 X 768
1024 X 768
1024 X 768
1152 X 864
1152 X 870
1280 X 960
1280 X 1024
1280 X 1024
1680 X 1050
1600 X 1200
1920 X 1200
720 X 480p,576p
1280 X 720p
1920 X 1080i
H-Freq.(kHz)
31.4
31.4
31.4
37.5
35.1
37.8
46.8
49.7
48.3
56.4
60.0
67.5
68.6
60.0
63.9
79.9
64.7
75.0
84.0
31.5
45.0
33.7
V-Freq.(MHz)
70.0
70.0
59.9
75.0
56.2
60.3
75.0
74.5
60.0
70.0
75.0
75.0
75.0
60.0
60.0
75.0
60.0
60.0
59.9
60/50
60
30
Supported Mode
Analog DVI
Video Mode
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

W240D
Multi Function Monitor
11/22
3-6. User’s Environment Recommended Ergonomic User’s Environment
• Viewing angle of the monitor should be between -3~17 degree.

W240D
Multi Function Monitor
12/22
Kensington Security
(Locking) Slot
VESA MOUNT’G
• This display unit supports a Kensington-type security device to secure your
monitor. Kensington lock is not included.
• To purchase and install the Kensington locking device, please refer to the
following contact information.
* Kensington Technology Group
· Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
· Tel : [phone] · Fax : [phone] · Web-site : www.kensington.com
• This display unit supports VESA FPMPMI standard for 75mmx75mm screw
mounting by giving 4 screw holes inside the base stand of the unit.
• For buying VESA Flat Panel Monitor Mounting Devices, please contact
following information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : [phone] · Fax : [phone] · E-mail : [email protected]
Desk Mount
Wall Mount

W240D
Multi Function Monitor
4. Adjusting the picture
13/22
You can adjust the screen display by using the buttons located below the
screen.
The second and third Menu from the OSD can't be chosen in digital-mode.

W240D
Multi Function Monitor
14/22
4-1. Using the On Screen
Display
4-2. Direct access buttons
To make adjustments in the On Screen Display, follow these steps:
1. Push the MENU button to call the OSD to the screen.
2. Push the or button to choose the item you want to adjust. The selected item is
highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your last
adjustments and the menu disappears. You can also push the MENU button to make
the menu disappear.
AUTO ADJUST
At first display a full screen such as Window's back ground.
Push the button SELECT(AUTO) to adjust the shape of screen
automatically.
VOLUME
Use the button to select the Volume adjustment.
Adjust with or button.
MUTE
Use the button to select Audio on or off.
SOURCE
Use the button to switch other input from carrent input.
(VGA -> Component -> DVI -> HDMI -> VGA)


W240D
Multi Function Monitor
15/22
4-3. OSD Adjustments
PICTURE (SCREEN STATE ADJUSTMENT)
BRIGHTNESS
Adjusts the brightness of the screen.
CONTRAST
Adjusts the contrast of the screen.
H.POSITION
To move image left and right.
V.POSITION
To move image up and down
CLOCK
Adjust the horizontal size of the entire screen image.
PHASE
Adjust the noise of the screen image.
AUTO ADJUST
You can adjust the shape of the screen automatically at the full screen pattern
BRIGHTNESS
CONTRAST
H.POSITION
V.POSITION
CLOCK
PHASE
AUTOADJUST
RESOULTION : 1920x1200 60Hz VAG
100
50
60
96
50
45
50

W240D
Multi Function Monitor
16/22
COLOR (SCREEN STATE ADJUSTMENT)
STANDARD
For general Color tone.
REDISH
For Redish color with warm tone.
BLUISH
For Bluish color with cool tone.
USER
For adjusting degree of RGB as Users want
AUTO COLOR
Adjust the horizontal size of the entire screen image.
PHASE
Adjust the noise of the screen image.
AUTO ADJUST
If the output of the videocard is different the required specifications, the color
level may deteriorate due to video signal distortion. Using this function, the signal
level is adjusted to fit into the standard output level of the videocard in order to
provide the optimal image. Activate this function when white and black colors are
present in the screen.
STANDARD
USER
RED
GREEN
BLUE
AUTOCOLOR
REDISH BLUISH
RESOULTION : 1920x1200 60Hz VAG
COLOR
100
50
60
