Experience Real 3D Visuals with
Hyundai IT Widescreen 3D Display
In addition to conventional 2D operations HYUNDAI IT’s stereoscopic
3D displays make it possible to viewing 3D images with a breathtak-
ing three-dimensional effect. For example, 3D models created with
CAD software can be displayed more life like and thus allowing a
presentation close to reality. Beside professional applications, Hyundai
3D displays are great for multimedia operation such as 3D games,
movies or pictures.
Hyundai 3D Monitor
W220S/W240S
Hyundai 3D Monitor
S320D/S465D

www.hyundaiI T .com

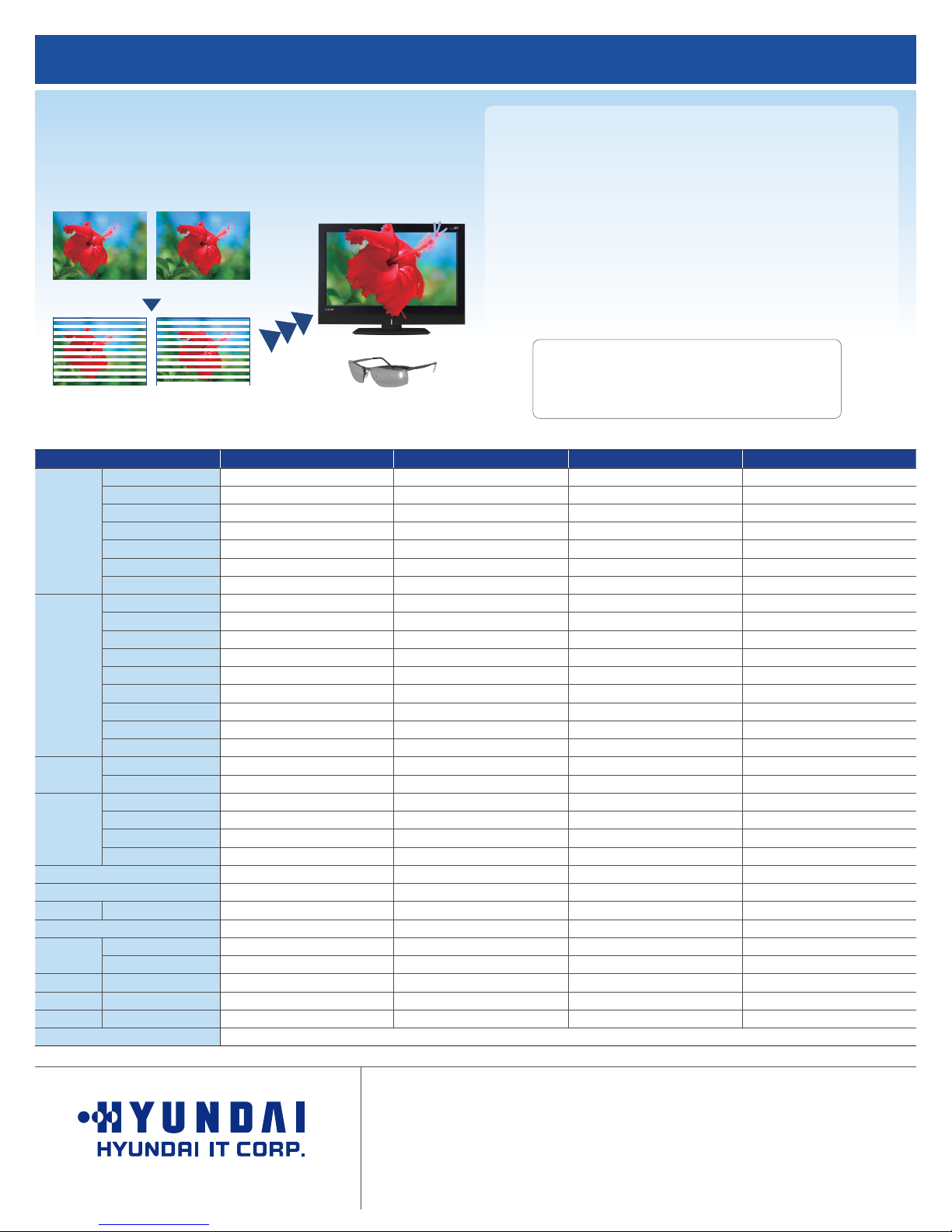

(ex.) Side by Side format image
Recognition of
left eye’s image.
Recognition of
right eye’s image.
Circular Polarized Glass
Based on the stereoscopic 3D technology, the viewer is watching the 3D con-
tents through a polarized 3D display by wearing polarized 3D glasses. A stere-
oscopic image presents the left and right eyes of the viewer with different
perspective viewpoints, just as the viewer sees the visual world. From these
two slightly different views, the eye-brain synthesizes an image of the world
with stereoscopic depth.
ENJOY REAL 3D IMAGE WITH HYUNDAI IT STEREOSCOPIC 3D DISPLAYS
Specifications
Key Features
• Moire, ghosting and flicker free
• High contrast ratio and fast response time
• HDMI with HDCP support
• Wide viewing angle
• Certified for Windows Vista
3D Visualizer/OpenGL driver(Option)
3D Visualizer enables selected third party
applications to work on HYUNDAI IT’s 3D
displays. Using 3D displays and 3D Visualizer,
3D models appear to ha ve a real physical
depth, just like the actual objects they are
modelling.
3D Software Package
HYUNDAI IT’s 3D display include a software
package of the leading 3D soft ware supplier
DDD.
This 3D software suppor ts 3D drivers for
more than 64 PC Game titles through the
website.
• 3D Media Player • 3D Experience
• 3D Google Earth • 3D games driver
Recommended System Requirements
- Intel® Core 2 Duo or Athlon™ 64 x 2 Dual-Core CPU, 1GB RAM
- NVIDIA® GeForce 6600 or ATI Radeon™ X800 with DVI output
- 100MB free disk space - Windows® XP, Vista 32-bit
- DirectX 9.0c compatible sound card
Model Name W220S W240S S320D S465D
3D Technology
Filter Circular polarized filter Circular polarized filter Circular polarized filter Circular polarized filter
Compatibility 2D/3D compatible 2D/3D compatible 2D/3D compatible 2D/3D compatible
3d Format Horizontal interlaced Horizontal interlaced Horizontal interlaced Horizontal interlaced
Viewing Angle (H/V) 160°/10° 160°/10° 178°/ 20°( typ. CR:10) 178O/20O (typ. CR:10)
Supported 3d Resolution 1680 x 1050 1920 x 1200 1360 x 768 1920 x 1080
Conversion 2D/3D image convertible 2D/3D Image convertible 2D/3D Image convertible 2D/3D Image convertible
Viewing Distance (Recom.) 2.3 ft or 27.6 inch 2.3 ft or 27.6 inch 5 ft 5 ft
Panel
Type A-Si TFT Active Matrix A-Si TFT Active Matrix A-Si TFT Active Matrix A-Si TFT Active Matrix
Size: Diagonale / Display Area (H/V) 22“ / 473.7 x 296.1 mm 24“ / 518.4 x 324 mm 32” / 697.6845 x 392.256 mm 46“ / 1018.4 x 572.5 mm
Aspect Ratio 16:10 16:10 16:9 16:9
Pixel Pitch (H/V) 0.282 x 0.282 mm 0.270 x 0.270 mm 0.510 x 0.510 mm 0.530 x 0.530 mm
Viewing Angle (H/V) 160O / 160O (CR:<=10) 178O / 178O (CR:<=10) 178O / 178O (CR:<=10) 178O / 178O (CR:<=10)
Contrast Ratio 1,000:1 / 30,000:1 (DCR) 1,000:1 / 30,000:1 (DCR) 3,000:1 / 6,000:1( DCR) 4,000:1 / 6,000:1 (DCR)
Response Time 5 ms (typical) 6 ms (typical) 8 ms ( G to G) 6 ms (typical)
Brightness 300 cd/m2 (typical) 500 cd/m2 (typical) 450 cd/m2 (typical) 450 cd/m2 (typical)
Colors 16.7 M 16.7 M 16.7 Mi 16.7 M
Resolution
Maximum / Recommended 1680 x 1050 @ 60Hz 1920 x 1200 @ 60Hz 1360 x 768 @60Hz 1920 x 1080 @ 60Hz
Video 480p, 576p, 720p, 1080i/p 480p, 576p, 720p, 1080i/p 480i/p, 576i/p, 720p, 1080i 480i/p, 576i/p, 720p, 1080i/p
Input Signal
Analog RGB / DVI-D 1/1 1/1 1/- 1/-
HDMI-HDCP / Component 1/- 1/1 3/1 3/1
S-Video/Composite -/- -/- 1/1 1/1
PC Audi o Yes Yes Ye s Yes
Plug-and-Play VESA DDC 2B VESA DDC 2B VESA DDC 2B VESA DDC 2B
Power Management VESA DPMS VESA DPMS VESA DPMS VESA DPMS
Power Voltage / Consumption / Type 100-240V AC 2.0A / 45W(typ) / Internal Power Supply 100-240V AC 2.0A / 85W(typ) / Internal Power Supply 100-240V AC 5.0A / 150W(typ) / Internal Power Supply 100-240V AC 5.0A / 230W(typ) / Internal Power Supply
Safety & Regulations cTUVus, CB, EK, PSE, FCC, CE, VCCI, Energy Star cTUVus, CB, EK, PSE, FCC, CE, VCCI, Energy Star cTUVus, CB, FCC, CE cTUVus, CB, FCC, CE
Other Features
Audio System Internal loudspeaker 2 x 3 Watt, PC Audio in/out Internal loudspeaker 2 x 3 Watt, PC Audio in/out Max. 10W x 2ch Max. 10W x 2ch
Kensington Slot / Wallmount Holes Yes | Yes (VESA: 100 x 100 mm) Yes | Yes (VESA: 100 x 100 mm) Yes | Yes (200 x 100 mm) Yes | Yes (580 x 420 mm)
Stand Type Tiltable, Height adjustable (option) Height adjustable, Tiltable(option) Swivel Swivel
Dimensions Unit / Packed (W x H x D mm) 522 x 412 x 210 / 616 x 480 x 196 579 x 455 x 240 / 650 x 535 x 235 806 x 617 x 229 / 902 x 716 x 302 1143 x 310 x 845 / 1270 x 452 x 974
Weight Unit / Packed (kg) 7.0 / 9.3 10.1 / 11.6 17.5 / 21.4 30.0 / 38.7
Scope of Accessories Power cable, DVI Cable, D-Sub Cable, Audio Cable, Quick Installation guide, 3D glasses, HDMI-DVI Cable ( S320D, S465D only ), CD-ROM : User manual, Driver, ICM profil, 3D software package
* Design specifications may be subject to change without prior notice.
