Hyundai HPVD14L User manual

BATTERY SPRAYER
HPVD14L
ORIGINAL INSTRUCTIONS

This manual contains safety instructions for safe use and proper use of the sprayer.
Please read it carefully before use. Please read the instructions carefully and use it
correctly.
CONTENTS
1. Safety instructions
2. Product description
3. Preparation before use
(1) Unpacking and Identifying Attached Parts.
(2) Assemble and prepare for use
(3) Battery charging and assembly
(4) Prepare and add medicine
4. How to use
5. Post-use inspection and storage
6. Things to check before reporting
7. Product Specification
8. EC declaration

1. SAFETY INSTRUCTIONS
- Safety precautions are safety precautions and safety precautions for safe use of
rechargeable sprayers. Failure to observe these precautions can result in death, serious
injury, product failure, or performance degradation.
This sprayer is designed for forestry and agriculture use (lawns and gardens) to save
the labour cost. It is not a household product, it is forbidden to use it for washing the
body. All others use are prohibited.
The sprayer shall be used only with plant protection products approved by
local/national regulatory authorities for plant protection products for use with
knapsack sprayers.
- Please read the manual before use and fully understand the contents before use.
- This is to prevent user's safety and property damage. Please read the following
carefully and use it correctly.
- Wear personnel protective equipment which includes at least eyes protection,
hearing protection, mask, antiskid footwear, safety clothing and gloves.
- The sprayer could be used by a first time inexperienced operator. However, the user
should have training for all operations with a professional before use the machine.
- Secure the sprayer during transport to prevent damage or injury. Always transport
the sprayer by its handle.
- Always bring maintenance and servicing to the sprayer after each use. Follow the
instructions given in this manual and use accessories recommend by the fabricant.
Improper maintenance, use of non-conforming components and removal of safety
devices can raise the risk of accident, deterioration of the machine and bad result of
operation.
- Warning – Do not use the sprayer while tired, ill or under influence of alcohol or
other drugs or medicaments.
- During the operation, some hazards may be encountered; in order to avoid hazards,
before, check the operation area, keep bystanders far away. Direct the spray lance
downwind from the operator. Do not direct the lance on fire, dangerous products and
materials.

- Do not use the spray in a closed room, in a dangerous area (by example area with the
presence of chemical product, fire).
- In the event of accidents or blockages, stop immediately to use the tool. Remove the
battery. Check the tool in case of damage. Remove the blockage in a safe way. If the
tool is damaged, do not use it again and bring it to a service client.
- When restarting the sprayer after wintering: check the level of battery and charge it if
necessary. Let the tool run in neutral for a few minutes.
- When a nozzle is blocked, stop to use the tool. Disassemble the nozzle and clean it to
remove the blockage.
- Never come in contact with chemical products. In case of inhalation, stop to use the
tool; go immediately in a place where fresh air is present. In case of contact with the
skin, rinse abundantly with clean water. During use, filling, draining, cleaning or
servicing, handle the lance in a safe way; avoid contact with chemical agent. Use
protective gloves.
- Always use accessories and batteries recommended by the manufacturer. Contact the
manufacturer for advice for spare parts and accessories (see in the end of this manual).
- Avoid drift taking into account different parameters such as nozzles, pressure, boom
height, wind speed, etc.
- Do not use plant protection products
- Do not connect this sprayer to other equipment.
The precautions are divided into three categories: "DANGER", "WARNING" and
"CAUTION".
DANGER!
If there is a possibility of serious injury or death in case of violation of
the indication
WARNING!
If there is a possibility of serious injury or serious injury in case of
violation of the indication

CAUTION!
If there is a possibility of slight injury or damage to the product in
violation of the marking
1) Precautions before use
DANGER! People who shall never use a sprayer:
a. Drinkers and pregnant women
b. People with mental illness
WARNING!
c. Do not handle the battery and charger with wet hands. There is a danger of
electric shock.
d. Do not use batteries that do not meet the specifications or modify the
product.
CAUTION!
e. Check that there are no leaks in the assembling and connecting parts of each
part, no cracks or leaks in the hoses, no abnormalities in the buckles of the
shoulder straps and the tank connections.
f. If you need to move to a vehicle with medicines in the medicine dispenser,
drugs may leak out.
g. Tighten the tank cap tightly to prevent the product from tilting. If the battery
is damaged due to impact, it may be dangerous to remove the battery.
h. Be sure to charge the battery after purchase and before and after use.
2) Precautions when using

DANGER!
a. If you use pesticides, please read the pesticide manual carefully and
understand the toxicity and usage and mix them properly.
b. If the pesticide reaches the skin while spraying the pesticide, stop work
immediately and wipe the contaminated area clean with soap. If there is a
lot of contamination, go to the nearest hospital and treat it.
c. If the condition of your body is not good during pesticide application, stop
work immediately and take enough rest.
WARNING!
d. Please tighten the cap tightly so that the tank lid does not leak.
e. Never mix pesticides with other containers, and empty containers should be
disposed of properly.
f. When spraying pesticides, prohibit workers from entering or exiting the
machine, and be careful not to direct the nozzle to the person or animal.
CAUTION!
g. Do not put more than the capacity to be injected into the tank more than
the capacity indication scale on the side of the tank.
h. Thoroughly mix the medicines with appropriate amount and dilute them
before putting them in the tank.
i. If abnormal noise or leakage occurs in the sprayer during operation,
immediately stop the operation and check the sprayer.
3) Notes after use
CAUTION!

a. After use, thoroughly remove any residual liquid in the tank and rinse
thoroughly with clean water.
b. After cleaning the tank, clean the filter, the inside of the hose, and the inside
of the nozzle thoroughly for about 3 to 4 minutes.
c. After use, please be sure to fully charge the battery and remove the mains
connector jack.
d. After use and cleaning, store your tool. Use the provided carton box to
transport the sprayer and the accessories. Store the tool in a clean, dry place,
preferably in its box.
DANGER!
e. Keep in a safe place out of the reach of children.
CAUTION!
f. When storing for a long time, please keep it completely dry. Please keep it in
a cold room indoors especially in winter.
g. After washing, operate until the water no longer comes out from the nozzle,
4) Long term storage precautions
a. Please store. If moisture is left inside the pump and hose, it may be damaged
by winter wave.
b. After the battery is fully charged, disconnect the main unit connection jack
and keep the operation switch OFF.
5) Battery and Charger Handling Precautions
WARNING!
a. Charge the battery with the standard charger included in this product.
b. Charging with another charger that does not fit the capacity may cause fire

or malfunction.
c. The battery is a PASECO sprayer. Do not use batteries other than standard
batteries. It may cause overheating and damage to the battery.
d. Do not repair or modify the charger and battery. There is a danger of electric
shock or fire. Be sure to apply for repair at the retailer you purchased or A /
S.
e. Charge the battery in a well-ventilated place where the temperature is
between 0 °C and 40 °C.
f. Do not cover the battery with paper or cloth while charging.
g. Never put the battery in water or fire.
h. Do not charge or use in the presence of flammable liquids or gases.
i. Do not store the battery in a car in summer or in a place where the
temperature rises more than 50°C.
CAUTION!
j. Do not touch the plug with wet hands when charging. There is a danger of
electric shock.
k. Always charge the battery as described in the manual.
l. There is a risk of fire or explosion.
m. When not using for a long time, be sure to keep the battery fully charged
and charge the battery at least once every three months. After the battery is
fully discharged, reuse (recharging) may not be possible.

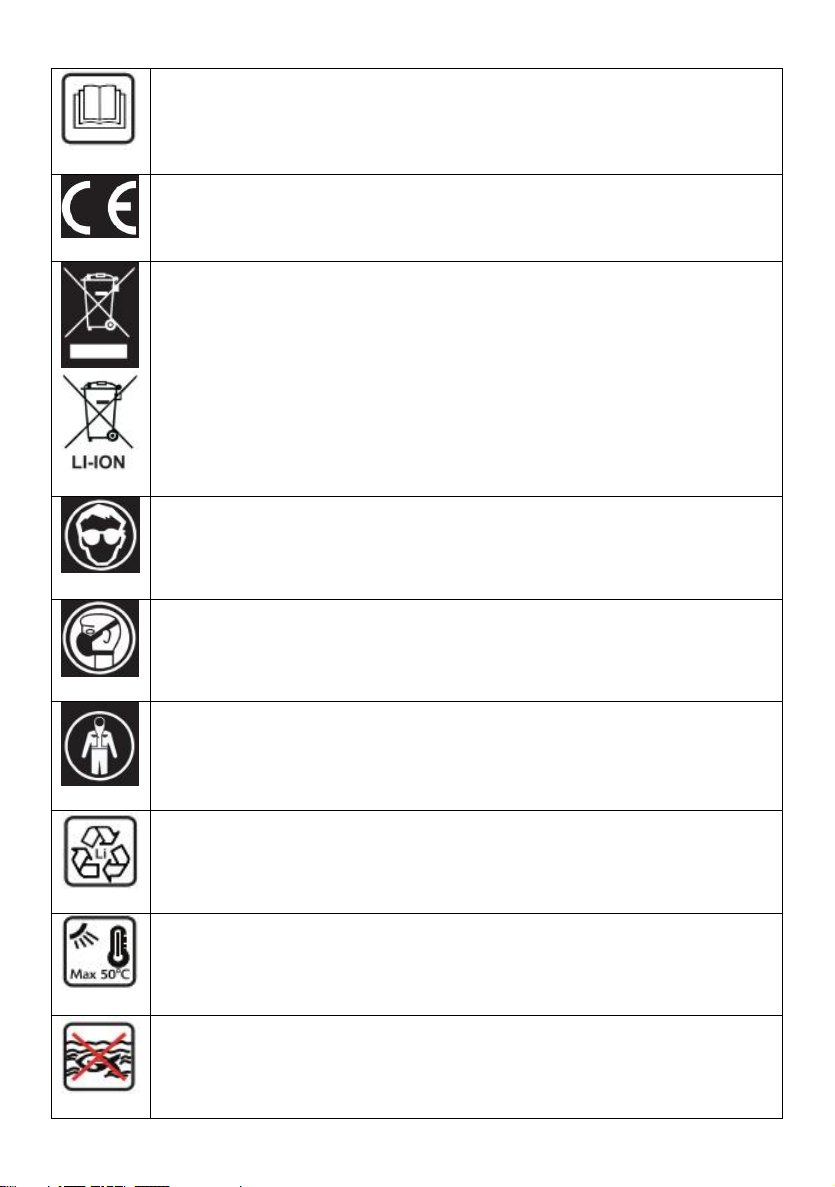

Symbols explanation
To reduce the risk of injury, the user must read and understand this
manual before using this product.

Conforms to relevant safety standards
Do not dispose of old appliances with domestic rubbish
Wear eyes protection.
Wear respiratory protection.
Wear appropriate protective clothing.
Recycling
Do not expose batteries to temperatures exceeding 50 degrees.
Do not dispose of batteries in water.

Do not dispose of batteries in fire. They could explode and cause injury
keep bystanders away when spraying.
2. PRODUCT DESCRIPTION

3. Preparation before use
CAUTION! Make sure that there is a packing at the joined part as
shown in the fig. Please join tightly so that the liquid would not leak
1) Unpacking and conformation of auxiliary parts
a. Since all products go through test before shipping, there can be some
water left in the sprayer main body and handle/hose assembly.
2)Assembly and preparation for use
a. Assemble the spray pipe and nozzle as following:
Screw the spray pipe to the handle.

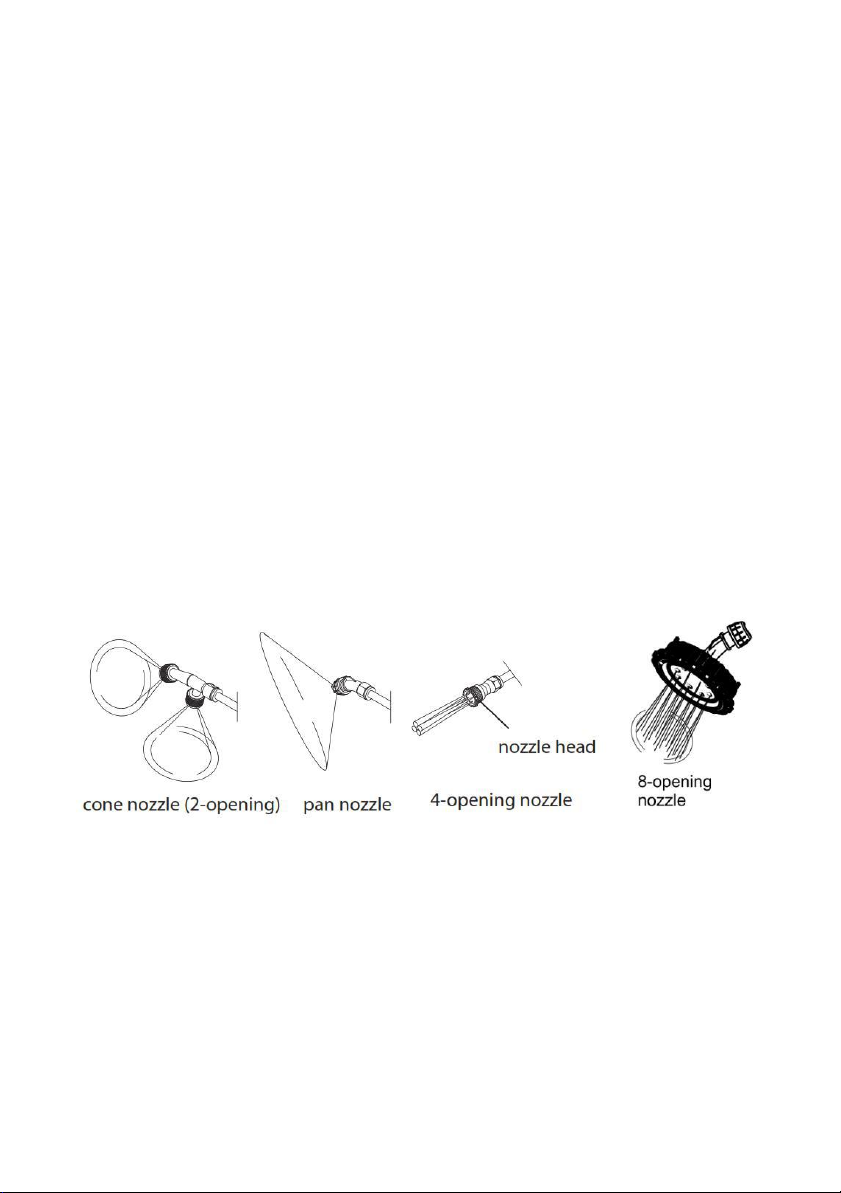

screw the desired nozzle to the spray pipe.

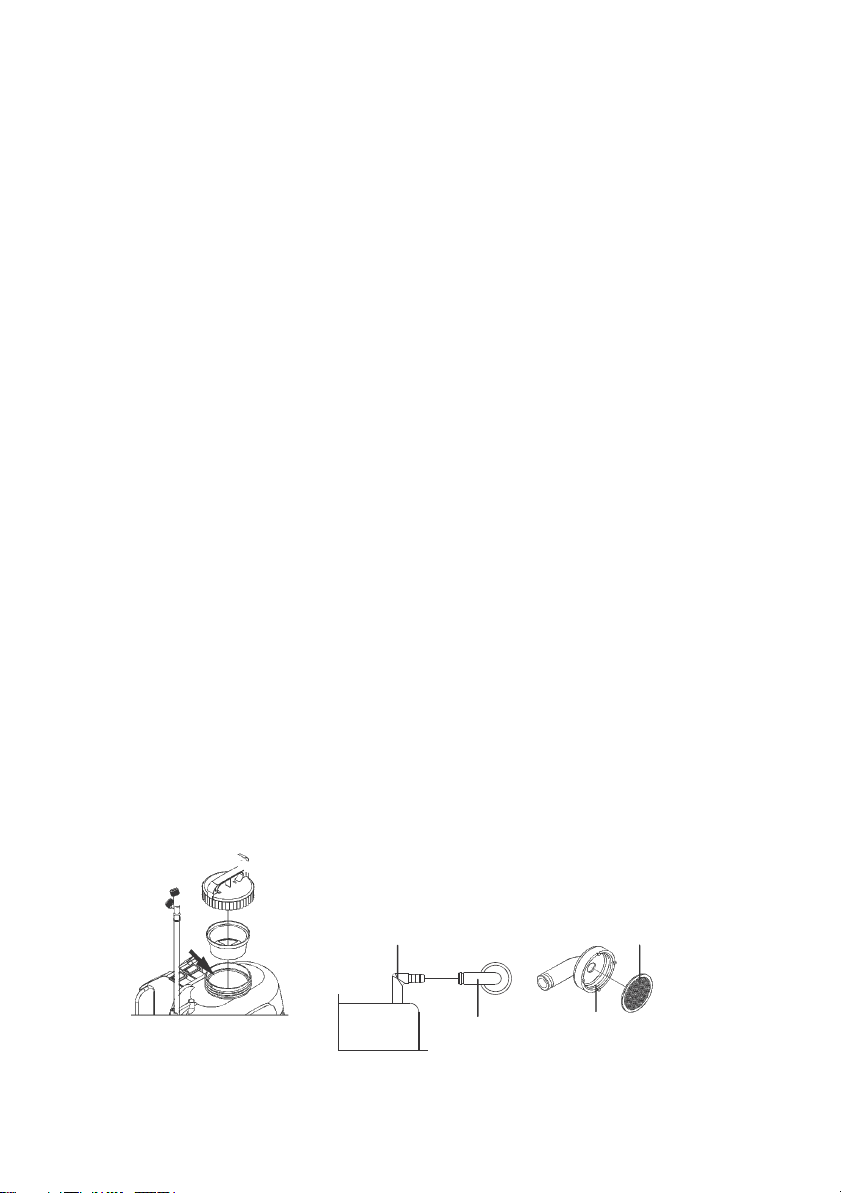

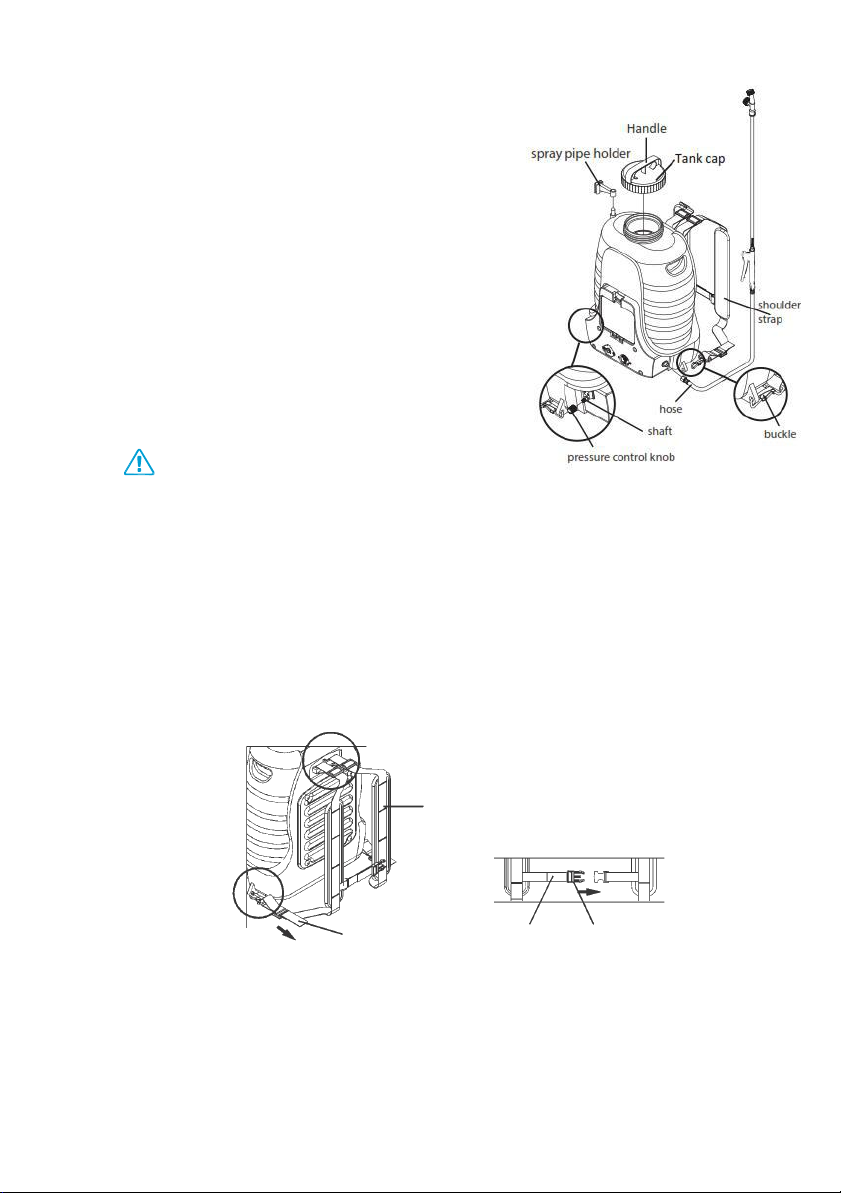

• Please attach to the main body as f ollo w :
a. Place the filter in the hole of the main body
b. Screw the tank cap to the main body .
c. Install the spray pipe holder to the main
body .
d. Install the spray pipe into the spray pipe
holder.
e. Join the buckle at the lower end of the
shoulder str ap as shown in the figur e .
tank cap
spray pipe hol
I nser t the pressure control knob to the pressure control swit ch
shaft in the main body as shown in the figur e .
C aution
Please join the hose to the main
body tightly so that the liquid
would not leak
shoulder
str ap
• B ef or e use , adjust the shoulder strap as f ollo wing .
a. Make sure that the upper part and the lower part of the shoulder strap are not t wist ed
and f i r m ly joined .
b . Adjust the length of the shoulder strap to the user . Use the length-adjusting
strap in the lower end as shown in the figur e .
c. Adjust the chest belt to the user . Use the length-adjusting strap and join the buck le as
shown in the figur e .
shoulder
str ap
length-adjusting strap
buck le

• If the shoulder strap is loose , the sprayer becomes heavier and work ef f i cienc y
dr ops .
• B ef or e use , always check that the upper part and the lower part of the
shoulder str ap are not twisted and f i r m l y joined . If the shoulder strap
would be untied during use , user may get personal injur y .
Installation of the battery cover
Insert the bottom of the cover in the hook situated below the frame of the
battery compartment. Then close the cover by pushing the lever of the
cover inside the hole situated on the top of the frame.
3) Battery charge and assembly
C aution • T he battery is not fully charged when shipped . B ef or e use , please c or r ec tly and
fully charge the ba tt er y . Please use the charger provided with the pr oduc t . Do not use other
char ger
. a. Open the charge socket cover as shown in the f i gur e .
b . Plug in the charger included in the product to the 220V power outlet .
T he LED light of the charger would turn on in “ g r een ” .
c. I nser t the charge plug of the charger to the charge socket of the main body .
T he LED light of the charger would turn on in “ r ed ” and the charge star ts .
C aution
• I t will take 7 to 8 hours for full char ge . T he LED light of the char ger
would turn from “ r ed ” to “ g r een ” when the charge has been c omplet ed .
When the charge is finished, unplug the charger.

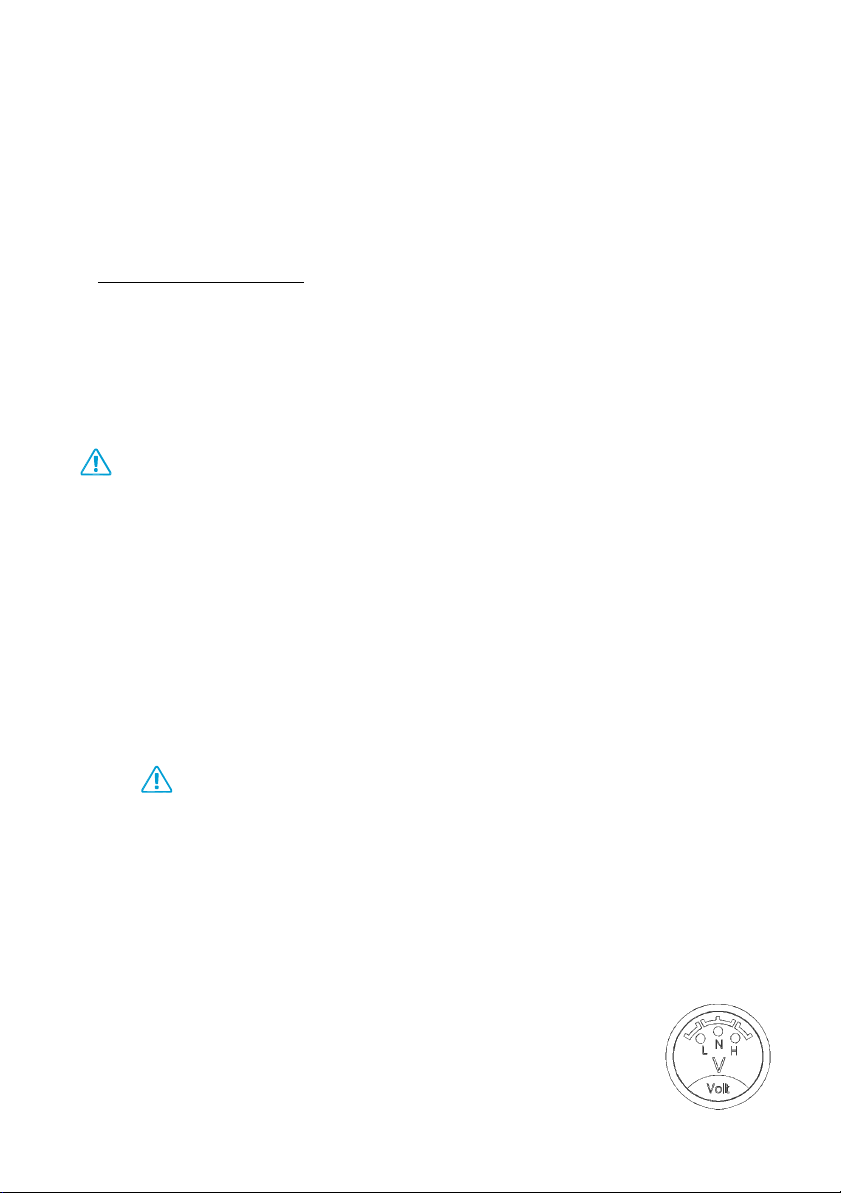

• Battery gauge
T he battery gauge indication is as f ollo wing . Please correctly use it by check ing
the gauge during spraying or char g ing .
a. When only “L” light is on: V oltage is low. Please charge the ba tt er y
b . When “L” light and “N ” light are on: T he battery voltage is normal for use .
c. When “L” ligh t , “N ” light and “H ” light are all on: T he ba tt er y
is in over-voltage status . If you are char g ing , please stop char g ing .
4) Preparation of liquid and f i lling
battery gauge

A ler t
Agricultural chemicals are hazar dous . Always carefully read the cautions
and use method given by the chemical manufacturers and abide by it during use .
C aution
• When filling the tank with liquid , always fill through the cap f i lt er .
If there is foreign substance or undiluted chemical in the liquid , it can clog the
nozzle and cause the malfunction of the pump .
• When using water soluble powder or coal sulphur mix tur e , it should be suffi ciently stir r ed . If
not , it can clog the nozzle and cause the malfunction of the pump .
• Please take maximum care when using agricultural chemical . If chemical would be spilled
on body , make sure to wash with fresh water c omplet ely .
• Make sure that the power switch and pressure control switch are at “ OFF ” position before f i l l i n g .
• T he capacity of the tank is 18L. Check the reading in the side of the tank while filing .
• When using diff erent liquid , the tank inside should be completely washed by clean w a t er .
T hen fi ll the tank with clean water and operate the sprayer for 3 to 4 minutes so that the
inside of filt er , hose , and nozzle would be well w ashed .
• After f i lling , close the tank cap tightly so that liquid would not leak .
During filling, take the environment in consideration. Avoid any contamination. Fill the tool in a safe place and in a safe way.

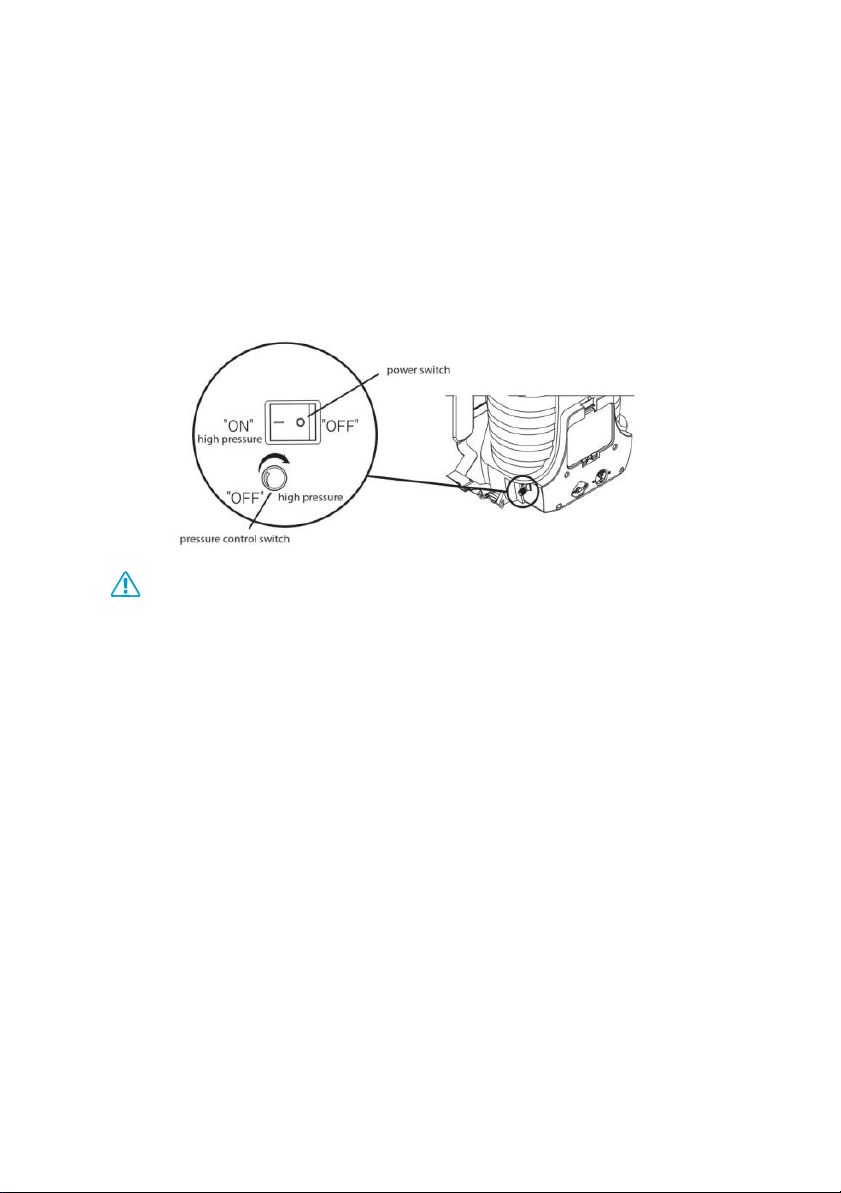

• T her e are a power switch and pressure control switch at the lower part of the tank side
(this is left of you when you have the sprayer on your shoulder). Y ou can use the spr a y er
in following two ways. Choose one as you wish.
a. Using power switch with OFF/ON (high pressure) positions . If you push the power switch to “ ON ” ,
the sprayer starts as “ high pressur e ” .
b . Using pressure control switch, which has OFF, low pressure and high pressur e .
If you turn the switch to the r igh t , the pump star ts . T he more you turn to r igh t , the higher
the pressure goes . If you turn the switch to the end of the left, the pump stops at OFF .
Use this switch if you need specific level of pressur e .
C aution
• Please remember that the spray pressure is alw a y s “ high pressur e ” when using the power switch.
• If you turned on the sprayer using the power switch, the pressure control switch does not w or k .
• If you want to control the pressur e , turn o the sprayer by the power switch and turn on again
using the pressure control switch.

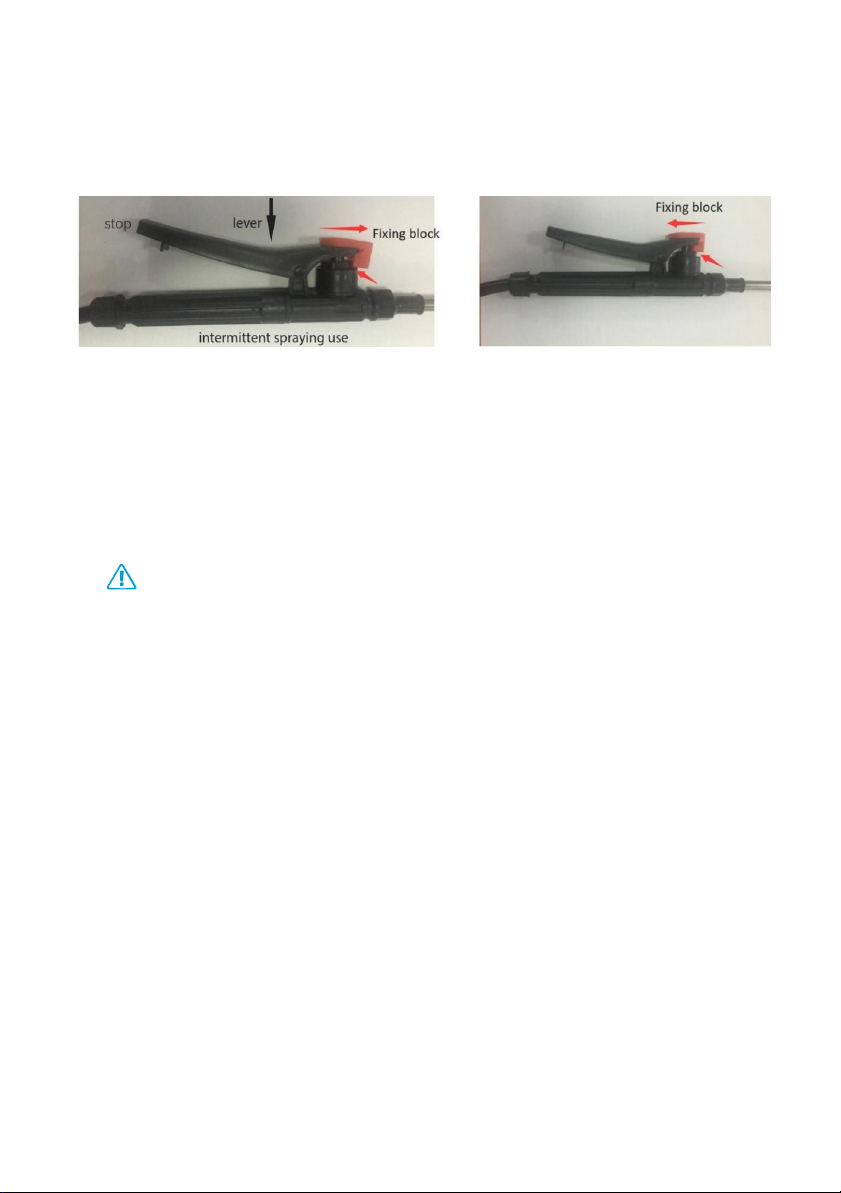

• Pushing the lever allows liquid spraying from the nozzle as shown in the gur e .
If you want intermittent spr a ying , control the spray by the lev er . If you want continuous spr a ying , use
the f i x i n g ring as shown in the
f i g u r e
• We recommend spraying pressure as f ollo wing .
a. High pressure spraying - water soluble po w der , general chemical , pesticide spr a ying b .
L o w pressure spraying – herbicide spr a ying , indoor st er ilizing
• Please always turn the power switch to OFF after spraying work. If you used pressure control switch, make
sure to turn the switch to the far left to OFF position.
Caution
B oth the power switch and pressure control switch should be at
OFF position when not in use .
• We provide with 4 kinds of no zzles . Please use one which fi ts to
your use .
a. Cone nozzle (2 openings)
This nozzle sprays the liquid in circular shape as shown in the f i gur e .
T he spray particle is fi ne (small). I t is good for pesticide and weed pr ev en tion.
Cone nozzle is most generally used because it sprays liquid in most uniform
manner .
(Pressure 0.17-0.18Mpa, flow rate 1.6-1.7 L/min)
b . Pan no zzle
This nozzle sprays the liquid in narrow oval shape as shown in the gur e . I t is
good when spraying on at plane . I t is good for herbicide and insec t
extermination. We recommend low pressure for herbicide so that the par ticle
would be bigger ; while we recommend high pressure for insecticide so tha t
the particle would be smaller . (Pressure 0.16-0.17Mpa, flow rate 1.2-1.3L/min)
c. 4-opening no zzle

This nozzle sprays the liquid in small four circular shapes as shown in the gur e .
This nozzle can be adjust ed . If you turn c oun t er - clock wise , the spray par ticles
become bigger . If you turn clockwise, the particles become smaller .
We recommend this nozzle for insecticide on fruit trees because this no zzle sprays
farther (to long distance) with bigger par ticles . (Pressure 0.26-0.28Mpa, flow rate 0.8-
0.85 L/min)
d. 8-opening nozzle
This nozzle sprays the liquid in small eight circular shapes as shown in the figure.
We recommend this nozzle for insecticide on lawns because this nozzle sprays bigger
areas. (Pressure 0.16-0.18Mpa, flow rate 1.6-1.7 L/min)
nozzle head
cone nozzle (2-opening) pan nozzle 4-opening
no zzle

fter-use check and st or age
1) After-use check
• Withdraw the liquid remaining in the tank . Wash the tank inside with clean water thor oughly .
• Fill the tank with fresh water and operate the pump for 3-4 minutes . Spray the w a t er
so that the inside of filt er , hose and nozzle would be well w ashed .
• T ur n o the power switch and pressure control switch after w ashing .
2) Daily check
• Check all joining parts and tighten. Make sure no part is untied and separa t ed .
• Make sure there is no damage on the buckle and the connection parts of the shoulder
str ap .
• Make sure there is no damage on spraying hose and the connection parts
between main body and the handle .
• Check for any foreign substance in the f i lters inside tank . Wash
per iodically . Refer to the f i gure belo w .
1) Open the tank cap and separate the cap f i lt er .
2) Separate the tank f i lter from the nipple in the bottom of tank inside .
3) Separate the f i lter mesh from the f i lter body and clean it thor oughly .
4) After cleaning , attach the f i lter mesh to the inside groove of fi lter body and join it to
the nipple .
tank cap
cap f i lt er
nipple
fi lter
body
fi lter mesh

3) For long term st or age
• Clean the sprayer following the sequence in the after-use check .
• T he sprayer should be completely dried for long term st or age . For win t er , please store the spr a y er
indoor so that the pump and hose would not be damaged or cr acked .
• T he power switch and pressure switch should be OFF for st or age .
• Please have the battery fully charged and separate it from charge socket in the main body for st or age .
C aution
For long term storage more than 6 months , please have the ba tt er y
fully charged every 2-3 months . If the battery would be fully dischar ged ,
the battery life can rapidly decrease and cause charging difficult y .
• T he storage place should not get direct sunlight and has good v en tilation.
Caution T he charger and battery should be kept in safe place not reachable by childr en.

6. Self-check items before asking ser vic e
• Please check following fi rst before asking ser vic e
( Y ou should check following fi rst to get faster and more accurate ser vic e)
P r oblem
I turned on the power swit ch
but the pump does not star t
C ause
• Battery dischar ged
• Battery connection bad
What to do
• Charge battery (refer to page 9)
• Check the charge socket
connection in the main body
(refer to page 9)
T he pump works but ther e
is no spray coming out
• T he tank f i lter is clogged
• T her e is no liquid in the tank
• Clean tank f i lter (refer to page
13)
• R e ll liquid
T he pump abruptly
stops while spr a ying
• T he tank f i lter is clogged
• T her e is no liquid in the tank
• T he nozzle is clogged
• Clean tank f i lter (refer to page
13)
• R e fi ll liquid
Spray pressure is weak
• T he tank f i lter is clogged
• T he nozzle is clogged
• Battery has been dischar ged
• Clean tank f i lter (refer to page
13)
• Clean no zzle
• Charge battery (refer to page 9)
