Hyundai HSC20V2A User manual

CORDLESS CIRCULAR SAW
HSC20V2A
WARNING: Read thoroughly the instruction manual before use

02
CONTENTS
1. INTENDED USE 3
2. SAFETY INSTRUCTIONS 3
3. YOUR PRODUCT 9
4. SPECIFICATIONS 11
5. ASSEMBLY 12
6. OPERATION 13
7. CLEANING, MAINTENANCE AND STORAGE 15
8. TROUBLESHOOTING 16
9. DISPOSAL 16
10. DECLARATION OF CONFORMITY 17
11. WARRANTY 18
12. PRODUCT FAILURE 19
13. WARRANTY EXCLUSIONS 20

03
1. INTENDED USE
This tool is designed to cut wood that will fit the machine. Only use saw blades suitable for the machine and
do not use cutting discs.
2. SAFETY INSTRUCTIONS
2.1 GENERAL POWER TOOL SAFETY INFORMATION
WARNING Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to
your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b)Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c)Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a)Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b)Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c)Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d)Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e)When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a)Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b)Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c)Prevent unintentional starting. Ensure the switch is in the off-position connecting to power source
and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch on invites accidents.
d)Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.

04
e)Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jeweler. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jeweler or long hair can be caught in moving parts.
g)If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
h)Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a)Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b)Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c)Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d)Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e)Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g)Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
h)Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a)Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
b)Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
c)When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d)Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
e)Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130 °C may cause explosion.
NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g)Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures outside the
specified range may damage the battery and increase the risk of fire.

05
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b)Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
2.2 SPECIFIC SAFETY RULES
DANGER:
a)Keep hands away from cutting area and blade. Keep your second hand on auxiliary handle or
motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b)Do not reach underneath the workpiece. The guard cannot protect you from the blade below the
workpiece.
c)Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth
should be visible below the workpiece.
d)Never hold the workpiece in your hands or across your leg while cutting. Secure the workpiece to
a stable platform. It is important to support the work properly to minimise body exposure, blade binding,
or loss of control.
e)Hold power tool by insulated gripping surfaces when performing an operation where the cutting
tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal
parts of the power tool “live” and shock the operator.
f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and
reduces the chance of blade binding.
g)Always use blades with correct size and shape (diamond versus round) of arbor holes. Blades that
do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h)Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially
designed for your saw, for optimum performance and safety of operation.
2.3 SPECIAL SAFETY REGULATIONS
Causes and operator prevention of kickback:
- Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw
to lift up and out of the workpiece toward the operator;
- When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction
drives the unit rapidly back toward the operator;
- If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into
the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.
- Kickback is the result of saw misuse and/or in corrects operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces.
Position your body to either side of the blade, but not in line with the blade. Kick back could cause
the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions
are taken.
b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the
saw motionless in the material until the blade comes to a complete stop. Never attempt to
remove the saw from the work or pull the saw backward while the blade is in motion or kickback
may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, center the saw blade in the kerf and check that saw teeth
are not engaged into the material. If saw blade is binding, it may walk up or kickback from the

06
workpiece as the saw is restarted.
d) Support large panels to minimize the risk of blade pinching and kickback. Large panels tend to sag
under their own weight. Supports must be placed under the panel on both sides, near the line of cut and
near the edge of the panel.
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf
causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If
blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making a “plunge cut” into existing walls or other blind areas. The
protruding blade may cut objects that can cause kickback.
2.4 SAFETY INSTRUCTIONS FOR THE SAW
a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard
does not move freely and close instantly. Never clamp or tie the lower guard into the open
position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the
retracting handle and make sure it moves freely and does not touch the blade or any other part, in all
angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating
properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged
parts, gummy deposits, or a build-up of debris.
c) Lower guard may be retracted manually only for special cuts such as “plunge cuts” and
“compound cuts.” Raise lower guard by retracting handle and as soon as blade enters the
material, the lower guard must be released. For all other sawing, the lower guard should operate
automatically.
d) Always observe that the lower guard is covering the blade before placing saw down on bench or
floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its
path. Be aware of the time it takes for the blade to stop after switch is released.
- Use only saw blades recommended by the manufacturer, which conform to EN 847-1, if intended for
wood and analogous materials.
- Use only blade diameter(s) in accordance with the markings.
- Only use blades for wood cutting.
- Avoid overheating the blade tips
- Wear a dust mask.
- Do not use abrasives wheels
2.5 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER
Batteries
▪Never attempt to open for any reason.
▪Do not store in locations where the temperature may exceed 40°C (104°F).
▪Charge only at ambient temperatures between 4°C and 40°C (39.2°F and 104°F).
▪Charge only using the charger provided with the tool.
▪Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged state.
▪It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The
ideal charge for long-term storage of your Li-ion battery is 40% of capacity.

07
▪When disposing of batteries, follow the instructions given in the section “Protecting the environment”.
▪Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal
directly or via accidental contact with metallic objects, the battery is short circuited and an intense
current will flow causing heat generation which may lead to casing rupture or fire.
▪Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and
other polymer components may be damaged resulting in electrolyte leakage and/or internal short
circuiting leading to heat generation causing rupture or file. Moreover do not dispose of the
batteries in fire, explosion and/or intense burning may result.
▪Under extreme conditions, battery leakage may occur. When you notice liquid on the battery,
proceed as follows:
✓Carefully wipe the liquid off using a cloth. Avoid skin contact.
✓In case of skin or eye contact, follow the instructions below:
•Immediately rinse with water. Neutralize with a mild acid such as lemon juice or
vinegar.
•In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
Consult a physician.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate
the battery.
Charger
▪Use the charger provided with the tool only to charge
the battery.
▪Never attempt to charge non-rechargeable batteries.
▪Have defective cords replaced immediately.
▪Do not expose to water.
▪Do not open the charger.
▪Do not probe the charger.
▪The charger is intended for indoor use only.
▪This charger can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.

08
▪Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
▪If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CAUTION: Do not recharge non-rechargeable batteries.
2.6 SYMBOLS
To reduce the risk of injury, the user must read and understand this manual
before using this product.
Wear ear protectors. Exposure to noise can cause hearing loss.
Wear eye protection.
Wear respiratory protection.
Wear protective gloves
Class II, double isolation(only for charger)
Do not dispose of old appliances with domestic rubbish
Ne pas exposer le chargeur ni la batterie àl’eau.
Do not incinerate the battery or charger.
Ambient temperature of 40 °C max. (only for the battery)
Use the battery and charger Indoor use only.
Recycling

09
3. YOUR PRODUCT

10
(1) Lock button for on/off switch
(2) Hex key
(3) Auxiliary handle (insulated gripping surface)
(4) Spindle lock button
(5) Base plate
(6) Wing bolt for parallel guide
(7) Wing bolt for mitre/bevel angle preselection
(8) Scale for mitre/bevel angles
(9) Cut mark 450
(10) Cut mark 0°
(11) Parallel guide
(12) Retracting blade guard
(13) Adjusting lever for retracting blade guard
(14) Chip ejector
(15) Battery
(16) Protective guard
(17) On/off switch
(18) Handle (insulated gripping surface)
(19) Saw spindle
(20) Mounting flange
(21) Circular saw blade
(22) Clamping flange
(23) Clamping bolt with washer
(24) Battery release button
(25) Dust extraction adapter
(26) Clamping lever for cutting depth preselection
(27) Cutting depth scale
(28) Button for battery charge indicator
(29) Battery charge indicator

11
4. SPECIFICATIONS
Power supply
20 V d.c.
No Load Speed
4300 min-1
Dia. of saw blade (mm)
Ø165mm
Max cutting depth
52mm (90°), 36mm (45°)
Miter angle
0 °- 45 °
Saw blade
Φ165xΦ20x2.0x24T, max 7900/min
Charger type
HSC20V2A
Input 100-240V~ 50-60Hz, 0.4A;
Output 20V d.c., 0.5A 10W
Battery type
HSC20V2A
20V d.c. 2.0Ah, Lithium-ion 5Li-on cells
Charging time
Approx: 4 hours
Acoustic pressure level LpA
86.4 dB(A) , K = 3 dB(A)
Acoustic power levelLwA
97.4 dB(A) , K = 3 dB(A)
aw (Vibration)
Main handle: 1,970 m/s2 (K= 1.5 m/s2)
Auxiliary handle: 2,294 m/s2(K= 1.5 m/s2)
Weight (Not include battery pack)
2.45kg
Information
The declared vibration total value has been measured in accordance with a standard test method
and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of exposure.
Warning
that the vibration emission during actual use of the power tool can differ from the declared total
value depending on the ways in which the tool is used;
of the need to identify safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such as
the times when the tool is switched off and when it is running idle in addition to the trigger time).
Wear hearing protection.

12
5. ASSEMBLY
WARNING ! Remove the battery pack before assembly. The tool should not use any abrasive
wheel.
Wear gloves to avoid the risk of injury.
5.1 INSERTING/CHANGING THE CIRCULAR SAW BLADE
➢Only use saw blades that match the specifications given in this user guide.
➢The permitted speed of the application tool must be at least equal to the maximum speed marked on the
power tool. If accessories run faster than their rated speed, they may break and fly off.
➢Do not use abrasive wheels as the application tool under any circumstances.
Removing the saw blade (see figure A)
To change tools, we recommend that you place the power tool down on the front side of the motor housing.
- Press and hold the spindle lock button.
➢Do not press the spindle lock button while the saw spindle is moving. The power tool may become
damaged if this happens.
- Use the hex key to undo the clamping bolt in rotational direction.
- Swing the retracting blade guard back and hold on to it firmly.
- Remove the clamping flange and the saw blade from the saw spindle.
Fitting the saw blade (see figure A)
To change tools, we recommend that you place the power tool down on the front side of the motor housing.
- Clean the saw blade and all the clamping elements to be fitted.
- Swing the retracting blade guard back and hold on to it firmly.
- Place the saw blade on the mounting flange The cutting direction of the teeth (direction of the arrow on the
saw blade) must match the rotational direction of the arrow on the retracting blade guard.
- Attach the clamping flange and screw in the clamping bolt in rotational direction. Ensure that the mounting
flange and clamping flange are installed in the correct position.
- Press and hold the spindle lock button.
- Use the hex key to tighten the clamping bolt in rotational direction. The tightening torque should be 6-9 Nm.
Dust/chip extraction
The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to
human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory
illnesses in the user or in people in the near vicinity.
Certain dust, such as oak or beeth dust are classified as carcinogenic, especially in conjunction with wood
treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by
specialists.
- Use a dust extraction system that is suitable for the material wherever possible.
- Provide good ventilation at the workplace.
- It is advisable to wear a P2 filter class breathing mask.
The regulations on the material being machined that apply in the country of use must be observed.
➢Avoid dust accumulation at the workplace. Dust can easily ignite.

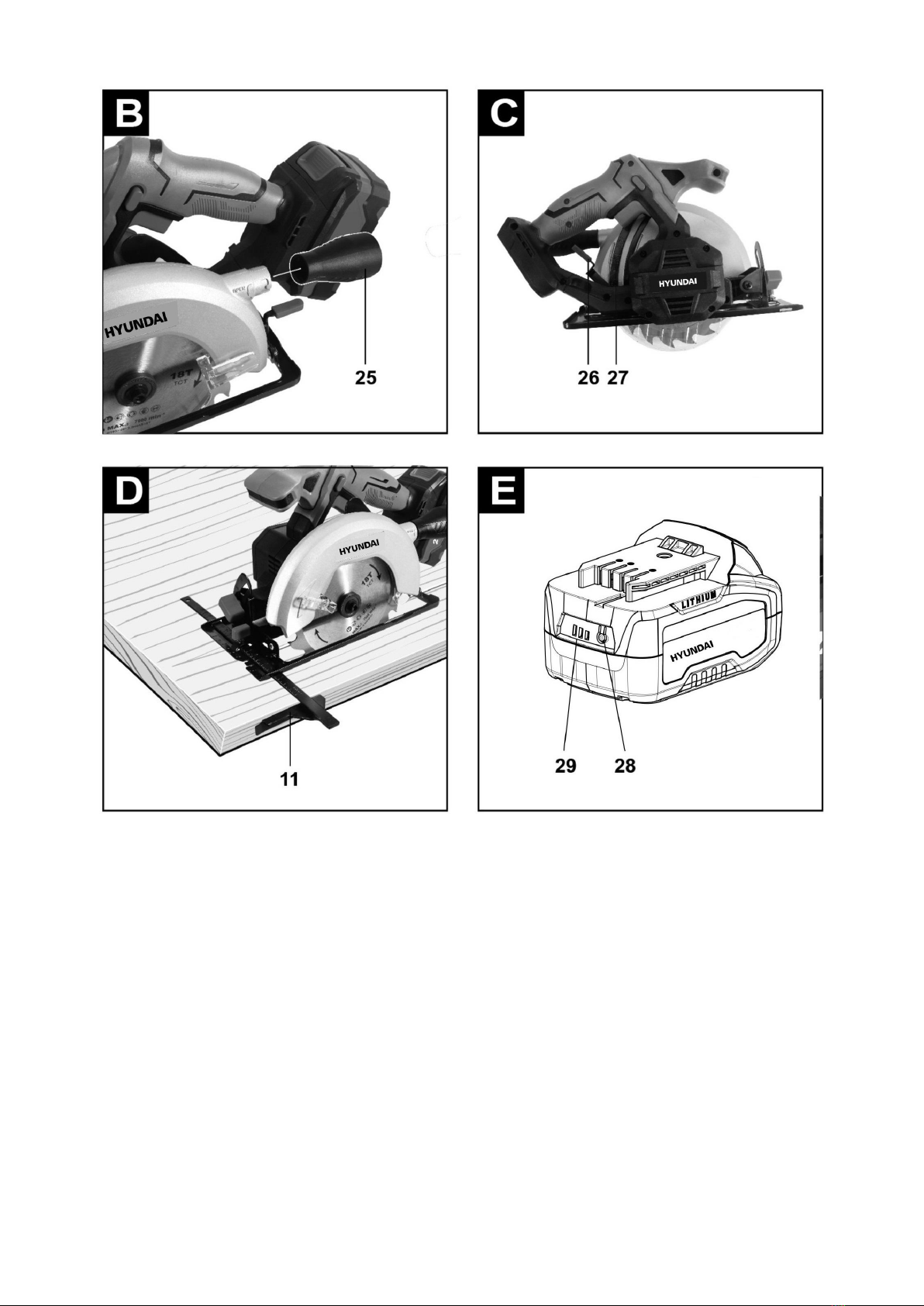

Fitting the dust extraction adapter (see figure B)
Push the dust extraction adapter onto the chip ejector until it clicks into place.

13
6. OPERATION
6.1 CHARGING THE BATTERY PACK
IMPORTANT: The battery pack is not fully charged at the factory.
Before attempting to charge them, thoroughly read all of the safety instructions.
1) To assure that the charger you use are applicable to the battery pack.
2) Insert the charger into 100-240V~,50-60Hz outlet. The indicator light (31) become to red light to show
the power is connected.
3) Insert the battery(15) into the slot of charger(30). Make sure the contact with the charger is correct.
4) The indicator light (31) become to green and flash when charging.
5) When fully charged The indicator light (31) become to green light.
6) Frequently monitor the charger and battery pack while connected.
7) Unplug the charger and disconnect it from the battery pack when finished.
8) Allow the battery pack to cool completely before using it.
9) Store the charger and battery pack indoors, out of reach of children.
Note: If the battery does not fit properly, disconnect it and confirm that the battery pack is the
correct model for this charger as shown on the specification chart. Do not charge any other
battery pack or anybattery pack that does not securely fit the charger.
NOTE: If battery is hot after continuous use in the tool, allow it to cool down to room
temperature before charging. This will extend the life of your batteries.
NOTE: Remove battery pack from charger stand which use your thumb or fingers, press the
battery’s release button in and pull the battery pack offat the same time.
Battery capacity indicator
There are battery capacity indicators on the battery pack; you can check the capacity status of the battery if
you squeeze the button . Before using the machine, please press switch trigger to check if the battery is full
enough for properlyworking.
WARNING: Before making any adjustments ensure the drill is switched off with the direction
of rotation selector in the centerposition.

14
1. Remove the battery: press the battery release latch in and at the same time pull the battery pack off.
2. To insert the battery, push the battery pack onto the contacts of the tool.
6.2 OPERATING MODES
➢Remove the battery before carrying out any work on the power tool.
Setting the cutting depth (see figure C)
➢Adapt the cutting depth to the thickness of the workpiece. Aspace of less than the height of one full
tooth should be visible under the workpiece.
Loosen the clamping lever. For a smaller cutting depth, pull the saw away from the base plate; for a larger
cutting depth, push the saw towards the base plate. Adjust the desired cutting depth at the cutting-depth
scale. Re- tighten the clamping lever.
The clamping force of the clamping lever can be readjusted. To do so, unscrew the clamping lever and
retighten it in a position offset by at least 30°in an anticlock- wise direction.
Setting the mitrelbevel angle
We recommend that you place the power tool down on the front side of the protective guard. Loosen the
wing bolt. Swivel the saw to the side. Set the required mitre angle on the scale retighten the wing bolt.
Note: When making mitre cuts, the cutting depth is less than the value shown on the cutting depth scale.
Cut marks
The 0° cut mark indicates the position of the saw blade when making a right-angled cut.
The 45°cut mark indicates the position of the saw blade when making a 45°cut.
Start-up
Inserting the battery
➢Use only original lithium-ion batteries with the voltage stated on the type plate of your power
tool. Using other batteries can lead to injuries and pose a fire hazard.
Slide the charged battery into the foot of the power tool from the front. Press the battery fully into the foot
until the red stripe is no longer visible and the battery is securely locked.
Switching on/off
To start the power tool, first press the lock-off switch then press and hold the on/off switch.
To switch off the power tool, release the on/off switch.
Note: For safety reasons, the on/off switch cannot be locked; it must remain pressed during the entire
operation.
Protection Against Deep Discharging
The lithium-ion battery is protected against deep discharge by the Electronic Cell Protection (ECP). When
the battery is discharged, the power tool is switched off by means of a protective circuit: The application tool
no longer rotates.
Practical advice
The width of cut varies depending on the saw blade used. Protect saw blades against shock and impact.
Guide the power tool evenly, pushing it gently in the cutting direction. Applying too much pressure to the
power tool when moving it in the cutting direction significantly reduces the service life of the application tools
and can damage the power tool.
The sawing performance and the quality of the cut essentially depend on the condition and the tooth shape
of the saw blade. This is why you should only use sharp saw blades that are suitable for the material being
machined.

15
Sawing wood
Choosing the right saw blade depends on the wood type, wood quality and whether cuts with or against the
grain are required.
Making cuts in spruce with the grain produces long, spiral- shaped chips.
Beech and oak dust is especially detrimental to health. Therefore, work only with dust extraction.
Sawing with a parallel guide (see figure D)
The parallel guide allows you to make precise cuts along the edge of a workpiece and cut strips with the
same dimensions.
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Only store the battery within a temperature range of -20 to 50 °C. Do not leave the battery in your car in the
summer, for example. Occasionally clean the ventilation slots on the battery using a soft brush that is clean
and dry.
A significantly reduced operating time after charging indicates that the battery has deteriorated and must be
replaced. Follow the instructions on correct disposal.
7. CLEANING, MAINTENANCE AND STORAGE
7.1 CLEANING
a) Keep the ventilation slots free of dust and dirt to prevent overheating.
b) Regularly clean the circular saw housing with a soft cloth, preferably after each use. If the dirt does not
come off, use a soft cloth dampened with soapy water.
c) Never use solvents such as gasoline, alcohol, ammonia water, etc. These solvents can damage plastic
parts
7.2 MAINTENANCE
a) The circular saw has been designed to operate over a long period of time with minimal maintenance.
Continued satisfactory operation depends on proper maintenance and regular cleaning.
b) The circular saw should only be repaired by an authorized service center.
7.3 STORAGE
a) Thoroughly clean the circular saw and its accessories before putting it away.
b) Store the circular saw out of the reach of children in a stable and secure place.

16
8. TROUBLESHOOTING
Problems
Causes
Solutions
Cannot start
Battery pack is not properly
installed
Remove and reinsert battery pack
The battery is discharged
Charge the battery
Internal damage or wear, example
the engine is damaged
Repair by a repair center
approved maintenance
Can only run slowly
The battery is not charged
Charge the battery
The battery wears out
Replace the battery with a new
battery
Cannot cut effectively
The saw blade is dull
Change the saw blade
Big noise or abnormal sound
Internal damage or wear
Repair by a repair center
approved maintenance
Overheated
Air vents are blocked
Clean dust from air vents
The saw blade is dull
Change the saw blade
The circular saw operates for too
long
Switch off the circular saw and
allow it to cool.
9. DISPOSAL
Electric power tools, as well as their accessories and packaging, must each be able to follow an appropriate
recycling pathway. Only for the countries of the European Union:
Do not throw away your electrical appliance with the household waste! In accordance with the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation in national laws, power tools that can no longer be used must be separated and
follow an appropriate recycling pathway.
BATTERY PACK
This product contains Li-ion. To preserve natural resources, please recycle or dispose of
batteries properly. Local, state or federal laws may prohibit disposal of Li-ion batteries in ordinary
trash. Consult your local waste authority for information regarding available recycling and/or
disposal options.

17
10. DECLARATION OF CONFORMITY
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that，
Product: CORDLESS CIRCULAR SAW
Trade mark: HYUNDAI
Model: HSC20V2A
Serial number: 20211164350-20211164749
is in conformity with the essential requirements and other relevant provisions of the applicable European
Directives, based on the application of European harmonized standards. Any unauthorized modification
of the apparatus voids thisdeclaration.
European Directives (including, if applicable, their amendments up to the date of signature);
Rohs directive 2011/65/EU + (EU) 2015/863
Directive Machine 2006/42/EC
Directive EMC 2014/30/UE
LVD Directive 2014/35/UE
European harmonized standards (including, if applicable, their amendments up to the date of signature);
EN62841-1: 2015; EN62841-2-5: 2014
EN55014-1 : 2017+A11:2020; EN55014-2 : 2015
EN62233:2008
EN60335-2-29:2004+A2:2010+A11:2018
EN60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
EN55014-1 : 2017
EN55014-2 : 2015
EN61000-3-2:2014
EN61000-3-3:2013
Cugnaux, 16/09/2021
Philippe MARIE / PDG
Responsible of the technical file: Mr Olivier Patriarca

18
11. WARRANTY
WARRANTY
The manufacturer guarantees the product against defects in material and workmanship for a period of 2
years from the date of the original purchase. The warranty only applies if the product is for household use.
The warranty does not cover breakdowns due to normal wear and tear.
The manufacturer agrees to replace parts identified as defective by the designated distributor. The
manufacturer does not accept responsibility for the replacement of the machine, in whole or in part , and/or
ensuing damage.
The warranty does not cover breakdowns due to:
•insufficient maintenance.
•abnormal assembly, adjustment or operations of the product.
•parts subject to normal wear and tear.
The warranty does not extend to:
•shipping and packaging costs.
•using the tool for a purpose other than that for which it was designed.
•the use and maintenance of the machine done in a manner not described in the user manual.
Due to our policy of continuous product improvement, we reserve the right to alter or change specifications
without notice. Consequently, the product may be different from the information contained therein, but a
modification will be undertaken without notice if it is recognized as an improvement of the preceding
characteristic.
READ THE MANUAL CAREFULLY BEFORE USING THE MACHINE.
When ordering spare parts, please indicate the part number or code, you can find this in the spare parts list
in this manual. Keep the purchase receipt; without it, the warranty is invalid. To help you with your product,
we invite you to contact us by phone or via our website:
•+33 (0)9.70.75.30.30
•https://services.swap-europe.com/contact
You must create a "ticket" via the web platform.
•Register or create your account.
•Indicate the reference of the tool.
•Choose the subject of your request.
•Describe your problem.
•Attach these files: invoice or sales receipt, photo
of the identification plate (serial number), photo
of the part you need (for example: pins on the
transformer plug which are broken).

19
12. PRODUCT FAILURE
WHAT TO DO IF MY MACHINE BREAKS DOWN?
If you bought your product in a store:
a) Empty the fuel tank if your product has one.
b)Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
Go to the store with the complete machine and with the receipt or invoice.
If you bought your product on a website:
a) Empty the fuel tank if your product has one..
b)Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case,
the repairer will refuse the machine.
c) Create a SWAP-Europe service ticket on the site: https://services.swap-europe.com When making the
request on SWAP-Europe, you must attach the invoice and the photo of the nameplate (serial number).
d) Contact the repair station to make sure it is available before dropping off the machine.
Go to the repair station with the complete machine packed, accompanied by the purchase invoice and the
station support sheet downloadable after the service request is completed on the SWAP-Europe site
For machines with engine failure from manufacturers BRIGGS & STRATTON, HONDA and RATO, please
refer to the following instructions.
Repairs will be done by approved engine manufacturers of these manufacturers, see their site:
•http://www.briggsandstratton.com/eu/fr
•http://www.honda-engines-eu.com/fr/service-network-page;jsessionid=5EE8456CF39CD572AA2AEEDFD
290CDAE
•https://www.rato-europe.com/it/service-network
Please keep your original packaging to allow for after-sales service returns or pack your machine
with a similar cardboard box of the same dimensions.
For any question concerning our after-sales service you can make a request on our website https://
services.swap-europe.com
Our hotline remains available at [phone].

20
13. WARRANTY EXCLUSIONS
THE WARRANTY DOES NOT COVER:
•Start-up and setting up of the product.
•Damage resulting from normal wear and tear of the product.
•Damage resulting from improper use of the product.
•Damage resulting from assembly or start-up not in accordance with the user manual.
•Breakdowns related to carburetion beyond 90 days and fouling of carburetors.
•Periodic and standard maintenance events.
•Actions of modification and dismantling that directly void the warranty.
•Products whose original authentication marking (brand, serial number) has been degraded, altered or
withdrawn.
•Replacement of consumables.
•The use of non-original parts.
•Breakage of parts following impacts or projections.
•Accessories breakdowns.
•Defects and their consequences linked to any external cause.
•Loss of components and loss due to insufficient screwing.
•Cutting components and any damage related to the loosening of parts.
•Overload or overheating.
•Poor power supply quality: faulty voltage, voltage error, etc.
•Damages resulting from the deprivation of enjoyment of the product during the time necessary for repairs
and more generally the costs related to the immobilization of the product.
•The costs of a second opinion established by a third party following an estimate by a SWAP-Europe repair
station
•The use of a product which would show a defect or a breakage which was not the subject of an immediate
report and/or repair with the services of SWAP-Europe.
•Deterioration linked to transport and storage*.
•Launchers beyond 90 days.
•Oil, petrol, grease.
•Damages related to the use of non-compliant fuels or lubricants.
* In accordance with transport legislation, damage related to transport must be declared to carriers within 48
hours maximum after observation by registered letter with acknowledgement of receipt.
This document is a supplement to your notice, a non-exhaustive list.
Attention: all orders must be checked in the presence of the delivery person. In case of refusal by the
delivery person, it you must simply refuse the delivery and notify your refusal.
Reminder: the reserves do not exclude the notification by registered letter with acknowledgement within 72
hours.
Information:
Thermal devices must be wintered each season (service available on the SWAP-Europe site). Batteries must
be charged before being stored.
