RU
Руководство по эксплуатации
Гарантийный талон
Instruction manual
Warranty card
EN
H-SWS1-30V-UI069
H-SWS1-50V-UI070
H-SWS1-80V-UI071
H-SWS1-100V-UI072
H-SWS2-30H-UI073
H-SWS2-50H-UI074
H-SWS2-80H-UI075
H-SWS2-100H-UI076
2. Electrical storage water heater
EN
Table of contents
Introduction
General
Description
Stock number interpretation
Appearance
Design
Package contents
Overall and installation dimensions
Water heater safe operation and installation rules
Safety of children and people with physical disability
General safety rules
Installation/connection safety and precautions
Operation/cleaning safety and precautions
Disposal
Installation
Mounting
Water supply network connection
Electrical mains connection
Operation
Maintenance
Troubleshooting

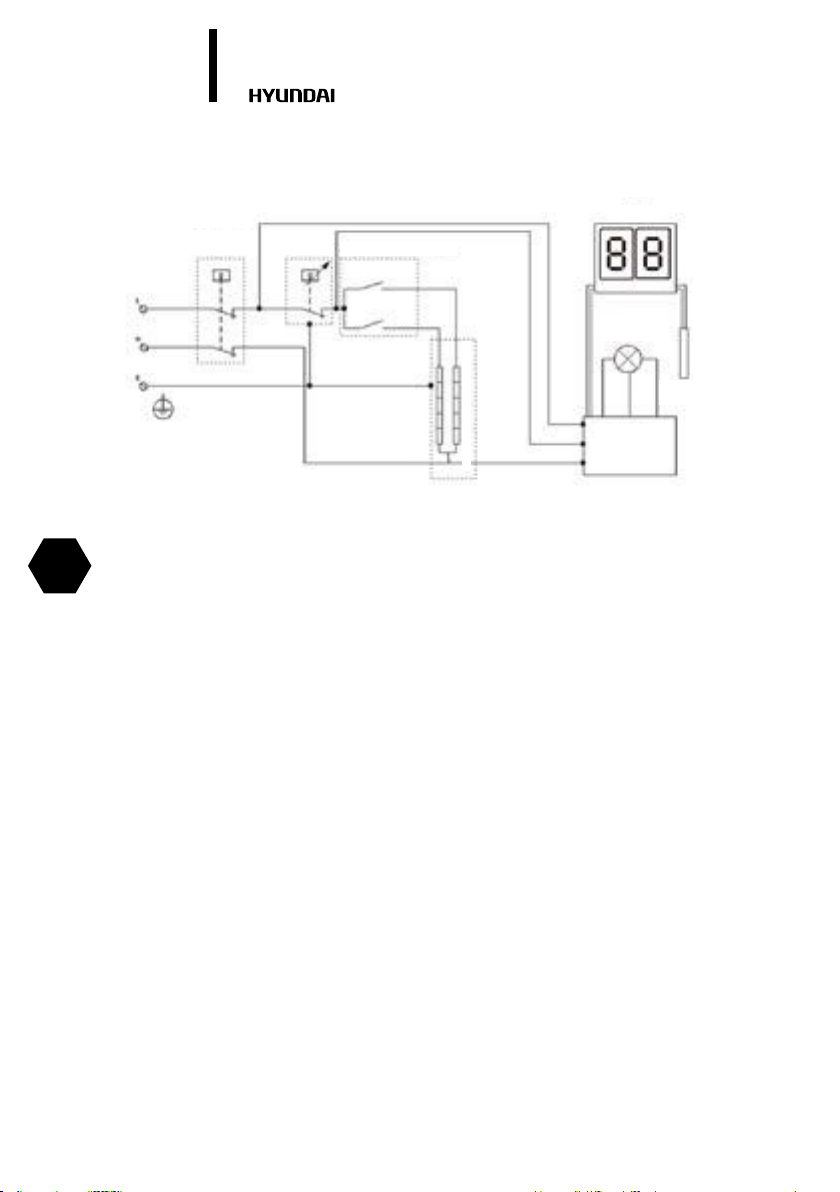

Electrical schematic diagram
3
3
3
4
4
5
5
6
7
8
8
8
8
9
9
9
10
10
11
11
13
15
16
3.
Electrical storage water heater
EN
INTRODUCTION
Before installing and using the appliance, please very carefully read this instruction manual and
manufacturer’s warranty liabilities. Keep the instruction manual for future reference. If you hand
over the appliance to another user, please hand over the instruction manual as well.
For more details or resolution of any occurred problems, please visit Hyundai website at www.
hyundai-hvac.com. You can also contact the nearest regional service center of the manufacturer.
If there are no service centers of the manufacturer in your region, please contact the regional
dealer of Hyundai.
The content of this instruction manual has been checked and approved. The manufacturer is not
responsible for any spelling mistakes in the text and incorrect interpretation of the instruction
manual content.
GENERAL
Description
Electrical tank water heaters are used for supply of hot water in country houses, cottages, baths,
and other utility spaces, which are not connected to the central hot water supply network. Such
heaters can also be used as standby equipment in apartments for the preventive maintenance
period of the hot water supply network.
The operation principle of the water heater assumes that water pressure in the water heater
meets water pressure in the water main. As water is consumed, the water heater tank is continu-
The electrical tank water heater of Niagara series is designed for heating of tap water in house-
hold use. It is capable to prepare a lot of hot water and maintain the set temperature auto-
matically. The water heater has a steel outer casing. Water is heated in a steel enameled tank
using a copper heating element. Heat insulation made of an environmentally friendly material is
provided between the outer casing and steel tank. The dense insulation layer ensures reduction
-
tion, the water heater is equipped with a magnesium anode of extended length. The water heater
has a water heating indicator and a water temperature control knob located on the bottom
cover. The knob controls an integrated thermostat allowing the user to set various water heating
temperatures in the range from +35°C to +75°C. A temperature limiter installed in the appliance
excludes overheating of water above 88°C, while a combined check valve / pressure safety valve
ensures safe operation of the water heater. If pressure inside the tank exceeds 0.75 MPa, the
pressure safety valve will automatically open and exclude rupture of the casing.
4. Electrical storage water heater
EN

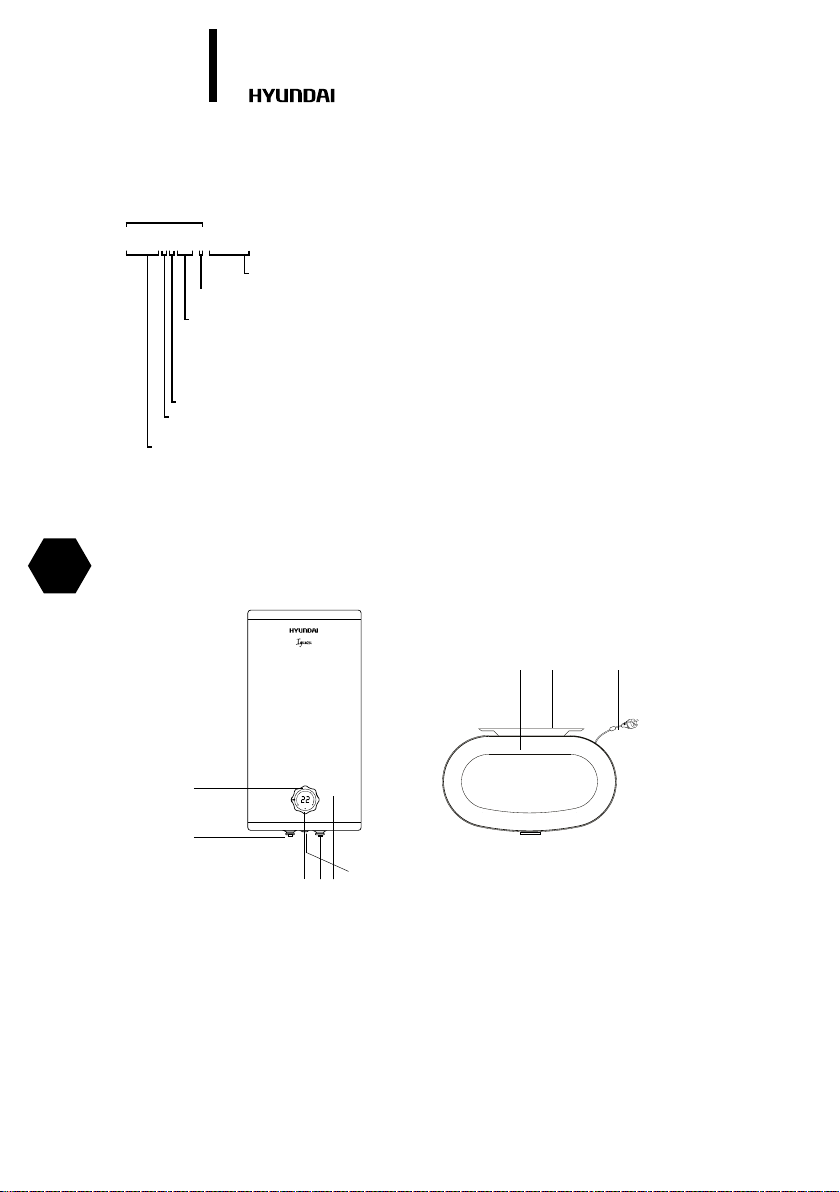

Appearance
1 - Outer casing
2 - Thermometer*
3 - Bottom cover
4 - Heating indicator
5 - Cold water inlet
6 - Thermostat knob
7 - Hot water outlet
8 - Mount
9 - Power cord with ELCB
Stock number interpretation
Appliance
series
H-SWS1-30V-UI069
Individual model code
Installation type
V - vertical installation way, M - horizontal installation way
Rated water volume
30 – rated water volume is 30 liters
50 - rated water volume is 50 liters
80 - rated water volume is 80 liters
100 - rated water volume is 100 liters
Series number
Tank material
E - enamelled inner tank, S - stainless steel inner tank
Appliance type
H-SW - Hyundai storage water heater
H-SWS1-30V, H-SWS1-50V, H-SWS1-80V, H-SWS1-100V
2 7 8
6
5
4
31
9
5.
Electrical storage water heater
EN
Design
1 - Outer casing
2 - Heat insulation
3 - Inner tank
4 - Thermostat sensor tube
5 - Temperature limiter sensor tube
6 - Inlet connection
7 - Temperature limiter (capillary)
8 - Temperature limiter sensor
9 - Thermostat sensor
10 - Capillary thermostat
11 - Outlet connection
12 - Heating element
13 - Magnesium anode
1 - Water heater
2 - Anchor bolts
3 - Combined check valve / pressure safety valve
4 - Instruction manual
Package contents
31
2
11
10 12
4, 9
5, 8
13
7
6
6. Electrical storage water heater
EN
Appliance series H-SWS1-30V-
UI069
H-SWS1-50V-
UI070
H-SWS1-80V-
UI071
H-SWS1-100V-
UI072
Rated power consumption, W 2000 2000 2000 2000
Rated current, A
Rated water volume, l 30 50 80
Moisture protection class IPX4 IPX4 IPX4 IPX4
Electrical protection class I I I I
Rated pressure, MPa
Operating pressure, MPa
43 64
Actual annual electrical energy
consumption, kWh 440
Constant daily heat loss, kWh/day
Overall dimensions, mm 552x242x458 838x242x458 995x280x520
Net weight, kg
Appliance series H-SWS2-30H-
UI073
H-SWS2-50H-
UI074
H-SWS2-80H-
UI075
H-SWS2-100H-
UI076
Rated power consumption, W 2000 2000 2000 2000
Rated current, A
Rated water volume, l 30 50 80
Moisture protection class IPX4 IPX4 IPX4 IPX4
Electrical protection class I I I I
Rated pressure, MPa
Operating pressure, MPa
43 64
Actual annual electrical energy
consumption, kWh 440
Constant daily heat loss, kWh/day
Overall dimensions, mm 552x242x458 838x242x458 995x280x520
Net weight, kg
Electrical storage water heater
EN
Model/size A B C D E F K
H-SWS1-30V-UI069 552 580 240 242 443 -
838 866 500 242 443 -
H-SWS1-80V-UI071 995 450 280 505 -
H-SWS1-100V-UI072 550 280 505 -
Model/size A B C D E F K
H-SWS2-30H-UI073 552 240 242 443 20
838 500 242 443 20
H-SWS2-80H-UI075 995 295 450 280 505 20
H-SWS2-100H-UI076 295 550 280 505 20

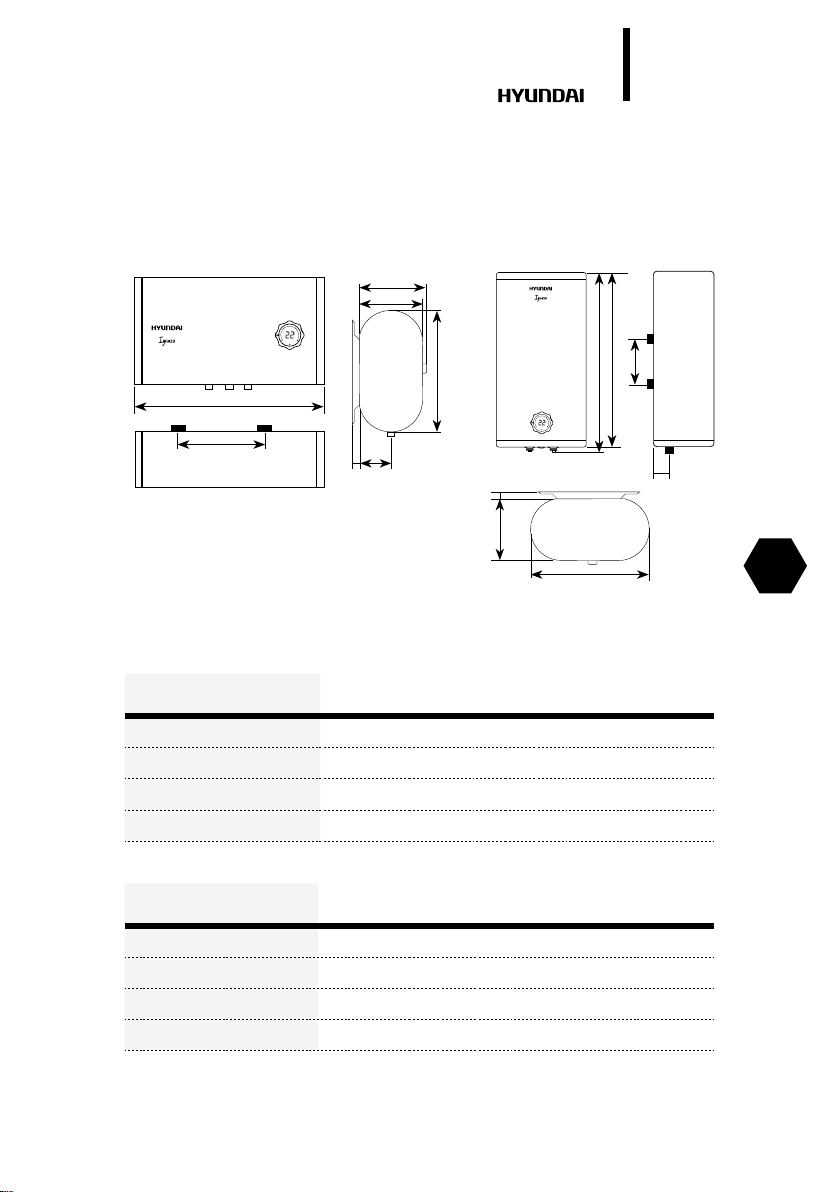

Overall and installation dimensions*
D
F
E
G
C
B
A
C
B
D
KF
E
8. Electrical storage water heater
EN
WATER HEATER SAFE OPERATION AND INSTALLA-
TION RULES
Always observe the safety rules, when using the water heater. Improper operation due to igno-
damages as a result of improper installation and operation of the appliance.
Safety of children and people with physical disability
or instructed on use of the appliance by a person responsible for their safety.
-
dren close by.
General safety rules
specialists.
Installation/connection safety and precautions
shall be performed by a specialized organization, representatives of the manufacturer’s service
department, or specialists having permits for installation of electrical equipment with observa-
tion of the safety requirements.
to warranty service and the manufacturer does not bear the responsibility.
sure that the mains socket for the water heater has a grounding contact and it is properly
grounded. If there is no grounding loop in your electrical mains, operation of the water heater is
hazardous for life.
your electrical mains from the electrical energy suppliers.
length of the power cord and do not connect the water heater via electrical extension cables.
in vertical position with its connections downward.
red for water outlet).
9.
Electrical storage water heater
EN
is not designed for industrial use.
pressure safely valve.
-
outlet temperature of water.
-
ergization.
odor, or smoke from it.
manufacturer in your region.
mains. Perform cleaning or maintenance in accordance with the guidelines of this instruction
manual.
it.
Operation/cleaning safety and precautions
CAUTION
Do not switch on the water heater, if water may freeze in it.
Disposal
Upon expiration of service life, the water heater shall be disposed. For more details regarding
disposal of the water heater, please contact a representative of the local authorities.
Service life is about 10 years. Service life of the appliance is not equal to the warranty period.
INSTALLATION
CAUTION!
Refer to «Water heater safe operation and installation rules»
During installation of the water heater, rigorously observe the laws, regulations, directives, and
your country, as well as directives of local electrical energy/water suppliers.
Electrical storage water heater
EN
The wall planned for installation of the electrical water heater shall be
water. The wall shall be free of cracks and other damages. Otherwise,
take measures to reinforce the mount or install the water heater on a
special support.
If the bathroom is too small, the water heater can be installed in another
place not exposed to direct sunlight and inaccessible for moisture
ingress. However for reduction of heat loss in pipes, the installation place
of the water heater shall be located as close as possible to the hot water
consumption point.
When selecting a location for the water heater, ensure free access to it as
follows: at least 60 cm between the bottom part of the water heater and
when necessary.
heater, mark points to make holes for the anchor bolts with hooks. Drill
two holes of appropriate depth in the wall using a drill with suitable size
for the anchor bolts provided in the water heater package.
bolts clockwise to securely tighten the nuts of the bolts. Then, hang the
water heater onto the hooks of the anchor bolts and check security of
mounting.
Mounting
Water supply network connection
The water heater is connected to the cold water supply network with operating pressure from
0.1 MPa to 0.7 MPa. If water pressure in the water supply network exceeds 0.75 MPa, install a
reduction valve (pressure reducer) in the feed system so that operating pressure does not exceed
0.75 MPa.
If water hardness in the water supply main exceeds 450 mg/l (CaCO3), we recommend you
heating element.
For connection to the water supply network, the water heater has inlet and outlet connectors,
which are marked with indication labels and provided with male thread 12 mm in diameter
(G1/2”).
Install the combined check valve / pressure safety valve provided in the package onto the cold
water inlet connection marked with blue color. Connect a drain tube to the pressure relief port of
the pressure safety valve for water drainage to the sewers (possible upon heating).
CAUTION!
Never operate the water heater without the installed check
valve / pressure safety valve.
To facilitate maintenance of the water heater, we recommend you to install a drain valve and a
tee between the cold water inlet connection and pressure safety valve. This tee will help you to
faster drain water from the water heater. For your convenience, we recommend you to connect
from the water heater to the sewers or another selected destination. Connect the desired
quantity of consumption points to the hot water outlet connection marked with red color. Open
Electrical storage water heater
EN
1
4
8
5
6
7
2
3
CAUTION!
Proper grounding is important for minimization of electrical shock
1 - Inlet connection
2 - Outlet connection
3 - Tee*
5 - Pressure safety valve
6 - Drain tube*
8 - Drain hose*
* not included to the package.
retighten them as necessary.
Electrical mains connection
The power cord of the water heater has a plug with a grounding contact. The water heater shall
be used with the properly grounded mains socket. If the socket planned for use is not properly
-
cian for replacement of the socket.
The water heater is designed for connection to the electrical mains with single-phase voltage of
220V. Before connection, make sure that parameters of the electrical mains at the connection
socket shall be designed for rated current not less than 10A. The electrical cable shall have
conductor area not less than 3x1.5 mm2 (for copper).
OPERATION
CAUTION!
Refer to «Water heater safe operation and installation rules»
Electrical storage water heater
EN

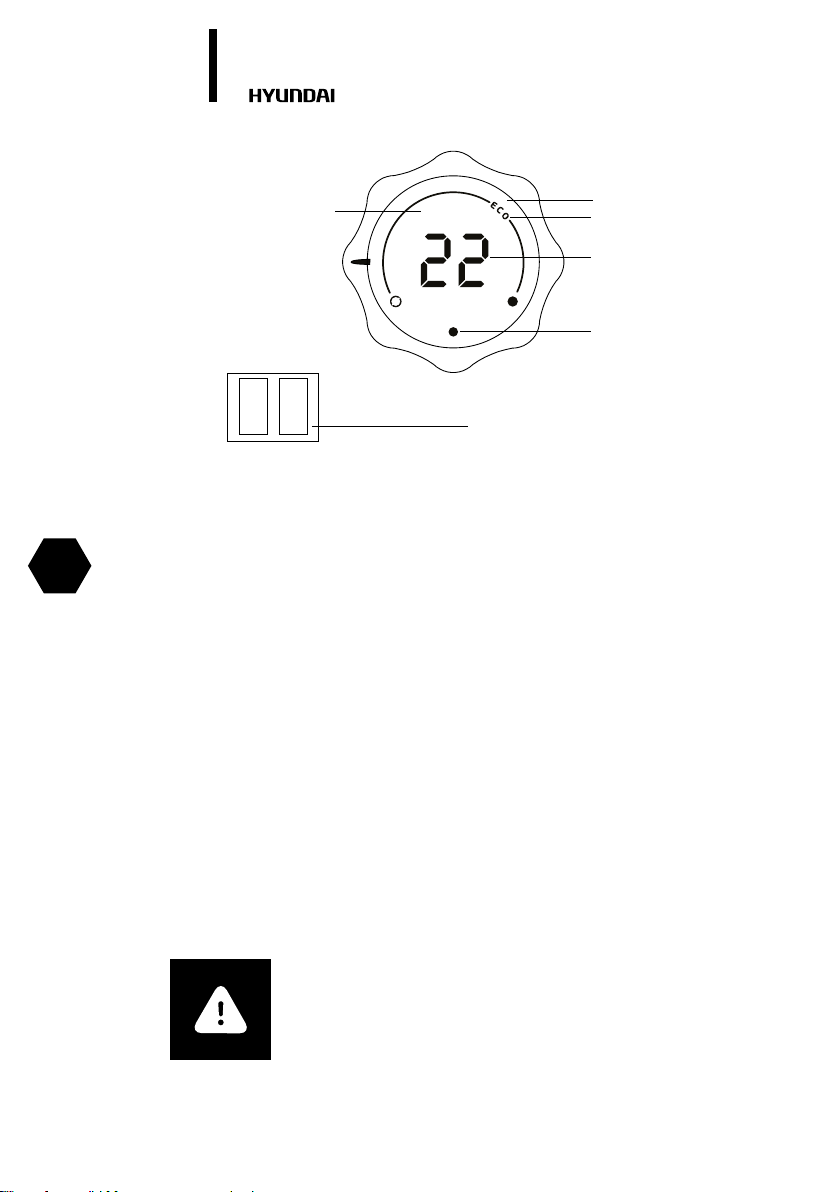

1- Display
2 – Thermostat knob
3 – Position «ECO»
4 – Instant water temperature in internal tank
5 – Power supply and heating indicator
6 – heating capacity switch (depending on model can be
positioned at the bottom or side water heater cover
Open one of the demountable valves at outlet from the water heater and open the cold water
the plug of the power cord to the socket. When the water heater is used, the cold water inlet
valve shall be in open position.
Choose necessary heating capacity using switches situated at the cover. Right switch actuates
-
ate high heating capacity (2000 W).
The water heating temperature in the water heater can be set in the range from +35°C to +75°C.
To increase the water heating temperature, rotate the thermostat knob clockwise. To decrease
the water heating temperature, rotate the thermostat knob counter-clockwise.
The water heater automatically maintains the set water temperature. When water temperature
in the water heater reaches the user set value, heating will be automatically stopped and the
heating indicator will extinguish. When water temperature in the water heater decreases below
the user set value, heating will be automatically activated and the heating indicator will light up
with bright pink color.
Placement of the thermostatic controller knob to the ECO position selects the mode, which cor-
responds to the most comfortable water heating temperature in the water heater (+58°C (±2°C))
-
CAUTION!
During heating, water may begin to drip from the port of the pressure
safety valve. Water leakage cannot be avoided and shall not be prevented,
since blocking of the valve may result in rupture of the internal tank (in
case of equipment breakdown).
6
2
3
4
5
Electrical storage water heater
EN
MAINTENANCE
CAUTION!
Refer to «Water heater safe operation and installation rules»
grounding shall be assured. The plug and socket shall not heat up abnormally.
If the water heater is not used for a long period, especially in regions with low ambient tempera-
tures (below 0°C), water shall be drained from the water heater in order to prevent its damage
(due to water freezing in the internal tank).
To ensure reliable operation of the water heater for a long time, periodically clean the internal
tank and remove deposits from the electrical heating elements of the water heater. In addition,
periodically check condition of the magnesium anode (whether it is fully dissolved or not) for
its timely replacement with a new one in case of full dissolution. The tank cleaning frequency
depends on local water hardness.
CAUTION!
The manufacturer provides an extended warranty, when preventive main-
tenance operations are carried out (refer to the warranty card).
Cleaning shall be carried out by specialized service departments. The address of the nearest
service center can be obtained from the vendor or at www.hyundai-hvac.com. Preventive mainte-
nance operations shall be carried out with strict observation of the instruction manual and safety
rules.

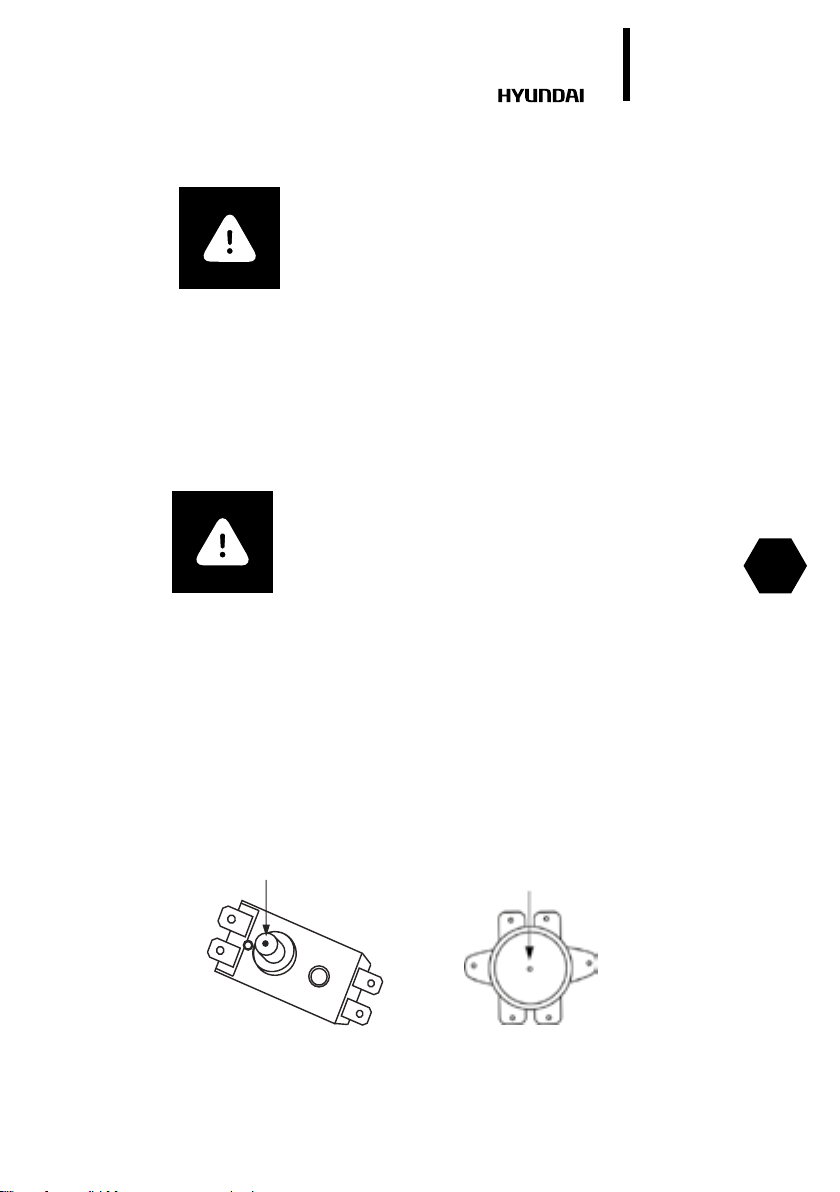

to the electrical heating element in the event of water overheating/absence in the water heater.
If the water heater is switched on, but water is not heated, this means tripping or need for
reset of the thermal switch. To return the water heater to the operational condition, proceed as
follows:
- if the button is not pressed and there is no click, wait until the thermal switch cools down to the
initial temperature.
Electrical storage water heater
EN
CAUTION!
If these actions do not give a positive result or the thermal switch trips
authorized service center of Hyundai in your region for consultation or
repair of the product.
If a drain valve and a tee are not provided (refer to “Water supply network connection”), you can
drain water through the combined check valve / pressure safety valve. For that, unscrew the
screw of the drain lever on the combined check valve / pressure safety valve and place the drain
lever to the top position. At that, the hot water outlet valve shall be opened, while the cold water
inlet valve of the water heater shall be closed.
Drain lever
Screw
Pressure relief port
Please carry out test checks of the pressure safety valve for operability every 14 days as follows:
- place the drain lever to the top position until you feel transition of thread and then water will
previous position.
Wipe the outer surfaces of the water heater with a moist cloth and soap as necessary.
CAUTION!
Never drain water, if its temperature exceeds 50°C, since it may result in
burns.
CAUTION!
water heater shall not be used and we recommend you to call a specialist
of the service center.
Electrical storage water heater
EN
-
-
-
-
Failure Possible causes Remedy
TROUBLESHOOTING
Electrical storage water heater
EN CERTIFICATION
ELECTRICAL SCHEMATIC DIAGRAM
temperature
limlter hating power switch
indication
light
temperature
sensor
LED-display
termostat
indication light
power board
heating element
Electrical storage water heater
EN
RU
Введение
Обзор
Правила безопасной эксплуатации и установки водонагревателя
Установка
Эксплуатация
Обслуживание
Поиск и устранение неисправностей
Электрическая принципиальная схема
Сертификация
19
19
19
20
20
21
21
22
23
24
24
24
24
25
26
26
26
27
28
28
28
30
32
33
33
RU
This manual suits for next models
7
Table of contents
Other Hyundai Water Heater manuals
Popular Water Heater manuals by other brands
Bosch
Bosch C1050ES Technical service bulletin
Bradford White
Bradford White UDH Series Service manual
STIEBEL ELTRON
STIEBEL ELTRON DEL 13 Plus AU Operation and installation
Controlled Energy
Controlled Energy Aquastar 240 FX Installation and owner's manual
Galmet
Galmet SGWK 300/80 user guide
deconta
deconta WM 400 V Guide book
Bradford White
Bradford White RE2 Service manual
American Water Heater
American Water Heater PowerVent Use & care manual
VERO
VERO BR36 Installation and operation guide
Ariston
Ariston EP 30 R 3 KW manual
American Water Heater
American Water Heater Compact 6 instruction manual
GEMTEX Heating Solutions Ltd
GEMTEX Heating Solutions Ltd GTX 500 manual
