I-View Anycam IR-3MIPS08 Series User manual

5/
3/2-mega Pixels Network camera
Version:
V1.1
Doc. No.:
108081501
oPeratioN meNu
ir-3miPs18 /2miPh18 camera

2
Safety information
This symbol indicates that dangerous voltage consisting a risk of electric shock is
present within this unit. Megapixels
This exclamation point symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
WARNING
To prevent damage that may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor / wall in accordance
with the installation instructions.
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet using any
other adapter could cause fire, electric shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
the abnormal heat generation or fire.
4. Securely plug the power cord into the power receptacle, insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers

3
filled with water on top of the camera. Doing so may cause personal injury due to fire,
electric shock, or falling objects.
7. If any unusual smells or smoke come from the unit, stop using the product. In such case,
immediately disconnect the power source and contact the service center. Continued use in
such a condition may cause fire or electric shock.
8. If this product fails to operate normally, contact the nearest service center and never
disassemble or modify this product in any way. (I-View is not liable for problems caused by
unauthorized modifications or attempted repair.)
9. When cleaning, do not spray water directly onto parts of the product. Doing so may cause
fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below
-10°C), or high humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so
may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this may
damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.

4
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(Including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus
combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.

5
SAFETY INFORMATION
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received including interference that may cause
undesired operation.
CAUTION
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their
local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.
This equipment has been tested and found to com
ply with the limits for a Class A digital
device, pursuant to part 15 of FCC Rules. These limits are designed to pro
vide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generate
s, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction ma
nual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
i
nterference in which case the user will be required to correct the interference at his own
e
xpense.

6
About This Guide
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following symbols to use
throughout this manual.
WARNING: Information to prevent injury to yourself when trying to complete a task.
CAUTION: Information to prevent damage to the components when trying to complete a
task.
IMPORTANT: Information that you must follow to complete a task.
NOTE: Tips and additional information to aid in completing a task.
Trademark
I-View, e-Witness, @-Witness Pro, u-Witness XP, x-Witness, FreeView Pro,AnyCam, P D AVi r w
and MobileView are registered trademarks of I-View Communication Inc.
Microsoft, Windows 95, 98, ME, Windows2000, XP,Vista,7 and 8 are registered trademarks of
Microsoft Corporation. All other trademarks are the property of their respective holders.
Customer Support
If technical problems arise with the use of our products in which you and your vendor cannot
resolve, please try the following: If you have an Internet connection, visit the I-View website
http://www.i-view.com.tw (Taiwan) for any software or product updates, or email to
[e-mail] (Taiwan) or Tel: [phone] Fax: [phone] (Taiwan). We
are dedicated to providing the highest quality support. E-mailing our tech support will give you
the chance to document each of the above items in a very clear and concise manner and will give
our support team a chance to document any problems and respond with thoroughly researched
answers.

7
Table of Contents
Chapter 1. Introduction ---------------------------------------------------------------------------------------- 8
1-1. Highlights of your new Network IP Camera ------------------------------------------------8
1-2. Product Specification --------------------------------------------------------------------------- 9
1-3. Packaging Contents --------------------------------------------------------------------------- 14
1-4. Product Parts Description -------------------------------------------------------------------- 15
Chapter 2. Camera Installation------------------------------------------------------------------------------ 16
2-1. Wall Mount installation----------------------------------------------------------------------- 16
Chapter 3. Running IP Camera by Witness Pro NVR software ------------------------------------- 18
3-1. Network Deployment------------------------------------------------------------------------- 18
3-2. Install Witness Pro NVR software ---------------------------------------------------------- 19
3-3. Setting IP camera for Witness Pro NVR software---------------------------------------- 21
Chapter 4. Accessing the Network Camera via I.E. Browser ----------------------------------------- 27
4-1. Install ActiveX Plug-in on I.E. Browser --------------------------------------------------- 29
4-2. Using RTSP Players--------------------------------------------------------------------------- 31
4-3. The Function Description of Live Window ----------------------------------------------- 31
4-4. The Network setup Function Description-------------------------------------------------- 34
Chapter 5. Troubleshooting ---------------------------------------------------------------------------------- 61

8
Chapter 1. Introduction
1-1.Highlights of your new Network IP Camera
Congratulates on purchasing this high-resolution 3/2 Mega pixels network IP Camera! This IP
Camera provides 3/2-Mega pixels high-resolution video quality, with its advanced megapixel lens;
you can view remote images in more detail than conventional close-circuit cameras.
Other highlights of this network IP Camera include:
Onvif compliant.
H.265 compression saves bandwidth and storage size.
Built in 2.8, 4, 6, 8, 12mm fixed Lens. (Selectable)
Smart IR to adjust the IR LED light across the entire area to get well image
Virtual ePTZ for efficiency surveillance.
On-camera motion detection and privacy mask.
Pixel Counter for Image Clarity Measurement.
Built-in 18 pieces) Illuminators, effective up to 15meters.
Removable IR-cut filter for Day & Night function.
Smart IR to adjust the IR LED light across the entire area to get well image
Mounting Bracket with Cable Management for Protected Installation.
Free bundle 64-Channel NVR and CMS software.
Wide operation temperature (-30°C~ 60°C) rage.
IP 66 Weather-proof rated Housing.
Video and interval snapshot schedule recording on SD card or FTP server
ROI (Region of Interest) encoding is used to enhance the images quality for remote access when the
bandwidth is not enough.
Ultra Low Compress Rate (ULCR) technology: LESS storage space, SAME video quality.

9
1-2.Product Specification
IR-3MIPS08 Series
System
Platform: High performance SoC CPU; Linux Embedded O.S.
Image Device
1/2.8" 3 M pixels (2048x 1536 pixels) SONY progressive CMOS sensor. .
Video Setting
Compression: Video:0.1M ~ 12M bits/sec (CBR/VBR/LBR configurable) H.265MP/H.264
HP/MP/BP, M-JPEG; Audio: G. 7 11 μ-low/a-low Codec
Resolution:Main Streaming:2048×1536, 1920×1080, 1280×720.
Sub streaming: 704x480, 704x576, 640x480, 350×288,320*240
Frame Rate: 3-Mega: 30 fps; 1080p: 30 fps @ H.265/H.264/M-JPEG Mode; Frame rate can
be adjustable by user.
Streaming: Multi-Stream H.265MP/H.264 Base/Main/High Profile and Motion JPEG video
streaming
Control: Brightness, Contrast, Saturation, Sharpness, Exposure, Motion detection, Mirror,
Corridor mode, Shutter, Privacy mask, Flicker less, 3D Noise reduction, Defog, IRIS, AES,
AWB, AGC, BLC, WDR, ROI, Audio gain, Alarm in/out. Video recording by scheduling,
Network and NVR failed. Interval, Snapshot schedule recording, CPU usage display.
Color: 0.01 Lux 1/F1.2 B/W: 0 Lux. (IR LED on) .
WDR: More than120dB True WDR.
Audio Setting
μ-Low/ a-Low G. 7 11 audio encoding and decoding;
2-way audio; External Microphone input; Speaker output.
2Vp-p audio input and audio output with 600Ωimpedance.
Network
Protocol: HTTP, HTTPS, TCP/ IP, IPv4, IPv6, PPPoE, UDP, SMTP, FTP, QoS, DHCP,
DDNS, NTP, DNS, SNMP V1,SNMP V2, Bonjour, Multicast, RTSP, RTP/RTCP, Bonjour,

10
CSMA/CA, UPnP, IGMP, 802.1X, SSH, STARTLS.
Compatible: Onvif compliant
Security
Password Protection, User access log; IP address filtering, Mac number filtering, Multi-level
user access with password protection.
I/O Port
Standard: Audio in x1; Audio out x1; DC power in, RJ-45.
Surge Protector
Power: 2KV @ 1.2/50μS Common mode.
Signal: 6KV@ 102/700μS Differential mode.
Lens & IR Illuminators
Lens: f=2.8, 4, 6, 8, 12 mm/ F1.4 (IR-3MIPS08-F03/04/06/08/12);
IR Cut: Built on removable IR-cut filter for day & night function.
IR Illuminators: 18 pieces VCSELIR LED Illuminators.
IR Cut: Built on removable IR-cut filter for day & night function.
Management
Time management: Manual Time Setting; Time Server, NTP support, DST offset and Real
Time Clock.
Event management: Events triggered by Motion detection or sensor with configured
schedule.
Event notification: Event notification using Alarm output triggered.
Update: On line Firmware update.
Browse
I.E. 7.0 above; Safari Browser. Firefox and Chrome V3.0 above with plug in.
Housing
Waterproof IP66 housing with anti-cut cable and 3-Axis bracket.
Dimension/Weight
Ø 62 mm x 65 mm x 174 mm / 0.55Kg (Including bracket).
Operation

11
Power: Maximum 3 W & Max. 6W(IR LED On); PoE IEEE 802.3af Class 3; DV12V
Temperature: Temperature -30°C ~ 60°C; Humidity 20% ~ 80% RH.
IR-2MIPH08 Series
System
Platform: High performance SoC CPU; Linux Embedded O.S.
Image Device
1/2.8" 2 M pixels (1920x 1080 pixels) SONY progressive CMOS sensor. .
Video Setting
Compression: Video:0.1M ~ 12M bits/sec (CBR/VBR/LBR configurable) H.265MP/H.264
HP/MP/BP, M-JPEG; Audio: G. 7 11 μ-low/a-low Codec
Resolution:Main Streaming:1920×1080, 1280×720.
Sub streaming: 704x480, 704x576, 640x480, 350×288,320*240
Frame Rate: 1080p: 30 fps @ H.265/H.264/M-JPEG Mode; Frame rate can be adjustable by
user.
Streaming: Multi-Stream H.265MP/H.264 Base/Main/High Profile and Motion JPEG video
streaming
Control: Brightness, Contrast, Saturation, Sharpness, Exposure, Motion detection, Mirror,
Corridor mode, Shutter, Privacy mask, Flicker less, 3D Noise reduction, Defog, IRIS, AES,
AWB, AGC, BLC, WDR, ROI, Audio gain, Alarm in/out. Video recording by scheduling,
Network and NVR failed. Interval, Snapshot schedule recording, CPU usage display.
Color: 0.01 Lux 1/F1.2 B/W: 0 Lux. (IR LED on) .
WDR: More than120dB True WDR.
Audio Setting
μ-Low/ a-Low G. 7 11 audio encoding and decoding;
2-way audio; External Microphone input; Speaker output.
2Vp-p audio input and audio output with 600Ωimpedance.

12
Network
Protocol: HTTP, HTTPS, TCP/ IP, IPv4, IPv6, PPPoE, UDP, SMTP, FTP, QoS, DHCP,
DDNS, NTP, DNS, SNMP V1,SNMP V2, Bonjour, Multicast, RTSP, RTP/RTCP, Bonjour,
CSMA/CA, UPnP, IGMP, 802.1X, SSH, STARTLS.
Compatible: Onvif compliant
Security
Password Protection, User access log; IP address filtering, Mac number filtering, Multi-level
user access with password protection.
I/O Port
Standard: Audio in x1; Audio out x1; DC power in, RJ-45.
Surge Protector
Power: 2KV @ 1.2/50μS Common mode.
Signal: 6KV@ 102/700μS Differential mode.
Lens & IR Illuminators
Lens: f=2.8, 4, 6, 8, 12 mm/ F1.4 (IR-3MIPS08-F03/04/06/08/12);
IR Cut: Built on removable IR-cut filter for day & night function.
IR Illuminators: 18 pieces VCSELIR LED Illuminators.
IR Cut: Built on removable IR-cut filter for day & night function.
Management
Time management: Manual Time Setting; Time Server, NTP support, DST offset and Real
Time Clock.
Event management: Events triggered by Motion detection or sensor with configured
schedule.
Event notification: Event notification using Alarm output triggered.
Update: On line Firmware update.
Browse
I.E. 7.0 above; Safari Browser. Firefox and Chrome V3.0 above with plug in.
Housing
Waterproof IP66 housing with anti-cut cable and 3-Axis bracket.

13
Dimension/Weight
Ø 62 mm x 65 mm x 174 mm / 0.55Kg (Including bracket).
Operation
Power: Maximum 3 W & Max. 6W(IR LED On); PoE IEEE 802.3af Class 3; DV12V
Temperature: Temperature -30°C ~ 60°C; Humidity 20% ~ 80% RH.
Lens & IR Illuminators
Lens: f=2.8, 4, 6, 8, 12 mm/ F1.4 (IR-3MIPS08-F03/04/06/08/12);
IR Cut: Built on removable IR-cut filter for day & night function.
IR Illuminators: 18 pieces VCSELIR LED Illuminators.
IR Cut: Built on removable IR-cut filter for day & night function.

14

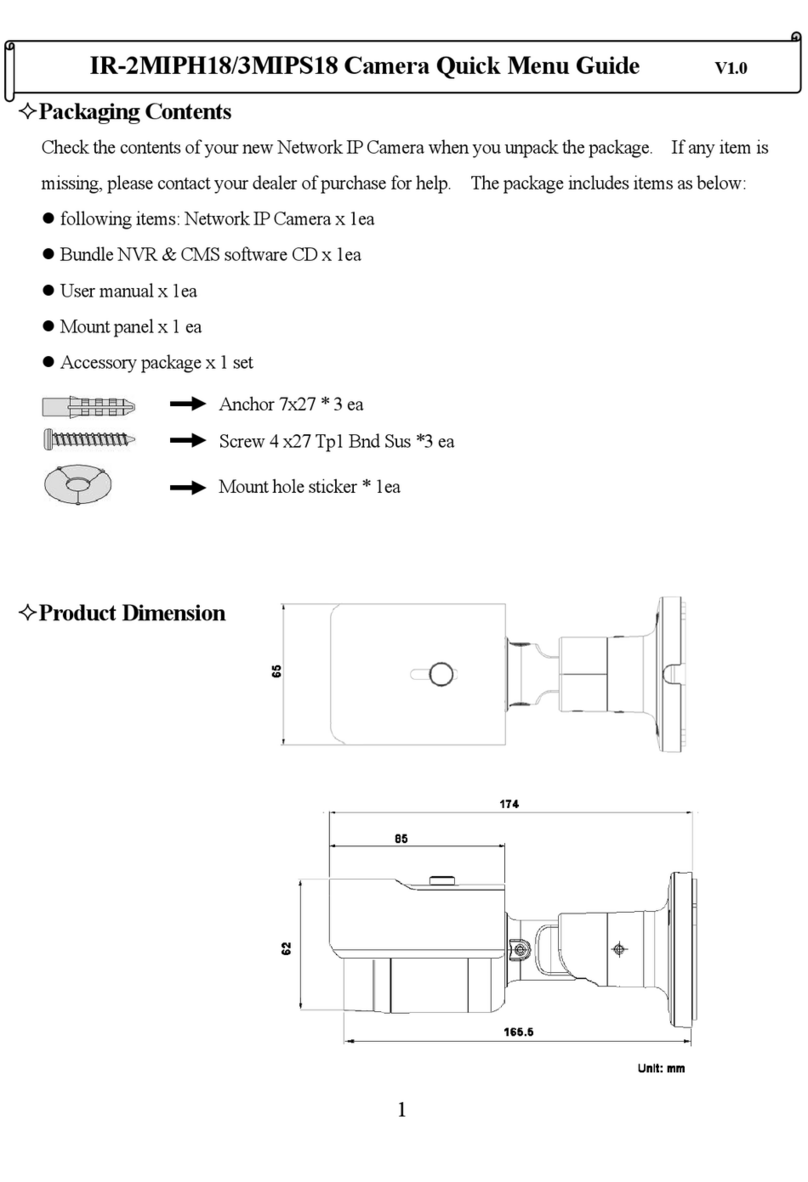

1-3.Packaging Contents
Check the contents of your new Network IP Camera when you unpack the package. If any item is
missing, please contact your dealer of purchase for help. The package includes items as below:
following items: Network IP Camera x 1ea
Bundle NVR & CMS software CD x 1ea
User manual x 1ea
Mount panel x 1 ea
Accessory package x 1 set
Product Dimension
Anchor 7x27 * 3 ea
Screw 4 x27 Tp1 Bnd Sus *3 ea
Mount hole sticker * 1ea

15
1-4. Product Parts Description
Front side items description:
1. Sunshield: It protects the camera from the direct sunlight.
2. Sunshield Hold: It fixed the sunshield with the camera.
3. IR LED: These infrared LED’s are controlled by the illumination sensor.
4. Illumination Sensor: Detects incoming light to control the IRLED.
Cables:
1. RJ-45 male connector: Water proof RJ-45 adapter to extent the transmission distance via UTP
cable; then connect to POE Hub.
2. Power cable: Connect to DC12V power adapter when use none POE Hub.
3. Audio in: Plug microphone into RCA audio in port (Red color).
4. Audio out: Plug speaker into RCA audio out.(White color).
Safety cable
Top cover

16
Chapter 2. Camera Installation
2-1.Wall Mount installation
Wall Mount installation
Fix the camera
This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the
external cable is not. You are recommended to install this product below the edge of eaves to prevent
the cable from being externally exposed.
1) Paste the mount hole sticker on the position that you want to install. (Fig 1)
2) Use the mount hole sticker to make a hole of 30mm in diameter for passing cable, and drill
another three holes on the wall to fix bracket mount. (Fig 2)
3) Insert the anchors to fix the screws with the Mount panel. (Fig 3)
4) Fix camera with Mount panel, then adjust 5 degree of Anti-clock. (Fig 4)
Fig 1 Fig 2
Fig 4
Fig 3

17
Adjust camera angle from bracket mount (Please refer the photo as below)
1) Use the Hexagon wrench to loosen the bolt and to rotate the bracket to suitable position.
2) Adjust horizontal,vertical or rotate camera body angle of the camera.
3) Use the Hexagon wrench to tighten a bolt after adjusting the camera.
Control screw

18
Chapter 3. Running IP Camera by Witness Pro NVR software
3-1. Network Deployment
General Connection (without PoE)
1. Connect RJ45 Ethernet cable to a switch. Use a Category 5 Cross Cable when your network
camera is directly connected to PC.
2. Connect the power cable from the Network Camera to a power outlet.
3. If you have external devices such as sensors and alarms, make the connection from the general
I/O terminal block
Power over Ethernet (PoE)
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable. Follow the above illustration to connect the Network Camera to a PoE-enabled switch
via Ethernet cable.

19
Fig. 1-3-1.2 Choose a setup language
Fig. 1-3-1.4 Installation Startup
3-2. Install Witness Pro NVR software
You can use your new Network IP Camera by its web user interface v There is a NVR software CD
comes with IP camera which allow you run 32/64 channels IP cameras on a PC. Please follow the
steps below to complete the installation of Witness Pro NVR software.
While into Windows, and insert the I-View DVR software CD into a CD/DVD drive.
Select the NVR64 or NVR32 software
.
Step 3. Select the installation language and
press the “OK” button to continue.
.
Step 4. Press the “Next” button to start the
installation process..
Fig. 1
-3-1.1 Installation Menu

20
Step 5. Click the “Browse”button to install
into a different directory, otherwise click
on the “Next”button to install the
software into the proposed director.
Step 6. Select “No, I will restart my computer later”
and press on the “Finish”button to exit.
Fig. 1-3-1.5 Installation
Fig. 1
-3-1.9 Restart the computer
