I-View CB-298VE User manual

&%-V(
OSD User's Guide
USER'S GUIDE
OSD User's GuideI
V0.1
&%9(
OSD User's Guide
2010/9/27
!
!
1
!
All manuals and user guides at all-guides.com
all-guides.com

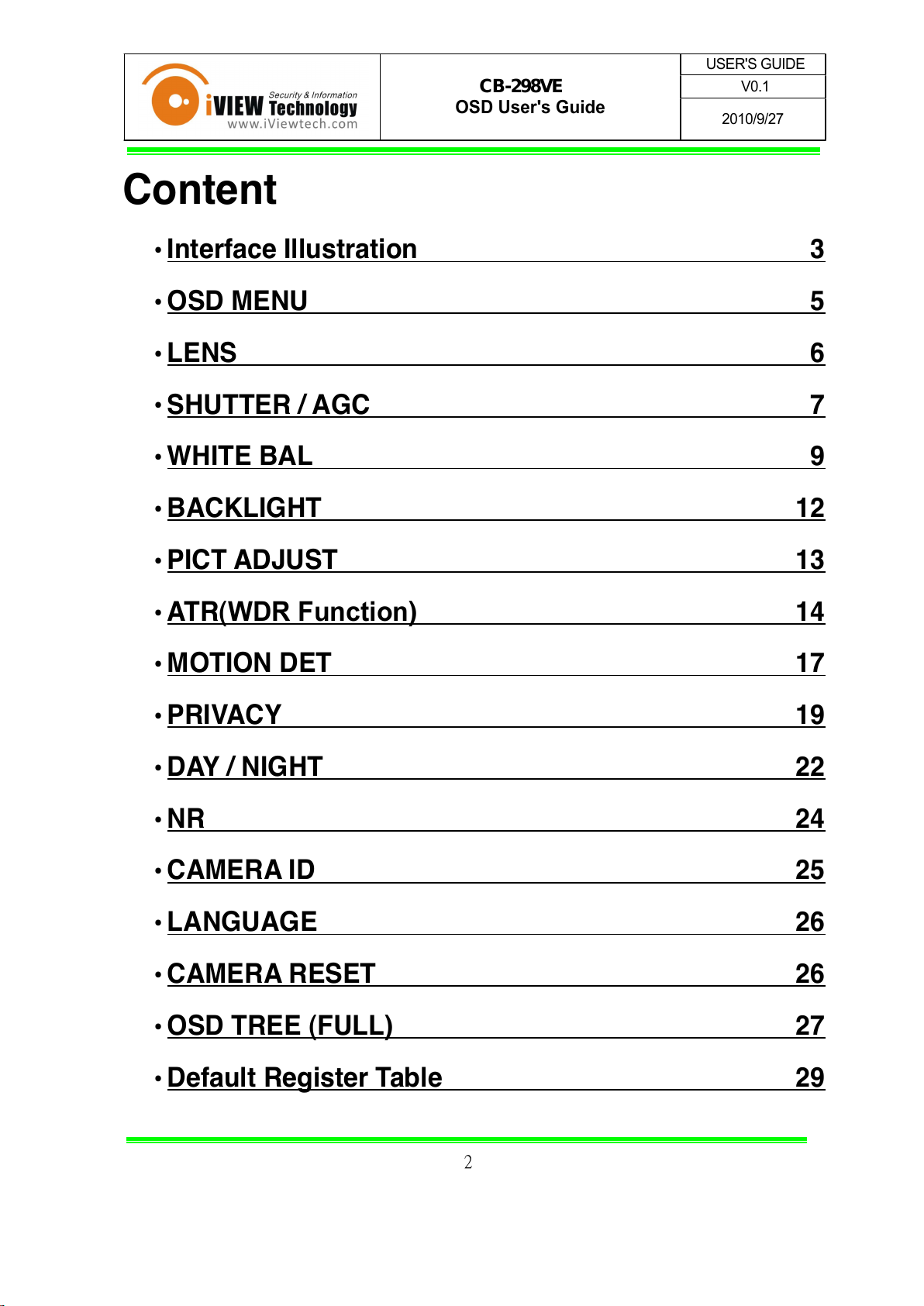

Content
•Interface Illustration!3
•OSD MENU!5
•LENS!6
•SHUTTER / AGC!7
•WHITE BAL!9
•BACKLIGHT!12
•PICT ADJUST!13
•ATR(WDR Function)!
14
•MOTION DET!17
•PRIVACY!19
•DAY / NIGHT!22
•NR!24
•CAMERA ID!25
•LANGUAGE!26
•CAMERA RESET!26
•OSD TREE (FULL)!27
•Default Register Table!29
USER'S GUIDE
V0.1
2010/9/27
!
!
2
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

Interface Illustration
Control interface
USER'S GUIDE
V0.1
2010/9/27
!
!
3
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

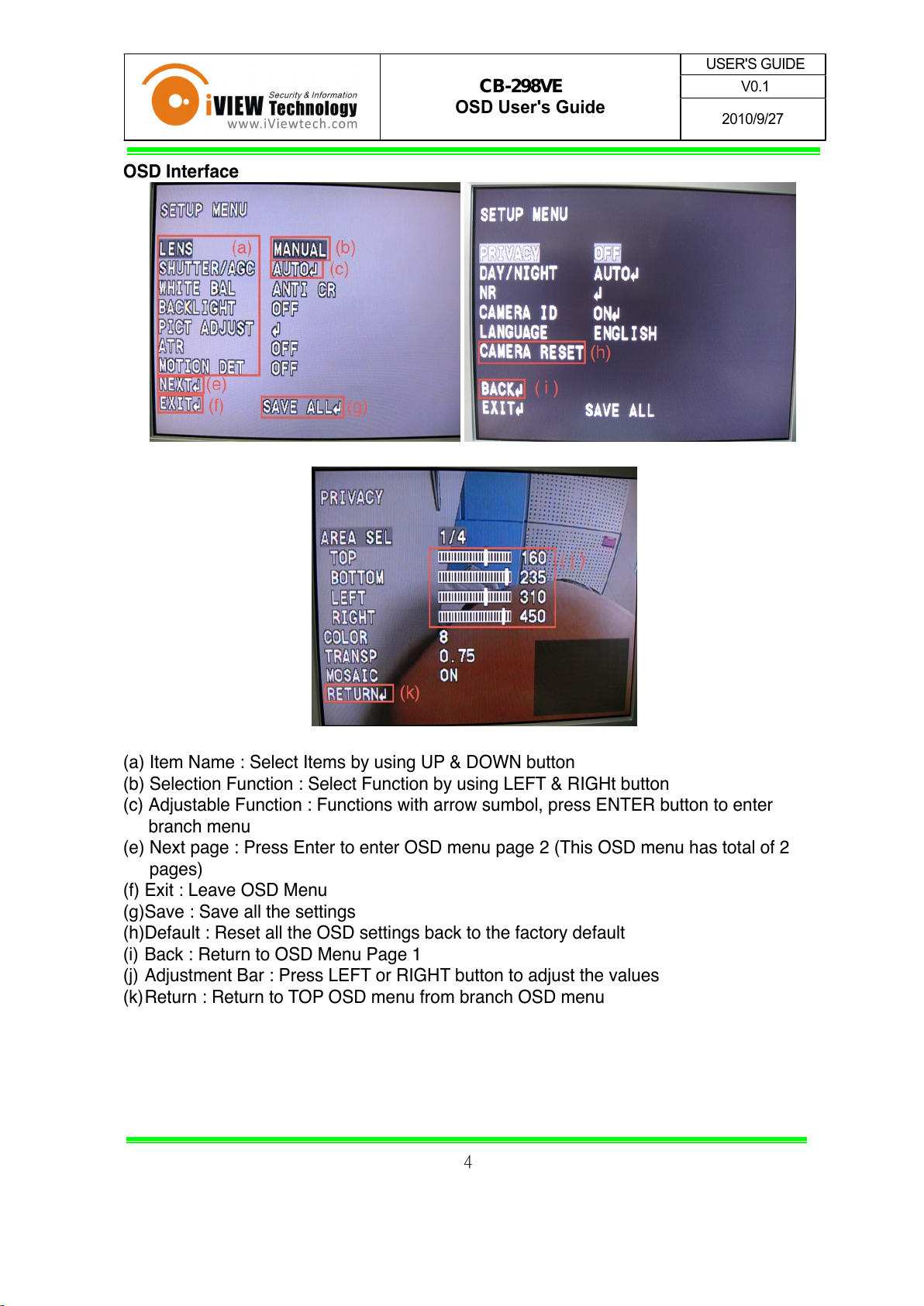

OSD Interface
(a) Item Name : Select Items by using UP & DOWN button
(b) Selection Function : Select Function by using LEFT & RIGHt button
(c) Adjustable Function : Functions with arrow sumbol, press ENTER button to enter
branch menu
(e) Next page : Press Enter to enter OSD menu page 2 (This OSD menu has total of 2
pages)
(f) Exit : Leave OSD Menu
(g)Save : Save all the settings
(h)Default : Reset all the OSD settings back to the factory default
(i) Back : Return to OSD Menu Page 1
(j) Adjustment Bar : Press LEFT or RIGHT button to adjust the values
(k)Return : Return to TOP OSD menu from branch OSD menu
USER'S GUIDE
V0.1
2010/9/27
!
!
4
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

OSD MENU
OSD
LENS
Manual Lens & Auto Iris Lens Setting
OSD
SHUTTER / AGC
Shutter speed & AGC setting, it determines the
image brightness under low lux or bright condition
OSD
WHITE BAL
White balance mode setting, it determines the
way the color is produced
OSD
BACKLIGHT
Backlight setting
OSD
PICT ADJUST
Basic image adjustment such as hue, saturation,
contrast, sharpness
OSD
ATR
Adaptive tone reproduction, software WD setting
OSD
MOTION DET
Motion detect function, sense area, sensitivity
setting
OSD
PRIVACY
Privacy mask, color, transparency setting
OSD
DAY / NIGHT
Color / Mono / Auto Mode setting
OSD
NR
Noise Reduction setting
OSD
CAMERA ID
Camera ID Setting
OSD
LANGUAGE
OSD Language Setting, total of 8 languages
available
OSD
CAMERA RESET
Reset OSD setting
OSD
EXIT
Leave OSD Menu
USER'S GUIDE
V0.1
2010/9/27
!
!
5
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

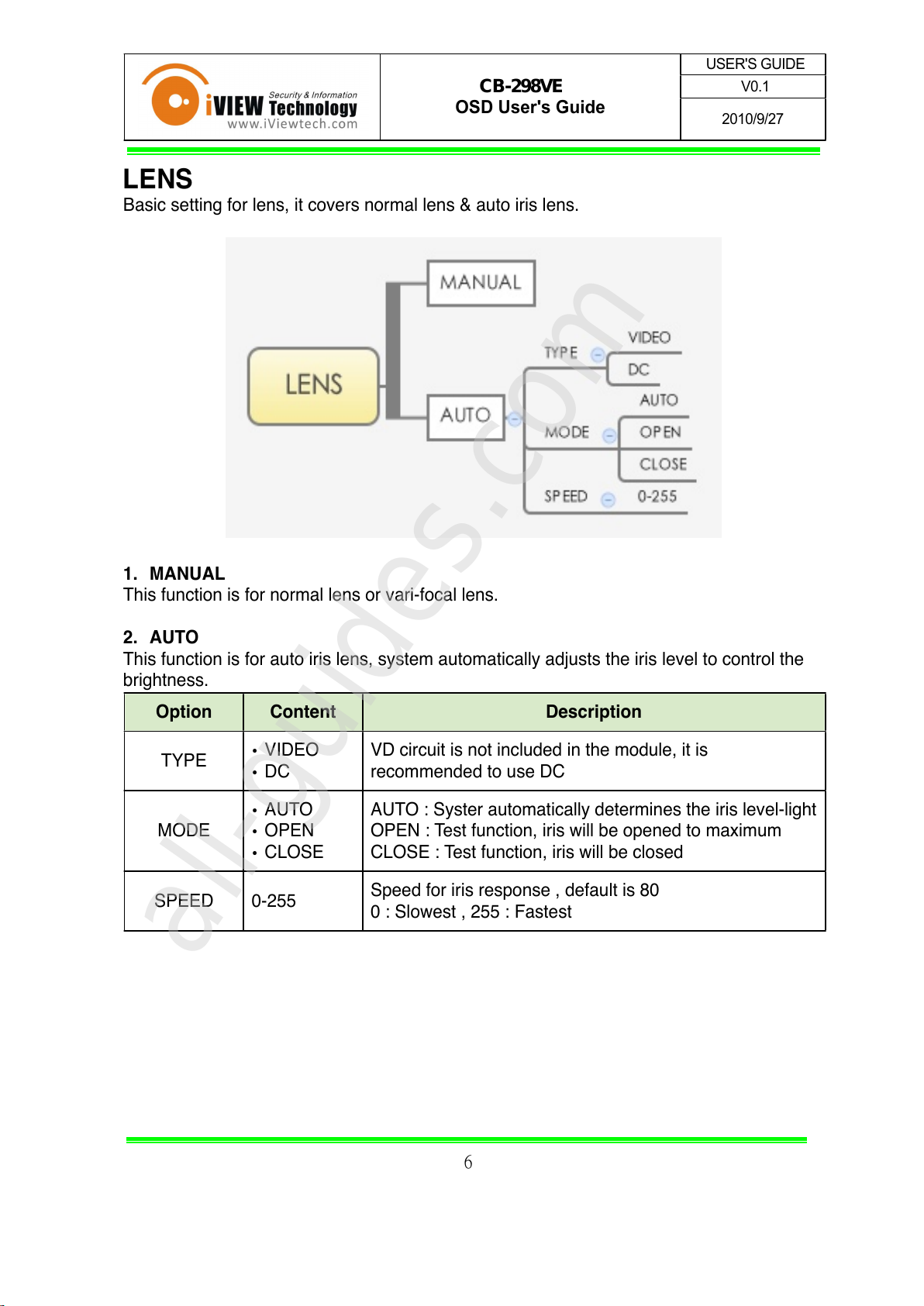

LENS
Basic setting for lens, it covers normal lens & auto iris lens.
1. MANUAL
This function is for normal lens or vari-focal lens.
2. AUTO
This function is for auto iris lens, system automatically adjusts the iris level to control the
brightness.
Option
Content
Description
TYPE
•VIDEO
•DC
VD circuit is not included in the module, it is
recommended to use DC
MODE
•AUTO
•OPEN
•CLOSE
AUTO : Syster automatically determines the iris level-light
OPEN : Test function, iris will be opened to maximum
CLOSE : Test function, iris will be closed
SPEED
0-255
Speed for iris response , default is 80
0 : Slowest , 255 : Fastest
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
6
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com
all-guides.com

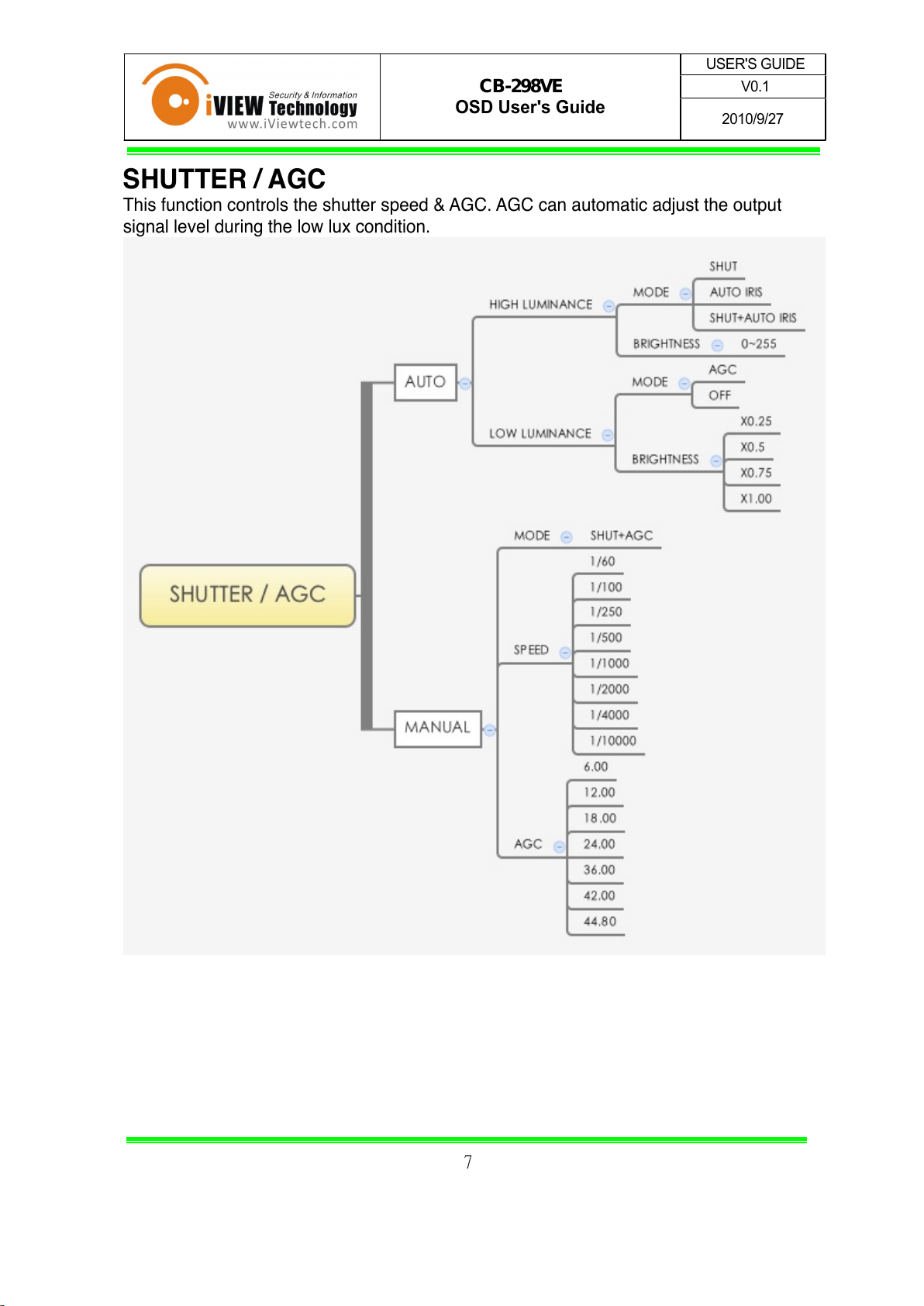

SHUTTER / AGC
This function controls the shutter speed & AGC. AGC can automatic adjust the output
signal level during the low lux condition.
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
7
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

1. AUTO
HIGH LUMINANCE
Option
Content
Description
MODE
•SHUT(Note 1)
•SHUT+ATUO IRIS (Note 1)
•ATUO IRIS (Note 2)
•Shutter Mode
•Shutter + Auto Iris Mode
•Auto Iris Mode
BRIGHTNESS
0-255
Brightness Adjustment , default 60
0 for dark , 255 for bright
Note 1: This function is appeared only when LENS : MANUAL is selected
Note 2: This function is appeared only when LENS : AUTO is selected , when using Auto
Iris Lens, it is recommended to set it to AUTO IRIS mode to avoid the color rolling issue.
LOW LUMINANCE
Option
Content
Description
MODE
•AGC
•OFF
Turn on AGC (so output signal
amplified during low lux)
Turn off AGC function
BRIGHTNESS
•X0.25
•X0.50
•X0.75
•X1.00
Brightness adjustment , default is x0.5 ,
x0.25 : Dark , x1.0 : Bright
2. MANUAL
Option
Content
Content
Description
MODE
SHUT+AGC
SHUT+AGC
Shutter + AGC
SHUTTER
•1/60
•1/100
•1/250
•1/500
•1/1000
•1/2000
•1/4000
•1/10000
Shutter Speed
AGC
•6.00
•12.00
•18.00
•24.00
•30.00
•36.00
•42.00
•44.80
AGC value
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
8
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

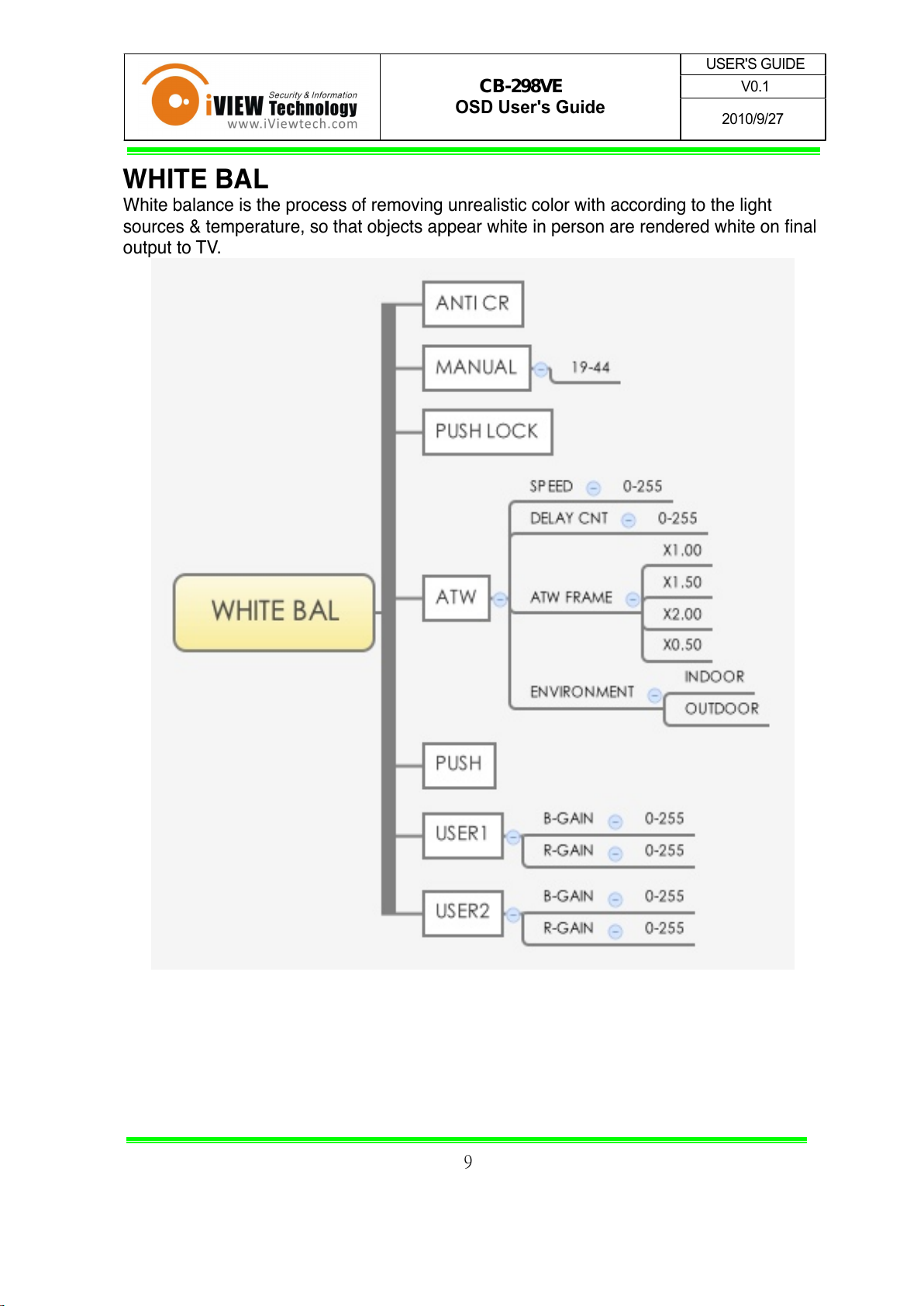

WHITE BAL
White balance is the process of removing unrealistic color with according to the light
sources & temperature, so that objects appear white in person are rendered white on final
output to TV.
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
9
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

1. ANTI CR
Color Rolling suppress
2. MANUAL
Manually adjust the white balance
Option
Content
Description
LEVEL
19-44
Manually adjust the white balance , default is 44 ,
19 for low temperature
44 for high temperature
LEVEL: 32
(Left)LEVEL: 19 (Right)LEVEL: 44
3. PUSH LOCK
Press OSD ENTER button to lock the current white balance, once it is locked, the white
balance will not operate even when light temperature is changed.
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
10
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

4. ATW
Auto Trace White
Option
Content
Description
SPEED
0-255
Setting for ATW response time, default is 239,
0 for slowest delay & 255 for fastest
DELAY CNT
0-255
Setting for ATW delay time ,default is 16,
0 for shortest delay & 255 for longest
ATW FRAME
•x1.00
•x1.50
•x2.00
•x0.50
No effect, system already set it to full frame
ENVIRONMENT
•INDOOR
•OUTDOOR
No effect, system already set it to accomplish
for both indoor & outdoor
5. PUSH
Similar to ATW, but system will force to track white balance continuously
6. USER1
User define white balance
Option
Content
Description
B-GAIN
0-255
Adjust B-Gain value
R-GAIN
0-255
Adjust R-Gain value
7. USER2
User define white balance
Option
Content
Description
B-GAIN
0-255
Adjust B-Gain value
R-GAIN
0-255
Adjust R-Gain value
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
11
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com
all-guides.com

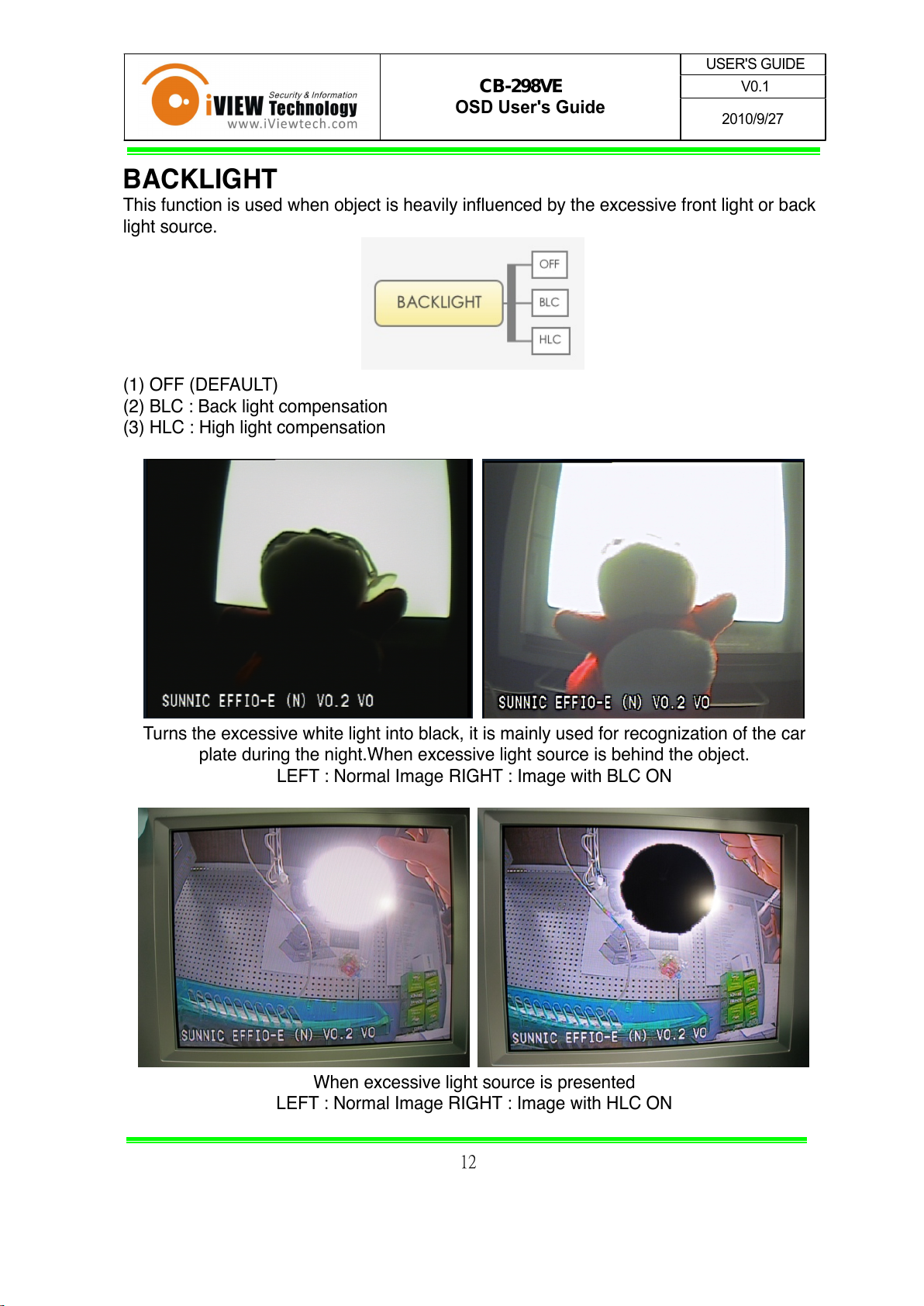

BACKLIGHT
This function is used when object is heavily influenced by the excessive front light or back
light source.
(1) OFF (DEFAULT)
(2) BLC : Back light compensation
(3) HLC : High light compensation
Turns the excessive white light into black, it is mainly used for recognization of the car
plate during the night.When excessive light source is behind the object.
LEFT : Normal Image RIGHT : Image with BLC ON
When excessive light source is presented
LEFT : Normal Image RIGHT : Image with HLC ON
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
12
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

PICT ADJUST
Basic picture adjustment setting.
Option
Content
Description
MIRROR
•OFF
•ON
Flip image horizontally
BRIGHTNESS
0-255
brightness (default : 0)
CONTRAST
0-255
contrast ( default : 128)
SHARPNESS
0-255
Sharpness (default : 128)
HUE
0-255
Color Hue (default :
102 for NTSC , 108 for PAL)
GAIN
0-255
Color Saturation ( Default : 128)
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
13
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

ATR(Adaptive tone Reproduction)--WDR Function
This function is to softwarely achieve Wide dynamic range, when this function is ON,
the brightness of the darker region will be slightly brighter, and same for the brighter
region, the brightness will be slightly darker
1. OFF
2. ON
Option
Content
Description
LUMINANCE
•LOW
•MID
•HIGH
BRIGHTNESS
DEFAULT : LOW
CONTRAST
•LOW
•MID LOW
•MID
•MID HIGH
•HIGH
CONTRAST
DEFAULT : LOW
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
14
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

To:HISHARPELECTRONICSCO.,LTD.
!"#$%&#'() * % + , -.'/ & , % ) 0)1++&,213) 4 56 / ".)78 8(&#'/& , % ) 9,/"6 ) 2)
:"-;<;=;<) >'%?'-5) @A/$B) @<C<)
[CONFIDENTIAL]
)
)
)
C=A)
)
)
Fig. 3.11-1 Graphical representation of ATR function
)
ATR function ON/OFF setting㩷
!,)"%'D ( " ) /$" )7!E)+?% # / & ,%B)6 " / )/$" ) F G ! H41I) 8'-'." / " - )JK7! C @HL 5/" M H D&/ < N ) /,)CO $ P ; )
)
Table 3.11-1 ATR function ON/OFF setting parameter
)
OUT_SEL
F?/(&%") 4"/6)/$")7!E)+?%#/&,%)/,)F9),-)FQQ;)
K'/"R,-5) K7!C@HL5/"MHD&/<)
K,%S&/&,%) 2)
4"//&%R)-'%R") <2CO$P)
T"+'?(/)U'(?") <O$P)
T"6#-&8/&,%) <O$PV)7!E)FQQ)
CO$PV)7!E)F9) )
)
)
)
)
)
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
15
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

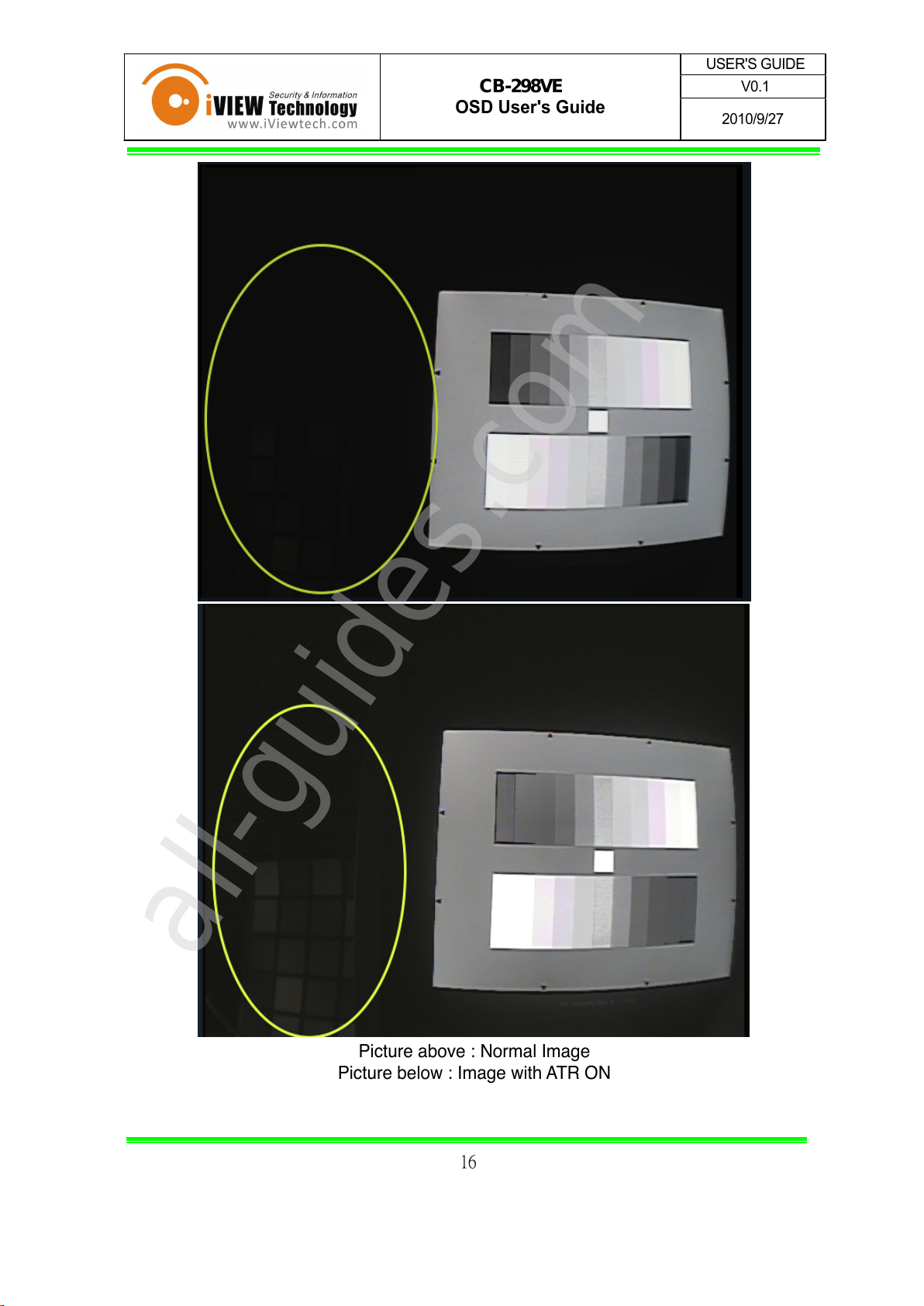

Picture above : Normal Image
Picture below : Image with ATR ON
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
16
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com
all-guides.com

MOTION DET
This function detects the object movement (CCTV must be static). The detection frame
blinks when object movement is detected. GPIO 1 of the module will output alarm signal
(3.3V) when movement is detected. Normally it outputs 0V.
Motion Detect Frame : The frame blinks when any movement is detected within the frame.
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
17
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

1. OFF
2. ON
Option
Content
Description
DETECT SENSE
0-255
Motion detection sensitivity , default : 115 ,
0 for lowest sensitivity,
255 for highest sensitivity.
BLOCK DISP
•OFF
•ON
•ENABLE*
Display the motion detect grid,
default OFF
MONITOR AREA
•ON
•OFF
Display the motion detect frame when
movement detected , default ON
Option
Content
Description
AREA SEL
•1/4
•2/4
•3/4
•4/4
Frame location setting, total of 4 frames
available
TOP
0-244
Frame boundary (TOP)
BOTTOM
0-244
Frame boundary (BOTTOM)
LEFT
0-474
Frame boundary (LEFT)
RIGHT
0-474
Frame boundary (RIGHT)
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
18
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

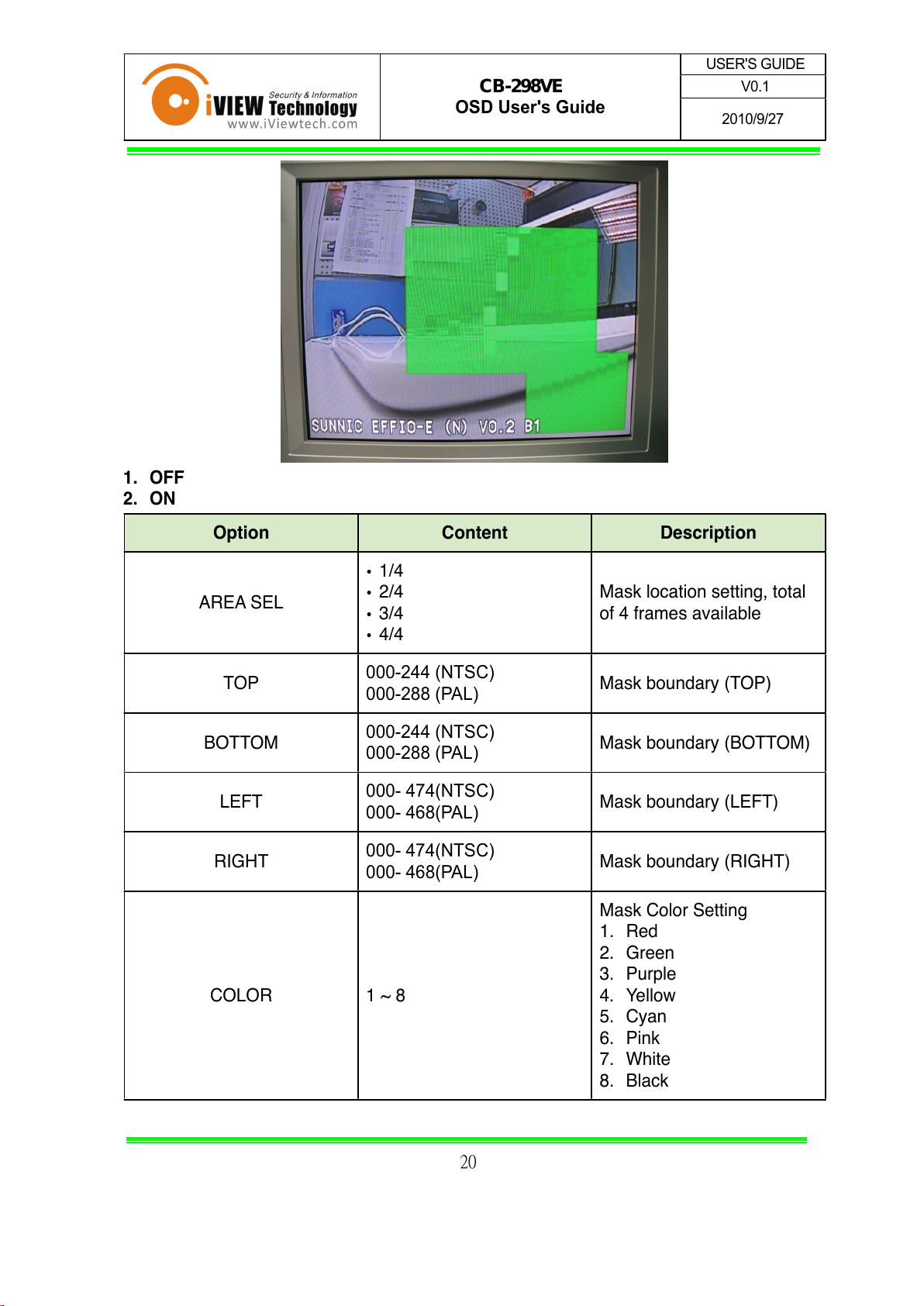

PRIVACY
Setting of the privacy mask and it's content (color & transparency)
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
19
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com

1. OFF
2. ON
Option
Content
Description
AREA SEL
•1/4
•2/4
•3/4
•4/4
Mask location setting, total
of 4 frames available
TOP
000-244 (NTSC)
000-288 (PAL)
Mask boundary (TOP)
BOTTOM
000-244 (NTSC)
000-288 (PAL)
Mask boundary (BOTTOM)
LEFT
000- 474(NTSC)
000- 468(PAL)
Mask boundary (LEFT)
RIGHT
000- 474(NTSC)
000- 468(PAL)
Mask boundary (RIGHT)
COLOR
1 ~ 8
Mask Color Setting
1. Red
2. Green
3. Purple
4. Yellow
5. Cyan
6. Pink
7. White
8. Black
SW-200_201
OSD User's Guide
USER'S GUIDE
V0.1
2010/9/27
!
!
20
!
&%9(
OSD User's Guide
All manuals and user guides at all-guides.com
