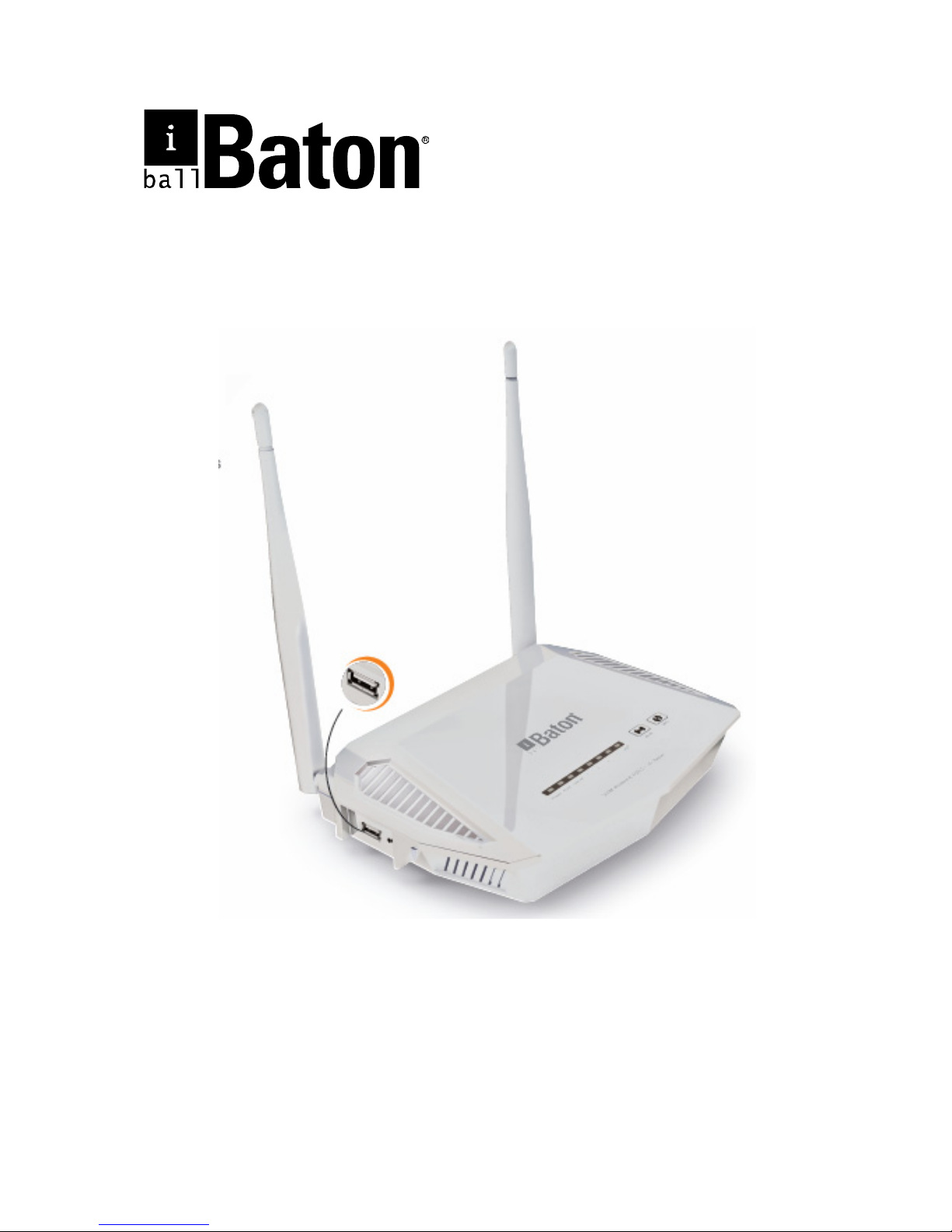

iBall Baton iB-WRA300N3G User manual

300M Wireless-N ADSL2+ 3G Router
Model No. iB-WRA300N3G
User Guide
Ver. 1.0.0

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1）This device may not cause harmful interference.
2）This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.

CONTENTS
Package Contents .................................................................................................... 1
Chapter 1.Introduction ............................................................................................. 2
1.1 Product Overview ..................................................................................2
1.2 Main Features .......................................................................................3
1.3 Conventions ..........................................................................................2
Chapter 2. Hardware Installation .......................................................................... 4
2.1 The Front Panel.....................................................................................4
2.2 The Back Panel .....................................................................................5
2.3 Installation Environment ........................................................................5
2.4 Connecting the Router...........................................................................6
Chapter 3. Quick Installation Guide ..................................................................... 8
3.1 Configure PC.........................................................................................8
3.2 Login....................................................................................................11
Chapter 4. Software Configuration..................................................................... 15
4.1 Status ..................................................................................................15
4.1.1 Device Info............................................................................................... 15
4.1.2 System Log.............................................................................................. 17
4.1.3 Statistics .................................................................................................. 17
4.2 Quick Start...........................................................................................20
4.3 Network Setup.....................................................................................20
4.3.1 WAN ........................................................................................................ 20
4.3.2 3G............................................................................................................ 26
4.3.3 LAN.......................................................................................................... 28
4.3.4 Wireless................................................................................................... 31
4.4 Advanced Setup ..................................................................................42
4.4.1 Firewall .................................................................................................... 42
4.4.2 Routing .................................................................................................... 43
4.4.3 NAT ......................................................................................................... 44
4.4.4 QoS ......................................................................................................... 47
4.4.5 VLAN ....................................................................................................... 50
4.4.6 ADSL ....................................................................................................... 52
4.5 Access Management ...........................................................................52

4.5.1 ACL.......................................................................................................... 53
4.5.2 Filter......................................................................................................... 53
4.5.3 SNMP ...................................................................................................... 62
4.5.4 UPnP ....................................................................................................... 62
4.5.5 DDNS ...................................................................................................... 63
4.5.6 CWMP ..................................................................................................... 64
4.6 Maintenance........................................................................................65
4.6.1 Administration .......................................................................................... 66
4.6.2 Time Zone................................................................................................ 66
4.6.3 Firmware.................................................................................................. 68
4.6.4 SysRestart ............................................................................................... 70
4.6.5 Diagnostics .............................................................................................. 71
Appendix A: Specifications ................................................................................... 72
Appendix B: Contact Details ................................................................................. 72

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
1
Package Contents
The following contents should be found in your package:
¾300M Wireless-N ADSL2+ 3G Router
¾Power Adapter
¾Quick Installation Guide
¾RJ45 cable
¾RJ11 cables
¾ADSL splitter
¾One Resource CD, which includes this User Guide
)Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
2
Chapter 1.Introduction
Thank you for choosing the iBall Baton iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router
1.1 Product Overview
iBall Baton iB-WRA300N3G device is designed to provide a simple and cost-effective ADSL
Internet connection for a wired Ethernet or Wireless IEEE 802.11b/g/n standard network.
ADSL connection is configured through (RJ11) telephone line with standard connectors.
2G/3G connection is configured through compatible USB modem
MIMO technology (2T2R) - Enhanced wireless data transmission rate up to 300Mbps
Dual WAN Router
- ADSL Internet (xDSL): Latest ADSL2+ standard for superior performance upto 24Mbps
downstream & upstream 3.5mbps
- 2G/3G Internet: Data card compatible through GSM / CDMA Network
Auto-failover connection
- With Auto WAN failover between ADSL & 3G network
Wireless Security:
- Wireless On/Off button: Allows users to turn off the wireless function when not in use.
- WPS (Wi-Fi Protected Setup) : Automatically establishing WPA2 secure wireless connection
1.2 Conventions
The Router or device mentioned in this User Guide stands for iBal Baton iB-WRA300N3G model
without any explanations.
Parameters provided in the pictures are just references for setting up the product, which may differ
from the actual situation.

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
3
Product Features:
1.3 Main Features
¾Complies with IEE802.3 & IEEE802.3u standards
¾Complies with IEEE 802.11b/g/n standards
¾3-in-1:, 4-10/100M Auto-Negotiation (RJ45) Ethernet ports & 1-RJ11 (Internet) LINE port
supporting Auto MDI/MDIX and Wireless-N Access Point
¾Latest standards with Downstream data rates up to 24Mbps, Upstream data rates up to
3.5Mbps (With Annex M enabled).
¾Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security
¾IPv6 Ready
¾WPS (Wi-Fi Protected Setup) – Automatically establishing WPA2 encryption security
¾Multi-SSID Security
¾IPv6 Ready
¾Wi-Fi Button - Allows users to turn off the wireless function as not in use
¾Multiple PVC (Permanent Virtual Circuit).
¾Triple Active Firewall – SPI, NAT & Packet filter
¾Wireless MAC filtering & DHCP Server
¾Built-in firewall, supporting IP/MAC filter, Application filter and URL filter.
¾Virtual Server, DMZ host and IP Address Mapping.
¾Dynamic DNS, UPnP and Static Routing.
¾With SNMP & DHCP server.
¾Support Remote Management and Access Control
¾5-dBi Omni-Directional Antenna type.

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
4
Chapter 2.Hardware Installation
2.1 The Front Panel
Figure 2-1
The LEDs locate on the front panel. They indicate the device’s working status.
LED Explanation:
Name Status Indication
On ( Red Colour) Device Init
On ( Red Colour) Device Init OK
PWR
Off Power is off.
Flash ADSL negotiation is in progress.
On LINE port is linked up.
DSL
Off LINE port is linked down.
On (Red Colour) Port Init
Flash (Green Colour) Data is being transferred over the Internet.
Internet
Off There is no data transmission over the internet
On There is a successful connection on the
corresponding Ethernet port but no activity.
Flash Data is being transferred over the Ethernet port.
LAN
(Ethernet)
Off There is no connection on the corresponding
Ethernet port or the connection is abnormal.
On 2G/3G Network is initializing
USB Off No device is connected
WLAN On The wireless function is enabled but no data
is being transmitted.
Flash There is wireless data being transmitted.
Off The wireless function is disabled.
Off There is no WPS activity
Flash Device is ready to make WPS connection.
WPS
On WPS connection established

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
5
2.2 The Back Panel
Figure 2-2
¾DSL: Through ADSL port you can connect the router with the telephone. Or you can connect
them by an external separate splitter. For details, please refer to 2.4.
¾Wi-Fi: Press this button for short time, used to Enable/Disable wireless
¾RESET: There are two ways to reset the Router's factory defaults.
¾USB: Insert 2G/3G compatible data card to configure GSM/CDMA network
¾Ethernet: Through the port, you can connect the Router to your PC or the other Ethernet
network devices.
¾ON/OFF: Switch ON/ OFF the router.
¾Reset : You can reset through 2 mode
Method-I: With the Router powered on, use a pin to press and hold the Reset button for at
least 5 seconds. And the Router will reboot to its factory default settings.
Method-II: Restore the default setting from “Maintenance-SysRestart” of the Router's
Web-based Utility.
2.3 Installation Environment
¾The Product should not be located where it will be exposed to moisture or excessive heat.
¾Place the Router in a location where it can be connected to the various devices as well as to a
power source.
¾The Router can be placed on a shelf or desktop.
¾Keep away from the strong electromagnetic radiation and the device of electromagnetic
sensitive.

iB-WRA300N3G 300M Wireless-N ADSL2+ 3G Router User Guide
6
2.4 Connecting the Router
Before installing the device, please make sure your ADSL service / 3G service as provided by your
ISP is available. (For 2G/3G connection verify the SIM service is activated) , if there is any problem
kindly contact your ISP.
Connect the router to the power outlet through power adapter as bundled in the packaging.
Note: Before cable connection, switch off the power supply and keep your hands dry.
ADSL Connection
Method one: Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear
panel of iB-WRA300N3G, and insert the other end into the wall socket.
Method two：You can use a separate splitter. External splitter can divide the data and voice, and
then you can access the Internet and make calls at the same time. The external splitter has three
ports:
• LINE: Connect to the wall jack
• PHONE: Connect to the phone sets
• MODEM: Connect to the ADSL LINE port of iB-WRA300N3G
Plug one end of the twisted-pair ADSL cable into the ADSL LINE port on the rear panel of
iB-WRA300N3G. Connect the other end to the MODEM port of the external splitter.
Step 1: Connect the Ethernet cable. Attach one end of a network cable to your computer’s
Ethernet port or a regular hub/switch port, and the other end to the Ethernet port on the
iB-WRA300N3G.
Step 2: Attach the power adapter. Connect the power adapter to the power connector on the rear
of the device and plug in the adapter to a electrical outlet or power extension. The
electrical outlet shall be installed near the device and shall be easily accessible.
3G Connection
Step-I: Plug the RJ45 cable into LAN port (1~4) and another end to your PC or Laptop
Step-II: Plug the 2G/3G USB Modem (Data Card) into the router USB slot
Note: SIM card is inserted properly in USB modem before inserting into the router
Configure the 3G Internet connection in the router as per your ISP connection available.
