iBall Baton iB-WRC300N User manual

1
300M MIMO ADSL2+ Broadband Router
Model No. iB-WRC300N
User Manual
Ver.: 1.0.0

2
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not in-stalled and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

3
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.

4
TABLE OF CONTENTS
Model No. iB-WRC300N….……………………………………………………..…………1
Chapter 1 Introduction.…………………………………………………………............. 5
Chapter 2. Configuring the Router…..………………………………………………… 8
Chapter 3 Network Setting………………………….……………………………..…….20
3.2 Forwarding….………………………………………...………………………...........35
3.3 Security Settings …………………………………………………………………..38
3.4 Advanced Settings……………………………………………………………………44
3.5 System Tools ……………………………………………………………….............52
Chapter 4. Troubleshooting……..……………………………………….……………..55
Appendix A. Spec. Summary Table…………………………………………………….59
Appendix B. Glossary ……………………………………………………….…………..68
Appendix C. Contact details ….………………….……………………………............70

5
Chapter 1. Introduction
iBall Baton 300M MIMO ADSL2+ Broadband Router complies with IEEE 802.11 b/g/n wireless
standards.
MIMO Technology - Wireless Transmission speed up to 300Mbps.
Combo Router
Supports ADSL Internet (xDSL): 1- 10/100M RJ11 WAN port
Supports Broadband Internet (Cable / DSL): 1- 10/100M RJ45 WAN port
Auto Failover between ADSL & Broadband Internet connection
Easy Setup Wizard - Utility helps users to configure the router easily.
1.1Package List
300M MIMO ADSL2+ Router (iB-WRC300N)
2 Antenna (Fixed)
Power Adapter
Cd
Quick Installation Guide
RJ45 Patch cord
ADSL Splitter
RJ11 Patch cord

Note:
Make sure that the package contains the above items. If any of the listed items are damaged
or missing, please contact with your nearest dealer.

6
1.2 Hardware Installation
Back View
Front View
Antenna
Power
Adapter
Antenna
RJ45 LAN Ports
RJ-11 Port
RJ45 LAN / WAN
Port
LAN1~LAN4 LEDs
Wi-Fi/ WPS
LED
ADSL LED
Status LED
WPS / Wireless /
Reset Button

7
B. Installation Steps
Note: DO NOT connect the router to power before performing the installation steps
below.
a. Locate an optimum location for the router. The best place is usually near the center
of the area in which your PC(s) will wirelessly connect.
b. Adjust the direction of the antenna. Normally, upright is a good direction.
Step 1.
Connect the DSL/Cable Modem/Ethernet to the WAN port or ADSL to the RJ11 port
on the router as shown below is the following image.
Broadband WAN ADSL WAN
Step 2.
Insert RJ45 UTP Patch cord one end into the Router LAN Port and another end to the PC LAN
port.
Step 3.
Connect the power adapter one end to the router and other end into an electrical outlet.
Step 4.
Power on your PC and Cable/DSL modem.
Step 5.
When all of the devices boot up completely, make sure that the router's LEDs light
ON as per your connection required.

8
1.2.2 LED indicators
LED Status
Description
STATUS
Green in flash
Power is on
Green in fast flash
Reset mode
ADSL
Green in flash
ADSL connection is established
Green in fast flash
Data packet transferred via DSL
Line
WLAN
Green
WiFi is on.
Green in flash
Data access
LAN
Green
RJ45 cable is plugged, and Ethernet
connection is established.
Green in flash
Data access
How to Operate
Step 1.
Plug the RJ45 cable into LAN port 1~4 and
connect with your Computer or Laptop.
Step 2.
Plug your RJ-11 port into the ADSL port.
Or
Plug your Broadband connection on router
RJ45 WAN port

9
Step 3.
Plug the power jack into it
Step 4.
Connect the power adapter one end to
the router and other end into an
electrical outlet.
Step 5.
Power on your PC and Cable/DSL
modem
Step 6.
When all of the devices boot up completely, make sure that the router's LEDs light
ON as per your corresponding connection.

10
Chapter 2. Configuring the Router
There are two methods for you to set up the 300M MIMO ADSL2+ Broadband easily.
Method - I Easy Setup Wizard
Method - II Web Based configuring through browser
Method - I Easy Setup Wizard
Configuring the Router via Easy Setup Wizard (Resource CD)
a. Insert the Resource CD into your CD-ROM device.
b. The Easy Setup Wizard will automatically pop up on the computer’s screen.
Click START button and follow the steps as per easy setup configuration to complete the router.

11
Step 2.
Select Language then click
“Next” to continue.
Step 3.
Then click the “Wizard” to
continue.

12
Step 4.
Click “Next” to continue.
Step 5.
Select Wireless Enable, and
then click “Next” to continue.

13
Step 6.
Enter SSID, Channel and
Security options, and then
click “Next” to continue.
Step 7.

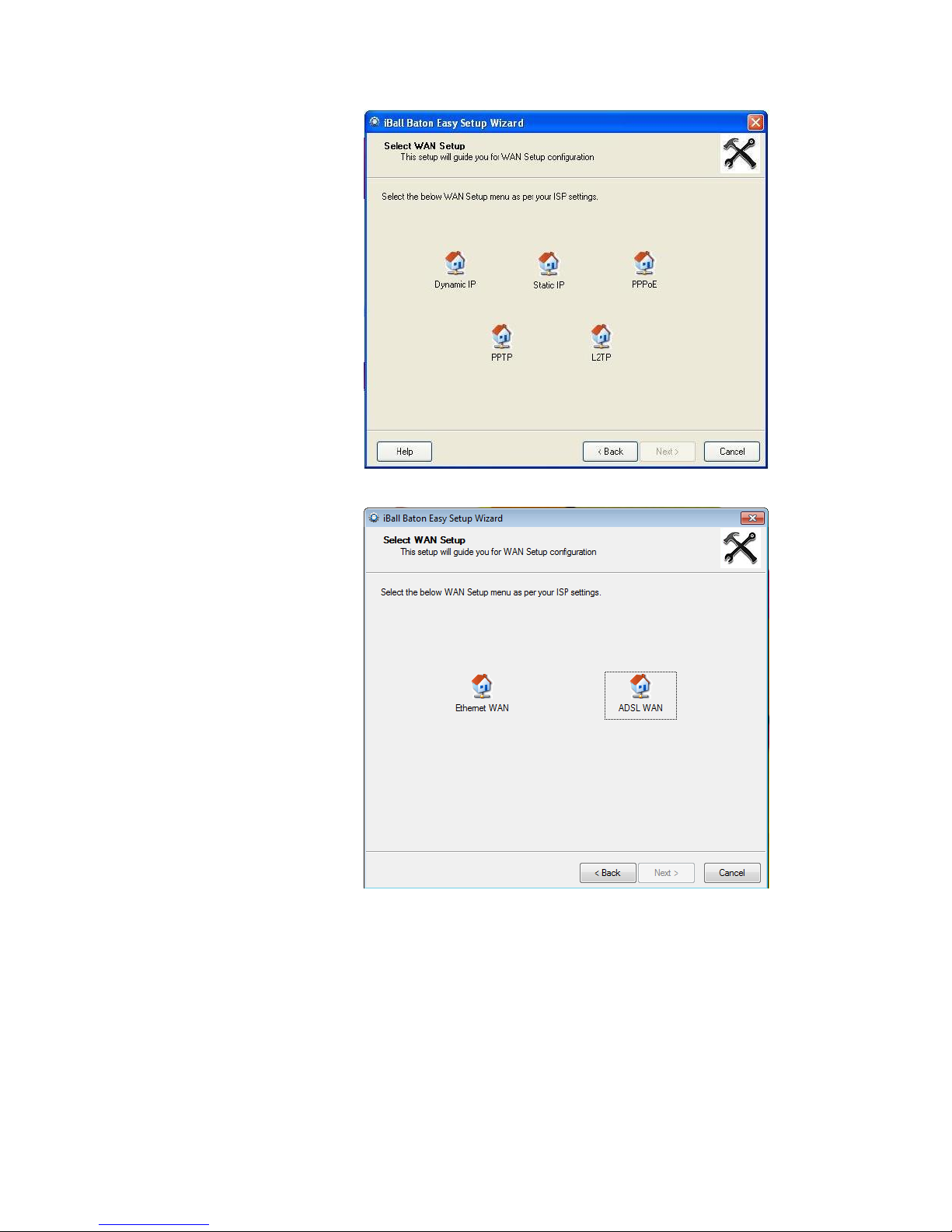

Select Ethernet WAN Service
by clicking Ethernet WAN icon
to configure Ethernet WAN
Connection.

14
Step 8.
Select Ethernet WAN
Connection Type by clicking
on proper icon to continue
Step 9.
Select ADSL WAN Service by
clicking ADSL WAN icon to
configure ADSL WAN
Connection.

15
Step 10.
Select ADSL WAN
Connection Type by clicking
on proper icon to continue
Step 11.
Click “Next” to save your
setting.

16
Step 12.
The 300
M MIMO ADSL2+ Broadband
Router is rebooted to make
your entire configuration take
effect.
Step 13.
Click “Next” to WAN
Networking service.

17
Step 14.
Click “Next” to test the
Internet connection or you
can ignore test.
Step 15.
Setup is completed.

18
Method - II Configuring the Router by Web Console
With a Web-based utility, it is easy to configure and manage the iB-WRC300N
300M MIMO ADSL2+ Broadband Router.
Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web
browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
Login to the Router
To login to the router, you should set up the TCP/IP Protocol in "Obtain an IP
address automatically" mode on your PC(s).
a. To access the configuration utility, open a web-browser and type in the default
address http://192.168.1.1 in the address field of the browser.
I. After a moment, a login window will appear. Enter admin for the User Name
and Password, both in lower case letters. Then click OK or press Enter.
2.2.1 Configure with the Quick Setup
Default Router Settings
IPAddress: 192.168.1.1
User Name: admin
Password: admin

19
Step 1
Select Quick Setup for
Basic settings with simple
way.
Step 2
Change System
Password. Set up your
system
password.(Default:admin)
.
Step 3
Select Time Zone
Step 4
Select WAN Type.
Choose Auto-Detecting or
Manually to set WAN
Type.
Step 5
Select WAN Type. If you
want to use ADSL WAN
as the main internet
access.

20
Step 6
You need to Manually
configure the User name
& password as per ISP.
Step 7
Set up your Wireless
Network.
Set up your SSID.
Step 8
Setup your Encryption
Key here, and then click
“NEXT” to continue.
Step 9
Apply your settings to
Continue.
Step 10
Click finish to Complete it.
