FWA8108
Networking Appliance
Users Manual
Version: 1.0

1
Table of Contents
Chapter 1 Introduction 3
Chapter 2 System Specification..............................................................................................................4
Chapter 3 Hardware Configuration.........................................................................................................6
Chapter 4 Console Mode Information...................................................................................................13
Chapter 5 Open the Chassis ................................................................................................................15
Chapter 6 Installing DDR3 Memory......................................................................................................15
Chapter 7 Installing CompactFlash Card..............................................................................................16
Chapter 8 Removing and Installing the Battery....................................................................................16
Chapter 9 Installing 2.5” HDD (FWA8108 & FWA8108-RPSU)............................................................17
Chapter 10 Installing Optional Dual 2.5” HDD Kit.................................................................................18
Chapter 11 Installing Add-on Card .......................................................................................................19
Chapter 12 Installing Mini PCI-e Card..................................................................................................19
Chapter 13 BIOS Information ...............................................................................................................20
Chapter 14 Watchdog Timer Configuration..........................................................................................32
Chapter 15 Digital I/O Sample Configuration........................................................................................36
Chapter 16 Drivers Installation .............................................................................................................41
Appendix-A I/O Port Address Map.........................................................................................................52
Appendix-B Interrupt Request Lines (IRQ)............................................................................................52
Appendix-C FWA8108 Series Configurations.......................................................................................53

2
Foreword
To prevent damage to the system board, please handle it with care and follow the measures below,
which are generally sufficient to protect your equipment from static electricity discharge:
When handling the board, use a grounded wrist strap designed for static discharge elimination grounded
to a metal object before removing the board from the antistatic bag. Handle the board by its edges only;
do not touch its components, peripheral chips, memory modules or gold contacts.
When handling processor chips or memory modules, avoid touching their pins or gold edge fingers.
Return the Network Appliance system board and peripherals back into the antistatic bag when not in use
or not installed in the chassis.
Some circuitry on the system board can continue to operate even though the power is switched off.
Under no circumstances should the Lithium battery cell used to power the real-time clock be allowed to
be shorted. The battery cell may heat up under these conditions and present a burn hazard.
WARNING!
1. "CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE
MANUFACTURER’S INSTRUCTIONS"
2. This guide is for technically qualified personnel who have experience installing and configuring
system boards. Disconnect the system board power supply from its power source before you
connect/disconnect cables or install/remove any system board components. Failure to do this can
result in personnel injury or equipment damage.
3. Avoid short-circuiting the lithium battery; this can cause it to superheat and cause burns if touched.
4. Do not operate the processor without a thermal solution. Damage to the processor can occur in
seconds.
5. Do not block air vents at least minimum 1/2-inch clearance required.

3
Chapter 1 Introduction
FWA8108 was specifically designed for the network security & management market.
Network Security Applications:
• Firewall
• Unified Threat Management (UTM)
• Virtual Private Network (VPN)
• Proxy Server
• Caching Server
Network Management Applications:
• Load balancing
• Quality of Service
• Remote Access Service
The FWA networking appliance product line covers the spectrum from offering platforms
designed for:
• SOHO
• SMB
• Enterprise
Each product is designed to address the distinctive requirements of its respective market
segment from cost effective entry-level solutions to high throughput and performance-bound
systems for the Enterprise level.

4
Chapter 2 System Specification
Product Name FWA8108
Form Factor 19” 1U Mainstream Networking Product
Motherboard MB967-FT
CPU Intel®LGA1155 Series Processors
Chipset Intel® Panther Point C216 PCH
Supported CPUs
Intel® Xeon E3-1275 v2
Intel® Xeon E3-1225 v2
Intel® Core i7-3770
Intel® Core i5-3550S
Intel® Core i3-3220
Intel® Celeron G540
Intel® Celeron G440
Intel® Celeron G1620
Intel® Celeron G2120
Intel® Pentium G850
Network Seven onboard GLAN + one Management (ATM 8.0)
Two segments hardware Bypass
Network Controller
Eth1: Intel® 82579LM GbE PHY w/ iAMT 8.0 supporting. No Bypass
Eth2~4: Intel® 82583V GbE. No Bypass.
Eth5~6: Intel® 82583V GbE. No Bypass.
Eth7~8: Intel® 82583V GbE. No Bypass.
Expansion Slot Two PCI-e x8 Golden Finger
CF Card Socket
Mini PCI-e Socket (mSATA compatible)
Storage One internal 3.5” HDD
Optional 2nd internal 3.5” or 2.5” HDD
Front Panel
Two RJ-45 1x4 connectors for Eth1~4 & 5~6
USB 3.0 x2
RJ-45 (for console, COM1)
Three LEDs for Power, Bypass & Status
Factory Mode Restore Reset Switch
Rear Panel PSU inlet
2x Slot
USB Port Two USB 3.0 ports at front panel
Four USB 2.0 pin header on board
ATM ATM 8.0
TPM nuvoTon WPCT210 TPM1.2
VGA Pin header on board
LCM N/A
Watchdog Timer 256 segments, 0, 1, 2…255 sec/min
Power Supply 300W Single PSU
Dimensions 44 (H) x 440 (W) x 406.5 (D) mm

5
Operation Temperature 0 ~ 45 °C
Storage Temperature -20 ~ 70 °C
Operation Humidity 5% ~ 95%
Certifications CE, FCC

6
Chapter 3 Hardware Configuration
Jumper Locations on MB967-FT

7
Jumper Settings on MB967-FT
JP2: Clear CMOS Contents
Use JP2 to clear the CMOS contents. Note that the ATX-power connector should be disconnected from the board before
clearing CMOS.
JP3 Setting Function
Pin 1-2
Short/Close
d
Normal
Pin 2-3
Short/Close
d
Clear CMOS
JP3: Clear ME RTC Contents
JP3 Setting Function
Pin 1-2
Short/Closed Normal
Pin 2-3
Short/Closed Clear ME RTC
JP4: Watchdog Reboot (WDT) Select
JP7: Flash Descriptor Security Override (ME BIOS Update Jumper)
JP7SettingFunction
Open Disable
(Default)
Short/Closed Enable to update BIOS
JP9: ATX & AT Mode Select
JP9 Setting Function
Short/Closed AT Mode
(Default)
Open ATX Mode
J17: PCIE1 & PCIE2 Golden Finger PCI-e Configuration
J17 Setting Function Remarks
Open Combine to
1x16
For CPU with
1x16 support
Short /
Closed
Separate
to2x8
Default for CPU
with 2x8 support
JP4 Setting Function
Pin 3-4
Closed
System will reboot upon
the time out of watchdog
timer.
Pin 3-4
Open
Watchdog function
Disabled

8

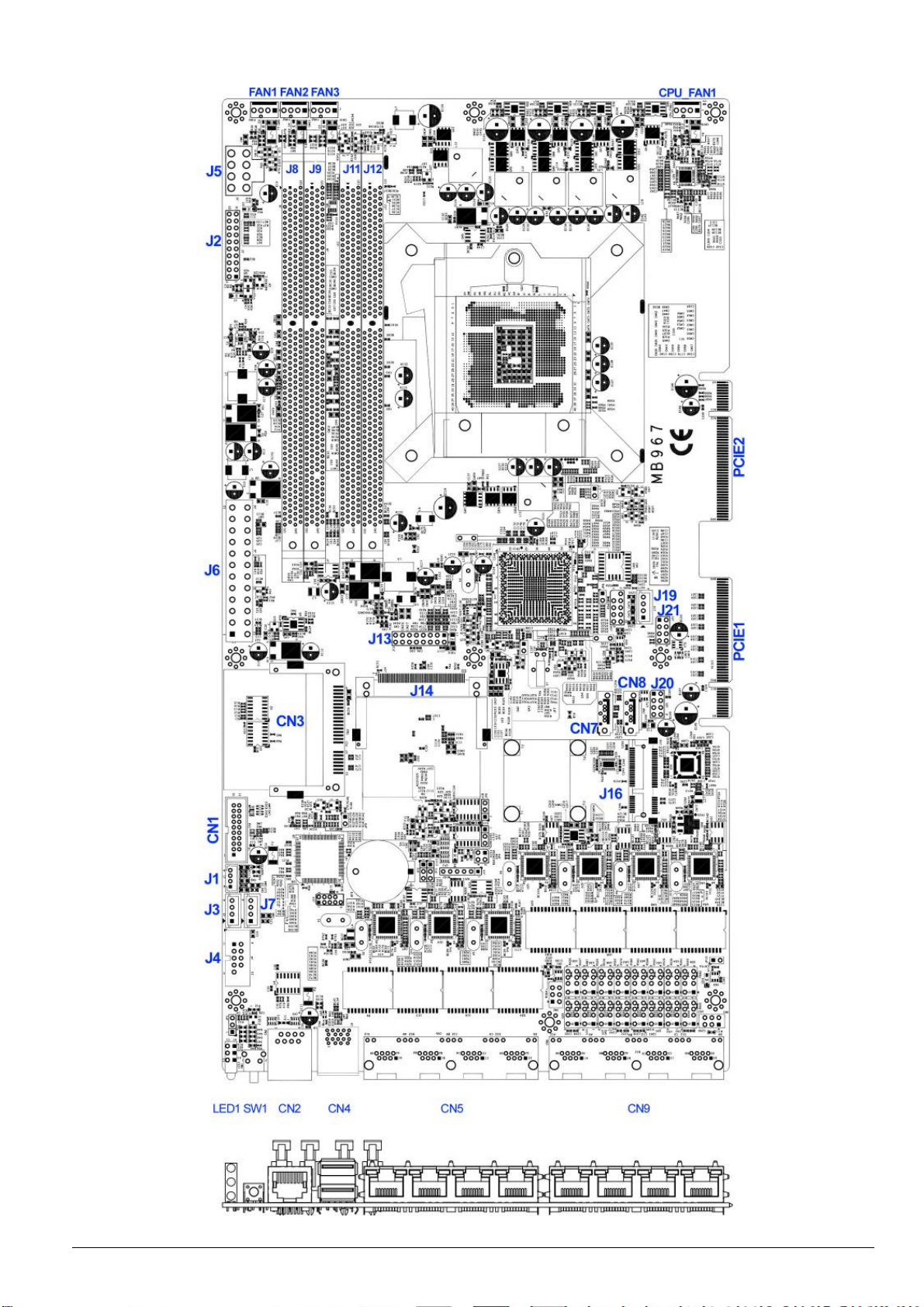

Connector Locations on MB967-FT

9
CN2: COM1 RJ45 Connector
Pin # Signal Name (RS-232)
1 RTS, Request to send
2 DTR, Data terminal ready
3 TXD, Transmit data
4 Ground
5 Ground
6 RXD, Receive data
7 DSR, Data set ready
8 CTS, Clear to send
CN4: USB Connector
CN5, CN9: LAN Connectors
CN7, CN8: SATA HDD Connector
Pin # Signal Name
1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+
7 Ground
J1, J3, J7, J19: Power Output Connector
Pin # Signal Name
1 +5V
2 GND
3 GND
4 +12V
J2: Front Panel Function Connector
Signal Name Pin # Pin # Signal Name
PWR LED + 1 2 SPK +
NC 3 4 NC
PWR LED- (GND) 5 6 SPK – (GND)
NC 7 8 +5V
GND 9 10 NC
GND 11 12 NC
PWR_SW 13 14 PWR_SW
SLED+ 15 16 SLED-
GND 17 18 RST
HDD LED + 19 20 HDD LED -
J4: COM2 Serial Port
Pin # Signal Name (RS-232)
1 DCD, Data carrier detect
2 RXD, Receive data
3 TXD, Transmit data
4 DTR, Data terminal ready
5 Ground
6 DSR, Data set ready
7 RTS, Request to send
8 CTS, Clear to send
9 RI, Ring indicator
10 No Connect.
14

10
J5: ATX 12V Power Connector
Signal Name Pin # Pin # Signal Name
+12V 5 1 Ground
+12V 6 2 Ground
+12V 7 3 Ground
+12V 8 4 Ground
J6: 24-pin ATX Power Connector
Signal Name Pin # Pin # Signal Name
3.3V 13 1 3.3V
-12V 14 2 3.3V
Ground 15 3 Ground
PS-ON 16 4 +5V
Ground 17 5 Ground
Ground 18 6 +5V
Ground 19 7 Ground
-5V 20 8 Power good
+5V 21 9 5VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 24 12 +3.3V
J8, J9: Channel B DDR3 Socket
J8, J9 are the second-channel DDR3 sockets.
J10: LPC Debug Port (Reserved for factory use only)
J11, J12: Channel A DDR3 Socket
J11, J12 are the first-channel DDR3 sockets.
J13: VGA Box Header
Signal Name Pin # Pin # Signal Name
R 1 9 +5V
G 2 10 GND
B 3 11 NC
NC 4 12 SPD1
GND 5 13 Hsync
GND 6 14 Vsync
GND 7 15 SPCLK
GND 8
J14: Slim Type II Compact Flash Connector
J16: Mini PCI-e Card & m-SATA Connector
J18: SPI Debug Port (Reserved for factory use only)
J20, J21: USB 2.0 Pin Header
FAN1, 2, 3: System Fan Power Connector
FAN1/2/3 are 4-pin headers for System fan power.
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
4 Control

11
CPU_FAN1: CPU Fan Power Connector
Pin # Signal Name
1 Ground
2 +12V
3 Rotation detection
4 Control
SW1: Software reset button
Signal Name Pin # Pin # Signal Name
GND 1 2 PCH
GPIO7
IO Base:
Read IO 0x500 and set bit 7 to “1” (Enabled GPIO function)
Read IO 0x504 and set bit 7 to “1” (GPIO act as GPI )
Read IO 0x50C and check the bit 7 (Control Pin)
Note: SW3 is controlled by GPIO only.
PCIE1: PCI-e x8 Golden Finger 1
PCIE2: PCI-e x8 Golden Finger 2
LED1: Power, Bypass & Status LED
Index port: 4E
Data port: 4F
Device: 06
30h bit1 = 1
C0h set bit2, bit3 = 1 for GPO
C3h set bit2, bit3 = 1 for Push Pull
C1h bit2, bit3 (Control pin) for GPO32, 33
Signal NamePin #Pin #Signal Name
SIO GPIO32C1A1SIO GPIO33
Bypass LED- C2A2Bypass LED+
POWER LED-C3A3POWER LED+
STATUS LED GPIO33 GPIO32
YELLOW H L
RED L H
C1
C2
C3
A1
A2
A3

12
Front Panel Features
Rear Panel Features
3x Smart Fans
Two Add-on Card
Expansion Slot Opening 300W Power Supply
Console
LEDs
Management Port
Eth1 2 3 4 5 6 7 8

13
Chapter 4 Console Mode Information
FWA8108 supports output information via Console in BIOS level.
Prepare a computer as client loaded with an existing OS such as Windows XP and Windows 7.
Connect client computer and FWA8108 with NULL Modem cable.
Follow the steps below to configure the Windows Hyper Terminal application setting:
1. Execute Hyper Terminal. Issue command “hypertrm”.
2. Customize your name for the new connection.
3. Choose COM port on the client computer for the connection.

14
4. Please make the port settings to Baud rate 19200, Parity None, Data bits 8, Stop bits 1
5. Power on FWA8108.
Press <Tab> key to enter BIOS setup screen in Console mode.
Press <Del> key to enter BIOS setup screen in VGA mode.

15
Chapter 5 Open the Chassis
Fig. 5-2 Take off six screws and open the top lead Fig. 5-3 The base stand
Chapter 6 Installing DDR3 Memory
Install system memory by pulling the socket’s arm and pressing it into the slot gently.
Fig. 6-1 Open both arms on DIMM socket Fig. 6-2 Install DIMM
Notice:
1. MB967 supports two groups of dual channels memory.
One group is on the black DIMM sockets, and the other one is blue DIMM sockets.
2. The recommended height of memory module doesn’t exceed 30 mm.

16
Chapter 7 Installing CompactFlash Card
Insert CompactFlash card into the socket.
Fig. 7-1 Insert CompactFlash Card into the
CF interface Fig. 7-2 Completion of CompactFlash Card connection
Chapter 8 Removing and Installing the Battery
1. Press the metal clip back to eject the button battery.
2. Replace it with a new one by pressing the battery with fingertip to restore the battery
Fig. 8-1 Eject the battery and replace with new one

17
Chapter 9 Installing 2.5” HDD
Fig. 9- Take off two screws on bottom to
remove 2.5” HDD bracket. Fig. 9-2 Fasten the four screws to lock HDD and bracket together.
Fig. 9-3 Push HDD into connector Fig. 9-4 Completion of HDD connection
Fig. 9-5 Fix HDD bracket with two
screws
Front
Front

18
Chapter 10 Installing Optional Dual 2.5” HDD Kit
The following is for optional Dual 2.5” HDD kit:
Fig. 10-1 Push eight shock-absorbent pads to
fasten HDD bracket. Fig. 10-2 Fasten the screws to lock 2.5” HDD bracket and bracket together.
Fig. 10-3 Fix HDD bracket on chassis with four
screws

19
Chapter 11 InstallingAdd-on Card
Fig. 11-1 Loosen screw on slot bracket. Fig. 11-2 Slide in PCI-e add-on card.
Fig. 11-3 Fix the add-on card
Chapter 12 Installing Mini PCI-e Card
Fig. 12-1 Insert Mini PCI-e card. Fig. 12-2 Push down Mini PCI-e card.
