TE-WMSC User Manual

iBeamUSA.com

MetraDealer.com

techsupport@metra-autosound.com

� TECH SUPPORT

l ::: J 800-253-8324

2.4Ghz

For your safety, please do not watch video or operate the monitor when

driving. If the device stops working please do not dismantle the product

and consult customer service.

Warning: Please install this device in accordance with laws and

regulations. We take no responsibility for any illegal product installation.

1

2.4Ghz antenna

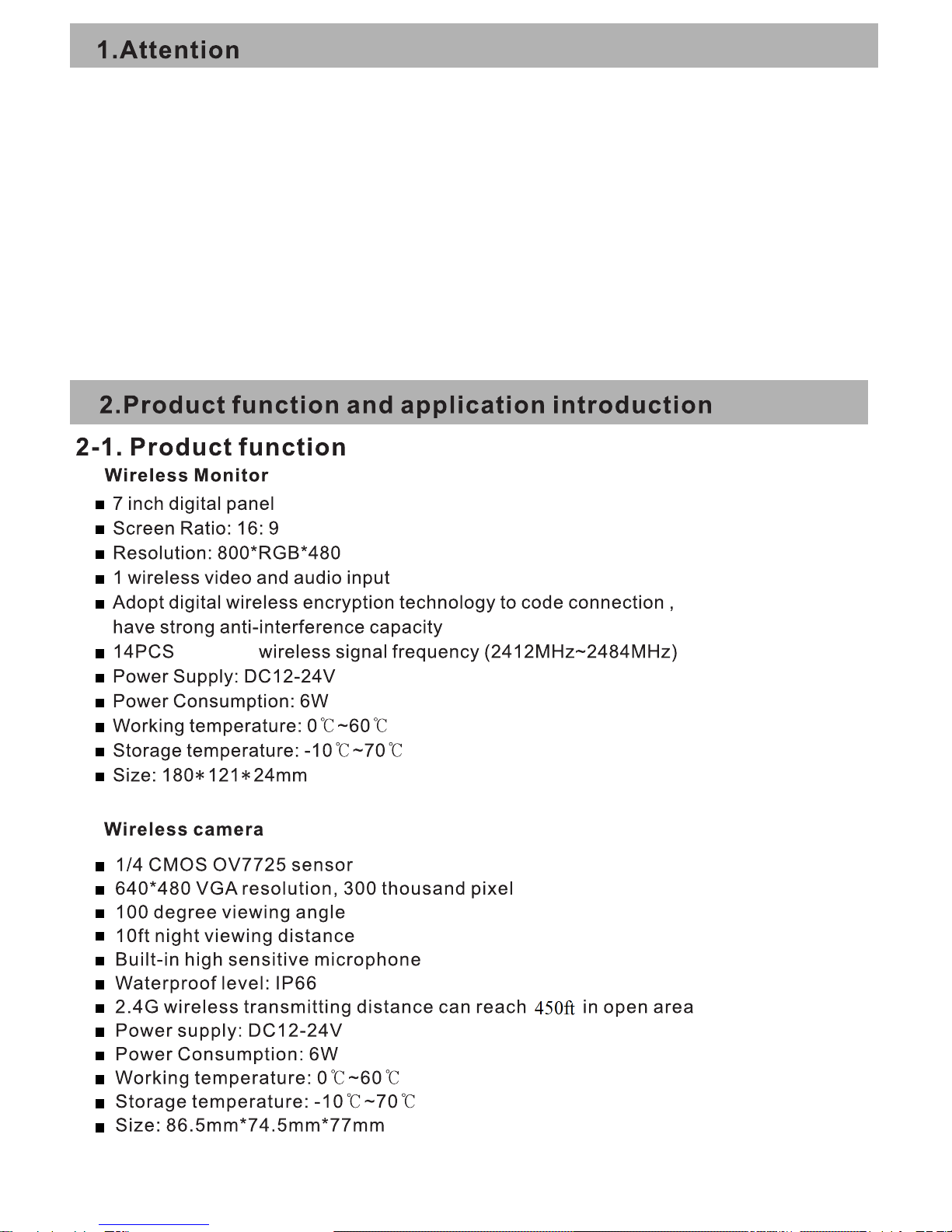

This product merges a high resolution TFT color digital screen with

2.4Ghz digital wireless technology. The device uses an embedded

processor and operating system for high quality video reproduction.

Combining several of the latest technologies, including audio and

video compression/decompression and special shockproof

technology, to provide a cutting edge solution. It has no radiation,

low power consumption, and a flicker-free vivd color display that can

be easily installed in wide variety of applications.

2

 

 

z



 



 

 



B. Menu Setup Introduction

1. Pairing setting

3

Press "MODE" on the remote control to switch to the "Pair" option, and then press

"Right" to enter into the setting. Next, hold the camera pairing button to pair. It will

show "Pair OK" after 2-5 seconds if pair is successfully, otherwise it will show

"Pair fail" and you will need to repeat pairing procedures. Press "MENU" to exit

current setting. Just as shown in the following pictures.

2. Camera Brightness / Contrast / Saturation

Press "MODE" on the remote control to switch to the "Brightness" / "Contrast" /

"Saturation" option, and then press "Right" to enter into the setting. Pressing "Left"

will decrease the setting, pressing "Right" will increase the setting. After adjusting the

setting push "Menu" on the remote to save and exit the setting. Push "MODE" to

switch to a different option or push "MENU" to completely exit the menu.

4

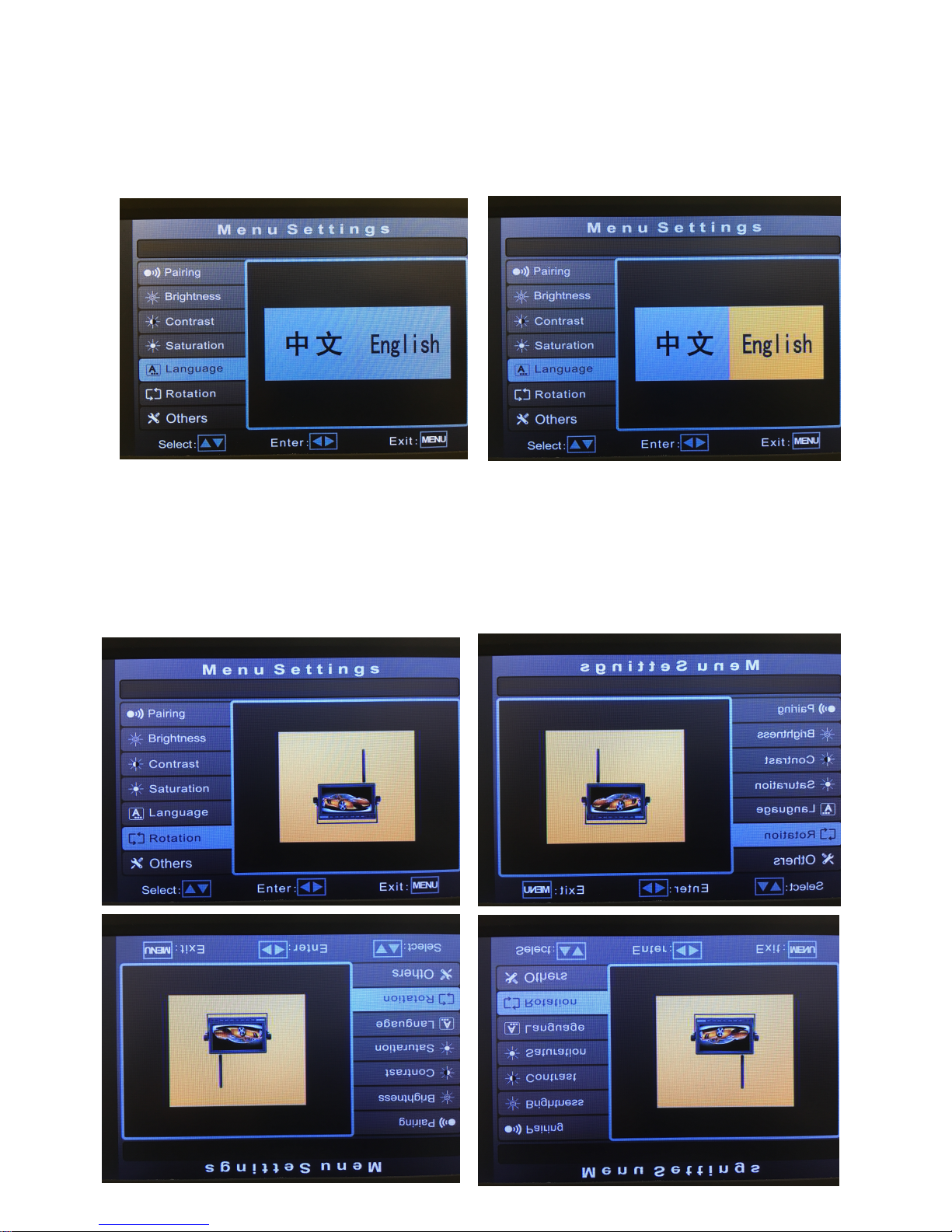

3. Language

Press "MODE" on the remote control to switch to the "Language" option, and then

press "Right" to enter into the setting. Pressing "Left" will switch to Chinese, pressing

"Right" will switch to English. After selecting push "Menu" on the remote to save and

exit the setting. Push "MODE" to switch to a different option or push "MENU" to

completely exit the menu.

4.Rotation

Press "MODE" on the remote control to switch to the "Rotation" option, and then press

"Right" to enter into the setting. Pressing "Left" will rotate the image clockwise,

pressing "Right" will rotate the image counter clockwise. After adjusting the setting

push "Menu" on the remote to save and exit the setting. Push "MODE" to switch to a

different option or push "MENU" to completely exit the menu.

5

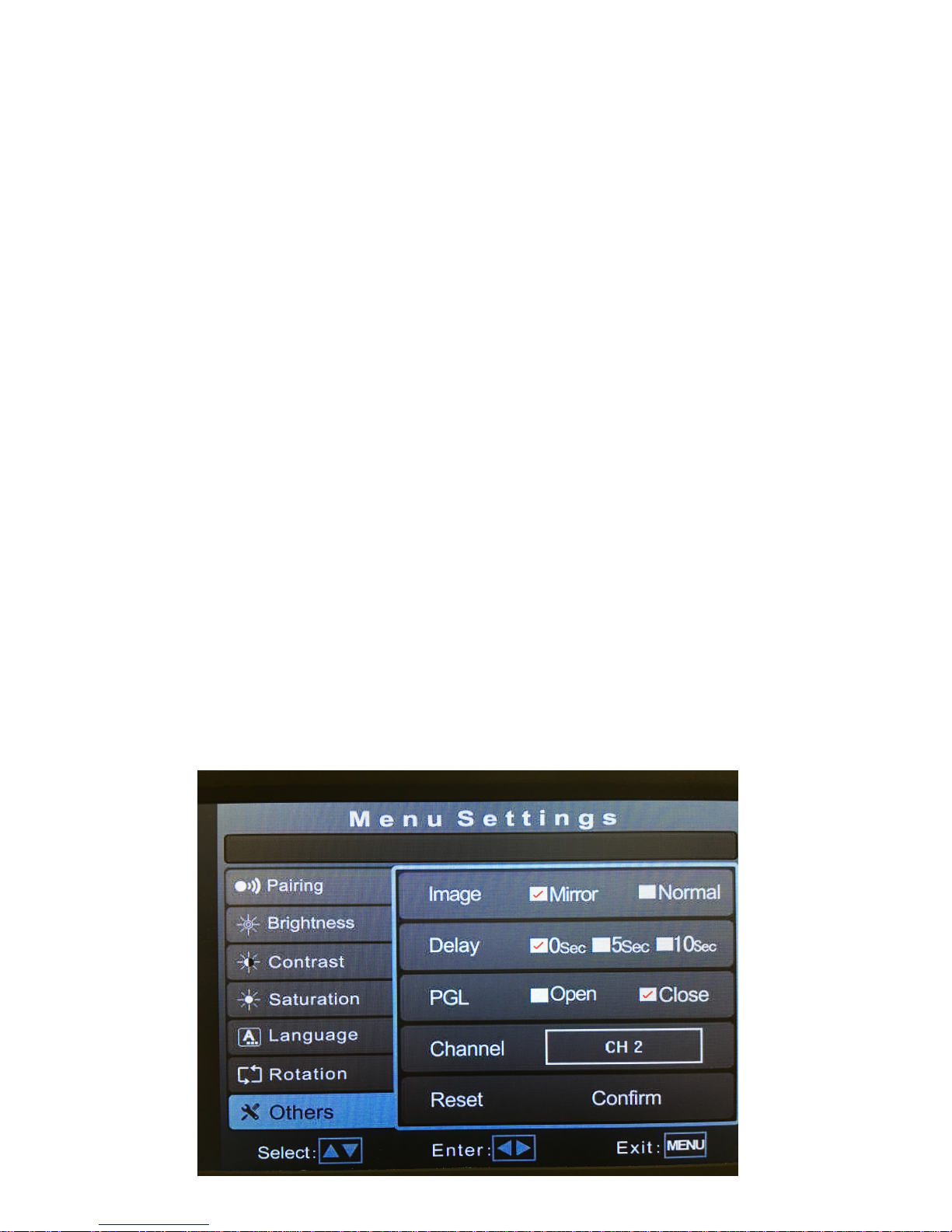

5. Others

Press "MODE" on the remote control to switch to the "Others" option, and then press

"Right" to enter into the setting. Push "MODE" on the remote control to move through

the options, and "Left" & "RIGHT" to adjust.

Delay

This adjust the time delay for the image to revert to former state after the reverse

trigger is removed

PGL

This turns on and off the Parking Guide Lines

Channel

The changes the wireless channel that the system functions on. There are 14 different

channel options, with CH 1 being the default. If there are several monitors operating

on the same channel if may cause unstable or flickering issues. Changing the

operating channel can reduce this interference issue.

Reset

This will return settings back to the default state.

Confirm

Confirm will save all adjustments made under the "Others" option.

After adjusting the setting push "Menu" on the remote to save and exit the setting.

Push "MODE" to switch to a different option or push "MENU" to completely exit the

menu.

6

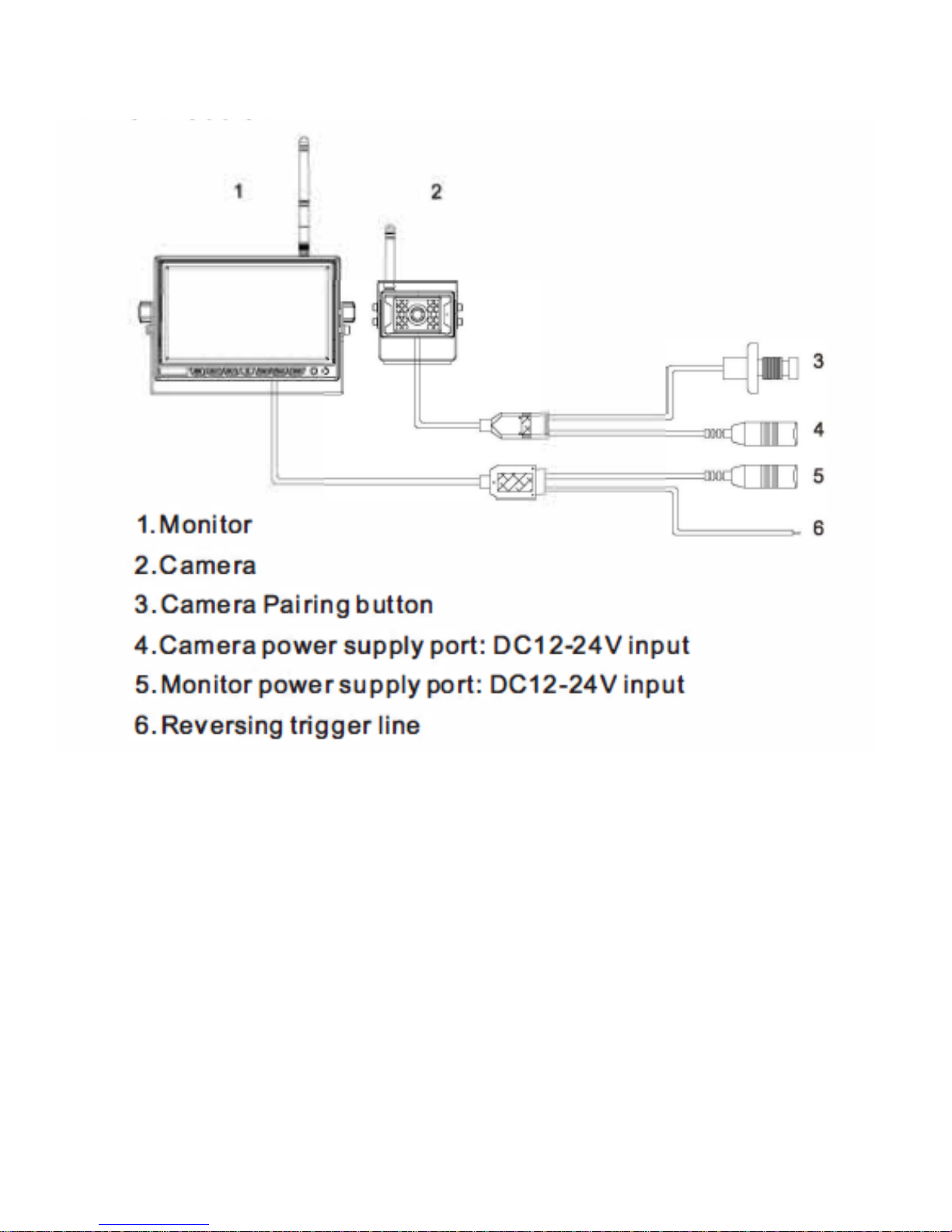

C. Connections

7

Notes:

_______________________________________________________________________________

Notes:

_______________________________________________________________________________

Notes:

_______________________________________________________________________________

IMPORTANT

If you are having difficulties with the installation

of this product, please call our Tech Support line

at 1-800-253-TECH. Before doing so, look over

the instructions a second time, and make sure

the installation was performed exactly as the

instructions are stated. Please have the vehicle

apart and ready to perform troubleshooting

steps before calling.

When connecting with power cable, please make sure not to mistake the positive and

negative pole, otherwise the fuse will blow immediately for security protection. If it happens,

please replace the blown fuse with a new one with same specification, after connecting

properly to the right pole. Don’t randomly increase the current rating of the fuse, and NEVER

use metal wire as a substitute.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by

enrolling in the most recognized and respected

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

800-354-6782 for more information and take steps

toward a better tomorrow.

Metra recommends MECP

certified technicians

Version 1.0
