iBell RH26-26 User manual

1

2
1. GENERAL POWER TOOL SAFETY WARNINGS ___________
2. ROTORY HAMMER SAFETY WARNINGS_________________
3. PRODUCT OVERVIEW __________________________________
4. PRODUCT SPECIFICATIONS ____________________________
5. SETUP _________________________________________________
6. PRODUCT FUNCTIONS AND ASSEMBLY ________________
7. GENERAL OPERATION _________________________________
8. TROUBLESHOOTING ___________________________________
TABLE OF CONTENTS
IBL RH26-26/24
3
6
7
8
9
10
14
17

3
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL RH26-26/24

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts.This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL RH26-26/24
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL RH26-26/24
RESIDUAL RISKS

6
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle supplied with the tool. Loss of control can
cause personal injury.
Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may contact
hidden wiring or its own cord. Contact with a “live” wire will make
exposed metal parts of the tool “live” and shock the operator.
Use clamps or other practical way to secure and support the
work piece to a stable platform. Holding the work by hand or
against your body is unstable and may lead to loss of control.
Wear safety goggles or other eye protection. Hammering
operations cause chips to fly. Flying particles can cause permanent
eye damage. Wear a dust mask or respirator for applications that
generate dust. Ear protection may be required for most
applications.
Keep a firm grip on the tool at all times. Do not attempt to
operate this tool without holding it with both hands. It is
recommended that the auxiliary handle be used at all times.
Operating this tool with one hand will result in loss of control.
Breaking through or encountering hard materials such as
reinforcing bar may be hazardous as well. Tighten the auxiliary
handle securely before use.
Do not operate this tool for long periods of time. Vibration
caused by hammer action may be harmful to your hands and arms.
Use gloves to provide extra cushion and limit exposure by taking
frequent rest periods.
Do not recondition bits yourself. Chisel reconditioning should be
done by an authorized specialist. Improperly reconditioned chisels
could cause injury.
Wear gloves when operating tool or changing bits. Accessible
metal parts on the tool and bits may get extremely hot during
operation. Small bits of broken material may damage bare hands.
ROTORY HAMMER SAFETY WARNINGS
IBL RH26-26/24

7

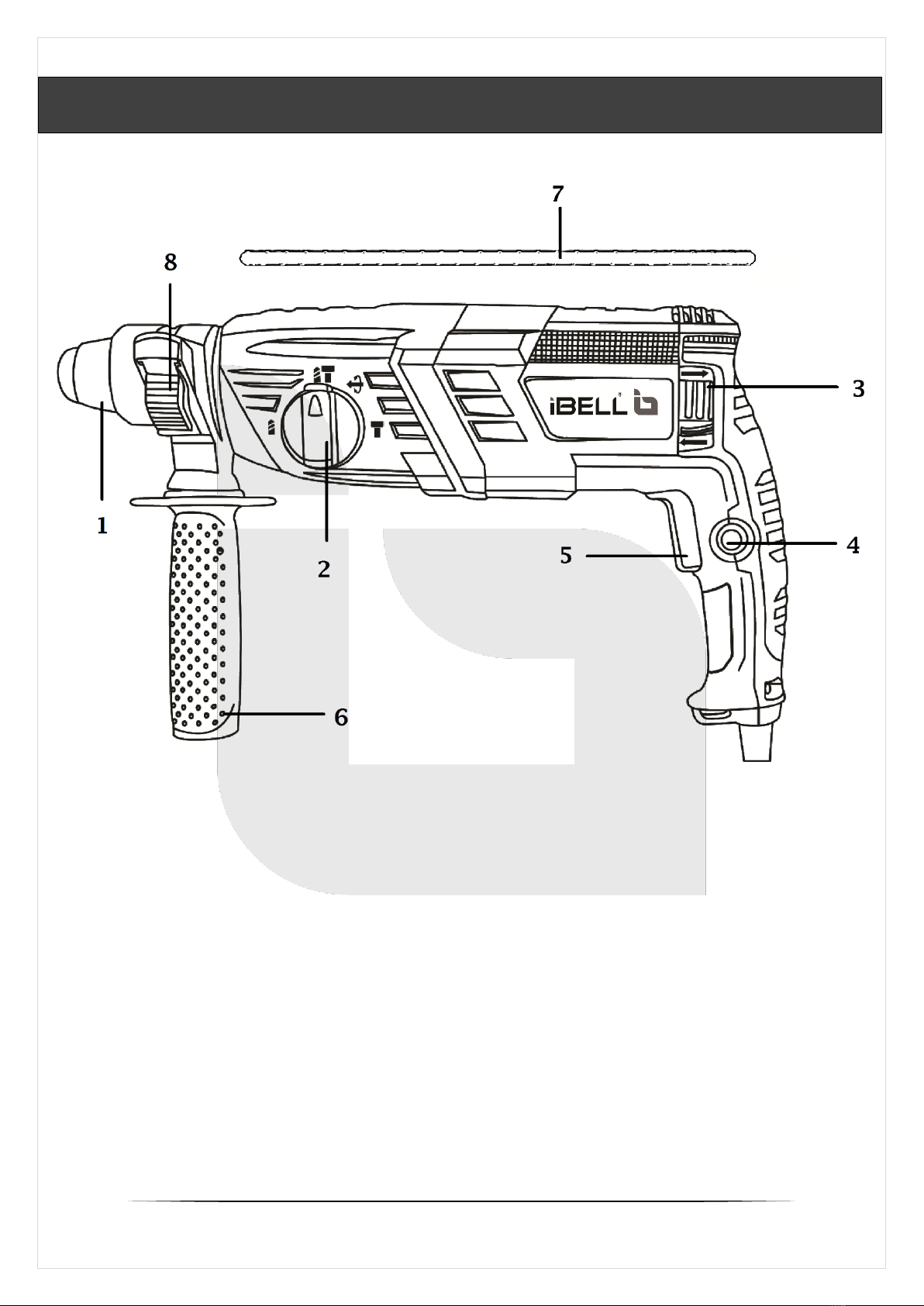

PRODUCT OVERVIEW
1. SDS Plus Chuck/Tool Holder
2. Mode Adjustment knob (Selector and button)
3. Forward/Reverse rotation control lever
4. Switch lock on button
5. ON/OFF Switch
6. Auxiliary Handle
7. Depth rod
8. Depth rod adjustment button
IBL RH26-26/24

8
Rated voltage
Rated Input Power
Rated no load speed
Weight
Impact rate at nominal speed
Impact energy per stroke
SDS plus Chuck capacity
Additional Chuck capacity
Max Drill diameter
Spindle collar diameter
Protection class
: 220V~50Hz
: 780W (26-26) || 800W (26-24)
: 0-900 rpm
: 2.7 Kg (26-26) || 3.1 Kg (26-24)
: 4000/min
: 3 J
: 26 mm
: 13 mm
: Class II
IBL RH26-26/24
PRODUCT SPECIFICATIONS
: Masonry –68 mm
Concrete –26 mm
Wood –30 mm
Steel –13 mm
: 50 mm

9
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Using an incomplete or damaged product represents a hazard to
people and property.
Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
A Rotary hammer is a power tool that can perform heavy-duty
tasks such as drilling and chiselling hard materials. It is similar to
a hammer drill in that it also pounds the drill bit in and out while
it is spinning. However, rotary hammers use a piston mechanism
instead of a special clutch. This causes them to deliver a much
more powerful hammer blow, making it possible to drill bigger
holes much faster.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
mentioned in it.
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
step-by-step and use the pictures provided as a visual guide to easily
assemble the product! Do not connect the product to power supply
before it is completely assembled!
INTENDED USE
IBL RH26-26/24

10
Change the rotational direction from forward to reverse by sliding
the forward /reverse rotation control (3).
Move the reversing switch lever to the position for clockwise
rotation or the position for counter-clockwise rotation.
PRODUCT FUNCTIONS AND ASSEMBLY
FORWARD / REVERSE ROTATION CONTROL
WARNING! Only change the rotational direction when the product is
switched off and has come to a complete stop! Always push the forward/reverse
rotation control as far as it will go! Do not use the product with the control switch in
any other intermediate position!
IBL RH26-26/24
To start the tool, simply press the trigger
switch (5). Tool speed is increased by
increasing pressure on the switch trigger.
Release the trigger switch to stop. For
continuous operation, press the switch trigger
and then push in the lock button (4). To stop
the tool from the locked position, pull the
switch trigger fully, then release it.
ON/OFF TRIGGER SWITCH AND LOCK BUTTON
WARNING! Before plugging in the tool, always check that the switch
trigger actuates properly and returns to the "OFF" position when released.

11

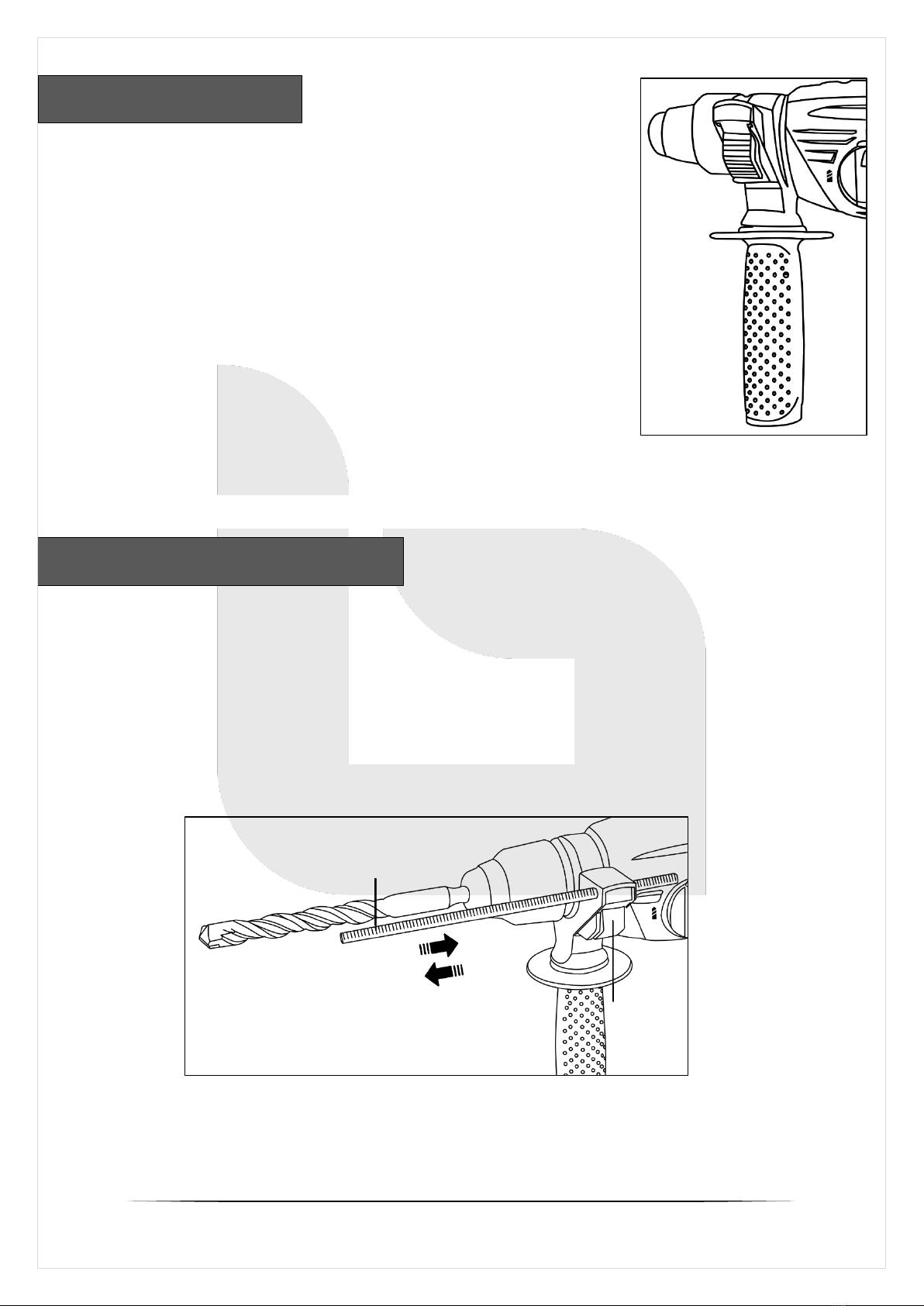

Proper hand position requires one hand on the
side/auxiliary handle (6), while other hand on
the main handle.
Always use the auxiliary handle.
The auxiliary handle can be fitted to suit both
right-handed and left-handed users.
Loosen the auxiliary handle.
Slide the auxiliary handle clamp over the
collar behind the tool holder.
Rotate the auxiliary handle to the desired position and tighten the
handle.
AUXILIARY HANDLE
INSTALLING THE DEPTH ROD
The depth gauge/rod (7) can be used to set a constant depth to
drill. To use the depth rod, first insert the required drill bit. Press
the depth rod button (8) and keep it pressed. Fit the depth rod
through the hole in the depth stop clamp on the auxiliary handle.
Adjust the drilling depth required and release the button.
IBL RH26-26/24
7
8

12
This tool uses SDS Plus accessories (a cross-section of an SDS Plus
bit shank is shown).
INSERTING/REMOVAL OF BIT:
Insert the bit shank into the SDS Plus tool holder. Push the bit
down and turn it slightly until it fits into the slots.
Pull on the bit to check if it is properly locked. The hammering
function requires the bit to be able to move axially several
centimetres when locked in the tool holder.
To remove a bit, pull back the holder sleeve and pull out the bit.
To drill a wood or metal material using the 13 mm Hammer Drill
chuck, first attach the drill chuck to the chuck adaptor as shown in
the figure. SDS-plus shank should be same as the drill bit used and
so follow the steps referred above.
INSERTING AND REMOVING SDS PLUS ACCESSORIES
IBL RH26-26/24
FITTING THE CHUCK ADAPTER AND CHUCK
Drill Chuck +
Chuck Adaptor
Chuck wrench; used for tightening
or loosening the jaws of a chuck.
SDS Plus shank
cross-section

13
INDEXING THE CHISEL POSITION:
The chisel can be indexed and locked into different positions.
Press the mode selector button and turn the mode selector knob until
it points to the ‘bit rotation/hammer-drilling’ position.
Rotate the chisel to the desired position. Set the mode selector switch
to the ‘hammering only’ position.
Twist the chisel until it locks in position.
Mode
Description
Rotary drilling: for screw-driving and for drilling
into steel, wood and plastics
Hammering only: for light chipping, chiselling and
demolition applications. In this mode the tool can
also be used as a lever to free a jammed drill bit.
Hammer-drilling: for concrete and masonry drilling
operations.
Bit rotation: non-working position used only to
rotate a flat chisel into the desired position
MODE ADJUSTMENT
It is possible to adjust the mode operation
knob (2) to hammering or drilling or
hammer-drilling operations.
To select the operating mode, press the mode
selector button and rotate the knob until it
points to the required mode. Release the mode
selector button and check that the mode
selector switch is locked in place.
IBL RH26-26/24

14
Check the product as well as accessories for damage before each
use. Do not use the product if it is damaged or shows wear.
Double check that the accessories and attachments are properly
fixed.
Always hold the product on its main handle as well as auxiliary
for operation. Keep the handle dry to ensure safe support.
Switch the product off immediately if you are disturbed while
working by other people entering the working area. Always let the
product come to complete stop before putting it down.
Do not overwork yourself. Take regular breaks to ensure you can
concentrate on the work and have full control over the product.
Set the mode adjustment knob to ‘hammer-drilling’ position for
concrete and masonry drilling operations.
Always hold the product perpendicular to the point to be drilled.
Holding at an angle may cause slipping/jamming of the drill bit.
Always place the drill tip directly on the point to be drilled first
and then switch the product on.
Pre-drill larger holes with a small diameter drill bit first. Doing so
makes drilling with a larger diameter drill bit easier.
Do not ‘always’drill at top speed. This unnecessarily increases
the wear and tear of the product and drill bit.
Remove blocked and stuck drill bits by changing the rotational
direction.
Adjust the auxiliary handle as required. If necessary, set the
depth rod.
Always switch off the tool when work is finished and before
unplugging.
GENERAL OPERATION
HAMMER-DRILLING
IBL RH26-26/24

15
Set the mode adjustment knob to the ‘rotary drilling’ position for
screw-driving* and for drilling into steel, wood and plastics.
Depending on your tool, either you can operate with the SDS Plus
tool holder or using the additional drill chuck provided.
(Refer ‘Fitting Drill chuck and adapter’ section for installation)
Proceed the same steps as described for hammer-drilling.
Set the mode adjustment knob to the ‘hammering only’ position.
Insert the appropriate chisel and rotate it by hand to lock it into
position.
Adjust the auxiliary handle as required.
Switch on the tool and start working. Always switch off the tool
when work is finished and before unplugging.
(Refer ‘Indexing the chisel position’section for preparation)
ROTARY DRILLING
CHIPPING AND CHISELLING
WARNING! Applying force more than necessary will not only
accelerate the work at all, but will worsen the tip edge of the drill
bit and reduce the service life of the rotary hammer in addition.
Drill bit may snap off while withdrawing the hammer from the
drilled hole. For withdrawing, it is important to use a push-motion.
Do not attempt to drill anchor holes or holes in concrete with the
machine set in the rotation only function.
Do not attempt to use the rotary hammer in the rotation and
striking function with the drill chuck and chuck adaptor attached.
This would seriously shorten the service life of every component
of the machine.
IBL RH26-26/24

16
Keep the product clean. Remove debris from it after each use and
before storage.Do not use chemical, alkaline, abrasive or other
aggressive detergents or disinfectants to clean this product as
they might be harmful to its surfaces. Regular and proper
cleaning will help ensure safe use and prolong the life of the
product. Clean the product with a dry cloth. Use a brush for areas
that are hard to reach.
Always store the product in a place that is inaccessible to
children. We recommend using the original package for storage
or covering the product with a suitable cloth or enclosure to
protect it against dust.
Before and after each use, check the product and accessories (or
attachments) for wear and damage.
Inspecting the drill bits; Since use of a dull tool will cause motor
malfunctioning and degraded efficiency, replace the drill bits
with a new one or re-sharpen when abrasion is noted.
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualified person to have it checked and repaired.
CLEANING AND STORAGE
MAINTENANCE AND REPAIR
WARNING! Always switch the product off, disconnect the product
from the power supply and let the product cool down before
performing inspection, maintenance and cleaning work! Only perform
repairs and maintenance work according to these instructions! All
further works must be performed by a qualified specialist!
IBL RH26-26/24

17
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section. In
most cases the problem can be solved quickly.
Problem
Possible Cause
Solution
1. Product does
not start
1.1 No power supply
1.2 Product damaged
1.3 Other electrical
defect to the
product
1.1 Check the plug on
the power supply
1.2 Check it by an
electrician
1.3 Check it by an
electrician
2. Unsatisfactory
result
2.1 Drill bit is worn
2.2 Drill bit not
suitable for
intended operation
2.1 Replace with a new
one
2.2 Use suitable driver
bit
3. Product
suddenly
stops
3.1 Product overloaded
3.1 Remove the
product from
the work-piece and
switch it on again
TROUBLESHOOTING
WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work must
be performed by an authorised service centre or a similarly qualified
specialist if you cannot solve the problem yourself!
IBL RH26-26/24

18
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
