IBIOM Instruments Ltd ECHO-FLEX 4400 User manual

OPERATION AND MAINTENANCE MANUAL
IBIOM Instruments Ltd, 1065, du Pacifique street, suite 403, Sherbrooke, Quebec, J1H 2G3
Phone: [phone] Fax: [phone]
OPERATION AND
MAINTENANCE
MANUAL
Version R0413
ECHO-FLEX # 4400
CHAIR

OPERATION AND MAINTENANCE MANUAL
IBIOM Instruments Ltd, 1065, du Pacifique street, suite 403, Sherbrooke, Quebec, J1H 2G3
Phone: [phone] Fax: [phone]
TABLE OF CONTENTS
1SAFETY INSTRUCTIONS .......................................................................................3
2WARRANTY.............................................................................................................4
3IBIOM PRODUCT APPROVALS.............................................................................5
4CONTACT US..........................................................................................................6
5USER INSTRUCTION..............................................................................................7
5.1 Stretcher movements.........................................................................................7
5.2 To use the stirrups .............................................................................................9
5.3 To use the individual locking swivel casters.....................................................10
5.4 To use the rechargeable battery pack..............................................................10
6FEATURES............................................................................................................11
6.1 Technical characteristic....................................................................................11
6.2 Mattress cleaning instructions..........................................................................12
7MAINTENANCE.....................................................................................................13
8TROUBLESHOOTING...........................................................................................14

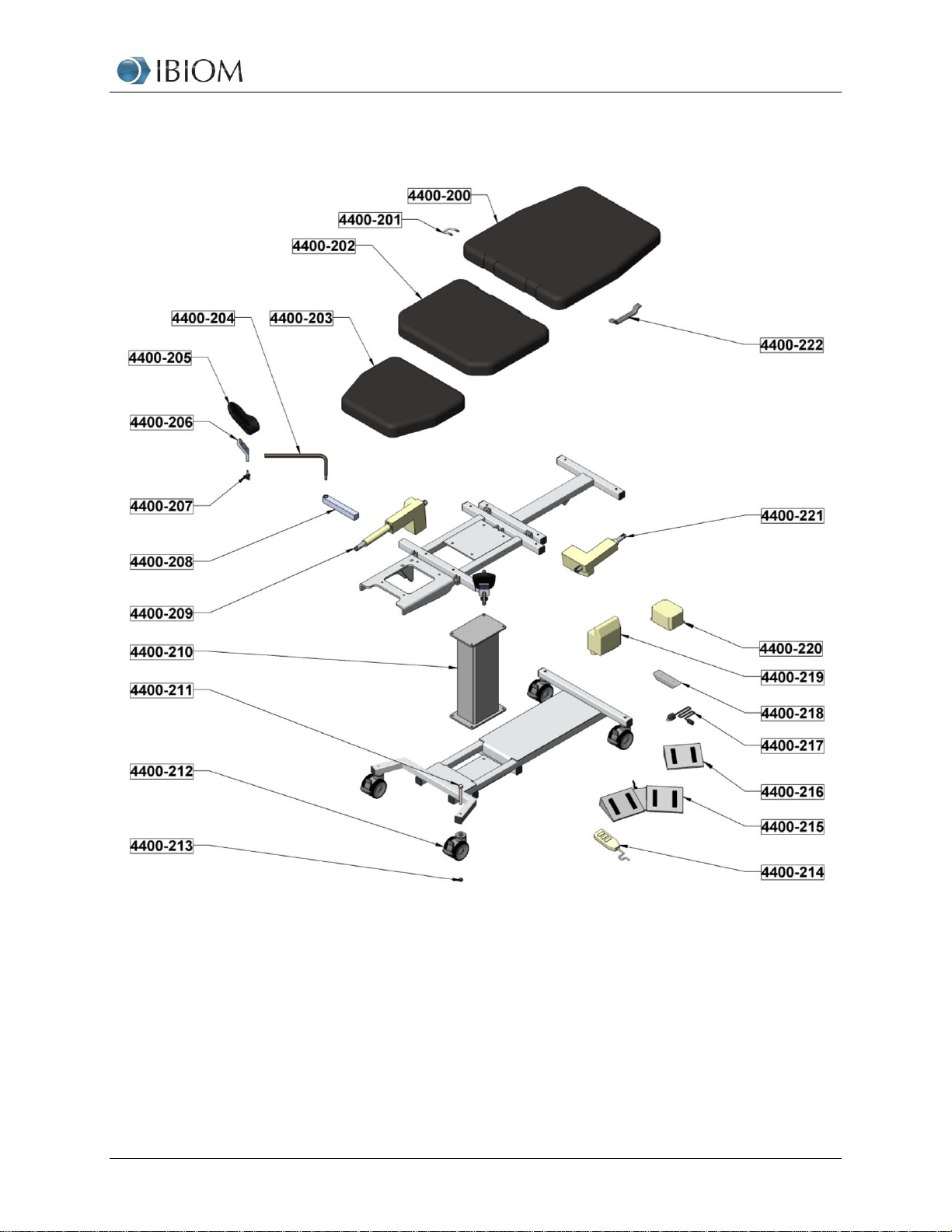

9REPLACEMENT PARTS.......................................................................................15

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 3 of 16
1 SAFETY INSTRUCTIONS
Please read carefully the following safety instructions before using IBIOM's products.
Every person that works with IBIOM's products must be provided with the necessary
information and must have access to this manual.
WARNING –MAXIMUM CAPACITY
The IBIOM's stretchers were conceived to be regularly used with people that weighs
350 pounds (159 kg) or less. NEVER EXCEED THIS LOAD.
WARNING - USAGE
On three-section stretcher, NEVER sit on foot section. This may cause the stretcher to
flip over.
WARNING - MAINTENANCE
Before beginning any maintenance tasks on an IBIOM product, refer yourself to this
manual.
Always unplug the stretcher before performing maintenance tasks on any electric
component (motor, control box, remote control, foot control...)
To assure the proper functioning of the stretcher and the various components, please
make sure to do the suggested maintenance in this manual.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 4 of 16
2 WARRANTY
IBIOM Instruments Ltd offers a lifetime warranty on its products against any
manufacturing defect in normal conditions of use. These following components are
excluded from this lifetime warranty: the mattresses, the electric components, the
retractable rod mechanisms, the brake mechanisms, the armrest mechanisms, the
wheels as well as the IV pole. However , these exclusions are covered for a period of 2
years following the purchase date. This warranty does not apply to any products and
components which must be replaced after a normal wear and tear, carelessness,
abuse, shipping damages or product use against the indicated instructions and the
warnings in this manual. These warranties do not apply to any equipment or component
that were repaired or modified by a repairer not authorizes by IBIOM Instruments Ltd.
The electric components are guaranteed against any manufacturing defect in normal
conditions of use for a period of 3 years following the purchase date and under the
same conditions as those enumerated in the previous paragraph.
All repairs to equipment with a expired warranty will be charged at factory prices.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 5 of 16

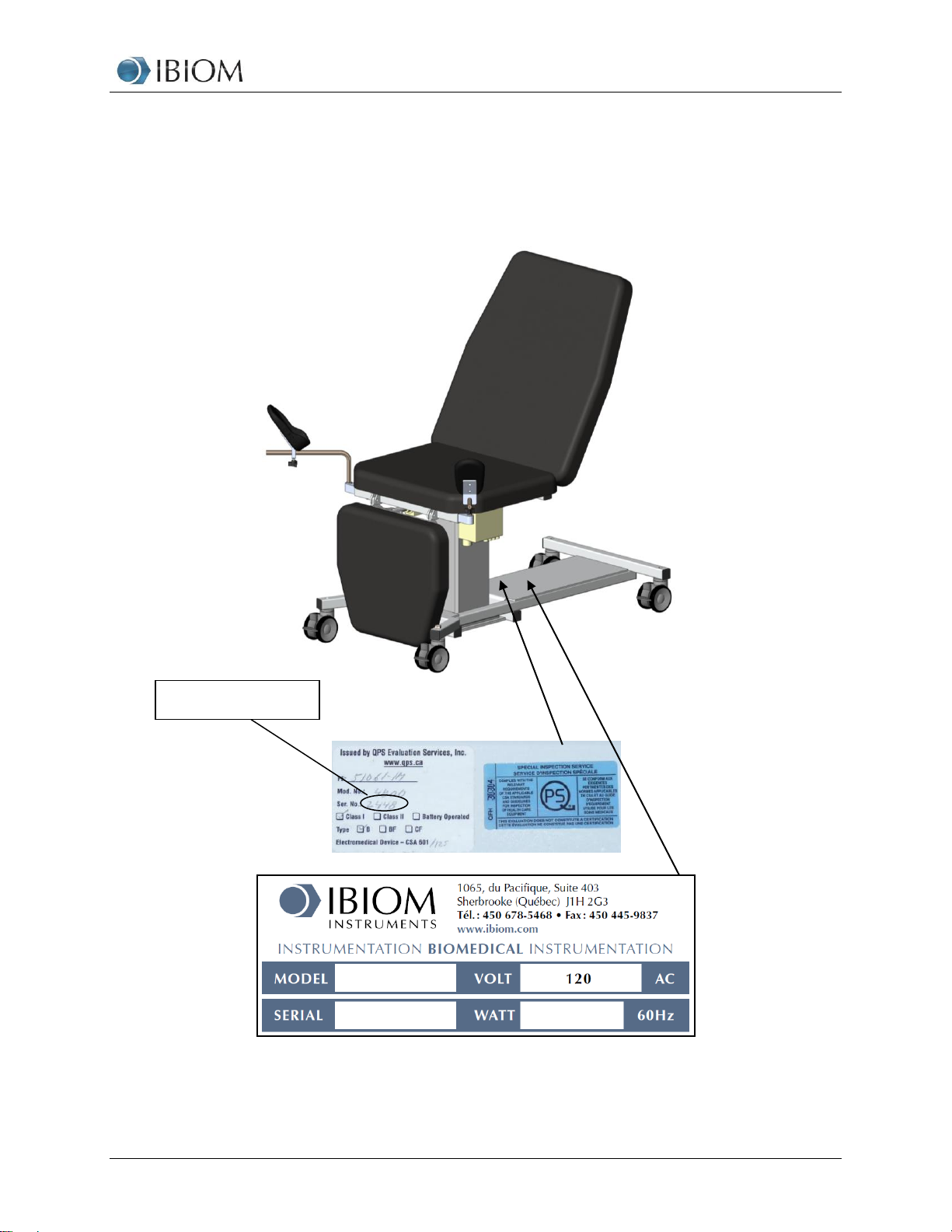

3 IBIOM PRODUCT APPROVALS
All IBIOM products are certified by the CSA regulations on electric medical equipment
unless contrary indication. The CSA approval sticker is located on the base of the
stretcher
Serial Number

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 6 of 16
4 CONTACT US
Before contacting us, please make sure you have the following information in your
possession:
Stretcher Serial number (see previous section of this manual)
Stretcher Model number (see previous section of this manual)
Telephone
450-678-5468
Fax
450-445-9837
Email
[email protected]om
Web site
www.ibiom.com
Address
IBIOM Intruments Ltée
1065, rue du Pacifique, suite 403
Sherbrooke, Québec
J1H 2G3
Canada

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 7 of 16
5 USER INSTRUCTION
5.1 Stretcher movements
Hand control of a 3 sections stretcher
Button
Function
A
Raise Backrest
B
Lower Backrest
C
Raise stretcher
D
Lower stretcher
E
Raise legs section
F
Lower legs section
Foot control
Buttons
Function
A
Raise Stretcher
B
Lower stretcher
C
Raise backrest
D
Lower backrest
A
B
C
D
E
F
A
B
C
D

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 8 of 16
Buttons
Button
Function
A
Raise stretcher
B
Lower stretcher
C
Raise backrest
D
Lower backrest
E
Raise legs section
F
Lower legs section
To avoid any damage to the hand control cable, please use the tie located under the
backrest mattress.
A
B
C
D
E
F

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 9 of 16
5.2 To use the stirrups
1- To remove the stirrups, remove the metallic rod
from the supports by pulling upwards.
2- The stirrups can be moved forwards or backwards
according to needs. You only need to lightly
unscrew the handles located under the stirrups
and slide the stirrups at the desired position and
then retighten the handles.
3- The stirrups can be directed in various angles
according to needs. You only need to lift the
metallic rod of the stirrup and to direct the stirrup a
the desired angle. Make sure to put back the rod
at the bottom of the support to avoid any
movement from the stirrup during the use.
4-
2
1
3

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 10 of 16

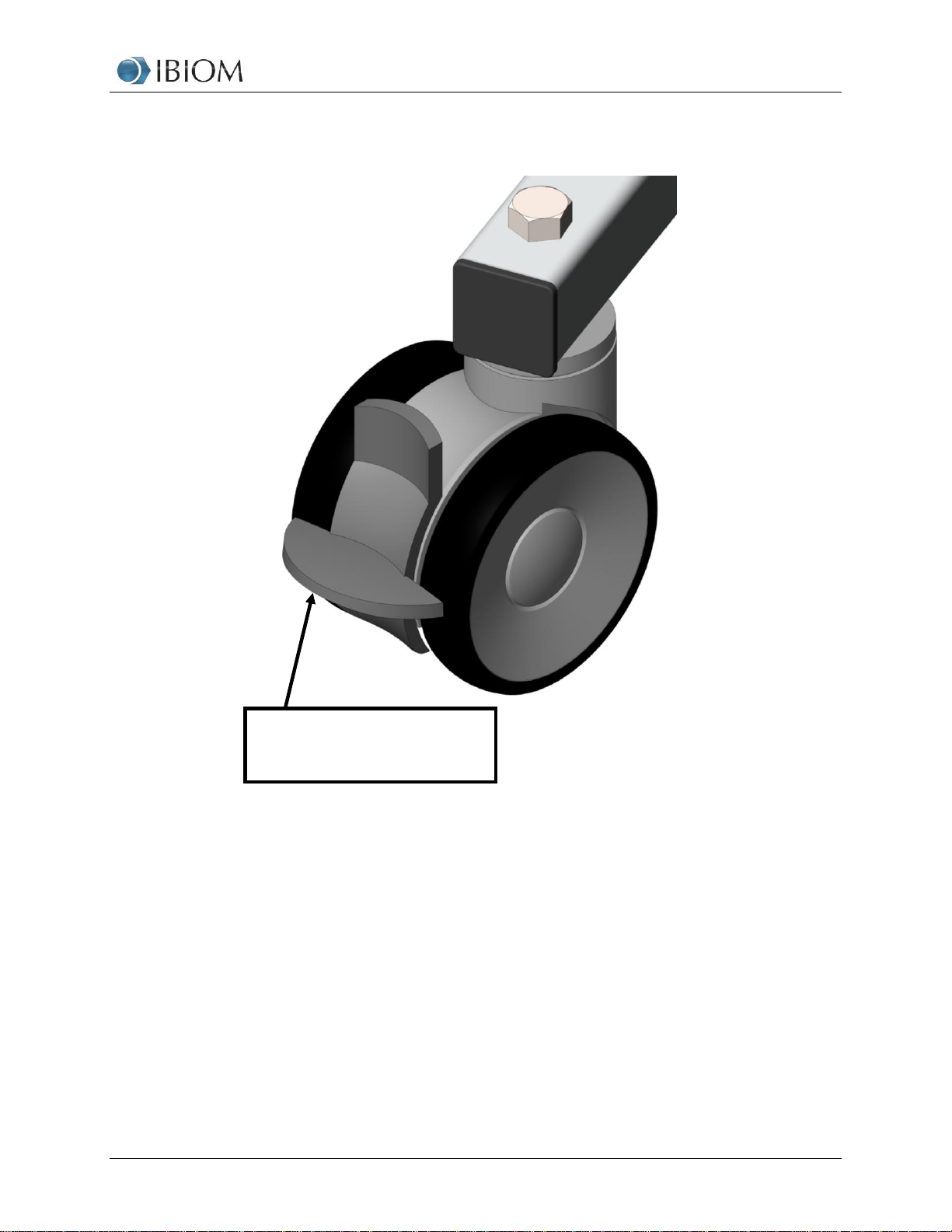

5.3 To use the individual locking swivel casters
5.4 To use the rechargeable battery pack
The battery pack is fully charged when the stretcher is delivered.
After every day of use, make sure to recharge the battery pack for a period of 8
hours. You only need to plug the electric cable in the power supply.
If the battery pack is not use every day, charge the battery as required.
Use the lever to lock or
unlock every wheel of the
stretcher.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 11 of 16
6 FEATURES
6.1 Technical characteristic
Dimensions:
-Width: Standard 27 in. (69 cm.).
-Length: Standard 71 in. (181 cm.).
-Other widths and lengths available according to needs.
-Height adjustment: 24.5 to 36.5 in. (62 cm. to 93 cm.).
-Fowler back: adjustable from 0 to 80 degrees.
-Legs section adjustment from 0 to 90 degrees.
Maximum capacity:
-Maximum capacity of 350 lbs. (159 kg.).
Mattress:
-3 in. (7.6 cm.) or 4 in. (10 cm.) semi-rigid polyurethane foam.
-Covered with a waterproof, heat-conduction synthetic material.
-Covered with PVC free material.
Movements:
-The stretcher movements can be controlled by a hand controller, a foot controller or a
integrated buttons controllers.
Wheels:
-4 in. (10 cm.) double wheels with individual locking swivel casters.
Advantages and other features:
-Clear/open space at the base of the stretcher following the user position.
-The patient can easily get on the stretcher without using any footstool.
-All motor are CE and CSA certified (120 VAC, 60 Hz).
-Made and assembled in Quebec

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 12 of 16
6.2 Mattress cleaning instructions
Recommended cleaning products :
Disinfectant containing sodium hypochlorite (bleaching product) diluted in a ratio of
1 :10.
Disinfecting with hydrogen peroxide products need a maximum concentration of
0.5% p/p (Virox wipe for example).
If the IBIOM products are cleaned with other products or these products in different
concentrations, the mattresses warranty won't be applied.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 13 of 16
7 MAINTENANCE
We recommend to perform simple maintenance tasks to prevent problems on a long term basis.
We suggest before doing any maintenance, to read the security measures at the beginning of
this manual.
Task
What to do
Frequency
Weekly
Semi-
annually
Annually
Cleaning.
IBIOM stretchers must be cleaned
regularly to remove any dirt.
X
Inspection of all
mobile parts.
All mobile parts must be inspected to
detect mechanical damage, wear and
breaks. For example, any cracks, missing
components, missing fasteners or any
other visible damage that can affect the
stretcher performance.
X
Inspection of all
electric components.
Electric components must be inspected at
attachment points, cables, wires and
plugs for wear and breaks or any other
visible damage that can affect the
stretcher performance.
X
Mattresses
inspection.
Visually check the mattresses to detect
any visible sign of wear or tear.
X
Operational test.
Move stretcher completely up and
down to detect any problem (noise,
visible damage, loose components..)
Move backrest section completely up
and down to detect any problem.
Move legs section completely up and
down to detect any problem.
Open and close all mobile parts to
detect any problem.
X
Greasing stretcher's
pivots.
If the stretcher is making noise when you
raise or lower the stretcher, the pins
needs to be lubricated. In that case,
contact us to obtain the lubricating
procedure.
Only if the stretcher is
noisy.
NOT DOING THE MAINTENANCE TASKS MAY CAUSE PROBLEMS OR EVEN
INJURIES TO USERS. IBIOM WON'T BE RESPONSIBLE FOR ANY INCIDENT IF
THE MAINTENANCE TASKS AREN'T DONE.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 14 of 16
8 TROUBLESHOOTING
Problem
Cause
Check
Correction
Hand or foot switch isn't
working properly
Hand or foot switch may
be damaged.
Make sure that the hand
or foot switch is properly
connected in the control
box.
Make sure that the
stretcher electric cable is
properly connected in
the wall outlet.
The hand or foot switch
must be replaced. See
spare parts list section
to find the spare parts
number and contact us.
A button from the hand
or foot switch isn't
working.
Hand or foot switch may
be damaged.
Make sure that the hand
or foot switch is properly
connected in the control
box.
Make sure that the
stretcher electric cable is
properly connected in
the wall outlet.
The hand or foot switch
must be replaced. See
spare parts list section
to find the spare parts
number and contact us.
The control box may be
damaged.
Make sure that all cables
are properly connected
(control box, power
cable, motor)
Invert motor cables in
control box to see if the
problem remains.
If the problem remains,
the control box is
working properly, the
hand or foot switch
needs to be replaced.
See spare parts list
section to find the spare
parts number and
contact us.
If the problem has
changed, the control
box is damaged and
must be replaced. See
spare parts list section
to find the spare parts
number and contact us.

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 15 of 16
9 REPLACEMENT PARTS

OPERATION AND MAINTENANCE MANUAL
© Copyright IBIOM Instruments Ltd 2013 16 of 16
PART #
DESCRIPTION
4400-200
Backrest mattress
4400-201
Hook for hand controller
4400-202
Seat mattress
4400-203
Legs mattress
4400-204
Stirrup rod
4400-205
Molded stirrup
4400-206
Stirrup plate
4400-207
Stirrup fixation screw
4400-208
Support for stirrup
4400-209
150mm electric motor - legs
4400-210
300mm electric column- height
4400-211
Bolt 1/2 in. -13NC x 4 in. for wheel fixation
4400-212
100mm double wheels with individual brake
4400-213
1/2 in.-13NC Nut
4400-214
Triple hand controller
4400-215
Double foot controller
4400-216
Single foot controller
4400-217
Power cord
4400-218
Triple button
4400-219
Control box with integrated charger
4400-220
Battery
4400-221
150mm Backrest electric motor
4400-222
Handle
