Iclear Digital HAD1000 User manual

HAD1000
Hearing Assistive Device
User Manual
I

Contents
Contents ---------------------------------------------------------
Kit Includes ------------------------------------------------------
Quick User Guide ----------------------------------------------
Warnings and Safety Instructions --------------------------
Features -----------------------------------------------------------
Installation --------------------------------------------------------
General Operations ----------------------------------------------
Music Streaming Operations ----------------------------------
Hearing Assist Operations--------------------------------------
Mobile Phone Operations --------------------------------------
Button Configurations Summary ------------------------------
Status Indicator Configuration Summary -------------------
Technical Data ----------------------------------------------------
Troubleshooting Operational Tips------------------------------
Notices --------------------------------------------------------------
01
02
03
09
11
11
13
16
17
18
25
26
27
27
28
EN PAGE 1
I

EN PAGE 2
KIt Includes
Please read these rules. Do not follow these rules may result in dangerous or violation of the law.
This user manual provides more detailed information about safety instructions.
HAD1000
Hearing assistive device
I
Universal Earbud - Short
AC charger USB charging cable

EN
Quick User Guide
General Functions and Layouts
NOTE: Please charge before use
Make sure you have the latest firmware which can support your hearing assistive device.
You may visit iclear-digital.com for downloading.
Charge
Check Bluetooth phone capabilities before use.
To charge, use the provided charging cable by connecting it either to a USB port or to the
adaptor provided. While charging, the status indicator light will be red. Upon being fully
charged, the status indicator light will be blue.
Low Battery Indicator
You need to charge the helmet communicator when the status indicator light blinks red
twice every 2 seconds with a beep every minute.
Install Speakers
Make sure the speaker wire is inserted into the main unit.
IPAGE 3
Status Indicator
‘Up’ Button
‘Power’ Button
‘Down’ Button
Charging Socket

EN
Quick User Guide
General Functions and Layouts
Power On
Hold the ‘Power’ button for 3 seconds.
The LED will flash purple for 2 seconds before changing to a blinking blue LED.

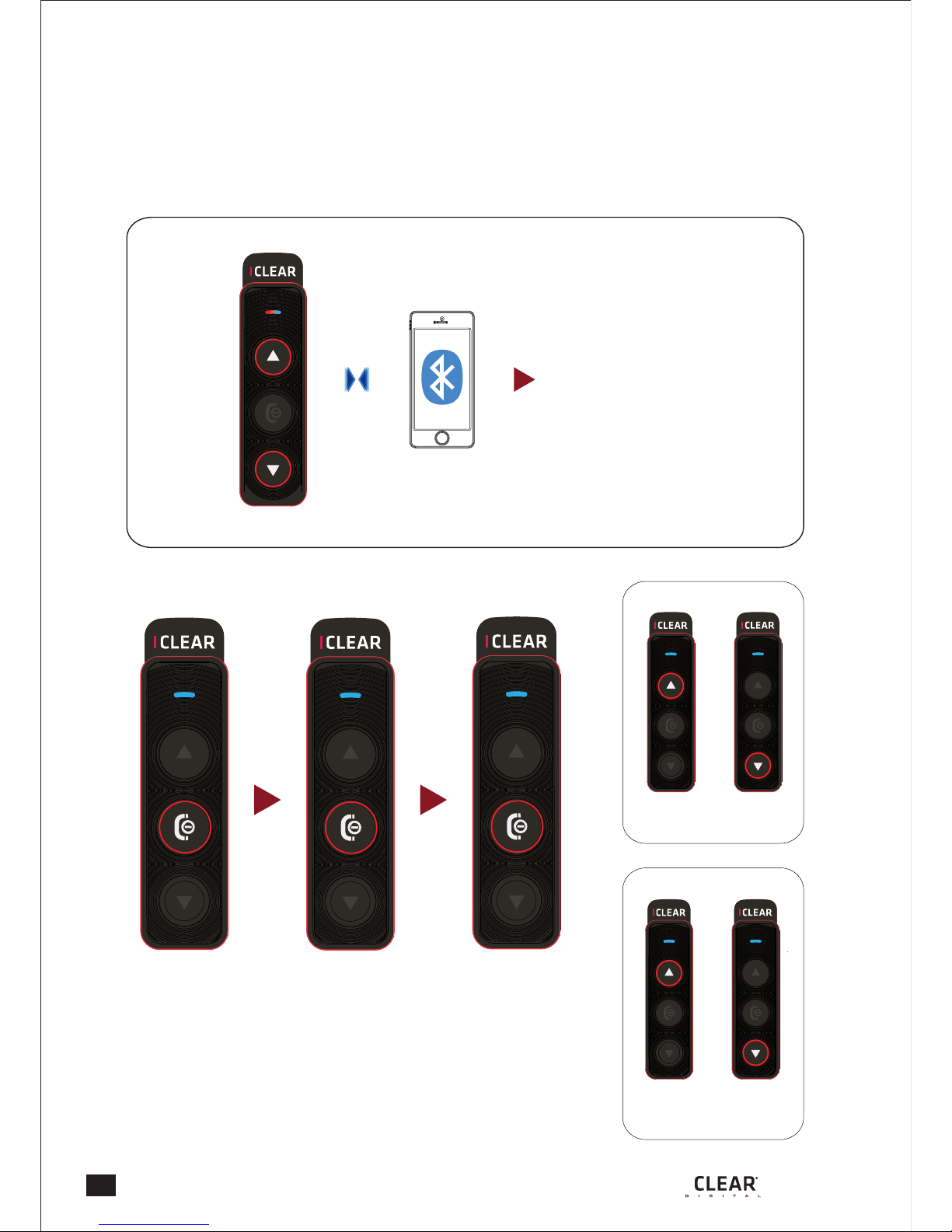

Pairing Mode
After power on, continue and hold the ‘Up’ and ‘Down’ button to enter into device
pairing mode. The LED will blink blue and red alternately.
Volume
Press ‘Up’ button once to increase volume.
Press ‘Down’ button once to decrease the volume.
Pairing mode
Turn on Bluetooth
search for
ICLEAR HAD1000
IPAGE 4

EN
Power Off
Hold ‘Power’ button for 5 seconds until LED flash red in color.
Reset
Press all three buttons at the same time to reset the device.
NOTE: The volumes for mobile phone, music and hear assist functions are controlled separately.
Quick User Guide
IPAGE 5

EN
Quick User Guide
Mobile Phone Functions
Pairing your hearing assistive device with your mobile phone.
Answer Incoming Call
Manually press ‘Power’ button once.
Reject/ End Incoming Call
Hold ‘Power’ button for 2 seconds.
Last Number Redial
Hold ‘Power’ and ‘Up’ button for 2 seconds.
Voice Dial
Hold ‘Power’ and ‘Down’ button for 2 seconds.
3 Way Calling
To swap between 2 concurrent calls, press the POWER button once.
Pairing
completed
Pairing mode
Turn on Bluetooth
search for
ICLEAR HAD1000
• Check Bluetooth phone capabilities
before use.
• Hold Up and Down buttons together
for 2 seconds. The status indicator
light will blink blue and red alternately.
• From your mobile phone Bluetooth menu,
search for ‘ICLEAR HAD1000’.
• If your phone requires a password,
enter ‘0000’.
IPAGE 6

Quick User Guide
Music Streaming Function
NOTE: For music Bluetooth adaptor you would need to pair the music bluetooth adaptor
before using it with hearing assistive device.
Pairing mode
Press ‘Power’
twice
Playing music
Press ‘Power’
once
Pause
Press ‘Power’
twice
Resume
EN
Press ‘Up’
twice
Fast forward
Press ‘Down’
twice
Back track
Press ‘Up’
once per level
Volume up
Press ‘Down’
once per level
Volume down
Pairing completed
Turn on Bluetooth
search for
ICLEAR HAD1000
IPAGE 7

Press ‘Power’
once
Hearing assist
is activated
Press ‘Power’
once
Hearing assist
is deactivated
EN PAGE 8
Quick User Guide
Hearing Assist
I

Quick User Guide
General Functions and Layouts
Power On
Hold the ‘Power’ button for 3 seconds.
The LED will flash purple for 2 seconds before changing to a blinking blue LED.
Pairing Mode
After power on, continue and hold the ‘Up’ and ‘Down’ button to enter into device
pairing mode. The LED will blink blue and red alternately.
Volume
Press ‘Up’ button once to increase volume.
Press ‘Down’ button once to decrease the volume.
Warning and Safety Instructions
This manual uses the and icons to highlight certain instructions.
Below is an explanation of the icons.
Attention
This icon highlights special instructions and precautions intended to avoid damage to the
system. Non-compliance may void the product warranty.
Warning
This icon provides precautions important to prevent injuries to the user.
Attention
Please read through the operating instructions to understand how to operate the system, in
particular the safety instructions.
Warning
Please note that there are some countries that by law disallow theuserto set the device to a
volume that prevents you from perceiving the surrounding.
Please note that there are some countries the use of both speakers simultaneously is authorized
only out of public traffic conditions.
Please check with the relevent authorities for local safety legislation before using the device
on the road.
Prolonged exposure to loud sounds may lead to permanent hearing damge.
Speaker volume is greater than 90dB may lead to permanent hearing damage.
Do not attempt to place an outgoing call through the mobile phone while riding on the
motorcycle at any point of time.
Please do not use the Universal Remote in anyway that may distract you or hinder your
judgment while on the move. Never ever compromise your safety and the safety of others.
EN
!
!
!
IPAGE 9

!
EN
Warning and Safety Instructions
Attention
Charging and handling rechargeable battery products incorrectly may cause them to overheat,
catch fire or explode.
To prevent this please follow the instructions below:
1. Never change the batteries yourself, always bring the device to an authorised dealer to
perform the replacement for you.
2. When charging, use ONLY the charging cable provided or a replacement cable from the
dealer. Using similar, compatible or any other cables may lead to permanent product
damage and will void the product warranty.
Never make any modifications to any part of the hearing assistive device in any way as it may
cause the system to malfunction causing hurt to you.
IPAGE 10

EN
Features
Hearing assistive device has three main functions:
1. Make mobile phone calls.
2. Listen to music.
3. Hearing assist.
Mobile phone functions
• Bluetooth phone audio capabilities, HFP & HSP profile.
• Hearing assist function applied to your phone call.
Music streaming functions
• Bluetooth music streaming with hi-fi and stereo capabilities, A2DP profile.
• Bluetooth audio/ video remote control capability, AVRCP profile.
• Hearing assist function not applied to music streaming.
Hearing Assist Function
Advanced Product Features
• Noise suppression
• Directivity enhancement
• Comfort zone adjustment
IPAGE 11
Installation

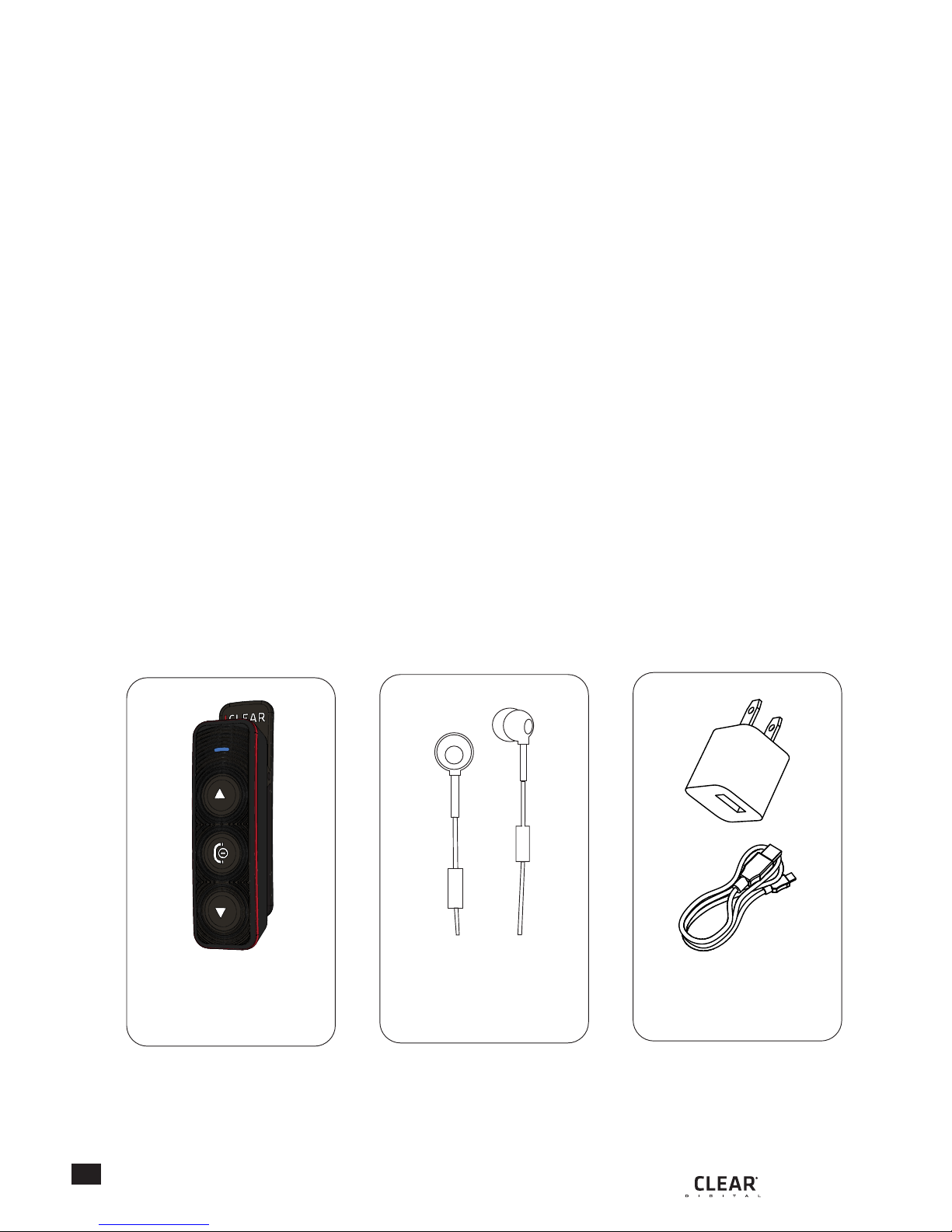

The hearing assistive device package contains:
HAD1000
Hearing assistive
device
Universal Earbud
(Short)
AC charger &
USB charging cable

Installation
EN IPAGE 12

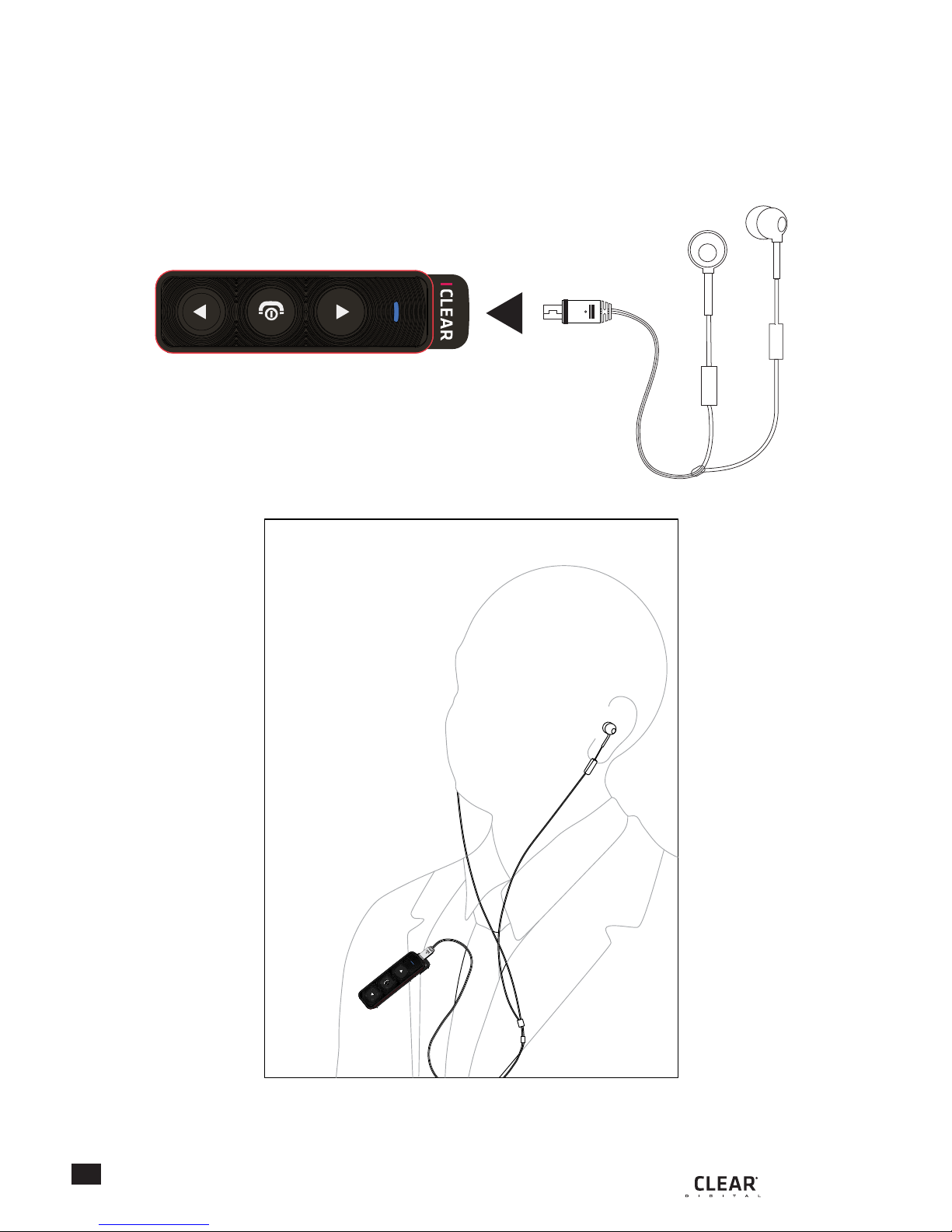

Install Universal Earbud
Make sure the speaker wire is inserted into the main unit. lnsert the speaker wire into the control
unit until you can no longer see the 3 ribs on the speaker wire plug.

EN
General Operations
Your hearing assistive device is now all set and ready to go!!!
The operations described here are applicable to all modes of
operations.
Power On
Hold the ‘Power’ button for 2 seconds to power
on the hearing assistive device. The status
indicator will blink blue and a power up tone
can be heard.
Power Off
To switch off the hearing assistive device, press
and hold the ‘Power’ button for 5 seconds. The
status indicator will blink red 5 times followed
by a long beep before fully shutting down.
Power Save Mode (Auto Power Off)
If the hearing assistive device feature has not been in use and not connected to any other
devices, the system will auto shut down in 5 minutes.
Low Battery
When the battery level is low, the status indicator light will flash red twice every 2 seconds
while emitting a warning beep every minute.
Charging
To charge the helmet communicator, connect it to the adaptor/ USB Port with the USB
charging cable provided. Upon charging, if the unit is on, the system will automatically
initiate power down.
Volume Control
The volume control of the helmet communicator can be controlled using the ‘Up’ and ‘Down’
buttons. Press ‘Up’ or ‘Down’ button will increase the volume respectively. The volume
control for each mode is independent of each other.
Automatic Speaker Loudness (Communication only)
The speaker loudness will be automatically adjusted depending on the environment noise level.
However you can still adjust the volume manually.
Automatic Pairing
•Hearing assistive device has the ability connecting to the last paired device automatically for
two features - music and mobile phone.
•Automatic pairing of the control unit with music devices is dependent on the music devices.
Automatic Profile Switch
The hearing assistive device supports multiple profiles concurrently, but at any point in time only
one profile is active. The automatic profile switch determines which profile should be active at
any point of time starting from the highest priority:
(1) Mobile phone functions
(2) Music functions.
IPAGE 13
Status Indicator
‘Up’ Button
‘Power’ Button
‘Down’ Button
Charging Socket

EN
General Operations
To use the hearing assistive device with your mobile phone for the first time, you must first
connect them wirelessly by pairing.
Pairing
• To connect the control unit to a mobile phone, hold the ‘Up’ and ‘Down’ buttons for 2
seconds. This puts the control unit into paring mode. The status indicator would blink
blue and red alternately.
• Turn on the mobile phone Bluetooth functions and search for Bluetooth devices.
• Select ‘IClear HAD1000’ to pair with the desired device.
• If prompted to enter a passcode, enter ‘0000’.
NOTE: Most mobile phones when paired would be automatically connected with both phone
and music Bluetooth capabilities.
After pairing the control unit to your mobile phone, you may now use the hearing assistive
device to answer and make calls or listen to music.
Pick Up Calls
When a call comes to the mobile phone, press the ‘Power’ button once.
Reject Calls
To reject an incoming call or an incorrectly placed outgoing call, hold the ‘Power’ button
for 2 seconds.
Voice Call
To activate voice call, hold the ‘Down’ and ‘Power’ buttons for 2 seconds. The accuracy of
this function is dependent on the mobile phone.
IPAGE 14

EN
General Operations
Mobile phone opeartions

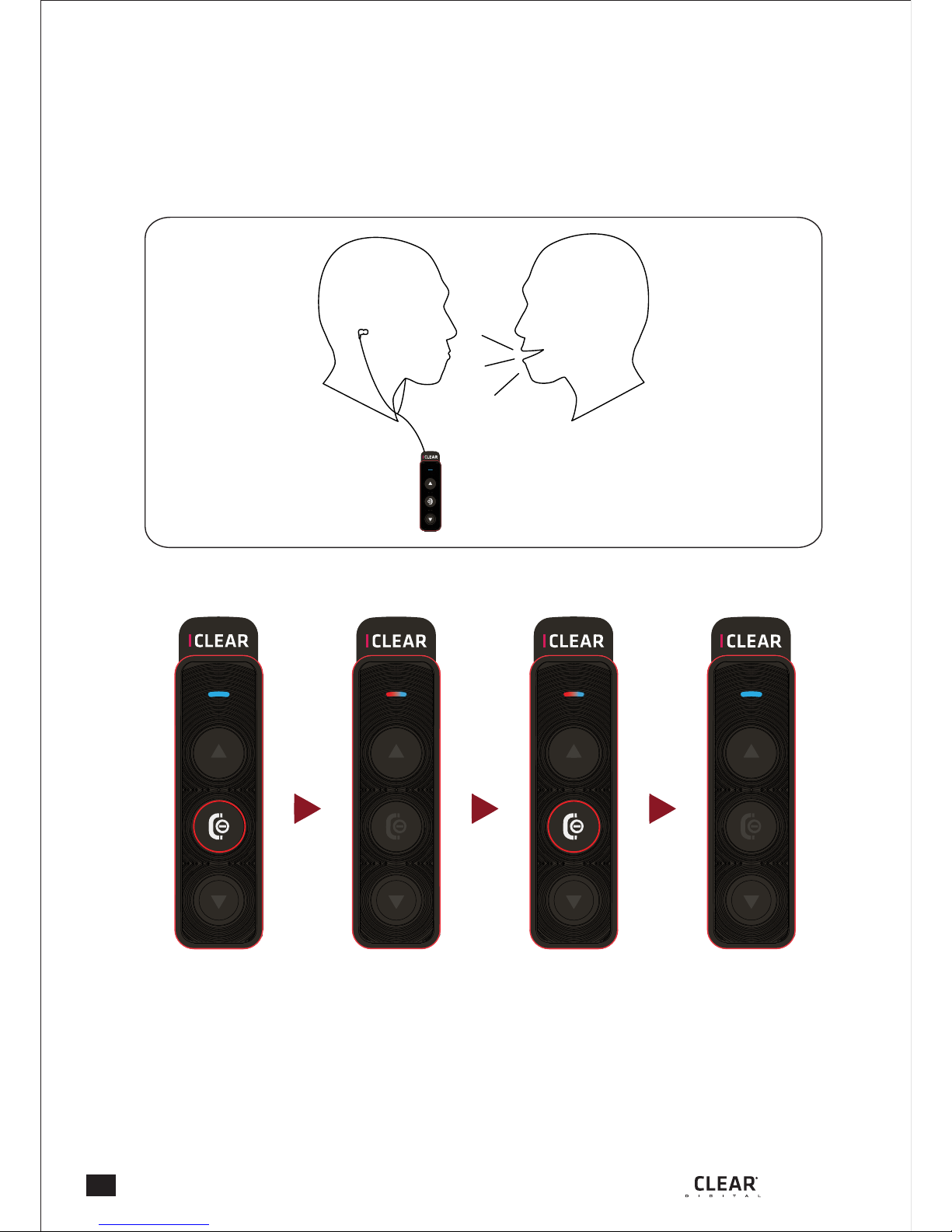

Hearing Assist (Activated automatically)

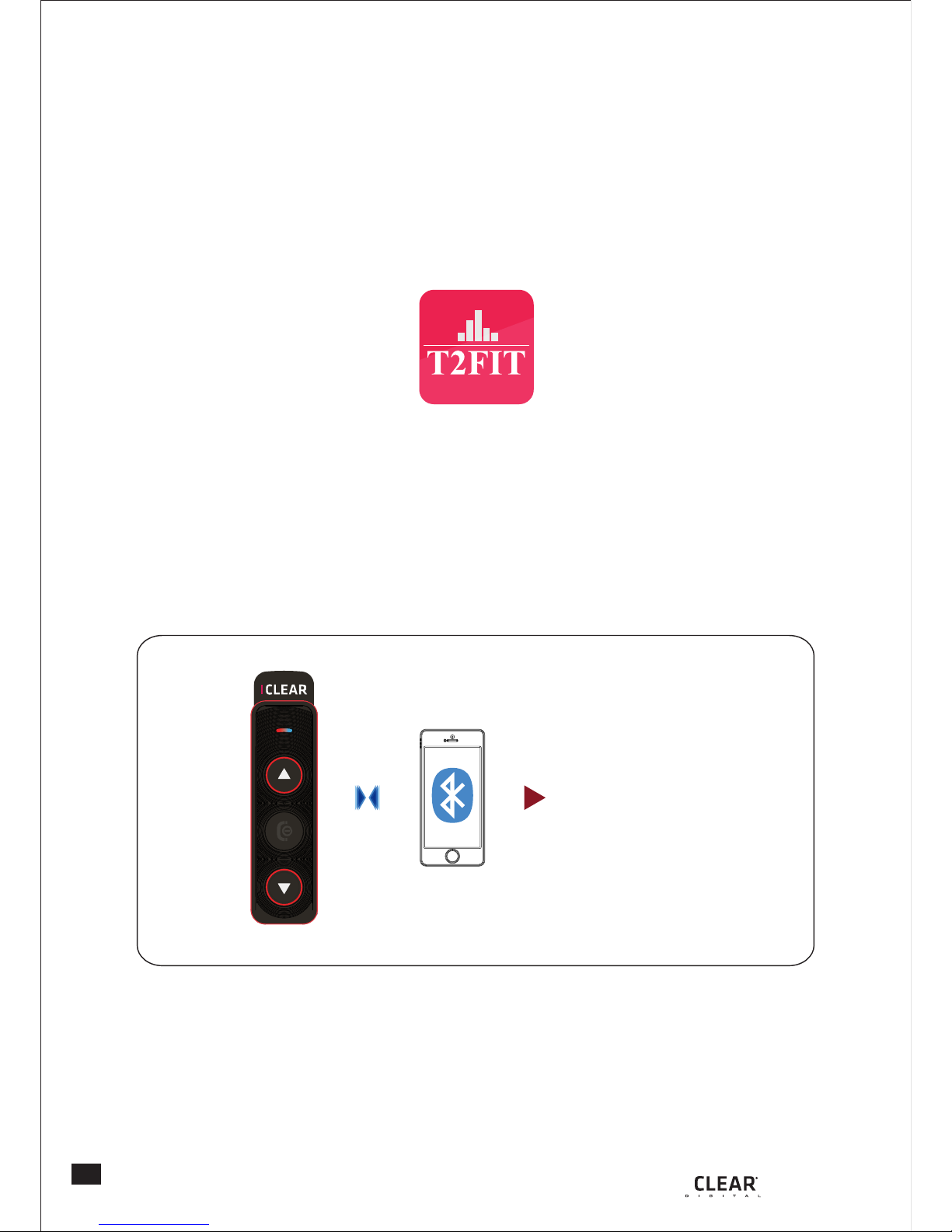

Allows you to experience the adaptive hearing enhancement in the phone call according to
the hearing curve obtained in the testing of Tune2Fit apps.
Last Number Redial
To redial the last number, hold the ‘Up’ and ‘Power’ buttons for 2 seconds. The capability
of this function is dependent on the mobile phone used.
3 way calling
• While on a call, if an incoming call comes in, you may answer the call by pressing the
‘Power’ button once.
• To swap between 2 concurrent calls, press the ‘Power’ button once.
• To end a call during a 3 way call, hold the ‘Power’ button for 2 seconds to end the active call.
Upon terminating the active call, the call on hold will automatically become the active call.
Music feature
If the mobile phone supports A2DP/AVRCP profile, user may activate the music by playing it
directly from the phone or by controlling the music via the ICLEAR. To operate refer to Music
Streaming Operations section. Should the documented steps not work, refer to your phone user
manual on how to activate the A2DP/AVRCP feature.
IPAGE 15

Music Streaming Operations
To use the control unit with your music devices you must connect them wirelessly through
Bluetooth pairing. The music device must have Bluetooth capability.
Pairing
- To connect the control unit a Bluetooth music device, hold the Up and Down buttons for
2 seconds. This puts the ICLEAR into pairing mode. The status indicator will blink blue
and red alternately.
- Next, put the Bluetooth music device into pairing mode. Both the control unit and the music
device should automatically pair together.
After pairing to a music device, you may use the ICLEAR to wirelessly listen to music stored on
the device. In order to use the control unit to remotely control the music, the music device must
have Bluetooth Audio/ Video Remote Control capability, AVRCP profile.
Play
To play music, press the Answer button 2 times.
Stop
To stop music, press the Answer button 1 time.
Fast Forward
To skip to the next track, press the Up button 2 times.
Backtrack
To skip to previous track, press the Down button 2 times.
EN IPAGE 16

Hearing Assist operations
Allows you to experience the adaptive hearing enhancement in daily conversation according to
the hearing curve obtained in the testing of Tune2Fit apps.
Hearing Assist, Phone Call and Music Switching
Music has the lowest priority. If you are in music mode, an incoming hearing assist request
will stop the music and you will be connected to the hearing assist mode. If you need to switch
from hearing assist to music mode, you need to deactive the hearing assist mode.
Music will resume automatically after that.
To activate hearing assist mode while listening to music you must pause music first by
pressing the “Power” button once. Then proceed with pressing the “Power” button to
turn on the hearing assist mode.
Other Functions
USB Firmware Upgrade
Upon purchase, and periodically thereafter, please visit www.iclear-digital.com to ensure you’re
operating with the latest firmware and taking advantage of feature enhancements.
Wireless Firmware Upgrade
EN
Press ‘Power’
once
Hearing assist
is activated
Press ‘Power’
once
Hearing assist
is deactivated
IPAGE 17

Mobile Phone Operations
TUNE 2 FIT App
Download Tune2Fit.apk file from http://www.iclear-digital.com
(Only applicable for Android)
Open the file and install the app.
NOTE: To tune the hearing assistive device using the Tune2Fit app you would need to pair
the unit with an Android Smartphone.
EN
Hold ‘Up’ and ‘Down’
2 seconds
Pairing mode
Pairing completed
Turn on Bluetooth
search for
ICLEAR HAD1000
IPAGE 18
General Operations
Your hearing assistive device is now all set and ready to go!!!
The operations described here are applicable to all modes of
operations.
Power On
Hold the ‘Power’ button for 2 seconds to power
on the hearing assistive device. The status
indicator will blink blue and a power up tone
can be heard.
Power Off
To switch off the hearing assistive device, press
and hold the ‘Power’ button for 5 seconds. The
status indicator will blink red 5 times followed
by a long beep before fully shutting down.
Power Save Mode (Auto Power Off)
If the hearing assistive device feature has not been in use and not connected to any other
devices, the system will auto shut down in 5 minutes.
Low Battery
When the battery level is low, the status indicator light will flash red twice every 2 seconds
while emitting a warning beep every minute.
Charging
To charge the helmet communicator, connect it to the adaptor/ USB Port with the USB
charging cable provided. Upon charging, if the unit is on, the system will automatically
initiate power down.
Volume Control
The volume control of the helmet communicator can be controlled using the ‘Up’ and ‘Down’
buttons. Press ‘Up’ or ‘Down’ button will increase the volume respectively. The volume
control for each mode is independent of each other.
Automatic Speaker Loudness (Communication only)
The speaker loudness will be automatically adjusted depending on the environment noise level.
However you can still adjust the volume manually.
Automatic Pairing
•Hearing assistive device has the ability connecting to the last paired device automatically for
two features - music and mobile phone.
•Automatic pairing of the control unit with music devices is dependent on the music devices.
Automatic Profile Switch
The hearing assistive device supports multiple profiles concurrently, but at any point in time only
one profile is active. The automatic profile switch determines which profile should be active at
any point of time starting from the highest priority:
(1) Mobile phone functions
(2) Music functions.

Select ICLEAR HAD1000
Select to tune your own hearing curve or configure
the device. If this is the first time you are using
the device. Please tune your hearing curve to be
saved in the device before going to the configuration
mode.
TUNE2FIT
Make You Hear Clearer
Start
TUNE2FIT
Select Device
ICLEAR HAD1000
00:02:5B:BB:10:07
ICLEAR HAD1000
00:05:5B:BB:10:06
ICLEAR HAD1000
00:02:5B:BB:10:02
TUNE2FIT
Select Mode
Tuning Mode
Conguration
Mode
EN
Mobile Phone Operations
Open the app.
Click the ‘Start’ button to begin
IPAGE 19
