LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：1
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
User Manual
Version 1.0.1 Nov. 2019

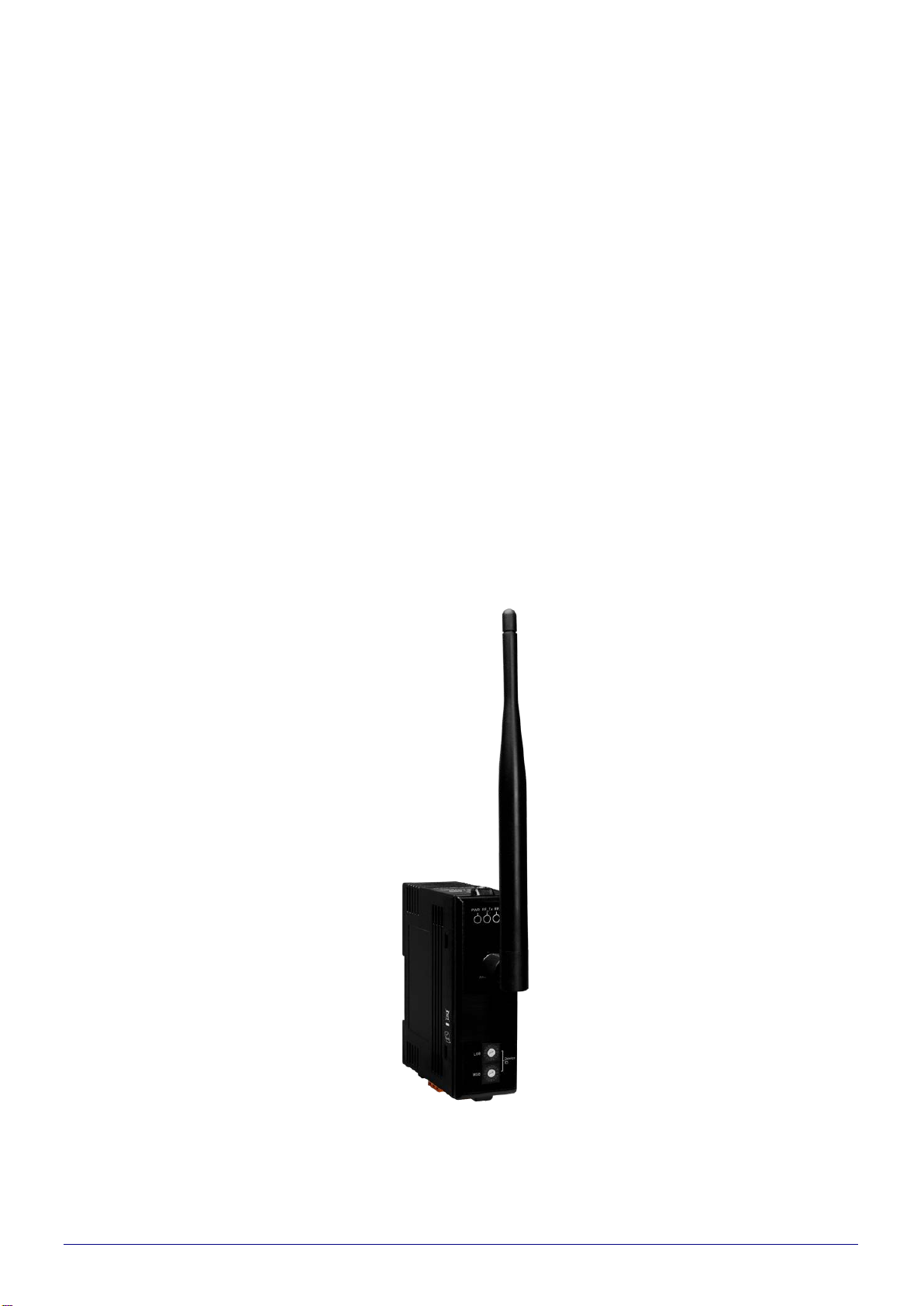

LRA-900-E
(Ethernet to LoRa Radio Modem)

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：2
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
Table of Contents
1. Introduction .........................................................................................................................5
1.1. VxComm Technology......................................................................................................6
1.2. Web Server Technology..................................................................................................7
2. Hardware Information.........................................................................................................8
2.1. Specifications..................................................................................................................8
2.2. Features..........................................................................................................................9
2.3. Appearance...................................................................................................................10
2.4. Dimensions...................................................................................................................12

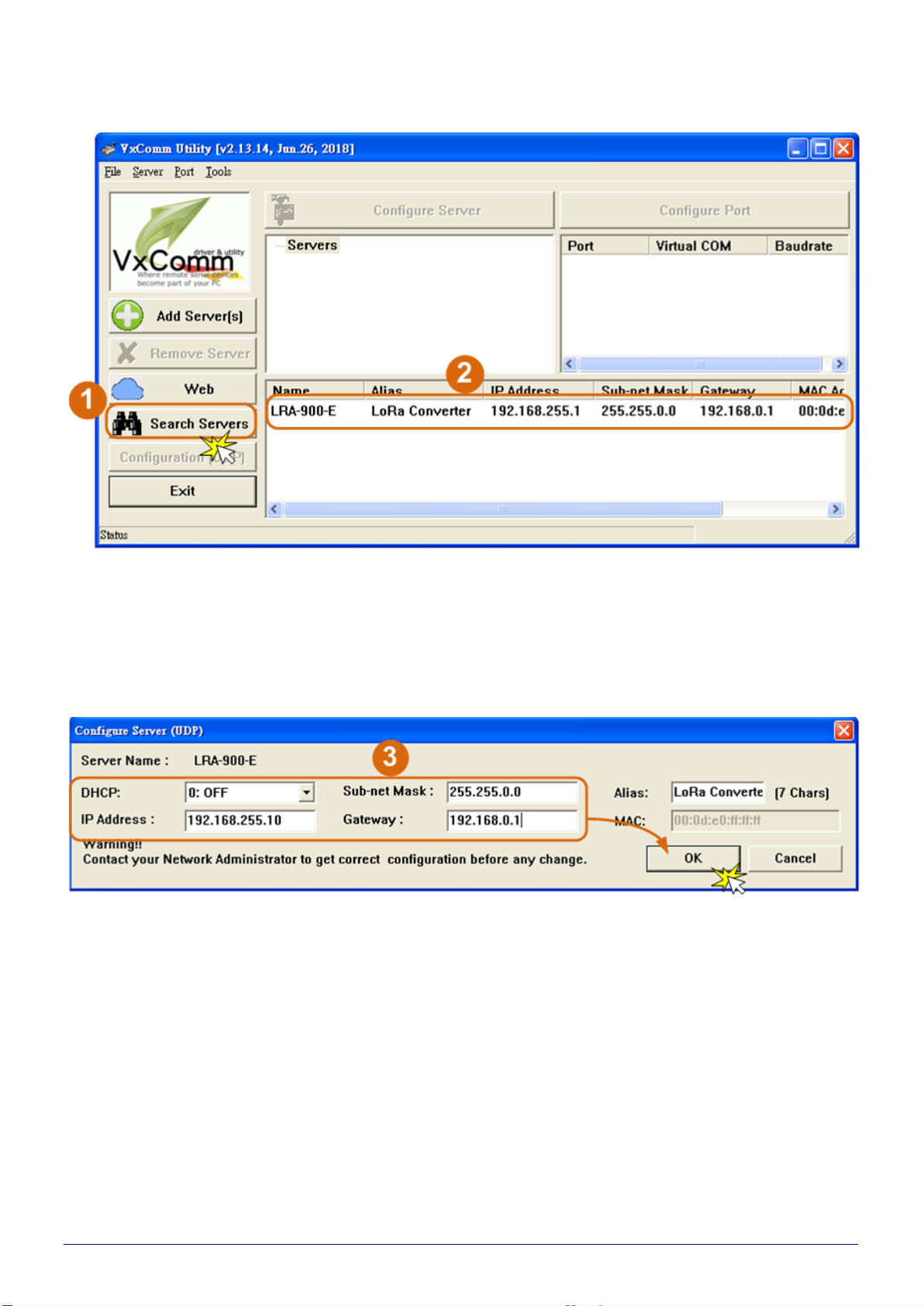

3. Setting up the LRA-900-E Module....................................................................................13
4. Web Configuration............................................................................................................18

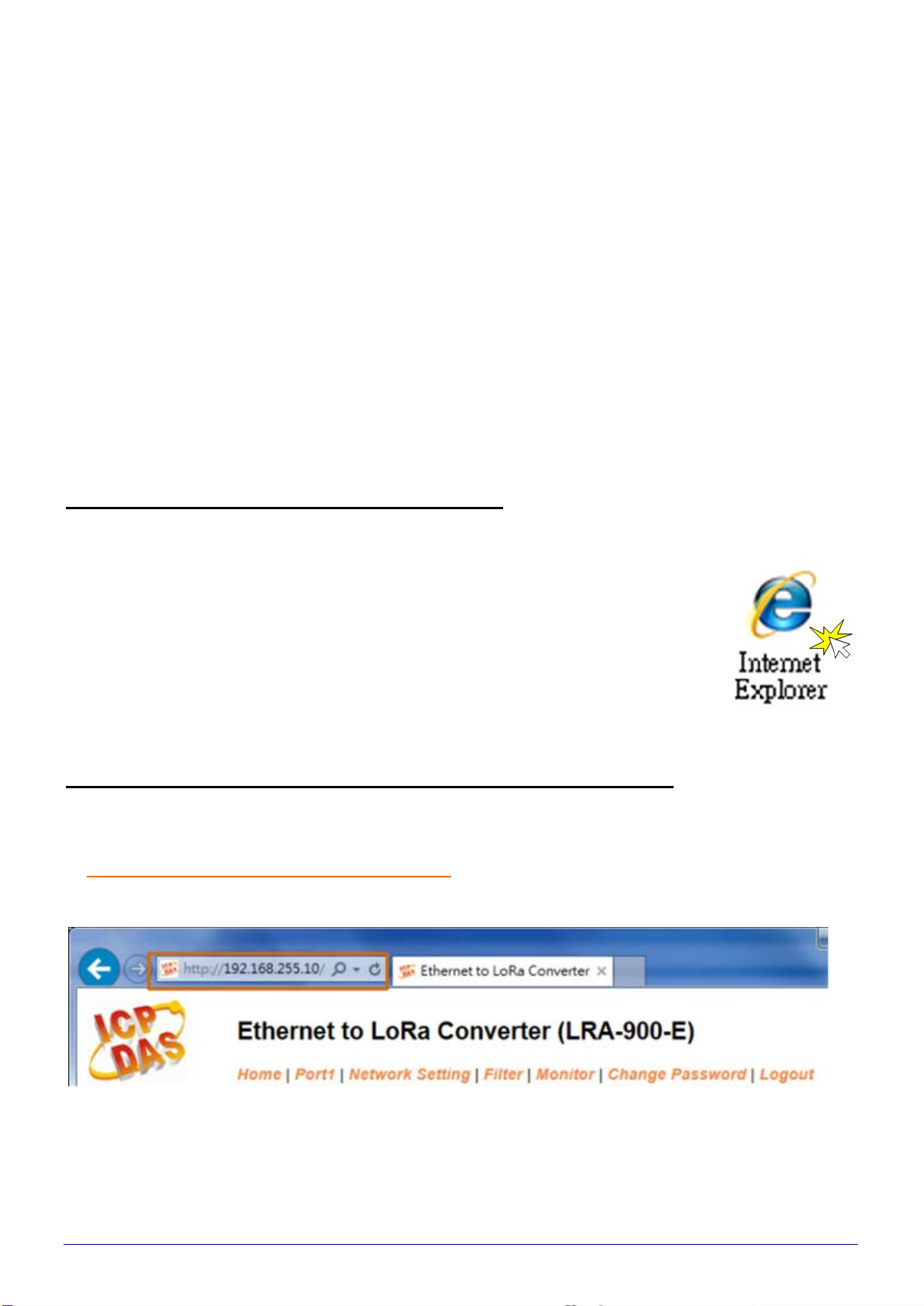

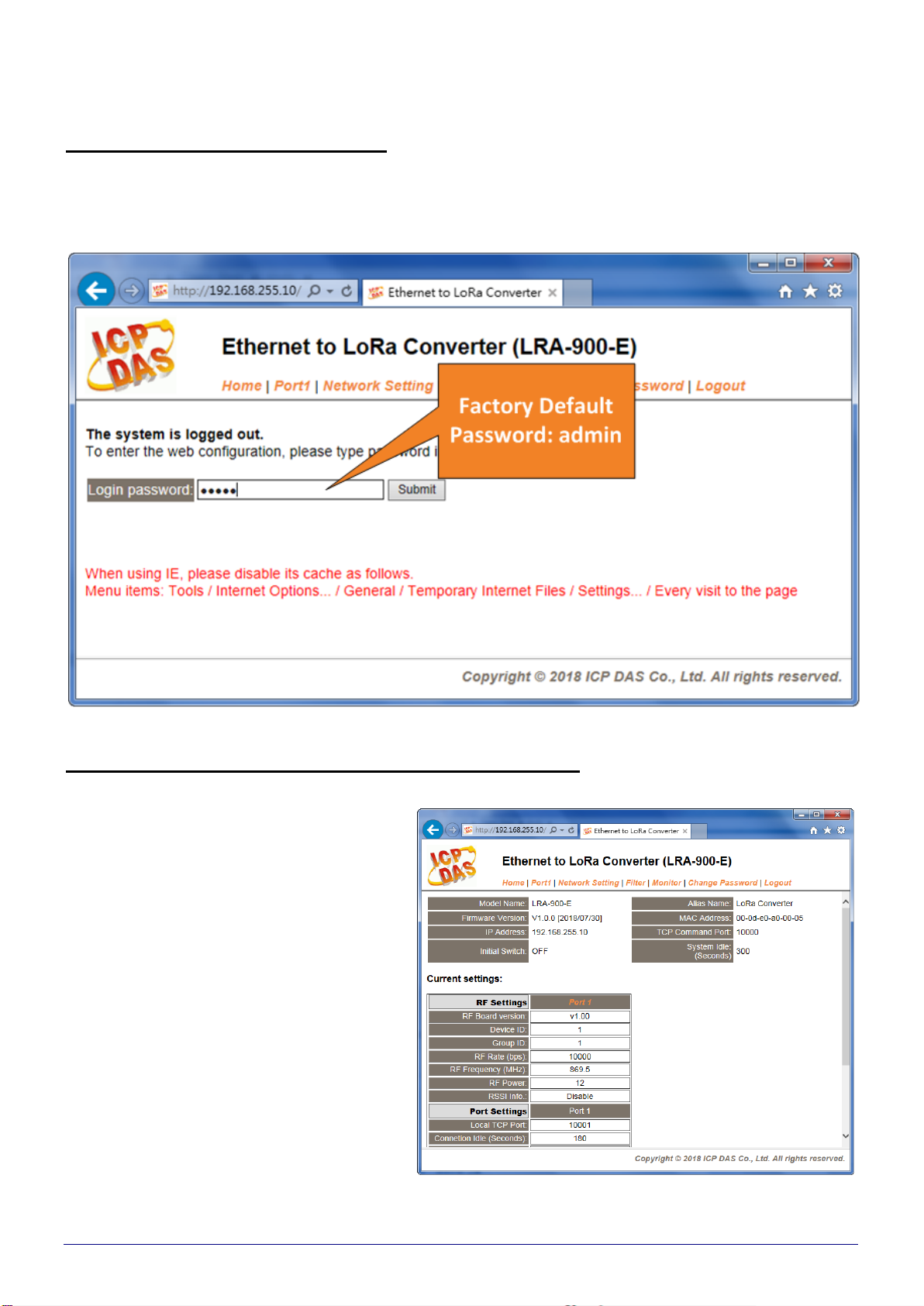

4.1. Logging in to the LRA-900-E Web Server.....................................................................18
4.2. Home Page...................................................................................................................20
4.3. RF Port Page................................................................................................................21
4.3.1. Port1 Settings.........................................................................................................21
4.4. Network Setting.............................................................................................................25
4.4.1. IPAddress Settings................................................................................................25
4.4.2. General Settings.....................................................................................................29
4.4.3. Restore Factory Defaults........................................................................................31
4.4.4. Remote Firmware Update ......................................................................................33
4.5. Filter Page.....................................................................................................................34
4.5.1. Accessible IP (filter is disabled when all zero)........................................................34
4.6. Monitor Page.................................................................................................................36
4.7. Change Password.........................................................................................................37
4.8. Logout Page..................................................................................................................38
5. CGI Configuration .............................................................................................................39
5.1. CGI URL Syntax............................................................................................................39
5.2. CGI Command List .......................................................................................................40
6. Typical Applications..........................................................................................................44

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：3
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
6.1. Virtual COM Application................................................................................................45
6.2. Direct Socket Connection Applications .........................................................................46
Appendix A. Troubleshooting.................................................................................................49
A.1. How do I restore the web password for the module to the factory default password? ..49
Appendix B. Glossary..............................................................................................................51
1. ARP (Address Resolution Protocol)..............................................................................51
2. RARP (Reverse Address Resolution Protocol) .............................................................51
3. Clients and Servers.......................................................................................................52
4. Ethernet ........................................................................................................................52
5. Firmware.......................................................................................................................52
6. ICMP (Internet Control Message Protocol) ...................................................................52
7. Internet..........................................................................................................................52
8. IP (Internet Protocol) Address.......................................................................................53
9. Subnet Mask.................................................................................................................53
10. Gateway........................................................................................................................53
11. MAC (Media Access Control) Address..........................................................................53
12. Packet...........................................................................................................................53
13. Ping...............................................................................................................................54
14. Socket...........................................................................................................................54
15. TCP (Transmission Control Protocol)............................................................................54
16. TCP/IP ..........................................................................................................................54
17. UDP (User Datagram Protocol).....................................................................................54
Appendix C. Revision History.................................................................................................55

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：4
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
Important Information
Warranty
All products manufactured by ICP DAS are under warranty regarding
defective materials for a period of one year, beginning from the date of
delivery to the original purchaser.
Warning
ICP DAS assumes no liability for any damage resulting from the use of this
product.ICP DAS reserves the right to change this manual at any time
without notice. The information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is assumed by ICP DAS
for its use, not for any infringements of patents or other rights of third parties
resulting from its use.
Copyright
Copyright @ 2018 by ICP DAS Co., Ltd. All rights are reserved.
Trademark
Names are used for identification purpose only and may be registered
trademarks of their respective companies.
Contact us
If you encounter any problems while operating this device, feel free to contact us
via mail at: servi[email protected]om.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：5
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
1. Introduction
The LRA-900-E is a Ethernet to
radio device designed for
remote communication operating in a transparent way and
exploiting the physical layer of LoRa (Long Range)
transmission technology.
By using the VxComm
Driver/Utility, the built-in RF port of the LRA-900-E can be
virtualized to a
standard PC COM Port in Windows.
Therefore, users can transparently access RF datas over the
Internet/Ethernet via COM Port program.
The LRA-900-E provides a maximum line of sight (LOS) transmission distance of 1500 meters at
an RF bit rate 10,000 bps. In order to overcome the interference that may be encountered in
harsh environments, the LRA-900-E allows the RF transmission bit rate to be configured to a
minimum of 250 bps, enhancing the capability of the modem to resist noise and other
interference. Additionally, the RF channels and Group IDs are adjustable, which is helpful to
avoid interference encountered when two LRA-900-E networks are adjacent. The RF channels
and the Group IDs can be configured in order to distinguish and control the different LRA-900-E
networks.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：6
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
1.1. VxComm Technology
In general, writing a TCP/IP program is more difficult than writing a COM Port program. Another
issue is that perhaps the existing the COM Port communication system was built many years ago
and is now outdated.

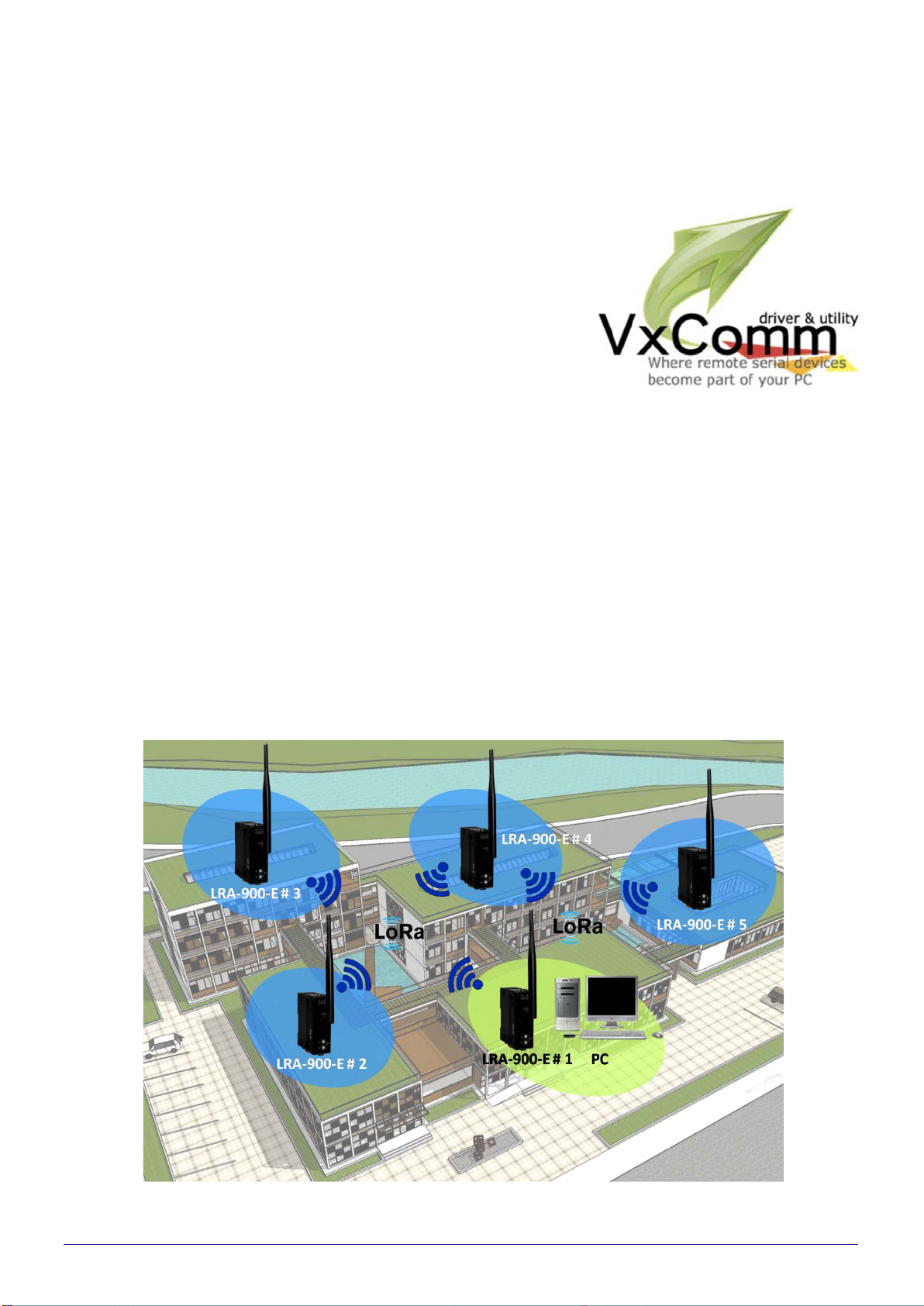

As a result, a new technology, VxComm was developed to virtualize the RF Port of the
LRA-900-E to become a COM Port on the PC and allow up to 256 COM Ports to be used on a
central computer. The VxComm driver saves time when accessing LRA-900-E devices through
the Ethernet without the need for reprogramming the COM Port software on the PC.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：7
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
1.2. Web Server Technology
Web server technology enables the LRA-900-E to be configured via a standard web browser
interface, e.g. Google Chrome, Internet Explorer, or Firefox, etc. This means that it is easy to
check the configuration of thet LRA-900-E via an Ethernet network without needing to install any
other software tools, thereby reducing the learning curve required for maintaining the device.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：8
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
2. Hardware Information
This chapter provides a detailed description of the front panel, the hardware specifications and
the dimensions for the LRA-900-E module.
2.1. Specifications
RF Interface
Radio Frequency
864~ 871.5MHz, 915~ 922.5MHz
(channel: 32, recommend using 868 +/- 4 MHz)
Baud Rate
10000 ~ 250 bps
Transmission Power 15 dBm (Max.)
Antenna
2 dBi Omnidirectional Antenna
Transmission Distance
up to 1500 m ( with 10,000 baud, in free field conditions )
Group ID
0~255
Protocols
Transparent transmit
Configuration
Web Server
Ethernet Interface
Ethernet 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX,
LED indicator)
LED Indicators
Red/ Green/ Yellow
Power / RF TxD / RF RxD Status
EMS Protection
ESD
+/- 4 kV Contact
EFT
+/- 1 kV
Surge +/- 1 kV
Power
Power Input
+10 V
DC
~ +30 V
DC
Power Consumption
1.5 W (Max.)
Mechanical
Dimensions (W x L x H)
110 mm x 83 mm x 33 mm ( not include antenna )
Installation
DIN-Rail
Environment
Operating Temperature
-25 °C ~ +75 °C
Storage Temperature
-30 °C ~ +80 °C
Relative Humidity
10 ~ 90% RH, Non-condensing
Note: RF Port = TCP Port 10001

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：9
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
2.2. Features
LoRa (Long Range) transmission technology
32 RF channels (Frequency band : 864~ 871.5MHz, 915~ 922.5MHz)
RF baud rates (10,000 ~ 250 bps)
Wireless line of sight (LOS) transmission range of up to 1500 meters at an RF baud rate
of 10,000 bps
Data transmission via Virtual COM or raw TCP connection
VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
Max. connections: 1 socket is suggested
Supports TCP server-mode operation
Supports UDP responder for device discovery (UDP Search)
Static IP or DHCP network configuration
Easy firmware update via the Ethernet (BOOTP, TFTP)
Tiny Web server for configuration (HTTP)
Contains a 32-bit MCU that efficiently handles network traffic
10/100 Base-TX Ethernet, RJ-45 x1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
3000 VDC isolation and +/- 4 kV ESD protection
RoHS compliant with no Halogen

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：10
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
2.3. Appearance
Front View 1. LED indicator
Once power is supplied to the LRA-900-E module,
the LED indicator will illuminate. An overview of
the LED functions is given below:
LED Behavior Description
PWR
On +10 ~ +30 VDC Power On
Off Power Off
Flash Module into Init mode
RF_Tx On RF is transmitting data
Off RF is no data to transmit
RF_Rx On RF is receiving data
Off RF is no data to receive

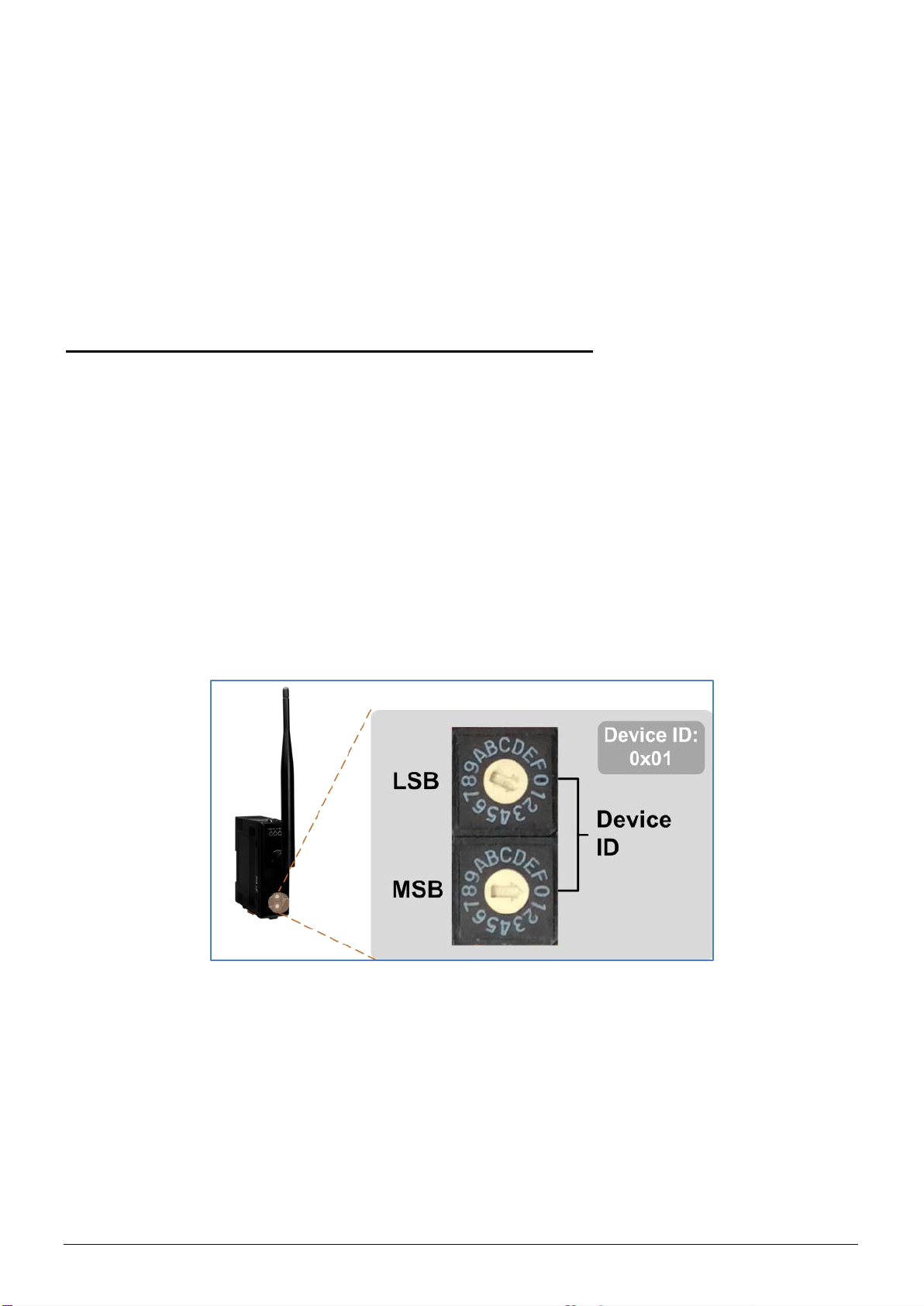

2. Device ID Switch
Device ID, 0x01 ~ 0xFE
NOTE:
Each module’s “Device ID” must be different from each other.
0x00 and 0xFF are reserved for future used, don’t set these
two values.
3. Operating Mode Switch
Init Mode: Configuration mode
Run Mode: Firmware operation mode
For LRA-900-E
module, the operating mode switch is set to the
Run
position by default. In order to update the firmware for the
LRA-900-E module, the switch must be moved from the Run
position to the Init position. The switch must
be returned to the
Run position after the update is complete.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：11
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
4. +10 to +30 VDC Terminal Block
The LRA-900-E is equipped with a +10VDC to +30 VDC 3-pin
terminal block that can be used to connect a DC power supply.
5. Ethernet RJ-45 Jack
The LRA-900-E module is equipped with an RJ-
45 jack that is
used as the 10/100 Base-
TX Ethernet port and features
networking capabilities. When an Ethernet link is detected and an
Ethernet packet is received, the Link/Act LED (Green
) indicator
will be illuminated. When Ethernet running at 100 Mbps, the
10/100M LED (Green) indicator will be illuminated.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：12
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
2.4. Dimensions
The following diagrams provide the dimensions of the LRA-900-E module. All dimensions are in
millimeters.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：13
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
3. Setting up the LRA-900-E Module
This chapter provides detailed information about how to use the LRA-900-E module. Before
using the module, Ethernet configuration and VxComm utility driver installation procedures must
first be fully completed. Follow the procedure described below:
Step 1: Connect the Power Supply and the Host PC
1. Ensure that the network settings on your PC are configured correctly.
2. Ensure that the Windows firewall or any Anti-Virus firewall software is correctly configured or
temporarily disable these functions; otherwise the “Search Servers” function in the VxComm
Utility may not work as required. You may need to contact your System Administrator for
more details of how to do this.
3. Check that the Init/Run switch is in the “Run” position and set the “Device ID” switch to
necessary position.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：14
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
4. Connect both thet LRA-900-E and the Host computer to the same sub-network or the same
Ethernet Switch, and then power on the LRA-900-E. Refer to following figure for illustrations
of how to do this.
5. Verify that the PWR LED indicator is illuminated.
Step 2: Install the VxComm Utility
The VxComm Utility can be obtained from the ICP DAS FTP site, or the ICP DAS web site. The
location of the install files on the download addresse is shown below:
http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/
Step 3: Search for the LRA-900-E module on the Ethernet network
1. Open the VxComm Utility and then click the “Search Servers” button to search for the
LRA-900-E module.
2. Once the search process is complete, double-click the name of the LRA-900-E module to
open the “Configure Server” dialog box.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：15
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
3. Enter the network settings information, including the IP, Mask and Gateway addresses, and
then click “OK” button. The new settings for the LRA-900-E will take effect within 2 seconds. If
you don’t know the correct network configuration information, contact your Network
Administrator to obtain the details.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：16
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
Step 4: Configuring the Virtual COM Ports
1. Wait 2 seconds and then click the “Search Servers” button again to ensure that the
LRA-900-E is working correctly with the new configuration.
2. Click the “Add Server[s]” button. Assign a COM Port number and click “OK” to save your
settings.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：17
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
3. Click on LRA-900-E name and check the virtual COM port mappings on the PC.
4. Click “Tools” “Restart Driver”, and then click the “Restart Driver” button.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：18
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
4. Web Configuration
Once the LRA-900-E module has been correctly configured and is functioning on the network
normally, the configuration details can be retrieved or modified using either the
VxComm/eSearch Utility or a standard web browser.
4.1. Logging in to the LRA-900-E Web Server
The embedded LRA-900-E web server can be accessed from any computer that has an Internet
connection.
Step 1: Open a new browser window.
Open a web browser, for example, Google Chrome, Firefox or Internet
Explorer, which are reliable and popular Internet browsers that can be used
to configure LRA-900-E module.
Note that if you intend to use Internet Explorer, ensure that the cache
function is disabled in order to prevent browser access errors.
Step 2: Enter the URL for the LRA-900-E web server
Ensure that you have correctly configured the network settings for the LRA-900-E module (refer
to Chapter 3 Setting up the LRA-900-E module for detailed instructions), and then enter the URL
for theLRA-900-E web server in the address bar of the browser.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：19
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
Step 3: Enter the Password
After the main login page is displayed, enter a password (the factory default password is
“admin”), and then click the “Submit” button to continue.
Step 4: Log in to the LRA-900-E Web Server
After logging into the LRA-900-E web
server, the main page will be displayed.

LRA-900-E (Ethernet to LoRa Radio Modem) User Manual Version 1.0.1 Page：20
Copyright © 2018 ICP DAS Co., Ltd. All Rights Reserved E-mail: [e-mail]
4.2. Home Page
The Home link connects to the main page, which contains two parts.
The first part of this page provides basic information about the LRA-900-E hardware and
software.
The software and hardware information section includes information related to the Model Name,
the current Firmware version, the IP Address, the current position of the Initial Switch, the Alias,
the MAC Address, and the TCP Port, and the System Timeout values. If you update the
firmware for the LRA-900-E module, this page can be used to check the version
information of the LRA-900-E software.
The second part of this page provides the
status of the port settings.
