ICPDAS iNS-300 Series User manual

iNS-300 Series
User Manual
Ver. 1.0.0, Oct. 2021
WARRANTY
All products manufactured by ICP DAS are warranted against
defective materials for a period of one year from the date of
delivery to the original purchaser.
WARNING
ICP DAS assumes no liability for damages consequent to the
use of this product. ICP DAS reserves the right to change this
manual at any time without notice. The information
furnished by ICP DAS is believed to be accurate and reliable.
However, no responsibility is assumed by ICP DAS for its use,
nor for any infringements of patents or other rights of third
parties resulting from its use.
COPYRIGHT
Copyright © 2021 by ICP DAS. All rights are reserved.
TRADEMARK
Names are used for identification only and may be registered
trademarks of their respective companies.
CONTACT US
If you have any questions, please feel free to contact us via
email at:
[email protected]
SUPPORT
iNS-306
Written by Albert Deng . Edited by Sunny
Chiu

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 2 -
CONTENTS
1. INTRODUCTION ................................................................................................................... 3
1.1 PACKING LIST..............................................................................................................................4
1.2 FEATURES ..................................................................................................................................5
2. HARDWARE INFORMATION.................................................................................................. 8
2.1 APPEARANCE..............................................................................................................................8
2.2 SPECIFICATION ..........................................................................................................................11
2.3 DIMENSIONS ............................................................................................................................12
3. GETTING STARTED ..............................................................................................................13
3.1 CONFIGURING THE BOOT MODE ..................................................................................................13
3.2 CONNECTING THE POWER AND THE HOST PC .................................................................................14
3.3 CONFIGURING THE NETWORK SETTINGS ........................................................................................15
4. WEB CONFIGURATION ........................................................................................................18
4.1 HOME.....................................................................................................................................18
4.2 NETWORK................................................................................................................................20
4.3 SCHEDULE................................................................................................................................26
4.4 FILTER.....................................................................................................................................30
4.5 CHANGING PASSWORD...............................................................................................................31
4.6 LOGOUT ..................................................................................................................................32
REVISION HISTORY.....................................................................................................................33

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 3 -
1. Introduction
The iNS-306 is a 6-port 10/100Base-TX IoT switch with easy-to-use web interface. It offers 2
Ethernet ports with LAN Bypass feature, and 4 PoE ports for connecting Power over Ethernet
(PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network.
In compliance with the IEEE 802.3at standard, each PoE port ensures the PSE function and
provides up to 30W for powered devices
The iNS-300 web interface enables you to remotely log into the iNS-300 series module for
configuration and maintenance. You can configure the iNS-300 series module, turn off/on or
reset the power of the POE Ethernet port, and set power schedule from your browser.
Remote Control
PoE Wireless AP
PoE IP Camera
PoE IP Phone
PoE LED

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 4 -
1.1 Packing List
The shipping package includes the following items:
Quick Start x 1
iNS-300 Module x 1
Note
If any of these items are missing or
damaged, please contact the local
distributor for more information.
Save the shipping materials and
cartons in case you need to ship the
module in the future.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 5 -
1.2 Features
1. Built-in Web Server
The iNS-300 series module has a built-in web server that allows users to easily configure, monitor
and control the module from a remote location using a web browser.
2. Power On/Off Schedule
An individual power on/off schedule is provided for each PoE port of the iNS-300 series module.
Auto turning off and turning on the devices at selected times can save manpower, time costs, and
power when the devices are not in used.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 6 -

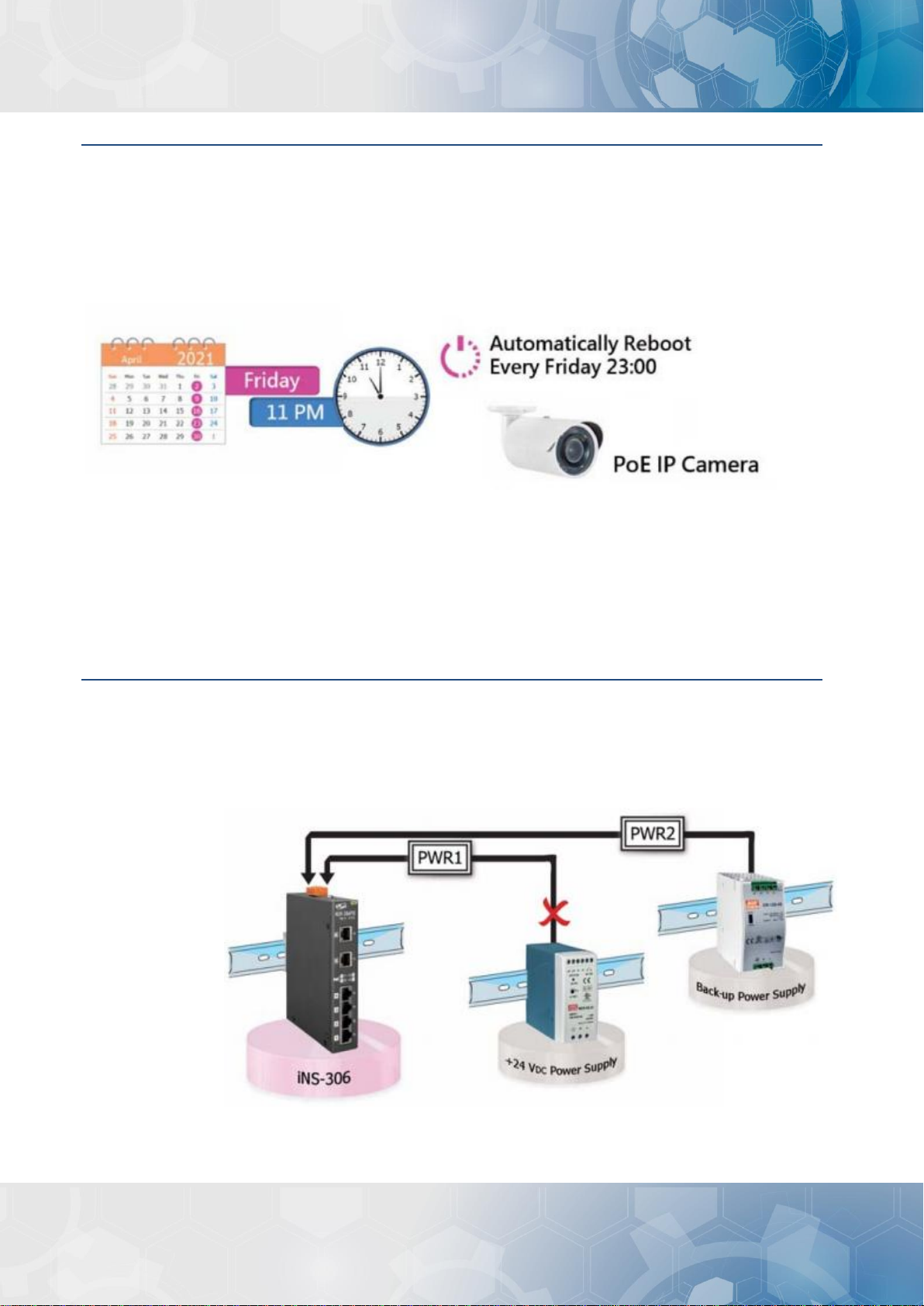

3. Power Reset Schedule
The PoE powered devices may become slow or inoperable if they are left on for too long. A
simple reset can help you to solve most problems most of the time. The iNS-300 series module
offers an individual power reset schedule for each PoE port, you can configure the schedule
through a web browser to reset your devices regularly and keep them working in good condition.
4. Dual Redundant Power Input
The iNS-300 series module has dual redundant power inputs to ensure reliability. If the main
power system fails, the switch can be powered by an UPS or backup power to prevent network
disruptions. If the iNS-300 series module will be used on high load conditions (total PoE power
load exceeds 60w), it is recommended to configure dual power supplies.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 7 -
5. LAN Bypass
LAN Bypass feature guarantees the Ethernet communication. It will automatically active to ensure
the continued flow of important network traffic when the iNS-300 series module loses its power.
6. Highly Reliable Under Harsh Environment
Wide Operating Temperature Range: -40 ~ +75°C
Storage Temperature: -40 ~ +85°C
Humidity: 10 ~ 90% RH (Non-condensing)

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 8 -
2. Hardware Information
2.1 Appearance
1.
Power LED Indicator
LED
Color
State
Description
P1
Yellow
On
Power is being supplied to power input PWR1.
Off
Power is not being supplied to power input PWR1
P2
Yellow
On
Power is being supplied to power input PWR2.
Off
Power is not being supplied to power input PWR2
Front Panel
Top Panel
PoE Status Indicator
Power LED Indicator
Link/Act & Speed
LED Indicator
Ethernet Port
PoE and
Ethernet Port
Link/Act & Speed
LED Indicator
Operating Mode
Switch
Power Input Connector
(+12 ~ +57 VDC)

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 9 -
2.
Ethernet Port and Link/Act & Speed LED Indicator
The iNS-300 series modules are equipped with two RJ-45 10/100 Base-TX Ethernet ports. If the
power to an iNS-300 series module is lost, the LAN bypass function will automatically activate.
In other words, Port 5 and Port 6 will be bridged together to ensure network traffic availability.
LED Indicator
Color
State
Description
Port 5 ~ 6
Link/Act & speed
Amber
On
Link to 100 Mbps.
Off
Link to 10 Mbps.
Green
On
A link is present.
Off
No link is present.
3.
PoE Status Indicator
When a PoE-powered device is connected to a PoE port and receives its electrical power from the
Ethernet cable, the corresponding status indicator will illuminate.
4.
PoE and Ethernet Port and Link/Act & Speed LED Indicator
The iNS-300 series module offers 4 x 10/100Mbps PoE ports. Each port can provide up to 30 W of
power (compliant with IEEE 802.3at standard). They can be used to connect and supply power to
any PoE-enabled devices such as wireless access points, network cameras, IP phones, as well as to
connect Ethernet-enabled devices like computers and printers.
LED Indicator
Color
State
Description
Port 1 ~ 4
Link/Act & speed
Amber
On
Link to 100 Mbps.
Off
Link to 10 Mbps.
Green
On
A link is present.
Off
No link is present.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 10 -
5.
Operating Mode Switch
INIT: Use factory default settings for troubleshooting.
RUN: Use customer settings for normal operation.
6.
Power Input Connector
The iNS-300 series module supports +12 to +57 VDC wide power input range and dual redundant
power input to ensure stable operation in harsh environments. Once the power is supplied, the
corresponding LED indicator lights up.
Each PoE port can provide up to 30 W of power when the the iNS-300 series module is powered by
+24 ~ +57VDC power supply. If the iNS-300 series module is utilized under high load (total PoE load
exceeds 60 W), it is recommended to configure dual power supplies.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 11 -
2.2 Specification
Model
iNS-306
PoE Technology
PoE Compliance
100% IEEE 802.3at compliant
PoE Power
Up to 30 watts per channel
PoE Operation
Automatic detection and power management
PoE Pin Assignments
V+ (pin 1, 2), V-(pin 3, 6)
PoE Disconnect Mode
DC disconnect
PoE Voltage
+52 VDC
Ethernet
Ports
6 x RJ-45, 10/100Base-TX
Standards
IEEE 802.3 for 10 Base-T
IEEE 802.3u for 100 Base-TX
IEEE 802.3x for Flow Control, Back Pressure Flow Control
IEEE 802.3af Power Over Ethernet
IEEE 802.3at Power Over Ethernet
Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings
during idle network activity
Processing Type
Store & forward; wire speed switching
MAC Addresses
16K
Frame Buffer Memory
4Mbit
Isolation
1500 Vrms 1 minute
DIP Switch
Init
LED Indicators
Status
PWR1, PWR2, POE, Link/Act, Speed
Power
Reverse Polarity
Protection
Yes
Input Range
12 ~ 57 VDC Redundant dual Input
Redundant Power
Inputs
Yes
Consumption
0.15 A @ 24 VDC without PD loading, 6A @ 24VDC with PD full loading
(30W per ports)
0.10 A @ 48 VDC without PD loading, 3A @ 48VDC with PD full loading
(30W per ports)
Mechanical
Casing
Metal
Dimensions (mm)
DIN-rail mounting: 28 x 160 x 119 (W x L x H)
Wall mounting: 28 x 199 x 112 (W x L x H)
Installation
DIN-rail mounting or wall mounting (optional)
Environmental
Operating Temperature
-40 °C ~ +75 °C
Storage Temperature
-40 °C ~ +85 °C
Humidity
10% ~ 90% RH, non-condensing

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 12 -

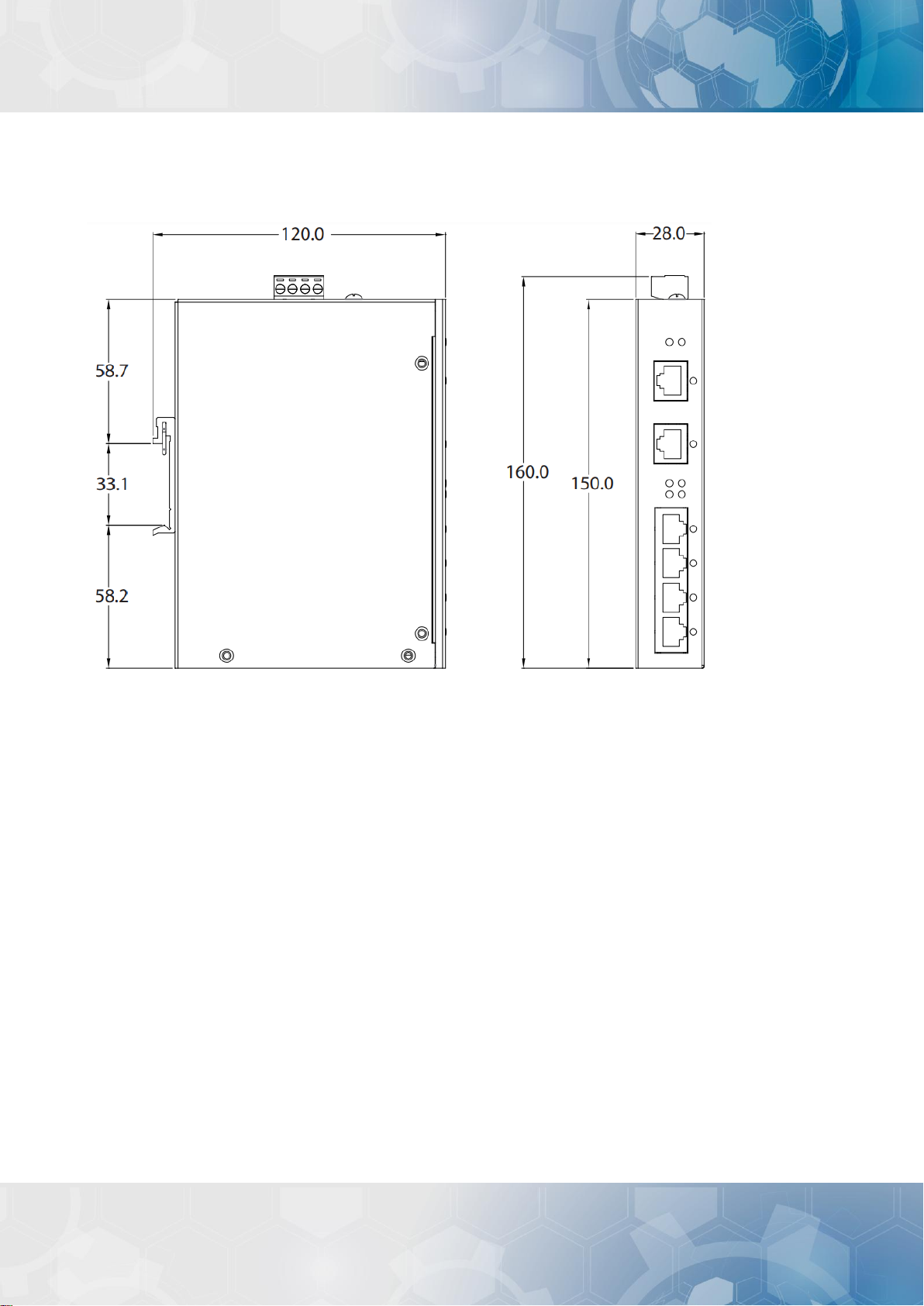

2.3 Dimensions
Left Side View
Front View

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 13 -
-INIT
RUN-
-INIT
RUN-
3. Getting Started
This chapter provides a basic overview of how to configure and operate the iNS-300 series module.
3.1 Configuring the Boot Mode
INIT Mode
INIT mode is the initial mode used for troubleshooting only.
1. Put switch(1) in "INIT" position and then reboot the module to load factory settings.
2. Use eSearch Utility to reconfigure the module's network settings.
3. Put switch(1) back in RUN position and then reboot the module to work in normal mode.
Note The module needs be rebooted after changing the operating mode switch.
Run Mode
Run Mode is the default operating mode used for normal operation.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 14 -
3.2 Connecting the Power and the Host PC
Step 1: Connect both the iNS-300 series module and the Host PC to the same sub network.
Ensure that the network settings on the Host PC have been correctly configured and are functioning
normally. Ensure that the Windows firewall or any Anti-Virus firewall is properly configured to allow
incoming connections, or temporarily disable these functions, otherwise the “Search Servers”
function in the eSearch Utility described in Section 3.3“Configuring the Network Settings”may not
perform as expected. Contact the System Administrator for instructions of how to do this.
Step 2: Apply power (+12 ~ +57 VDC) to the iNS-300 series module.
Ethernet Cable
+24 V
DC
GND
Power Supply
(e.g., MDR-20-24)



iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 15 -
3.3 Configuring the Network Settings
Step 1: Get the eSearch Utility
The eSearch Utility can be obtained from the ICP DAS
Web site at:
https://www.icpdas.com/en/product/guide+Software+Utility_Driver+eSearch__Utility
Step 2: Install the eSearch Utility
Follow the instructions in the eSearch setup
wizard to complete the installation.
After the installation has been
completed, a new short cut for
the eSearch Utility will be
displayed on your desktop
Step 3: Click “Search Servers” to search for the iNS-300 series module on the network

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 16 -
Step 4: Double-click your module name to open the configuration dialog box
Factory Default Settings
IP
192.168.255.1
Gateway
192.168.0.1
Mask
255.255.0.0
Step 5: Assign new network settings and then click the “OK” button
Enter the relevant values for the IP Address, Subnet Mask, Gateway, etc., and then click the “OK”
button. The new settings will take effect within 2 seconds.
(Contact the Network Administrator to obtain the relevant details)
Step 6: Wait for 2 seconds and then click “Search Servers”again to ensure that the module is
functioning properly with new configuration.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 17 -
Step 7: Click the “Web” button to connect to the web interface
(Or entering the iNS-300's IP address into a web browser)
Step 8: Change password upon first login
The default password for logging in to the iNS-300 web page is Admin. You will be prompted to
change your password upon first login or when the password is the same as the default.
(Create a 1 to 12 character password using alphanumeric characters only.)
Enter new password again

Enter new password

Enter Admin

Click Submit


iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 18 -
4. Web Configuration
The iNS-300 series module has a built-in Web Server, which provides an intuitive web interface,
allowing users to login to the module for monitoring the physical status of an Ethernet or PoE port,
configuring and managing module settings through a browser.
4.1 Home
The Home page is the startup page when you log into the module. It displays detailed information
about the module and the connection status and power consumption of the POE devices. You can
turn on and off the PoE power, or enable/disable jumbo frame support here.
The first section provides basic information related to the module including the model name,
firmware version, IP address, MAC address and so forth.

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 19 -
The second section displays the connection status of each port and power consumption of the
powered devices. You can manually power on or off the attached devices here.
Item
Description
Link
Displays the connection status of each port. A green light indicates that
a device is connected to the port.
PoE Enable
Displays the power on/off status of a PoE port. You can click the power
icon to turn on/off a PoE port.
PoE power(W)
The power consumption of connected PoE devices (unit: W)
Jumbo
Enable or disable Jumbo Frame support
Enable: Max. Packets Size 16K
Disable: Max. Packets Size 2K (Default)
The power on the PoE port is on
The power on the PoE port is off

iNS-300 Series User Manual
Copyright ©2021 ICP DAS CO., Ltd. All Rights Reserved. - 20 -
4.2 Network
The Network page contains the IP Address Configuration section allowing you to verify network
settings, General Settings, Restore Factory Defaults and Firmware Update sections. Each of which
will be described in more detail below.
The IP Address Configuration section displays the network parameters of the module allowing you
to modify these settings. You can select DHCP to receive a dynamic IP address from a DHCP server,
or select static IP to manually assign an IP address to the module here.
Item
Description
Address Type
Static IP: Manually set the IP Address, Subnet Mask and Default Gateway.
DHCP: Using dynamic IP address that the DHCP server assigns.
Static IP Address
Enter an unique IP address on the network that the module is connected.
This setting is available only when Address Type is Static IP enabled.
Subnet Mask
Enter a subnet mask. (Available only when Static IP is enabled.)
Default Gateway
Enter a default gateway. (Available only when Static IP is enabled.)
MAC Address
Enter a new MAC address if required. (Not recommended to modify.)
Update Settings
Click this button to update the revised settings.
