ICRealtime AVS-4KD8021-IR User manual

HDAVS Eyeball Camera
User’s Manual
V1.0.1

Foreword I
Foreword
General
This user’s manual (hereinafter referred to be "the Manual") introduces the functions,
installation and operations of the camera.
Safety Instructions
The following categorized signal words with defined meaning might appear in the Manual.
Signal Words
Meaning
Indicates a medium or low potential hazard which, if not avoided,
could result in slight or moderate injury.
Indicates a potential risk which, if not avoided, may result in
property damage, data loss, lower performance, or unpredictable
result.
Provides methods to help you solve a problem or save you time.
Provides additional information as the emphasis and supplement
to the text.
Revision History
No.
Version
Revision Content
Release Date
1
V1.0.0
First release.
2017.10
Privacy Protection Notice
As the device user or data controller, you might collect personal data of others' such as face,
fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be
in compliance with the local privacy protection laws and regulations to protect the legitimate
rights and interests of other people by implementing measures include but not limited to:
providing clear and visible identification to inform data subject the existence of surveillance
area and providing related contact.
About the Manual
The Manual is for reference only. If there is inconsistency between the Manual and the
actual product, the actual product shall govern.
We are not liable for any loss caused by the operations that do not comply with the Manual.
The Manual would be updated according to the latest laws and regulations of related
regions. For detailed information, see the paper User's Manual, CD-ROM, QR code or our

Foreword II
official website. If there is inconsistency between paper User's Manual and the electronic
version, the electronic version shall prevail.
All the designs and software are subject to change without prior written notice. The product
updates might cause some differences between the actual product and the Manual. Please
contact the customer service for the latest program and supplementary documentation.
There still might be deviation in technical data, functions and operations description, or
errors in print. If there is any doubt or dispute, please refer to our final explanation.
Upgrade the reader software or try other mainstream reader software if the Guide (in PDF
format) cannot be opened.
All trademarks, registered trademarks and the company names in the Manual are the
properties of their respective owners.
Please visit our website, contact the supplier or customer service if there is any problem
occurred when using the device.
If there is any uncertainty or controversy, please refer to our final explanation.

Foreword I
Important Safeguards and Warnings
Electrical Safety
All installation and operation should conform to your local electrical safety codes.
The power source shall conform to the requirement of the Safety Extra Low Voltage (SELV)
standard, and supply power with rated voltage which conforms to Limited power Source
requirement according to IEC60950-1. Please note that the power supply requirement is
subject to the device label.
A readily accessible disconnect device shall be incorporated in the building installation
wiring.
Make sure if the camera power adapter meets the camera operating voltage requirement
before powering up the device (The material and length of the power cable might influence
the device voltage).
Prevent the power cable from being trampled or pressed, especially the plug, power socket
and the junction extruded from the device.
We assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
Environment
Do not aim the device at strong light to focus, such as lamp light and sun light.
Transport, use and store the device within the range of allowed humidity and temperature.
Keep the camera away from water or other liquid to avoid damages to the internal
components.
Keep sound ventilation to avoid heat accumulation.
Heavy stress, violent vibration or water splash are not allowed during transportation,
storage and installation.
Pack the device with standard factory packaging or the equivalent material when
transporting the device.
It is recommended to use the device together with lightning arrester to improve lightning
protection effect.
It is recommended to get the grounding holes to be grounded to enhance the reliability of
the device.
It is recommended to use qualified video transmission cable to improve video quality. It is
recommended to use RG59 coaxial cable or higher standard.
Use standard components or accessories provided by manufacturer and make sure the

Foreword II
device is installed and maintained by professional engineers.
The surface of the image sensor should not be exposed to laser beam radiation in an
environment where a laser beam device is used.
Do not provide two or more power supply sources for the device; otherwise it might
damage the device.
When the camera is in the condition of PoC power supply, do not connect any other device
between the camera and PoC transceiver including UTC, Balun, optical transceiver,
distributor and convertor and so on; otherwise, the device might get burned.
PoC supply voltage is up to 52V. Do not dismantle the device during normal operation;
otherwise it might cause danger to both device and users due to high voltage.

Table of Contents III
Table of Contents
Foreword.................................................................................................................................................... I
1 Introduction............................................................................................................................................ 1
1.1 General.......................................................................................................................................... 1
1.2 Features........................................................................................................................................ 1
2 Design..................................................................................................................................................... 2
2.1 Dimension..................................................................................................................................... 2
2.2 Cable............................................................................................................................................. 3
3 Installation.............................................................................................................................................. 5
4 Configuration......................................................................................................................................... 8
4.1 Opening Main Menu...................................................................................................................... 8
4.2 Setting Audio Input........................................................................................................................ 9
4.3 Operating OSD Menu ..................................................................................................................11
5 Maintenance......................................................................................................................................... 13

Introduction 1
1 Introduction
1.1 General
This series of products comply with the HDAVS standard and support the transmission of video
and control signal over coaxial cable. They produce video signal with megapixel resolution and
require HDAVR device that comply with the HDAVS standard to achieve high speed, long
distance and zero lag transmission of the signal. They are applicable to cover the high definition
monitoring needs for locations like financial center, telecom site, supermarket, hotel,
government, school and factory.
1.2 Features
720p series support over 800 meter real-time transmission of video and control signal from
RG59 cable; for 1080p to 4k series, the distance is 500 meter.
Excellent low-light performance with IR or night vision technology.
Configuring devices easily with OSD menu.
Support switching between HD/SD outputs.
IP67 rated.

Design 2
2 Design
2.1 Dimension
Model A (mm [in])Figure 2-1
Model B (mm [in])Figure 2-2
Model C (mm [in])Figure 2-3

Design 3
2.2 Cable
Figure 2-4
Figure 2-5
Figure 2-6
Figure 2-7
Figure 2-8
Figure 2-9
For more information about cable ports, see Table 2-1; for the operation method of ⑥(DIP
switch), see Table 2-2.
No.
Port Name
Function
①
DC 12V
Power Input
Inputs DC 12V power. Please be sure to supply power as instructed in the
Manual.
Device abnormity or damage could occur if power is not supplied correctly.

Design 4
No.
Port Name
Function
②
DC 12V or AC
24V Power
Input
Inputs DC 12V or AC 24V power. Please be sure to supply power as
instructed in the Manual.
Device abnormity or damage could occur if power is not supplied correctly.
③
Video Output
Connects to HDAVR to output video signal.
④
Audio Input
Connects to sound-pick-up devices to receive analog audio signal.
⑤
Power Output
Supplies DC12V 2W power.
⑥
DIP Switch
Dial switches to change output mode. Switch up indicates "ON", switch down
indicates "OFF."
Table 2-1
Switch1
Switch2
Output Mode
OFF
OFF
AVS
ON
ON
CVBS
ON
OFF
AHD
OFF
ON
TVI
Table 2-2
Cable type might vary with different cameras, and the actual product shall prevail.

Installation 5
3 Installation
Make sure the mounting surface is strong enough to hold at least three times of the
camera weight.
The following figure is for reference only, and the actual product shall prevail.
For the installation diagram and item list of model A, see Figure 3-1 and Table 3-1, for those of
model B and model C, see Figure 3-2 and Table 3-2.
Figure 3-1
No.
Item
No.
Item
No.
Item
No.
Item
①
Mounting surface
②
Expansion bolt
③
Pedestal
④
Self-tapping screw
⑤
Device
⑥
Enclosure
⑦
Fixing ring
Table 3-1

Installation 6

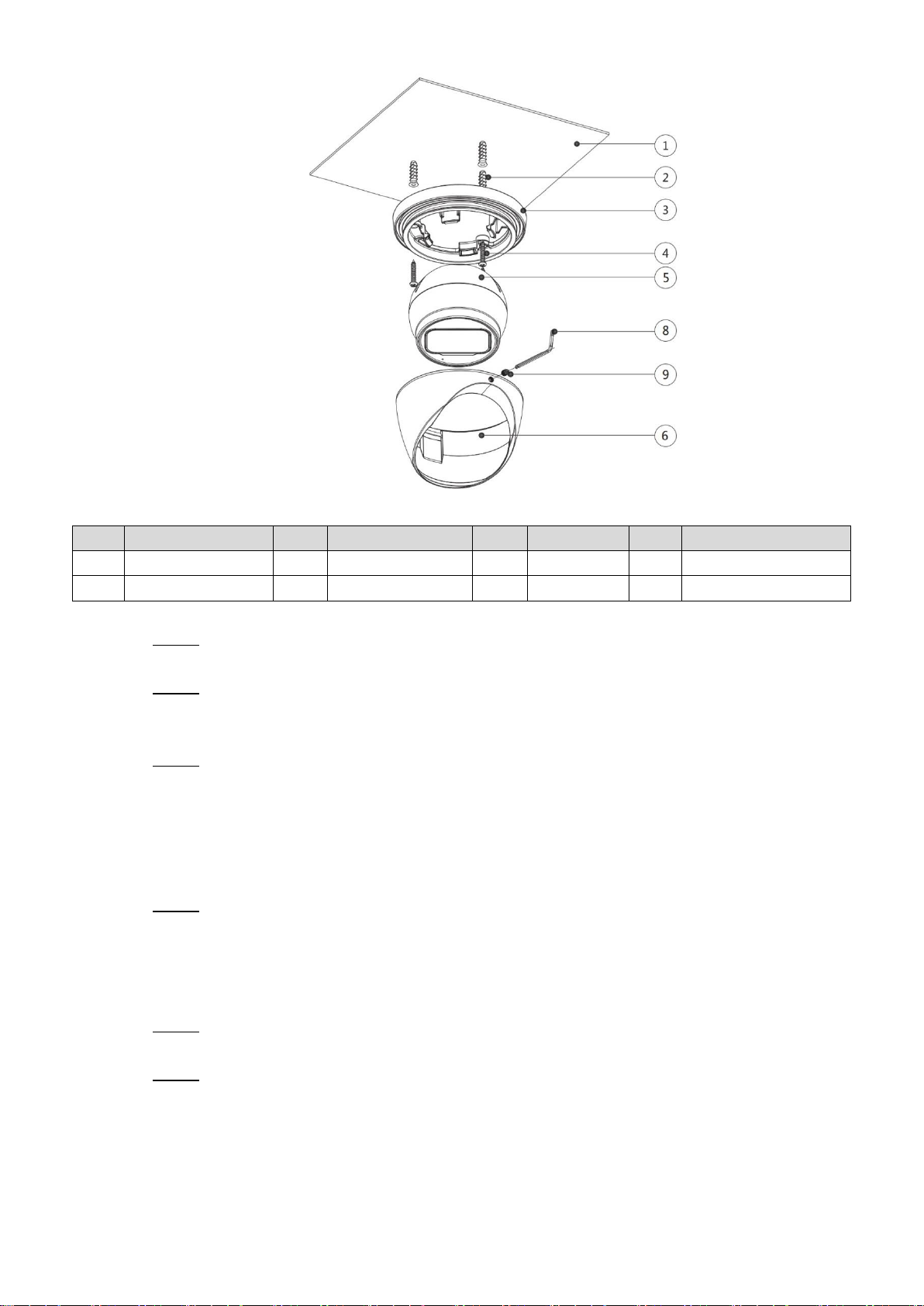

Figure 3-2
No.
Item
No.
Item
No.
Item
No.
Item
①
Mounting surface
②
Expansion bolt
③
Pedestal
④
Self-tapping screw
⑤
Device
⑥
Enclosure
⑧
Wrench
⑨
Locking screw
Table 3-2
Find the mounting template sticker from the accessory pack and stick it to the mountingStep 1 surface①
Drill screw holes (and the cable outlet hole if it needs to go through the mountingStep 2 surface) on the mounting surface as indicated on the mounting template, then insert
expansion bolts②from the accessory pack in the screw holes.
The disassembly way of model A is different from which of model B and model C.Step 3
For modelA, hold the pedestal③tightly and keep the device⑤upward, rotate the
fixing ring⑦counterclockwise until you can detach it from above, and then take off
the pedestal③.
For model B and model C, loosen the locking screw⑨with the supplied wrench⑧
and take the pedestal③off.
Adjust the location of the pedestal③according to cable outlet requirement (top out orStep 4 side out), then pull the cable out through mounting surface or the side cable tray. Align
the screw holes on the pedestal③to those on the mounting surface, then put in and
fasten the supplied self-tapping screws④to attach the device⑤to the mounting
surface.
Connect the camera to power source and the HDAVR device, and the live view screenStep 5 will be displayed.
The assembly and adjustment way of model A is different from which of model B andStep 6 model C.
For model A, put the fixing ring⑦back to hold the enclosure⑥, leave some
spaces enough for you to adjust the device⑤. Aim the lens to the ideal angle (see
Figure 3-3) and fasten the fixing ring⑦.

Installation 7
Figure 3-3
For model B and model C, put the enclosure⑥back on and adjust the locking
screw⑨to hold it, leave some spaces enough for you to adjust the device⑤. Aim
the lens to the ideal angle and adjust the focus until you get clear image (see
Figure 3-4) and fasten the locking screw⑨.
Figure 3-4
For model B and model C, it is easier to fit the enclosure⑥to the pedestal③if you put the
higher end in first and then the lower end.
For the models with vari-focal lens, you can adjust the zoom and focus through HDAVR
device.

Configuration 8
4 Configuration
Power up the camera and connect it to HDAVR device with coaxial cable, then the live view
screen is displayed. The following instructions will guide you to configure your camera.
The number of the coaxial port on HDAVR will display at the lower left corner of the live view
window to indicate the corresponding camera.
4.1 Opening Main Menu

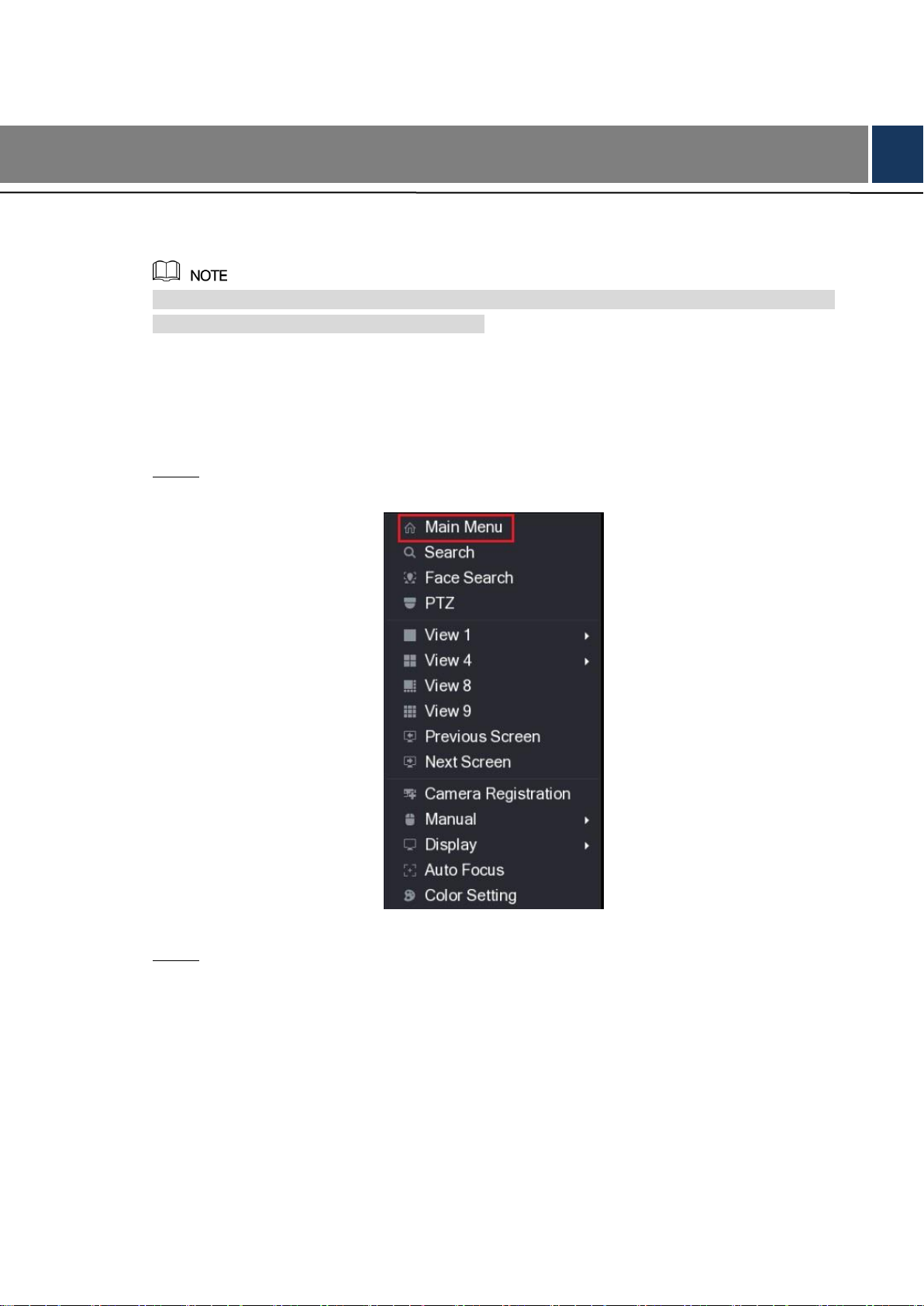

In the live view screen interface, right-click anywhere on the screen.Step 1 The shortcut menu is displayed. See Figure 4-1.
Figure 4-1
Click Main Menu.Step 2 The Main Menu interface is displayed. See Figure 4-2.

Configuration 9
Figure 4-2
Right-click anywhere on the screen to return to the previous menu until you goes back to the
live view screen interface.
4.2 Setting Audio Input
Audio signal acquisition is available on select models.
In the Main Menu interface (Figure 4-2), select CAMERA> ENCODE > Encode.Step 1 The Encode setting interface is displayed. See Figure 4-3.

Configuration 10
Figure 4-3
In the Channel list, select the camera that you want to configure according to theStep 2 coaxial port number.
In the Main Stream column, click More Setting.Step 3 The More Setting interface is displayed. See Figure 4-4.
Figure 4-4
In the More Setting interface, you can configure the audio settings.Step 4
Enable Audio Encode function.
In the Audio Format list, leave to the default.
In the Audio Source list, select HDAVS.
Click Save to save the settings.Step 5 The Encode setting interface is displayed.
In the Encode setting interface (Figure 4-3), click Apply.Step 6

Configuration 11
4.3 Operating OSD Menu
In the live view screen interface, right-click within the live view window of the cameraStep 1 that you want to configure.
The shortcut menu (Figure 4-1) is displayed.
Click PTZ.Step 2 The PTZ setting interface is displayed. See Figure 4-5.
Figure 4-5
Click to see more options. See Figure 4-6.Step 3
Figure 4-6
Click .Step 4 The MENU OPERATION panel is displayed. See Figure 4-7.
The OSD menu of the corresponding camera is displayed on the live view screen.
Figure 4-7
For the function of the buttons in the MENU OPERATION panel, see Table 4-1.
Button
Function
Button
Function
Enter or confirm an item
,
Select item
Exit OSD menu
,
Change item value

Configuration 12
Table 4-1
If there is " " as the value of an OSD item, click Enter to go to the next level of this item. Click
Return to go back to the previous level. Clicking Cancel is to exit OSD menu without saving the
modifications.
Interfaces of different HDAVR might vary, and the actual product shall prevail.
The OSD menus of different cameras might vary, and the actual product shall prevail.

Maintenance 13
5 Maintenance
In order to maintain the image quality and proper functioning of the device, please read the
following maintenance instructions carefully and hold rigid adherence.
Disassembly and Desiccant Replacement
Carefully follow the instructions in the manual when performing any disassembly operation
about the device; otherwise, it might cause water leakage or poor image quality due to
unprofessional disassemble.
Please contact after-sale service for desiccant replacement if there is condensed fog found
on the lens after unpacking or when the desiccant turns green. (Not all models are included
with the desiccant).
Maintaining Lens and Mirror Surface
The lens and mirror surface are covered with antireflection coating, which could be
contaminated or damaged and result in lens scratches or haze image when being touched
with dust, grease, fingerprints and other similar substances.
Do not touch the image sensor directly (CCD or CMOS). Dust and dirt could be removed
with air blower, or you can wipe the lens gently with soft cloth that moistened with alcohol.
Maintaining Device Body
Device body can be cleaned with soft dry cloth, which can also be used to remove
stubborn stains when moistened with mild detergent.
To avoid possible damage on device body coating which could cause performance
decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to clean
the device body, nor can strong, abrasive detergent be used.
