Icy Box IB-3620U3 User manual

Manual IB-3620 Series
1
Version 1.1
IB-RD3620SU3
IB-3620U3

Manual IB-3620 Series
2
Version 1.1
CONTENT
1. Introduction.....................................................................................................................................................................3
1.1 General Information .............................................................................................................................................3
2. Hardware IB-3620 Series...........................................................................................................................................4
2.1 LED Indication / Button Front Panel.............................................................................................................4
2.2 Rear View..................................................................................................................................................................5
3. HDD Installation........................................................................................................................................................6
4. Setting/Changing the RAID mode......................................................................................................................7
5. Replace failed drive in RAID 1 Mode................................................................................................................8
6. Disk Initialization ..................................................................................................................................................10
6.1 Windows XP (32/64 bit).............................................................................................................................10
6.2 Windows Vista (32/64 bit)........................................................................................................................11
6.3 Windows 7/8 (32/64 bit)...........................................................................................................................12
6.4 Macintosh O.S. 10.X .......................................................................................................................................14
7. References................................................................................................................................................................16

Manual IB-3620 Series
3
Version 1.1
1. INTRODUCTION
1.1 GENERAL INFORMATION
1.1.1 Usage cautions
User should not modify this device. The environmental temperature should be within +5℃~
+35℃.
Note: Port multiplier at host computer needed, if connected via eSATA
1.1.2 Power
Power voltage: DC 12 V.
When using this device, please connect the supplied AC adapter or AC adapter cable to the
power jack of device. When placing the adapter cable, make sure it cannot get damaged or be
subject to pressure. To reduce the risk of electric shock, unplug the adapter first before cleaning
it. Never connect the adapter to the device in a humid or dusty area. Do not replace the adapter
or cable’s wire or connector.
1.1.3 Radio interference/compatibility
- If not properly shielded, almost all electronic devices will get radio interference. Under some
conditions, your player might get interference.
- The design of this device has followed the FCC/CE standard, and has followed the following
rules:
(1) This device may not cause harmful interference;
(2) This device could accept some interference received including interference that may cause
undesired operation.
1.1.4 Repair
If the device has a problem, you should take it to an appointed repair center and let the
specialists do the repair, never repair the player yourself, you might damage the device or
endanger yourself or your data.
1.1.5 Disposing of the player
When you dispose of the device, be sure to dispose it appropriately. Some countries may
regulate disposal of electrical device, please consult with your local authority.
1.1.6 Others
When using this device, please do not let the device come into contact with water or other liquid,
if water is accidentally spilled on the device, please use a dry cloth to absorb the spillage.
Do not let the device come into contact with water or other liquid.
Do not disassemble the device; repair the device or change the design of the device, any damage
done will not be included in the repair policy.

Manual IB-3620 Series
4
Version 1.1
Avoid hitting the device with hard object, avoid shaking the player, and stay away from magnetic
fields.
During electrostatic discharge and the strong electromagnetic field, the product will
malfunction, and then unplug the power cable and the product will return to normal
performance next time it is powered on.
Note: All the information contained in this manual was correct at the time of publication.
However, as our engineers are always updating and improving the product, your device’s
software may have a slightly different appearance or modified functionality than presented in
this manual.
2. HARDWARE IB-3620 SERIES

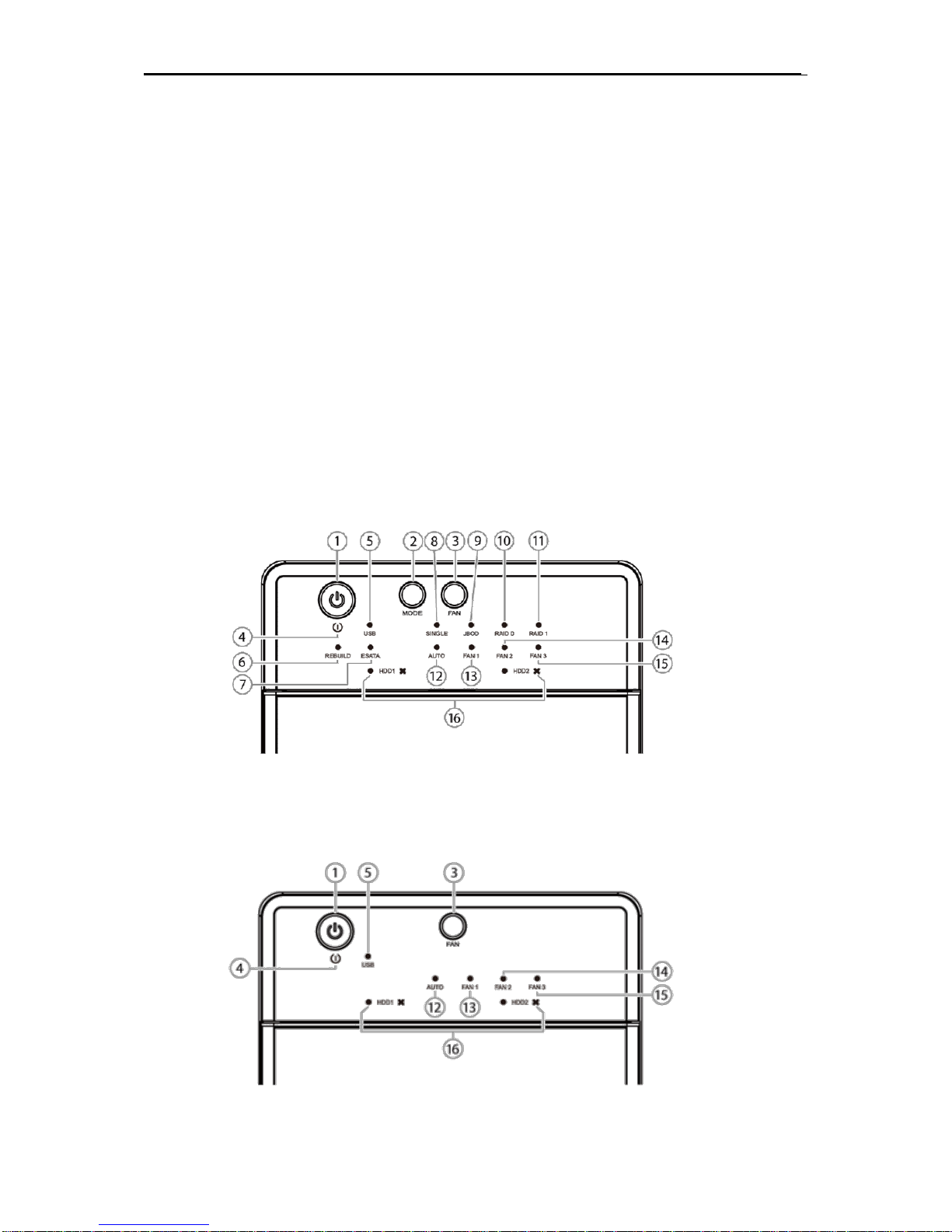

2.1 LED INDICATION /BUTTON FRONT PANEL
IB-RD3620SU3
IB-3620U3

Manual IB-3620 Series
5
Version 1.1
1. Power Button It needs to be PRESSED AND HELD for 3 seconds to power off.
2. Mode Button RAID mode button needs to be PRESSED AND HELD for 3 seconds to
switch the device’s RAID mode (only IB-RD3620SU3).
3. Smart Fan Button Auto, manual and fan speed from level 1 to level 3.
4. Power LED Green - Power on
Orange - Sleep mode on
5. USB Link USB port in use
6. Rebuild
7. eSATA Link eSATA port in use (only IB-RD3620SU3)
8. Single Mode
9. RAID 0 Spanning (JBOD) Mode
10. RAID 0 Striping Mode
11. RAID 1 Mode
12. AUTO fan on
13. FAN 1 FAN speed at level 1 (lowest)
14. FAN 2 FAN speed at level 2 (middle)
15. FAN 3 FAN speed at level 3 (highest)
16. HDD1/HDD2 Blue - HDD connected
Purple - HDD access
Red - HDD error

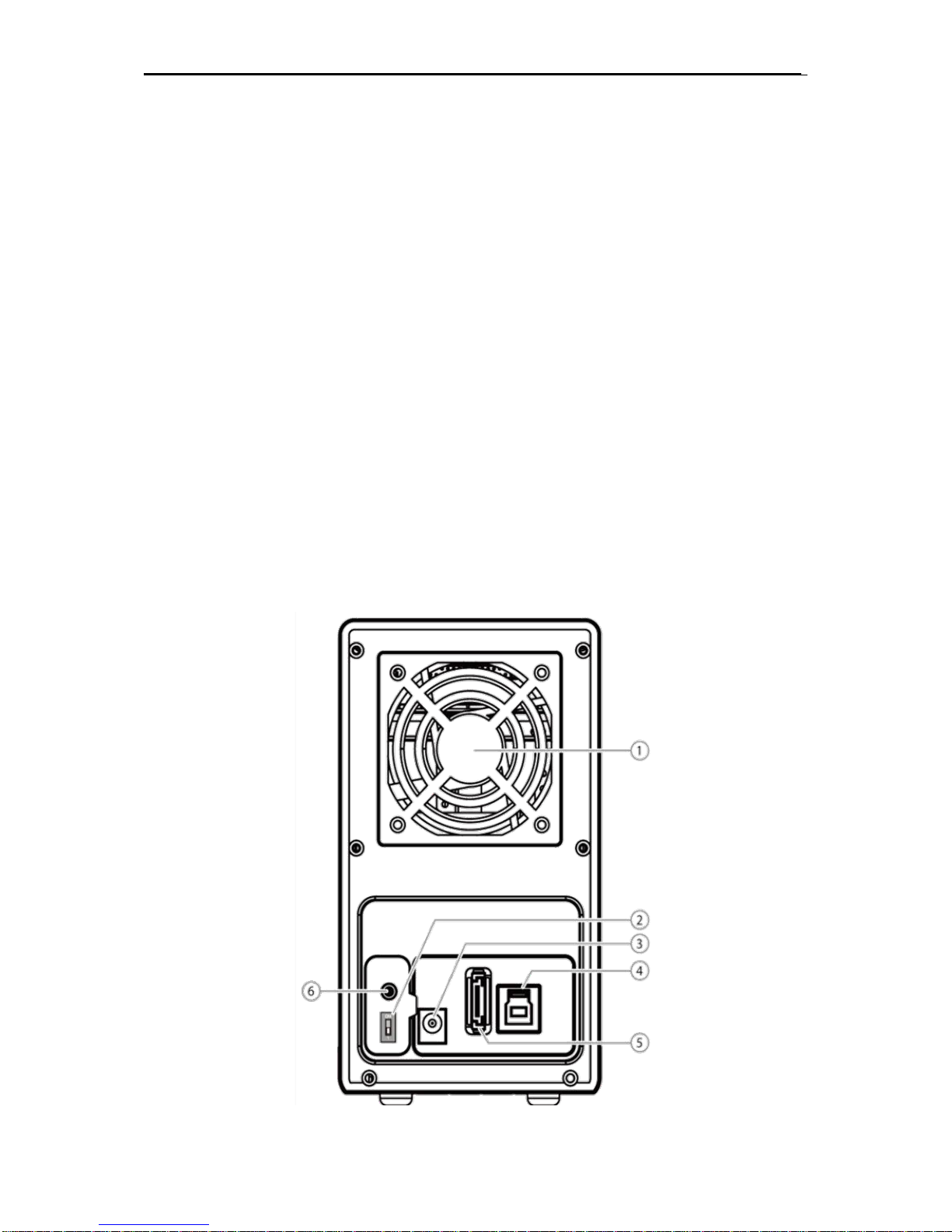

2.2 REAR VIEW
IB-RD3620SU3 /IB-3620U3
