ADS-AR-CHR04 maestro.idatalink.com
CHRYSLER 300 WITH HARMAN KARDON 2017
Automotive Data Solutions Inc. © 2017 6

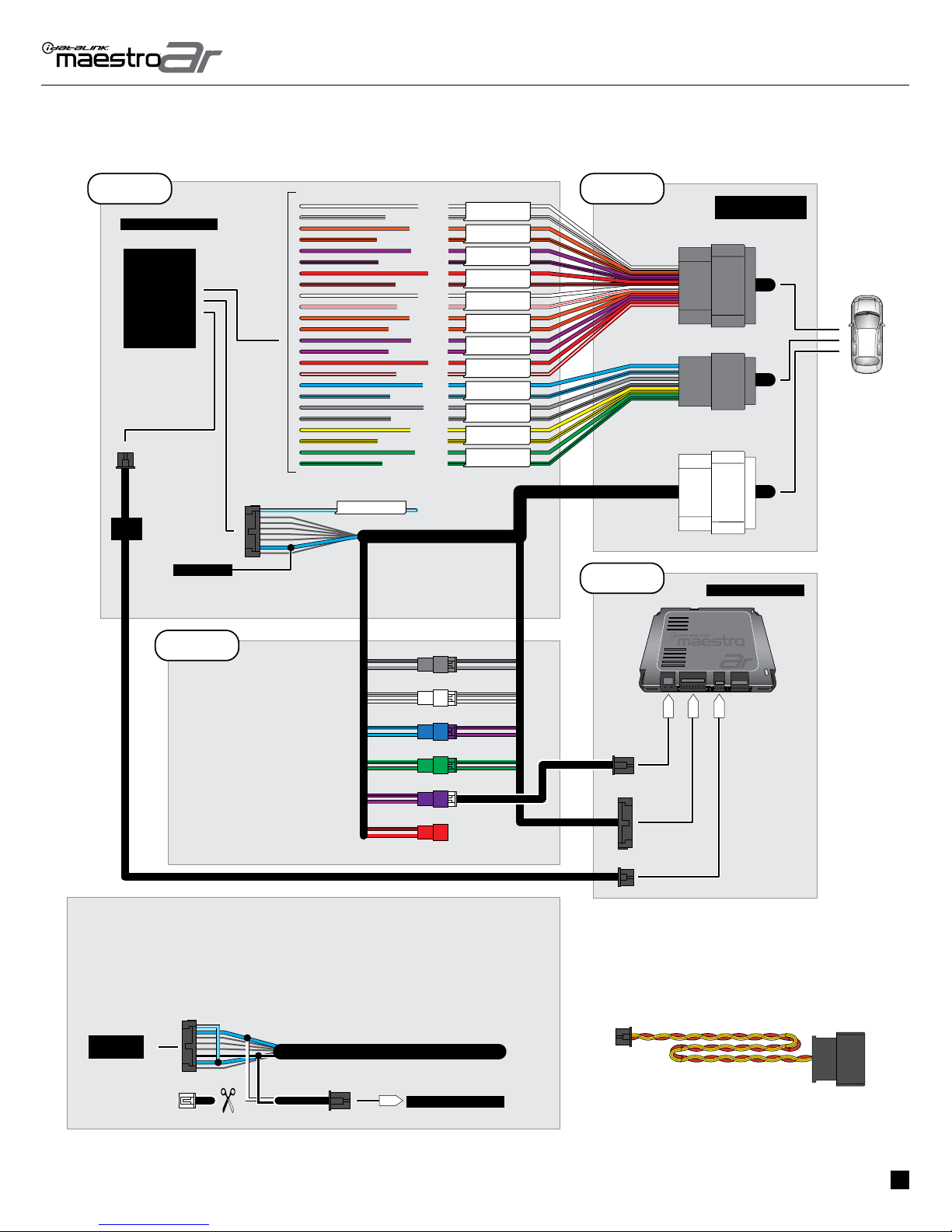

VEHICLE WIRE REFERENCE CHART
Amplifier location: Left end of dash
T-Harness Wires Vehicle Wires
Wire
Tag
Wire
Color Speaker Wire Description
OUTPUT 1 Green Left Front Tweeter (+)
Green/Black Left Front Tweeter (-)
OUTPUT 2 Yellow Right Front Tweeter (+)
Yellow/Black Right Front Tweeter (-)
OUTPUT 3 Gray Left Front Speaker (+)
Gray/Black Left Front Speaker (-)
OUTPUT 4 Blue Right Front Speaker (+)
Blue/Black Right Front Speaker (-)
OUTPUT 5 Red Subwoofer 1 (+)
Red/White Subwoofer 1 (-)
OUTPUT 6 Purple Left Rear Tweeter (+)
Purple/Red Left Rear Tweeter (-)
OUTPUT 7 Orange Right Rear Tweeter (+)
Orange/Red Right Rear Tweeter (-)
OUTPUT 8 White Center (+)
White/Red Center (-)
OUTPUT 9 Red Right Rear Deck Speaker (+)
Red/Black Right Rear Deck Speaker (-)
OUTPUT 10 Purple Left Rear Deck Speaker (+)
Purple/Black Left Rear Deck Speaker (-)
OUTPUT 11 Orange Right Rear Speaker (+)
Orange/Black Right Rear Speaker (-)
OUTPUT 12 White Left Rear Speaker (+)
White/Black Left Rear Speaker (-)
