Idis DA-LP1101R User manual

Powered by
Long Reach
PoE Extender
DA-LP1101R
DA-LP1101T
Operation Manual

2
Before Using the Product
FCC Compliance Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own
expense.
User’s Caution Statement
Caution: Any changes or modications to the equipment not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Product Overview
DA-LP1101R / DA-LP1101T can be used as Ethernet network device, either PoE repeater or
PoE injector. When connected to DA-LP1101R and DA-LP1101T, supporting LRP(Long Reach
PoE), it features an extended Ethernet and PoE(Power over Ethernet) networking up to 500
meters but not limited to the normal 100 meters.

3
Product Features
●Makes it possible to be used as PoE repeater or PoE injector if needed.
●Enables Ethernet communication and PoE connection in the distance of 500 meters in
case of using LRP function
●Supports Plug & Play without setting up special IP addresses.
Accessories
The product consists of the following components.
Main unit 56V DC adapter &
AC power cable (Not
included, purchase
separately)
Operation
Manual

4
Overview
Front
DA-LP1101R
1L/A LED (Orange)
2PoE LED (Green)
3L/A LED (Orange)
4Power LED (Green)
5Power Input
6RJ 45 Port (LRP OUT)
7RJ 45 Port (PoE IN)
1
2
3
4
5
67
DA-LP1101T
1
2
3
4
5
67
1L/A LED (Orange)
2PoE LED (Green)
3L/A LED (Orange)
4Power LED (Green)
5Power Input
6RJ 45 Port (PoE OUT)
7RJ 45 Port (LRP IN)
LED Description
L/A
On Link up
PoE
On PoE on
O Link down O PoE o
Blink
(2.5Hz) Activity (with LRP function)Blink
(1Hz)
Overload
or short circuit
Blink
(10Hz) Activity (without LRP function) Blink (4Hz)
Overvoltage
or overheating
* When connecting to the device using an adapter instead of PoE, it is normal operation to blink PoE LED.
* Even if PoE LED is on, it may not link if the power is low. For more information, refer to the PoE Output
Capability by Distance section in this manual.

5
Installation
<In Case of Using Long Reach PoE Function>
1 Connect Video In or Ext port of DirectIP™ NVR and PoE In of DA-LP1101R using a
network cable.
2 Connect LRP Out port of DA-LP1101R and LRP In port of DA-LP1101T using a network
cable.
3 Connect PoE Out port of DA-LP1101T and network port of DirectIP™ Camera using a
network cable.
4 In case NVR has no PoE function or lacks of power, connect the adapter to DA-LP1101R
or DA-LP1101T. (Purchase an adapter separately)
5 When DA-LP1101R and DA-LP1101T turns on, Power LED lights up. Also when the
communication is initiated, L/A LED blinks.

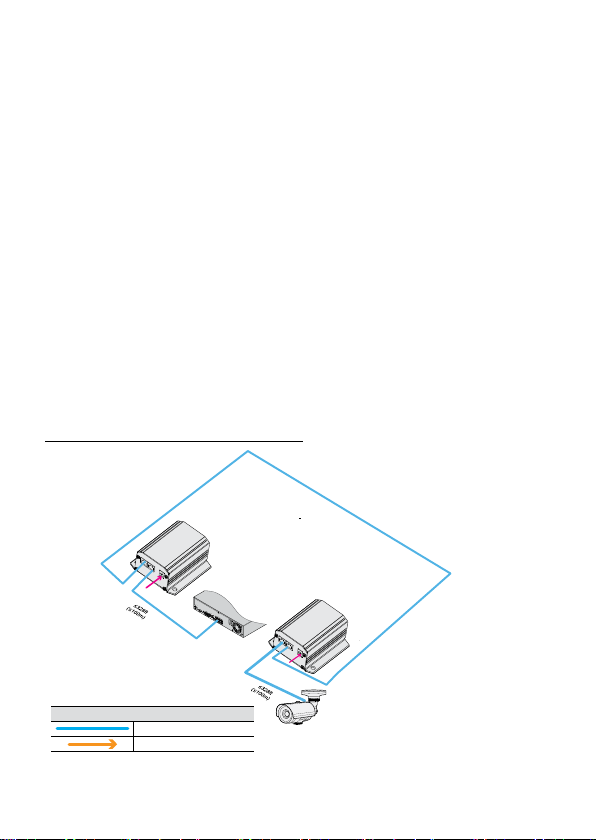

DA-LP1101R / DA-LP101T Installation Layout
DA-LP1101R
LRPOUT POEIN
L/A PoE L/A PoE
48~56VDC
DA-LP1101T
LRPOUT LRPIN
L/A PoE L/A PWR
48~56VDC
<1,640 ft (500m)
DirectIP™ NVR
Types of Cables
UTP Cable (DATA + Power)
DC Power

6
<In Case of Not Using Long Reach PoE Function>
1 Connect Video In or Ext port of DirectIP™ NVR and PoE(LRP) In port of DA-LP1101R or
DA-LP1101T using a network cable.
2 Connect PoE(LRP) OUT port of DA-LP1101R or DA-LP1101T and network port of
DirectIP™ camera using a network cable.
If multiple 1000Mbps levels of the Repeater is needed, you can use multiple DA-LP1101R or DA-
LP1101T. In order not to work LRP function, be careful not to connect LRP In and LRP Out.
3 In case NVR has no PoE function or lacks of power, connect the adapter to DA-LP1101R
or DA-LP1101T. (Purchase an adapter separately)
4 When DA-LP1101R and DA-LP1101T turns on, Power LED lights up. Also when the
communication is initiated, L/A LED blinks.
Specications
Model DA-LP1101R DA-LP1101T Note
RJ 45
10/100/1000Mbps
10/100Mbps In case of using LRP function
Power PoE, 48~56V 56V is recommened
(Separate purchases)
Maximum Data
Transfer Distance
100m
500m In case of using LRP function
PoE 802.3at, Legacy**
Weight 226g
Dimensions
(W)X(D)X(H)
102 x 34 x 96 (mm)
** Legacy may be misinterprted as PoE outport to PoE input port. Do not connect
PoE(LRP) output port to other equipment.

7
V1.0
PoE Output Capability by Distance
In Case of Using Long Reach PoE Function
27.7
25.5
22.7
20.9
18.5
22.7
20
17.8
14.8
12
10
12
14
16
18
20
22
24
26
28
30
100m 200m 300m 400m 500m
Was
Distance
PoE Output Capability
56V 48V
DA-LP1101T PoE Output Capability
DA-LP1101R with 56V DC Adaptor
(DA-LP1101R with 48V DC Adaptor)
Distance PoE Output
Capability*
100m 27.7W (22.7W)
200m 25.5W (20.0W)
300m 22.7W (17.8W)
400m 20.9W (14.8W)
500m 18.5W (12.0W)
In Case of Not Using Long Reach PoE Function
DA-LP1101R/T PoE Output Capability
with 56V DC Adaptor
Distance PoE Output Capability*
100m 31.7W
DA-LP1101R/T PoE Output Capability
with 48V DC Adaptor
Distance PoE Output Capability*
100m 26.2W
* The value may change depending on the power, cable and PoE device you use.

IDIS Co., Ltd.
For more information, please visit at
www.idisglobal.com
