Installation instructions Hygienik 2.0
2
1. GENERAL INFORMATION 4
1.1. General information 4
1.2. Safety instructions 4
1.3. Transport 4
1.4. Servicing and maintenance 4
1.5. Cleaning 4
1.6. Installation of additional components 4
1.7. Installation location 4
1.8. Information on environmental protection 5
1.9. Standards and guidelines 5
1.10. Quality of the service water 5
2. DESCRIPTION 6
2.1. General description 6
2.2. Hot water station 6
2.3. Notes on dimensioning 7
3. TECHNICAL DATA HYGIENIK 2.0 8
4. INSTALLATION 20
4.1. Installation conditions for the Hygienik 2.0 20
4.2. Installation location of the Hygienik 2.0 20
4.3. Connecting sockets of the Hygienik 2.0 20
4.4. Installing the insulation jacket with a hook strip 21
5. INSTALLING THE HOT WATER STATION 2.0 26
5.1. Description 26
5.2. Installing the hot water station on the Hygienik 27
5.3. Installing the hot water station on the wall 28
5.4. Installing the circulation module (optional) 30
5.5. Installing the heat meter 32
5.6. Installing the UVR 67 controller 34
5.7. Connecting to the hot water station on the drinking water side 35
Contents
Contents

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 3
6. INSTALLATION LAYOUTS 36
6.1. Explanation of symbols and notes on the installation layouts 36
6.2. List of installation layouts 37
6.2.1. TERRA SW Complete HGL + Hygienik 2.0 + direct heating circuit S4.2-0-2-0-0 38
6.2.2. TERRA SW Complete + Hygienik 2.0 + 3 heating circuits S4.1-0-1-0-0 39
6.2.3. TERRA SW Complete HGL + Hygienik 2.0 with LSP + circulation S4.2-0-1-0-1 40
6.2.4. TERRA SWM HGL + Hygienik 2.0 + Termo + 1 HC + Passive cooling S2.2-0-2+5-1-0 41
6.2.5. AERO ALM + Hygienik 2.0 with separatin plate + circulation L7.1-0-1-0-1 42
6.2.6. AERO ALM + Solar 12 m2+ Hyginik 2.0 with separating plate + 1 HC L7.1-6-3-0-0 43
6.2.7. TERRA AL 60 Max + Hygienik 2.0 + Termo L5.1-1-2+5-0-0 44
7. HEATING WATER 45
7.1. Heating water quality 45
7.2. Thermal inhibition of heating water 45
7.3. Treatment of the water in the heating system 45
7.4. Repairs 46
7.5. For existing systems 46
7.6. Filling and draining 46
7.7. Venting 46
7.8. Cleaning and decalcification intervals 46
7.9. Cleaning and decalcification 46
8. APPENDIX 47
8.1. CE - Declaration of Conformity 47
Contents

(C) IDM ENERGIESYSTEME GMBH
Installation instructions Hygienik 2.0
4
1. General information
1.1. General information
Please read this documentation carefully. It contains
important instructions for correct installation and safe
and economical operation of the system.
1.2. Safety instructions
Installation and maintenance work can be associated
with dangers resulting from high system pressures,
high temperatures and live parts and may only be
carried out by specialist staff.
Hot water storage tanks may only be installed by
competent specialist staffand must be put into opera-
tion by a customer service specialist trained for that
purpose by iDM-Energiesysteme GmbH.
When working on the hot water storage tank, discon-
nect the system and ensure that it is volt-free and
secured against unintentional restarting.
Furthermore, all safety instructions in the respective
documentation or on instruction plates affixed to the
hot water storage tank and/or hot water station itself
and all other pertinent safety regulations must be
observed.
1.3. Transport
Lifting equipment corresponding to the dimensions
and weight of the hot water storage tank must be
used for transport, installation and assembly. The
high empty weight of the tank means an increased
risk of accidents.
1.4. Servicing and maintenance
Regular maintenance as well as an inspection and
servicing of all important system components ensure
safe and economical operation of the system in the
long term. Safety valves must be activated at regular
intervals to check for correct functioning.
Only original iDM spare parts or spare parts comply-
ing with iDM specifications may be used!
1.5. Cleaning
If necessary, the hot water storage tank can be
cleaned using a moist cloth. Do not use abrasive or
cleaning solutions containing solvents.
1.6. Installation of additional compo-
nents
The installation of additional components which have
not been verified with the equipment may impair the
function. No warranty or liability will be assumed for
any damage resulting from the installation of addi-
tional components.
1.7. Installation location
- No heavy dust formation
- No permanently high air humidity
- Frost-proof
- It must be ensured that the structural integrity of
the installation surfaces or openings in ceilings and
walls is adequate and is not impaired by the instal-
lation.
General instructions for operation of the
Hygienik 2.0.
Important information on installation and
operation of the Hygienik 2.0. These in-
structions must be observed!
General instructions for installation of the
Hygienik 2.0.
Space for the customer service
phone no.
____________________________________

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 5
General information
1.8. Information on environmental pro-
tection
1.9. Standards and guidelines
These include:
- the generally valid accident prevention and safety
regulations
- the provisions regarding environmental protection
- the regulations of the professional associations
- the pertinent laws, standards, regulations and pro-
visions, e.g. DIN, EN, DVGW, VDI and VDE
- provisions of the local public utilities
For installation, observe all pertinent
national and international routing, instal-
lation, accident prevention and safety
regulations pertaining to the installation
of pipeline systems and electrical compo-
nents and equipment as well as the infor-
mation in these installation instructions.
Water heaters with hot water module
are assemblies made from high-quality
material which must not be disposed of
in the same way as household waste.
They must be disposed of in a profes-
sional and appropriate manner and in
accordance with the regulations of the
local authorities.
Disposal contrary to the regulations may
lead to damage to the environment and
health and may be subject to penalty
under law.
1.10. Quality of the service water
We recommend that you have water analysis carried
out in order to prevent damage as a result of insuf-
ficient water quality at the hot water module.
The testing institute carrying out the analysis of the
service water should be instructed to test specifi-
cally for the substances that apply where non-ferrous
metal plate heat exchangers are used as hot water
modules.
In the case of hot water modules from iDM Energie-
systeme, the following limit values prescribed by the
manufacturer of the plate heat exchangers must be
complied with:
pH value 6 - 10
Total hardness 6...15 °dH
Conductivity no specification
Filtered substances <30 mg/l
Chlorides above 100°C no chlorides permitted
Free Chlorine <0.5 mg/l
Hydrogen sulphide no specification
Ammonia no specification
Sulphates <300 mg/l
Hydrogen carbonate no specification
Hydrogen carbonate / Sulphates no specification
Sulphide <5 mg/l
Nitrate no specification
Nitrite no specification
Iron no specification
Manganese no specification
Free aggresive carbonic acid no specification

(C) IDM ENERGIESYSTEME GMBH
2
.
D
escriptio
n
Installation instructions Hygienik 2.0
6
2. Description
2.1. General description
The iDM-Hygienik 2.0 is a complete water heater with
hygienic hot water supply using a counterflow plate
heat exchanger.
The tank containing heating water is heated as re-
quired via an external heat generator (e.g. via a heat
pump, an oil or gas boiler, wood boiler,...).
The hot water is heated in a continuous process via
a large-area counterflow heat exchanger made of
stainless steel. This prevents bacterial growth. Two
hose connections and an isolating valve are provided
for easy decalcification of the plate heat exchanger.
The plate heat exchanger is supplied with heat from
the tank via a speed-controlled primary circuit pump.
The primary circuit pump is activated via a flow switch
in the cold water line.
The tank is suitable for charging with an iDM heat
pump. A screw-in electric heating immerser can also
be used to heat the tank. In addition, a solar system
can be integrated directly when equipped with a
smooth tube heat exchanger, or by installing a solar
station, which is available as an accessory.
The iDM-Hygienik 2.0 is available in two versions:
-With layer separate plate (suitable in the upper sec-
tion for hot water heating and in the lower area as a
buffer storage tank). The layer separate plate main-
tains temperature stratification, in particular when
using the Hygienik 2.0 with an iDM heat pump.
-Without layer separate plate (only for hot water
heating)
-The Hygienik 825 with stratified separation plate
is also available in a version with an integrated
smooth tube heat exchanger for solar integration.
Application range
With the Hygienik 2.0, hot water tapping quantities of
up to 70 l/min. can be achieved. Large-scale prem-
ises can be supplied by combining several tanks.
Scope of delivery
The Hygienik 2.0 comprises a storage tank with all
necessary connections and two sensor rails for
precise positioning of the required sensors. The tank
body is equipped with fleece/Neopor® insulation and
enclosed in a plastic outer shell with a gray cover.
2.2. Hot water station
The hot water station can either be mounted directly
on the Hygienik 2.0 or on a wall. This means it is also
possible to operate the hot water station with a tank
made by another manufacturer.
Scope of delivery:
- Hot water stations 25 l or 35 l with or without
mixing valve
- Hot water stations 50 l or 70 l
- Bracket for installation of the hot water station on
a wall
- Screws for mounting the hot water station on the
Hygienik
- iDM cover hood for the hot water station, made
from EPP rigid foam
- Installation instruction
Optional accessories
- Controller UVR 67
- Heat meter
- Circulation module

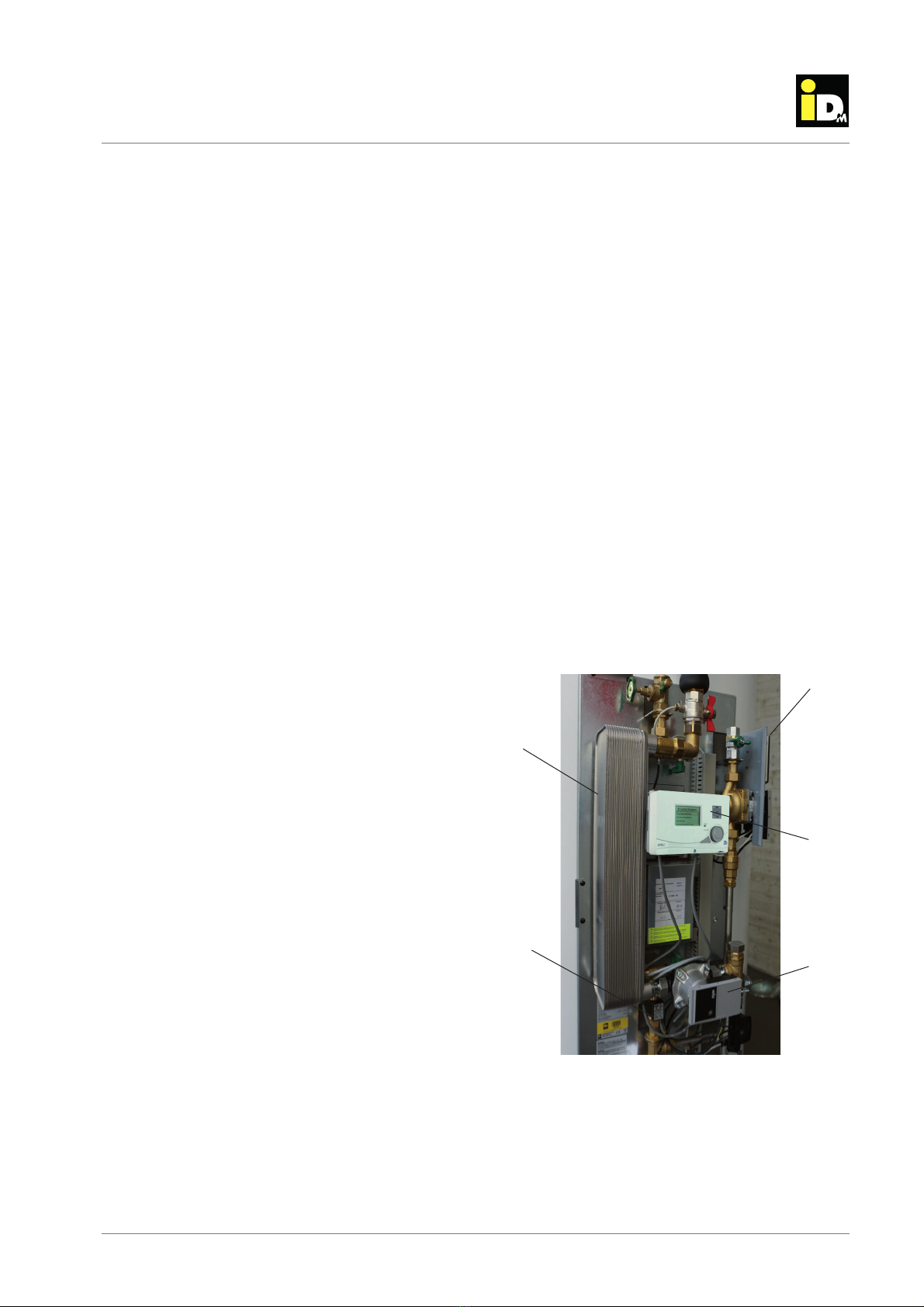

1
2
3
4
5
1...UVR 67 speed controller (accessory)
2...High-efficiency pump
3...Plate heat exchanger
4...Flow switch
5...Heat meter (accessory)

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 7
Description
2.3. Notes on dimensioning
The Hygienik 2.0 is available in various combinations
for different tank and heat exchanger sizes. The fol-
lowing criteria must be considered in order to select
the appropriate type.
“Single tapping volume”
This is the total quantity of hot water at 45 °C that
can be tapped from a Hygienik 2.0 when the tank is
heated to 60°C right to the bottom and is not reheated
by the heat generator.
“Hot water requirement”
The hot water requirement for a building must be
defined in accordance with DIN 4708, Part 2 or using
the “Sander method.” A suitable Hygienik 2.0 type is
then selected from the table below.
The exact design of the Hygienik storage tank
and hot water station is carried out according to
the specifications in the heat pump manual.
Hygienik 2.0 Application
500 liter with sepa-
ration plate
for single-family homes, possibly with
solar plant for hot water preparation
500 liter without sepa-
ration plate
for one- and two-family houses
for hot water heating only
825 liter with sepa-
ration plate
for single-family houses, with solar system
for hot water and heating support
825 liter without sepa-
ration plate
for two- to four-family houses
for hot water heating only
1000 liter with sepa-
ration plate
for one- and two-family houses, with large
solar system for hot water and heating
1000 liter without sepa-
ration plate
for two- to four-family houses
for hot water heating only
1500 liter with sepa-
ration plate
for multi-family houses, with large solar
system for hot water and heating
1500 liter without sepa-
ration plate
for apartment buildings
for hot water heating only
2000 liter with sepa-
ration plate
for multi-family houses, with large solar
system for hot water and heating
2000 liter without sepa-
ration plate
for apartment buildings
for hot water heating only
“Tapping output” of the plate heat exchanger
The tapping output is the current maximum hot water
tapping quantity that can be heated by the plate heat
exchanger from a cold water temperature of 10°C to
50°C at a tank temperature of 55°C.
The selection of the appropriate plate heat exchanger
type will depend on the number of residential units
and the equipment on the drinking water side. Refer
to DIN 4708, Part 2, for information on dimensioning.
Hot water stations are available with the following
tapping outputs:
-25 l / min.
-35 l / min.
-50 l / min.
-70 l / min.

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
8
Technical data
3. Technical data Hygienik 2.0
Hygienik 2.0 Unit 500/25 500/35 825/25 825/35 1000/25 1000/35
Energy efficiency class - n.a1n.a1n.a1n.a1
Average power loss W 69 69 90 90 99 99
Total storage tank contents l 500 500 825 825 920 920
Total storage tank contents
(Version with smooth tube heat exchanger) l - - 802 802 - -
Storage tank contents above LSP l 325 325 405 405 500 500
Storage tank contents below LSP l 175 175 420 420 420 420
Storage tank contents below LSP
(Version with smooth tube heat exchanger) l - - 397 397 - -
Diameter incl. insulation mm 870 870 1022 1022 1018 1018
Height incl. insulation mm 1890 1890 1970 1970 2170 2170
Installation depth without insulation mm Ø650 Ø650 Ø790 Ø790 Ø790 Ø790
Tilted dimension of tank body mm 1800 1800 1910 1910 2080 2080
Weight storage tank without LSP6kg 92 92 96 96 102 102
Weight storage tank with LSP6kg 96 96 106 106 112 112
Weight storage tank with LSP6
(Version with smooth tube heat exchanger) kg - - 140 140 - -
Single tapping volume at 45°C
without LSP 2) l 525 525 866 866 966 966
Single tapping volume at 45°C
with LSP 2) l 341 341 435 435 524 524
Tapping output l/min 25 35 25 35 25 35
Heat exchanger surface
(Version with smooth tube heat exchanger) m2- - 2.8 2.8 - -
Max. Collector surface
(Version with smooth tube heat exchanger) m2- - 12 12 - -
Max. res. units without LSP3- 5 5 7 10 7 11
Max. res. units with LSP3-223 3 5 5
Max. hotel rooms 3-- - - - 4 7
Max. showers at sport facilities 4 -- - - - 6 8
1-7 see page 10
B
B

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 9
Technical data
Technical data
Hygienik 2.0 Unit 1000/50 1500/25 1500/35 1500/50 1500/70
Energy efficiency class - n.a1n.a1n.a1n.a1n.a1
Average power loss W 99 134 134 134 134
Total storage tank contents 920 1500 1500 1500 1500
Storage tank contents above LSP l 500 615 615 615 615
Storage tank contents below LSP l 420 885 885 885 885
Diameter incl. insulation mm 1018 1170 1170 1170 1170
Height incl. insulation mm 2170 2400 2400 2400 2400
Installation depth without insulation mm Ø790 Ø950 Ø950 Ø950 Ø950
Tilted dimension of tank body mm 2080 2320 2320 2320 2320
Weight storage tank without LSP6kg 102 180 180 180 180
Weight storage tank with LSP6kg 112 186 186 186 186
Single tapping volume at 45°C without LSP2l 966 1575 1575 1575 1575
Single tapping volume at 45°C with LSP2l 524 645 645 645 645
Tapping output l/min 50 25 35 50 70
Max. residential units without LSP3- 12 7 11 18 22
Max. residential units with LSP3- 57777
Max. hotel rooms 3) - 11 4 7 11 14
Max. showers at sport facilities 3) - 12 6 8 12 17
1-7 see page 10

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
10
Technical data
Technical data
Hygienik 2.0 Unit 20004)/25 20004)/35 20004)/50 20004)/70
Energy efficiency class - n.a1n.a1n.a1n.a1
Average power loss W 164 164 164 164
Total storage tank contents l 2000 2000 2000 2000
Storage tank contents above LSP 2) l 700 700 700 700
Storage tank contents below LSP l 1300 1300 1300 1300
Diameter incl. insulation mm 1340 1340 1340 1340
Height incl. insulation mm 2505 2505 2505 2505
Installation depth without insulation mm Ø 1100 Ø 1100 Ø 1100 Ø 1100
Tilted dimension of tank body mm 2440 2440 2440 2440
Weight storage tank without LSP6kg 206/2587206/2587206/2587206/2587
Weight storage tank with LSP6kg 220 220 220 220
Single tapping volume at 45°C without LSP2l 2100 2100 2100 2100
Single tapping volume at 45°C with LSP2l 734 734 734 734
Tapping output l/min 25 35 50 70
Max. res. units without LSP** - 7 11 18 30
Max. res. units with LSP** - 7 8 8 8
Max. hotel rooms with LSP** - 4 7 11 19
Max. showers at sport facilities - 6 8 12 17
1 In accordance with EU Ordinance 812/2013 on the energy labeling of hot water
storage tanks, there is no energy labeling
for hot water storage tanks with a total volume exceeding 500 l
2 Calculated with:
Tapping temperature 45°C
Cold water temperature 15°C
Storage temperature 60°C
Storage return temperature 25°C
Storage- and mixing loss 10%
3 For a one-time storage tank charge calculated with:
Tapping temperature 45°C
Cold water temperature 10°C
Storage temperature 55°C
Storage return temperature 25°C
4 For a one-time storage tank charge calculated with:
Tapping temperature 45°C
Cold water temperature 10°C
Storage temperature 55°C
Storage return temperature 25°C
5 Hygienik 2000 l - 2.0 is also available with flange connection
as Hygienik 2000 Max 2.0
6Weight specification without Insulation and hot water station
7Weight storage tank Hygienik 2000 Max 2.0

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 11
Technical data
Technical data
Assumed design Hygienics 2.0
Pressure:
Pressure loss on drinking water side: approx. 0.3 bar
Max. operating pressure - heating side: 4 bar
Max. operating pressure - drinking water side: 6 bar
Max. operating temperature: 90°C
Max. operatiing pressure - solar side: 10 bar
Number of accommodation units, hotel rooms
and soprt facilities:
The figures given for residential units, hotel rooms
and sport facilities are reference values for rough
planning. For detailed dimensioning, the correspond-
ing standards and directives must be applied. The
figures given are based on the following design data:
Residential units:
Each unit equipped with bathtub (140 l)
Tapping volume per outlet tap: 9 l/min. at 45°C Si-
multaneity factor in acc. with Handbuch für Heizung,
Lüftung, Klima, Recknagl-Sprenger Corresponds to
the average tapping profile of a family (according to
EN 15450:2008) or the load profile M (according to
EU regulation no. 812/2013)
Hotel rooms:
Half of the rooms equipped with bathtub (140 l), the
other half with showers (48 l) Tapping volume per
bathtub outlet: 9 l/min. at 45°C tapping temperature
per bathtub and 42°C tapping temperature per shower
Simultaneity factor: 1.5 times as high as that given
in Handbuch für Heizung, Lüftung, Klima, Recknagl-
Sprenger.
Sport facilities:
Tapping volume per shower: 8 l/min. at
42°C and a showering time of 6 minutes
per person (according to DIN 18032-1)
Simultaneity factor: 0.9
Weightang:
Hot water station:
- 25 liter 33 kg
- 25 liter with mixer valve 34 kg
- 35 liter 35 kg
- 35 liter wit mixer valve 36 kg
- 50 liter 45 kg
- 70 liter 52 kg
Isulation Hygienik:
- 500 liter 12 kg
- 825 liter 23 kg
- 1000 liter 26 kg
- 1500 liter 32 kg
- 2000 liter 44 kg

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
12
110
1049
1250
600
1510
250
1765
250
1510
1260
555
650
14
1
4
11
14
2
3
12
11
Front view
1200
530
250
400
250 1240
9
10
7
5
8
5
6
13 13
Rear view
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.
Technical data
Technical data
Hygienik 500 2.0 (with / without layer separate plate)
Item Connection Dimen-
sion
1 Flow, hot water station R 1“
2 Return, hot water station R 1“
3Socket for electric heating
immerser R 2“
4Socket for circulation lance or
return circulation station R 1“
5Flow HGL resp. domestic hot water
or flow circulation station R 1 ½“
6 Flow, heat pump R 1 ½“
7 Return, heat pump R 1 ½“
Item Connection Dimen-
sion
8 Flow, second heat generator / Solar R 1 ½“
9 Return, heating R 1 ½“
10 Optional return R 1 ½“
11 Ventilation* R ½“
12 Drainage R ½“
13 Sensor terminal
14 Mounting, hot water station

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 13
11
14
150
1129
1250
920
1590
330
1845
250
1590
25
1260
555
790
4 1
3 2
12
14
11
Front view
1200
850
250
400
249
1320
5
13
6
5
7
8
9
10
13
Rear view
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.
Technical data
Technical data
Item Connection Dimension
1 Flow, hot water station R 1“
2 Return, hot water station R 1“
3Socket for electric heating
immerser R 2“
4Socket for circulation lance or
return circulation station R 1“
5Flow HGL resp. domestic hot water
or flow circulation station R 1 ½“
6 Flow, heat pump R 1½“
7 Return, heat pump R 1½“
Item Connection Dimension
8 Flow, second heat generator / Solar R 1½“
9 Return, heating R 1½“
10 Optional return R 1½“
11 Ventilation* R ½“
12 Drainage R ½“
13 Sensor terminal
14 Mounting, hot water station
Hygienik 825 2.0 (with / without layer separate plate)

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
14
1
2
3
4
5
67
8
150
250
1250
1590
1845
250
790
990
1129
1590
555
790
16
8
Item Connection Dimension
1 Flow, hot water station R 1“
2 Return, hot water station R 1“
3Socket for circulation lance or
return circulation station R 1“
4 Electric heating R 2“
5 Flow solar heat exchanger R 1“
6 Return solar heat exchanger R 1“
7 Drainage R 1½“
8 Ventilation* R 1½“
Item Connection Dimension
9Flow HGL resp. domestic hot water
or flow circulation station R 1½“
10 Flow heat pump R 1½“
11 Flow, second heat generator R 1½“
12 Optional return R ½“
13 Return, heating R ½“
14 Return heat pump R ½“
15 Sensor terminal
16 Mounting, hot water station
9
10 11
12
13
14
15
15
250
400
1200
850
9
250
850
1200
1320
Front view Rear view
The installation of an electric heating rod
in the heating buffer is no longer possible
at the Hygienik with smooth tube heat
exchanger!
* Only one manual vent valve can be installed. An automatic vent
valve can be installed on the top of the buffer tank.
Technical data
Technical data
Hygienik 825 2.0 (with layer separate plate and Smooth tube heat exchanger)

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 15
150
1200
1250
920
1790
250
2045
250
1050
1790
1540
555
41
3
32
12
11
14
14
790
11
Front view
1200
850
250
400
250
1520
6
55
7
8
10
9
13
13
Rear view
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.
Technical data
Technical data
Item Connection Dimension
1 Flow, hot water station R 1“
2 Return, hot water station R 1“
3Socket for electric heating
immerser R 2“
4Socket for circulation lance or
return circulation station R 1“
5Flow HGL resp. domestic hot water
or flow circulation station R 1½“
6 Flow, heat pump R 1½“
7 Return, heat pump R 1½“
Hygienik 1000 2.0 (with / without layer separate plate)
Item Connection Dimension
8 Flow, second heat generator / Solar R 1½“
9 Return, heating R 1½“
10 Optional return R 1½“
11 Ventilation* R ½“
12 Drainage R ½“
13 Sensor terminal
14 Mounting, hot water station

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
16
150
1338
1400
1300
1928
388
2275
400
1400
1540
555
950
1850
3
4
1
11
14
14
23
12
Vorderansicht
11
Hygienik 1500 2.0 (with / without layer separate plate)
1500
1400
1230
400
830
550
250
1720
5
8
13
7
13
5
6
10
9
Rückansicht
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.
Front view Rear view
Item Connection Dimension
1 Flow, hot water station R 1½“
2 Return, hot water station R 1½“
3Socket for electric heating
immerser R 2“
4Socket for circulation lance or
return circulation station R 1“
5Flow HGL resp. domestic hot water
or flow circulation station R 1½“
6 Flow, heat pump R 2“
7 Return, heat pump R 2“
Technical data
Technical data
Item Connection Dimension
8 Flow, second heat generator / Solar R 1½“
9 Return, heating R 1½“
10 Optional return R 1½“
11 Ventilation* R ½“
12 Drainage R ½“
13 Sensor terminal
14 Mounting, hot water station

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 17
150
1338
1600
1500
1928
388
2355
400
1550
1540
555
1100
1950
1
4
311
14
14
2
3
12
Vorderansicht
11
Item Connection Dimension
1 Flow, hot water station R 1½“
2 Return, hot water station R 1½“
3Socket for electric heating
immerser R 2“
4Socket for circulation lance or
return circulation station R 1“
5Flow HGL resp. domestic hot water R 1½“ / 2”
6 Flow, heat pump R 2“
7 Return, heat pump R 2“
Hygienik 2000 2.0 (with / without layer separate plate)
Item Connection Dimension
8 Flow, second heat generator / Solar R 1½“
9 Return, heating R 1½“
10 Optional return R 1½“
11 Ventilation* R ½“
12 Drainage R ½“
13 Sensor terminal
14 Mounting, hot water station
1700
1430
400
550
249
1770
13
5
7
5
13
8
6
9
10
Rückansicht
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.
Front view Rear view
Technical data
Technical data

(C) IDM ENERGIESYSTEME GMBH
3
.
T
ech
n
ical data
H
ygie
n
ik 2.
0
Installation instructions Hygienik 2.0
18
Technical data
Technical data
Hygienik 2000 Max 2.0
35
150
388
2000
2335
1600
8
1
1
1
1
4
3
3
22
Ø 1100
4
7
1928
99
99
7
Front view
Item Connection Dimension
1 Flange (4x) DN100/PN6
2 Warm water station flow R 1 1/4”
3 Warm water station return R 1 1/4”
4 Electric heating immerser (2x) R 2“
5 Circulation (2x) 2”
6 Sleeve R 2 1/2“
7 Venting R 1/2“
8 Drainage* 1/2”
9 Holding for warm water station
100
350
1450
1700
2000
400
1600
6
6
5
5
7
8
4
4
Side view
* Only one manual vent valve can be installed. An automatic vent valve can be
installed on the top of the buffer tank.

(C) IDM ENERGIESYSTEME GMBH Installation instructions Hygienik 2.0 19
Technical data
Technical data
Notes:

(C) IDM ENERGIESYSTEME GMBH
4
.
In
stallatio
n
Installation instructions Hygienik 2.0
20
Installation
4. Installation
The iDM Hygienik 2.0 should be installed as close as
possible to the drinking water tapping points to keep
water lines as short as possible and avoid the need
for a circulation line.
During storage, transport and installation of the
equipment, it must be ensured that it is not subjected
to mechanical forces such as warping, scratches and
tension.
4.2. Installation location of the Hygienik
2.0
The iDM Hygienik 2.0 must be installed in a frost-
proof room by a licensed specialist firm. The pertinent
laws, regulations and standards both for boiler house
pipework and drinking water installations must be
observed.
Minimum distances required for installation and ser-
vicing work must be observed based on the specific
installation situation, the routing of pipework and the
size of the installation room.
4.3. Connecting sockets of the Hygienik
2.0
In order to avoid heat losses, openings are not pro-
vided for all sockets in the insulation jacket. Additional
connections can be used by breaking open the rel-
evant perforations.
The insulation jacket and the hood must
not be exposed to intense sunlight or other
heat sources. There is a risk of damage to
the insulation and the surface.
To prevent corrosion inside the tank, follow
the instructions with regard to the heating
water!
By selecting a decentralized position for
the hot water stations near the tapping
points (e.g. inside the residential units),
the content of the hot water pipes can be
reduced to under 3 l.
Do not use abrasive or cleaning solutions
containing solvents to clean the high-gloss
front of the insulation. Thereby, the surface
can become brittle and it comes to crack-
ing. Such damages are excluded from the
warranty.
4.1. Installation conditions for the Hygienik 2.0
pic.: Cracks in the hig-gloss front of the insulation
caused by solvent-based cleaners.
pic.: Damaged insulation caused by improper stor-
age.
