G-Series Cooler
Instruction Manual
Manual is for the
following models:
RCM-77-N14NF
RCM-77-N14NG
RCM-77-N14NI
RCM-77-N14NL
RCM-77
RECHARGE COLD MERCHANDISER
All manuals and user guides at all-guides.com
all-guides.com

Innovative DisplayWorks
RCM-77

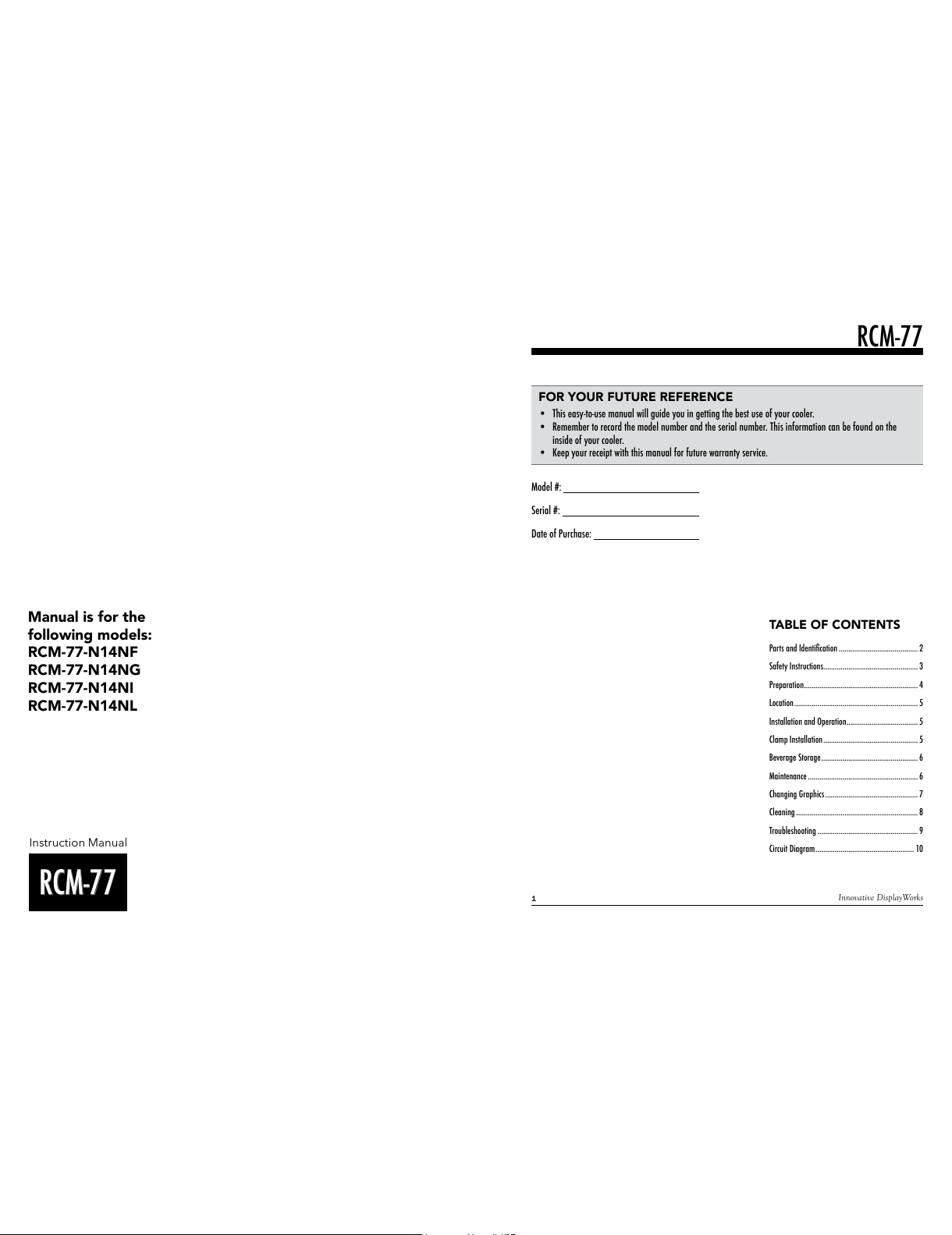

FOR YOUR FUTURE REFERENCE
• This easy-to-use manual will guide you in getting the best use of your cooler.
• Remember to record the model number and the serial number. This information can be found on the
inside of your cooler.
• Keep your receipt with this manual for future warranty service.
Model #:
Serial #:
Date of Purchase:
TABLE OF CONTENTS
Parts and Identication ......................................... 2
Safety Instructions................................................. 3
Preparation........................................................... 4
Location................................................................ 5
Installation and Operation..................................... 5
Clamp Installation................................................. 5
Beverage Storage.................................................. 6
Maintenance......................................................... 6
Changing Graphics................................................ 7
Cleaning ............................................................... 8
Troubleshooting .................................................... 9
Circuit Diagram................................................... 10
1
Manual is for the
following models:
RCM-77-N14NF
RCM-77-N14NG
RCM-77-N14NI
RCM-77-N14NL
RCM-77
Instruction Manual
All manuals and user guides at all-guides.com

Instruction Manual
Innovative DisplayWorks
RCM-77
2 3
PARTS AND IDENTIFICATION
1
2
6
5
4
7
17
16
8
18
19
14
10
12
11
26
25
24
23
22
21
20
15
3
9
13
27
12 12
1. Barrel Cabinet
2. Transformer
3. Transformer Box
4. Drain Tube
5. Drip Pan
6. Fan of Condenser
7. Compressor
8. Compressor Base
9. Thermostat Box Cover
10. Thermostat
11. Support
12. Wheels (Swivel) (3)
13. Wheel (Locking)
14. Power Line
15. Retaining Clip of Line
16. Connecting Line for Thermostat
17. Connecting Line for Transformer
18. Connecting Line for Fan
19. Ground Wire
20. Lid
21. Basket
22. BafeofInnerFan
23. Inner Fan Cover
24. Inner Fan
25. Inner Rim
26. Stainless Steel Liner
27. Cooling Packs (16)
SAFETY INSTRUCTIONS
When using this appliance, always follow the basic safety precautions:
1. Read the entire Userʼs Manual before operating this appliance.
2. Use this appliance only for its intended purpose as described in this Userʼs Manual.
3. This cooler must be properly installed in accordance with the installation instructions before being used. See grounding
instructions.
4. IDW requires that a dedicated circuit be used for the unit. Failure to do so voids warranty.
5. Never unplug your cooler by pulling on the power cord. Always grasp the plug  rmly and pull it straight out from the
outlet.
6. Unplug your cooler before cleaning or making any repairs.
Note: If for any reason this product requires service, we strongly recommend that a certi ed technician perform the service.
7. When disconnecting the power source, wait at least 5 minutes to reconnect the power to avoid damage to the compressor
and the cooling system.
8. Immediately repair or replace all electrical cords that have become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length, the plug or the connector end.
9. Do not operate or store your cooler near or around explosive fumes, gasoline or other  ammable vapors and liquids.
10. Do not use  ammable liquids to clean unit.
11. Setting the temperature control to the 0 position does not remove power to the light circuit, perimeter heaters, or
evaporator fans.
12. Do not adjust the temperature control. The temperature control is factory set between levels 4 and 5 for maximum
performance.
IMPORTANT!
Please Save These Instructions
For Proper Disposal of the Refrigerator!
PRE-CAUTION, NON-OPERATING COOLERS SHOULD HAVE:
1. Door removed
2. Shelves kept in place in order to prevent any small child from climbing inside cooler
FOR PROPER DISPOSAL OF COOLER: Distributors / retailers need to contact a quali ed service technician:
1. To recover all refrigerant from the cooler
2. To remove the compressor or remove the oil from the compressor
Then the distributor / retailer can contact their local metal recycling center to pick up the remaining cabinet, shelves, etc.
By law, disposal of hazardous wastes may be subject to  nes and imprisonment under the provisions of the environmental
regulations. For more information please visit: http://www.epa.gov/osw/hazard/index.htm
All manuals and user guides at all-guides.com

Instruction Manual
Innovative DisplayWorks
RCM-77
54

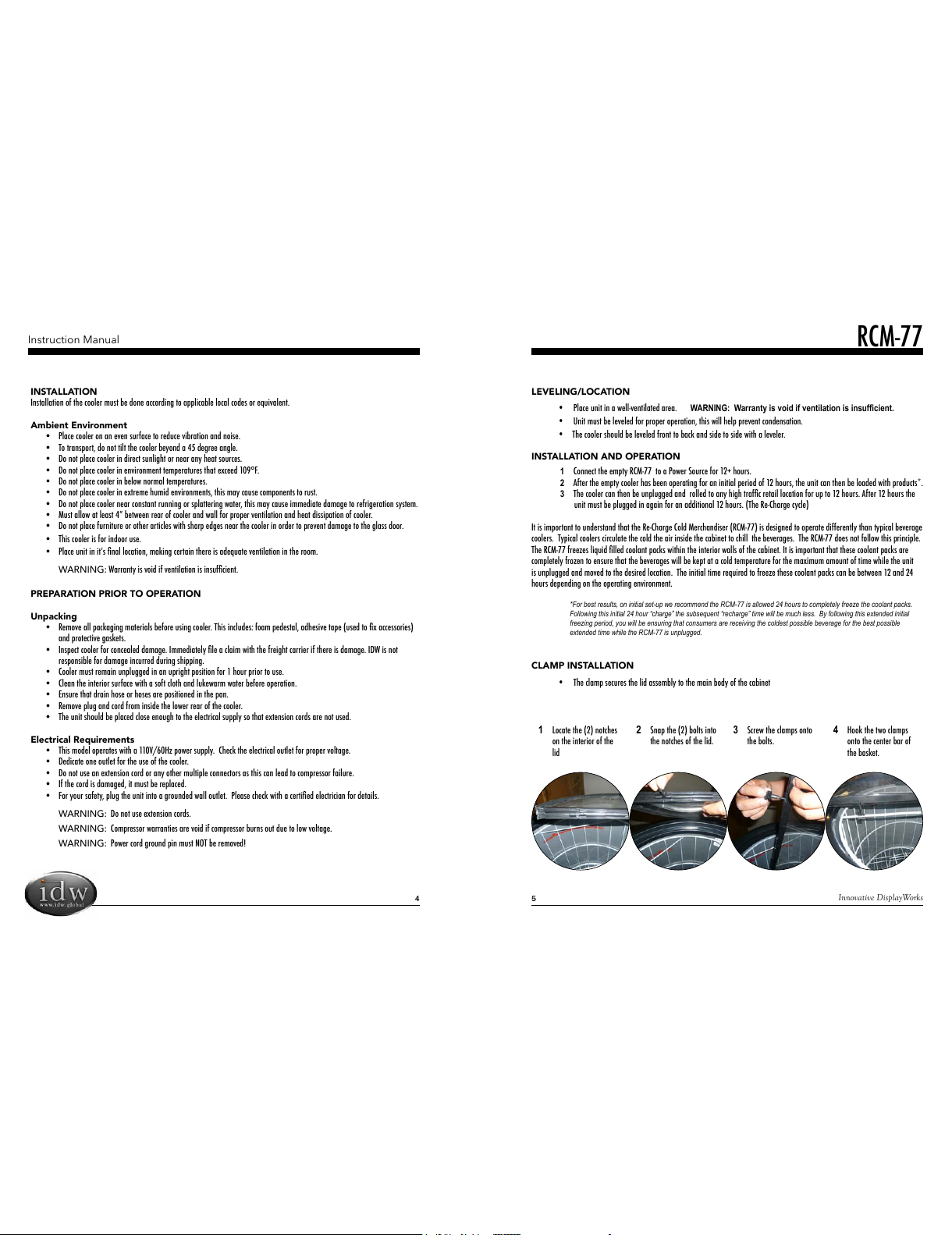

LEVELING/LOCATION
•Place unit in a well-ventilated area. WARNING:Warrantyisvoidifventilationisinsufcient.
•Unit must be leveled for proper operation, this will help prevent condensation.
• The cooler should be leveled front to back and side to side with a leveler.
INSTALLATION AND OPERATION
1Connect the empty RCM-77 to a Power Source for 12+ hours.
2After the empty cooler has been operating for an initial period of 12 hours, the unit can then be loaded with products*.
3 The cooler can then be unplugged and rolled to any high trafc retail location for up to 12 hours. After 12 hours the
unit must be plugged in again for an additional 12 hours. (The Re-Charge cycle)
It is important to understand that the Re-Charge Cold Merchandiser (RCM-77) is designed to operate differently than typical beverage
coolers. Typical coolers circulate the cold the air inside the cabinet to chill the beverages. The RCM-77 does not follow this principle.
The RCM-77 freezes liquid lled coolant packs within the interior walls of the cabinet. It is important that these coolant packs are
completely frozen to ensure that the beverages will be kept at a cold temperature for the maximum amount of time while the unit
is unplugged and moved to the desired location. The initial time required to freeze these coolant packs can be between 12 and 24
hours depending on the operating environment.
*For best results, on initial set-up we recommend the RCM-77 is allowed 24 hours to completely freeze the coolant packs.
Following this initial 24 hour “charge” the subsequent “recharge” time will be much less. By following this extended initial
freezing period, you will be ensuring that consumers are receiving the coldest possible beverage for the best possible
extended time while the RCM-77 is unplugged.
CLAMP INSTALLATION
•The clamp secures the lid assembly to the main body of the cabinet
1Locate the (2) notches
on the interior of the
lid
2Snap the (2) bolts into
the notches of the lid.
3Screw the clamps onto
the bolts.
4Hook the two clamps
onto the center bar of
the basket.
INSTALLATION
Installation of the cooler must be done according to applicable local codes or equivalent.
Ambient Environment
• Place cooler on an even surface to reduce vibration and noise.
• To transport, do not tilt the cooler beyond a 45 degree angle.
• Do not place cooler in direct sunlight or near any heat sources.
• Do not place cooler in environment temperatures that exceed 109°F.
• Do not place cooler in below normal temperatures.
• Do not place cooler in extreme humid environments, this may cause components to rust.
• Do not place cooler near constant running or splattering water, this may cause immediate damage to refrigeration system.
• Must allow at least 4” between rear of cooler and wall for proper ventilation and heat dissipation of cooler.
• Do not place furniture or other articles with sharp edges near the cooler in order to prevent damage to the glass door.
• This cooler is for indoor use.
• Place unit in itʼs  nal location, making certain there is adequate ventilation in the room.
WARNING: Warranty is void if ventilation is insuf cient.
PREPARATION PRIOR TO OPERATION
Unpacking
• Remove all packaging materials before using cooler. This includes: foam pedestal, adhesive tape (used to  x accessories)
and protective gaskets.
• Inspect cooler for concealed damage. Immediately  le a claim with the freight carrier if there is damage. IDW is not
responsible for damage incurred during shipping.
• Cooler must remain unplugged in an upright position for 1 hour prior to use.
• Clean the interior surface with a soft cloth and lukewarm water before operation.
• Ensure that drain hose or hoses are positioned in the pan.
• Remove plug and cord from inside the lower rear of the cooler.
• The unit should be placed close enough to the electrical supply so that extension cords are not used.
Electrical Requirements
• This model operates with a 110V/60Hz power supply. Check the electrical outlet for proper voltage.
• Dedicate one outlet for the use of the cooler.
• Do not use an extension cord or any other multiple connectors as this can lead to compressor failure.
• If the cord is damaged, it must be replaced.
• For your safety, plug the unit into a grounded wall outlet. Please check with a certi ed electrician for details.
WARNING: Do not use extension cords.
WARNING: Compressor warranties are void if compressor burns out due to low voltage.
WARNING: Power cord ground pin must NOT be removed!
All manuals and user guides at all-guides.com

Instruction Manual
Innovative DisplayWorks
RCM-77
6
Changing Electric Impulse Cooler Graphics:
7

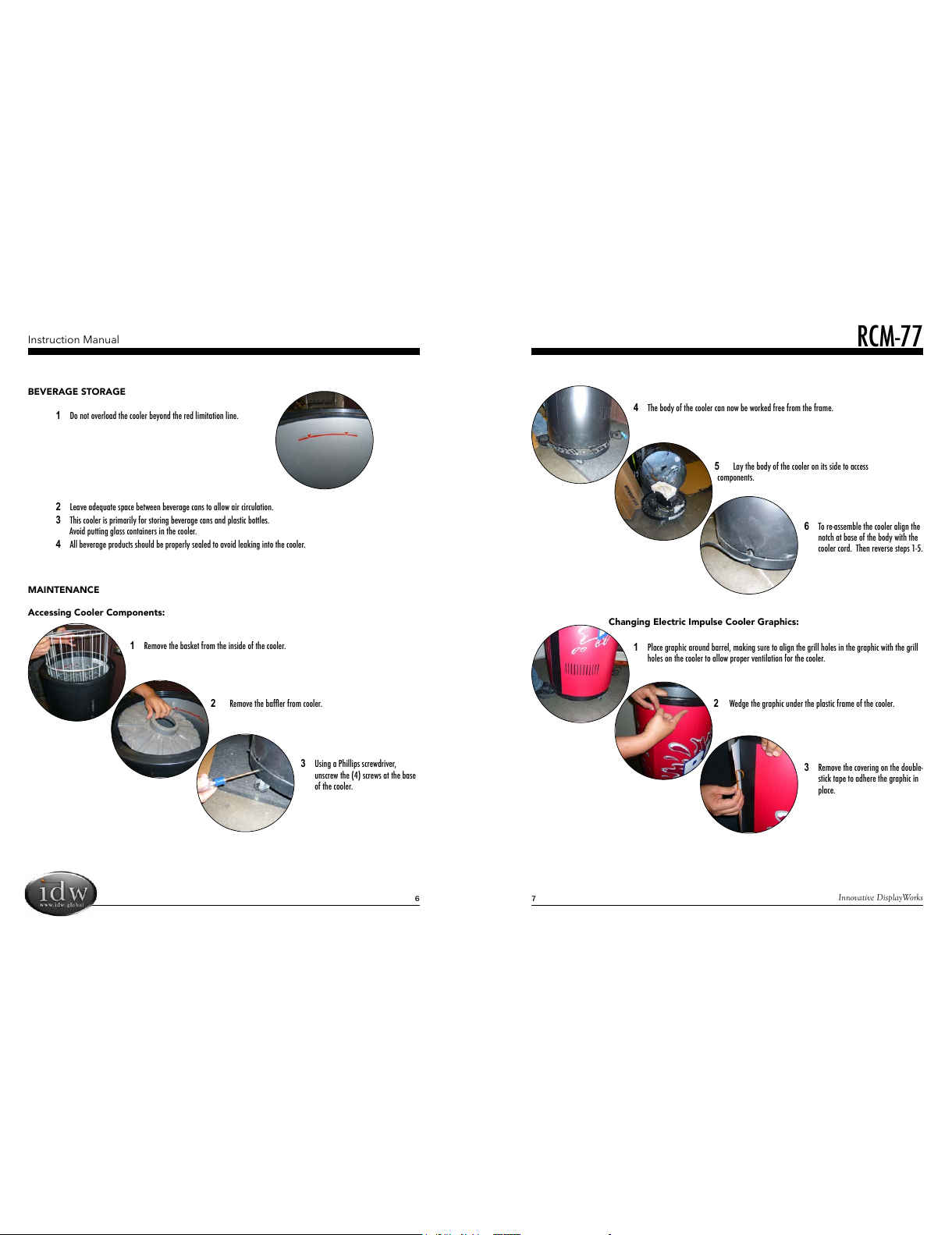

BEVERAGE STORAGE
1Do not overload the cooler beyond the red limitation line.
2Leave adequate space between beverage cans to allow air circulation.
3This cooler is primarily for storing beverage cans and plastic bottles.
Avoid putting glass containers in the cooler.
4All beverage products should be properly sealed to avoid leaking into the cooler.
MAINTENANCE
Accessing Cooler Components:
2 Remove the bafer from cooler.
3Using a Phillips screwdriver,
unscrew the (4) screws at the base
of the cooler.
1Remove the basket from the inside of the cooler.
5Lay the body of the cooler on its side to access
components.
6To re-assemble the cooler align the
notch at base of the body with the
cooler cord. Then reverse steps 1-5.
4The body of the cooler can now be worked free from the frame.
2Wedge the graphic under the plastic frame of the cooler.
3Remove the covering on the double-
stick tape to adhere the graphic in
place.
1Place graphic around barrel, making sure to align the grill holes in the graphic with the grill
holes on the cooler to allow proper ventilation for the cooler.
All manuals and user guides at all-guides.com

Instruction Manual
Innovative DisplayWorks
RCM-77
8 9

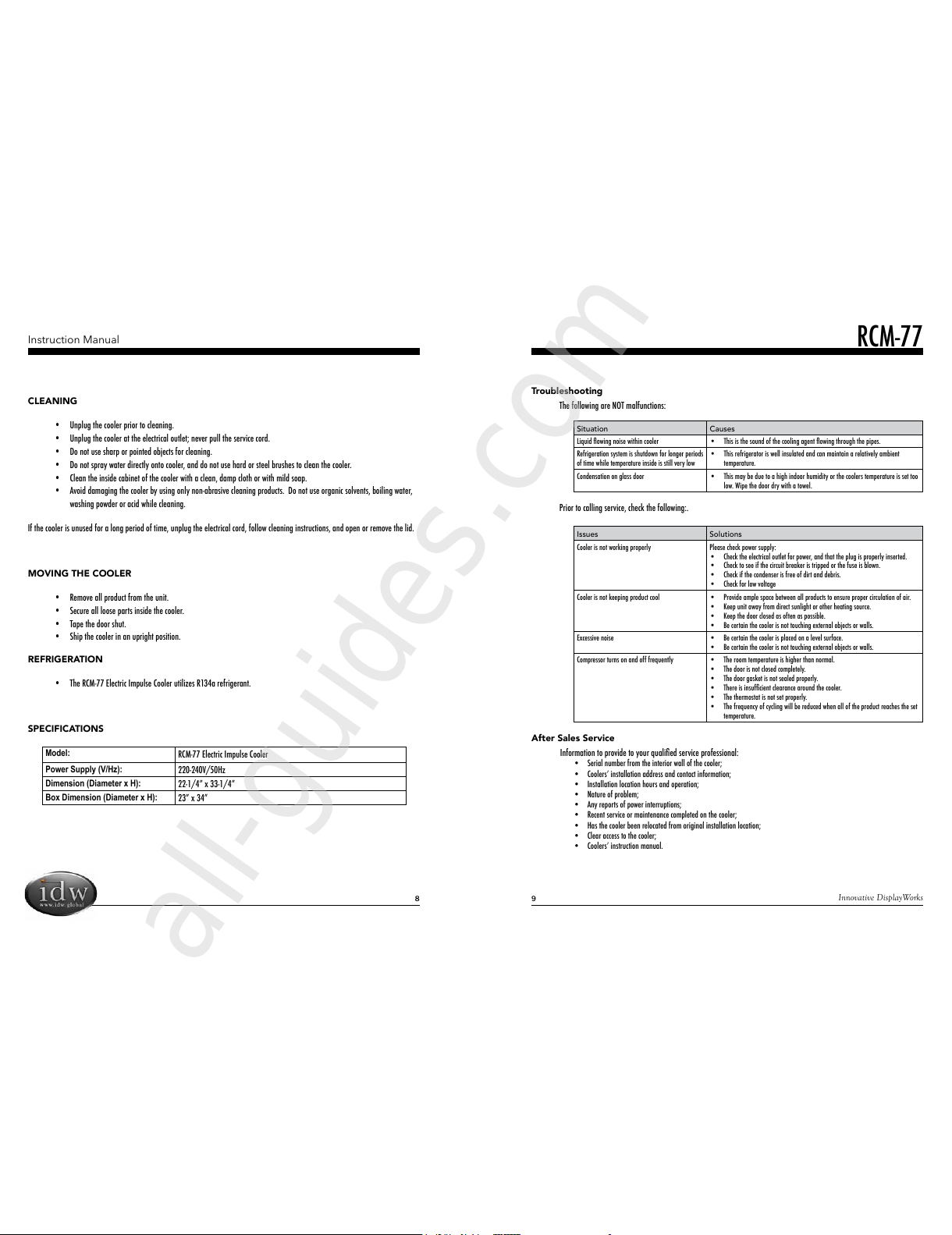

CLEANING
•Unplug the cooler prior to cleaning.
•Unplug the cooler at the electrical outlet; never pull the service cord.
•Do not use sharp or pointed objects for cleaning.
•Do not spray water directly onto cooler, and do not use hard or steel brushes to clean the cooler.
•Clean the inside cabinet of the cooler with a clean, damp cloth or with mild soap.
•Avoid damaging the cooler by using only non-abrasive cleaning products. Do not use organic solvents, boiling water,
washing powder or acid while cleaning.
If the cooler is unused for a long period of time, unplug the electrical cord, follow cleaning instructions, and open or remove the lid.
MOVING THE COOLER
•Remove all product from the unit.
•Secure all loose parts inside the cooler.
•Tape the door shut.
•Ship the cooler in an upright position.
REFRIGERATION
•The RCM-77 Electric Impulse Cooler utilizes R134a refrigerant.
SPECIFICATIONS
Model: RCM-77 Electric Impulse Cooler
Power Supply (V/Hz): 220-240V/50Hz
Dimension (Diameter x H): 22-1/4” x 33-1/4”
Box Dimension (Diameter x H): 23” x 34”
Troubleshooting
The following are NOT malfunctions:
Situation Causes
Liquid  owing noise within cooler • This is the sound of the cooling agent  owing through the pipes.
Refrigeration system is shutdown for longer periods
of time while temperature inside is still very low
• This refrigerator is well insulated and can maintain a relatively ambient
temperature.
Condensation on glass door • This may be due to a high indoor humidity or the coolers temperature is set too
low. Wipe the door dry with a towel.
Prior to calling service, check the following:.
Issues Solutions
Cooler is not working properly Please check power supply:
• Check the electrical outlet for power, and that the plug is properly inserted.
• Check to see if the circuit breaker is tripped or the fuse is blown.
• Check if the condenser is free of dirt and debris.
• Check for low voltage
Cooler is not keeping product cool • Provide ample space between all products to ensure proper circulation of air.
• Keep unit away from direct sunlight or other heating source.
• Keep the door closed as often as possible.
• Be certain the cooler is not touching external objects or walls.
Excessive noise • Be certain the cooler is placed on a level surface.
• Be certain the cooler is not touching external objects or walls.
Compressor turns on and off frequently • The room temperature is higher than normal.
• The door is not closed completely.
• The door gasket is not sealed properly.
• There is insuf cient clearance around the cooler.
• The thermostat is not set properly.
• The frequency of cycling will be reduced when all of the product reaches the set
temperature.
After Sales Service
Information to provide to your quali ed service professional:
• Serial number from the interior wall of the cooler;
• Coolersʼ installation address and contact information;
• Installation location hours and operation;
• Nature of problem;
• Any reports of power interruptions;
• Recent service or maintenance completed on the cooler;
• Has the cooler been relocated from original installation location;
• Clear access to the cooler;
• Coolersʼ instruction manual.
All manuals and user guides at all-guides.com
all-guides.com

Instruction Manual
Innovative DisplayWorks
RCM-77
10
RCM-77 CIRCUIT DIAGRAM
All manuals and user guides at all-guides.com

Innovative DisplayWorks, Inc.
To locate the distributor in your area go to: http://www.idw.global/contact/#distributors
G-Series Cooler
Instruction Manual
All manuals and user guides at all-guides.com
