Hussmann VR1-D User manual

/SPECIALTY 032023
VR1-D DELI SERVICE
MERCHANDISER
USER MANUAL

Table of Contents
User Information 23
Start Up 23
Load Limits 23
Maintenance 24
Case Cleaning 24
Exterior Surfaces 24
Interior Surfaces 24
Do’s and Do Not’s 25
Troubleshooting 26
DOE 2012 Hussmann refrigerated merchandisers configured for sale for use in the United States
Energy meet or surpass the requirements of the DOE 2012 energy efficiency standards.
Efficiency
Notice/Warning 3
General Information 4
Case Sections 5
Installation 6
Receiving Case 6
Lifting and Transport 7
Drain Configuration 7
Skid Removal 8
Lifting Points 8
Dollie Placement 8
Level Case 9
Leg Adjustment 9
Setting and Joining 10-12
Body Panels Install 13
Refrigeration 14
Refrigeration 14
Refrigerant Piping 14
Line Sizing 14
Oil Traps 14
Refrigerant Spec Sheet 15
Electrical 16
Merchandiser Electrical Data 16
Electrical Connections 16
Field Wiring 16
Identification of Wiring 16
Remove Rear Raceway 17
Electrical Conduit (Electrical Box) 17
Wiring Diagram Index 18
Wiring Diagrams 19
2

Notice

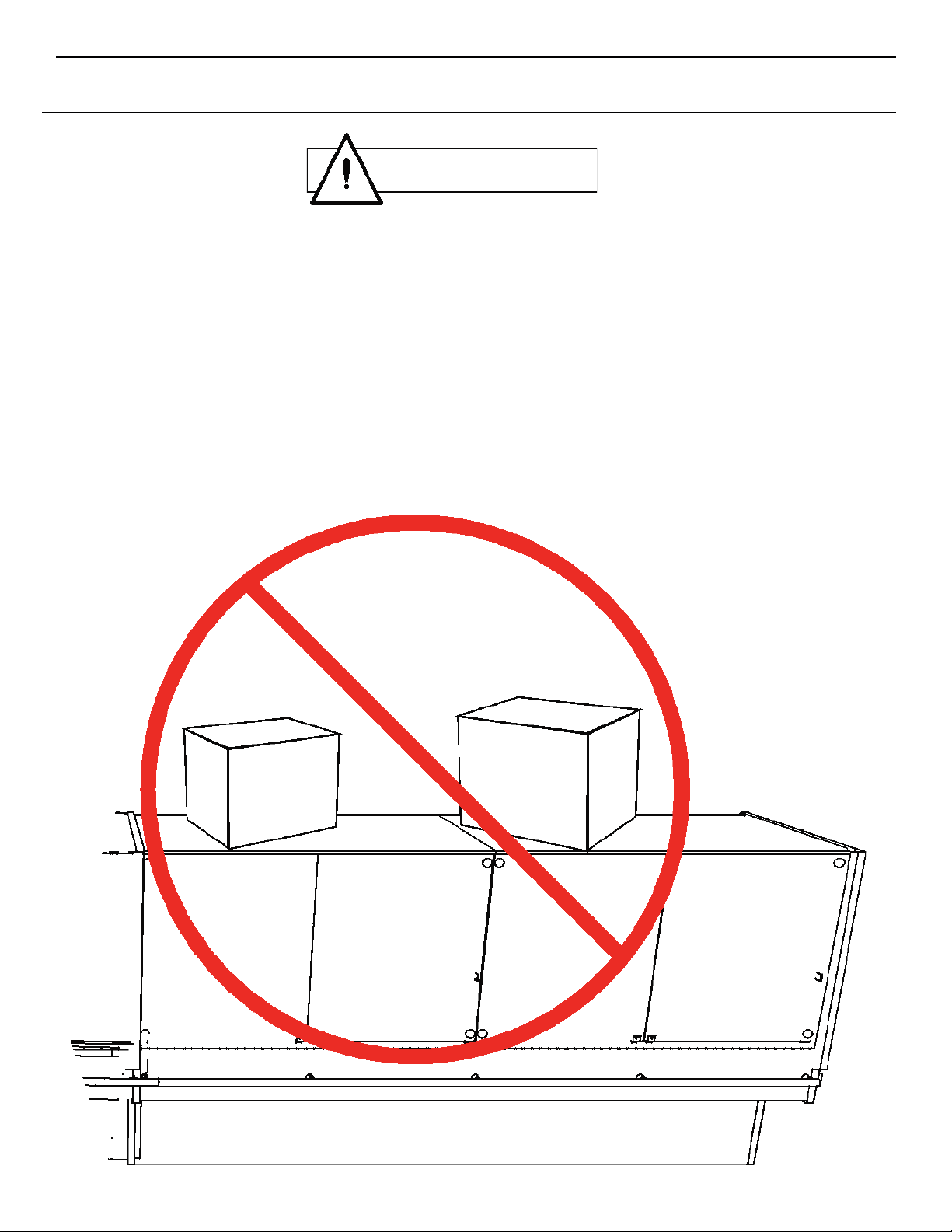

1. DO NOT load or stand over top of case. Glass breakage may occur if precautions
are disregarded.
*Broken glass can cause lacerations, cuts, and puncture wounds which may result in
severed arteries or tendons, amputations, eye injuries, or exposure to disease.
WARNING
3

General Information
Case Description:
Description: Refrigerated Service Deli Merchandiser
Shipping Damage: All equipment should be thoroughly examined for shipping damage before and
during unloading. This equipment has been carefully inspected at our factory and the carrier has
assumed responsibility for safe arrival. If damaged, either apparent or concealed, claim must be
made to the carrier Immediately.
Apparent Loss or Damage: If there is an obvious loss or damage, it must be noted on the freight bill
or express receipt and signed by the carrier’s agent; otherwise, carrier may refuse claim. The carrier
will supply necessary claim forms.
Concealed Loss or Damage: When loss or damage is not apparent until after all equipment is
uncrated, a claim for concealed damage is made. Make request in writing to carrier for inspection
within 15 days, and retain all packaging. The carrier will supply inspection report and required claim
forms.
Shortages: Check your shipment for any possible shortages of material (See Parts List page 9). If a
shortage should exist and is found to be the responsibility of Hussmann Chino, notify Hussmann
Chino. If such a shortage involves the carrier, notify the carrier immediately, and request an
inspection. Hussmann Chino will acknowledge shortages within ten days from receipt of equipment.
Hussmann Chino Product Control: The serial number and shipping date of all equipment have been
recorded in Hussmann’s files for warranty and replacement part purposes. All correspondence
pertaining to warranty or parts ordering must include the serial number of each piece of equipment
involved, in order to provide the customer with the correct parts.
Location/Store Conditions: The VR1-D refrigerated merchandiser has been designed for use only in
air conditioned stores where temperature and humidity are maintained at or below 75°F Dry bulb and
55% relative humidity. DO NOT allow air conditioning, electric fans, ovens, open doors or windows
(etc.) to create air currents around the merchandiser, as this will impair its correct operation.
Keep this booklet with the case at all times for future reference.
/CHINO
A publication of HUSSMANN®Chino
13770 Ramona Avenue • Chino, California 91710
[phone] FAX
[phone]
[phone]
4
ATTENTION
INSTALLER
This equipment is to be installed
to comply with the applicable
NEC, Federal, State, and Local
Plumbing and Construction
Code having jurisdiction.

VR1-D
5

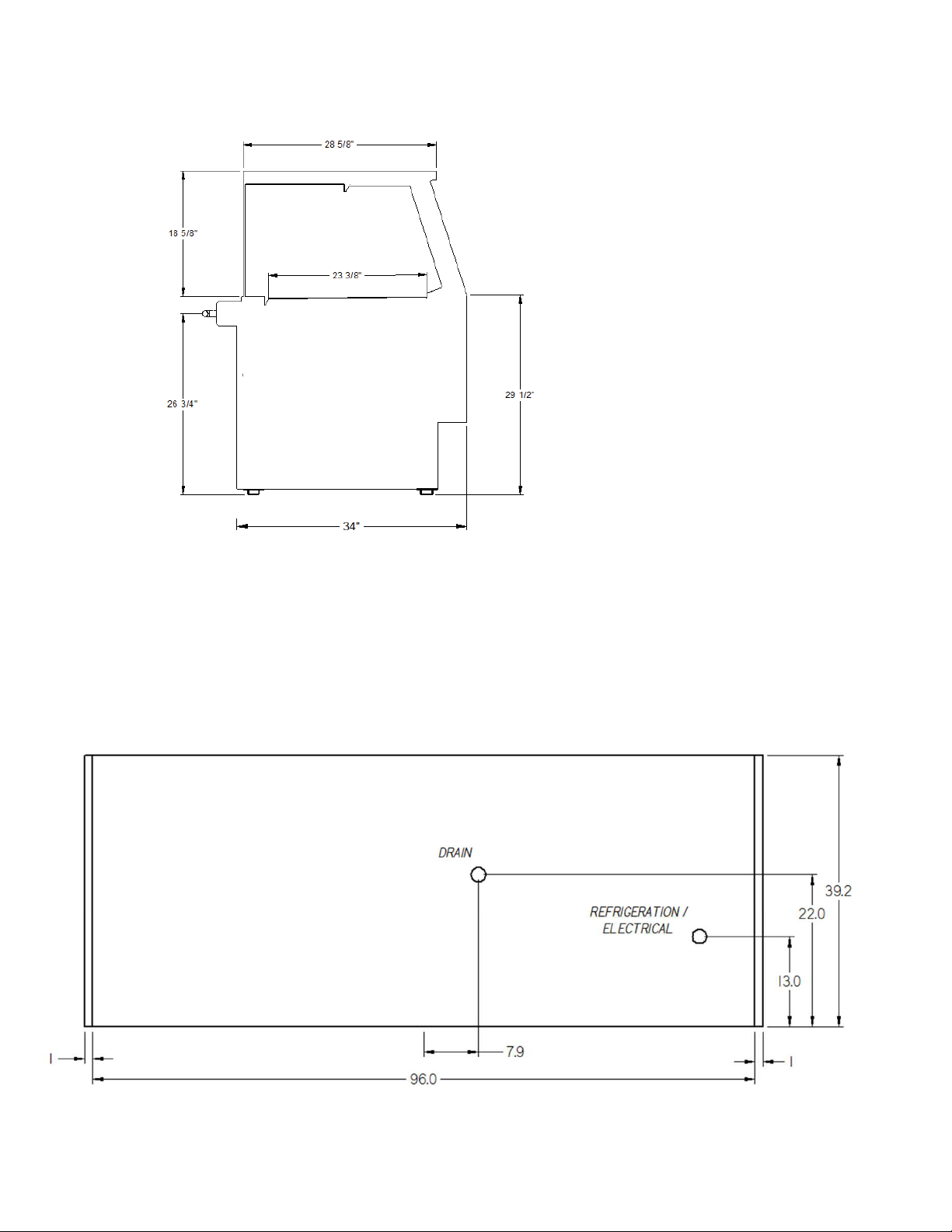

VR1-D-8 PLAN
CASE SECTIONS

Installation
Case is to arrive at store as was shipped form
factory. See reference above for proper shipment
referencing. (Not actual case)
Receiving case
Upon receiving your new Hussmann Case all
equipment should be thoroughly examined for
shipping damage before and during unloading.
This equipment has been carefully inspected at
our factory. Any claim for loss or damage must
be made to the carrier. The carrier will provide
any necessary inspection reports/ or claim
form. If there is obvious loss or damage, it must
be noted on the freight bill or express receipt
and signed by the carrier’s agent; otherwise
carrier may refuse claim.

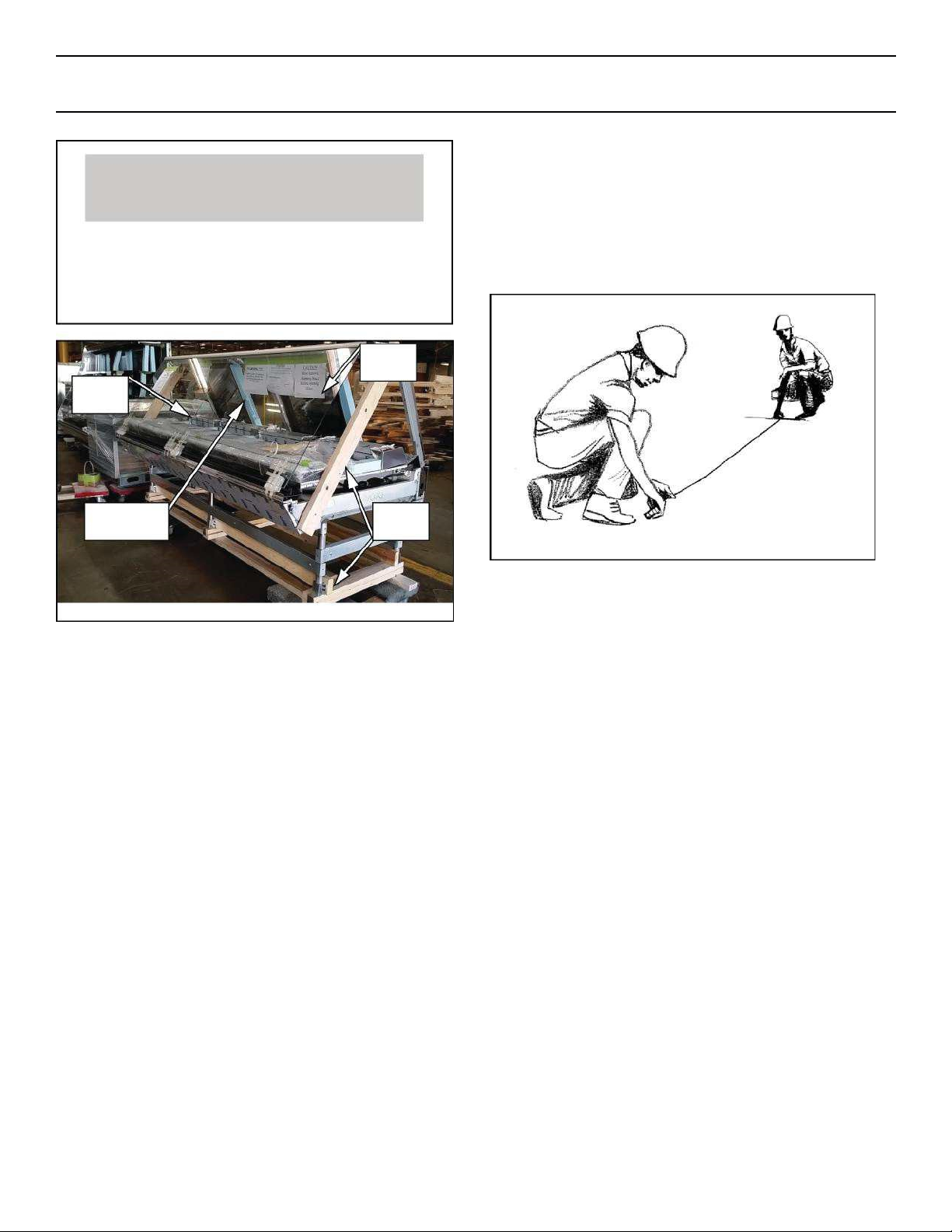

snapping chalk Lines
Prepare permanent positioning by marking floors
with Chalk snap lines where cases are to be
located. Chalk lines are to run along the base or
legs of cases.
Warning
Labels
Loose
Items
Boards
fastened
Foam Blocks
in place
NOTICE
Do NOT remove Foam Blocks from shelves
and glass until the merchandisers are
positioned for installation. Shelves or
merchandising glass may be damaged.
6

Installation (cont’d)
VR1-D Lifting and Transport
Instructions
1. The VR1-D can be lifted by a forklift at
typical lifting points.
2. Ensure lower body panels are removed
before lifting with a forklift. Serious damage will
occur if the body panels are not removed.
(Shipped loose from factory)
3. Make sure that fork spacing and width will
not damage drain or come in contact with
piping, or electrical lines
4. Be sure that the forks are long enough to
sup-port beyond the center of the case but not
dam-age near components. Check for proper
balance before moving. A minimum fork length
of 36” is recommended for 68” wide cases
VR1-D-8 Drain Location
1. The VR1-D merchandiser can be raised at one
end underneath the deck with a forklift or J-Bar if
forklift is not accessible to allow the placement of
rollers or dollies.
2. Evenly support the entire base structure on
rollers or dollies before attempting to move. Each
Base Leg must have its own dolly to properly
support the case.

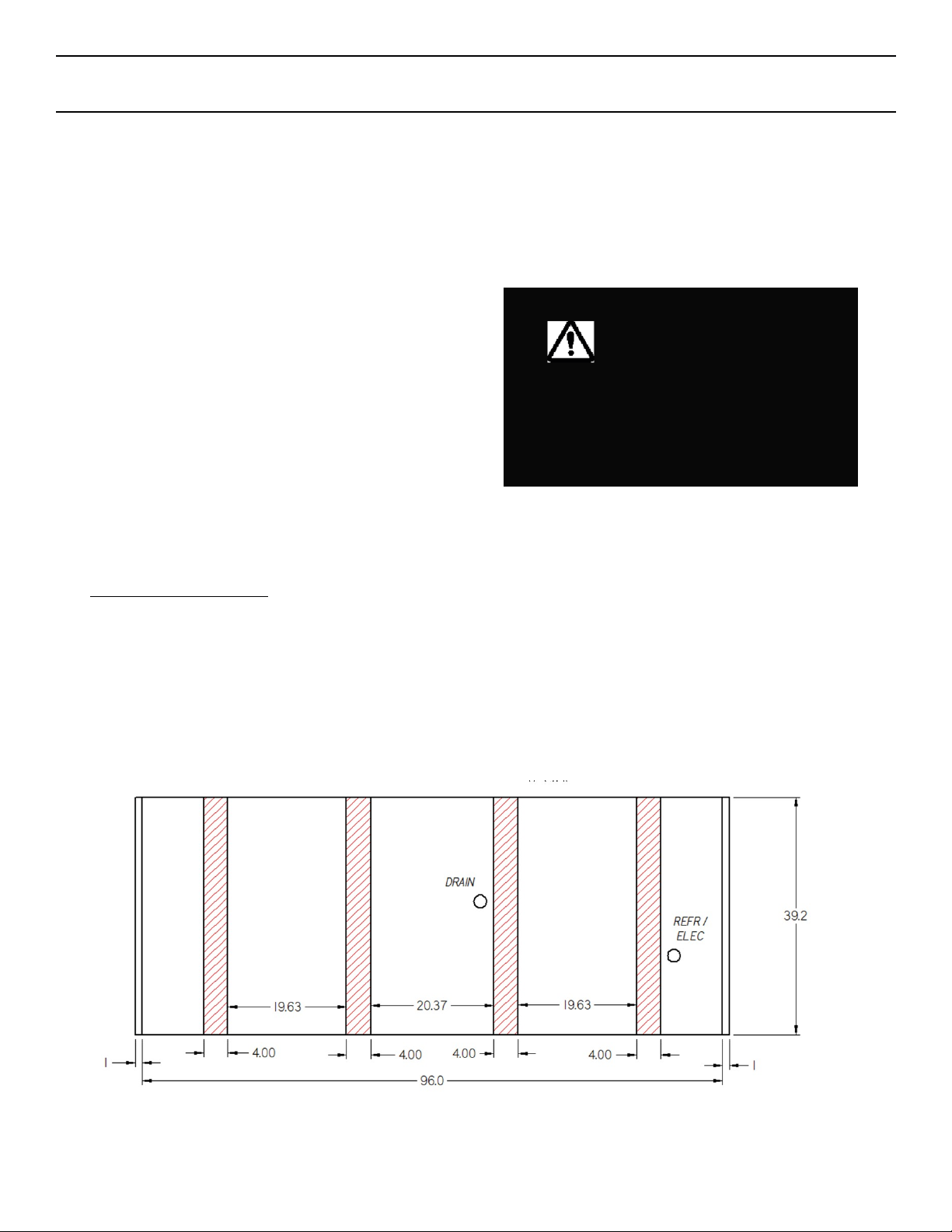

Lifting Points are typical and dependent upon size of
case and refrigeration application, drainage
configurations will call for altercations in Lifting
Zones.
Below are the following drainage configurations and
lifting should be altered to the expected model.
8' Case
WARNING
Improper placement of forks may damage
drainage piping. Use a spotter when placing
forks. Make sure that piping will not be dam-
aged. Use J-Bars or Jacks if forks cannot be
used safely
FORKLIFT BLADE PLACEMENT
(PLACE BLADES IN 4" REGIONS AS SHOWN}
7

Installation (cont’d)
Skid Removal and Placement (Channel-Style
Legs)
Important: See lifting instructions to properly lift
case when being placed on dollies or permanent
location.
First remove Blocks and L Brackets around
the case from pallet.
Proceed by setting forklifts under specified loca-
tions as instructed in the Lifting Instructions. Be
careful not to damage drains or near
components when placing forks underneath
case. A spotter is mandatory to ensure no dam-
age is caused to the case. Lift case and replace
with dollies, place near or in permanent location.
Insert Forks
Underneath
Deck
Move the fixture as close as possible to its per-
manent location and then remove all packaging
and preparing to remove off Skid. Remove all
separately packed accessories such as kits, and
8
panels. Check for damage before discarding
packaging.
In the case a fork lift truck is not available follow
the demonstration below to properly lift case us-
ing a Johnson Bar (J-Bar) to place on dollies to
traffic from start point to placement area.
Place J-Bar underneath base of merchandiser to
gain leverage, once lifted place Dollie under-
neath first end and slowly lower onto dollie en-
suring merchandiser is placed on stable location.
Proceed to opposite end and repeat.
Remove Block
and L bracket

Installation (cont’d)
Leveler Adjustment
(Channel-Style Legs)

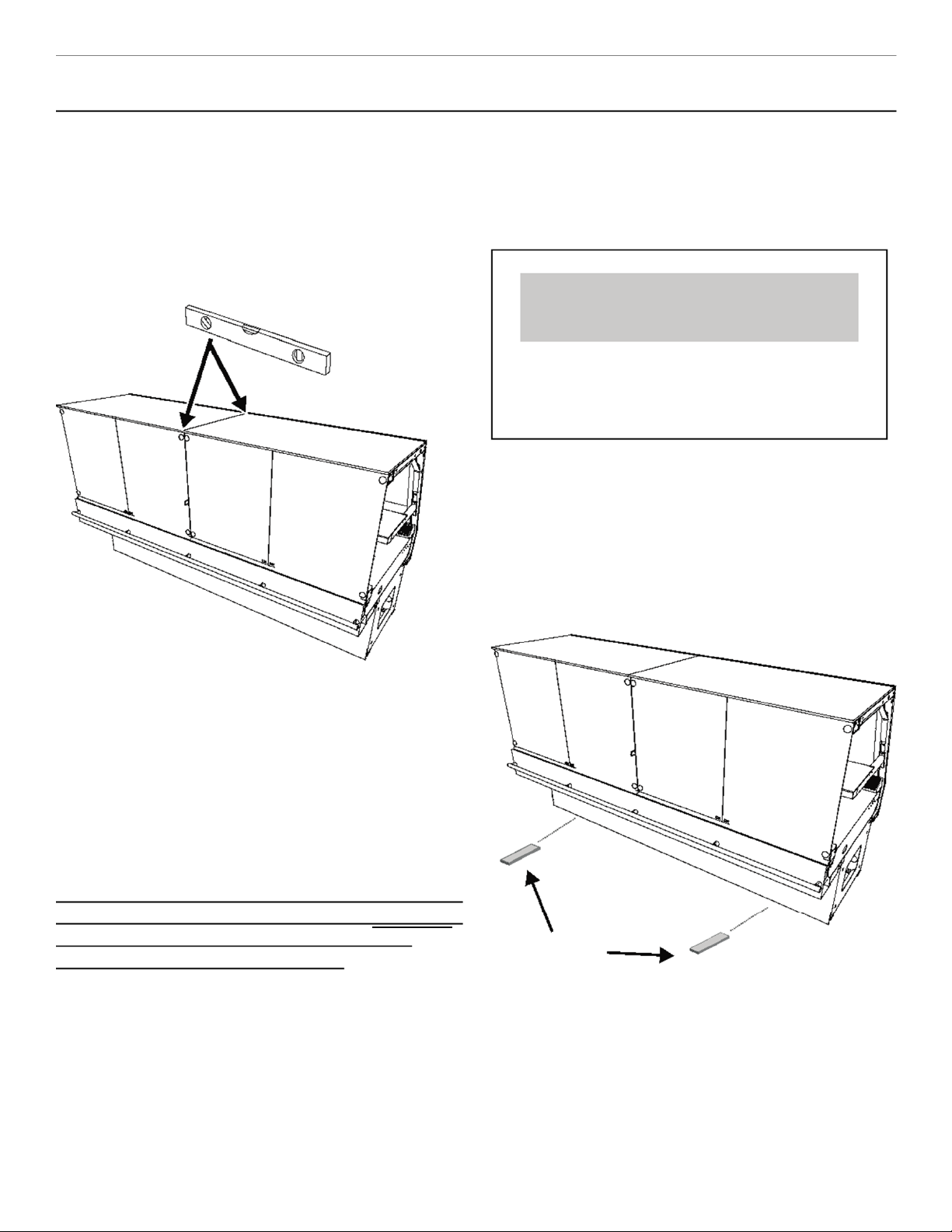

Position the case at the highest point. Set a long
magnetized level (4ft [1220 mm] or more) on
either underneath the deck or on top of the case.
Ensure to level case from front to back and side
to side.
Level
(4 ft[1220mm])
9
Note: To avoid removing concrete flooring,
begin line up levelling from the Highest point of
the store floor.
Shim The Case
Use shims at each corner of the case to level
out any discrepancies in order to optimize case
performance and proper drainage.
Note: Metal Shims are recommended for use to
eliminate any deterioration from shims over time.
Shim
NOTICE
Longer length cases may require shims
along the center portion of the case to
maintain proper case performance and
drainage.

Installation (cont’d)
Setting and Joining
The sectional construction of these models enable
them to be joined in line to give the effect of one
continuous display.
An alignment pin kit is supplied with every case and
must be used in alignment.
Leveling
IMPORTANT! IT IS IMPERATIVE THAT CASES
BE LEVELED FROM FRONT TO BACK AND
SIDE TO SIDE PRIOR TO JOINING. A LEVEL
CASE IS NECESSARY TO ENSURE PROPER
OPERATION, WATER DRAINAGE, GLASS
ALIGNMENT AND OPERATION OF THE HING-
ES SUPPORTING THE GLASS. LEVELING
THE CASE CORRECTLY WILL HELP TO
SOLVE MOST HINGE-RELATED ISSUES.
10

Installation (cont’d)
Setting
STEP 1. Using case blueprints, measure off and
mark on the floor the exact dimensions of where
the cases will sit. Snap chalk line for front and
back positions of base rail or pedestal. Mark the
location of each joint front and back. Find the
highest point throughout the lineup. FLOORS
ARE NORMALLY NOT LEVEL! Determine the
highest point of the floor; cases will be set off
this point. All cases in the entire lineup must be
brought up to the highest level of the case sitting
at the highest point in the lineup.
STEP 2. Set first case over the highest part of
the floor and adjust legs so that case is level.
STEP 3. Set second case within one foot (1’) of
the first case. Keep the supports along the length
of the case and far end of case. Level case to the
first using the instructions in step one.
ATTENTION
INSTALLER
It is the contractor’s responsibility to install
case(s) according to local construction and
health codes.
Do not use bolts to pull cases together.
ACCESS LOWER BOLT LOCATIONS
BY REMOVING FRONT AND REAR
BODY PANELS
ACCESS UPPER BOLT LOCATIONS BY
REMOVING INNER ARM COVER
11

Installation (cont’d)
STEP 4. Apply liberal bead of case joint sealant
(Silicone) to first case. Sealant area is shown in
illustration. Apply heavy amount to cover entire
shaded area. (pg12)
STEP 5. Slide second case up to first case
snugly. Then level second case to the first case
so glass front, bumper and top are flush.
STEP 6. To compress butyl at joint, use two
Jurgenson wood clamps. Make sure case is level
from front to back and side to side on inside
bulkheads at joint.
STEP 7. Attach sections together.
STEP 8. Apply bead of butyl to top of bulk heads
and slide on stainless steel bulkhead cap as pic-
tured below. Also apply silicone to seam
between joints.
BULK HEAD
JOINT CAPS
12

Installation (cont’d)

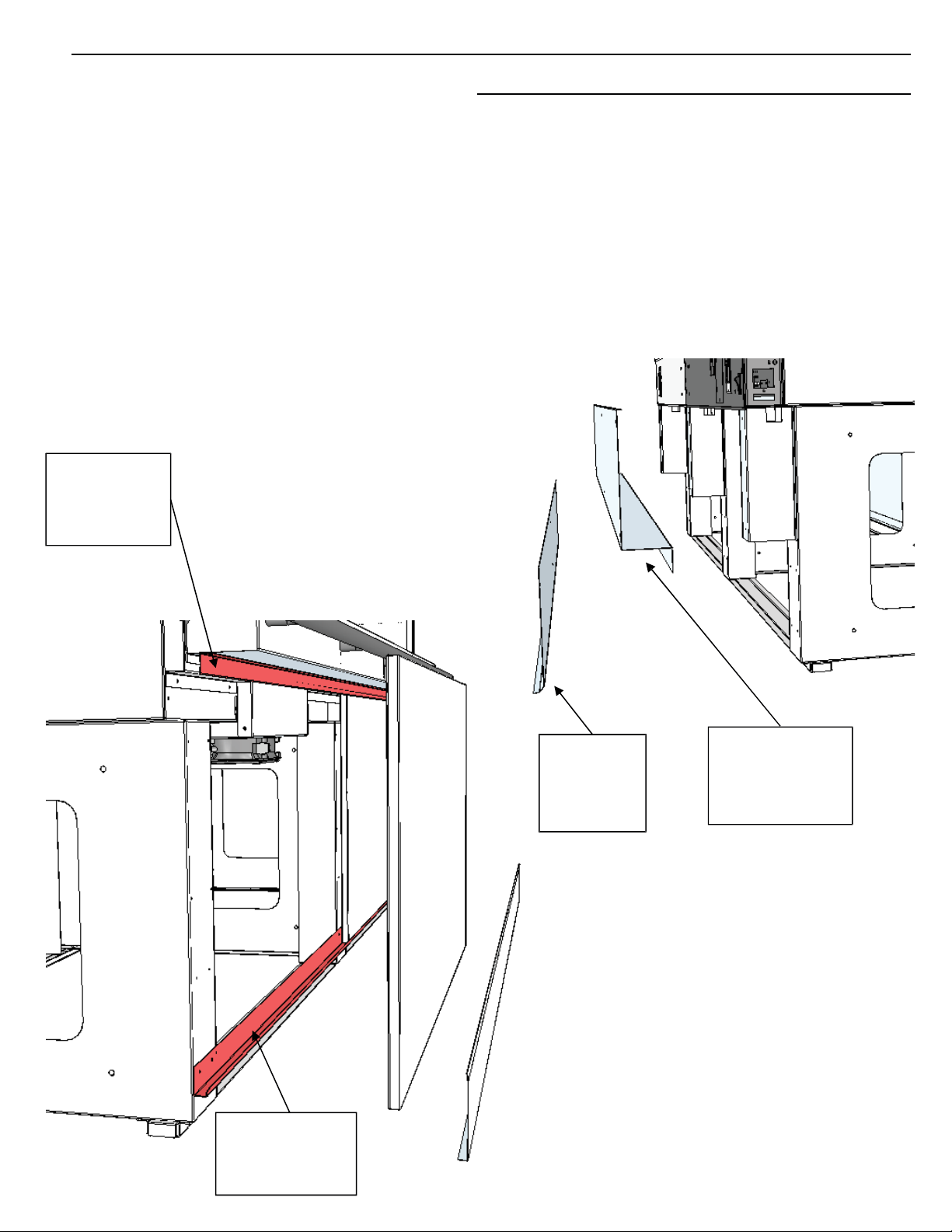

Front Body Panel Install
-No tools will be needed to install body the
front panels.
-The front body panel will slide behind the
upper retaining channel and rest atop the
lower retaining channels (parts shaded in
graphic below)
-After case is set, finish with front toe-kick.
Rear Body Panel Install
A screwdriver or battery powered driver
will be required for the rear panels
-Fasten the rear upper body panel using
(6) stainless steel finish screws
-Fasten rear toe kick
REAR UPPER
BODY PANEL
UPPER
RETAINING
CHANNEL
LOWER
RETAINING
CHANNEL
REAR
TOE KICK
13

Refrigeration
Refrigerant
The correct type of refrigerant will be stamped on
each merchandiser’s serial plate. The case
refrigeration piping is pressurized with a
nitro-gen holding charge, leak tested and
factory sealed. Before making refrigeration
hookups, depress universal line valve (Shraeder
Valve) to ensure that coils have maintained
pressure during shipment. If in the case pressure
was not maintained, contact your Hussmann
Service Technician for further assistance.
Refrigerant piping
The refrigerant line connections are at the right
hand end of the case (as viewed from the front)
beneath the display pans. The merchandiser will
beforehand ensure an earlier cut hole through
the pod to exit the merchandiser for the refrigera-
tion lines. After connections have been made,
make certain to seal this outlet thoroughly if not
sealed at factory already. Seal both the inside
and outside. We recommend using an expanding
polyurethane foam insulation.
Line Sizing
Refrigerant should be sized as shown on the
refrigeration legend that is furnished for the store
or according to the ASHRAE guidelines.
Oil Traps
P-traps (oil traps) must be installed at the base
of all suction line vertical risers.
General
Serial Plate
Location
CAUTION
Refrigeration lines are under pressure.
Refrigerantmustberecoveredbefore
attempting to make any connections.
It is the contractor's responsibility to install
case(s) according to local construction and
health codes.
SERIAL
PLATE
LOCATION
14

Refrigeration Spec Sheet
15

Electrical

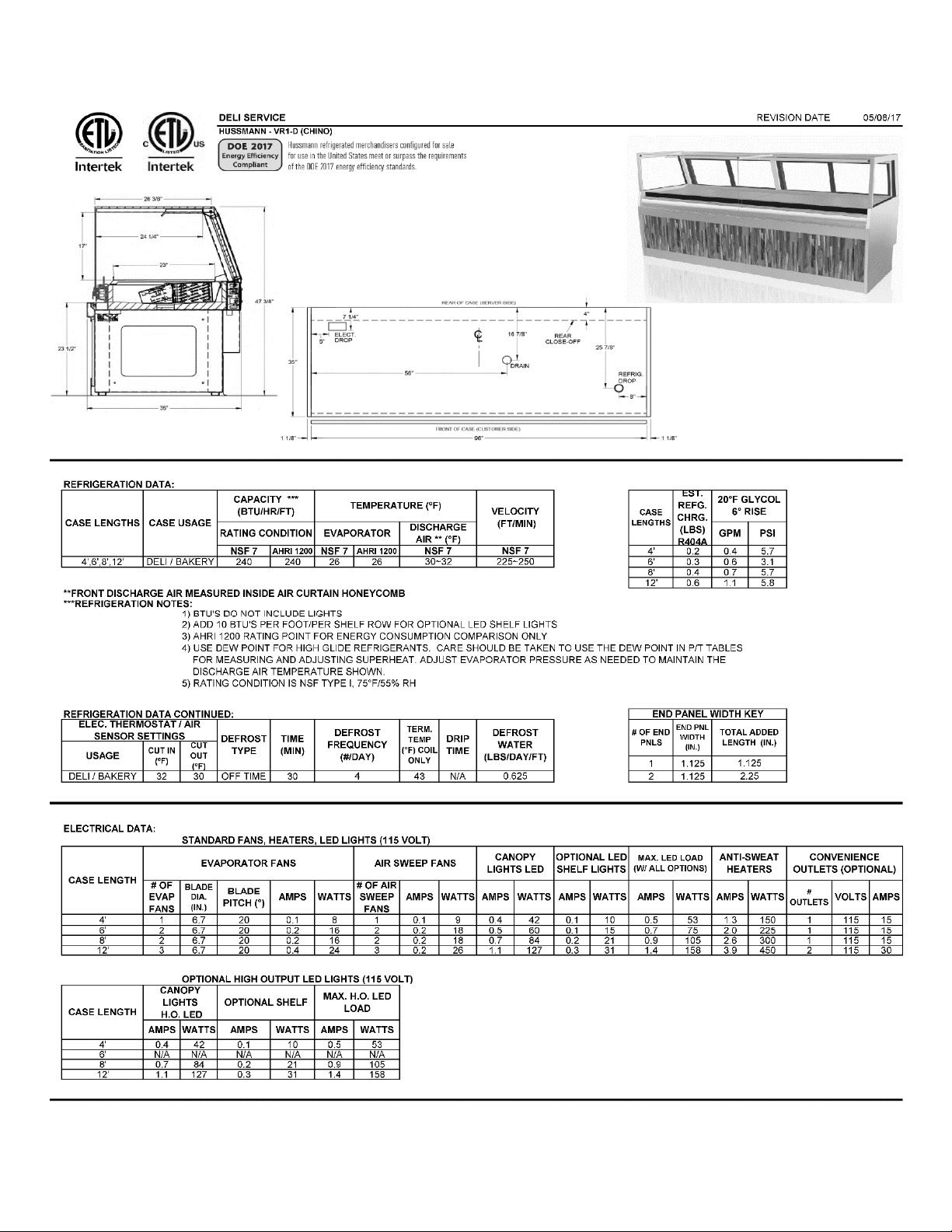

Merchandiser Electrical Data
Technical data sheets are shipped with this
manual. The data sheets provide merchandiser
electrical data. Refer to the technical data sheets
and merchandiser serial plate for electrical
information.
Electrical Connections
All wiring must be in compliance with NEC and
local codes. All electrical connections including
both supply circuits are to be made in the electri-
cal J-Box.
ALWAYS CHECK THE SERIAL PLATE FOR
COMPONENT AMPERES
Field Wiring
Field wiring must be sized for component am-
peres stamped on the serial plate (refer to pg
16 for location). Actual ampere draw may be
less than specified.
Identification of Wiring
Leads for all electrical circuits are identified by
colored plastic bands. These bands correspond
to the color code sticker (shown below) located
inside the merchandiser’s wireway cover.
WARNIN
--LOCK OUT/ TAG OUT-- G
To avoid serious injury or death from electrical
shock, always disconnect the electrical power
at the main disconnect when servicing or
replacing any electrical component. This
includes, but is not limited to, such items as
doors, lights, fans, heaters, and thermostats.
WIRING COLOR CODE
Leads for all electrical circuits are identified by a colored plastic band:
neutral wire for each circuit has either white insulation or a white plastic
sleeve in addition to the color band.
Pink Refrig, Thermostat Low Temp Orange OR
Light Blue Refrig, Thermostat Norm Temp Tan Lights
Dark Blue Defrost Term, Thermostat Maroon Receptacles
Purple Condensate Heaters Yellow Defrost Heaters 120V
Brown Fan Motors Red Defrost Heaters 208V
Green* Ground *Either Colored Sleeve or Colored Insulation
ELECTRICIAN NOTE: Use proper conductor wire only.
MERCHANDISER MUST BE GROUNDED
These are marker colors, wire may vary.
16

Electrical Cont’d

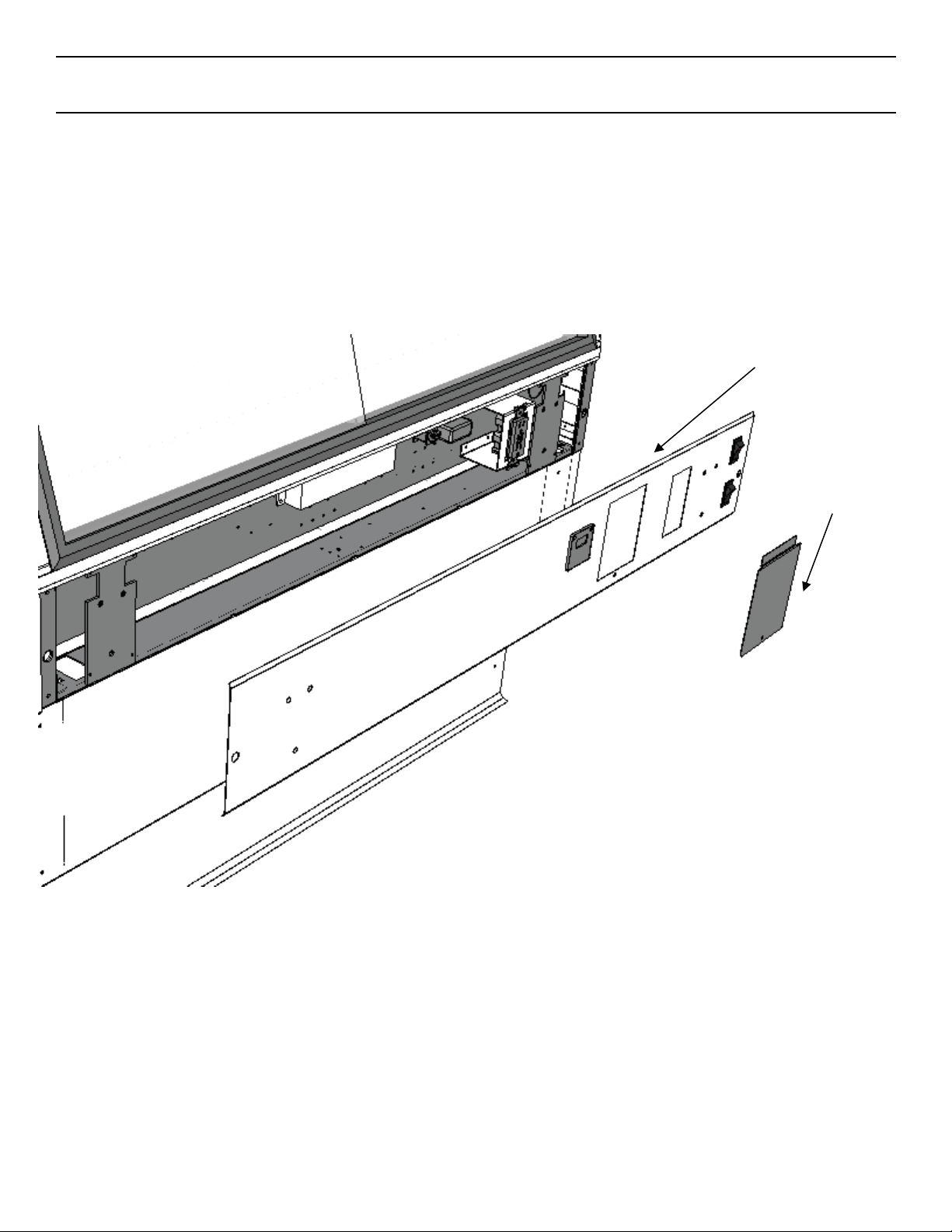

Remove Rear Raceway
The merchandisers electrical access is located
at the rear of the case. Fasteners must be re-
moved in order to gain access. See illustration
below.
Electrical Conduit (Electrical Box)
The merchandisers electrical conduit can be
found inside the compartment at the rear. Re-
moving the raceway will gain access to the elec-
trical components inside the J-Box allowing any
maintenance necessary.
The Electrical Raceway
contains all necessary
electrical components
including T-Stats.
Remove the rear
electrical panel to gain
access.
AquickT-Stat
adjustment can be
achieved by removed
the T-Stat Cover
17

Wiring Diagram Index
18

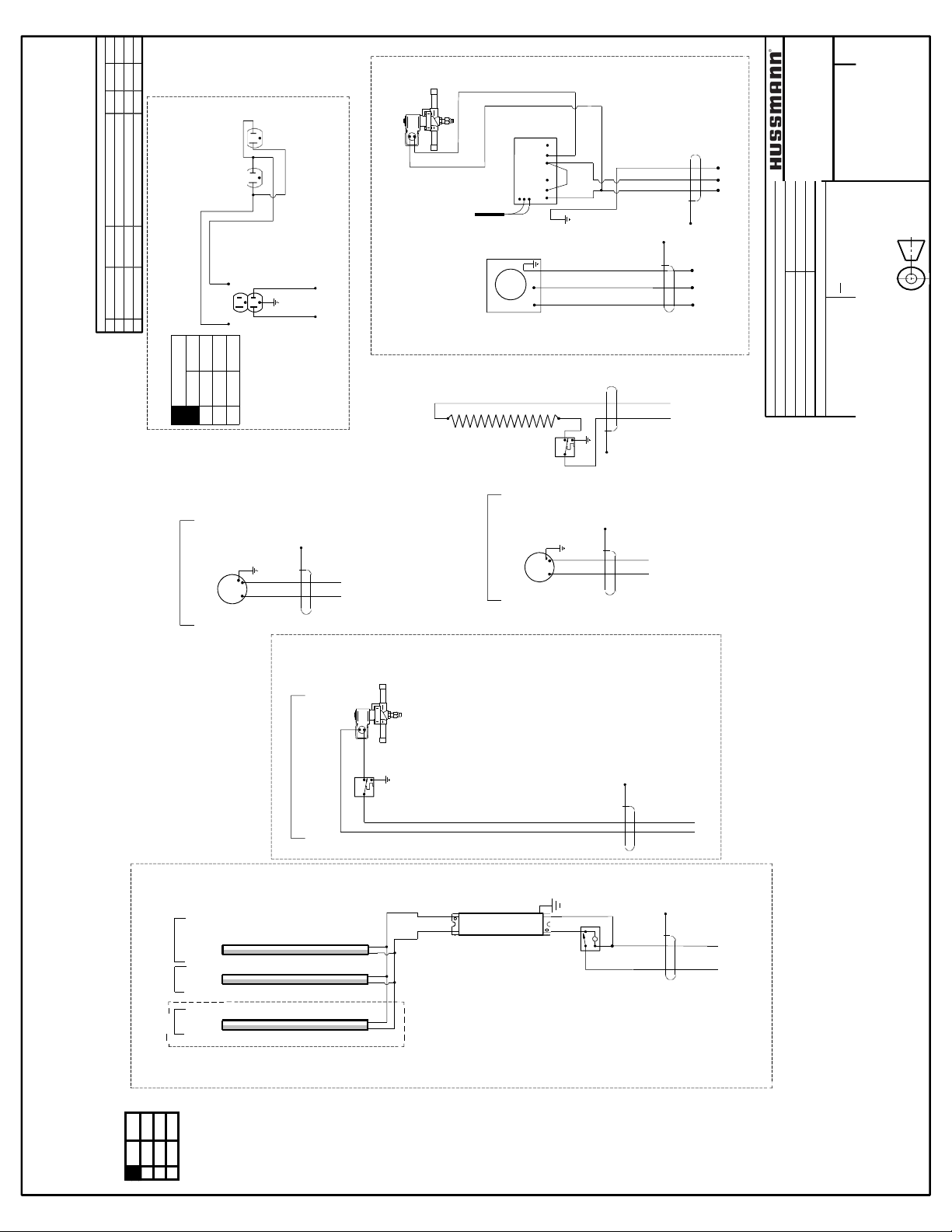

VR1-D-4-R 4' 3015037
VR1-D-6-R 6' 3015038
VR1-D-8-R 8' 3015039
VR1-D-12-R 12' 3015040

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX
u
.03, .XXX
u
.010 ANGLES
u
2
v
MATERIAL - N/A
DATE DRAWN - 9-15-16 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN-CAP-0003965
REF -
3015037
DIAGRAM-VR1-D-4-R
REV
A B C
ECN
ECN-CAP-0003965 ECN-CAP-0006460 ECN-CAP-0011850
DATE
2016/09/15 2017/03/01 2020/11/09
REV BY
CB
CB CB
CHKD BY
CB
CB CB
APPR BY
CB CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
REVISED REAR STORAGE COIL
REVISED AIR SWEEP HEATER
NOTES: CASE MUST BE GROUNDED WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
C
SHEET 1 OF 1
CIRCUIT
#1 LOADING
120V
2.1L1
T-STAT 225-01-0707
AIR SWEEP HEATER CAL-ROD 150W 1.3A @ 120VAC 125-01-1304
UPPER SECTION
FANS .12A 4W @ 120VAC 0477653
UPPER SECTION
MCA= 0.15A MOP= 15A
M
TAG PURPLE
L1 N
BLK # 14
WHT # 14
TAG BROWN
MCA= 2.4A MOP= 15A
L1 N
BLK # 14
WHT # 14
BLK # 14
NL1
~120 VAC - 60
Hz
WHT # 14
TAG
WHITE/BLACK
T-STAT (1) 225-01-0705A
SOLENOID VALVE .14A @ 120VAC
LIGHT SWITCH TIPPETTE 125-01-0311
L
TAG ORANGE
BLK # 14
WHT # 14
L1 N
~120 VAC - 60 Hz
MCA= 0.37A MOP= 15A
OPTIONAL: LIGHT CIRCUIT 0.30A 32.1W @ 120V
RED +
BLUE -
LED DRIVER
4' L.E.D. LIGHT
INCOMING POWER ~120 VAC -60 Hz
GFCI DUPLEX 125-01-3178
NOTE FOR GFCI PROTECTION: IF MORE THAN ONE SINGLE RECEPTACLE IS USED IN CONJUNCTION WITH A GFCI DUPLEX RECEPTACLE "DOWNSTREAM" ON THE LOAD SIDE, THE SUM OF ALL RECEPTACLES SHOULD NOT BE MORE THAN 15A
LOAD SIDE POWER ~120 VAC -60 Hz 125-01-0443
BLK # 14
WHT # 14
GRN # 14
ALL SINGLE RECEPTACLES TO BE TIED TO DUPLEX GFCI RECEPTACLE
BUNDLE YELLOW
15.0
L1
CIRCUIT # 2 (optional)
LOADING
120 V
CANOPY
FANS .20A 15W @ 120VAC 0404551
AIR SWEEP FANS
M
L1 N
MCA= 0.25A MOP= 15A
BLK # 14
WHT # 14
TAG BROWN
CANOPY FOCAL POINT
4' L.E.D. LIGHT
ULTRA
4' L.E.D. LIGHT
OPTIONAL SHELF
LIGHTS
OPTIONAL REAR STORAGE
L1
N
REAR STORAGE COOLER UNIT RT-12 0.30 @ 115V
MCA= 0.38A
MOP= 15A
~120 VAC - 60 Hz
WHT # 14
SOLENOID VALVE .14A @ 120VAC
DIGITAL T-STAT
BUNDLE WHITE/BLACK
NL1G
~120 VAC - 60 Hz
WHITE #14
BLACK #14
SENSOR
WHITE #14
BLACK#14
LN
120
LC
LNO
M
BLK # 14
GRN# 14
G

HUSSMANN_GDF_1.1 SHEET SIZE D
THIRD
ANGL
E
PROJECTION
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN INCHES.
APPROVED BY - CRAIG BOOREY
TOLERANCES ARE:
DECIMALS .XX u.03, .XXX u.010
ANGLES u2v
MATERIAL - N/A
DATE DRAWN - 9-15-16 DRAWN BY -CRAIG BOOREY REVIEWED BY -CRAIG BOOREY
ECN-CAP-0003965
REF -
3015038
DIAGRAM-VR1-D-6-R
REV ECN DATE REV BY CHKD BY APPR BY
A ECN-CAP-0003965 2016/09/15 B ECN-CAP-0006460 2017/03/01
CB CB
CB CB
CB CB
REVISION HISTORY
REVISION DESCRIPTION
RELEASED TO PRODUCTION
REVISED REAR STORAGE COIL
NOTES: CASE MUST BE GROUNDED WHEN PASSING WIRES THROUGH METAL HOLES A GROMMET MUST BE USED
B
SHEET 1 OF 1
CIRCUIT #1
LOADING
120V
3.1L1
T-STAT 225-01-0707
AIR SWEEP HEATER CAL-ROD 225W 1.9A @ 120VAC 125-01-1303
FANS .12A 4W @ 120VAC (2) 0477653
UPPER SECTION
UPPER SECTION
MM
TAG PURPLE
L1 N
MCA= 0.30A MOP= 15A
BLK # 14
WHT # 14
TAG BROWN
L1 N
MCA= 2.4A MOP= 15A
BLK # 14
WHT # 14
BLK # 14
NL1
~120 VAC - 60 Hz
WHT # 14
TAG
WHITE/BLACK
T-STAT (1) 225-01-0705A
SUCTION SOLENOID .14A @ 120VAC
LIGHT SWITCH TIPPETTE 125-01-0311
L
TAG ORANGE
BLK # 14
WHT # 14
L1 N
~120 VAC - 60 Hz
MCA= 0.72A MOP= 15A
OPTIONAL: LIGHT CIRCUIT 0.57A 62W @ 120V
RED +
BLUE -
LED DRIVER
INCOMING POWER
GFCI DUPLEX 125-01-3178
NOTE FOR GFCI PROTECTION: IF MORE THAN ONE SINGLE RECEPTACLE IS USED IN CONJUNCTION WITH A GFCI DUPLEX RECEPTACLE "DOWNSTREAM" ON THE LOAD SIDE, THE SUM OF ALL RECEPTACLES SHOULD NOT BE MORE THAN 15A
LOAD SIDE POWER ~120 VAC -60 Hz 125-01-0443
BLK # 14
WHT # 14
GRN # 14
ALL SINGLE RECEPTACLES TO BE TIED TO DUPLEX GFCI
~120 VAC -60 Hz RECEPTACLE
BUNDLE YELLOW
15.0
L1
CIRCUIT # 2 (optional)
LOADING
120 V
CANOPY
FANS .20A 15W @ 120VAC (2) 0404551
AIR SWEEP FANS
M M
L1 N
MCA= 0.50A MOP= 15A
BLK # 14
WHT # 14
TAG BROWN
CANOPY FOCAL POINT
2' L.E.D. LIGHT
4' L.E.D. LIGHT
HO
2' L.E.D. LIGHT
HO
3' L.E.D. LIGHT
3' L.E.D. LIGHT
4' L.E.D. LIGHT
OPTIONAL SHELF LIGHTS
OPTIONAL REAR STORAGE
L1
N
REAR STORAGE COOLER UNIT RT-12 0.30 @ 115V
MCA= 0.38A MOP= 15A
~120 VAC - 60 Hz
WHT # 14
SUCTION SOLENOID .14A @ 120VAC
DIGITAL T-STAT
BUNDLE WHITE/BLACK
NL1G
~120 VAC - 60 Hz
WHITE #14
BLACK #14
SENSOR
WHITE #14
BLACK#14
LN
120
LC
LNO
M
BLK # 14
GRN# 14
G
