IFB 17PM1S User manual

MODEL: 17PM1S
Owner's Manual
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven and retain
this information for future reference.
SERIAL NO.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
1.
2.
3.
a.
b.
c.
4.
Do not attempt to operate this oven with the door open since open door operation can
result in harmful exposure to microwave energy. It is important not to defeat or tamper with the
safety interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the oven door
close properly and that there is no damage to the
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealing surfaces.
The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
CONTENT
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY..... 1
IMPORTANT SAFETY INSTRUCTIONS............................................................................................ 2
SPECIFICATIONS .............................................................................................................................. 3
INSTALLATION................................................................................................................................... 3
RADIO INTERFERENCE ................................................................................................................... 3
MICROWAVE COOKING PRINCIPLES............................................................................................. 4
GROUNDING INSTRUCTIONS ......................................................................................................... 4
BEFORE YOU CALL FOR SERVICE................................................................................................. 4
UTENSILS GUIDE.............................................................................................................................. 5
PART NAMES .................................................................................................................................... 5
CONTROL PANEL.............................................................................................................................. 6
HOW TO SET THE OVEN CONTROLS............................................................................................. 7
Setting digital clock ..................................................................................................................... 7
Microwave cooking...................................................................................................................... 7
Quick start ................................................................................................................................... 7
Auto defrost................................................................................................................................. 7
Auto cook .................................................................................................................................... 7
Child lock..................................................................................................................................... 8
CLEANING AND CARE...................................................................................................................... 9
1

IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliance basic safety
precautions should be followed, including the
following:
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to
excessive microwave energy:
1. Read all instructions before using the
appliance.
2. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or
dropped. If the supply cord is damaged, it
must be replaced by the manufacturer or its
service agent or a similarly qualified person
in order to avoid a hazard
5. WARNING: Only allow children to use the
oven without supervision when adequate
instructions have been given so that the child
is able to use the oven in a safe way and
understands the hazards of improper use.
6. To reduce the risk of fire in the oven cavity:
When heating food in plastic or paper
container, check the oven frequently to the
possibility of ignition.
Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
If smoke is observed, switch off or unplug the
appliance and keep the door closed in order
to stifle any flames.
Do not use the cavity for storage purposes.
Do not leave paper products, cooking
utensils or food in the cavity when not in use.
7. WARNING: Liquid or other food must not be
heated in sealed containers since they are
liable to explode.
8. Microwave heating of beverage can result in
delayed eruptive boiling, therefore care has
to be taken when handle the container.
9. Do not fry food in the oven. Hot oil can
damage oven parts and utensils and even
result in skin burns.
10. Eggs in their shell and whole hard-boiled
eggs should not be heated in microwave
ovens since they may explode even after
microwave heating has ended.
11. Pierce foods with heavy skins such as
potatoes, whole squashes, apples and
chestnuts before cooking.
12. The contents of feeding bottles and baby jars
should be stirred or shaken and the
temperature should be checked before
serving in order to avoid burns.
13. Cooking utensils may become hot because
of heat transferred from the heated food.
Potholders may be needed to handle the
utensil.
14. Utensils should be checked to ensure that
they are suitable for use in microwave oven.
15. WARNING: It is hazardous for anyone other
than a trained person to carry out any
service or repair operation which involves
the removal of any cover which gives
protection against exposure to microwave
energy.
16. This product is a Group 2 Class B ISM
equipment. The definition of Group 2 which
contains all ISM (Industrial, Scientific and
Medical) equipment in which radio-frequency
energy is intentionally generated and/or
used in the form of electromagnetic radiation
for the treatment of material, and spark
erosion equipment. For Class B equipment
is equipment suitable for use in domestic
establishments and in establishments
directly connected to a low voltage power
supply network which supplies buildings
used for domestic purpose.
2

SPECIFICATIONS
Power Consumption: 230V~50Hz, 1200W(Microwave)
Output: 700W
Operation Frequency: 2450MHz
Outside Dimensions: 262mm(H)×452mm(W)×330mm(D)
Oven Cavity Dimensions: 220mm(H)×315mm(W)×279mm(D)
Oven Capacity: 17Litres
Cooking Uniformity: Turntable System {Φ245mm}
Net Weight: Approx.10.5 kg
*All data subject to change, and verification by the user with data available on the nameplate of the oven.
Complaint of error suffers oblivion.
INSTALLATION
1. Make sure that all the packing materials are
removed from the inside of the door.
2. WARNING: Check the oven for any damage,
such as misaligned or bent door, damaged
door seals and sealing surface, broken or
loose door hinges and latches and dents
inside the cavity or on the door. If there is
any damage, do not operate the oven and
contact qualified service personnel.
3. This microwave oven must be placed on a
flat, stable surface to hold its weight and the
heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture,
or high humidity are generated, or near
combustible materials.
5. For correct operation, the oven must have
sufficient airflow. Allow 20cm of space above
the oven, 10cm at back and 5cm at both
sides. Do not cover or block any openings
on the appliance. Do not remove feet.
6. Do not operate the oven without glass tray,
roller support, and shaft in their proper
positions.
7. Make sure that the power supply cord is
undamaged and does not run under the
oven or over any hot or sharp surface.
8. The socket must be readily accessible so
that it can be easily unplugged in an
emergency.
9. Do not use the oven outdoors.
RADIO INTERFERENCE
Operation of the microwave oven can cause
interference to your radio, TV, or similar
equipment.
When there is interference, it may be reduced or
eliminated by taking the following measures:
1. Clean door and sealing surface of the
oven.
2. Reorient the receiving antenna of radio or
television.
3. Relocate the microwave oven with respect
to the receiver.
4. Move the microwave oven away from the
receiver.
5. Plug the microwave oven into a different
outlet so that microwave oven and receiver
are on different branch circuits.
3

MICROWAVE COOKING PRINCIPLES
1. Arrange food carefully. Place thickest areas
towards outside of dish.
2. Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can
smoke or ignite.
3. Cover foods while cooking. Covers prevent
spattering and help foods to cook evenly.
4. Turn foods over once during microwave
cooking to speed cooking of such foods as
chicken and hamburgers. Large items like
roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway
through cooking both from top to bottom and
from the center of the dish to the outside.
GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is
equipped with a cord having a grounding wire with
a grounding plug. It must be plugged into a wall
receptacle that is properly installed and grounded.
In the event of an electrical short circuit,
grounding reduces risk of electric shock by
providing an escape wire for the electric current. It
is recommended that a separate circuit serving
only the oven be provided. Using a high voltage is
dangerous and may result in a fire or other
accident causing oven damage.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Note:
1. If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service person.
2. Neither the manufacturer nor the dealer can
accept any liability for damage to the oven or
personal injury resulting from failure to
observe the electrical connection
procedures.
The wires in this cable main are colored in
accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
1. Check to ensure that the oven is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again
securely.
2. Check for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be
operating properly, test the outlet with
another appliance.
3. Check to ensure that the control panel is
programmed correctly and the timer is set.
4. Check to ensure that the door is securely
closed engaging the door safety lock system.
Otherwise, the microwave energy will not
flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN.
DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
4

UTENSILS GUIDE
1. The ideal material for a microwave utensil is
transparent to microwave, it allows energy to
pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal
utensils or dishes with metallic trim should not
be used.
3. Do not use recycled paper products when
microwave cooking, as they may contain
small metal fragments which may cause
sparks and/or fires.
4. Round /oval dishes rather than square/oblong
ones are recommend, as food in corners
tends to overcook.
5. Narrow strips of aluminum foil may be used
to prevent overcooking of exposed areas.
But be careful don’t use too much and keep
a distance of 1 inch (2.54cm) between foil
and cavity.
The list below is a general guide to help you select the correct utensils.
COOKWARE MICROWAVE
Heat–Resistant Glass Yes
Non Heat–Resistant Glass No
Heat–Resistant Ceramics Yes
Microwave–Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminum Foil & Foil Containers No
PART NAMES
Door Safety Lock System1.
2.
3.
4.
5.
6.
Oven Window
Wave Guide
Turntable Roller
Glass Tray
Control Panel
5

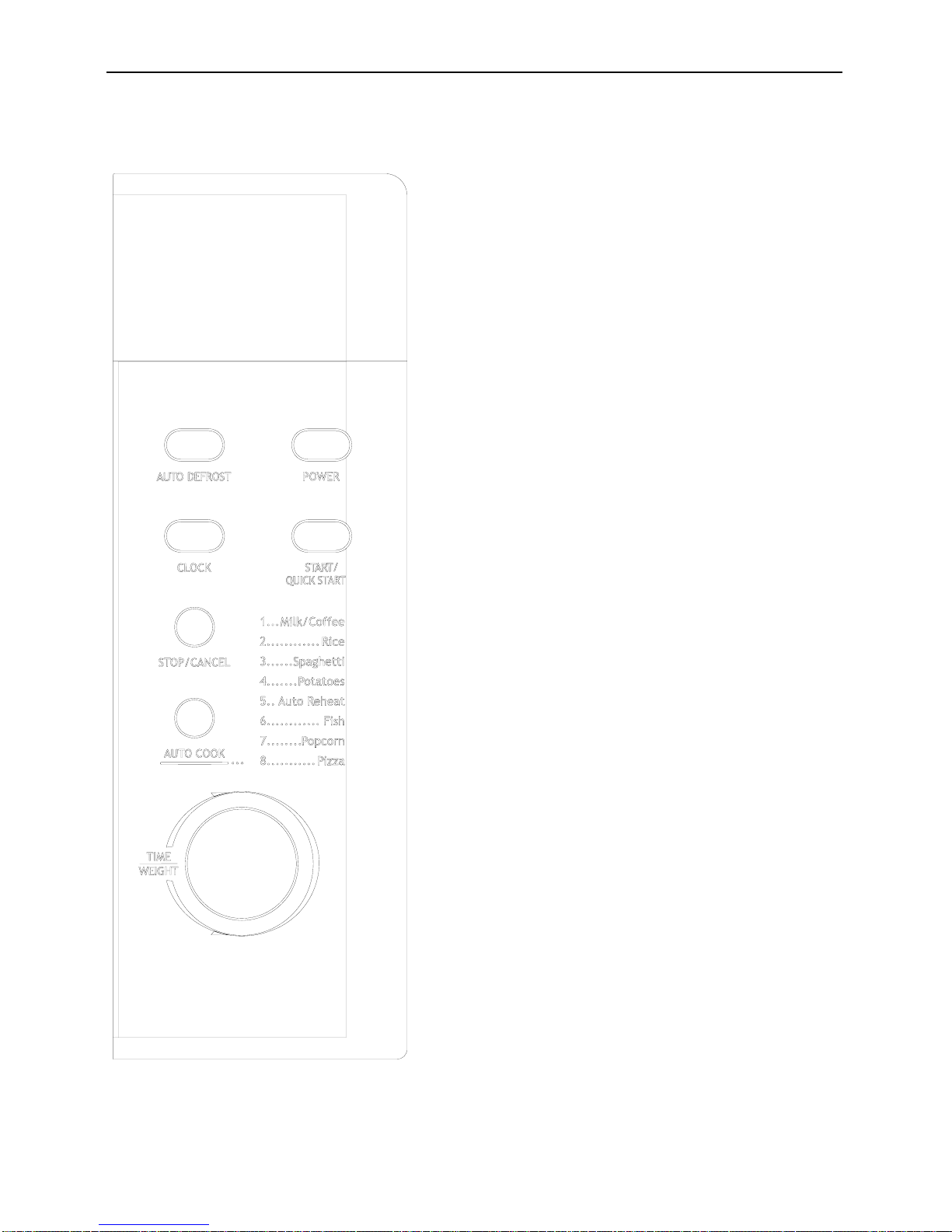

CONTROL PANEL
MENU ACTION SCREENQ
Ù
Q
Ù
Q
Ù
Q
Ù
Q
Ù
Q
Ù
Ù
Q
Ù
Ù
Q
Ù
Ù
Ù
Cooking time, power, action indicators, and
clock time are displayed.
POWER
Touch this button a number of times to set
microwave cooking power level.
AUTO COOK
Press for instant settings to cook popular food,
AUTO DEFROST
Touch to defrost food by weight.
CLOCK
Touch this button to start setting the oven clock
and ending by touching it again.
TIME/WEIGHT
Turn the dial to enter the oven clock time or
input cooking time.
Rotate to specify food weight or number of
servings
START/QUICK START
Touch to start a cooking program.
Simply touch it a number of times to begin
express cooking without previously setting power
level and cooking time.
STOP/CANCEL
Press to cancel setting or reset the oven before
setting a cooking program.
Press once to temporarily stop cooking, or
twice to cancel cooking altogether.
It is also used for setting child lock.
6

HOW TO SET THE OVEN CONTROLS
Each time a button is touched, a beep will sound to acknowledge the touch.
SETTING DIGITAL CLOCK
With the oven ready for input, touch the
CLOCK button once or twice to set the digital
clock in 12 or 24 hours cycle.
FOR EXAMPLE: Suppose you want to set the
oven clock time to 8:30.
Press CLOCK button once or twice1.
2.
3.
4.
5.
1.
2.
3.
4.
Turn TIME/WEIGHT to indicate the hour
digit 8.
Press CLOCK button.
Turn TIME/WEIGHT dial to indicate the
minute digits until the screen shows 8: 30.
Press CLOCK to confirm the setting.
To check clock time during cooking, press the
CLOCK button once, the time will be displayed
for 5 seconds.
AUTO DEFROST
The oven allows the defrosting of meat, poultry,
and seafood. The time and the defrosting
power are adjusted automatically once the
weight is programmed. r.
FOR EXAMPLE: Suppose you want to defrost
600g of shrimp.
Place the shrimp to be defrosted into the
oven.
Press AUTO DEFROST button once.
Turn TIME/WEIGHT dial to choose a
weight 600g.
Press START/QUICK START button.
MICROWAVE COOKING
To cook with microwave power alone, press the
POWER button a number of times to select a
cooking power level, and then use the
TIME/WEIGHT dial to set a desired cooking
time. The longest cooking time is 60 minutes.
Select power level by pressing the POWER
button:
PRESS POWER
BUTTON
COOKING
POWER
Once 100%
Twice 80%
3 times 60%
4 times 40%
5 times 20%
6 times 0%
For example, suppose you want to cook for 1
minute at 60% of microwave power.
Press POWER button 3 times.1.
2.
3.
Turn TIME/WEIGHT to 1:00.
Press START/QUICK START button.
QUICK START
This feature allows you to start the oven
quickly.
Press the START/QUICK START button a
number of times to set the cooking time, the
oven starts work at full power level immediately.
AUTO COOK
For food or the following cooking mode, it is not necessary to program the duration and the cooking
power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.
In order to do this, press the AUTO COOK button a number of times to select a category of
food/cooking mode. Then turn the TIME/WEIGHT dial to indicate weight of food to be cooked. The
oven begins cooking once the START/QUICK START button is engaged.
You may need to turn food over at the middle of cooking time to obtain uniform cooking.
For example: to cook 400g of fish.
7

Press the AUTO COOK button 6 times.
1.
2.
3.
Turn TIME/WEIGHT dial to indicate a weight of 400g.
Press START/QUICK START button.
Auto Cook Menu
Code Food/cooking mode
1 Milk/Coffee (unit)
2 Rice (g)
3 Spaghetti (g)*
4 Potatoes (g)
5 Auto Reheat (g)
6 Fish (g)
7 Popcorn (g)
8 Pizza (g)
1. Turn TIME/WEIGHT dial to indicate weight of food。
2. The result of auto cooking depends on factors such as
the shape and size of food, your personal preference
as to the doneness of certain foods and even how well
you happen to place food in the oven. If you find the
result at any rate not quite satisfactory, please adjust
the cooking time a little bit accordingly.
3. *Add boiling water before cooking.
CHILD LOCK
Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will
show up on display screen, and the oven can not be operated while the CHILD LOCK is set.
To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep sounds and
LOCK indicator lights.
To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock
indicator on display goes off.
8

CLEANING AND CARE
1. Turn off the oven and remove the power
plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When
food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild
detergent may be used if the oven gets
very dirty. Avoid the use of spray and other
harsh cleaners as they may stain, streak
or dull the door surface.
3. The outside surfaces should be cleaned
with a damp cloth. To prevent damage to
the operating parts inside the oven, water
should not be allowed to seep into the
ventilation openings.
4. Wipe the both sides of the door and
window, the door seals and adjacent parts
frequently with a damp cloth to remove
any spills or spatters. Do not use abrasive
cleaner.
5. Do not allow the control panel to become
wet. Clean with a soft, damp cloth. When
cleaning the control panel, leave oven
door open to prevent oven from
accidentally turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the microwave
oven is operated under high humidity
condition. And it is normal.
7. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the
oven with mild detergent. The roller ring
may be washed in mild sudsy water or
dishwasher. When removing the roller ring
from cavity floor for cleaning, be sure to
replace in the proper position.
9. Remove odors from your oven by
combining a cup of water with the juice
and skin of one lemon in a deep
microwaveable bowl, microwave for 5
minutes. Wipe thoroughly and dry with a
soft cloth.
10. When it becomes necessary to replace the
oven light, please consult a dealer to have
it replaced.
11. The oven should be cleaned regularly and
any food deposits removed. Failure to
maintain the oven in a clean condition
could lead to deterioration of the surface
that could adversely affect the life of the
appliance and possibly result in a
hazardous situation.
12. Please do not dispose this appliance into
the domestic rubbish bin; it should be
disposed to the particular disposal center
provided by the municipalities.
9
