IFEX Technologies 3000 User manual

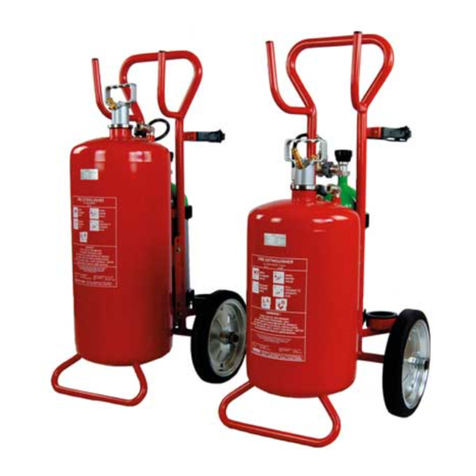

IFEX 3000 Impulse Fire Extinguishing Technology
IF 3001/72
1. Impulse Gun IFEX 3001 Serial-n°:______________
2. Water container IFEX 3072 Fabr.-n°:______________
IFEX Technologies GmbH, Hansestr.18, D-27419 Sittensen
Telephone: [phone] Fax: [phone]
Homepage: www.ifextechnologies.com
e-mail: [e-mail]
Manual
Edition
3012-E-10/01-20.11.12
Fire Extingui
shing Unit With Hose Reel

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 2
Hansestraße 18, 27419 Sittensen Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 2
Table of contents
Safety Regulations..................................................................................................................... 4
Labelling ................................................................................................................................... 5
Instruction for use and operation ................................................................................................. 6
A. Preparation..................................................................................................................... 6
B. Use and operation........................................................................................................... 6
C. After use of the IFEX Impulse Gun and trolley ................................................................... 7
Test and filling instructions.......................................................................................................... 7
1. Testing of the equipment.................................................................................................. 8
2. Testing of the IFEX 3001 Impulse Gun .............................................................................. 9
3. Testing of the hose reel.................................................................................................... 9
4. Check the water container and the mounted fittings.......................................................... 10
5. Testing of the water and air pressure hoses including couplings etc................................... 10
6. Testing of the container.................................................................................................. 11
7. Filling instruction water and air pressure.......................................................................... 13
Machinery and tools for maintenance......................................................................................... 14
Technical drawings .................................................................................................................. 15
1. Impulse Gun IFEX 3001, assembly ................................................................................. 15
2. IFEX 3072 Hose reel fire extinguishing unit, complete....................................................... 16
3. Hose reel, assembly (1)................................................................................................. 17
4. Hose reel, assembly (2)................................................................................................. 18
5. Mounting rack with sledge, assembly .............................................................................. 19
6. Top Filling unit and filter, IFEX 3001/72 ........................................................................... 20
Maintenance and test certification.............................................................................................. 21
Appendix A/ Tests...................................................................................................................... 1
1. Testing the extinguishing agent container (by an expert)....................................................... 1
2. Testing the air pressure container of the Impulse Gun (by an expert)..................................... 1
3. Tests according to national regulations for extinguishing agent container 72l......................... 2
4. Tests according to national regulations for air pressure chamber of Impulse Gun.................... 3

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 3
Hansestraße 18, 27419 Sittensen Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 3
Appendix B/ fitting and maintenance............................................................................................ 1
1. Introduction..................................................................................................................... 1
2. Routine maintenance....................................................................................................... 2
3. Operation of the drum brakes........................................................................................... 2
4. Brake adjustment............................................................................................................ 2
5. Rewind problems............................................................................................................. 2
6. Leaky rotating swing joint- 3/4” water................................................................................. 3
Technical drawings .................................................................................................................... 4
1. Sliding skid, support for air cylinders ................................................................................. 4
2. Sliding skid, base frame................................................................................................... 5
3. Water connection at hose reel.......................................................................................... 6
4. Air connection at hose reel............................................................................................... 7
In addition:TÜV certificate, declaration of conformity, warranty.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 4
Hansestraße 18, 27419 Sittensen Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page| 4
BEFORE USE OF THE IFEX GUN AND HOSE REEL
PLEASE READ THE INSTRUCTION MANUAL
CAREFULLY!
NEVER AIM AT ANIMALS OR HUMAN BEINGS. MINIMUM SAFETY
DISTANCE IS 6 METERS.
BEWARE OF ELECTRICAL UNITS.
USE ONLY UP TO 1000 V;
MINIMUM SAFETY DISTANCE 1 METER.
CAUTION!
IFEX TECHNOLOGIES GMBH IS NOT RESPONSIBLE FOR ANY
DAMAGE TO ANIMALS, HUMAN BEINGS OR MATERIAL CAUSED
BY WRONG OR IRRESPONSIBLE USE
AND OPERATION OF THE IFEX 3000 IMPULSE FIRE
EXTINGUISHING EQUIPMENT.
IFEX 3000 PRODUCTS ARE DESIGNED
FOR FIRE FIGHTING PURPOSES ONLY
Safety Regulations

Page | 5
FIRE EXTINGUISHER
Fire extinguishing agent:
Propellant:
Temperature range:
Type:
Telephone: [phone] Telefax: [phone]
IFEX Technologies GmbH, Hansestr. 18, D-27419 Sittensen, Germany
4.
2.
1.
AFTER USE ALWAYS RECHARGE AND KEEP READY FOR OPERATION!
AGENTS OR ADDITIVES ONLY.
3.
A
TO BE USED WITH RECOMMENDED FIRE EXTINGUISHER
72 LITERS WATER
2 x 34 A
72 Liters Water
2x6Liters Compr. air 200 bar
THE FIRE EXTINGUISHER NEEDS TO BE TESTED ONCE A YEAR.
with 36 ml PL-2/94
N° of approval:
+5° C bis + 60° C
OPEN
CYLINDER
VALVE
RELEASE
TRIGGER
LOCK
OPEN
WATER
VALVE
PULL
TRIGGER TO
OPERATE
GUN
Attention
Operation by trained personal only!
Safety distance to human beings 6 meters!
Be careful at electrical devices. Up to 1000V only!
Minimum distance 1 meter.
Follow instructions of manufacturer.
IFEX 3001/72
IFEX 3000
P 3-6/99
Labelling

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 6
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page| 6
Note: The pressure gauge at the pressure regulator only shows the approximate
filling pressure of the air cylinder.
Instruction for use and operation
A. Preparation
1. Fill the water cylinder with extinguishing agent as described in para 7.1 of the
filling instructions.
2. Fill the air pressure cylinder with air as described in
Para 7.2 of the filling instructions.
3. The unit will be ready for operation as described in para 8 of the test and
filling instructions.
4.Put on personal safety wear and breathing apparatus as per standard
safety regulations.
B. Use and operation
1.Loose the connections of the gun at the vehicle.
2.Take the IFEX Impulse Gun, and put the strap around the shoulder.
3.Adjust the shoulder strap.
4.Hold the gun upwards at an appr. 30overtical angle.
5.Check whether the water valve is closed.
6. Unwind the hose from the hose reel. (unlock safety catch)
7.Slowly open the air pressure cylinder valves at both air cylinders.
There will be 6 bar pressure on the water container and the water hose, and
25 bar pressure on the gun.
8. Further hold the gun upwards at an 30° vertical angle. Open the water valve.
The gun is filled, when small amounts of water spray through the splitted rubber
diaphragm of the gun. Close the water valve. Adjust the safety catch on the gun.
The Impulse Gun is ready for use.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 7
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 7
10. Please note:
The Impulse-technology achieves a very high velocity in that water is shot from the gun
at a high speed. This leads to a short but powerful recoil of the gun. In order to minimize
this recoil it is advisory to move the gun forwards while shooting and to bend your
body forwards with your legs in a so-called “walking position”. Always aim slightly below
the aligned target. Pull the trigger evenly and let go immediately after the shot. The air
pressure will be refilled automatically within 3 seconds. Open the water valve and
repeat the extinguishing process as before. The most effective short range is between 1
and 10 meters. The total shot range is 16 meters.
11.When well trained in using the gun andif rapid shooting is required, simply let the
water valve open and shoot when the gun is filled. Use the refilling time to
consider where to place the next shot. For the extinguishing of smaller fires the
gun can be filled with smaller amounts of water simply by opening the water
valve for shorter periods or through a faster shooting sequence.
12.Regular training and exercise with the IFEX 3000 Impulse fire extinguishing equipment
will result in maximum fire extinguishing efficiency, reducing the time needed extinguish
fires and the amount of water used.
C. After use of the IFEX Impulse Gun and trolley
1.Close the water valve and empty the water chamber.
2.Close the air pressure cylinder valve.
3. Empty the gun by pulling the trigger repeatedly until the remaining air has left
the hoses and the gun.
4. Secure the gun by turning of the safety catch at the trigger.
5. Put the gun in the designated holder and fix it with the strap.
6. Use the rewind mechanism to roll the hose back onto the hose reel.
7. Empty the extinguishing agent container from air pressure by opening
the pressure relief valve.
8. Refill the water cylinder with fire extinguishing agent as per para 7.1 and the air
pressure cylinders as per para 7.2 of the filling instruction
Test and filling instructions
Please note carefully:
These test and filling instructions describe the standard rules for testing and maintenance by
the user of the mobile IFEX 3000 Impulse fire fighting equipment. Maintenance should be
carried out as per DIN 14406, part 4, latest edition.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 8
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 8
WARNING!
Before testing of the IFEX 3000 Impulse fire extinguishing equipment:
1. Make sure the air pressure valve is closed.
2. Use the drain valve at the water container to release remaining pressure
3. Make sure there is no remaining pressure in the IFEX Gun or hose. This is done
by triggering the gun repeatedly until the remaining air in the hoses and the gun
is evacuated.
Caution!
Put on the gun according to the user manual as there may be a recoil due to the
remaining air in the gun.
1. Testing of the equipment
To ensure the perfect functioning of the equipment it is required to have it tested
by an expert at least once a year. The periods between testing of the equipment may
need to be reduced if this is required by local regulations.
1.1 Visual testing
Test the equipment's general condition (cleanliness, condition of the fittings, the
hoses, the water container, the pressure containers, the safety equipment, the gun,
the hose connections, the hose reel with safety catch, sledge mounting, the inscriptions
of the air cylinders). Equipment and fittings which are damaged will
need to be replaced immediately.
1.2 Spare parts
Use certified spare parts only. IFEX-original parts are certified.
1.3 Testing of the fire fighting equipment
according to the testing regulations for "IFEX 3072 Impulse fire fighting equipment".
1.4 Preparation
Before use of the fire fighting equipment IFEX 3072 according to the filling
instructions for "IFEX 3072 Impulse fire fighting equipment" as per para 8.0.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 9
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 9
2. Testing of the IFEX 3001 Impulse Gun
Caution - note warning on page 8.
2.1 Disconnect the air pressure and water hose from the gun.
2.2 Check the shoulder strap for damage.
2.3 Check the screws at the front and back strap connections.
2.4 Check the membrane at the barrel end for damage.
(The membrane has 6 incisions from the inside to the outer side, ending appr.
6 mm from the outer side).
2.5 Check the screwed cap on top of the membrane, if necessary tighten it with the
special tool.
2.6 Check the front handle for tightness, if necessary tighten with wrench KS 13.
2.7 Check the water connection at the gun and the water coupling for damage
and cleanliness.
2.8 Check the water valve for external damage and condition of operation of valve.
2.9 Check the stability of the handle at the gun (key KS 3) as the operational
condition of the mechanism for operation.
2.10 Check the air pressure connection at the gun handle for damage and cleanliness.
3. Testing of the hose reel
Caution - note warning on page 8.
3.1 Check the hose reel and hose line for damage and corrosion.
3.2 Check the tightness of the fixing screws (hose reel to sledge).
3.3 Check the tightness of the fixing screws (mounting unit to vehicle).
3.4 Check the rewind mechanism.
3.5 Check the ease with which the hose reel can be turned. If necessary grease where
needed.(see Appendix B „Installation, maintenance of the hose reel“)
3.6 Check the air pressure connection coupling visually.
3.7 Check the hose reel water supply connection visually.
3.8 Check whether the instruction sticker is readable. (inscription as per DIN EN 3 Part 5)
3.9 Maintenance corresponding to Appendix B „Installation, maintenance of the hose reel”.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 10
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 10
Reminder:
1. All couplings, threads and other parts of the extinguishing unit need to be
checked for cleanliness, and cleaned if necessary!
2. All parts which are demounted for testing need to be re-installed expertly.
3. After re-installation of all parts and re-connection of the water connection
the safety valve needs to be checked. Fill the container with water and air
pressure. The valve requires 6 bar +10% tolerance (6,6 bar). If the safety
valve op
ens before reaching 6,0 bar, or if it fails to open at 6,6 bar you
will need to exchange it.
4. Check the water container and the mounted fittings
Caution -note warning on page 8.
4.1 Disconnect all water and air hoses from the container, and check the couplings.
4.2 Remove the air pressure bottles from the holders, check straps for damage.
4.3 Check the water container for external damage, scratches in the paint and corrosion.
4.4 Check the water connection and the fittings at the container and the couplings
for damage.
4.5 Check the air pressure connection and the fittings at the container and the
couplings for damage.
4.6 Check the manometer for damage.
4.7 Remove the filling unit from the container by turning the handle anti-clockwise.
4.7.1 Check the filling unit for damage.
4.7.2 Check the screw-in thread and the o-ring sealing for damage.
4.7.3 Check the reducing valve and spindle thread for damage.
4.7.4 Check the safety valve for damage.
4.7.5 Check the safety thread at the handle for tightness (KS13).
4.8 Empty the water container and check the inside visually.
4.9 Check the type plate and instruction sticker for damage and readability.
4.10 Demount the filters (KS 21), and check for damage .(Filters are optional equipment).
4.11 Check the fixing of the water container on the sledge.
5. Testing of the water and air pressure hoses including couplings etc.
Caution- note warning on page 8.
5.1 Water hoses:
a) Water hose from the Impulse-gun to the delta connector.
b) Co-axial water hose (with air pressure hose inside),
both ends, each with a delta connector.
c) Connection of water hose to delta connection in the hose reel
¨Check the water hoses visually for damage.
¨Check the couplings at the hoses and the hoses for damage and cleanliness.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 11
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 11
CAUTION!
The pressure hose in the water hose can only be checked for function while
in operational condition through triggering of the gun.
¨Check delta connector plus screws for damage and cleanliness, and check safety
screw for tightness (key KS3).
5.2 Pressure hoses:
a) Pressure hose from the delta connector to the Impulse-gun.
b) Pressure hose between the two delta connectors (this hose floats in the
water hose).
c) Pressure hoses from the pressure regulators to the hose reel.
d) Pressure hose from the hose reel to the delta connectors (inside the reel).
¨Check the pressure hoses visually for damage and cleanliness.
¨Check the couplings at the hoses and the hose swaging sockets for damage and
cleanliness.
5.3 -.Testing of the pressure hose para 5.2 b) between the two delta connectors
The pressure hose between the two delta connectors needs to be demounted
every 5 years. Then remove the air connector piece and pull the air pressure
hose out of the water hose.
¨Check the hose visually for damage.
¨Check the connecting pieces, threads and sealings for damage.
6. Testing of the container
The air pressure container needs to be checked for
- national pressure cylinder regulations.
- cylinder valve for damage,
- external damage,
- air pressure of the container checked per test manometer,
- the check-up needs to done as follows:
1. Make sure the cylinder valve is closed:
2. Remove the pressure regulator from the bottle, fit test manometer and slowly open
the valve and read the pressure: IFEX 3072 = 6 l./200 bar, Minimum pressure
180 bar/+20°C, if less, refill.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 12
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 12
The Maintenance/Testing needs to be confirmed on page 20
"Maintenance record" of the manual.
Deficiencies will have to be repaired and faulty or deficient parts exchanged.
Only use original parts, note para 1.1 and 1.2.
After complete examination of the entire IFEX- Fire Extinguishing Unit
return the unit to operability according to page 13.
Note: The pressure meter at the pressure regulator shows the approximate filling
pressure of the pressure bottle.
6.1 Pressure regulator
Remove the pressure regulator from the pressure bottle valve (if not already done
as per 6.1 )
- Check the manometer glass for damage and cleanliness
- Check the couplings and thread for damage and cleanliness
Note the technical regulations TRB 502, TRB 532 and TRB 700.
Note the technical regulations TRB 502, TRB 532 and TRB 700.
6.2 Testing the fire extinguishing agent container
The fire extinguishing agent container needs to be tested by a competent person
according to Directive 2009/104/EC and national regulations.
Note appendix A, page 1, para 1.1.
Note the technical regulations TRB 502, TRB 532 and TRB 700.
6.3 Testing the air pressure container on the gun
The air pressure container needs to be tested by a competent person according to
Directive 2009/104/EC and national regulations.
Note appendix A, page 1, para 1.2.
Note the technical regulations TRB 502, TRB 532 and TRB 700.
6.4 Maintenance label:
Maintenance dates need to be entered on the label, which should not obstruct
any prints of the manufacturer.
Note DIN 14406-4 latest edition.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 13
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 13
Note:
Should the mobile equipment be used for training, it will suffice to fill
the water container without fire extinguishing agent and with water only.
After training it is important to refill the water container and air pressure
bottles immediately according to para 7.1 and 7.2 , to ensure the
equipment is ready for use.
7. Filling instruction water and air pressure
7.1 Filling of the water container
a) Fill the container with fresh and clean water through the filling opening
(appr. 60 Liter).
b) Pour 36 ml(+0,05%) PL-2/94 - FC-201F in the container through the
filling opening.
c) Fill the water container with clean water 72 l -5% tolerance (-3,6 l)!
d) Tighten the top filling closure firmly.
7.2 Filling of the air pressure bottle
Check the air pressure level with a test manometer.
- Test as follows:
1.Make sure the cylinder valve is closed.
2. Remove the pressure regulator from the bottle, adjust the test manometer, open
the valve slowly and read the pressure:
IFEX 3072 = 2x6l l/200 bar, Minimum pressure 180 bar/+20°C, if less, refill.
Note: check both air pressure cylinders!
8. Getting the unit ready for use
8.1 Make sure the water container and the air pressure bottles are filled according to para
7.1 and para 7.2.
8.2 Fit the air pressure bottles to the designated mounting support.
8.3 Screw the pressure regulator to the bottle valves on the air pressure bottles.
8.4 Connect the air pressure hose from the pressure regulator to the water container.
8.5 Connect the water hose (Delta connector) to the water container.
8.6 Connect the air pressure hose (Delta connector) to the pressure regulator.

IFEX Technologies GmbH IFEX 3000 Impulse Fire Fighting Technology N°: IF3000-130
Instruction Manual
Instructions for Use and Operation
Page | 14
Hansestraße 18, 27419 Sittensen
Type IFEX 3072 Fire Extinguishing Unit with hose reel Date: 30.11.12
Page | 14
The fire extinguishing unit is now ready for use!
8.7 Place the IFEX 3001 Impulse Gun in the holder and secure it with the fixing strap.
8.8Connect the air pressure hose (Delta connector) to the pressure regulator.
8.9Connect the air pressure hose to the IFEX 3001 gun.
8.10Connect the water hose to the IFEX 3001 gun (The water valve needs to be closed).
Machinery and tools for maintenance
The following list of tools is separate from the instructions.
The listed tools are to be used for their specific purposes only.
1.Test pressure gauge 0 bar to 400 bar
2.Double open-end wrench 13 x 15mm
3.Double open end wrench 14 x 17mm
4. Open-end wrench 21mm
5. Open-end wrench 26mm
6. Open-end wrench 27mm
7.Open-end wrench 32mm
8.Open-end wrench 36mm
9. Ring-wrench 8mm
10.Pipe angle wrench 13 x 110mm
11. Hook wrench 60-90 x 5mm
12.Hexagon screwdriver 3mm
(for inner hexagon screw)
13.Grease gun with lubricating grease
Torques:
¨Front support grip 25 Nm
¨Pistol grip (SW 3 inner hexagon) 7 Nm
¨Fastening screws 30 Nm
¨Ermeto- hose screw joints DN20 -18L100 Nm
(Co-axial hose)

Page| 15
6
52
4
7
9
10
11
12
13 12
13
13
14
Air pressure connection
OPEN CLOSE
Gun trigger lock
lock
release
Diaphragm
3
Water connection
1
IFEX 3000/1, Impulse Gun-compl.
IFEX 3000
Impulse Fire
Extinguishing
Technology
IF-3001-01
IFEX Code:
Scale
IFEX Technologies GmbH
Hansestraße 18
D-27419 Sittensen
Germany
Item
Qty.
Material
11
10
9
8
1
1
1
7
6 5
4
1 1
1
1
11
2 31
1
A2
DIN
12
13 14
Sheet
985
Plastic
A2
3 2
%
Surface
Name
DIN ISO
1302
acc.
Dimension without
tolerance acc.
DIN 7168-m
Index Alteration Date
Name
Norm
Drawn Date
Breese
1998
IMPULSE GUN IFEX 3001
ASSEMBLY
Check.
15.12.
Water valve
Front support grip
Snap on air pressure connection
Water barrel
Air power chamber
High performance valve
Screwed cap
Shoulder strap
Washer DIN 125
Hexagon nut
Muzzle with split diaphragm
Description and type
Washer-Teflon
Pistol grip w. trigger & locking dev.
01000017
01000015
01000040
01000016
01000014 01000008 01000009
01000012
Art.-n°
IFEX Code
Order of spare parts: Please use part list nos.
15
16 17
1000003
1000004 1000007 1000021
Rear support for shoulder strap 1.4301
1.4301
Forward support for shoulder strap
Burst disc with socket wrench
Special wrench for screwed cap St.
18
26.09.01
Breese
NATO-STOCK NR. VersNr. 4210-12-349 8251
15 16
15
Part List
IF-IG-3000-110
CAD4-Tetra\H:\HB-3012engl/Blatt15A
Remark:
Technical drawings
1. Impulse Gun IFEX 3001, assembly

Page | 16
IFEX 3000
Im p u lse Fi re Extinguishin g
Te c h n o l o g y
Ind ex Alteration
Date
Hansestraße 18
D-2 7 41 9 S it t en se n
Germany
Name
Description andType
IFEX Technologies GmbH
IFEX Code:
IF-3000
Scale %
Drawn
Date
Drawi ng-n°
IF-RE-300 005-2
Blat t
Breese
Check.
No rm
IF-CO-300 007 -4.1
Dimension without
tolerance acc.
DIN 71 68-m
Surface
1302
Pos.
1 1
1 1 1 1 1
1 1
Oty,
1 1
IFEX Code
1
65009
2 3
4 5 6
2IF-CY-300004-2/12
IF-RE-300 005-5-2
65000066 18000063
27055 54001 18120
7IF-TR-30 0002-3 8Filter 3/4" IF-AC-300 008-3
10 11
12 13
14
9
18110
Gerade Einschraubverschraubung 3/4" x L22
2
Einstellbare Winkelverschraubung 22L
IF-SL-30 000 6-5?
IF-SL-300006-6?
2IF-SL-300006-6?
15 1IF-AC-300 008 -11
16
17
2
19
20 21
18
IF-CO-300 030-3
1 2 1 227000007 3
63000001 18000055
Manometer Ø 41, 0 - 10 bar, G 1/8"
"X"
FEUERLÖS CHER
öffne n
entsi chern
Lösc hm itt e l :
Tr ei b mi t t e l :
Funktionsbe reich:
Ty p : Nr. der A nerken nung:
IFE X 300 0
Telefon:[phone] Telefax: [phone] IFEXGmb H , Hanses trasse18, D-2741 9 Si tten sen
0° C bi s + 60 ° C
1.
di e m i t d e m a n e r k an n t e n M u s t e r ü b e r ei n s t i mm e n .
Ac h tun g!
besonder s ge schultes Per sona l.
3.
Nicht au f Mensch oder Tier zielen;
A
Lösc h er m i nd es tens 1 m al i m J ah r au f E i ns at z b e r ei t sch af t üb er p r ü fe n.
Nurs olcheLösch-/ Tr eibm ittel und E rsatzteilever wend en,
WAS SER
A
Wa s s e r
IFEX3001/3550
TanknachjederBetätigung neufüllen!
Mind esta bst and 6 Met er; b e i elek tri sche n
Anlagen nur b is 1000V ; Mindestabstand 1 Meter
Hinwei se im H and buch des Herste llers b eacht en.
Lösch p is t ol e
Einsatz nur du rch die Feuerw ehr ode r
3
4
5
6
7
8
9
2x 6 Liter Druckluft 300 b ar
Luftf lasc hen betätigen
betätigen
4.
2.
Wasserventil
Lösch p is t ol e
09000035 IF-CO-300 007-8
01001
10
11
12
13
14 15
16/17
18
19 20
22
1
65000101
22
21
1
23
65000088 65000041 65000043
65059 65058 65056 65057 65055
23
Pos. 1
Sicherungswinkel
Stopper
IF-HR-300001-2 IF-HR-300001-5
IF-HR-300001-4
IF-HR-300001-1
IF-HR-300 002-10
acc.
DIN IS O
Name
Order of spare pa rts: Please use part list nos. Ersatzteilbestellung nur mit Art. Nr. Re mark /e merk ung:
Ursprung: Pr-17-2
Mounting rackwith sledge
72 liter water container
Aircylinder6 liter/200 bar with valve - steel Filling unit compl.
Water hose hose, assy.
Air pressure hose, assy. Air pressure unit at hose reel unit Airpressure hose, regulator-hose reel, assy.
Angle 1/4" i/a
Red. piece 1/4" outside - 1/8" inside Coupling with NR - 1/4" CO-axial hose 55 m , assy. Impul sGun 1 l iter Plug 1/2" - nickel plated Rewind handle
Part of Nr. 27055
Ent leerung/ Draining
Labeling as per DIN EN3, Teil 5 - english
Top of sledge
Lub rication
Detail " X"
Cone for rewinde handle
Air pressure hose
Waterhose (Co-a xi al Hos e)
Bearing
Fastening M 10
Rack
Bearing
Sledge
Drum brake
Sledge raising 700 mm
Sledge brake
Impuls Gun
2001
26. 09 . 26. 09. Breese
Pressure regulator 300/7/25 bar compl.
Hosereel 55 m with rewind handle - left
Art.-n°
Hosereel Equipment- left/55m hose compl. with sledge, 72 l water container, air pressure bottles, regulator, hoses and impulse gun
- 55 m Hose compl. - - Rewind handle left side-
IFEX 3 072 Hosereel Fire Extinguis hing Unit
19
16
H:/CAD4-Tetra/Ifx 3072-Engli/Bla tt 17
IF-3000-130
IFEX 3001 Impuls Gun see IF-3000-130 sheet 16
2. IFEX 3072 Hose reel fire extinguishing unit, complete

Page | 17
IFEX Technologies GmbH
Hansestraße 18
D-27419 Sittensen
IFEX 3000
Index
Alteration
Date
Name
Impulse Fire
Extinguishing
Technology
Dimension without
tolerance acc.
DIN 7168-m
Surface
acc.
DIN ISO
1302
Name
Date
IFEX Code:
Scale %
Breese
1
IFEX Code
19.04.
1999
Drawn
Check
Norm
Germany
IP-3100-1
4
Art.-n°
1
1
2
3
Ursprung : H:/CAD4/IFEX/HR-002-5
27060
=
127 127127 = 489 70
127 127127
546
508
4x boring Ø10,5 1
3
19
3
5
5
2
6 7
595
562
190
1
2
IF-3000-140E
G3/4"Water
- Lower (Rewind) position; Drum unbraked
- Middle (Braket) position; The brake is partially applied in order to control the drum during deployment of the hose. - Upper (Locked) position; The drum is fully applied. The position should be selected during transit or when the hose is in use is a positive lock on the drum is required.
Description and type Drawing-n°
Qty
Item
Hosereel Assembly
H:/CAD-Tetra/Ifx3072-engl/IFX30100E
4
1
1
5
6 7
3
2
1 1 1
1
IF-HR-30001-4-1 IF-HR-30001-4-2
65056 IF-SL-300006-2-1
1/4" Air pressure swingjoint (Part at 1) 3/4" Water swing joint (Part at 1)
Rewind handle
G1/2" Water Connection
G1/8" Connection elbow with Plasticpipe
Hosereel compl. with 55 m hose. Mat. steel sheet red painted, 24V-E-electric rewind
CO-axial Hose 3/4"+1/4" Assy.
Greasenippel
G1/4" Air
3. Hose reel, assembly (1)

Page | 18
1
IP-3100-1
IFEX Technologies GmbH
Hansestraße 18
D-27419 Sittensen
Germany
IFEX 3000
Index Alteration Date Name
Impulse Fire
Extinguishing
Technology
Dimensions without
tolerances acc.
DIN 7168-m
Surface
acc.
DIN ISO
1302
Name
Date
Check
Norm Drawn
IFEX Code:
Scale %
Breese
Hose reel,assambly
Description and type
Oty
Pos.
1
Art.-n°
27055
IFEX Code
1
2
4
5
6
7
8
10
Drawing-n°
IF-3000-130-1
2001
26.10.
10
9 8
7
6 5
4
1
1
1
1 1 1 1
Adapter ¼" x 1/8"
Quick snap on connection air
31
21Crank handle
Pressure regulator 25 bar, ass.
27150 65100
Alt. pressure regulator 25/7bar compl.
27000045
18000031
Air pressure hose from reg. to hose reel compl.
27151
65055
CO-axial hose 3/4"+1/4" ass. without parts 4 and 5.
70005
70006
Water hose ass. Impulse Gun - 510mm Air pressure hose, ass. Impulse Gun
1127000020 Hose reel (without hose)
metal sheet red painted Hose reel complete up to 55 m hose metal sheet red painted, crank handle left side
crank handle
drawn left
right mirrow image
IF-HR-300001-4
IF-HR-300001-4
IF-SL-300006-2 IF-SL-300006-5 IF-SL-300006-6
Grease nipple
Pivot for
Altern. 9
Air connection
Water connection 3/4
3
4. Hose reel, assembly (2)

Page | 19
Ge rman y
D-27419 Sittensen
Han s es traß e 18
IFE X Technologi es GmbH
IFEX 3 000
Im pu l se Fi re
Extinguishing
Te ch no l o gy
IFEX Cod e: IF-3000
Scale
Index Alteration Date Name
Breese
Dra wn
Check
Norm
Date Name
Surface
acc.
DIN ISO
1302
Dimension without
tolerances acc.
DIN 7168-m
1999
12.04.
Art.-n °
IFEXCode
1
Descriptionand type
1
Item Oty Drawing-n°
2
Slide bearing
Stopper
49
IFEX
zul. Bet r. -Ü ber Inhalt
8
Baujahr
bar
CY LI NDE R 3 0 7 2
72
XX XXX X
TE ST P RE S S . 1 0 . 4 ba r
Fabr. - Nr. Ba um . TY P
21
65009
31
1
54001 27055
65000066
18000063
1:5
2
3 4
4
3
5
2
4
3/4Filter
M8 Grund- gestell Befestigung
Pos. 1
A
4
5
7 6
2
6 71
IF-HR-300 001 -1
IF-HR-300 001 -2
IF-HR-300 001 -2-1
IF-TR-300002-1
Urs prun g: H:/ CAD4 /I FE X/HR/ HR-0 02-4
IF-3000-1 30
IFEX 3072 Mounting rack with sledge - Assembly
Sledge racing 700 mm
Sladge
Drum brake
Sladge brake
Air p re ss u re
Cylinder
Side view
Screw M8
Water cylinder fastening
Screw
Protection
angle
Bearing
Water connection
Cone for rewind handle
Sladge brake
Sladge brake
View A
Lubrication
Air
pressure connection
Drum brake
IFEX 3072 compl. Hosereel unit 55m
IFEX 3072 Mounting rack with s ladge 72 ltr. water container
Hosereel 55m with rewind handle-left
6.0 l/200 bar Air pr. Cylinder (St.)w. valve
Air cyl. holder ( 2 x 6 l ) Mounting straps for air cylinder
Gre as e
Shaft for handle
H: /C AD 4 /Ha n d bu ch30 7 2-e n gl /
Sladge after compl.
galvanized
Breese06.11.01
65006
5. Mounting rack with sledge, assembly

Page | 20
Germany
D-27419 Sittensen
Hansestraße 18
IFEX Technologies GmbH
1.1
IF-TR-300002-3B
1.2
1.3
1.4
1.5
IFEX 3000
Impulse Fire
Extinguishing
Technology
1. Top filling unit assy.
IFEX Code:
IF-3000
Scale
Index Alteration Date
Name
Breese
Drawn
Check
Norm
Date Name
%
IF-BP-300002-3B
1
1
1
1
1
R 2"
Body made of brass
1.1
1.3
1.5
IF-TR-300021-4A
1.4
1.2
Surface
acc.
DIN ISO 1302
Dimensions without
tolerances acc.
DIN 7168-m
Drawing-n°
Quick coupling with relief valve
Handle for top filling unit, aluminium
Description and type
Art.-n°
IFEX Code
Pos. Oty.
Safety valve 1/4"-6 bar
18000032
18000040
09000033
1996
05.08.
Scew for handle SW13
09000013
18000041
O-Ring seal Ø53x5
1.6
Order of spare parts:
Please use part list n°.
Remark
IF-3000-130
1. Top filling unit
Instruction for test and refilling
IFEX 3035 und 3050 Trolley ,
IFEX 3072 Skid
6. Top Filling unit and filter, IFEX 3001/72
