IFM AL1950 Application guide

>
>
7391243 / 0109 / 2019
Device Manual
IO-Link Master with IoT Interface
CabinetLine
8 Ports
IP 20
AL1950
Firmware: 2.2.x or higher
LR DEVICE: 1.4.0.x or higher
English

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
2
Contents
1Preliminary note 5
1.1 Legal and copyright information...........................................................................................5
1.2 Purpose of the document.....................................................................................................5
1.3 Explanation of Symbols .......................................................................................................6
1.4 Modification history ..............................................................................................................6
2Safety instructions 7
2.1 General ................................................................................................................................7
2.2 Required background knowledge ........................................................................................7
2.3 Safety symbols on the device..............................................................................................7
2.4 Tampering with the unit........................................................................................................7
3Intended use 8
3.1 Permitted use.......................................................................................................................8
3.2 Prohibited use......................................................................................................................8
4Function 9
4.1 Communication, parameter setting, evaluation .................................................................10
4.1.1 IO-Link........................................................................................................................................10
4.1.2 Internet of Things (IoT)...............................................................................................................10
4.1.3 Parameter setting.......................................................................................................................10
4.1.4 Visual indication .........................................................................................................................10
4.2 Digital inputs.......................................................................................................................11
4.3 IO-Link supply....................................................................................................................11
5Mounting 12
5.1 Install the device ................................................................................................................12
6Electrical connection 13
6.1 Notes..................................................................................................................................13
6.2 IoT ports.............................................................................................................................14
6.3 IO-Link ports.......................................................................................................................15
6.3.1 Operation as IO-Link port class A...............................................................................................15
6.3.2 Operation as IO-Link port class B...............................................................................................16
6.4 Connect the device ............................................................................................................17
7Operating and display elements 18
7.1 Overview............................................................................................................................18
7.2 LED indicators....................................................................................................................19
7.2.1 IO-Link ports (Class A)...............................................................................................................19
7.2.2 Power supply..............................................................................................................................19
7.2.3 Status LEDs ...............................................................................................................................19
7.2.4 IoT interface ...............................................................................................................................20

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
3
8Set-up 21
8.1 Read device and diagnostic information............................................................................22
9Configuration 23
9.1 LR DEVICE........................................................................................................................24
9.1.1 Remarks.....................................................................................................................................25
9.1.2 IoT: Configure IP settings...........................................................................................................26
9.1.3 IoT: Configure the interface to the LR SMARTOBSERVER.......................................................27
9.1.4 IO-Link ports: Activate data transfer to the LR SMARTOBSERVER ..........................................28
9.1.5 IO-Link ports: Configure operating mode....................................................................................29
9.1.6 IO-Link ports: Set the device validation and data storage ..........................................................30
9.1.7 IO-Link ports: Configuration of fail-safe values...........................................................................31
9.1.8 Info: Show device information ....................................................................................................31
9.1.9 Firmware: Reset device to factory settings.................................................................................32
9.1.10 Firmware: Reboot the device......................................................................................................32
9.1.11 Configure IO-Link devices..........................................................................................................33
9.2 ifm IoT Core .......................................................................................................................34
9.2.1 First steps...................................................................................................................................34
9.2.2 General functions.......................................................................................................................35
9.2.3 Configure the IoT interface.........................................................................................................35
9.2.4 Configure IO-Link ports ..............................................................................................................36
9.2.5 Configure IO-Link devices..........................................................................................................38
9.2.6 Set application identification.......................................................................................................40
9.2.7 Read / write cyclic process data.................................................................................................41
9.2.8 Control IO-Link master ...............................................................................................................42
9.2.9 Read diagnostic data of the AL1950 ..........................................................................................44
9.2.10 Read device information of the IO-Link master ..........................................................................45
9.2.11 Read information about IO-Link devices ....................................................................................45
9.2.12 Subscribe to events....................................................................................................................46
9.2.13 Programmers' notes...................................................................................................................48
10 Maintenance, repair and disposal 52
10.1 Cleaning process ...............................................................................................................52
10.2 Update firmware.................................................................................................................53
10.3 Replace IO-Link device......................................................................................................54
11 Factory settings 55
12 Accessories 56
13 Appendix 57
13.1 Technical data....................................................................................................................58
13.1.1 Application..................................................................................................................................58
13.1.2 Electrical data.............................................................................................................................58
13.1.3 Inputs / outputs...........................................................................................................................58
13.1.4 Inputs..........................................................................................................................................59
13.1.5 Outputs.......................................................................................................................................59
13.1.6 Interfaces....................................................................................................................................59
13.1.7 Operating conditions ..................................................................................................................60
13.1.8 Approvals / tests.........................................................................................................................60
13.1.9 Mechanical data.........................................................................................................................60
13.1.10 Electrical connection ..................................................................................................................61
13.2 ifm IoT Core .......................................................................................................................62
13.2.1 Overview: IoT profile ..................................................................................................................63
13.2.2 Overview: IoT types....................................................................................................................70

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
4
13.2.3 Overview: IoT services...............................................................................................................71
14 Index 82

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
5
1 Preliminary note
Content
Legal and copyright information ...............................................................................................................5
Purpose of the document .........................................................................................................................5
Explanation of Symbols............................................................................................................................6
Modification history...................................................................................................................................6
33203
>
1.1 Legal and copyright information 33117
© All rights reserved by ifm electronic gmbh. No part of this manual may be reproduced and used
without the consent of ifm electronic gmbh.
All product names, pictures, companies or other brands used on our pages are the property of the
respective rights owners:
AS-i is the property of the AS-International Association, (→www.as-interface.net)
CAN is the property of the CiA (CAN in Automation e.V.), Germany (→www.can-cia.org)
CODESYS™ is the property of the 3S – Smart Software Solutions GmbH, Germany
(→www.codesys.com)
DeviceNet™ is the property of the ODVA™ (Open DeviceNet Vendor Association), USA
(→www.odva.org)
EtherNet/IP® is the property of the →ODVA™
EtherCAT®is a registered trade mark and patented technology, licensed by Beckhoff Automation
GmbH, Germany
IO-Link®(→www.io-link.com)) is the property of the →PROFIBUS Nutzerorganisation e.V.,
Germany
ISOBUS is the property of the AEF –Agricultural Industry Electronics Foundation e.V.,
Deutschland (→www.aef-online.org)
Microsoft®is the property of the Microsoft Corporation, USA (→www.microsoft.com)
PROFIBUS®is the property of the PROFIBUS Nutzerorganisation e.V., Germany
(→www.profibus.com)
PROFINET®is the property of the →PROFIBUS Nutzerorganisation e.V., Germany
Windows®is the property of the →Microsoft Corporation, USA
>
1.2 Purpose of the document 34227
This document is only for device types "IO-Link master - IoT core gateway (CabinetLine) 8 port IP 20"
(art. no.: AL1950).
It is part of the device and contains information about the correct handling of the product.
►Read this document before using the device.
►Keep this document during the service life of the device.

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
6
>
1.3 Explanation of Symbols 34171
WARNING!
Death or serious irreversible injuries may result.
CAUTION!
Slight reversible injuries may result.
NOTICE!
Property damage is to be expected or may result.
Important note
Non-compliance can result in malfunction or interference
Information
Supplementary note
►...
Request for action
>...
Reaction, result
→...
"see"
abc
Cross-reference
123
0x123
0b010
Decimal number
Hexadecimal number
Binary number
[...]
Designation of pushbuttons, buttons or indications
>
1.4 Modification history 34492
Version
Topic
Date
00
New creation of document
11 / 2018
01Correction: Technical data - Max. current load per output 09 / 2019

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
7
2 Safety instructions
Content
General.....................................................................................................................................................7
Required background knowledge.............................................................................................................7
Safety symbols on the device...................................................................................................................7
Tampering with the unit............................................................................................................................7
28333
>
2.1 General 33834
The plant manufacturer is responsible for the safety of the plant in which the device is
installed.
If the device is used in a way that is not intended by the manufacturer, the protection
supported by the device may be impaired.
Non-observance of the instructions, operation which is not in accordance with use as
prescribed below, wrong installation or incorrect handling can affect the safety of operators
and machinery.
►Observe these operating instructions.
►Adhere to the warning notes on the product.
>
2.2 Required background knowledge 34185
This document is intended for specialists. Specialists are people who, based on their relevant training
and experience, are capable of identifying risks and avoiding potential hazards that may be caused
during operation or maintenance of the product.
The document contains information about the correct handling of the product.
>
2.3 Safety symbols on the device 34199
General warning
Observe instructions in chapter "Electrical connection" (→Electrical connection (→S. 13))!
>
2.4 Tampering with the unit 33190
WARNING!
Tampering with the unit.
>In case of non-compliance:
Possible affects on safety of operators and machinery
Expiration of liability and warranty
►Do not open the devices!
►Do not insert any objects into the devices!
►Prevent metal foreign bodies from penetrating!

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
8
3 Intended use
Content
Permitted use ...........................................................................................................................................8
Prohibited use...........................................................................................................................................8
34079
>
3.1 Permitted use 34208
The IO-Link master serves as a gateway between intelligent IO-Link devices and the IoT core network.
The device is designed for use as cabinet module in plant construction.
>
3.2 Prohibited use 34228
The device may not be used beyond the limits of the technical data (→Technical data (→S. 58))!

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
9
4 Function
Content
Communication, parameter setting, evaluation......................................................................................10
Digital inputs...........................................................................................................................................11
IO-Link supply.........................................................................................................................................11
33836

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
10
>
4.1 Communication, parameter setting, evaluation
Content
IO-Link....................................................................................................................................................10
Internet of Things (IoT)...........................................................................................................................10
Parameter setting ...................................................................................................................................10
Visual indication......................................................................................................................................10
33860
>
4.1.1 IO-Link 34084
The device offers the following IO-Link functions:
IO-Link master (IO-Link revision 1.0 and 1.1)
8 IO-Link ports for connection of IO-Link devices
Provision of process data of the connected IO-Link devices for LR SMARTOBSERVER monitoring
software (→www.ifm.com)
>
4.1.2 Internet of Things (IoT) 52230
The device offers the following IoT functions:
2-port switch for access to the IoT interface (X21/X22)
Gateway for the transmission of parameters, process and monitoring data between IO-Link master
/ IO-Link devices and the IT network level
Support of different protocols (e.g. TCP/IP JSON)
>
4.1.3 Parameter setting 52338
The device offers the following configuration options:
Parameter setting of the IO-Link master of the AL1950 with parameter setting software LR
DEVICE or ifm IoT core services
Parameter setting of the connected IO-Link devices (sensors, actuators) with parameter setting
software LR DEVICE or ifm IoT core services
Storage of parameter sets of the connected IO-Link devices for automatic recovery (Data Storage)
>
4.1.4 Visual indication 34192
The device has the following visual indicators:
Status and error indication of the gateway, of the IoT core connection and of the system
Status display of the voltage supply
Status and activity display of the Ethernet connection
Status, error and short circuit/overload indication of the IO-Link ports

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
11
>
4.2 Digital inputs 33817
The device has 8 additional digital inputs (type 2 according to EN 61131-2).
The digital inputs are on clamp 2 of the IO-Link ports X01...X04.
All inputs refer to the potential of the device supply (clamp 3).
>
4.3 IO-Link supply 34077
The device has 8 supplies for IO-Link devices.
The IO-Link ports X01...X08 are ports class A.
Every supply provides short circuit monitoring.
The device ensures fire protection for the connected IO-Link devices by providing a power-restricted
circuit at the IO-Link ports (according to IEC61010-1 and Class 2 according to UL1310).

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
12
5 Mounting
Content
Install the device.....................................................................................................................................12
34058
>
5.1 Install the device 34070
►Disconnect power before installation.
The device contains components that can be damaged or destroyed by electrostatic
discharge.
►When handling the device, observe the necessary safety precautions against electrostatic
discharge (ESD).
►Only operate the device when mounted on a grounded DIN rail.
►Install the device in a control cabinet of protection rating IP 54 or higher. The control cabinet has
to be installed in accordance with local and national regulations.
►Fix the device vertically onto a 35 mm raised rail.
►Leave enough space between the unit and the top or bottom of the control cabinet as well as to
adjacent devices to enable air circulation and to avoid inadmissible heating.

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
13
6 Electrical connection
Content
Notes ......................................................................................................................................................13
IoT ports..................................................................................................................................................14
IO-Link ports...........................................................................................................................................15
Connect the device.................................................................................................................................17
33805
>
6.1 Notes 34181
The unit must be connected by a qualified electrician.
►The national and international regulations for the installation of electrical equipment must
be adhered to.
The unit is only suitable for operation using SELV/PELV voltages.
►Observe the information concerning IO-Link circuits!
The IP rating of the overall system depends on the protection ratings of the individual devices
and the applied connection elements.
For UL applications:
►To connect the IO-Link master, only use cables with AWG 26 to 12 and a minimum
temperature range of 75 °C.
Wiring: →Technical data (→S. 58)
The circuits are separated from each other and from device surfaces that could be touched by means
of basic insulation according to EN61010-1 (secondary circuit with 30 V DC maximum, supplied from
mains circuit up to 300 V of overvoltage category II).
The communication interfaces are separated from each other and from device surfaces that could be
touched by means of basic insulation according to EN61010-1 (secondary circuit with 30 V DC
maximum, supplied from mains circuit up to 300 V of overvoltage category II). They are designed for
network environment 0 according to IEC TR62102.

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
14
>
6.2 IoT ports 33678
►Connect the unit via the sockets X21 and/or X22 to the IoT core
network.
►To connect the devices, use connectors with protection rating IP 20
or higher (→Accessories (→S. 56)).
>

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
15
>

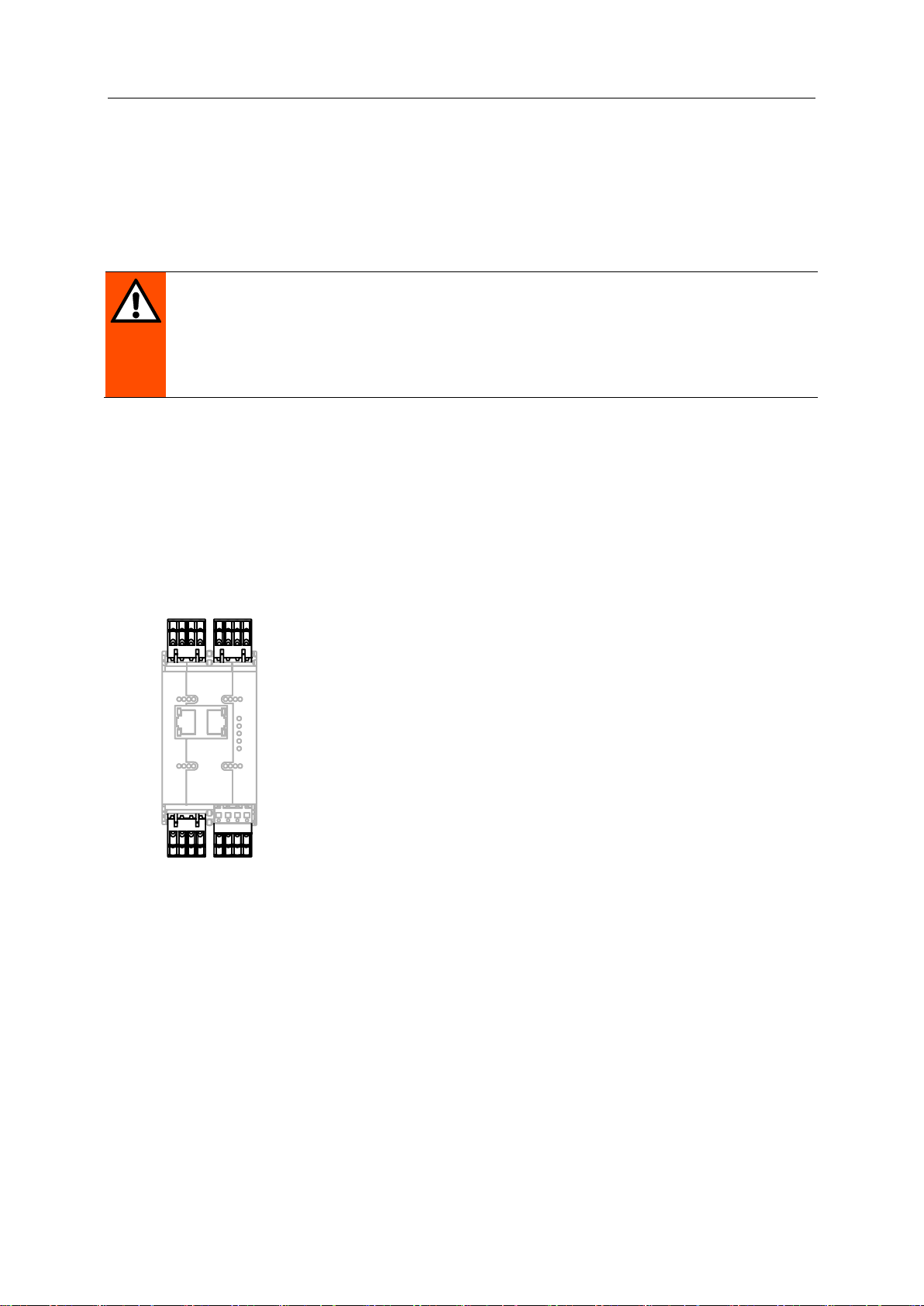

6.3 IO-Link ports 52232
The IO-Link ports of the device meet the requirements of the IO-Link specification 1.0 to 1.1.2.
►Please note the information concerning IO-Link wiring!
WARNING!
Supply of energy to the IO-Link ports of the IO-Link master
>Risk of fire!
►Prevent supply and feedback of energy to the IO-Link ports.
►Before set-up check the correct connection of the supply cables.
>
6.3.1 Operation as IO-Link port class A 52233
Wiring information:
The connected IO-Link devices must be supplied exclusively via the IO-Link master.
The additional digital inputs of the IO-Link ports X01...X08 (clamp 2) have a type 2 behaviour
according to the standard EN61131-2. The connected electronics must be electrically suited for
this.
►Connect IO-Link devices to the ports X01...X08.
Maximum cable length per IO-Link port: 20 m
►To connect the devices, only use cables with protection rating IP 20
or higher.

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
16
>

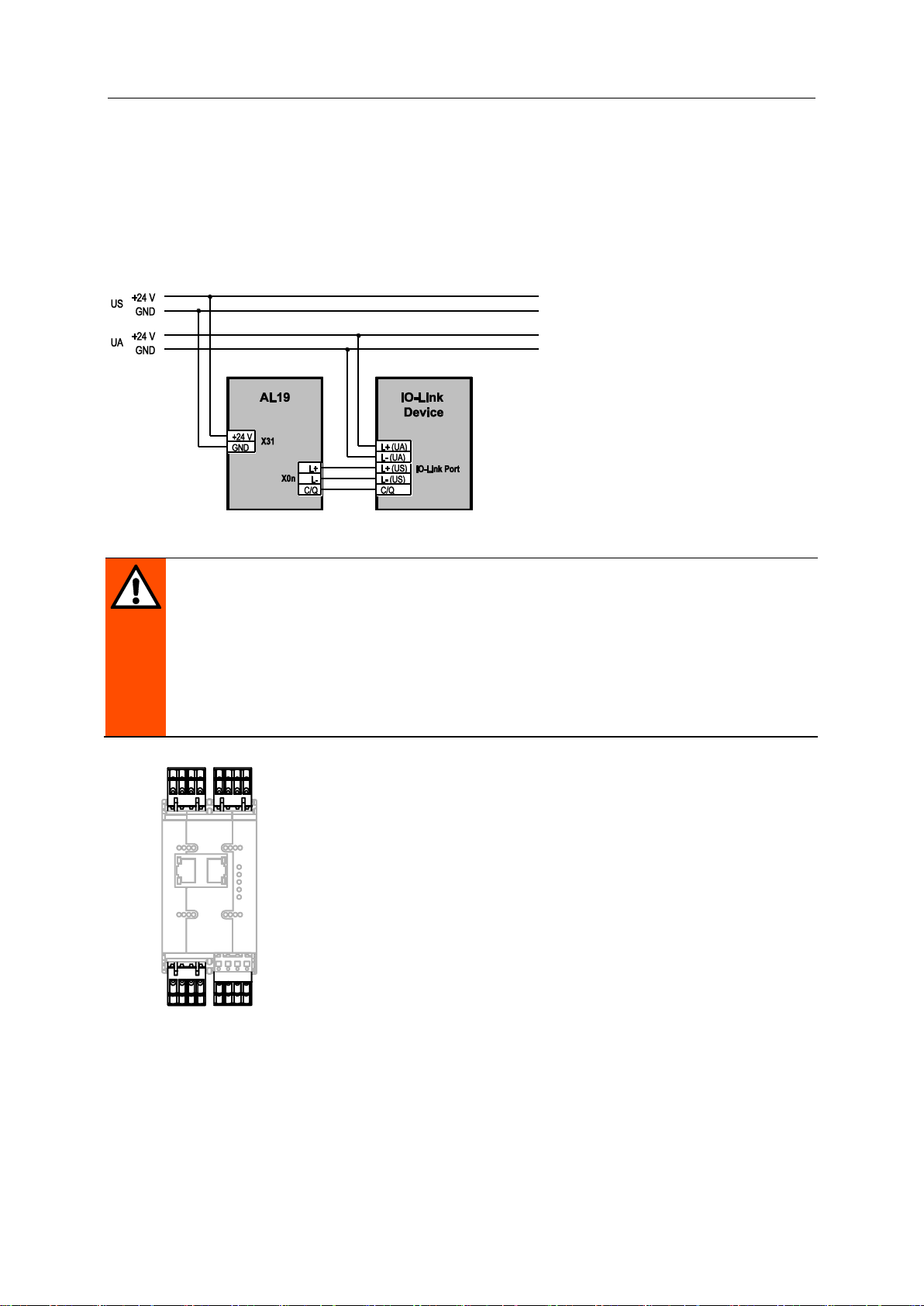

6.3.2 Operation as IO-Link port class B 52234
Wiring information:
For the operation as IO-Link port class B, the IO-Link device must be supplied with an additional
auxiliary voltage UA.
Wiring diagram:
Permitted maximum current intensity for UA: 4A
WARNING!
Non-compliance with the electrical separation of the circuits
>Risk of fire!
►Ensure that the circuits of US and UA are electrically isolated while assuring basic
isolation (according to IEC 61010-1, secondary circuit with 30 V DC maximum, supplied
from mains circuit up to 300 V of overvoltage category II).
►Ensure that the IO-Link devices and the connection technology support the electrical
separation.
►Connect the IO-Link devices to the ports X01 ... X08.
Maximum cable length per IO-Link port: 20 m
►Connect the IO-Link devices to UA with 24 V DC
(20...30 V SELV/PELV).
►To connect the IO-Link devices, only use cables with protection
rating IP 20 or higher.

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
17
>

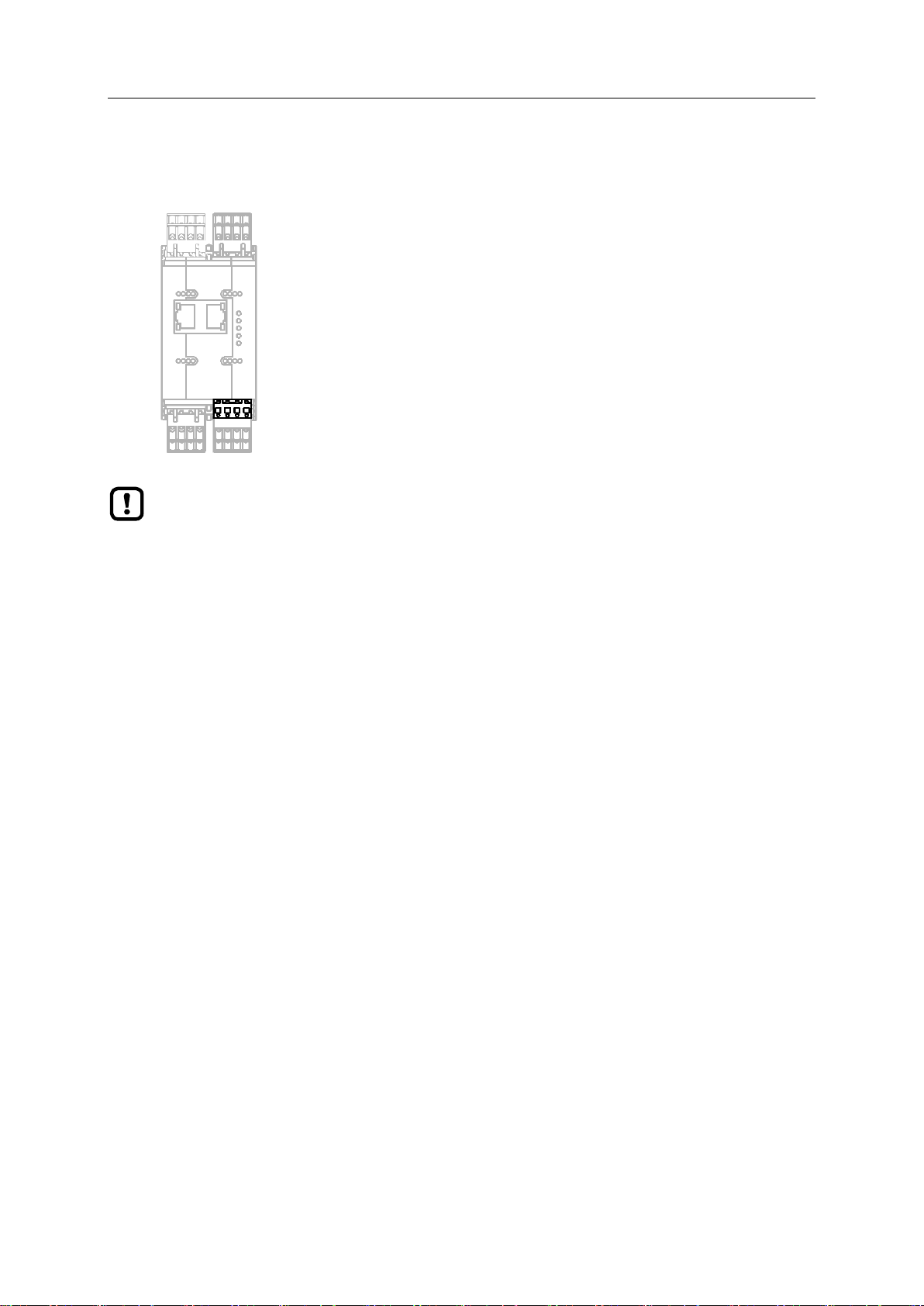

6.4 Connect the device 33890
►Disconnect power.
►Connect the IO-Link master via port X31 to 24 V DC
(20...30 V SELV/PELV).
Recommended maximum cable length: 25 m
►To connect the device, use cables with protection rating IP 20 or
higher.
With cable lengths greater than 25 m observe the voltage drop and the necessary minimum
supply voltage of 20 V!

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
18
7 Operating and display elements
Content
Overview.................................................................................................................................................18
LED indicators ........................................................................................................................................19
34063
>
7.1 Overview 52236
IOL and DI status-LEDs of the IO-Link port (X01...X08
(→IO-Link ports (Class A) (→S. 19))
PWR status LED of the voltage supply (X31) (→Power
supply (→S. 19)
Status LEDs RDY and IoT (→Status LEDs (→S. 19))
L/A and 10/100 MBits/s status LEDs of IoT port 1 (X21)
and 2 (X22) (→IoT interface (→S. 20))

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
19
>
7.2 LED indicators 34047
The device only has the following LED indicators:
>
7.2.1 IO-Link ports (Class A) 34074
Each IO-Link port Class A has 2 LEDs marked as IOL and DI. The LEDs indicate the status of the
IO-Link port.
Status LED
Description
IOL
yellow
off
Port configured as DI / DO: clamp 4 (C/Q) = OFF
on
Port configured as DI / DO: clamp 4 (C/Q) =ON
green
flashes 1 Hz
Port configured as IO-Link: no IO-Link device detected
flashes 2 Hz
Port configured as IO-Link: PROOPERATE state
on
Port configured as IO-Link: OPERATE state
red
flashes 2 Hz
Port configuration error or short circuit or overload
on
Transmission error
DI
yellow
off
Digital input : clamp 2 (DI) = OFF
on
Digital input: clamp 2 (DI) = ON
>
7.2.2 Power supply 34203
The interface for voltage supply (X31) has the PWR LED. The LED indicates the status of the voltage
supply.
Status LED
Description
PWR
green
on
Supply voltage Us is applied
off
No supply voltage is applied or the applied supply voltage is too low
>
7.2.3 Status LEDs 52237
The RDY LED indicates the status of the gateway.
The IoT LED indicates the status of the connection to the LR SMARTOBSERVER.
Status LED
Description
RDY
green
off
Gateway does not function; device reboots
flashes 1 Hz
Error
flashes 5 Hz
Firmware update
on
Gateway functions properly
IoT
green
off
No connection to the LR SMARTOBSERVER
on
Connection to the LR SMARTOBSERVER activated

IO-Link Master with IoT Interface CabinetLine 8 Ports IP 20
20
>
7.2.4 IoT interface 52238
Each IoT port (X21, X22) has the 2 L/A and 10/100 MBits/s LEDs. The LEDs indicate the status of the
Ethernet connection.
Status LED
Description
L/A
green
on
Ethernet connection established
flashes
Data is transmitted via the Ethernet interface.
off
No Ethernet connection
10/100
Mbits/s
yellow
on
100 MBit/s
off
10 MBit/s
