iGenix IGM0820W User manual

Please read these instructions carefully before use and retain for future reference
Before switching on your appliance,
always check for any damage which may have been caused in transit
PO Number:

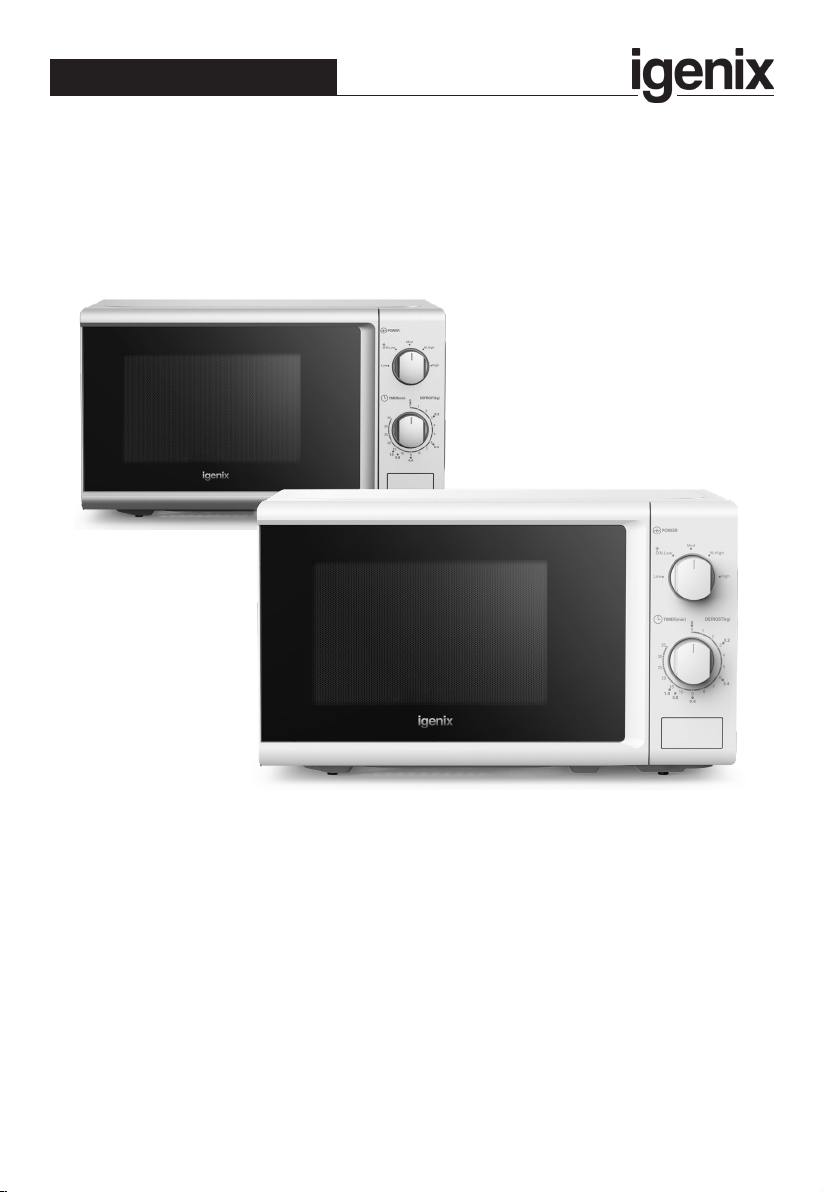

USER MANUAL
IGM0820W/S
20 Litre 800W Manual Microwave

2
CONTENTS
Important Safety Instructions...............................................2-7
Product Specication..................................................................8
Appliance Overview...................................................................8
Installation.....................................................................................9
Operating Instructions............................................................ 10
Cleaning & Maintenance ......................................................... 11
Trouble Shooting Guide.......................................................... 12
Mains Plug Fuse Replacement ............................................... 13
Disposal Information............................................................... 13
Igenix Warranty Information ........................................... 14-15
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since this can result in harmful exposure to microwave energy. It is
important not to break or tamper with the safety interlocks.
(b) Do not place any object between the front side and the door of
the oven.
(c) Do not allow soil or cleaner residue to accumulate on sealing
surfaces.
(d) WARNING: If the door or door seals are damaged, the oven
must not be operated until it has been repaired by a competent
person.
ADDENDUM
If the appliance is not maintained in a good state of cleanliness, its
surface could be degraded and affect the lifespan of the appliance
and lead to a dangerous situation.

3
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of re, electric shock, injury to persons or exposure to
excessive microwave energy when using your appliance, follow all these
basic precautions:
1. Read and follow the specic: “PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” on page 2.
2. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Children less
than 8 years of age shall be kept away unless continuously supervised.
3. Keep the appliance and its cord out of reach of children less than 8
years.
4. If the supply cord is damaged, it must be replaced by the service
engineer or similarly qualied persons in order to avoid a hazard.
WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
WARNING: It is hazardous for anyone other than a service
engineer or similar qualied persons that involves the removal
of a cover which gives protection against exposure to
microwave energy.
WARNING: Liquids and other foods must not be heated in
sealed containers since they are liable to explode.
5. When heating food in plastic or paper containers, keep an eye on
the oven due to the possibility of ignition.
6. Only use utensils that are suitable for use in microwave ovens.
7. If smoke is emitted, switch off or unplug the appliance and keep
the door closed in order to stie any ames.
8. Some containers may become hot when heating.Take care when
handling the container or removing from the oven.

4
9. Microwave heating of beverages can result in delayed eruptive
boiling, therefore care must be taken when handling the
container.
10. The contents of feeding bottles and baby food jars shall
be stirred or shaken and the temperature checked before
consumption, in order to avoid burns.
11. Eggs in their shell and whole hard-boiled eggs should not be
heated in microwave ovens since they may explode, even after
microwave heating has ended.
12. The oven should be cleaned regularly and any food deposits
removed.
13. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation.
14. The appliance must not be installed behind a decorative door in
order to avoid overheating.
15. Only use the temperature probe recommended for this oven
(for ovens provided with a facility to use a temperature-sensing
probe.)
16. The microwave oven shall not be placed in a cabinet.
17. This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, ofces and other working
environments;
- by clients in hotels, motels and other residential type
environments;
- farm houses;
- bed and breakfast type environments.
18. The microwave oven is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads, slippers,
sponges, damp cloth and similar may lead to risk of injury, ignition
or re.
19. Metallic containers for food and beverages are not allowed
during microwave cooking.

5
20. The appliance shall not be cleaned with a steam cleaner.
21. The appliance is intended to be used freestanding.
22. The rear surface of appliances shall be placed against a wall.
To Reduce the Risk of Injury to Persons Grounding
Installation
DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious
personal injury or death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the plug grounding can result in electric shock.
Do not plug into a power outlet until appliance is properly installed
and grounded.
This appliance plug must be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with
a grounding plug.The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualied electrician or engineer if the grounding
instructions are not completely understood or if doubt exists as to
whether the appliance is properly grounded.
If it is necessary to use an extension cord, use only a 3-wire
extension cord.
1. A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a longer
cord.

6
2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape
over the counter top or tabletop where it can be pulled on by
children or tripped over unintentionally.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a service engineer or similar
qualied persons to carry out any service or repair operation that
involves the removal of a cover which gives protection against
exposure to microwave energy.
See the instructions on “Materials you can use in microwave oven
or to be avoided in microwave oven.” There may be certain non-
metallic utensils that are not safe to use for microwaving. If in doubt,
you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml)
along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use
it for microwave cooking.
4. Do not exceed 1 minute cooking time.

7
Materials you can use in a microwave oven
Browning dish Follow manufacturer’s instructions.The bottom of browning dish
must be at least 3/16 inch (5mm) above the turntable. Incorrect
usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not
use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic
trim. Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
Paper plates and
cups
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should
be labelled “Microwave Safe”. Some plastic containers soften, as the
food inside gets hot. “Boiling bags” and tightly closed plastic bags
should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Aluminium tray May cause arcing.Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing.Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper bags May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split
or crack.

8
PRODUCT SPECIFICATION
Model: IGM0820W/S
Rated Voltage: 2 0-240V~ 50Hz
Rated Output Power (Microwave): 800 W
Oven Capacity: 20 L
Turntable Diameter: Ø 255mm
Product Dimensions: 440 x 3 x
259 mm
Net Weight:
APPLIANCE OVERVIEW
Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
A. Control Panel
B. Turntable Shaft
C . Turntable Ring Assembly
D. Glass Tray
E. Observation Window
F. Door Assembly
G. Safety Interlock System
• Glass Tray x1 • Turntable Ring Assembly x1 • Instruction Manual x1
A
BCDE
F
G
Turntable Installation:
a. Never place the glass tray upside down.
The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food are always
placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly
cracks or breaks, contact your nearest
authorized service centre.
Hub (underside)
Glass Tray
Turntable Shaft
Turntable Ring Assembly
3
750-
43
11.52kg

9
Counter-top Installation
Remove all packing material and accessories. Examine the oven for any damage such as
dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective lm found on the microwave oven cabinet surface. Do
not remove the light brown Mica cover that is attached to the oven cavity to protect the
magnetron.
Installation
1. Select a level surface that provides enough open space for the intake and/or outlet
vents.
a. The minimum installation height is 85cm.
b. The rear surface of appliance shall be placed against a wall.
IMPORTANT: Leave a minimum clearance of 30cm above the oven, a minimum
clearance of 20cm is required between the oven and any adjacent walls.
c. Do not remove the legs from the bottom of the oven.
d. Blocking the intake and/or outlet openings can damage the oven.
e. Place the oven as far away from radios and TV as possible. Operation of microwave
oven may cause interference to your radio or TV reception.
2. Plug your oven into a standard household outlet. Be sure the voltage and the frequency
is the same as the voltage and the frequency on the rating label.
WARNING: Do not install oven over a cooker top or other heat-producing
appliance. If installed near or over a heat source, the oven could be damaged and
the warranty would be void.
The accessible surface may be hot during operation.
INSTALLATION
0cm 30cm
20cm
20cm
min
85cm

10
1. To set cooking power turn the
power knob to desired level.
2. To set the cooking time turn
the timer knob to desired time
per your food cooking guide.
3. The microwave oven will
automatically start cooking after
power level and time are set.
4. After the cooking time is up, a
ding will sound to indicate the
microwave has stopped.
5. If the unit is not in use, always
set time to “0”.
OPERATING INSTRUCTIONS
Function/Power Output Application
Low 17% micro. Soften ice cream
Med. Low (Defrost) 33% micro. Soup stew, soften butter or defrost
Med. 55% micro. Stew, sh
Med. High 77% micro. Rice, sh, chicken, ground meat
High 100% micro. Reheat, milk, boil water, vegetables, beverage
Note: When removing food from the oven, please ensure that the oven power
is switched off by turning the timer switch to 0 (zero). Failure to do so, and
operating the microwave oven without food in it, can result in overheating and
damage to the magnetron.

11
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame with seal and neighbouring parts must be cleaned carefully
with a damp cloth.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
5. Cleaning Tip-For easier cleaning of the cavity walls that the food cooked can
touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on
100% microwave power for 10 minutes.Wipe the oven clean using a soft, dry
cloth.
CLEANING & MAINTENANCE

12
TROUBLE SHOOTING GUIDE
If you experience difculties with the appliance, please check the suggestions below
before contacting customer services on 01473 271272:
Normal
Microwave oven interfering
with TV reception
Radio and TV reception may be interfered with when
the microwave oven is operating. It is similar to the
interference of small electrical appliances, like food
mixers, vacuum cleaners and electric fans. It is normal
Dim oven light In low power microwave cooking, the oven light may
become dim. It is normal
Steam accumulating on door,
hot air out of vents
In cooking, steam may come out of food. Most will
escape through the vents, but some may accumulate on
a cool place like the oven door. It is normal
Oven started accidentally
with no food inside
It is forbidden to run the microwave without any food
inside. It is very dangerous
Problem Possible Cause Possible Solution
Oven cannot be
started
Power cord not
plugged in correctly
Unplug, then plug in again after 10
seconds
Fuse blown Replace fuse or reset circuit breaker
(repaired by professional personnel of
our company)
Trouble with outlet Test outlet with other electric
appliances
Door not shut
correctly
Push door shut
Oven does not heat Door not closed
properly
Close door properly

13
DISPOSAL INFORMATION
The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in normal unsorted
municipal waste.
Old appliances must be collected separately in order to optimise
the recovery and recycling of the materials they contain and reduce the impact
on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance.
MAINS PLUG FUSE REPLACEMENT Fuse Cover
Fuse Replacement (Class I)
This appliance must be earthed. Remove the fuse cover
with a small at head screw driver. Take out the fuse and
replace with a new fuse of the same Amp. Replace the
fuse cover and push back into place.

14
Igenix Warranty Terms & Conditions
This product is guaranteed for a period of 12 months as standard from the date of purchase
against mechanical and electrical defects. You can extend your warranty for a further 12 months by
registering your product.
Upon registration we will cover your product for a period of 24 months from the original purchase
date against any mechanical or electrical defects.
To qualify for the warranty, the product must be used for domestic household use only and in
accordance with the instructions in the user manual.Any misuse of the product will result in the
warranty being void.
The warranty does not cover accidental damage, misuse, neglect, tampering or incorrect adjustment
or installation.
The warranty will be rendered invalid if the product is resold, has had its serial number removed
(or has an invalid serial number), or if an unauthorised person has carried out any repairs or
alterations.
The warranty does not cover accessories or consumable parts that require replacement under
normal use. This includes shelving, dials, lters, belts and trays etc.
In the unlikely event of a breakdown please refer to the Troubleshooting guide in your user manual
and check all plugs, fuses and the electricity supply.
If you still require assistance please contact our Customer Service department on
01473 271 272 or write to us at the following address:
Customer Service Department
38 Bluestem Road, Ransomes Europark
Ipswich, IP3 9RR
Please quote the Product Code which begins ‘IG’ or ‘DF’ and the PO Number on the front of the
manual, and give details of the exact fault.We will then decide whether to repair or replace the
item.
Before we arrange the repair or replacement you will be required to return a copy of your proof
of purchase. Please retain your original.
If an item is replaced within the agreed warranty period, the warranty for the replacement item will
be calculated from the purchase date of the original.
In the event that the product is inspected and no fault is found or the product is not within the
warranty period you will be charged for the repair and any carriage costs.

15
Thank you for choosing lgenix
As a valued customer we would like to offer you a FREE 2 year warranty to cover your product
against any electrical or mechanical defects.
This means that in the unlikely event you develop a fault or problem with your product we will
happily repair or replace the item free of charge.
To qualify for the 2 year warranty you must register your product within 30 days of purchase.The
full Terms & Conditions of our warranty policy are shown on the opposite page.They are also
available on our website. www.igenix.co.uk

38 Bluestem Road, Ransomes Europark, Ipswich, IP3 9RR
EU: Castle Electrical Factors Ltd., Dundalk, A91 KA9R, IR
Tel. [phone]
Disclaimer: Igenix operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specication and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
PN:16170000A90967
