Ignis ADL 934 S User manual

Further indications are given in the pages to follow and in the user instructions.
Programme selector
Power supply indicator lamp
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Programme Symbol
and Temperature Programme selection and recommended load type
Place the detergent in the:
small large
compartment compartment Consumption 1)
Normal load
Water
(Litres) Energy (kWh) Time (Min.)
Pre-wash Crockery to be washed later. --8.00.0212
Universal 65° C 2) Normally soiled crockery. - X 23.0 1.64 88
Normal 65° C 3) Normally soiled crockery, with dried-on food. X X 25.0 1.66 94
Quick Reference Guide
GB
5019 100 92214
(We reserve the right to make technical modifications)
1) Values may vary in relation to usage, e.g.: different loads, water
temperatures - above or below 15° C - water hardness and power supply voltage, etc.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
ADL 934

1. After loading the dishwasher, close the
door properly and open the water
supply tap.
2. The dishwasher switches on
automatically as soon as the
programme selector knob is turned.
The power supply indicator lamp
switches on.
3. Turn the selector knob to select the
desired programme. If required, select
options (if supplied).
4. Press the Start button to start the
selected programme. Once set, the
programmeddatacannotbealteredby
turning the programme selector knob.
Note: once the Start button has been
pressed, the dishwasher memorises
the last programme selected. This
information remains in the memory
even during interruption of the power
supply.
To change the selected
programme, press the Start button
for about 5 seconds, until the
Start indicator lamp switches
off. Select a new programme and
press the Start button.
Note: if the dishwasher is switched off
during a wash programme, when
switched on again it will resume the
wash cycle from where it was
interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of the programme,
the Start indicator lamp switches off
and the End indicator lamp (if fitted)
lights up (for about 30 min.).
6. Once the Start indicator lamp has
switched off, turn the programme
selector knob to the initial position to
switch off the dishwasher. All the
indicator lamps switch off.
7. Open the door (warning: beware of hot
steam). Unload the lower rack before
the upper one. Close the water tap.
Upper rack
Crockery holders:
• Down: cups and long-stemmed
glasses.
•Up: plates.
Lower rack
Cutlery basket:
• With or without handle
(depending on model).
• The cutlery basket can be
removed to increase available
space.
C
C
How to use the dishwasher
Please read the user instructions carefully.
Upper and lower rack

Tips and advice
•Arrange crockery so that items do not
touch each other. Arrange large
crockery in the lower rack and smaller
crockery in the upper rack.
•Load cups at an angle to facilitate
water drainage.
•Generally speaking, place cutlery in the
basket with the handles positioned
downwards, but ensure that any sharp
knives and forks that might cause
injury are placed in the basket with the
handles positioned upwards.
•Make sure the water jet can reach all
loaded items and that the spray arms
turn freely. Important
•Fill the detergent dispenser and check
the salt and rinse aid level.
•Do not use the appliance for items not
suitable for washing in a dishwasher,
for example: wooden items, aluminium,
plastic utensils, tin, hand-decorated
crockery (unglazed), silver cutlery.
•Do not put liquid fat in the dishwasher
(e.g. oil used for frying) or candle wax.
•If a fault occurs or you wish to change the
current programme, press the “START”
button for about 5 seconds until the Start
indicator lamp switches off.
•If regeneration salt is to be added,
immediately start a wash programme
in order to eliminate any residual salt
(rinsing alone is not sufficient).
•Sometimes even though the
regeneration salt container has been
filled, the corresponding indicator lamp
(if fitted) will light up during the first
wash cycle after filling with salt.
•Before starting a wash programme,
make sure that the spray arms can turn
freely and are not impeded by crockery
or cutlery.
•Only switch off the dishwasher once the
“Start”indicator lamp has switched off.
If the dishwasher is switched off during
a wash cycle, when switched on again it
will resume the cycle from where it was
interrupted without having to start it
again.
If a fault occurs, before contacting our
After-Sales Service, make the following
checks to try and remedy the problem:
The dishwasher is not working:
•Is the plug properly inserted in the wall
socket?
•Is there a power failure?
•Is the dishwasher switched on?
•Has the Start button been pressed?
•Has the delayed start timer been set (if
fitted)?
•Is the water supply tap on?
•Is the flow of water obstructed by
impurities? If so, close the water supply
tap, detach the water hose and clean the
filter. Then re-connect the water hose to
the tap and open the water tap once
again.
•Are the filters clogged?
(See “Care and Maintenance”
chapter in the user instructions).
•Is the door closed properly?
•Is a fault indicated?
(The Start indicator lamp flashes).
Start the programme again from the
beginning: press the Start button for
about 5 seconds, until the Start
indicator lamp switches off.
Select a new programme and press
the Start button.
Crockery still dirty after washing:
•Was the crockery loaded properly?
•Crockery must be loaded facing
downwards; this is important, especially
for large items of crockery.
•The water jets must spray the entire
surface of all items.
•Make sure that crockery and cutlery are
arranged properly.
•Have you selected the correct programme?
•Did you use too much or too little
detergent? (The use of poor quality
detergents may result in less effective
washing).
•Are the filters clogged or incorrectly
assembled? (See “Care and Maintenance”
chapter in the user instructions).
•Arethe spray arms blocked orthe nozzles
clogged? (See “Care and Maintenance”
chapter in the user instructions).
•Is the lower spray arm correctly fitted?
•Is the salt container cap (water softening
system) screwed down?
Marked crockery:
•Is the water hardness level selector not
properly adjusted? (See “Filling the salt
container”in the user instructions).
•Is the salt container empty?
(See “Filling the salt container”
in the user instructions).
•Was too little detergent used?
(See “Filling the detergent dispenser”
in the user instructions).
Marked glasses and cutlery:
•Was too much rinse aid used?
(See “Filling the rinse aid dispenser”
in the user instructions).
Note: with some models, when the Start
button is pressed a pre-wash cycle precedes
the actual wash programme; this
regenerates the water softening system.
If after carrying out the above checks
the malfunction persists or appears
again, turn the appliance off and turn
off the water supply tap, then call
our After-Sales Service (see guarantee).
Please specify:
•The nature of the fault.
•The appliance type and model.
•The service code (the number after
the word Service on the adhesive
rating plate) inside the door
on the right-hand side.
•Your full address and telephone
number.
AFTER-SALES
SERVICE
Troubleshooting Guide
Please read the user instructions carefully.

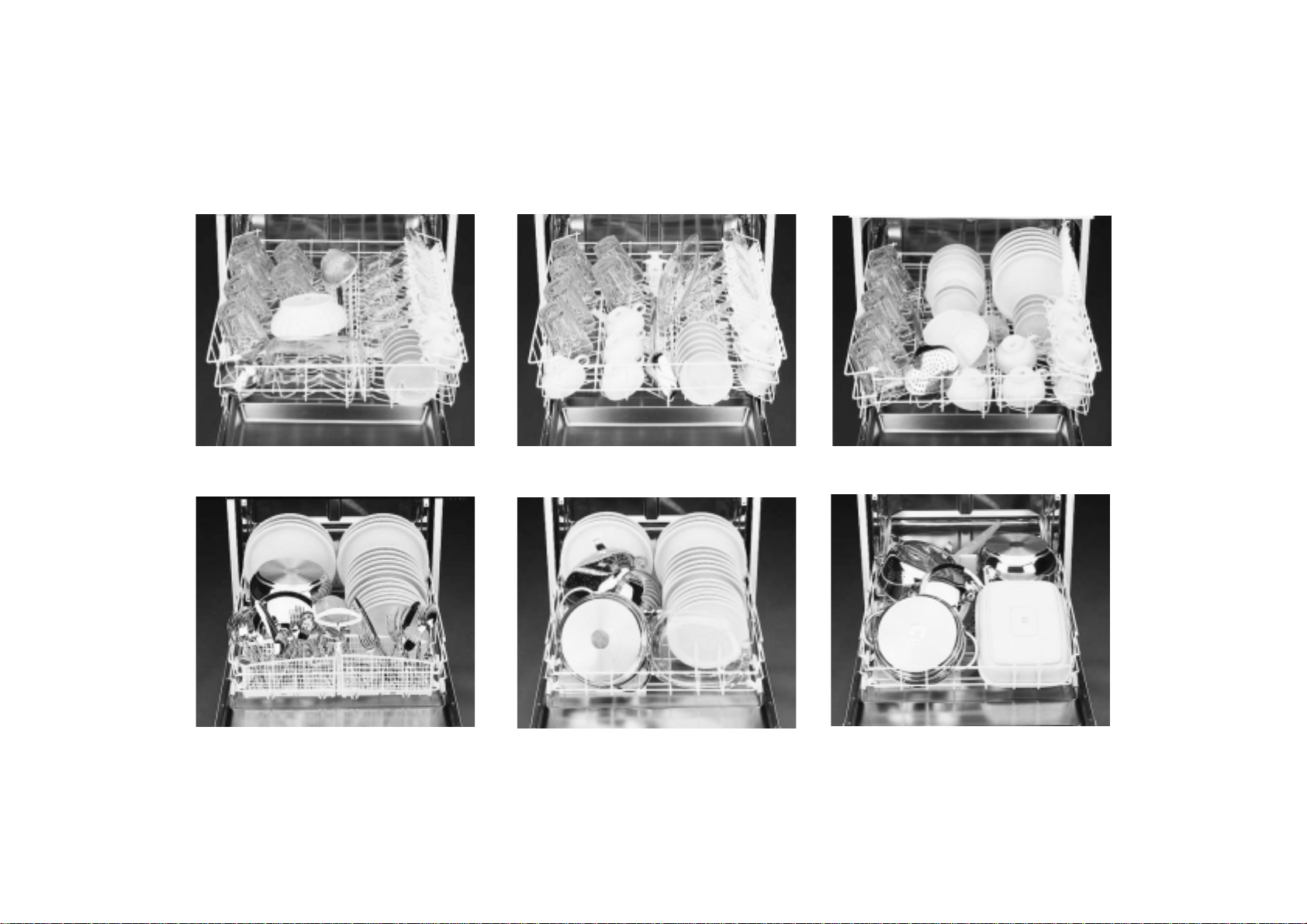

LOWER RACK
UPPER RACK
Dishwasher loading instructions
Depending on the model, rack features may vary (see “Upper and lower rack”description).
