IGS All stars User manual

1
Table of Contents
1. Hardware ....................................................................................2
Connectors Descriptions...................................................................................2
Connection Diagram .........................................................................................3
DIP Switch Settings...........................................................................................4
36 & 10 PIN Button Layout................................................................................4
Solving Hopper SSR Error................................................................................5
2. Bookkeeping & Adjustment......................................................6
Access Flow Chart............................................................................................6
System Adjustment ........................................................................................... 7
Chance Adjustment........................................................................................... 8

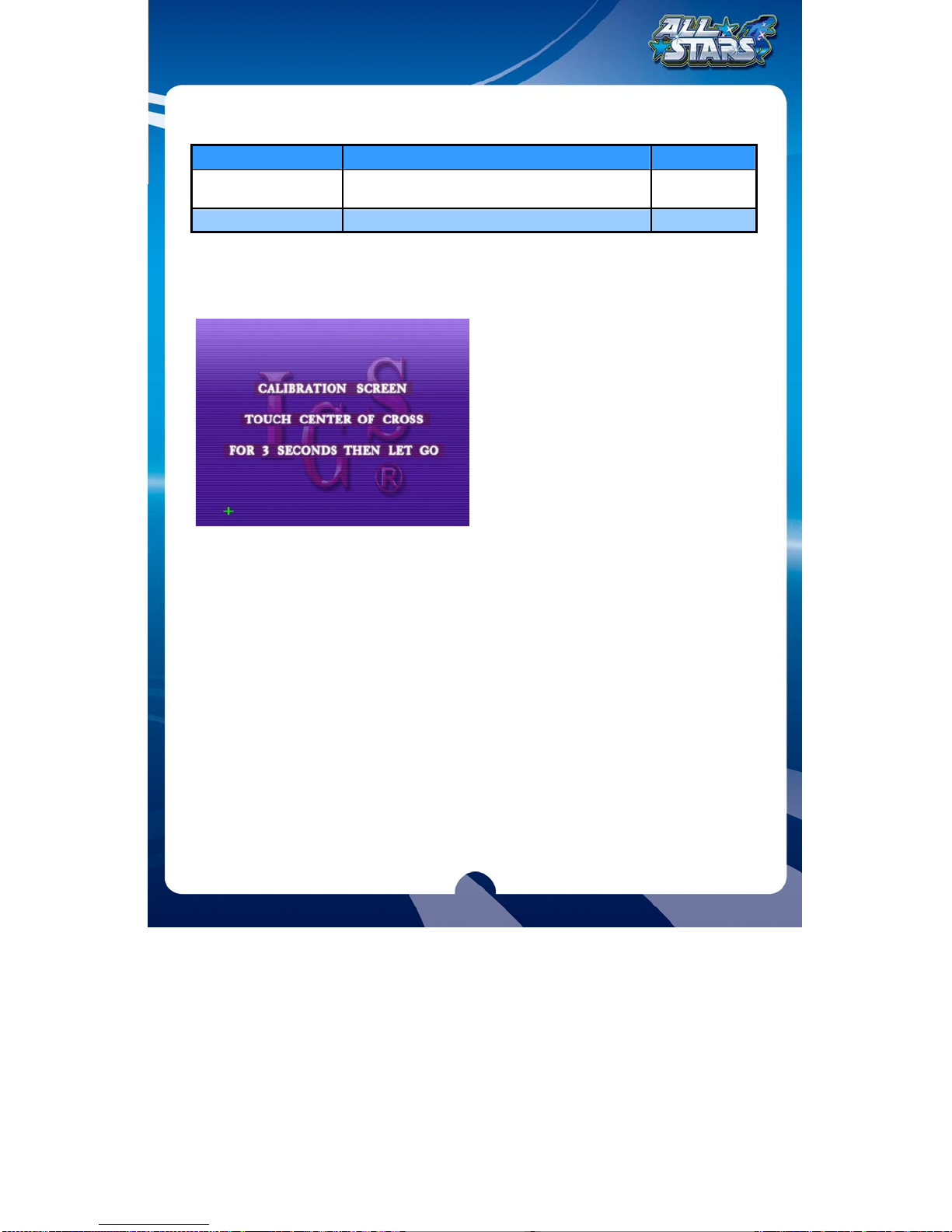

Touch Screen Calibration..................................................................................8
3. Game Introduction.....................................................................9
Features............................................................................................................9

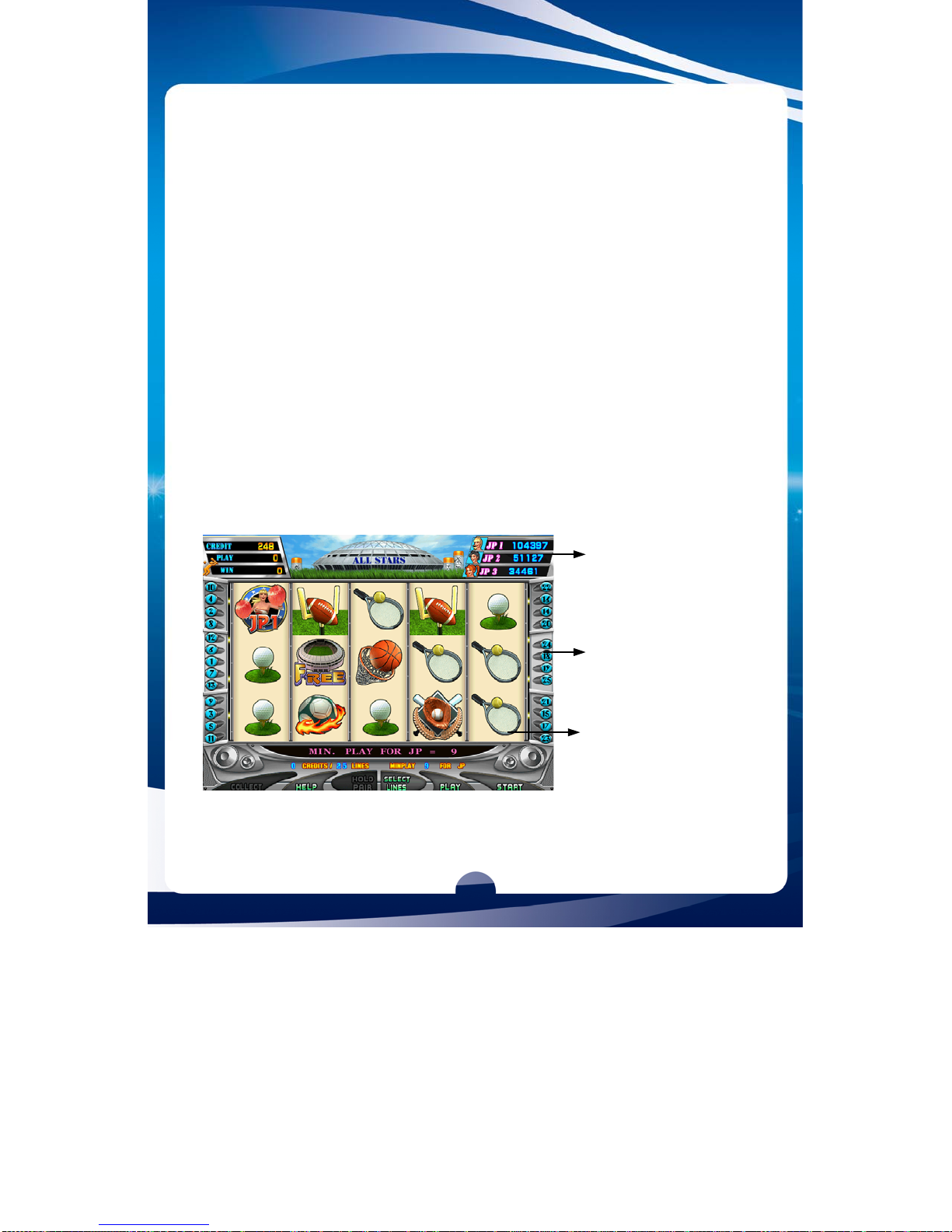

Main Game........................................................................................................9
Free Game...................................................................................................... 10

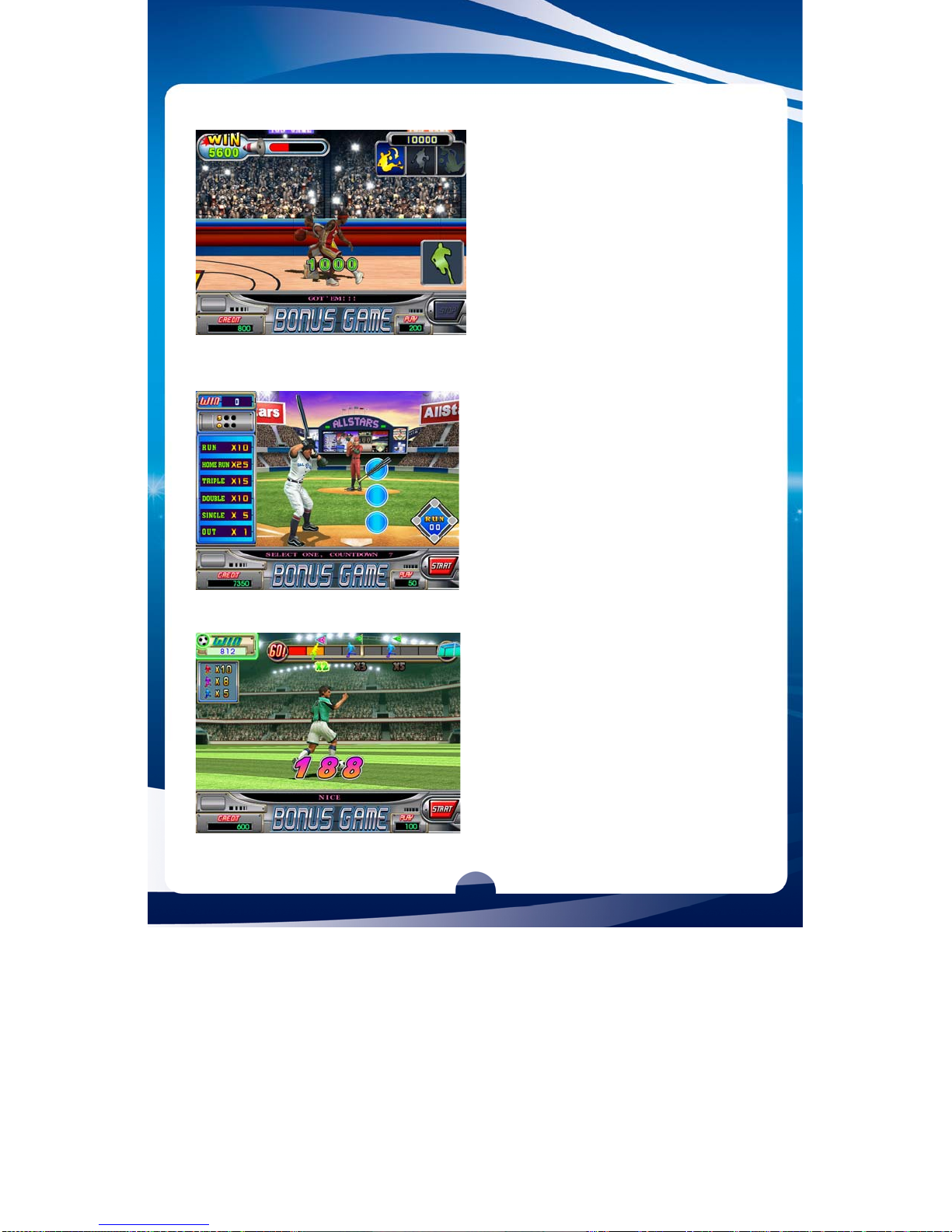

Bonus Game...................................................................................................10
Double Game..................................................................................................12
Wins Rules ...................................................................................13
Jackpot............................................................................................................13
Encouraging Higher Play ................................................................................ 13
Line Chart........................................................................................................14
Odds Table......................................................................................................14

2
1. Hardware
Connectors Descriptions
36-
Pin Connecto
r
DIP SW1
DIP SW2
Reset
A RS-232
Connects to optional Citizen
printer/ticket dispenser.
* Use Belkin #F2L044 (serial
printer cable/null modem) for
Citizen printer.
C RS-232
Connects to Micro Touch
compatible touch screen +5V
+5V Power output
VGA port
Connects to screen
10-Pin Connector
Notes:
1. Printer only can be driven when connecting to the RS-232 port.
2. The interface board of ticket dispenser can be driven by connecting to the 7th
pin on the Part Side of 10 pins (on 36 & 10 pins diagram).

3
Connection Diagram
36 Pins 10 Pins
PARTS SIDE SOLDER SIDE PARTS SIDE SOLDER SIDE
1 GND 1 GND
2 GND
2 GND
SPEAKER 3 GND +5V 3 +5V
4 +5V
4 +5V
5 +12V 5 +12V
6
6
TICKET OUT 7 TICKET SSR 7
TICKET SWITCH 8 8
START/ALL STOP 9
9
STOP4/SMALL/HELP 10 GND 10 GND
STOP5/PLAY 11
STOP1/TAKE 12
STOP3/DOUBLE/SELECT LINE 13
14
15
STOP2/HOLD PAIR/BIG 16
17
COIN A 18 KEY IN
19 COIN C
RECORD 20 TEST
21 KEY OUT/PRINTER OUT
22
COIN A METER 23
KEY IN METER 24
25
COIN C METER 26
27
OUT METER 28
LAMP: START / ALL STOP
29
LAMP: STOP4/SMALL/HELP 30
LAMP: STOP5/PLAY 31 LAMP: COUNT
LAMP: STOP1/TAKE 32
LAMP: STOP3/DOUBLE/SELECT
LINE 33
LAMP: STOP2/HOLD PAIR/BIG 34
35
GND 36 GND
