IHOS Dilos User manual

CONTENTS

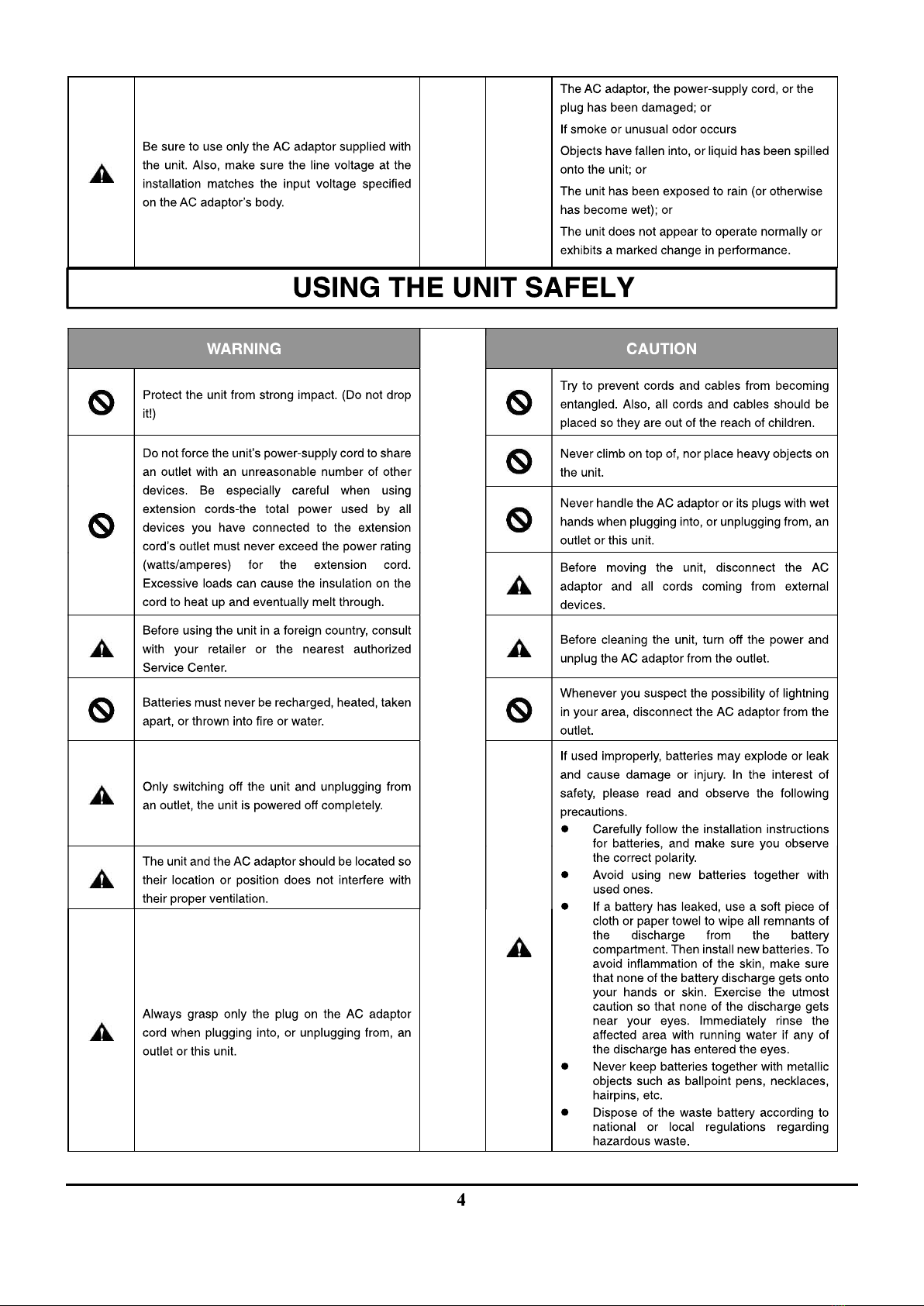

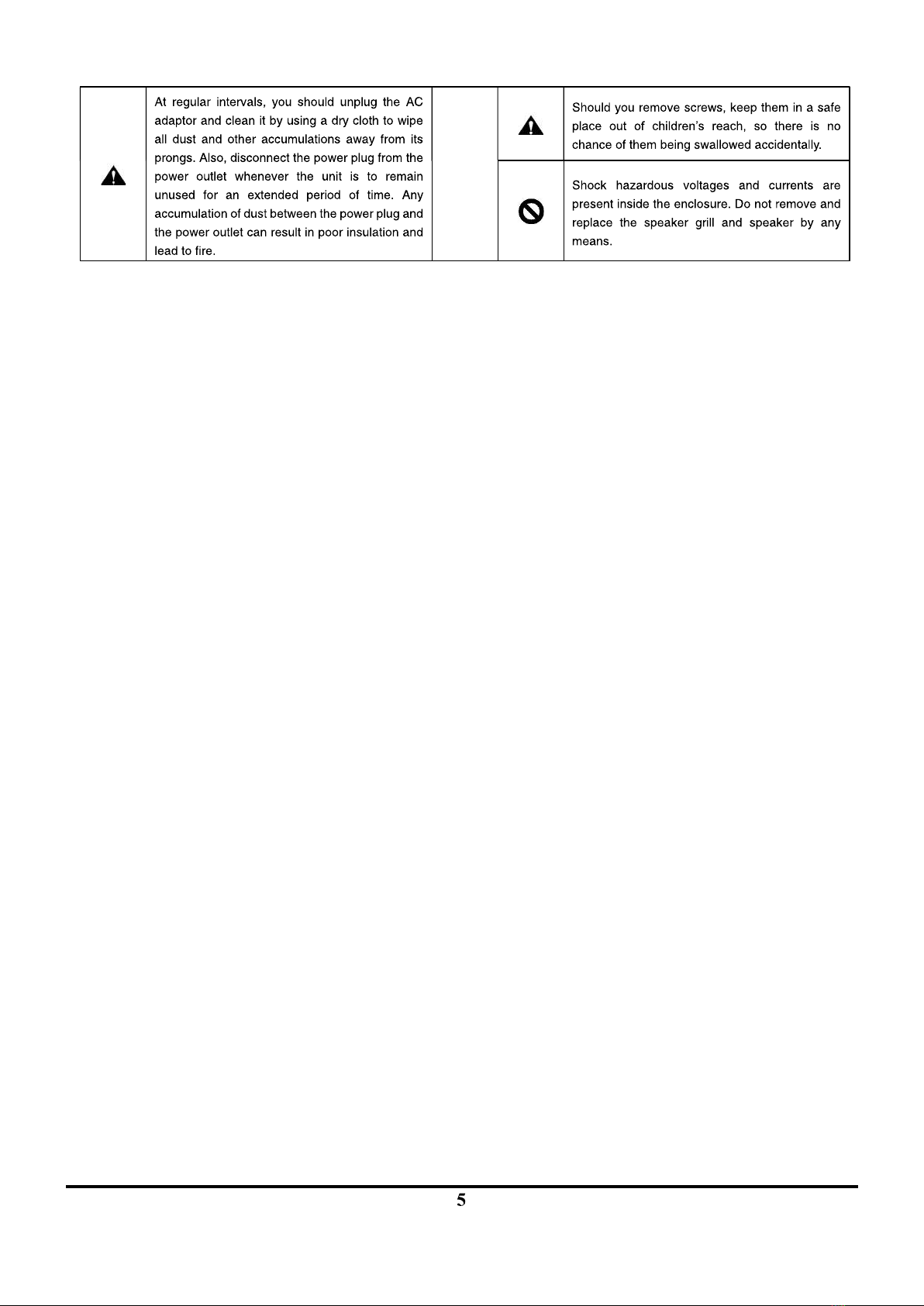

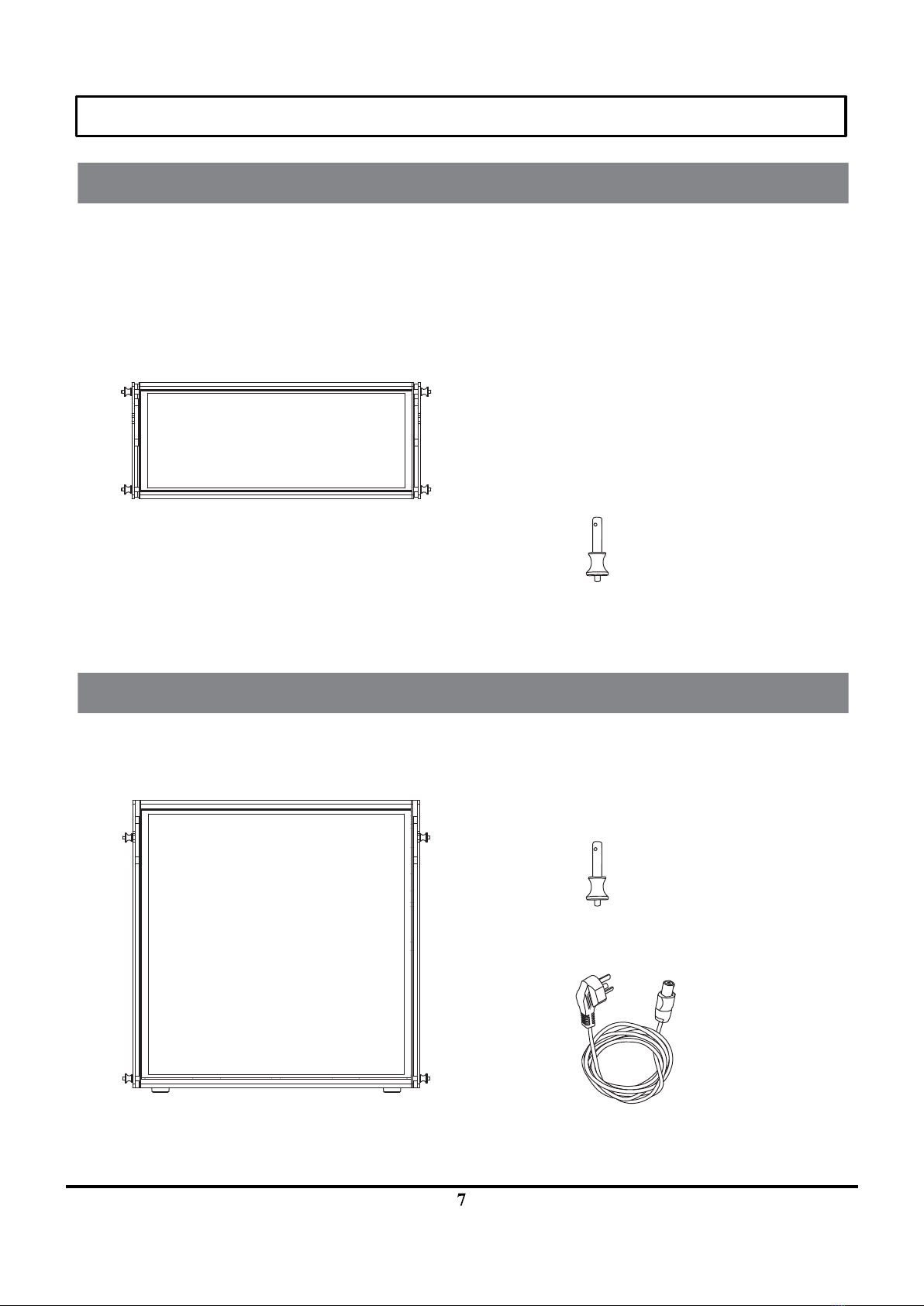

PRODUCTS AND ACCESSORIES
DILOS SUB * 1 Instruction warranty card
DILOS * 1 Instruction warranty card
3M power cord * 1
bolt * 8
bolt * 6
PRODUCTS AND ACCESSORIES
PRODUCTS AND ACCESSORIES

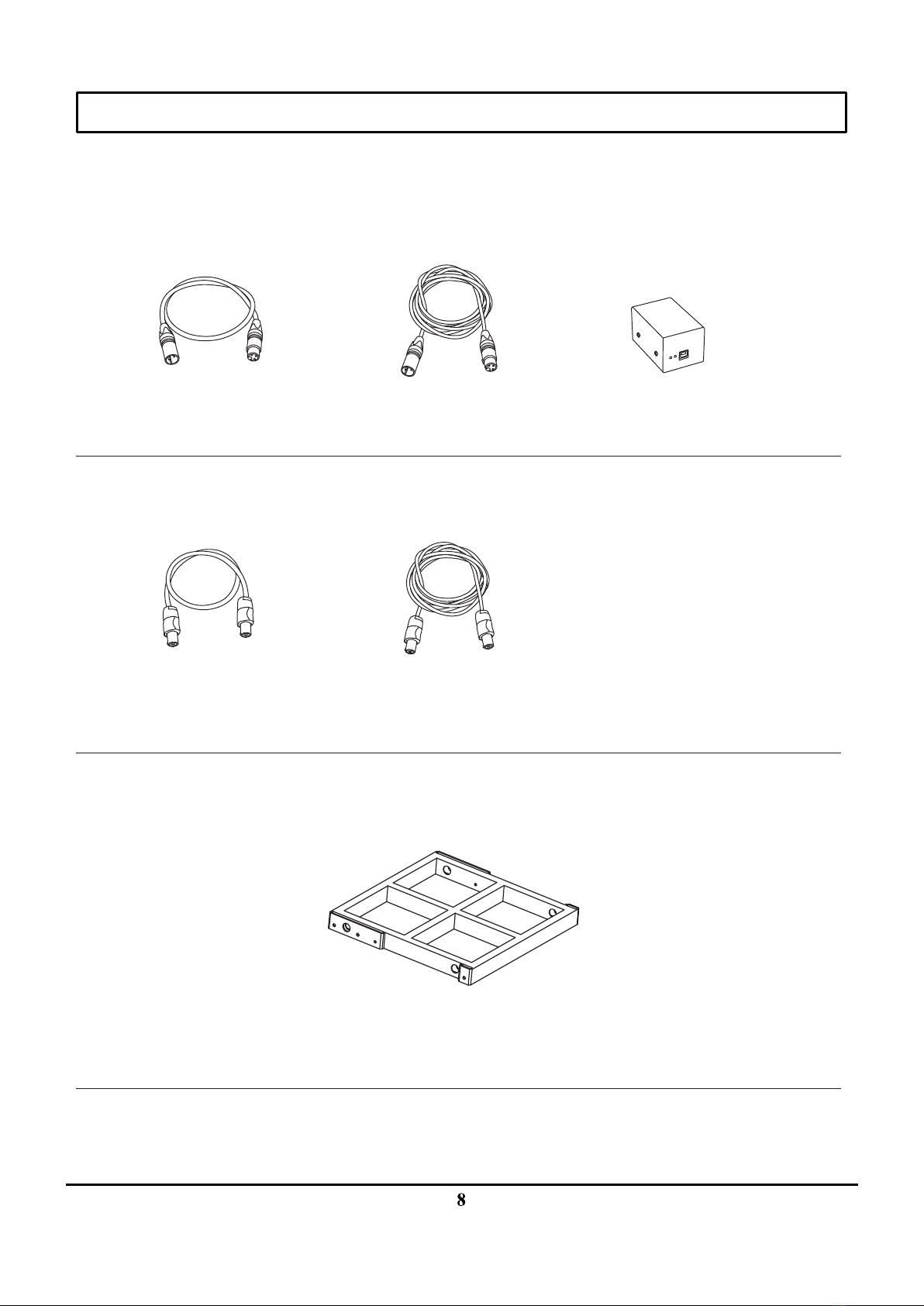

PARTS
0.6M signal cable
0.6M power cord
2M signal cable control signal adaptor
2M power cord
Flybar

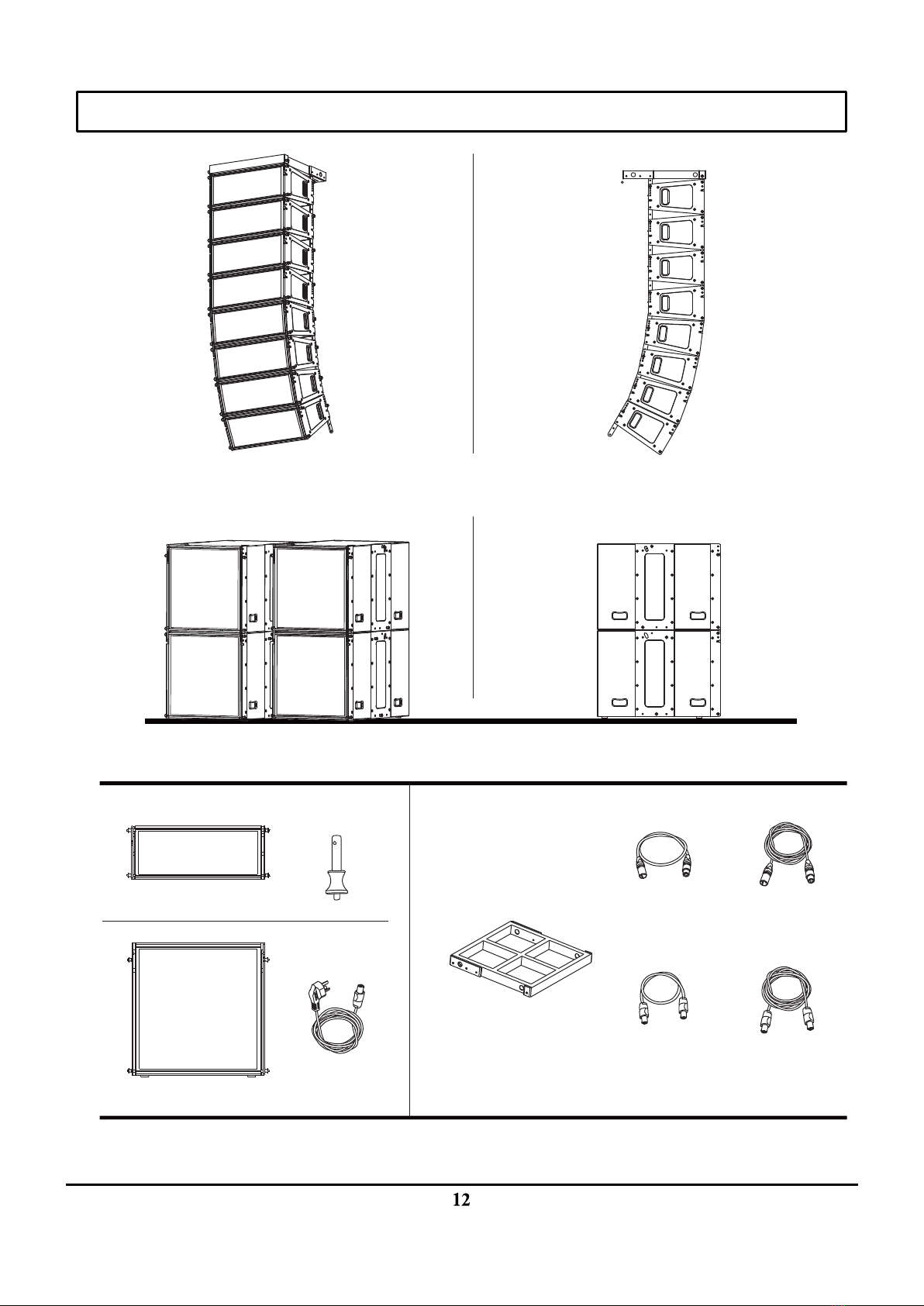

COMBINATION MODE
Combination mode 1
Recommendation list
0.6M signal cable X 3
0.6M power cord X 3 2M power cord X 3
2M signal cable X 1
DILOS SUB×1
DILOS×4

COMBINATION MODE
Combination mode 2
Recommendations list
0.6M signal cable X 3 2M signal cable X 1
0.6M power cord X 3 2M power cord X 1
DILOS SUB×1
DILOS×4
FlybarX1

COMBINATION MODE
Combination mode 3
Recommendations list
0.6M signal cable X 5 2M signal cable X 2
0.6M power cord X 5 2M power cord X 2
DILOS SUB×3
DILOS×6
Flybar X 1

COMBINATION MODE
combination mode 4
Recommendations list
0.6M signal cable X 7 2M signal cable X 3
0.6M power cord X 7 2M power cord X 3
DILOS SUB×4
DILOS×8
Flybar X 1

OPERATION MODE AND CONNECTION

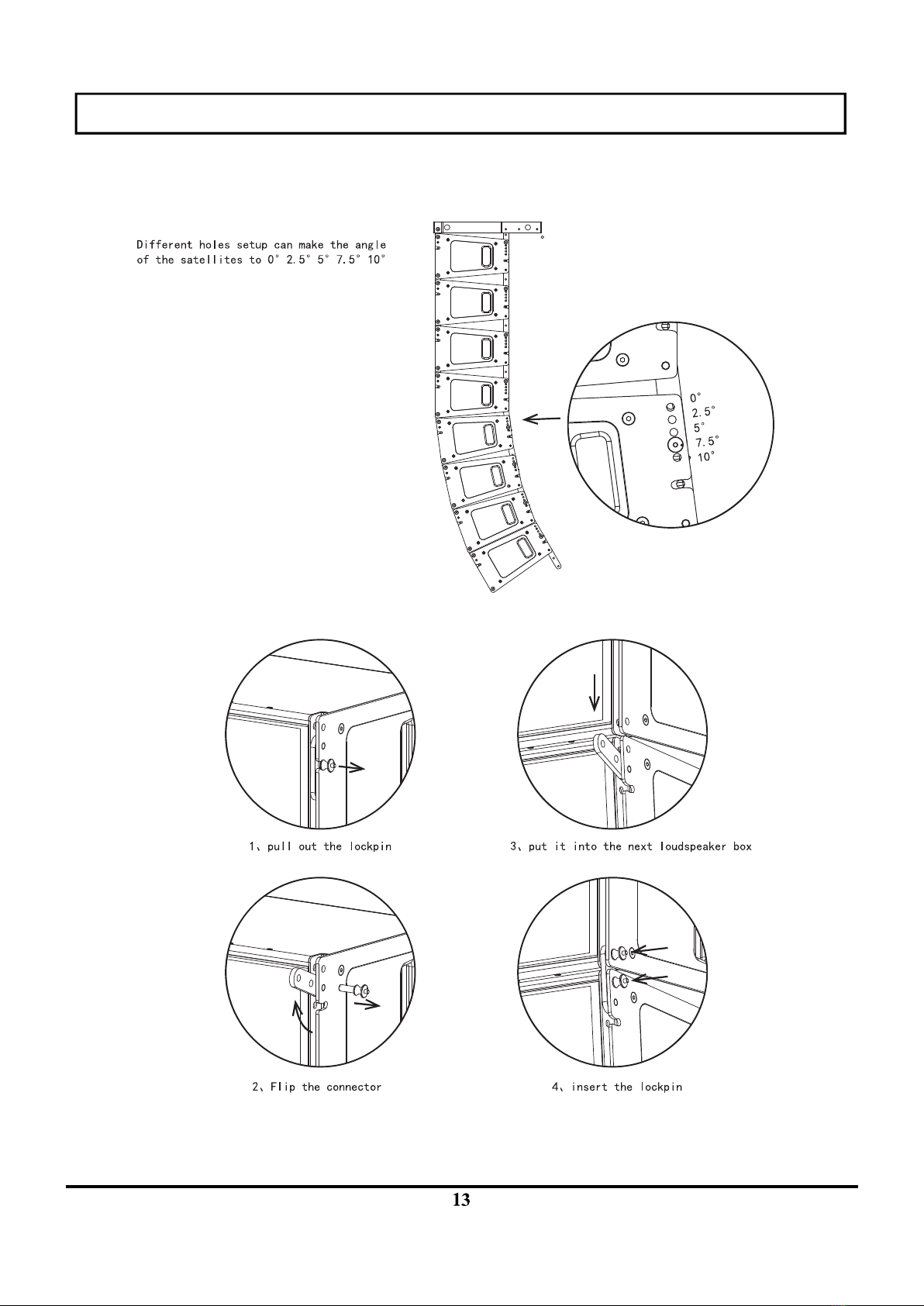

connection
Multi-angle between every
two loudspeaker boxes

OPERATION MODE AND CONNECTION
power in
POWER IN
signal out
control signal
adaptor
network cable
network cable
computer
Using RS485 control signal adaptor and XLR audio interface to connect, by using software to control every single
loudspeaker box with regard to gain, EQ, noise gate, compression, polarity, delay, etc. The maximum loudspeaker boxes
can reach to 32pcs which can be controlled simultaneously.
DILOS
DILOS
DILOS
DILOS
DILOS
DILOS
DILOS
DILOS
DILOS SUB
DILOS SUB
Signal input

PANEL CONTROLS
PANEL CONTROLS
1 2 4 5
10
3
8 9 11
6
4 5
10
8 9 11
6
7
3
2
1
7

DILOS/DILOS SUB CONTROLS AND DUNCTIONS
PANEL FUNCTIONS INSTRUCTIONS
Link to power in of the next loudspeaker box, the
voltage is same between power out and power in.
Insert the power cord, rotate right to ON turn the
power on, reverse to OFF turn the power off.
Switch to ON to power on this loudspeaker
Power on the mains electricity: the applicable
voltage of the machine is 220-240V ~ 50 / 60Hz.
Please connect it with the power cord of the machine,
insert the power cord, turn right to on, turn left to
off.
This coding switch can set different address codes
for each array box, so that the software can distin-
guish each speaker for debugging. The specific coding
rules are based on "8421" coding, there are 32
different combinations, please see the software
interface settings for details.
When the machine is powered on and there is no power
on signal, the light will not be on. When there is an
input signal, the light will be green. When the
machine reaches full power, the light will be red.
When the machine is powered on, the indicator light
is blue, indicating that the power supply of the
machine is normal.
Only for controlling the gain of the product, turn it
to the right and gradually increase the volume
This port is the RS485 control output port, which can
be connected with the network cable input port of the
next D8F/SUB through the network cable (the network
daisy-chaining structure, up to 32 speakers can be
debugged simultaneously.
This port is the RS485 control input port, which can
be connected with the control signal distributor
through the network cable (the network cable level
adaptor and XLR audio interface to connect, by using
software to control every single loudspeaker box with
regard to gain, EQ, noise gate, compression, polari-
ty, delay, etc. Please refer to the software settings
for details.
It can be connected to LINE signal source (such as
The output signal can be connected to the signal
input interface of the next D8F/SUB through XLR line,
and the output signal is the same as the input
signal.
.

TECHNICAL SPECIFICIATION
DILOS DILOS SUB
60~20kHz 35~120Hz
4 8
300Hz 2000Hz /
130dB 134dB
1400W 1000W
1*XLR 1*XLR
1*RS485 1*RS485
1* XLR 1* XLR
1*RS485 1*RS485
POWERCON IN POWERCON IN
POWERCON OUT POWERCON OUT
220-240 VAC 50/60Hz 220-240 VAC 50/60Hz
T4AL/250V T6.3AL/250V
DSP digital limiting DSP digital limiting
woofer:1*8" :1*8" 2*1" subwoofer:1*18"
90°*15° /
Birch PLY Birch PLY
1.2mm steel 1.5mm steel
black black
250*620*400mm 630*620*880mm
30kg 78.5kg
54.5*36.5*73.5cm/1PC 104.5*75.5*79cm/1PC
33kg 85kg

SUPPORT AND TROUBLE SHOOTING
TROUBLE SHOOTING
No sound from
the loudspeaker
Please check whether the power cord is tightly plugged and turn right to the ON position.
Please check whether all cables are right connected and the connection is firm.
Please check whether the settings of DSP and LEVEL are in the normal working position.
Make sure the sound source device is working normally and can play the required signal.
Check whether the LEVEL setting is too low or not, adjust the output LEVEL setting of the
sound source device, or increase the output LEVEL with the LEVEL controller.
Loudspeaker
has hum or buzz
Check whether the sound source input is normal.
Check whether the cable is bent, short circuit or broken.
Check whether the signal connecting wire is in good connection.
If the signal indicator is in red for long time, it means that the output volume is too
large. Please adjust the output LEVEL setting of the source device, or use the LEVEL
controller to adjust the output LEVEL.
Each speaker sounds
differently (If using
multiple speakers at
Set DSP switch and LEVEL switch of each speaker in the same position.
Sound breaks
up suddenly
Please wait until the amplifier cools down. If the device does not reset automatically,
please turn off the power and then turn it back on.
