Iiyama ProLite E2273HDS User manual

ENGLISH
USER MANUAL
Thank you very much for choosing the
iiyama LCD monitor.
We recommend that you take a few
minutes to read carefully through this
brief but comprehensive manual before
installing and switching on the monitor.
Please keep this manual in a safe
place for your future reference.

ENGLISH
Congratulations!
This display is designed for both you and the planet!
The display you have just purchased carries the TCO
Certified label. This ensures that your display is designed,
manufactured and tested according to some of the strictest
quality and environmental requirements in the world. This
makes for a high performance product, designed with the user
in focus that also minimizes the impact on the climate and our
natural environment.
TCO Certified is a third party verified program, where every product model is tested by an
accredited impartial test laboratory. TCO Certified represents one of the toughest certifications for
displays worldwide.
Some of the Usability features of the TCO Certified for displays:
• Visual ergonomics for good image quality is tested to ensure top performance and reduce sight
and strain problems. Important parameters are luminance, contrast, resolution, black level,
gamma curve, colour and luminance uniformity and colour rendering
• Products are tested according to rigorous safety standards at impartial laboratories
• Electric and magnetic fields emissions as low as normal household background levels
• Low acoustic noise emissions (When applicable)
Some of the Environmental features of the TCO Certified for displays:
• The brand owner demonstrates corporate social responsibility and has a certified environmental
management system (EMAS or ISO 14001)
• Very low energy consumption both in on- and standby mode minimize climate impact
• Restrictions on chlorinated and brominated flame retardants, plasticizers, plastics and heavy
metals such as cadmium, mercury and lead (RoHS compliance)
• Both product and product packaging is prepared for recycling
• The brand owner offers take-back options
The requirements can be downloaded from our web site. The requirements included in this label
have been developed by TCO Development in co-operation with scientists, experts, users as
well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in
influencing the development of IT equipment in a more user-friendly direction. Our labeling system
started with displays in 1992 and is now requested by users and IT-manufacturers all over the
world. About 50% of all displays worldwide are TCO certified.
For more information, please visit
www.tcodevelopment.com

ENGLISH
CE MARKING DECLARATION OF CONFORMITY
This LCD monitor complies with the requirements of the EC Directive 2004/108/EC “EMC
Directive” , 2006/95/EC “Low Voltage Directive” and 2009/125/EC “ErP Directive”.
The electro-magnetic susceptibility has been chosen at a level that gives correct operation in
residential areas, business and light industrial premises and small-scale enterprises, inside as
well as outside of the buildings. All places of operation are characterised by their connection to
the public low voltage power supply system.
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands
We reserve the right to change specifications without notice.
All trademarks used in this user manual are the property of their respective owners.
As an ENERGY STAR® Partner, iiyama has determined that this product meets the ENERGY STAR® guidelines
for energy efficiency.
We recommend recycling of used product. Please contact your dealer or iiyama
service center. Recycle information is obtained via the Internet, using the address:
http://www.iiyama.com
You can access the Web page of different countries from there.
For displays with glossy bezels the user should consider the placement of the display as the bezel
may cause disturbing reflections from surrounding light and bright surfaces.

ENGLISH
TABLE OF CONTENTS
FOR YOUR SAFETY..........................................................................1
SAFETY PRECAUTIONS..............................................................1
SPECIAL NOTES ON LCD MONITORS.......................................3
CUSTOMER SERVICE .................................................................3
CLEANING....................................................................................3
BEFORE YOU OPERATE THE MONITOR........................................4
FEATURES....................................................................................4
CHEKING THE CONTENTS OF THE PACKAGE.........................4
FITTING AND REMOVAL OF BASE .............................................5
CONTROLS AND CONNECTORS................................................6
CONNECTING YOUR MONITOR ................................................7
COMPUTER SETTING .................................................................8
ADJUSTING THE VIEWING ANGLE ............................................9
OPERATING THE MONITOR...........................................................10
ADJUSTMENT MENU CONTENTS............................................11
SCREEN ADJUSTMENTS..........................................................17
POWER MANAGEMENT FEATURE...........................................20
TROUBLE SHOOTING ....................................................................21
RECYCLING INFORMATION...........................................................22
APPENDIX ......................................................................................23
SPECIFICATIONS.......................................................................23
DIMENSIONS..............................................................................24
COMPLIANT TIMING..................................................................24

ENGLISH

ENGLISH
FOR YOUR SAFETY 1
FOR YOUR SAFETY
WARNING
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS
If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor
and contact your dealer or iiyama service center immediately. Further use may be dangerous and can
cause fire or electric shock.
NEVER REMOVE THE CABINET
High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire
or electric shock.
DO NOT PUT ANY OBJECT INTO THE MONITOR
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug
your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any
object inside may cause fire, electric shock or damage.
INSTALL THE MONITOR ON A FLAT, STABLE SURFACE
The monitor may cause an injury if it falls or is dropped.
DO NOT USE THE MONITOR NEAR WATER
Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric
shock.
OPERATE UNDER THE SPECIFIED POWER SUPPLY
Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will
cause malfunction and may cause fire or electric shock.
PROTECT THE CABLES
Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy
objects on the cables. If damaged, the cables may cause fire or electric shock.
ADVERSE WEATHER CONDITIONS
It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in
power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may
cause electric shock.
SAFETY PRECAUTIONS

ENGLISH
2 FOR YOUR SAFETY
CAUTION
INSTALLATION LOCATION
Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky
areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun
shines directly on the monitor.
DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION
The monitor may topple and cause injury if not suitably located. Please also ensure that you do not
place any heavy objects on the monitor, and that all cables are routed such that children may not pull
the cables and possibly cause injury.
MAINTAIN GOOD VENTILATION
Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire.
To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls.
Do not remove the tilt stand when operating the monitor. Ventilation slots on the back of the cabinet
will be blocked and the monitor may overheat if the stand is removed. This may cause fire or damage.
Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also
cause damage.
DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR
When you move the monitor, turn off the power switch, unplug the monitor and be sure the signal cable
is disconnected. If you do not disconnect them, it may cause fire or electric shock.
UNPLUG THE MONITOR
If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid
accidents.
HOLD THE PLUG WHEN DISCONNECTING
To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself
as this may cause fire or electric shock.
DO NOT TOUCH THE PLUG WITH WET HANDS
Pulling or inserting the plug with wet hands may cause electric shock.
WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER
Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage
your computer.
OTHERS
ERGONOMIC RECOMMENDATIONS
To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room.
For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches)
away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is
recommended as looking at the screen continuously can cause eye strain.

ENGLISH
FOR YOUR SAFETY 3
The following symptoms are normal with LCD monitors and do not indicate a problem.
NOTE 
When you first turn on the LCD monitor, the picture may not fit in the display area because
of the type of computer that is used. In this case, adjust the picture position to the correct
position.

Due to the nature of the backlight, the screen may flicker during initial use. Turn off the
Power Switch and then turn it on again to make sure the flicker disappears.

You may find slightly uneven brightness on the screen depending on the desktop pattern
you use.

Due to the nature of the LCD screen, an afterimage of the previous screen may remain
after switching the image, when the same image is displayed for hours. In this case, the
screen can be recovered slowly by changing the image or turning off the Power Switch for
some hours.

Contact your dealer or iiyama service center for the backlight replacement when the
screen is dark, flickering or not lighting up. Never attempt to replace it by yourself.
SPECIAL NOTES ON LCD MONITORS

If you have to return your unit for service and the original packaging has been discarded,
please contact your dealer or iiyama service center for advice or replacement packaging.
WARNING 
If you drop any materials or liquids such as water into the monitor when cleaning,
unplug the power cable immediately and contact your dealer or iiyama service center.
CAUTION 
For safety reasons, turn off the power switch and unplug the monitor before you clean
it.

To protect the LCD panel, do not scratch or rub the screen with a hard object.

Never use any of the following strong solvents. These will damage the cabinet and
the LCD screen.

Touching the cabinet with any product made from rubber or plastic for a long time
may cause degeneration or loss of paint on the cabinet.
Thinner
Benzine
Abrasive cleaner
Spray-type cleaner
Wax
Acid or Alkaline solvent
CABINET Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then
wipe the cabinet with a soft dry cloth.
LCD
SCREEN
Periodic cleaning with a soft dry cloth is recommended.
Don't use tissue paper etc. because these will damage the LCD screen.
CUSTOMER SERVICE
CLEANING
NOTE
NOTE

ENGLISH
4 BEFORE YOU OPERATE THE MONITOR
The following accessories are included in your package. Check to see if they are enclosed with the
monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama
office.
BEFORE YOU OPERATE THE MONITOR
CHEKING THE CONTENTS OF THE PACKAGE
FEATURES
Supports Resolutions up to 1920 × 1080
High Contrast 1000:1 (Typical), ACR Function Available / Brightness 250cd/m2
(Typical), Quick Response Time 2ms (Gray to Gray)
Digital Character Smoothing
Automatic Set-up
Stereo Speakers
2 × 1.0W Stereo Speakers

Plug & Play VESA DDC2B Compliant
Windows®95/98/2000/Me/XP/Vista/7 Compliant
Power Management (ENERGY STAR®VESA DPMS Compliant)
Ergonomic Design TCO5.2
VESA Mounting Standard (100mm×100mm) Compliant
Keyhole for Security Lock
*The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using
a power supply higher than this rating, then a power cable with a rating of 10A/250V
must be used. However, all guarantees and warranties are void for any
problems or damage caused by a power cable not supplied by iiyama.

Power Cable* D-Sub Signal Cable  DVI-D Signal Cable

Audio Cable  Stand-Base  Cable Holder 

Safety Guide  Quick Start Guide
CAUTION

ENGLISH
BEFORE YOU OPERATE THE MONITOR 5

Put the monitor on a stable surface. The monitor may cause injury or damage if it falls
or is dropped.

Do not give a strong impact to the monitor. It may cause damage.

Unplug the monitor before removal or installation to avoid electric shock or damage.
CAUTION
<Installation>
APut a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
Lay the monitor flat on a table with front face down.
B
Hold the monitor and push the Stand-Base until it clicks and is secure.
<Removal>
APut a piece of soft cloth on the table beforehand to prevent the monitor from being scratched.
Lay the monitor flat on a table with front face down.
B
Press and hold the hooks inside, and pull the Stand-Base.
FITTING AND REMOVAL OF BASE
Stand-Base
Hooks

ENGLISH
6 BEFORE YOU OPERATE THE MONITOR

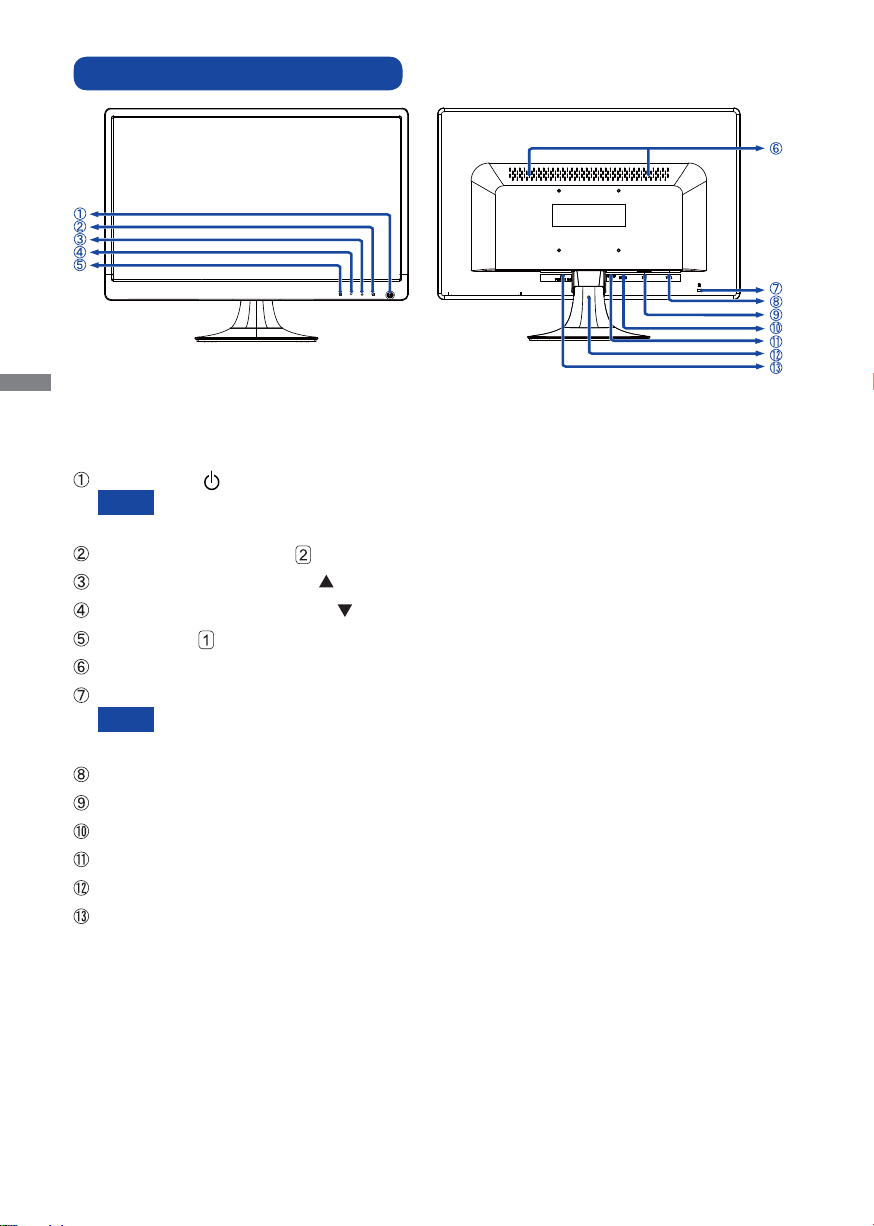

CONTROLS AND CONNECTORS
Power Switch ( ) / Power Indicator
Blue: Normal operation
Orange: Power Management
Select / Input select Button ( )
Scroll up / Audio Adjust Button ( )
Scroll down / i-Style Color Button ( )
Menu Button ( )
Speakers
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
D-SUB mini 15pin Connector (VGA)
DVI-D 24pin Connector (DVI)
HDMI Connector (HDMI)
Audio Connector (AUDIO IN)
Installation hole of Cable Holder
AC Connector (AC POWER IN)
<Front> <Back>
NOTE
NOTE

ENGLISH
BEFORE YOU OPERATE THE MONITOR 7
CONNECTING YOUR MONITOR
Ensure that both the computer and the monitor are switched off.
Connect the computer to the monitor with the signal cable.
Connect the monitor to the audio equipment with the Audio Cable for computer when using the
audio features.
Connect the Power Cable to the monitor first and then to the power supply.
Turn on your monitor (Main Power Switch and Power Switch)and computer.
[Example of Connection]
<Back>
Power Cable
(Accessory)
Audio Cable (Accessory)
Computer
D-Sub Signal Cable
(Accessory)
DVI-D Signal Cable
(Accessory)
AV Equipment etc.
HDMI Cable
(Not included)
NOTE The signal cables used for connecting the computer and monitor may vary with the type of
computer used. An incorrect connection may cause serious damage to both the monitor and
the computer. The cable supplied with the monitor is for a standard 15 pin D-Sub connector.
If a special cable is required please contact your local iiyama dealer or regional iiyama
office.
For connection to Macintosh computers, contact your local iiyama dealer or regional
iiyama office for a suitable adaptor.
Make sure you tighten the finger screws at each end of the signal cable.
[ Collect Cables ]
Insert the Cable-Holder into Hole.
Put the cables through the cable holder.
Collect cables at the back of the stand.
Cable Holder
Installation hole

ENGLISH
8 BEFORE YOU OPERATE THE MONITOR
Signal Timing
Change to the desired signal timing listed on page 24: COMPLIANT TIMING.
Windows 95/98/2000/Me/XP/Vista/7 Plug & Play
The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on
Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with
the Signal Cable supplied.
For installation on Windows 95/98/2000/Me/XP: The monitor Information File for iiyama monitors
may be necessary for your computer and obtained via the Internet, using the address:
http://www.iiyama.com

For additional information on how to download the driver for your touch screen monitor,
please access the internet site noted above.

Monitor Drivers are not required in most cases for Macintosh or Unix operating systems.
For further information, please contact your computer dealer first for advice.
COMPUTER SETTING
NOTE

ENGLISH
BEFORE YOU OPERATE THE MONITOR 9

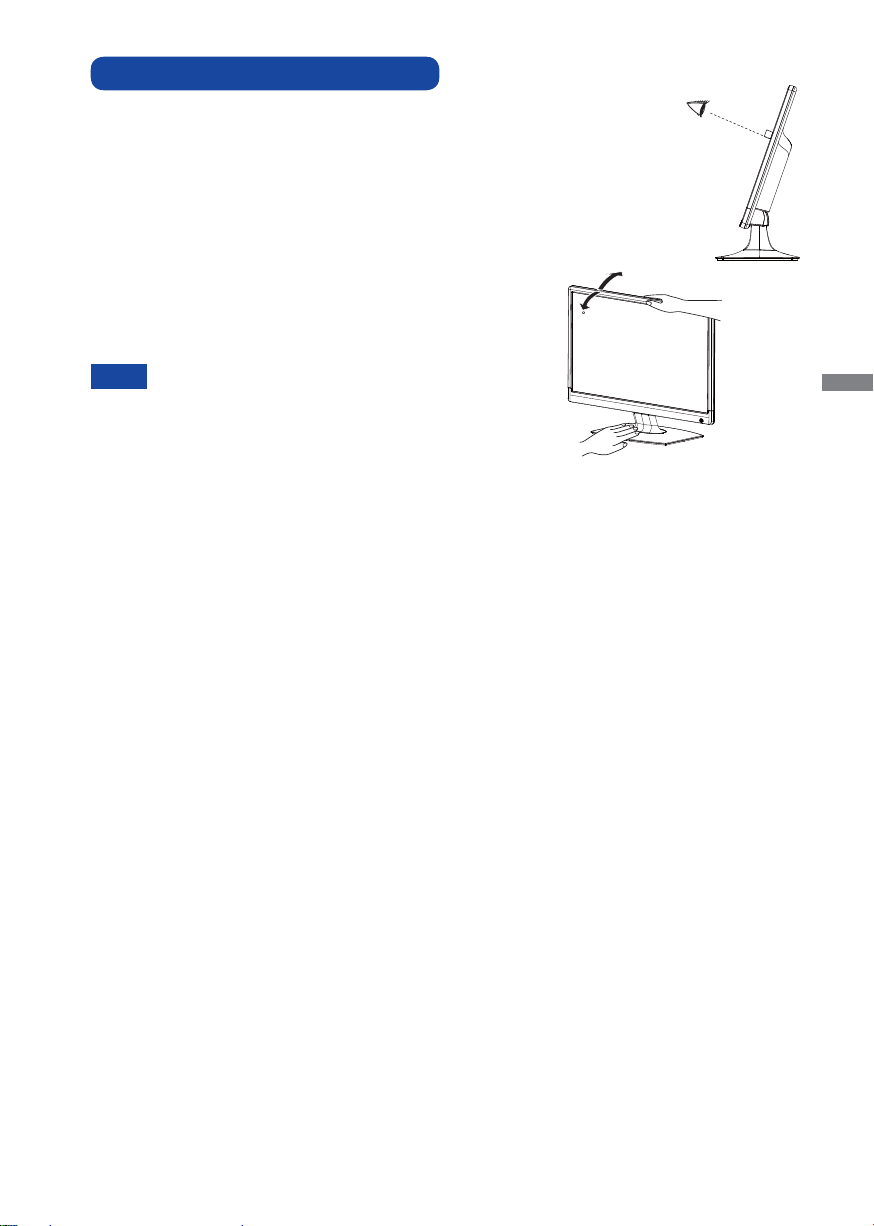

For optimal viewing it is recommended to look at the full face of
the monitor.
Hold the stand so that the monitor does not topple when you
change the monitor’s angle.
You are able to adjust the monitor’s angle up to 20° upward, 5°
downward.
In order to ensure a healthy and relaxed body position
when using the monitor at visual display workstations, it is
recommended that the adjusted tilt angle should not exceed 10
degrees. Adjust the monitor’s angle to your own preference.
NOTE Do not touch the LCD screen when you change
the angle. It may cause damage or break the LCD
screen.
Careful attention is required not to catch your fingers
or hands when you change the angle.
Do not tilt the post beyond 20 degrees except when
repacking the monitor in its box.
To do so may cause the monitor to fall over and
break.
ADJUSTING THE VIEWING ANGLE
20°
5

ENGLISH
10 OPERATING THE MONITOR
OPERATING THE MONITOR
To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT
TIMING shown on page 24. You are also able to adjust the picture by following the button operation
shown below. For more detailed adjustments, see page 17 for SCREEN ADJUSTMENTS.
Press the Button to start the On Screen Display (OSD) feature. There are
additional Menu items which can be switched by using the / Buttons.
BSelect the Menu item which contains the adjustment icon relating to the adjustment
you want to make. Press the Button. Then, use the / Buttons to highlight the
desired adjustment icon.
CPress the Button again. Use the / Buttons to make the appropriate
adjustment or setting.
DPress the Button to leave the menu, and the settings you just made would be
automatically saved.

When button operations are aborted during adjustment, On-Screen Display disappears
when the time set for the OSD Time Out has passed. Also, the button can be used to
return previous menu and turn off the On-Screen Display.

Any changes are automatically saved in the memory when the On Screen Display
disappears. Turning off the power should be avoided while using the Menu.

Adjustments for H./V. Position, Clock and Phase are saved for each signal timing. Except for
these adjustments, all other adjustments have only one setting which applies to all signal timings.
For example, to correct for vertical position, select Menu item of Manual Image Adjust and then
press the Button. Then, select (H./V.Position) by using the / Buttons.
An adjustment page appears after you press the Button. Then, select V. Position by using the
/ Buttons. Press the Button again. Then, use the / Buttons to change the vertical
position settings. The vertical position of the overall display should be changing accordingly while
you are doing this.
Press the Button lastly, it ends, any changes are saved in the memory.
NOTE
Main Menu
Auto Image Adjust
Contrast/Brightness
Input Select
Audio Adjust
Color Adjust
Information
Manual Image Adjust
Setup Menu
Memory Recall
Exit Select
Main Menu
Auto Image Adjust
Contrast/Brightness
Input Select
Audio Adjust
Color Adjust
Information
Manual Image Adjust
Setup Menu
Memory Recall
Exit Select Exit Select
Manual Image Adjust
Horizontal Size
H./V. Position
Fine Tune
Sharpness
Video Mode Adjust
H./V. Position
Exit Select
H. Position
V. Posit i o n

ENGLISH
OPERATING THE MONITOR 11
ADJUSTMENT MENU CONTENTS
Too dark
Too bright
Brightness *1,2,3
Too dull
Too intense
*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too
bright. Can not select when ACR is On.
*2Brightness and ACR can not enable the same time when ECO Mode is on.
*3Contrast, Brightness, ACR and ECO Mode adjustments are disabled when i-Style Color is activated.
Brightness of back-light is reduced.
Off Normal
ECO Mode *3
ACR *2,3
Increased Contrast RatioOn
Off Typical Contrast Ratio
Adjustment Item Problem / Option Button to Press
Auto Image Adjust Auto Image Adjust
Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically.
* For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 17
for SCREEN ADJUSTMENTS.
Only Analog Input
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

Auto Image Adjust: Pressing and holding of the Button for about 2 seconds when the Menu is
not displayed.
Direct
Direct
Adjustment Item Problem / Option Button to Press
Contrast/Brightness Contrast/Brightness
Contrast *3
1Brightness of back-light is reduced more than 1.2 Brightness of back-light is reduced more than 2.3
OD Off/1/2/3/4/5
It will improve the gray level response time of the
LCD panel.
A higher level results in a faster response time.

ENGLISH
12 OPERATING THE MONITOR
Adjustment Item Problem / Option Button to Press
Input Select Input Select
Input Select
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

Input Select: Press the Button when the Menu is not displayed.
Direct
Direct
Input source is fixed, not selected automatically when VGA, DVI, HDMI1 and HDMI2 which
are selected.
Select the VGA input.
Select the DVI input.
VGA
DVI
Auto
Search for an available input source and select
automatically.
Select the HDMI input.HDMI
NOTE

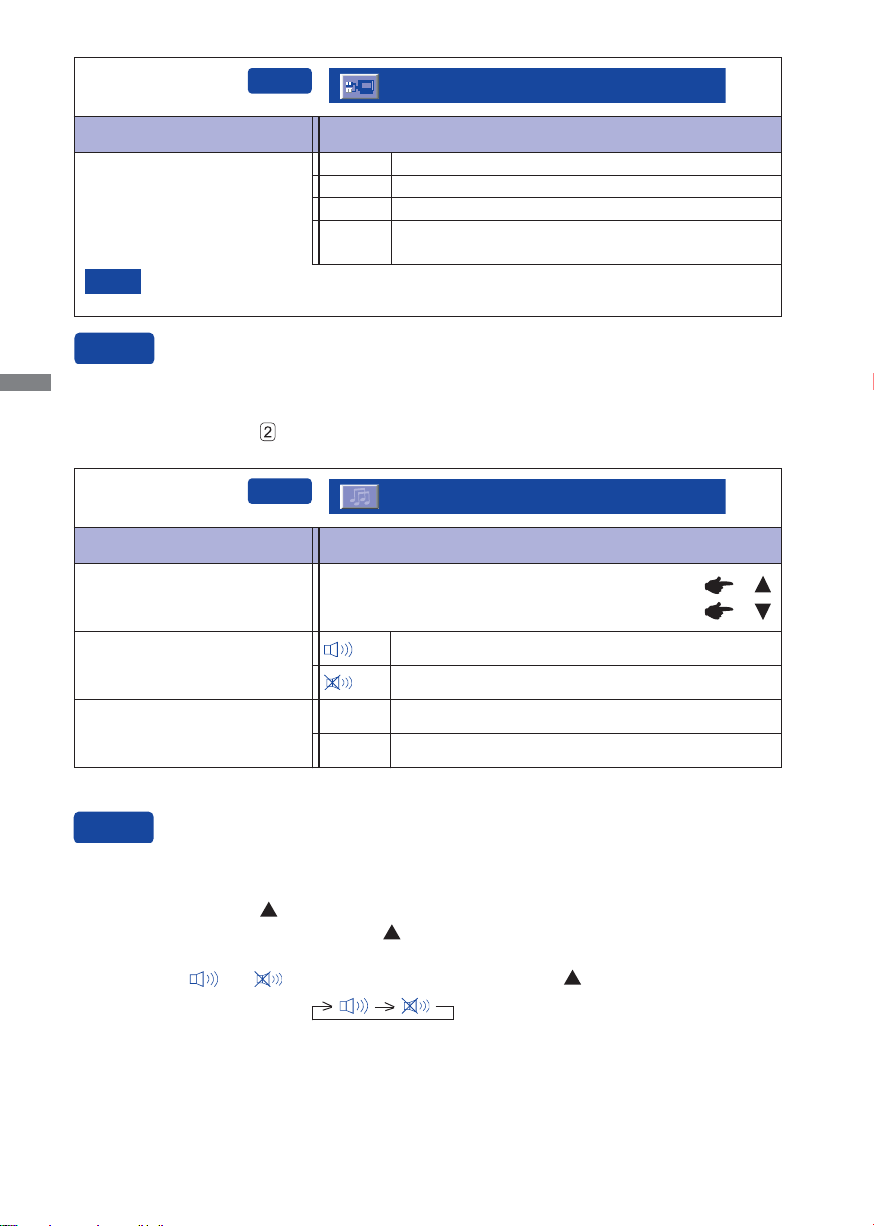

Volume Too soft
Too loud
Adjustment Item Problem / Option Button to Press
Audio Adjust Audio Adjust
Mute
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

Audio Adjust: Press the Button when the Menu is not displayed.

Mute: Pressing and holding of the Button for about 2 seconds when the Menu is not
displayed.
and are switched as follows by pressing the Button successively.
Direct
Direct
Return the sound volume to the previous level.
Turn off the sound temporarily.
Select the Line-In input.Line-In
Select the HDMI input.HDMI
HDMI Audio *
* Suitable for HDMI input only.

ENGLISH
OPERATING THE MONITOR 13
Too weak
Too strong
Adjustment Item Problem / Option Button to Press
Color Adjust Color Adjust
User Color
You can skip the Menu items and display an adjustment scale directly by using the following button
operations.

i-Style Color: Press the Button when the Menu is not displayed.
Direct
Direct
Bluish white
Red
Green
Blue
Cool Reddish whiteNormal Greenish whiteWarm
i-Style Color
Standard For general windows environment and monitor
default setting.
Text For text editing and viewing in a word processing
environment.
Game For PC game environment.
Cinema For movie and video environment.
Scenery For displaying outdoor scenery images
Information Information
Information
H.Frequency:
V.Frequency:
Resolution:
Pixel Clock:
Model Number:
67.56KHz
60.0Hz
1920 x 1080
148.5MHz
PLE2273HDS
Exit
See your graphic card user guide for more information
about changing the resolution and refresh.
Displays information regarding the current input signal coming
from the graphic card in your computer.
NOTE

ENGLISH
14 OPERATING THE MONITOR
Too left
Too right
Too low
Too high
Too narrow
Too wide
To correct flickering text or lines
*1Only Analog Input.
*2See page 17 for SCREEN ADJUSTMENTS.
*3It can display in the center of the screen with a 4:3, 5:4 or 16:10 aspect ratio when input video
resolution is 4:3, 5:4 or 16:10.
Expansion display
Full Screen
Over Screen Expansion display of Aspect
Adjustment Item Problem / Option Button to Press

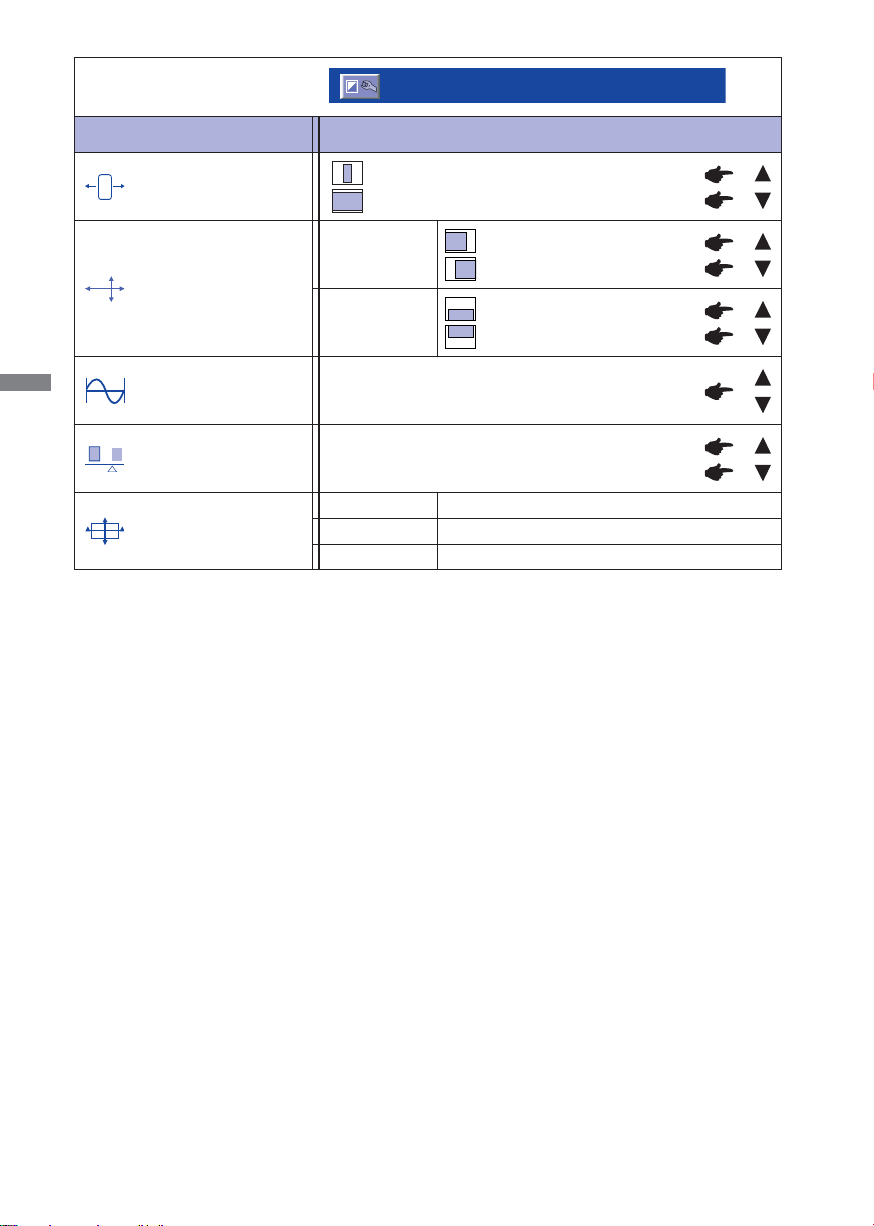

Manual Image Adjust Manual Image Adjust
Clock *1
H./V. Position *1,2
H. Position
V. Position
Phase *1
Adjust the picture quality at resolutions of less
1920 x 1080.
You can change the picture quality (3 steps).
Sharpness
Aspect Ratio *3
Video Mode Adjust Full screen display
