IKEA RENODLAD User manual

RENODLAD
GB

ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.

ENGLISH 4

Contents
Safety information 4
Safety instructions 6
Product description 7
Control panel 8
Programmes 9
Options 11
Settings 12
Before first use 15
Daily use 17
Hints and tips 18
Care and cleaning 20
Troubleshooting 23
Technical information 27
Environmental concerns 27
IKEA guarantee 28
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe and
accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
from the appliance unless continuously supervised.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when the
door is open.
ENGLISH 4

•Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–farm houses; staff kitchen areas in shops, offices and other
working environments;
–by clients in hotels, motels, bed & breakfast and other
residential type environments.
•Do not change the specification of this appliance.
•The operating water pressure (minimum and maximum) must
be between 0.5 (0.05) / 8 (0.8) bar (MPa)
•Follow the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp ends
pointing down or put them in the cutlery drawer in a
horizontal position with the sharp edges down.
•Do not leave the appliance with the open door unattended to
avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
•Do not use high pressure water sprays and/or steam to clean
the appliance.
•If the appliance has ventilation openings in the base, they
must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
ENGLISH 5

Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due to
safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
Electrical connection
Warning! Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance is fitted with a 13 A mains
plug. If it is necessary to change the
mains plug fuse, use only a 13 A ASTA
(BS 1362) fuse (UK and Ireland only).
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.

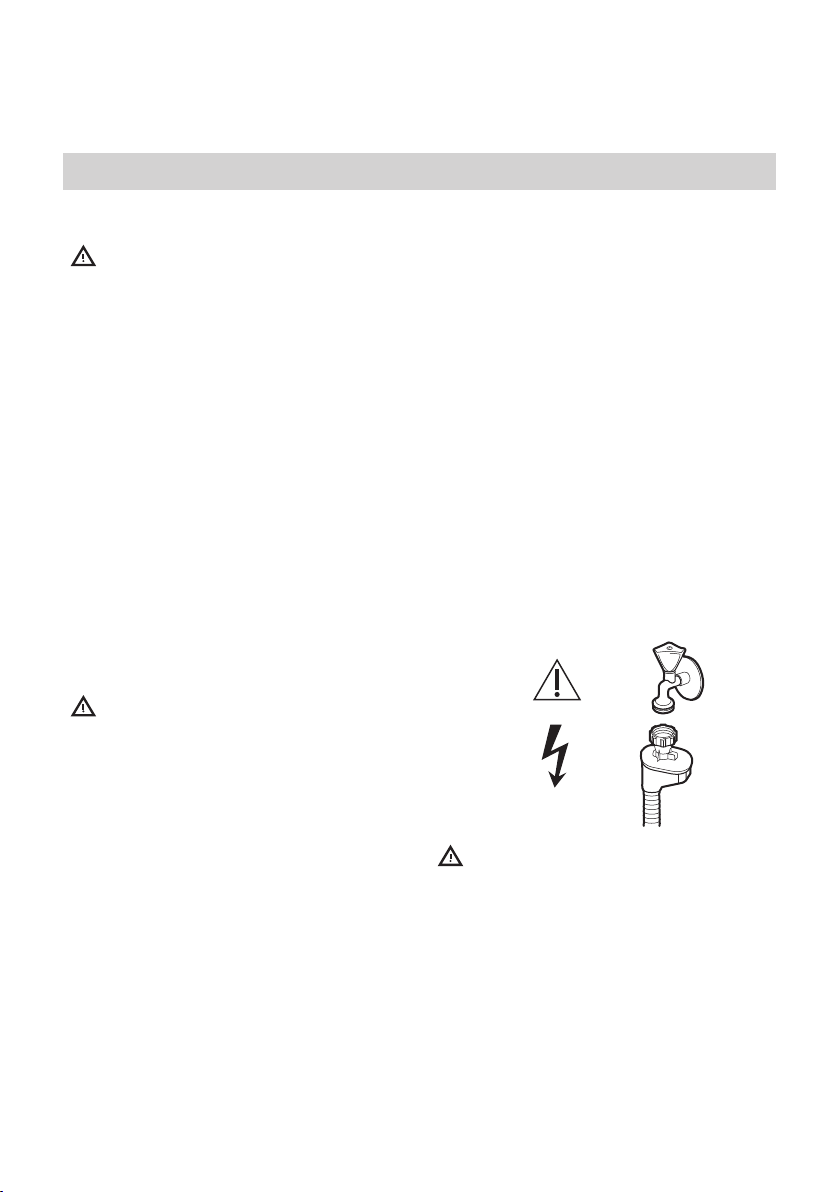

• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
Warning! Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the mains
socket. Contact the Authorised Service
Centre to replace the water inlet hose.
Use
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
ENGLISH 6

• Dishwasher detergents are dangerous.
Follow the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may remain
on the dishes.
• Do not store items or apply pressure on
the open door of the appliance.
• The appliance can release hot steam if
you open the door while a programme
operates.
Internal lighting
Warning! Risk of injury.
• This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
• The type of lamp used for this appliance
is for household appliances only. Do not
use it for house lighting.
• To replace the internal lighting, contact
the Authorised Service Centre.
Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
Product description
54
67
9 8
12
23 1
11 10
1Ceiling spray arm 2Upper spray arm
ENGLISH 7

3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
Beam-on-Floor
Beam-on-Floor is a light that is displayed
on the floor below the appliance door.
• When a programme starts, a white light
is on and stays on for the duration of the
programme.
• When the programme is completed, the
white light is off.
• When the appliance has a malfunction,
the white light flashes.
Beam-on-Floor is off when the
appliance is deactivated.
When AutoOpen is activated
during the drying phase, the
projection on the floor may not
be completely visible. To see if
the cycle has ended, check the
control panel.
Control panel
12 3 4 5 6 7 8 9
1On/off button
2Display
3Delay button
4Programme button (up)
5Programme button (down)
6ExtraHygiene button
7DryPlus button
8RESET button
9Indicators
Indicators
Indicator Description
End indicator.
ENGLISH 8

Indicator Description
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
Programmes
Programme Degree of soil
Type of load
Programme phases Options
P1
1)
• All
• Crockery, cutlery,
pots and pans
• Prewash
• Wash from 45 °C to 70
°C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
P2 • Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
P3
2)
• Fresh soil
• Crockery and
cutlery
• Wash 60 °C
• Rinse
• ExtraHygiene
• DryPlus
P4
3)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
P5 • Light soil
• Delicate crockery
and glassware
• Wash 45 °C
• Rinses
• Dry
• DryPlus
P6
4)
• All • Prewash
ENGLISH 9

Programme Degree of soil
Type of load
Programme phases Options
P7
5)
• Normal soil
• Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinse
• Dry
• DryPlus
1) The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the tem-
perature and the quantity of water, the energy consumption and the programme duration.
2) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with
normal soil. (This is the standard programme for test institutes).
4) With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form
in the appliance. Do not use detergent with this programme.
5) This is the most silent programme. The pump works at a very low speed to decrease the level of noise. Because of
the low speed, the programme duration is long.
Consumption values
Programme 1) Water
(l)
Energy
(kWh)
Duration
(min)
P1 8 - 15 0.7 - 1.7 46 - 170
P2 12.5 - 14.5 1.4 - 1.7 170 - 190
P3 10 0.9 41
P4 10.5 0.832 240
P5 12 - 14 0.8 - 1.0 82 - 92
P6 4 0.1 14
P7 12 - 13 1.1 - 1.3 230 - 250
1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
ENGLISH 10

Information for test institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email to:
[email protected]
In your request please include the product
number code (PNC) found on the rating
plate.
For any other questions regarding your
dishwasher please refer to the service book
provided with your appliance.
Options
Desired options must be
activated every time before you
start a programme.
It is not possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you select non
compatible options, the
appliance automatically
deactivates one or more of them.
Only the indicators of the still
active options are on.
If an option is not applicable to a
programme, the related indicator
is off or it flashes quickly for a
few seconds and then goes out.
Activating options can affect the
water and energy consumption
as well as the programme
duration.
DryPlus
Activate this option to boost the drying
performance.
The combination of DryPlus and rinse aid
ensures even better drying results.
DryPlus is a permanent option for all
programmes other than P4 (ECO). It is
automatically activated in next cycles. This
configuration can be changed at any time.
Every time P4 (ECO) is activated,
DryPlus is off and needs to be
chosen manually.
How to activate DryPlus
Press .
The related indicator is on.
The display shows the updated programme
duration.
ExtraHygiene
This option provides better hygiene results
by keeping the temperature at 70 °C for at
least 10 minutes during last rinsing phase.
How to activate ExtraHygiene
Press .
The related indicator is on.
The display shows the updated programme
duration.
The ExtraHygiene option is not applicable
to the following programmes:
•P5 (Glass)
•P6 (Rinse & Hold)
•P7 (Extra Silent)
ENGLISH 11

Settings
Programme selection mode and user
mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter user mode.
Settings available in the user mode:
• The level of water softener according to
the water hardness.
• Activation or deactivation of the rinse
aid empty notification.
• The level of rinse aid according to the
required dosage.
• Activation or deactivation of the acoustic
signal for the end of a programme.
• Activation or deactivation of the
AutoOpen.
As the appliance stores the saved
settings, there is no need to configure it
before every cycle.
How to set the programme selection mode
The appliance is in programme selection
mode when the display shows the
programme number P4.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode the
following way:
Press and hold RESET until the appliance is
in programme selection mode.
How to enter user mode
Make sure the appliance is in programme
selection mode.
To enter the user mode, press and hold
simultaneously and until the
indicators , , , and
flash and the display is blank.
The water softener
The water softener removes minerals from
the water supply, which would have a
negative effect on the washing results and
on the appliance.
The higher the content of these minerals, the
harder your water is. Water hardness is
measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water in
your area. It is important to set the right
level of the water softener to assure good
washing results.
Softening hard water increases
the consumption of water and
energy as well as the
programme duration. The higher
the level of water softener, the
higher the consumption and the
longer the duration.
Water hardness
German degrees
(°dH)
French degrees
(°fH)
mmol / l Clarke de-
grees
Water softener level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
ENGLISH 12

German degrees
(°dH)
French degrees
(°fH)
mmol / l Clarke de-
grees
Water softener level
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Regardless of the type of detergent used,
set the proper water hardness level to
keep the salt refill indicator active.
Multi-tabs containing salt are not
effective enough to soften hard
water.
How to set the water softener level
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and
are off.
• The indicator still flashes.
• The display shows the current setting:
e.g. = level 5.
2. Press repeatedly to change the
setting.
3. Press on/off to confirm the setting.
The rinse aid empty notification
The rinse aid helps to dry the dishes without
streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the rinse
aid indicator is turned on notifying to refill
rinse aid. If the drying results are
satisfactory while using multi-tablets only, it
is possible to deactivate the notification for
refilling rinse aid. However, for best drying
performance, always use rinse aid.
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid empty
notification
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and
are off.
• The indicator still flashes.
• The display shows the current setting.
ENGLISH 13

– = the rinse aid empty
notification is deactivated.
– = the rinse aid empty
notification is activated.
2. Press to change the setting.
3. Press on/off to confirm the setting.
The rinse aid level
It is possible to set the released quantity of
rinse aid between level 1 (minimum
quantity) and level 6 (maximum quantity).
Level 0 deactivates the rinse aid dispenser
and no rinse aid is released.
Factory setting: level 4.
How to set the rinse aid level
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and
are off.
• The indicator continues to
flash.
• The display shows the current setting:
e.g. = level 4.
– The levels of rinse aid range from
0A to 6A where level 0A means
rinse aid is not used.
2. Press repeatedly to change the
setting.
3. Press on/off to confirm the setting.
Acoustic signals
Acoustic signals sound when a malfunction
of the appliance occurs. It is not possible to
deactivate these acoustic signals.
There is also an acoustic signal that sounds
when the programme is complete. This
acoustic signal is activated by default and
you can deactivate it.
In addition, an acoustic signal sounds
before the AutoOpen opens the door. This
acoustic signal stops only if AutoOpen is
deactivated.
How to deactivate the acoustic signal for
the end of programme
Make sure the appliance is in user mode.
1. Press
• The indicators , and
are off.
• The indicator still flashes.
• The display shows the current setting.
– = the acoustic signal is
deactivated.
– = the acoustic signal is
activated.
2. Press to change the setting.
3. Press on/off to confirm the setting.
AutoOpen
AutoOpen improves the drying results with
less energy consumption. During the drying
phase, the door opens automatically and
remains ajar.
AutoOpen is automatically activated with
all programmes excluding (if
applicable).
To improve the drying performance refer to
the DryPlus option or activate AutoOpen.
ENGLISH 14

Do not try to close the appliance
door within 2 minutes after
automatic opening. This can
cause damage to the appliance.
If children, pets or people with
disabilities have access to the
appliance, deactivate AutoOpen.
The automatic opening of the
door may pose a danger and
expose possible hazards inside
the appliance (such as knives,
sharp objects, chemicals).
How to deactivate AutoOpen
Make sure the appliance is in user mode.
1. Press .
• The indicators , , and
are off.
• The indicator still flashes.
• The display shows the current setting.
– = AutoOpen is deactivated.
– = AutoOpen is activated.
2. Press to change the setting.
3. Press on/off to confirm the setting.
Before first use
1. Make sure that the current level of the
water softener agrees with the
hardness of the water supply. If not,
adjust the level of the water softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
detergent and do not load the baskets.
After starting a programme, it
may take up to 5 minutes for the
appliance to recharge the resin
in the water softener. It seems
that the appliance is not working.
The washing phase starts only
after this procedure is completed.
The procedure is repeated
periodically.
The salt container
Caution! Use rough salt
designed for dishwashers only.
Fine salt increases the risk of
corrosion.
The salt is used to recharge the resin in the
water softener and to assure good washing
results in daily use.
Filling the salt container
1 2
ENGLISH 15

3
Put 1 litre of water
in the salt container
(only for the first
time).
4
Put 1 kg of salt in
the salt container.
5
Turn the cap of the
salt container
clockwise to close
the salt container.
Caution! Water and salt may
come out of the salt container
when you fill it. After you fill the
salt container, immediately start
a programme to prevent
corrosion.
Filling the rinse aid dispenser
1 2
3
A
Fill the rinse aid
dispenser until the
rinse aid reaches
the marking "MAX".
Remove the spilled
rinse aid with an
absorbent cloth to
prevent excessive
foam formation.
Fill the rinse aid
dispenser when the
indicator (A) is clear
and the rinse aid
indicator on the
control panel is on.
4
ENGLISH 16

Daily use
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the salt indicator is on, fill the salt
container.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for
the type of load and the degree of soil.
Using the detergent
1 2
2
1
3
30
30
4
5
If the programme
has a prewash
phase, put a small
quantity of
detergent on the
inner part of the
appliance door.
Setting and starting a programme
The Auto Off function
This function decreases energy consumption
by automatically deactivating the
appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has not
started.
Starting a programme
Caution! Do not remove the
baskets from the dishwasher
before a wash cycle.
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the
appliance is in programme selection
mode.
3. Press or repeatedly until
the display shows the number of the
ENGLISH 17

programme you want to start. The
display will show the programme
number for approximately 3 seconds
and next the programme duration.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with delay start
1. Set a programme.
2. Press repeatedly until the display
shows the delay time you want to set
(from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is possible
to increase the delay time but not to change
the selection of the programme and
options.
When the countdown is completed, the
programme starts.
Opening the door while the appliance
operates
Opening the door while a programme is
running stops the appliance. It may affect
the energy consumption and the
programme duration. After closing the door,
the appliance continues from the point of
interruption.
If the door is opened for more
than 30 seconds during the
drying phase, the running
programme ends. It does not
happen if the door is opened by
AutoOpen function.
Cancelling the delay start while the
countdown operates
When you cancel the delay start you have
to set the programme and options again.
Press and hold RESET until the appliance is
in programme selection mode.
Cancelling the programme
Press and hold RESET until the appliance is
in programme selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a new
programme.
End of the programme
When the programme is complete, the
display shows 0:00. The indicator is on.
All buttons are inactive except for the
on/off button.
1. Press the on/off button or wait for the
Auto Off function to automatically
deactivate the appliance.
If you open the door before the
activation of Auto Off, the appliance is
automatically deactivated.
2. Close the water tap.
Hints and tips
General
Follow the hints below to ensure optimal
cleaning and drying results in daily use and
to help you protect the environment.
• Remove larger residues of food from the
dishes into the waste bin.
ENGLISH 18

• Do not pre-rinse dishes by hand. When
needed, select a programme with a
prewash phase.
• Always use the whole space of the
baskets.
• Make sure that items in the baskets do
not touch or cover each other. Only then
can the water completely reach and
wash the dishes.
• You can use dishwasher detergent, rinse
aid and salt separately or you can use
the multi-tablets (e.g. ''All in 1''). Follow
the instructions on the packaging.
• Select a programme according to the
type of load and the degree of soil.
offers the most efficient use of
water and energy consumption.
Using salt, rinse aid and detergent
• Only use salt, rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.
• In areas with hard and very hard water
we recommend to use plain dishwasher
detergent (powder, gel, tablets
containing no additional agents), rinse
aid and salt separately for optimal
cleaning and drying results.
• At least once a month run the appliance
with the use of appliance cleaner which
is particularly suitable for this purpose.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
detergent residues on the tableware, we
recommend that you use the tablets with
long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent packaging.
What to do if you want to stop using multi-
tablets
Before you start to use separately
detergent, salt and rinse aid do the
following procedure.
1. Set the highest level of the water
softener.
2. Make sure that the salt and rinse aid
containers are full.
3. Start the shortest programme with a
rinsing phase. Do not add detergent
and do not load the baskets.
4. When the programme is completed,
adjust the water softener according to
the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid empty notification.
Loading the baskets
Refer to the supplied leaflet with
examples of the load of the
baskets.
• Use the appliance to wash dishwasher-
safe items only.
• Do not wash in the appliance items
made of wood, horn, aluminium, pewter
and copper.
• Do not wash in the appliance items that
can absorb water (sponges, household
cloths).
• Remove remaining food from the items.
• Soak cookware with burnt-on food
before washing it in the appliance.
• Put hollow items (cups, glasses and pans)
with the opening facing downwards.
• Make sure that cutlery and dishes do not
bond together. Mix spoons with other
cutlery.
• Make sure that glasses do not touch
each other.
• Put cutlery and small items in the cutlery
basket.
• Put light items in the upper basket. Make
sure that the items do not move freely.
• Make sure that the spray arm can move
freely before you start a programme.
Before starting a programme
Before you start the selected programme,
make sure that:
ENGLISH 19

• The filters are clean and correctly
installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is enough salt and rinse aid (unless
you use multi-tablets).
• The arrangement of the items in the
baskets is correct.
• The programme is suitable to the type of
load and the degree of soil.
• The correct quantity of detergent is used.
Unloading the baskets
For better drying results keep the
appliance door ajar for some
minutes before you remove the
dishes.
1. Let the dishes cool down before you
remove them from the appliance. Hot
dishes are easily damaged.
2. First remove items from the lower basket
then the upper basket.
At the end of the program water
can still remain on the sides and
on the door of the appliance.
Care and cleaning
Warning! Before maintenance,
deactivate the appliance and
disconnect the mains plug from
the main socket.
Dirty filters and clogged spray
arms decrease the washing
results. Make a check regularly
and, if necessary, clean them.
Cleaning the filters
1
Make sure that
there are no
residues of food or
soil in or around the
edge of the sump.
2
C
B
A
The filter system is
made of three parts.
ENGLISH 20
