IKEA DJUPFRYSA User manual

DJUPFRYSA
GB
IS

ENGLISH
Please refer to the last page of this manual for the full list of
IKEA appointed After Sales Service Provider and relative
national phone numbers.
ÍSLENSKA
Á öftustu síðu þessarar handbók er skrá yr alla veitendur
eftirsöluþjónustu sem útnefndir hafa verið af IKEA og
viðeigandi símanúmer í hverju landi.

ENGLISH 4
ÍSLENSKA 24

Contents
Safety information 4
Safety instructions 6
Installation 8
Product description 11
Control panel 11
First use 13
Daily Use 13
Hints and tips 14
Care and cleaning 16
Troubleshooting 17
Noises 20
Technical data 20
Information for test institutes 21
Environmental concerns 21
IKEA guarantee 21
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
•Children aged from 3 to 8 years are allowed to load and
unload the appliance provided that they have been properly
instructed.
•This appliance may be used by persons with very extensive
and complex disabilities provided that they have been
properly instructed.
•Children of less than 3 years of age should be kept away
from the appliance unless continuously supervised.
•Do not let children play with the appliance.
ENGLISH 4

•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
•Keep all packaging away from children and dispose of it
appropriately.
General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; sta kitchen areas in shops, oces and
other working environments;
–By clients in hotels, motels, bed and breakfast and other
residential type environments.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact with
food and accessible drainage systems;
•WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
•WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
•Do not use water spray and steam to clean the appliance.
•Clean the appliance with a moist soft cloth. Only use neutral
detergents. Do not use abrasive products, abrasive cleaning
pads, solvents or metal objects.
•When the appliance is empty for long period, switch it o,
defrost, clean, dry and leave the door open to prevent
mould from developing within the appliance.
ENGLISH 5

•Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualied persons in order to avoid a hazard.
Safety instructions
Installation
Warning! Only a qualied person
must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before installing
it in the built-in structure due to safety
manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use safety
gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At rst installation or after reversing the
door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to ow back
in the compressor.
• Before carrying out any operations on the
appliance (e.g. reversing the door),
remove the plug from the power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is
direct sunlight.
• Do not install this appliance in areas that
are too humid or too cold.
• When you move the appliance, lift it by
the front edge to avoid scratching the
oor.
Electrical connection
Warning! Risk of re and electric
shock.
Warning! When positioning the
appliance, ensure the supply cord
is not trapped or damaged.
Warning! Do not use multi-plug
adapters and extension cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Authorised Service Centre or an
electrician to change the electrical
components.
• The mains cable must stay below the level
of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug.
Use
Warning! Risk of injury, burns,
electric shock or re.
ENGLISH 6

The appliance contains ammable
gas, isobutane (R600a), a natural gas with a
high level of environmental compatibility. Be
careful not to cause damage to the
refrigerant circuit containing isobutane.
• Do not change the specication of this
appliance.
• Do not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the
manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
ames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure on
the drink container.
• Do not store ammable gas and liquid in
the appliance.
• Do not put ammable products or items
that are wet with ammable products in,
near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the freezer
compartment.
Internal lighting
Warning! Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended to
withstand extreme physical conditions in
household appliances, such as
temperature, vibration, humidity, or are
intended to signal information about the
operational status of the appliance. They
are not intended to be used in other
applications and are not suitable for
household room illumination.
Care and cleaning
Warning! Risk of injury or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• This appliance contains hydrocarbons in
the cooling unit. Only a qualied person
must do the maintenance and the
recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If the
drain is blocked, defrosted water collects
in the bottom of the appliance.
Service
• To repair the appliance contact the
Authorised Service Centre. Use original
spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be available
for 7 years after the model has been
discontinued: thermostats, temperature
sensors, printed circuit boards, light
sources, door handles, door hinges, trays
and baskets. Please note that some of
these spare parts are only available to
professional repairers, and that not all
spare parts are relevant for all models.
• Door gaskets will be available for 10 years
after the model has been discontinued.
Disposal
Warning! Risk of injury or
suocation.
• Disconnect the appliance from the mains
supply.
• Cut o the mains cable and discard it.
ENGLISH 7

• Remove the door to prevent children and
pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains ammable
gas. Contact your municipal authority for
information on how to discard the
appliance correctly.
• Do not cause damage to the part of the
cooling unit that is near the heat
exchanger.
Installation
Warning! Refer to Safety
chapters.
Warning! Refer to installation
instruction document to install
your appliance.
Warning! Fix the appliance in
accordance with installation
instruction document to avoid a
risk of instability of the appliance.
Inspection checklist
Please follow the inspection checklist before using your appliance. If any answer
is "NO", follow the relevant action. Remember to write down the product serial
number and article number as required and attach your receipt to this page.
Product serial number (Ser. No.):
.....................................
Product article number (Art. No.):
.....................................
Purchasing date:
.....................................
GROSS CAPACITY
BRUTTO INHALT
CLASS
KLASSE
REFRIGERATOR NET CAPACITY
KUEHLSCHRANK NUTZINHALT
XXX l
XXX l
TYPE-TYP
XXXXXXXXXX
230-240V
REFRIGERANT
KAELTEMITTEL
FREEZER NET CAPACITY
GEFRIERSCHRANK NUTZINHALT
XX l
FREEZING CAPACITY
GEFRIERVERMOEGEN
X kg/24h
DEFROST HEATER
ABTAUWIDERSTAND
XXX W
XXXXXXXXX
1.0 A50 Hz
MODEL XXXXXXXXXXXX
PNC XXXXXXXXX XX
SER.N. XXXXXXXX
XX/X/XX/X
Made in Hungary
@ Inter IKEA System s B.V. 1999
XXXXXXXXX
PQM xxxx
xxxxx
IKEA of Sweden AB
SE 343 81 Älmhult
TYPE I
RISING TIME
LAGERZEIT BEI STORUNG
XX h
Art. No.
Ser. No.
To check If the answer is YES If the answer is NO
Make sure gasket seals all
around the door when the
door is closed.
No action Refer to the assembly instruction -
door alignment.
Check if there is no collision
between parts/furniture while
opening and closing the door.
No action Refer to the assembly instruction -
door alignment.
Install the appliance in the
built-in structure.
No action Follow the assembly instruction for
the proper installation.
ENGLISH 8

To check If the answer is YES If the answer is NO
Make sure that at rst installa‐
tion or after reversing the
door the appliance stands in
vertical position for at least 4
hours before it is connected to
the power supply.
No action Wait 4 hours before connecting the
appliance to the power supply.
Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 873
W1 mm 548
D1 mm 549
¹ the height, width and depth of the
appliance without the handle and feet
Space required in use ²
H2 (A+B) mm 916
W2 mm 548
ENGLISH 9

Space required in use ²
D2 mm 551
A mm 880
B mm 36
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air
Overall space required in use ³
H3 (A+B) mm 916
W3 mm 548
D3 mm 1071
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air, plus the space necessary to allow
door opening to the minimum angle
permitting removal of all internal equipment
Location
To ensure appliance's best functionality, you
should not install the appliance in the nearby
of the heat source (oven, stoves, radiators,
cookers or hobs) or in a place with direct
sunlight. Make sure that air can circulate
freely around the back of the cabinet.
This appliance should be installed in a dry,
well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C to
43°C.
The correct operation of the
appliance can only be guaranteed
within the specied temperature
range.
If you have any doubts regarding
where to install the appliance,
please turn to the vendor, to our
customer service or to the
nearest Authorised Service
Centre.
It must be possible to disconnect
the appliance from the mains
power supply. The plug must
therefore be easily accessible
after installation.
Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your domestic
power supply.
• The appliance must be earthed. The
power supply cable plug is provided with
a contact for this purpose. If the domestic
power supply socket is not earthed,
connect the appliance to a separate earth
in compliance with current regulations,
consulting a qualied electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.

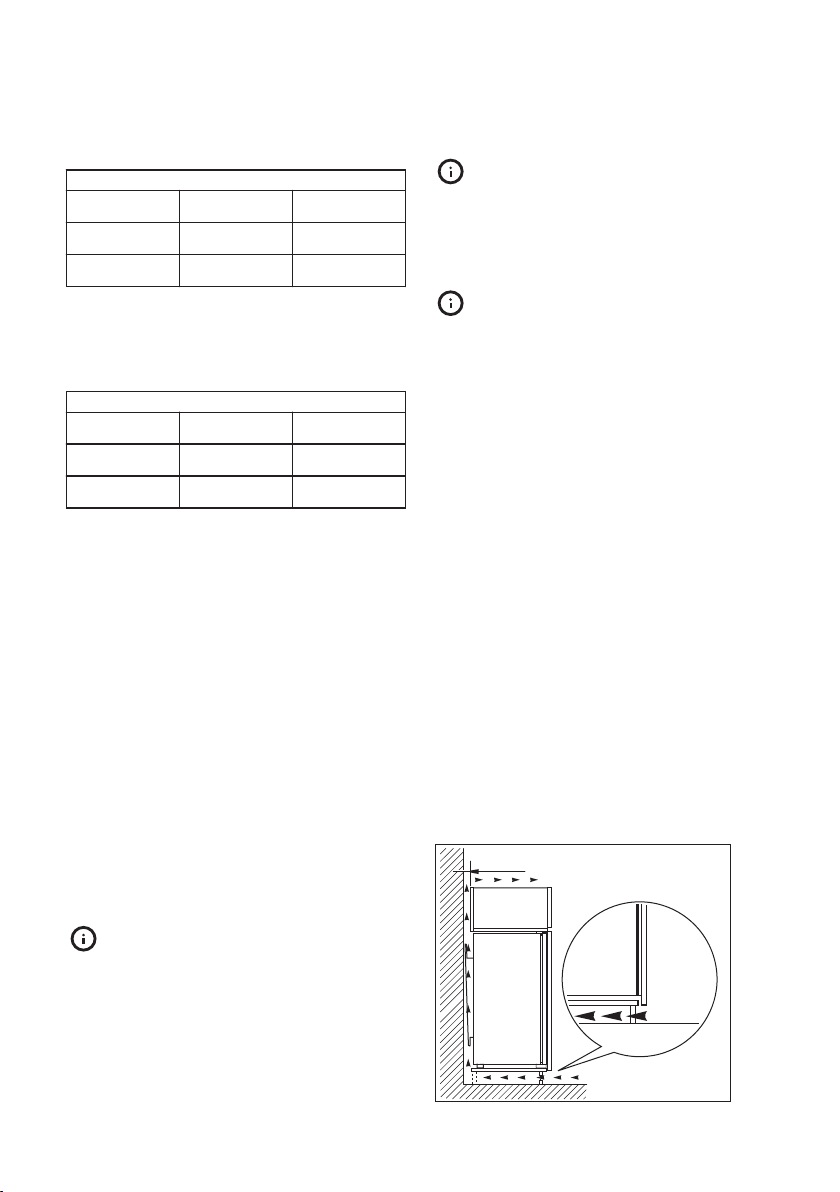

Ventilation requirements
The airow behind the appliance must be
sucient.
5 cm min.
200 cm2
min.
200 cm2
