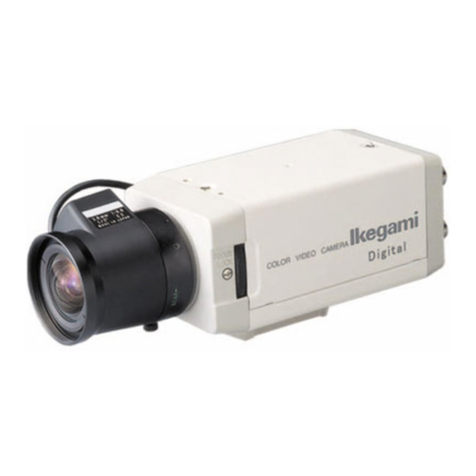

Ikegami ICD-808 User manual

High Performance
1/3" Digital Processing CCD Color Camera
ICD-808 /808P
ICD-808[NTSC]/808P[PAL]
1/2" Digital Processing CCD Color Camera
ICD-828 /828P
ICD-828[NTSC]/828P[PAL]
In addition to Auto White Balance (ATW1) of
auto-tracking type, the camera also features
ATW2 that is compatible with sodium-vapor
lamps used for lighting on highways and other
purposes. Thus, it can capture optimal video
under various conditions, both indoors and
outdoors.
The camera boasts AES capability with a
sensitivity ratio of about 1:1600 (NTSC) or
1:2000 (PAL). Even with a fixed-aperture lens,
the sensitivity can be adjusted appropriately
according to changes in illumination of the
surveillance area.
This feature cannot be used in geographical regions where
the line frequency and the camera's vertical frequency are
different from each other.
Spot BLC OFF Spot BLC ON
The camera is capable of specifying only a backlight area
displayed on the screen and reproducing the backlight
scene as an optimal image. Even when, for example, a
car's number plate or a person is captured in a backlight
situation, its image can be reproduced crisply.
Spot Backlight Compensation
It delivers 480 lines of horizontal resolution.
Incorporating state-of-the-art digital process
circuitry, the camera can reproduce a rock-
solid, sharp image.
Auto White Balance AES (Automatic Electronic Shutter)High Picture Quality
These photographs for an image example may differ from actual pictures on Monitor.
Conventional Models ICD-808/808P .ICD-828/828P
The ICD-808/808P(1/3" CCD) and ICD-828/828P(1/2"
CCD) employ a high-sensitivity on-chip lens CCD. The
smear level is -110dB for the IDC-808/808P, and -126dB
for the ICD-828/828P. They also achieve a high sensitivity
with a minimum subject illumination of 0.5 lx/F1.4 for the
ICD-808/808P, and 0.15 lx/F1.4 for the ICD-828/828P.
These cameras are ideally suited for outdoor surveillance,
such as traffic monitoring.
Low Smear and High Sensitivity

Digital Processing CCD Color Camera
ICD-808[NTSC]/808P[PAL]
ICD-828[NTSC]/828P[PAL]
U56B046-HI-K3 Printed in Japan
Design and specifications are subject to change without notice.
HEADQUARTERS
WESTCOAST OFFICE
SOUTHWEST OFFICE
MIDWEST OFFICE
SOUTHEAST OFFICE
37 BROOK AVENUE, MAYWOOD, NJ 07607
Phone:[phone] Fax:[phone]
2631 MANHATTAN BEACH BLVD., REDONDO BEACH, CA 90278 Phone:[phone] Fax:[phone]
526 BLUEBIRD LANE, RED OAK, TX 75154 Phone:[phone] Fax:[phone]
747 CHURCH ROAD, UNITS C1 ELMHURST, IL 60126 Phone:[phone] Fax:[phone]
5200 N.W. 33RD AVENUE, SUITE 111 FORT LAUDERDALE, FL 33309 Phone:[phone] Fax: [phone]
IKEGAMI ELECTRONICS (U.S.A.), INC. URL http://www.ikegami.com
Dimensions:mm(inch)
Setup Function
Local Setup(Using 5buttons and set on OSD(On Screen Display)
Camera ID, AES/Electronic Shutter, BLC ON OFF SPOT Level
Adjust, GENLOCK Phase Adjust, DC Iris Level, INT/LL, Detail Level,
AGC ON/OFF, White Balance, CROMA Level, PED. Level, HUE,
Operation Lock
Remote Setup Function
With Using RCU-701 or RSU-871(Multiplex transmission system),
All Local Setup Functions are available. RCU-701
The pushbutton located on the rear of the camera allows various setups to be
customized. With the aid of the RCU-701 Remote Control Unit or RSU-871
(RS-232 control), you can set up the camera installed on the top of the building or
at any elevated place by use of the same cable as the video coaxial.
Remote Setup
Pickup Device 1/3" Interline Transfer CCD [ICD-808/808P]
1/2" Interline Transfer CCD [ICD-828/828P]
Picture Elements NTSC:768(H) X 494(V), 380,000 pixels approx.
PAL :752(H) X 582(V), 440,000 pixels approx.
Sync System Internal:Crystal lock or Line-Lock(AC type)
External:GENLOCK
GENLOCK Input VBS or VS 1.0Vp-p/75Ω(High impedance Switchable)
BBS0.45Vp-p/75Ω(High impedance Switchable)
Video Output VBS 1.0Vp-p/75Ω
Horizontal Resolution 480TV Line
S/N Ratio 50dB(p-p/rms) or more[ICD-808/808P]
52dB(p-p/rms) or more[ICD-828/828P]
(Under luminance, Standard Illumination, Detail off, Weight on)
Minimum Illumination 0.5 lx/F1.4(AGC ON)[ICD-808/808P]
0.15 lx/F1.4(AGC ON)[ICD-828/828P]
AGC ON(AGC, Hyper AGC)/OFF(LOW, MID, HIGH)Switchable
White Balance ATW/ATW2/AWC/MAN. Selectable, Adjustable
Detail Compression Built in(Level Adjustable)
Back Light compensation ON/OFF/SPOT Switchable
Automatic Electronic Shutter ON/OFF Switchable AES Range NTSC :1:1600
PAL :1:2000
(Unable to work when power frequency does not meet vertical frequency of the camera)
Electronic Shutter OFF, 1/100(1/60:PAL), 1/125, 1/500, 1/1,000, 1/2,000, 1/4,000,
1/10,000 ,VARIABLE
VARIABLE:1/60(1/50:PAL)
~
1/100,000
Auto Iris Function Video Iris/DC Iris Switchable
Camera ID Built in 1 line, 16 characters
Lens Mount CS Mount(C mount Adaptor can be used)
Flange Back Built in(Adjustment Mechanism)
Power Requirement AC24V
± 10% 60Hz/DC12V(10.5V
~
28V) (NTSC)
AC230V
± 15% 50Hz (PAL)
AC24V
± 10% 50Hz/DC12V(10.5V
~
28V) (PAL)
Power Consumption Less than 4.5W
Ambient Temperature -10˚C
~
+50˚C(13.5˚F
~
122˚F)
Camera Mount 1/4"-20UNC(Upper bottom select)
Dimensions W64 X H54 X D120mm(W13.6 X H2.13 X D4.73 inches)
Weight AC24V/DC12V: ICD-808/808P 560g Approx.(1.24 lbs)
ICD-828/828P 570g Approx.(1.26 lbs)
AC230V: ICD-808/808P 660g Approx.(1.46 lbs)
ICD-828/828P 670g Approx.(1.48 lbs)
Input/Output Connector VBS Output:BNC
GENLOCK Input:BNC
LENS:4P(E4-191J-100)
AC24V/DC12V Input:2P push in terminal
Accessories Operation Manual
C Mount Adaptor
Auto Iris Connector
(E4-191J-100 or Equivalent)
Specifications
1"-32UN
54(2.13)
10(0.40)
64(2.52)
40(1.58) 14(0.56)
14(0.56)
2-1/4"-20UNC
ø5
COLOR VIDEO CAMERA
Digital
FOCUS
LOCK
120(4.73)
LENS
DC VIDEO MAX40mA
COLOR VIDEO CAMERA
Digital
U
D
LR
GENLOCK IN SET UP
VIDEO OUT
HIGH 75ΩPOWER E
AC24V 60Hz 4.5W DC1.2V 4.5W
CLASS 2
-
+
U
D
LR
GENLOCK IN SET UP
VIDEO OUT
HIGH 75ΩPOWER E
AC24V 60Hz 4.5W DC1.2V 4.5W
CLASS 2
-
+
U
D
LR
GENLOCK IN SET UP
VIDEO OUT
HIGH 75ΩPOWER E
AC24V/DC12V
[ICD-808/828]
AC24/DC12V
[ICD-808P/828P]
AC230V
[ICD-808P/828P]
