Ikelite SLR-DC Housing D700 User manual

Port Lock
IKELITE
Thank you for your purchase of Ikelite equipment. Please read this
instruction manual completely before attempting to operate or dive with this
product.
SLR-DC ousing
instruction manual
6812.7 Nikon D700

Table of Contents
Product Registration........................................................P. 3
ackage Contents ......................................................P. 3
reparation ..................................................................P. 3
Parts of the ousing / Size and Weight ..........................P. 4
Initial Camera Setup........................................................P. 6
Opening the ousing ......................................................P. 6
Attaching Camera to Camera Tray..................................P. 7
Setting the Conversion Circuitry Strobe ID Switch..........P. 7
Attaching the Flash Connection for External Strobes ....P. 8
Installing Camera in ousing ..........................................P. 8
Closing the ousing ........................................................P. 9
Installing Zoom Clamp and Gear Sleeve ........................P. 10
Installing the Port ............................................................P. 15
ousing Conversion Circuitry..........................................P. 17
Flash Dial, DS50 and DS125 Substrobe Compatibility ..P. 18
Using Non-Ikelite or Ikelite Non-DS Substrobes ............P. 18
Usage ..........................................................................P. 19
Pre-Dive your System ....................................................P. 19
Lubricants ........................................................................P. 19
Troubleshooting ........................................................P. 20
Replacement arts ....................................................P. 22
Recommended Accessories ....................................P. 22
Accessory Mounting Points / EV-Controller Use ............P. 22
Maintenance ................................................................P. 23
Photo Tips ......................................................................P. 26
Storing the ousing ........................................................P. 27
Technical Support ....................................................P. 27
Limited Warranty ........................................................P. 27
Returning Products for Service ......................................P. 28
2

- SLR-DC ousing
- Envelope containing tray
installation hardware,
maintenance kit, and extra
control end tips.
ackage Contents
- Aluminum Tray & Dual andles
- Silicone Lubricant
- Std. Zoom Clamp & Sleeve Set
- #5509.28 Large Diameter Zoom
Clamp & Sleeve Set
roduct Registration
Please take a moment to fill out the online Ikelite roduct Registration
form at http://www.ikelite.com/forms/regForm.htm.
This product has been water pressure tested at the factory and is depth
rated to 200 ft. (60m). Thoroughly inspect and immerse the empty
housing completely in water before installing a camera. If any fogging
occurs or droplets of water enter the housing, do not install a camera.
Clean the housing main o-ring and retest to make sure that it is
watertight. Refer to the Troubleshooting section, page 20.
We suggest that you read this instruction booklet thoroughly before use
to have a full understanding of where each camera control is located,
and what function each control provides. Please read your camera
manual thoroughly to have a full understanding of each camera function.
If you are new to underwater photography, be sure to read the Photo
Tips section.
Due to the power required to operate the camera and LCD screen start
each dive with a fully charged camera battery.
reparation
3

4
Port Lock
IKELITE
arts of the Housing - Front View
Flash Quick Release
Strobe Arm Mount
andle
ort
Opening
Gear Sleeve
Drive Gear
Sub-
command
Dial
Fn Button
Shutter
Release
Lid
Snap
Side View
Gear
Sleeve
Optional
Port
Port O-ring
Main ousing
O-ring
Camera Tray
Camera Mounting Bolt
Aluminum Tray
Mode, Power Switch
Fn Button
Zoom
Leveling Screw (Factory Pre-set)
Shutter
Release
AE- /AF-L
Lock
Power
Switch
Sub-command
Dial
Port Lock
Focus
Mode
Selector

5
1
10
6
7
8
12
9
11
13
16
15
2
4
5
3
14
17
18
TTL
1
-1
-1
F
-2
-3
MAN
Back View
Lens
Release
Button
Release
Mode Dial
Viewfinder Port
1. External Strobe Connector & Cap
2. Playback Button
3. Delete Button
4. Menu Button
5. Protect Button
6. Playback, Zoom Out
7. Playback, Zoom In
8. OK button
9. AF-ON Button
10. Main Command Dial
11. Multi selector
12. Multi selector
13. Center of Multi selector
14. Multi selector
15. Flash Compensation
16. Multi Selector
17. AF Area Mode Selector
18. Info/Quick Settings
Width ................10 in. (250mm) including controls
..........................13.7 in. (348mm) with Tray and andles
eight ..............6.9 in. (175mm) including controls
..........................7.3 in. (185mm) with Tray and andles
Depth ................6.5 in. (165mm) including controls
Weight ..............5.6 lb. (2540g) housing only
..........................7.4 lb. (3356g) housing with tray & handles
Buoyancy ..........Neutral to slightly negative in freshwater
Size and Weight
Lid
Snap
AE/FE Lock
Mode
WB, ISO, Qual Quick Release
Button

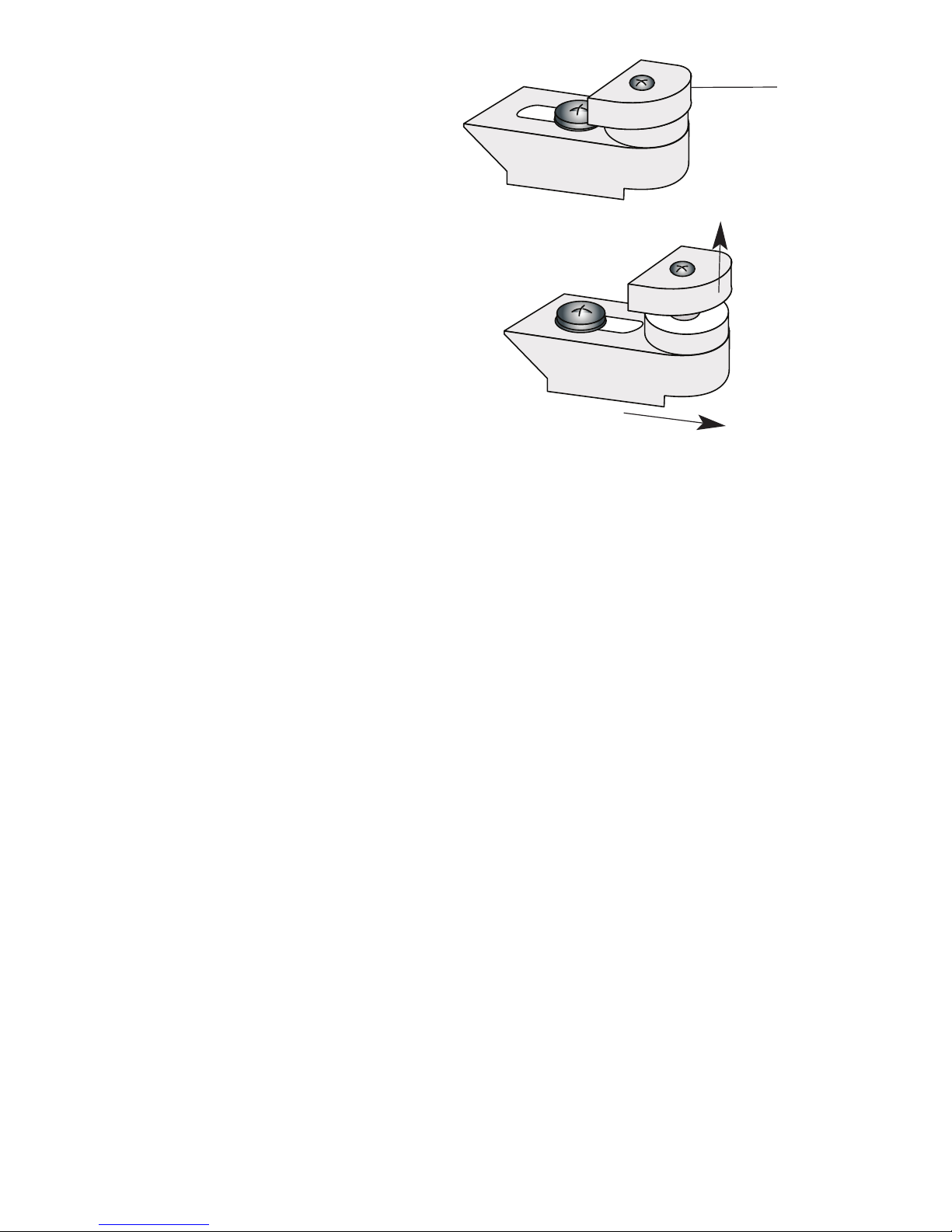

Opening the Housing
Lid Snaps have a Lock. To open,
push Lid Snap Lock forward and lift as
shown. Keep pressure on the Lid
Snap so it does not fly open quickly.
Lid Snaps have a lot of spring tension
once they go over center, so have a
firm grip on the Lid Snap. Lid Snaps
may be opened one at a time.
6
Lift
Push Forward
Lid Snap Lock
Initial Camera Setup
- Insert a fully charged battery.
- Insert a memory card (2GB or greater capacity recommended).
- Set the shooting mode to “M” manual.
- Set Date and Time.
- Set shutter speed to 1/60th second or 1/125th second for fast
moving subjects. Maximum shutter speed of 1/250th second
recommended to allow full power flashes from strobes.
- Set aperture to F8 for general photography or F22 for macro
photography (close-ups).
- Set image resolution to JPEG fine or TIFF.
- Set ISO to “200.”
- Set White balance to “WB A.”
- Set Metering to “Center-weighted.”
- Set red-eye reduction to OFF.
- Set Flash Mode to .
- Set Focus-mode Selector to “S” Single-servo AF.
- Set Active D-lighting to “Off.”
- Set Focus Point Selection to “Center Focus Point”. This is the default
setting.

7
Attaching Camera to Camera Tray
Remove the back from the housing. The mounting tray for the camera is
secured to the housing back. Position the camera and lens on the
camera tray, and then secure it
with the mounting bolt which
threads into the camera’s
tripod socket.
Use a flathead screwdriver
(recommended) or coin to
tighten the mounting bolt so
the camera bottom is flush
against the tray.
The Leveling Screw is factory
preset and does not need to
be adjusted.
Setting the Conversion Circuitry Strobe ID Switch
Inside the housing back on the black panel,
the conversion circuitry has a switch for setting
the DS Substrobe ID. Set the conversion
circuitry strobe ID switch located to the Model
of DS Substrobe being used.
When using dual strobes of different models
such as a DS51 and a DS161, set the ID
switch to DS51 or the smaller strobe.
DS DS
125 50
51
160
161
ikelite
Set DS Substrobes
to TTL Mode
200
Nikon
D700
FX
Mounting
Bolt
Camera
Tray
Leveling
Screw

8

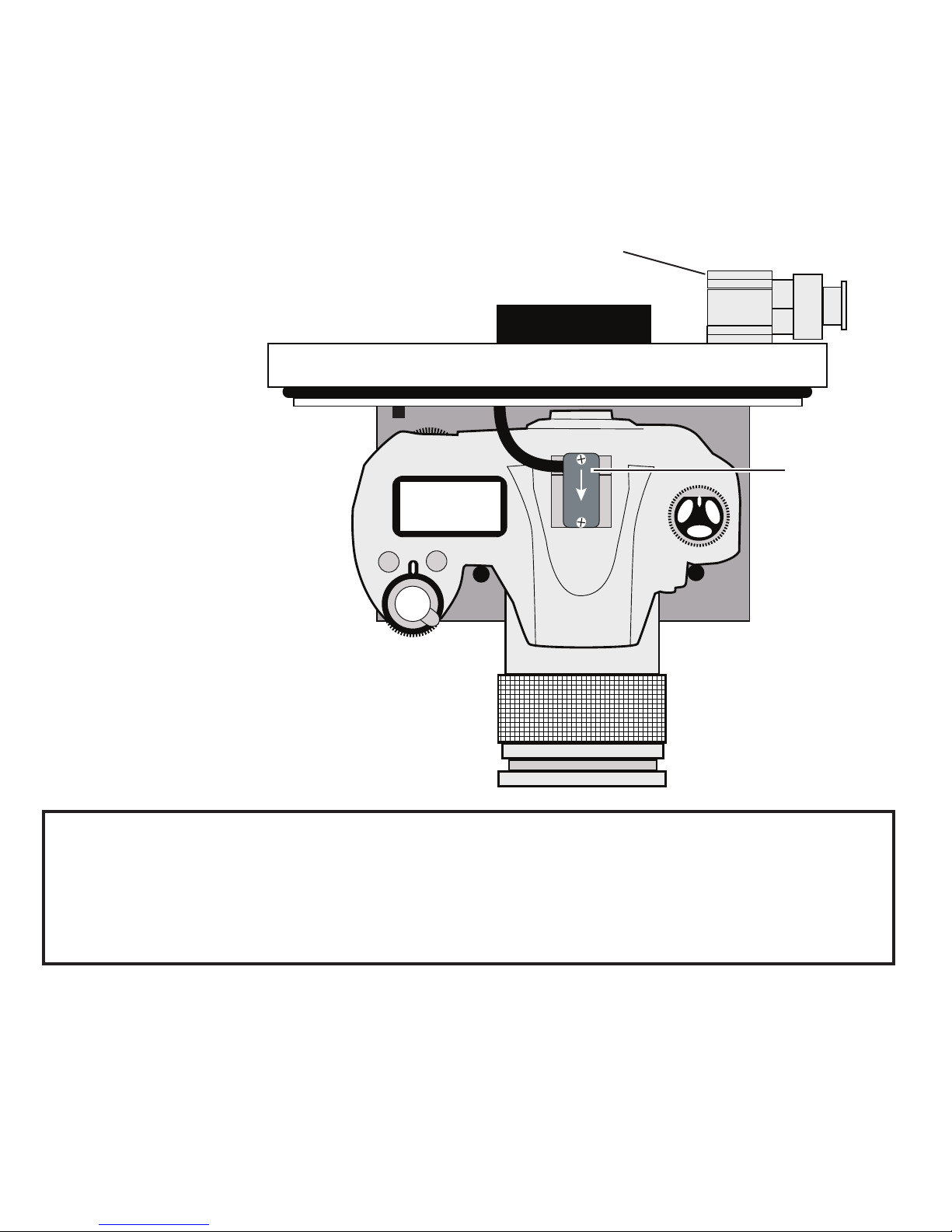

Attaching the Flash Connection for External Strobes
When using an external strobe, connect the housing hotshoe connector.
Slide the connector into the hotshoe mount on the camera from the back
of the camera as shown. Slide the connector forward until it stops. Due to
limited clearance between the camera hotshoe mount and the housing
back, the
hotshoe
connector
should be
attached
before the
camera is
secured with
the mounting
bolt.
Caution:
Do not remove the External Strobe Connector’s waterproof cap unless an
external sync cord is going to be plugged in. Do not remove waterproof
cap or sync cord underwater.
Installing Camera in Housing
Before installing the camera, pull out on the controls in the front section of
the housing. This will allow the camera to slide in easier. Once the camera
is installed and the lid snaps have been closed, return the controls to their
operating position.
Housing Back
Front
External Strobe Connector and
Waterproof Cap
ousing Back
otshoe
Connector

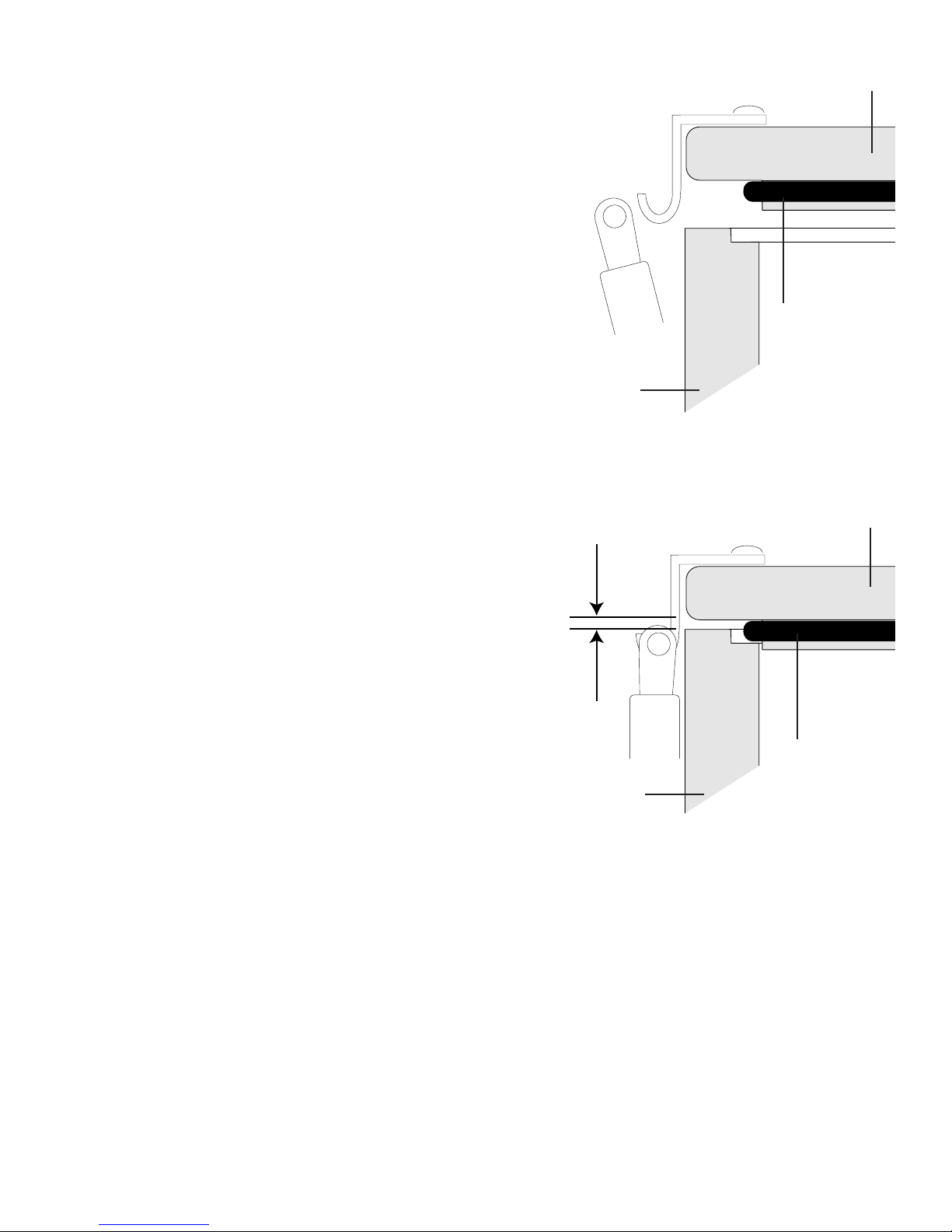

Closing the Housing
1. Place housing face down in your lap.
2. Check to see that there is an o-ring on
the housing back that is clean and in its
proper location.
3. Guide the back onto the housing. The
o-ring should touch the housing all the
way around. There should be an even
gap all the way around between the
housing and the housing back.
4. Lift the lid snaps so they are extended
and place the lid snap into the
corresponding hook on the housing back.
5. To close the housing, push down on the
lid snaps until they snap into place. Lid
snaps on opposite sides of the housing
should be closed at the same
time. Be sure they are down far
enough to engage the lid-snap lock.
Double check - Once the housing is closed,
check the o-ring seal. Check the gap
between the housing back and the
housing, it should be even all the way around.
Look through the clear plastic back at the o-ring. You should see a
darkened area where the o-ring is compressed against the housing
back. If you do not see an even black compression seal all the way
around the back, open the lid snaps, reseat the housing back, and then
close the lid snaps. Visually check the seal again.
o-ring
housing back
housing back
housing
housing
o-ring
even gap
all 4 sides
9

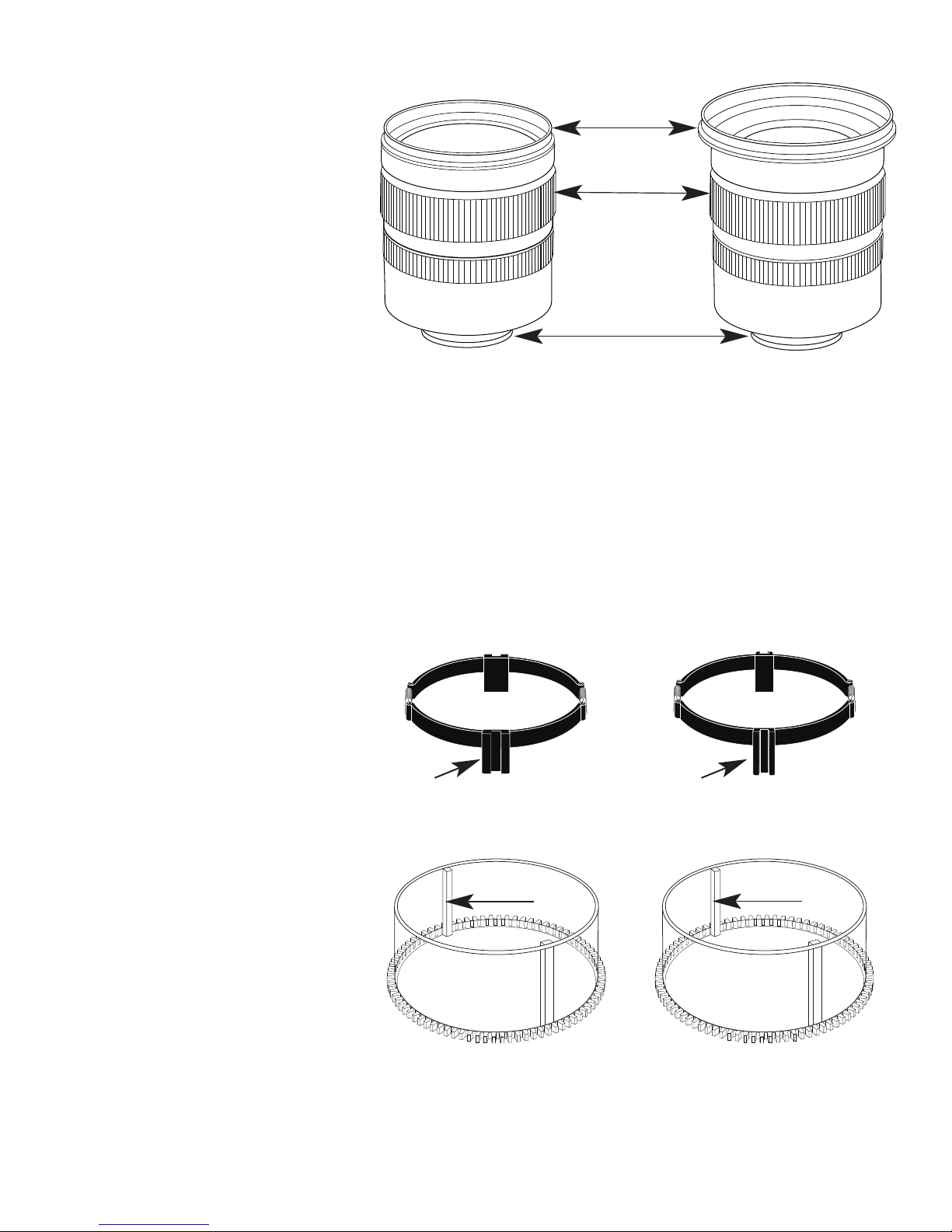

reparing to Install Zoom Clamp & Gear Sleeve
Determine the type
of lens being used
on the camera.
Type 1 Lenses have
a lens opening that
is NOT larger in
diameter than the
zoom ring. (Fig. 1).
Type 2 Lenses have a lens
opening that IS larger in diameter than the zoom ring. (Fig. 2).
Zoom Clamps & Gear Sleeves Included with Housing
There are 2 different
Zoom Clamps and
Gear Sleeves
provided with the
housing. Start with
the suggested Zoom
Clamp and Gear
Sleeve depending
on the Type of
lens being used.
See (Fig. A or B)
lens
opening
zoom
ring
bayonet
mount
Type 1 lens Type 2 lens
(Figure 1) (Figure 2)
Normally used with
Type 1 lens (Fig.1)
#9059.8 small diameter clamp:
For use with #0073 sleeve
+
#0073 sleeve: Use with
small diameter zoom clamp
#9059.8
Figure A
Normally used with
Type 2 lens (Fig.2)
#5509.28 Package
#9059.9 large diameter clamp:
For use with #0073.1 sleeve
+
#0073.1 sleeve: Use with
large diameter zoom clamp
#9059.9
Figure B
thick ribs thin ribs
wide
grooved
extension
tabs
narrow
grooved
extension
tabs
10

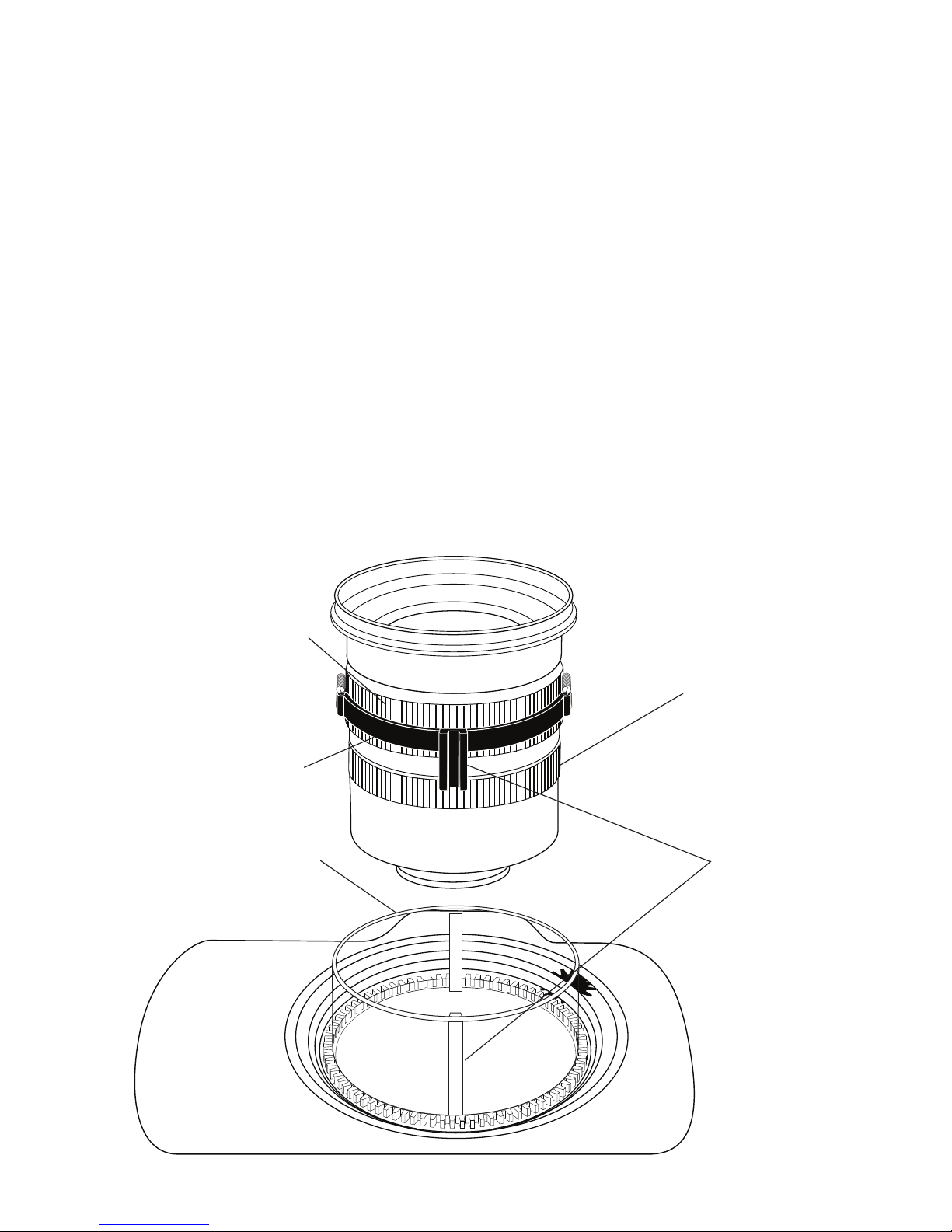

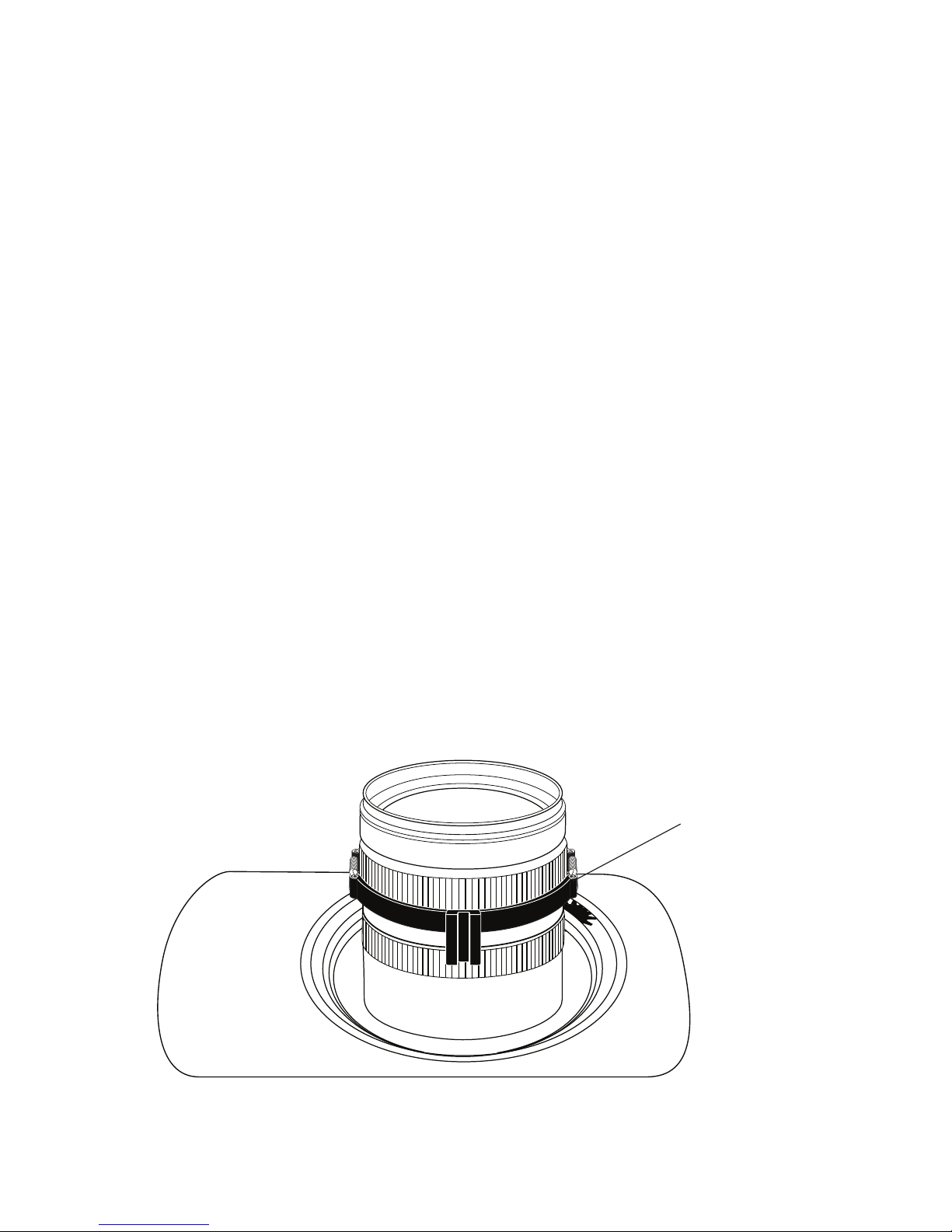

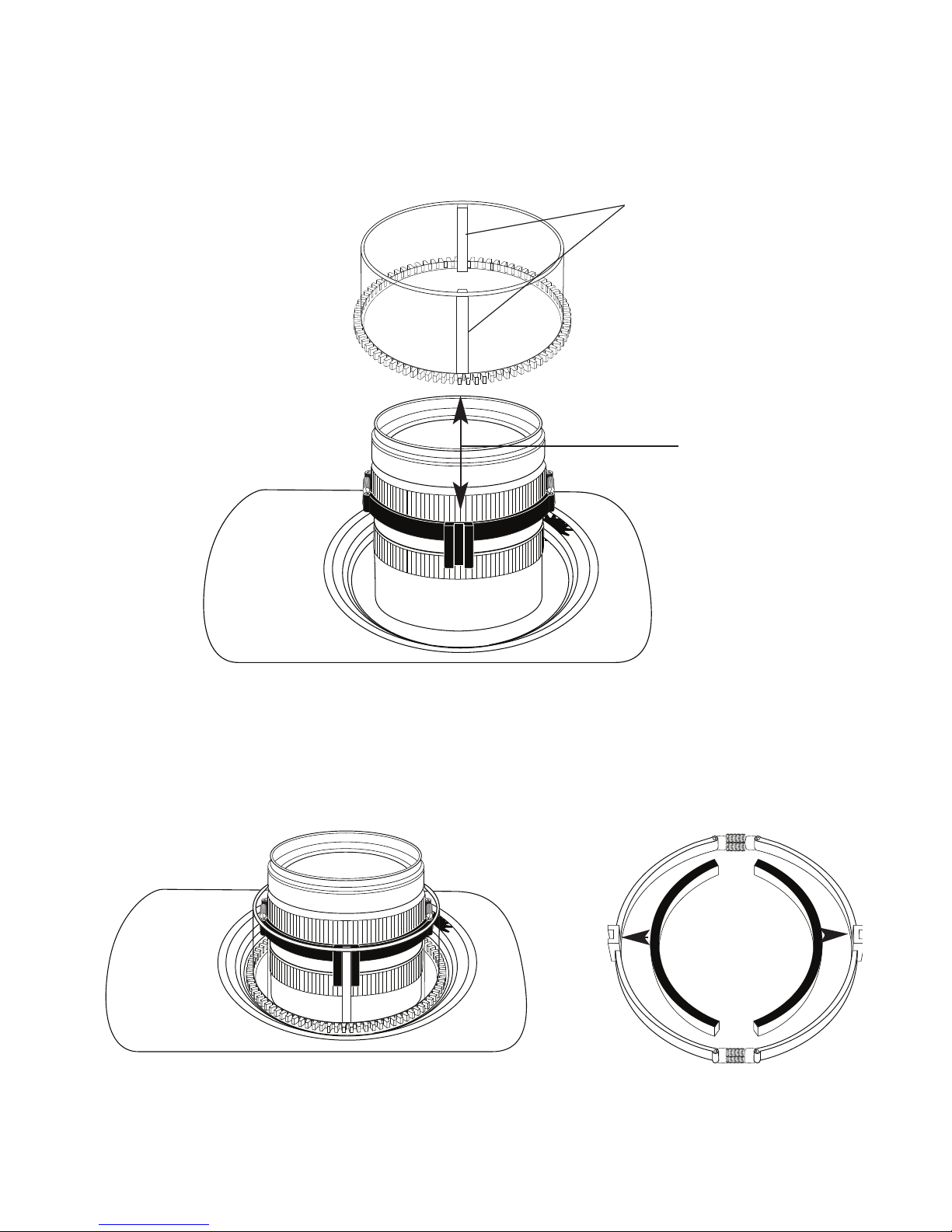

Installing the Zoom Clamp & Gear Sleeve On the Type 1
Lenses
The Zoom Clamp has springs so it can be expanded to fit over the
Zoom Ring of the lens - figure C, page 11.
Install the Zoom Clamp with the extension tabs toward the rear element
of the lens. After installing the Zoom Clamp and Gear Sleeve - figures D
& E, page 12, install the Lens Port and rotate the Zoom Ring on the
lens. If the Zoom Ring and Gear Sleeve do not mesh properly, install the
rubber strips (supplied) to the inside diameter of the Zoom Clamp as
shown in figure F, page 12.
Two thicknesses of rubber strips are provided. Start by installing the
thinnest rubber strips. If the Zoom Clamp still is not tight enough and
meshes improperly with the Gear Sleeve, use the thicker rubber strips.
Reinstall the Zoom Clamp, Sleeve. Mesh Gear Sleeve teeth with Black
ousing Drive Gear, figure G, page 14, and then install the Lens Port.
After installing the port, pages 15 & 16, rotate the housing Zoom Control
Knob to see that the Gear Sleeve is properly rotating the lens Zoom ring.
11
Figure C
Type 1 lens
mounted
to camera
zoom
ring

12
Figure D
Figure E
Align Ribs with
Zoom Clamp
grooved tabs
apply
rubber strips
to inside of
clamp
Figure F
Type 1 Lenses (cont.)
Gear Sleeve Ribs

TOP OF HOUSING
Installing the Zoom Clamp & Gear Sleeve On Type 2 Lenses
Due to the larger diameter lens opening on Type 2 lenses, the Zoom
Clamp and Gear Sleeve need to be installed from the rear (bayonet end)
of the lens. Use the housing Lens Release Control and remove the
camera lens from the camera body, after the camera and lens have
been installed in the housing.
Place the Gear Sleeve in the housing opening as shown.
Install the black Zoom Clamp on the Lens Zoom Ring and lower the lens
into the housing opening. Make sure the Zoom Clamp grooved tabs
align with the Gear Sleeve ribs. If necessary, install rubber strips to
expand the Zoom Clamp so it meshes properly with the Gear Sleeve.
Bayonet lens into camera body and align Gear Sleeve teeth with Black
ousing Gear Teeth.
Zoom Clamp
Type 2 lens
Lens Zoom Ring
Align
Zoom Clamp
grooved
tabs with
Gear Sleeve
Ribs
13
Gear Sleeve
Lens Manual
Focus Ring

Manual Focusing Note:
Ikelite DSLR housings are designed for auto-focus DSLR
cameras and lenses. Manual focusing is not recommended. In some
cases, if you desire to manually focus a lens, the zoom clamp must be
moved onto the lens Manual Focus Ring and you must use the housing
zoom control knob to manually focus. This will result in loss of zoom
capability.
14
Installing Zoom Clamp/Sleeve on Type 2 Lenses (cont.)
Before installing the lens port and checking operation, make sure the
teeth on the Gear Sleeve mesh with the teeth on the housing Drive Gear,
shown below. When the port is installed, pages 15 & 16, it will lock the
Gear Sleeve in place. After installing the port, rotate the housing Zoom
Control Knob to see that the Gear Sleeve is properly rotating the Lens
Zoom ring.
IKELITE
Mesh
Gear Sleeve
teeth with
Black
ousing
Drive Gear

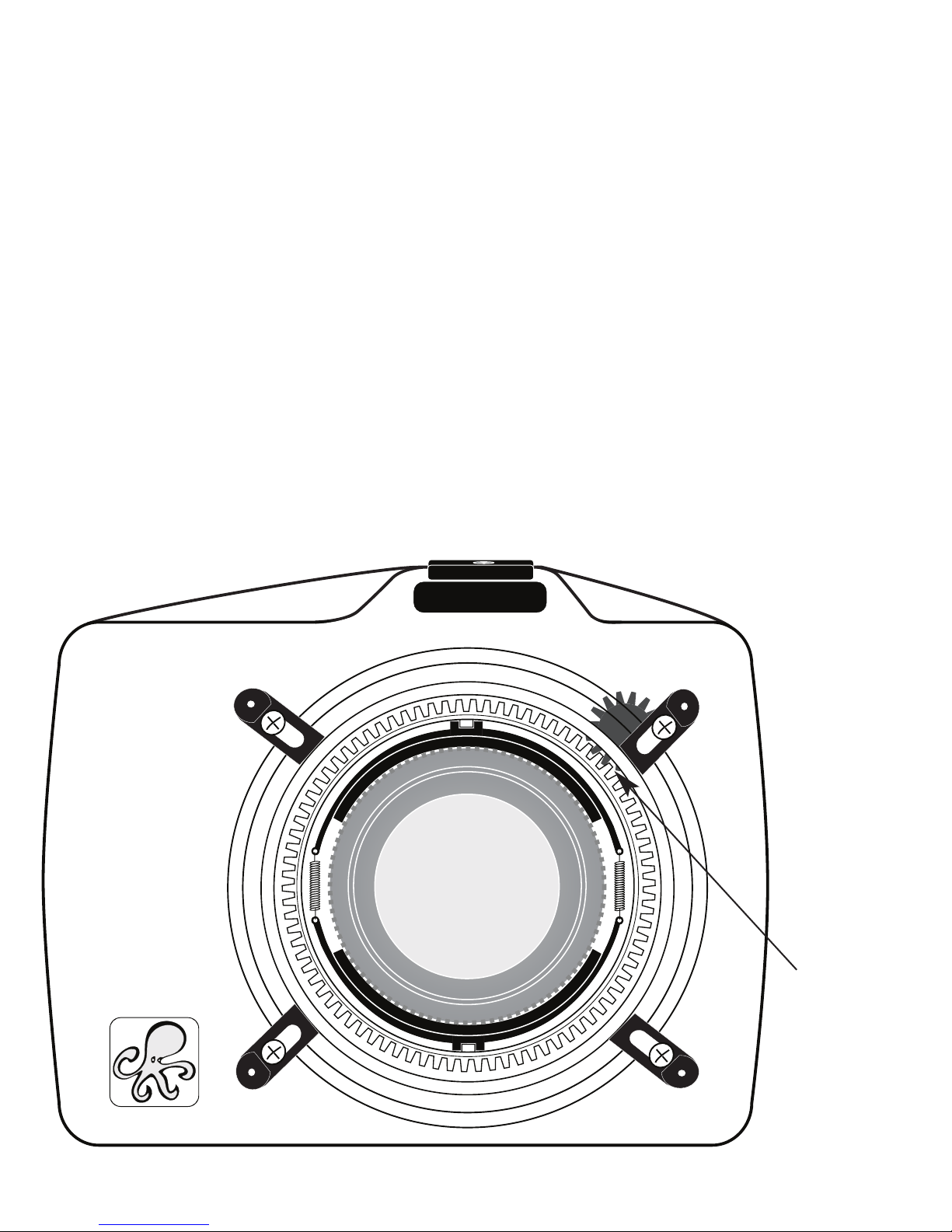

Figure G

15
Installing the ort
There are four port locks on the
front of the housing, see figure
G, page 14. Each port lock has
a Release Button. Lift the
release button and slide each
Port Lock away from the port
opening. In the unlocked
position, the Release Button will
remain in the up position as
shown.
To prepare the port for
installation, remove the port o-ring and lightly lubricate it. The port seal
is a side-to-side seal and requires the o-ring to be lightly lubricated for
easy installation. Put a small amount of lubricant on your fingers and pull
the o-ring through your fingers to lightly lubricate it. Do not stretch the
o-ring. Check that the lip of the port where the o-ring fits and the sealing
surface on the housing are clean. Place the port, with o-ring, into the
housing port opening. Press down on the port firmly and evenly until you
feel the port slide into place. Continue to push down on the port and
push each port lock forward until the lock fully engages. It may help to
slightly rotate the port as you push in on the port lock. Visually inspect
each port lock and confirm that the Port Lock Release Button is seated
flush against the Port Lock Body. Do not rely on an audible "click" to
indicate that the lock is engaged.
Check around the perimeter of the port seal to see that the o-ring is
properly sealed and not extruded, figure 2, page 16.
It is NOT necessary to tighten housing port locks after installing a port.
Port locks are factory adjusted. Slight port movement is normal after port
locks have been closed and port has been secured to the housing.
Port Lock
Release
Button
Lift Release
Button to
Unlock
Pull Back to
Disengage
Port
Locked Position

16
Installing the ort (cont.)
To Remove ort
To remove the port, lift up on each Release Button and slide the port
lock away from the port.
ort Seal Inside View
If the port is installed before the camera is
inserted into the housing, look from the
inside of the housing at the port seal.
Check to see that the o-ring is properly
seated as shown in figure 1 and not
extruded as shown in figure 2.
Fig. 1
Fig. 2
Caution:
After installing the port, turn the Zoom Control knob on the housing. If the
Zoom Control is difficult to turn, the gear sleeve may be warped. If
necessary, reduce or omit any rubber installed on the Zoom Clamp, figure
F, page 12. If the Zoom Clamp is still arped, use of the #5509.28
package may be required, see page 10.
Lens orts
A lens port must be secured to the housing before entering the water.
Ikelite DSLR housings DO NOT come with a lens port. You must select
the correct port for each lens you will be using underwater. For complete
lens port information and compatibility with your Ikelite system, go to
http://www.ikelite.com/web_pages/slrport.html.

17
Housing Conversion Circuitry
This housing has Conversion Circuitry built into the housing. When used
with Ikelite DS Substrobes the Conversion Circuitry provides real Nikon
iTTL flash exposure with over and under-exposure compensation from
+1 1/3 to - 1 1/3 f-stops in 1/3 stop increments.
The Conversion Circuitry also offers Manual exposure control with 3 1/2
f-stops of under-exposure control in 1/2 stop increments.
The Conversion Circuitry is powered by the Ikelite DS Substrobe when
connected to the housing with the #4103.51 single or #4103.52 dual
sync cord. When using two strobes with the dual sync cord, the primary
strobe connected to the cord without the red band, must be turned on to
power the Conversion Circuitry. Always keep both strobes connected to
your dual sync cord underwater. Do not exchange your secondary
strobe for a dust cap which may not be waterproof.
See page 18 for DS50 and DS125 Substrobe compatibility with the
Conversion Circuitry.
Using the Conversion Circuitry (Set DS Substrobe to TTL mode)
-Mode and Compensation Dial
Note that the TTL compensation values are located in the yellow band.
Manual compensation values are located in the black band. Rotate the
Dial to switch between TTL and Manual Modes.
-TTL Mode compensation values are indicated in the yellow band. Place
the Setting Indicator to TTL for NO Compensation. Rotate the Dial either
direction to select +/- compensation. Place the Setting Indicator to the
desired compensation value. Note that in TTL, compensation values are
in 1/3 f-stops.
-Manual Mode compensation values are indicated in the black band.
Rotate the Dial to place the Setting Indicator to the desired compensation
value. Note that in Manual Mode, compensation values are in 1/2 f-stops
from (F) full power to -3 f-stops.
Set DS Substrobe to TTL mode. This will allow the strobe power to
be varied in manual mode.

18
Using Non-Ikelite or Ikelite Non-DS Substrobes
(Substrobe 50, 100A, 200, 400) with this Housing
The Conversion Circuitry is automatically disabled when used with a
Non-Ikelite or Non-DS Substrobe. These Substrobes can be used in their
manual mode utilizing any power settings provided on the Substrobe.
DS50 and DS125 Substrobe Compatibility
- Older DS50 Substrobes with Serial Number below 63,850 can NOT be
updated to operate correctly with the latest TTL conversion circuitry.
Older DS50 Substrobes with Serial Number between 63,850 and 69,999
require upgrade of electronics to operate. Cost of update depends on
strobe circuitry. Strobe must be returned to Ikelite for evaluation to
provide an estimate of upgrade cost.
- Older DS125 Substrobes with Serial Number below 2,500 can NOT be
updated to operate correctly with the latest TTL conversion circuitry.
Older DS125 SubStrobes with Serial Number between 2,500 and 4,999
require upgrade of electronics to operate. Cost of update depends on
strobe circuitry. Strobe must be returned to Ikelite for evaluation to
provide an estimate of upgrade cost.
Setting Indicator
DIAL
TTL Flash Scale (yellow = 1/3 stops)
Manual Flash Scale (black = 1/2 stops)
Flash Mode and Compensation Dial

19
re-Dive Your System
It is recommended that you take the complete system into a swimming
pool before use in open water. This will give you a chance to become
familiar with the handling and operation of your housing and strobe(s).
As soon as you enter the water, take a moment and check the housing
to see that it is properly sealed. Next, check to see if there are any
bubbles on the face of the port. If there are, take your fingers and
remove them. If there are bubbles on the lens port they can produce soft
focus spots in your photographs.
Lubricants
- Ikelite provides silicone lubricant with the housing. We recommend that
you use only Ikelite lubricant. Other brands may cause the o-ring to
swell and not seal properly.
- Use only enough Ikelite lubricant to lightly cover control shafts and
o-rings. Wipe off any excess lubricant with a clean cloth. Lubricant is not
a sealant and is used to reduce friction. Excessive lubricant can collect
sand and dirt which may interfere with proper sealing.
Note: Lubricant is not needed on the main housing o-ring to maintain a
housing seal, however, lightly lubricating this o-ring can extend it’s life
and aid in seeing a good housing seal. Too much lube can attract debris
increasing the potential for a leak.
CAUTION: Never use spray lubricants as the propellant ingredient
can cause the plastic housing to crack. Use ONLY Ikelite lubricant.
Usage

20
Troubleshooting
Push buttons or
controls are sticky
and hard to operate
- Remove the camera and rinse the closed housing
in fresh water. Vigorously press each push button
in and out several times to release any trapped
saltwater or debris.
- Press a sticky push button all the way in and
place a small amount of lubricant on the small
end of the push button shaft at it’s base. Release
and operate the push button several times to
distribute the lubricant.
- If a control is sticky, grab the control knob, pull it
out, and then push back in. If still sticky, see the
Control Maintenance section - pages 23 & 24.
- Return housing to Ikelite for routine maintenance.
roblem Solution
Image is over- or
under-exposed
- Check that the strobe(s) are firing when taking
a picture.
- When using an external strobe, make sure it is
turned on, set properly, and it’s battery is charged.
- Check any corded connection points.
- Adjust camera shutter speed, aperture, or
exposure compensation.
- Move closer to or further away from the subject.
Water enters the
housing
- Remove, clean, and properly lubricate the main
housing and port o-rings.
- Look for hairs, dirt, or foreign debris crossing the
o-ring seal.
- Reassemble the housing without a camera
installed and pressure test or take diving.
- Return housing to Ikelite for routine maintenance.
