Illuminous EV-DMX-RGB12V User manual

Vs2_0 051914
EV-DMX-RGB12V
DMX RGB Controller 12V-24V High Power 8A/ch
Control: There are 4 control keys, Mode, Para, Up, Down. Use Mode or Up/Dowen to select the desired program
#
Mode
Description
1
BLACK
Static black
2
STATIC RED
Static red
3
STATIC GREEN
Static green
4
STATIC BLUE
Static blue
5
STATIC YELLOW
Static yellow
6
STATIC PURPLE
Static purple
7
STATIC CYAN
Static cyan
8
STATIC WHITE
Static white
9
COLOR CHANGE
Seven color Abrupt Change
10
COLOR CHANGE2
Abrupt change (flicker)
11
6 COLOR CHANGE
Six color Abrupt Change
12
6 COLOR CHANGE2
Abrupt Change (flicker)
13
RGB CHANGE
Three color Abrupt change
14
RGB CHANGE2
Abrupt change (flicker)
15
RG CHANGE
RG Abrupt Change
16
RB CHANGE
RB Abrupt Change
17
GB CHANGE
GB Abrupt Change
18
WHITE CHANGE
White stroboflash
19
7 COLOR SMOOTH
Seven color gradual changing
20
4 COLOR SMOOTH
Four color gradual changing
21
RG SMOOTH
RG gradual changing
22
RB SMOOTH
RB gradual changing
23
GB SMOOTH
GB gradual changing
24
COLOR GRADUAL
Seven color fade in and out
25
RGB GRADUAL
Three color fade in and out
26
WHITE GRADUAL
White fade in and out
27
RG GRADUAL
RG fade in and out
28
RB GRADUAL
RB fade in and out
29
GB GRADUAL
GB fade in and out
30
R GRADUAL
R fade in and out
31
G GRADUAL
G fade in and out
32
B GRADUAL
B fade in and out
33
ADJUST MODE
0-255 level adjusted color
34
AUTO PROGRAM COLOR
CHANGE2
Auto operation selecting result of changing
35
DMX512 MODE
DMX512 control order
36
DMX512 DECODER
DMX512 decoder

Vs2_0 051914
oPress PARA to adjust i: (1－8 is static state, do not have adjust function)
Parameter
Instruction
1
Max
Min
2
Run Speed
100
0
3
Run Time
100
0
4
Load Default
Restore the factory parameter
3) UP: increase parameter key/preset parameter.
4) DOWN: decrease parameter/preset parameter.
5) AUTO PROGRAM mode to set auto-repeat of the preset programs 7-32. RUN TIMES sets the repeated cycle time
6) RUN TIMES: sets the run time of the pattern under 34 AUTO PROGRAM, if the run times is 0, you can skip (not run)
the pattern
7) Preset parameter: LOAD DEFAULT can recover the factory parameters. If under AUTO PROGRAM mode, using
LOAD DEFAULT can recover all factory set parameters.
8) 32 ADJUST MODE is manual dimming, it can adjust the brightness of RGB 0-256 level respectively.
9) 34 DMX512 MODE is controlling all patterns by just DMX address and speed, (the first address) and speed (the
second address).
10) 35 DMX512 DECODER is DMX decoder, completely accepting outside DMX512 control. Taking 4 addresses, R(the
first address), G(the second address), B(the third address), reserved channel (the fourth channel), Press PARA to set
the address.
Notes:
1) Ensure no Short-circuit on the Ouput RGB

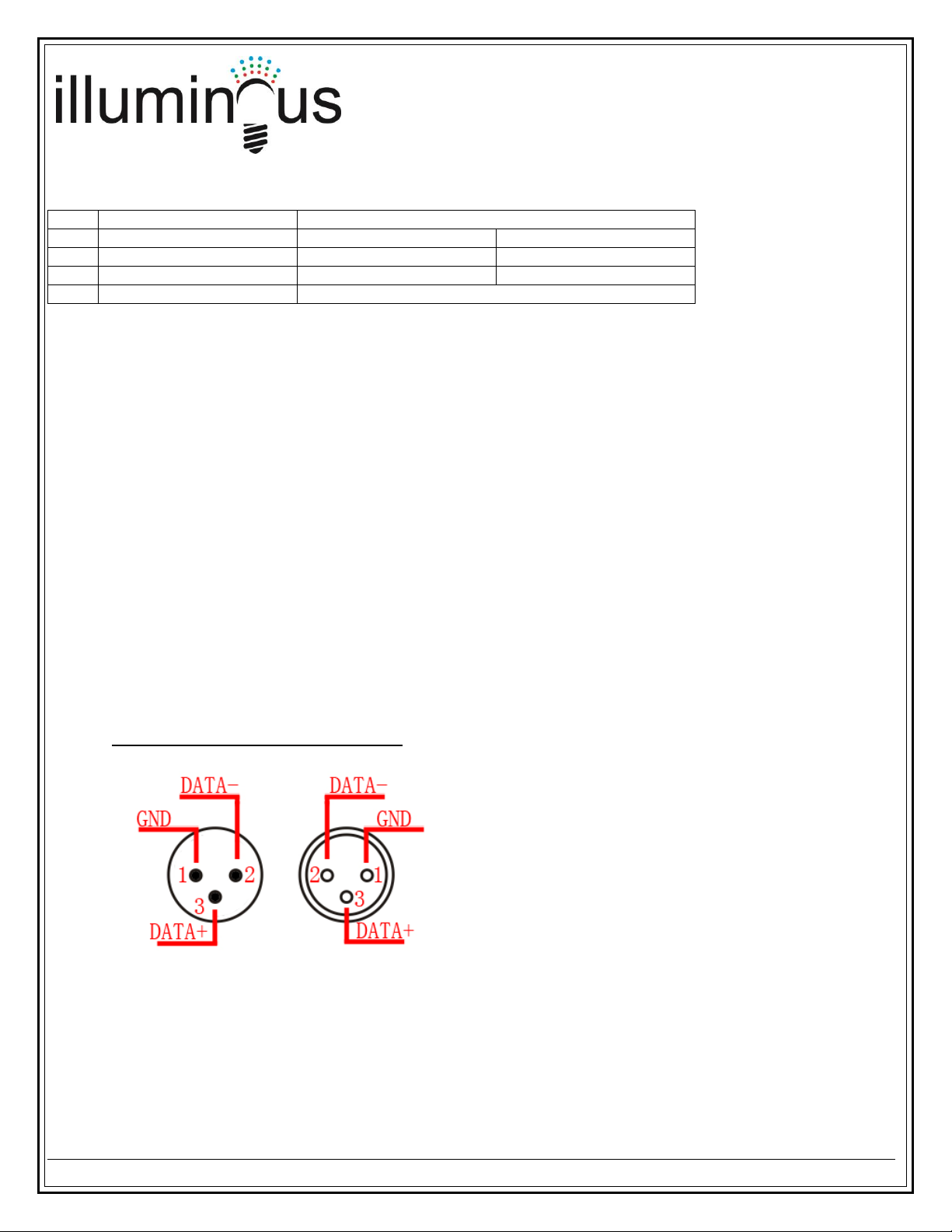

2) Standard DMX control pins as below:
3) You can control a single RGB device, i.e wallwasher or 12V LED Flex Strip, like Illuminous EV-ST-WP-RGB

Vs2_0 051914
Or you can cascade
