DISCLAIMER
This product is a professional machine, we do not assume any responsibility for accidents or losses caused by the
use or maintenance of this product by personnel without professional training and permission.
If the information contained in the manual or the product specications are changed, Spark Fabrica will not inform
you further and responsible for any errors or omissions.
Our company reserves the right to modify the user manual at any time.
Please read the manual carefully before installing and using this product. Failure to read or comply with this
manual may result in injury to products and personnel, and Spark Fabrica shall not be responsible for this.
PREFACE
This manual includes warning, caution and notice concerning the safe operation of equipment. These warning,
caution and notice come with the following icons. Please read them carefully!
This warning indicates a dangerous situation that may result in death or serious injury if not
avoided.
This alert indicates a dangerous situation that may result in mild or moderate injury if not
avoided.
This means that you need to be careful.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A1

1. PRODUCT INTRODUCTION
Kungfupao is a new spark device without gunpowder and reworks invented by Changsha
Spark Technology Electronics Co.,Ltd. It is a new product which produce istant spark eect.
This product can be widely used in weddings, opening celebration, meeting, sports events,
concert and so on.
1.1 PRODUCT OVERVIEW
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A2

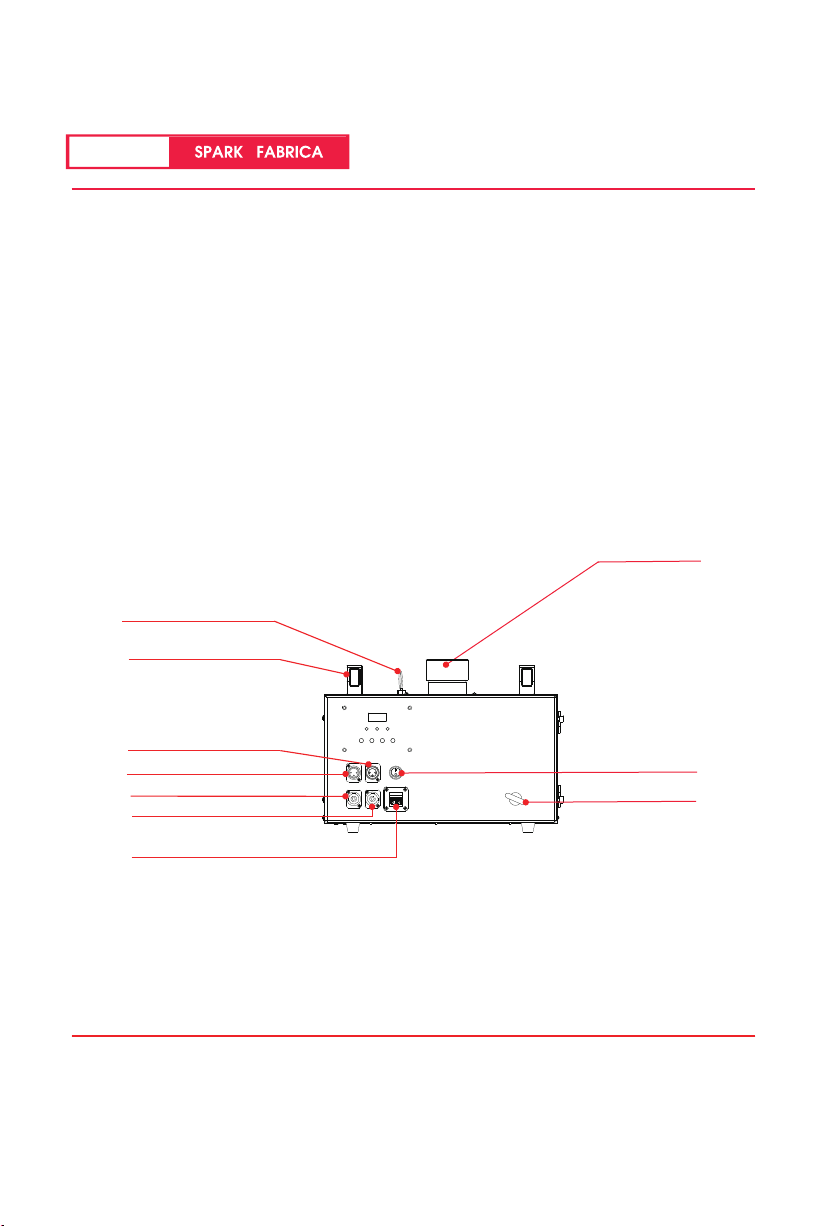

SAFETY RING
NOZZLE
POWER IN
DMX IN
IMPULSE CONTROL SIGNAL INPUT 12V
DMX OUT
HANDLE
LOCK PIN
POWER OUT
POWER

Open the package carefully and check to make sure the goods are in good condition.
NOTICE
1.2 PRODUCT ACCESSORIES

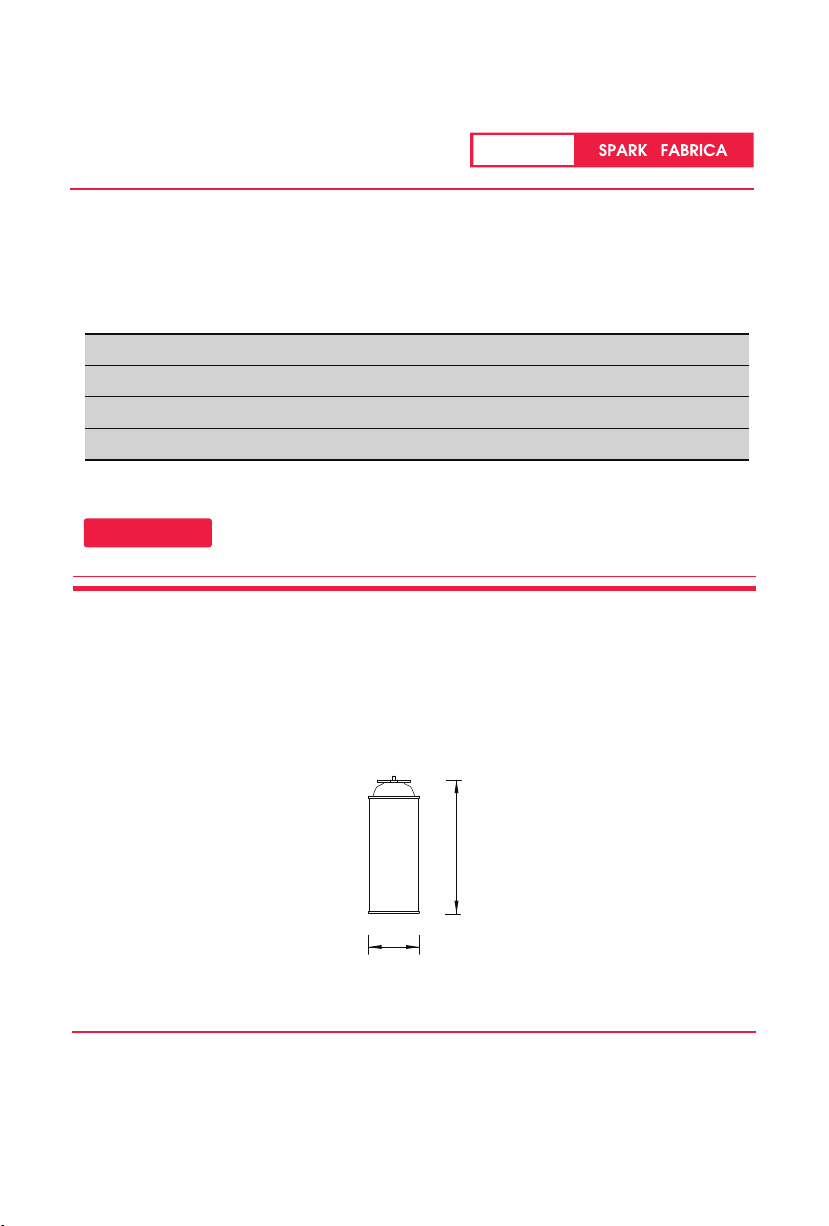

Granule for this product is liqueed butagas, and the gas cylinder is universal portable
butagas cylinder. Its dimension is 68mm*180mm, and volume is 220±5g. Please use
qualied products from formal manufacturer.
1.3 BUTANE GAS
1.6M Power Plug
User Manual
3 Meters DMX Pair Cable
3 Meters Power Pair Cable (optional)
180mm
68mm
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A3

2 TECHNICAL PARAMETER
Brand SPARK FABRICA
Kungfupao/SF-K1
100-260V，50 / 60HZ
6
10W
Name
Battery Quantity
18650 Lithium Battery
Battery Mode
Power
Composite Ti (medium)
Portable Butagas Cylinder
Granule
Tank type
2
8g-10g /min
Net Weight 16Kg
Gross Weight 18Kg
Machine Dimensions - L*W*H 400*350*285mm
Machine Packing Dimensions - L*W*H 455*400*310mm
Input Voltage & Frequency
Identification
AC Power
Granule
Gas Cylinder
Weight
Dimension
Number Of Installed Gas Tanks
Gas Consumption
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A4
3M
70g
Height
Powder Tank Capacity
1g
Powder Consumption (100% Output)

3.1 BACK PANEL INTRODUCTION
3 SCREEN OPERATION GUIDE
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A5
Decrease Increase
RUN: Working Indicator
MENU: Menu
ERR: Error Indicator
DMX： DMX Signal Indicator
ENTER: Enter
POWER: Power
POWER OUT: Power Out
DMX OUT: DMX Output
DMX IN: DMX Input
IMPULSE
Impulse Control Signal Input
12V
POWER IN: Power In

3.2 DMX PARAMETER LIST
4 SAFETY NOTICE
Do not mount the product on a ammable surface (linoleum，carpet, wood, paper, carton,
plastic, etc). Make sure there are no inammable or combustible materials in the using
environment.
Do not use in a conned space. Always install the product in a location with adequate
ventilation, at least 20 in (50 cm) from adjacent surfaces.
This product has no lightning protection, please do not use this product in thunderstorm
weather.
Keep people or ammable materials at least 10 feet (3 meters) away from the machine,
and make sure that debris does not fall on ammable objects.
First Channel
0-9
10-255
Second Channel
0-9
10-255
Function
Close gas loading
Start gas loading
Function
Fire off
Fire on
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A6

Always connect the ground wire to avoid electric shock.The machine cannot be
submerged in water while operating it.
Ground water entering or covering the bottom of the machine will cause machine failure
or electrical leakage risk. Make sure the bottom of the machine is at a safe distance from
the surface water in rainy weather to avoid surface the machine from the bottom.
Minors are prohibited from using and operating.
Minors are prohibited from using and operating.
Please read user manual before use.
Please use a qualied butane gas and strictly follow the instructions on the tank.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A7
Make sure the surrounding area is well ventilated without inammable material.
The safety distance of this product is 3 meters.

5 MACHINE OPERATION
5.1 INSTALL BATTERY
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A8
The nozzle of this product has a strong air pressure, please do not place other items on the
nozzle.
It is necessary to remove the gas tank when the product is stored in outdoor with high
temperature for a long time.
Aer use, please take out gas tank and store it in a cool & ventilated place to avoid direct
sunlight.
Don’t aim nozzle at people or other things.
This product is powered by batteries which are 18650 lithium batteries. A total of six
batteries’ standby time is 160 hours. Battery will be charged automatically when the
power input plug is connected. Green light of "RUN" indicates that batteries are full
when power switch is turned on. Please use the same voltage and capacity batteries,
otherwise batteries may be overcharged and cause re or explosion accidents.

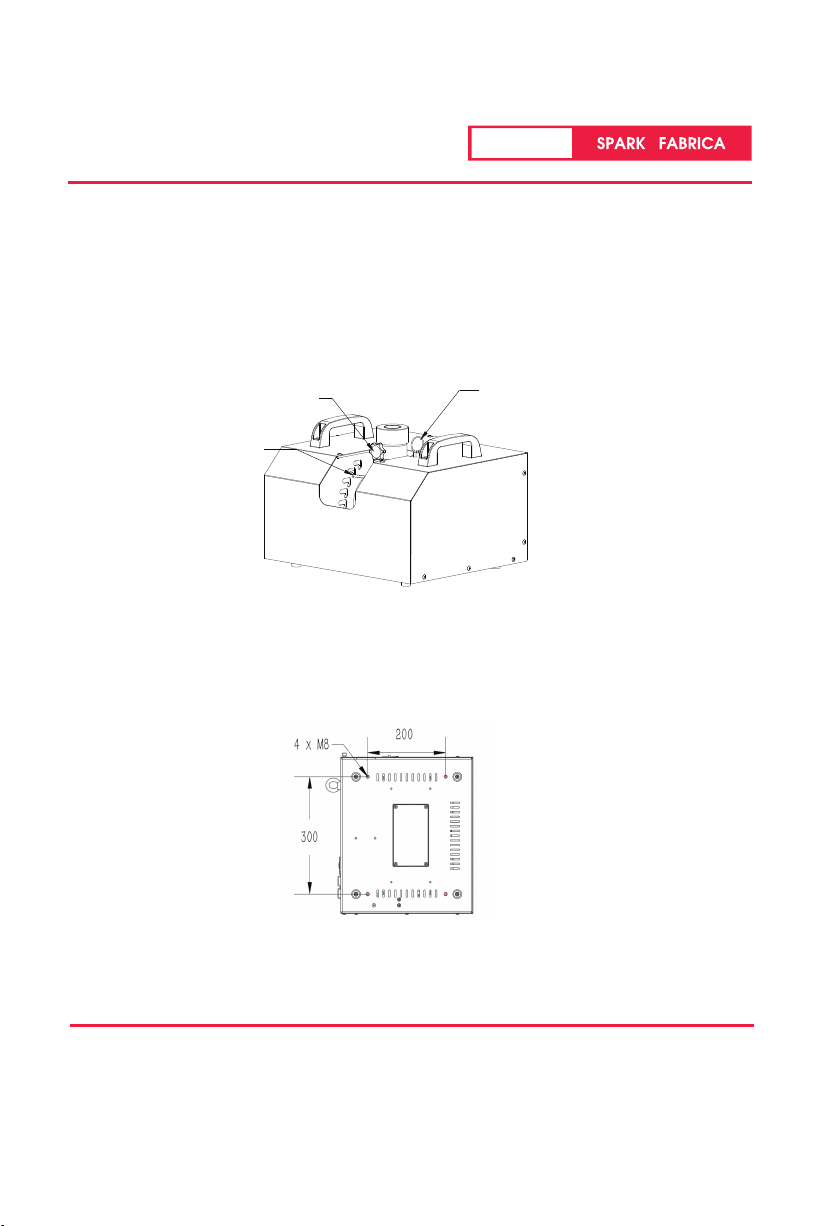

5.3 INSTALL MACHINE
5.2 ADJUSTANGLE
Install machine on the solid horizontal ground or truss, through four M8 nuts on the
base-plate.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A9
* The angle of gun tube can be adjusted freely. There are 5 angles, and each angle is
spaced 15 degrees apart. Please install safety shaft to the position required before
adjustment and pull up lock pin to adjust the angle.
Lock Pin
Angle Shaft
Handle

*Symbol of are showed on the panel.
Spark Fabrica Granule is the consumable specially designed for spark machine,to simulate
cold fountain re works eect for stage.
*Tear the vacuum package of granule,and fill the granule into the nozzle of Kungfupao.
5.4 INSTALL BUTANE GAS
5.5 FILL GRANULE
*Install tank: Combine tank’s gas with ，and spin to .
*Remove tank：Spin tank to for removing it.
If the tank can’t be installed successfully,please check buckle is in the right place.
Please do not aim Nozzle as person or other things.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A10

6 START TO OPERATE
*Use AC power: After connecting power, switch power to ON. Then power light and
digital tube light will be ON.
*Use DC power: Digital tube light and power light will be ON after connecting DC
power.
* It means no granule when digital tube shows”E1”.
6.1 TURN ON MACHINE’S POWER
6.4 DISCONNECT POWER AND CLEAR
*Turn off the machine.
* Disconnect power and DMX signal cable.
*Remove gas tank and store it in a cool, well-ventilated place to avoid direct sunlight.
*Check if there is foreign matter in machine and remove it.
6.2 DMX CONTROL
Use DMX cable to connect 512 console and machines’ DMX IN interface. DMX OUT can
connect multiple machines, and set the ADDRESS code of DMX for each machine aer
connection. This product has 2 channels mode. Please refer to screen operation guide to
set DMX parameters ,and please do not set address code repeatedly.
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A11

Display Code Error Information
Lack of granule
E1
E3 Gas leakage fault
Replace granule
Check the leakage and replace the pipe
Solution
7 FAILURE HANDLING
www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A12
Sincere thanks for your choosing Kungfupao SF-K1, you will receive quality service
from us.
The product warranty period is 3 year. If there are any quality problems within 7 days aer
shipping out from our factory, we can exchange a brand new same model machine for you.
We will oer free of charge maintenance service for machines which with hardware
malfunction (except fortheinstrumentdamagecaused byhumanfactors)in warranty
period. Please don't repair machine without factory permission.
Below situations NOT included in warranty service:
Damage caused by improper transportation, usage, management, and maintenance, or
damagecaused byhumanfactors;
Disassemble, modify or repair products without SPARK FABRICA permission;
8 WARRANTY INSTRUCTIONS
NOTICE
NOTICE
Damage caused by external reasons (lightning strike, power supply etc)；
Damage caused by improper installation or use;
NOTICE
NOTICE

www.sparkfabrica.com
CHANGSHA SPARK TECHNOLOGY ELECTRONICS CO.,LTD
KUNGFUPAO USER MANUAL | A13
9 WARRANTY CARD
*Invoice and warranty card are necessary when applying for maintenance service from SPARK FABRICA.
Product Name:
Purchase Date:
Tel:
Address:
Actual Problem:
Maintenance Detail:
Service Engineer:
Info.Feedback About
The Problem：
Serial No：
Service Date:
For product damage not included in warranty range, we can provide paid service.
WARRANTY CARD
NOTICE

www.sparkfabrica.com
[email protected] [phone]
